Standard Battery Pack For Pride Go-Go Ultra X & Elite Traveller - BATASMB1028
Standard Battery Pack For Pride Go-Go Ultra X & Elite Traveller - BATASMB1028
In stock
Couldn't load pickup availability
- Free ground shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
- 30 Day Return Policy
- Fulfillment: Usually ships in 1-2 business days
- This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects
Product Description
This complete OEM replacement battery box assembly replaces the standard Size 12Ah battery pack on your Go-Go Ultra X, Elite Traveller or Elite Traveller 2 mobility scooter. You can purchase it as an empty housing to install your own batteries, or choose to have it arrive fully loaded with our premium Interstate batteries. Replaces Pride Mobility Part Numbers: BATASMB1028 & PLSASMB2013.
Specifications & Dimensions
- Brands:
- Pride Mobility
- Dimensions:
- 13.5" Width x 9" Length x 6.25" Height
- Color:
- Black
- Weight:
- 20 Pounds / 5 lbs (empty)
- Replaces Pride Mobility Part Number(s):
- BATASMB1028 & PLSASMB2013 (Sometimes listed as BATASMB1028P & BATASMB1028X1)
The Empty Battery Box Includes The Following Components:
-
Empty 12Ah Battery Box: (Part Number: PLSASMB2013) Includes the main housing and the following parts.

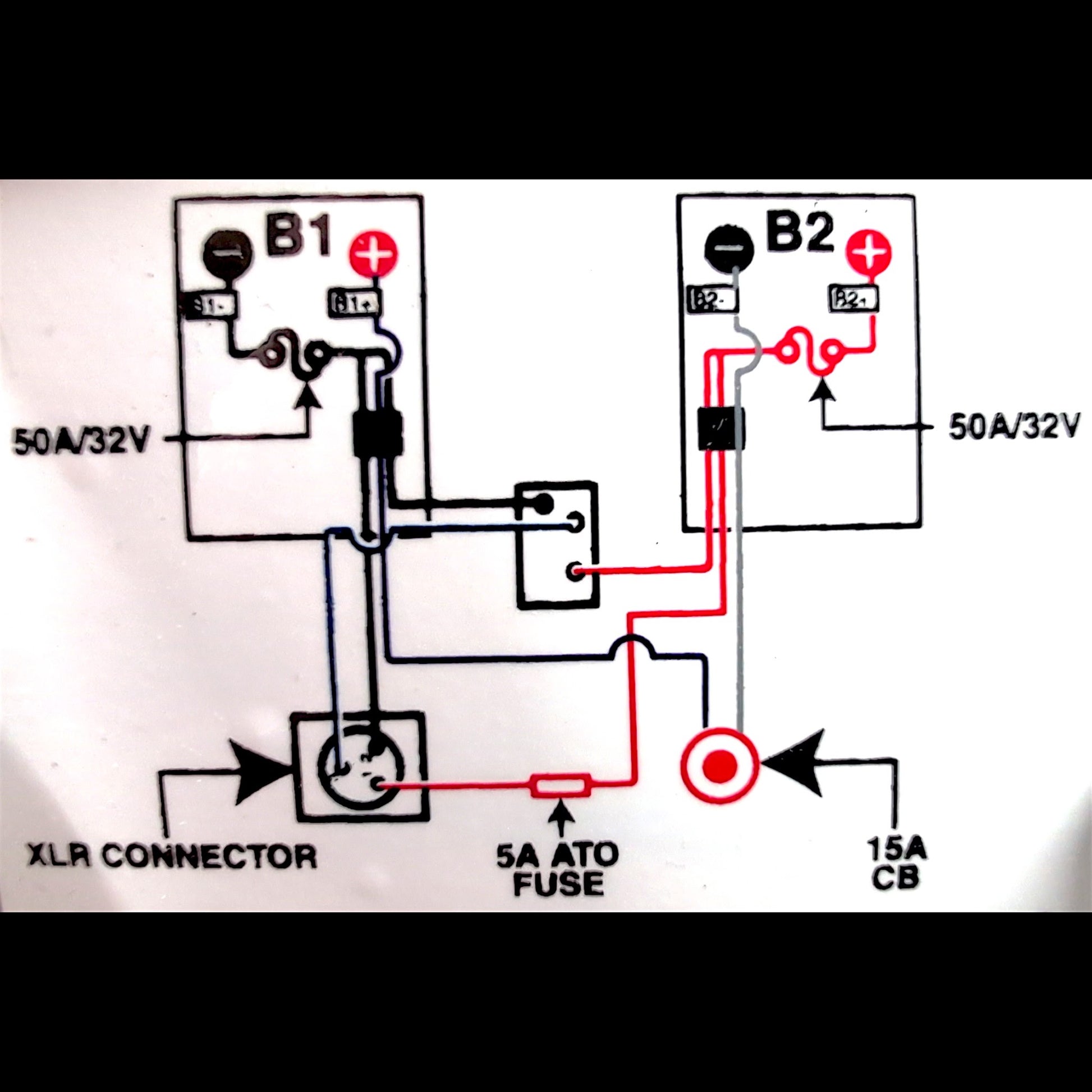

- Electronic Harness: (Part Number: DWR9983H001) Features a 3-pin XLR charging port, (2) inline 50 Amp/32 Volt fuses, wiring, and connectors.

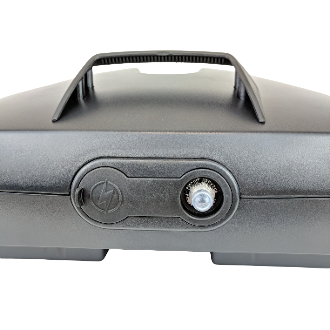

- 15 Amp Electronic Circuit Breaker: (Part Number: ELECBRK1013)

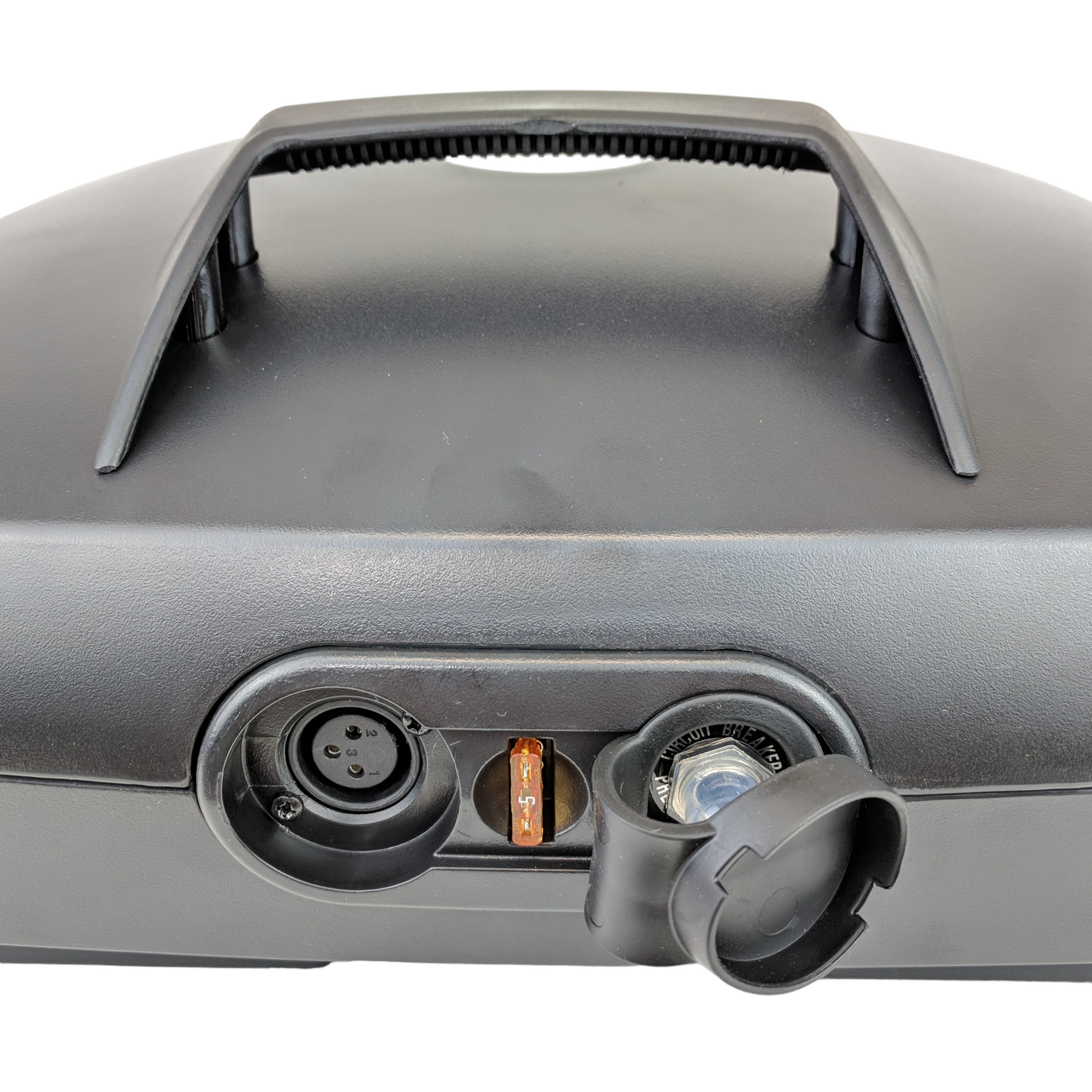

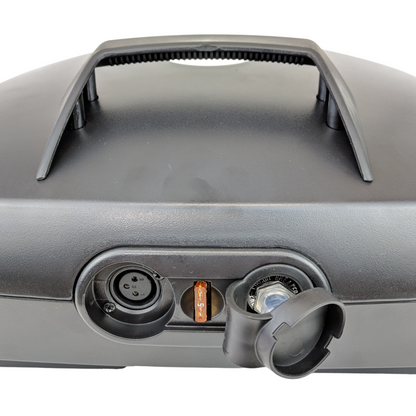

- 5 Amp / 37 Volt Automotive Type Fuse: (Part Number: ELEFUSE1013) (Littelfuse Part Number: 257005)
- Silicone Button Cover: (Part Number: INDPART2420) Circuit breaker weather cap with M11-1.0 Nut
12V Battery Box Options

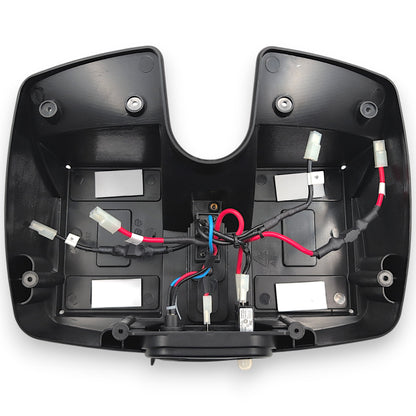

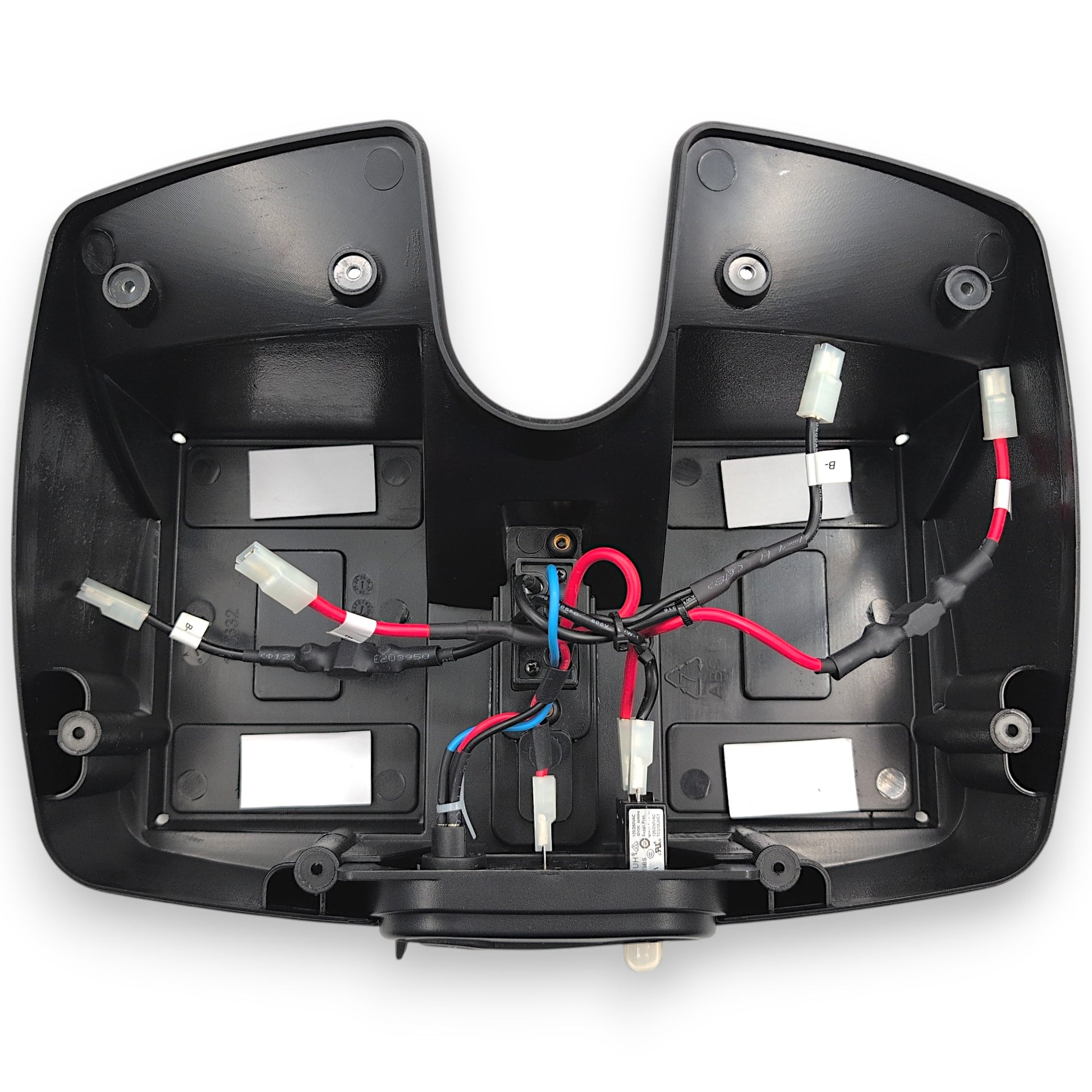

- No Batteries (Battery Box Only):
- You will receive the empty battery box and electrical components needed to install your own standard or deep cycle batteries.

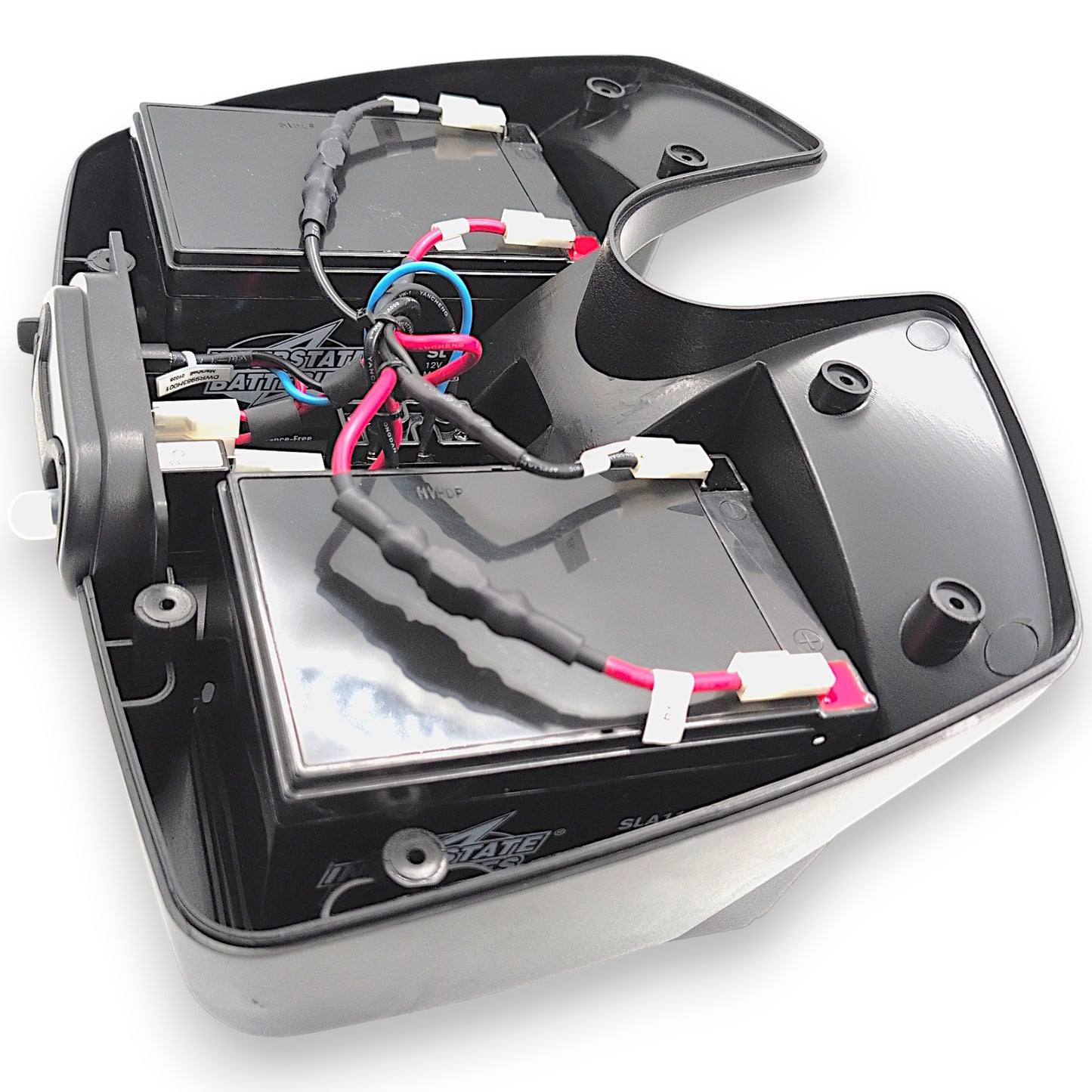

- Interstate SLA1104:
- Ready to use. Includes two 12-Volt, 12 Amp Standard batteries pre-installed.

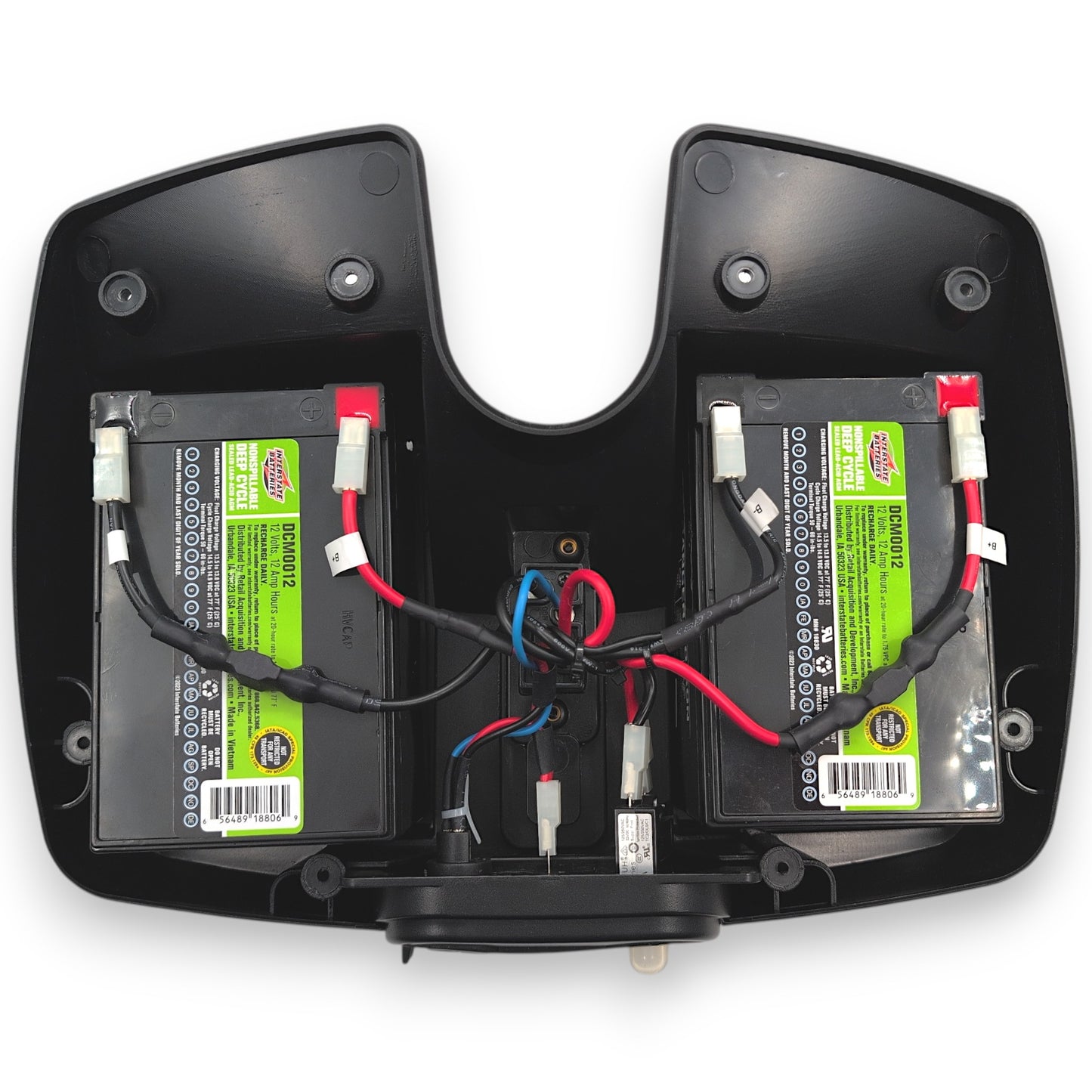

- Interstate DCM0012:
- Ready to use. Includes two 12-Volt, 12 Amp Deep Cycle batteries pre-installed.

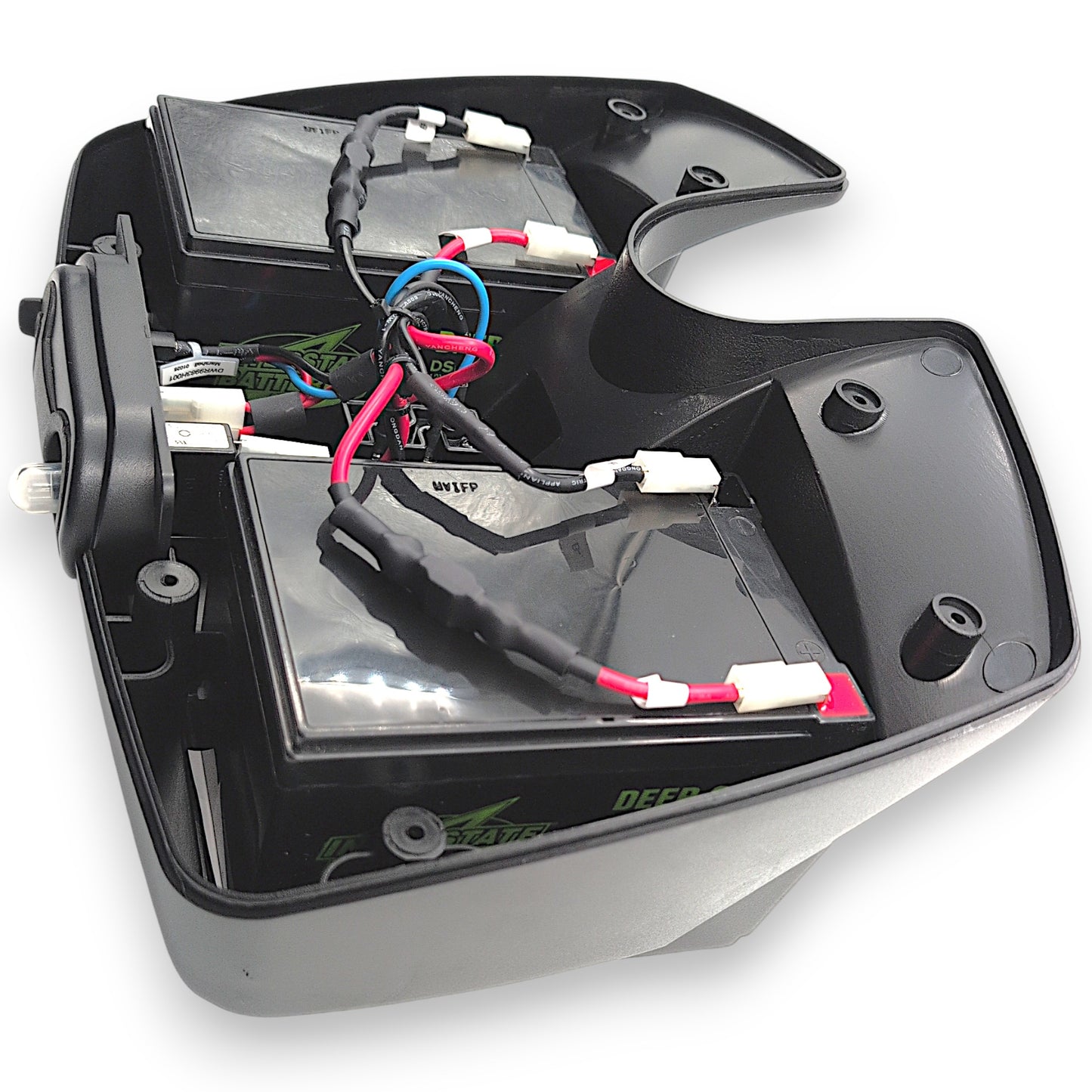

- Interstate DSL1104:
- Ready to use. Includes two 12-Volt, 15 Amp Deep Cycle batteries pre-installed.
Compatible Pride Mobility Go-Go Scooter Models
- Go-Go Ultra X (3-Wheel):
- Model Number SC40X
- Go-Go Ultra X (4-Wheel):
- Model Number SC44X
- Go-Go Ultra X Gen 3 (3-Wheel):
- Model Number S39
- Go-Go Ultra X Gen 3 (4-Wheel):
- Model Numbers S49, SC493
- Go-Go Elite Traveller (3-Wheel):
- Model SC40E
- Go-Go Elite Traveller (4-Wheel):
- Model SC44E
- Go-Go Elite Traveller 2 (3-Wheel):
- Model SC402E
- Go-Go Elite Traveller 2 (4-Wheel):
- Model SC442E
Note: The four Go-Go Elite Traveller models listed were made with two different battery box size options. You are currently viewing the Standard 12 Amp Hour (Ah) size. If your current battery box is larger, you may need the 18 Amp Hour (Ah) High-Capacity Battery Box instead. If you are not sure, please double-check the pictures in this listing before adding this to your cart.
Note: This Does Not fit the U body Gogo Ultra Model Numbers: SC40U and SC44U. The battery box for those models is PLSASMB1980 / BATASMB1017.
