Pride Mobility Lift Chair Motor / Actuator - MOT2504188 - LMD6208
Pride Mobility Lift Chair Motor / Actuator - MOT2504188 - LMD6208
In stock
Couldn't load pickup availability
- Free 2-day shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
- Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
- 30 Day Return Policy
- Fulfillment: Usually ships in 1-2 business days
- This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects
Product Description

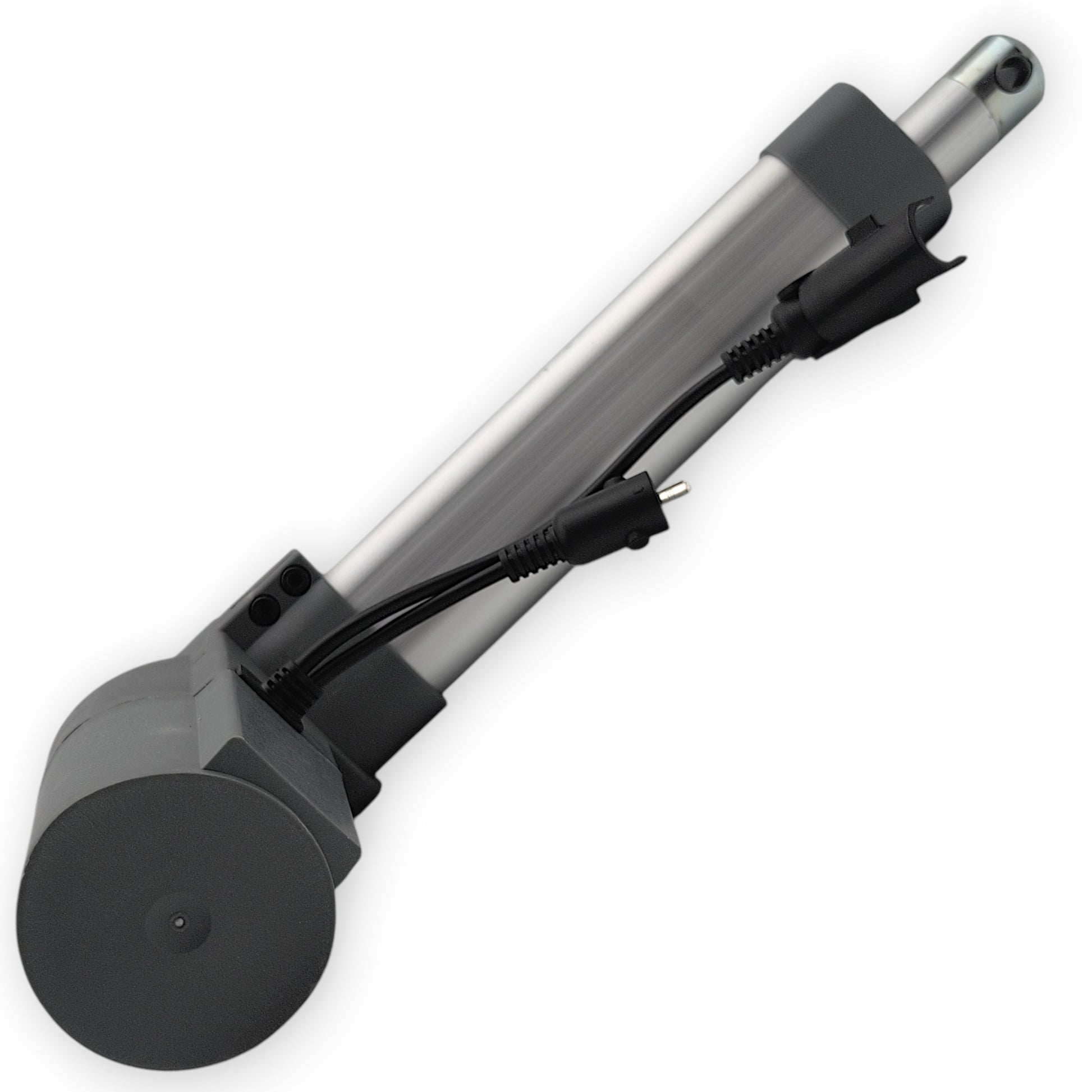

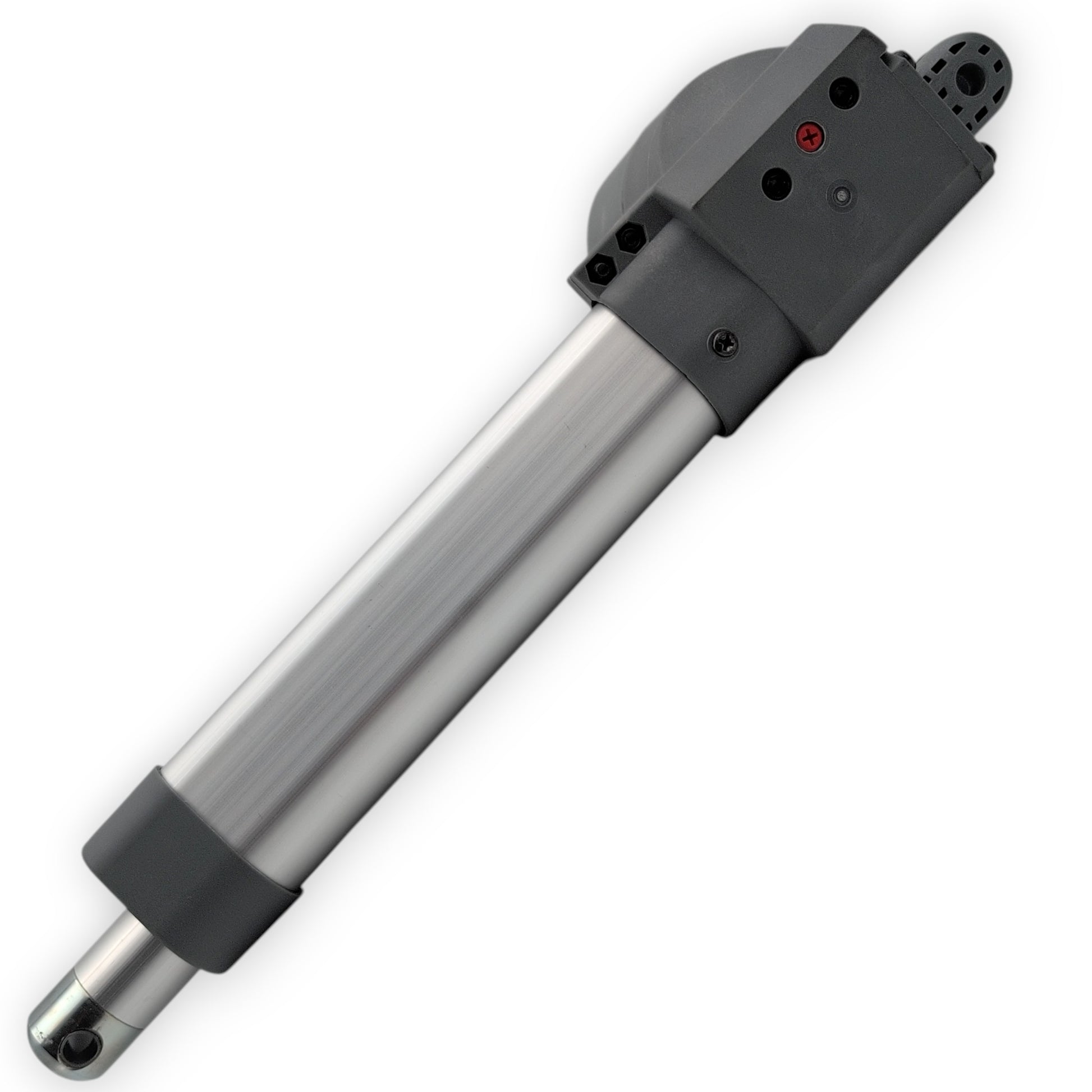

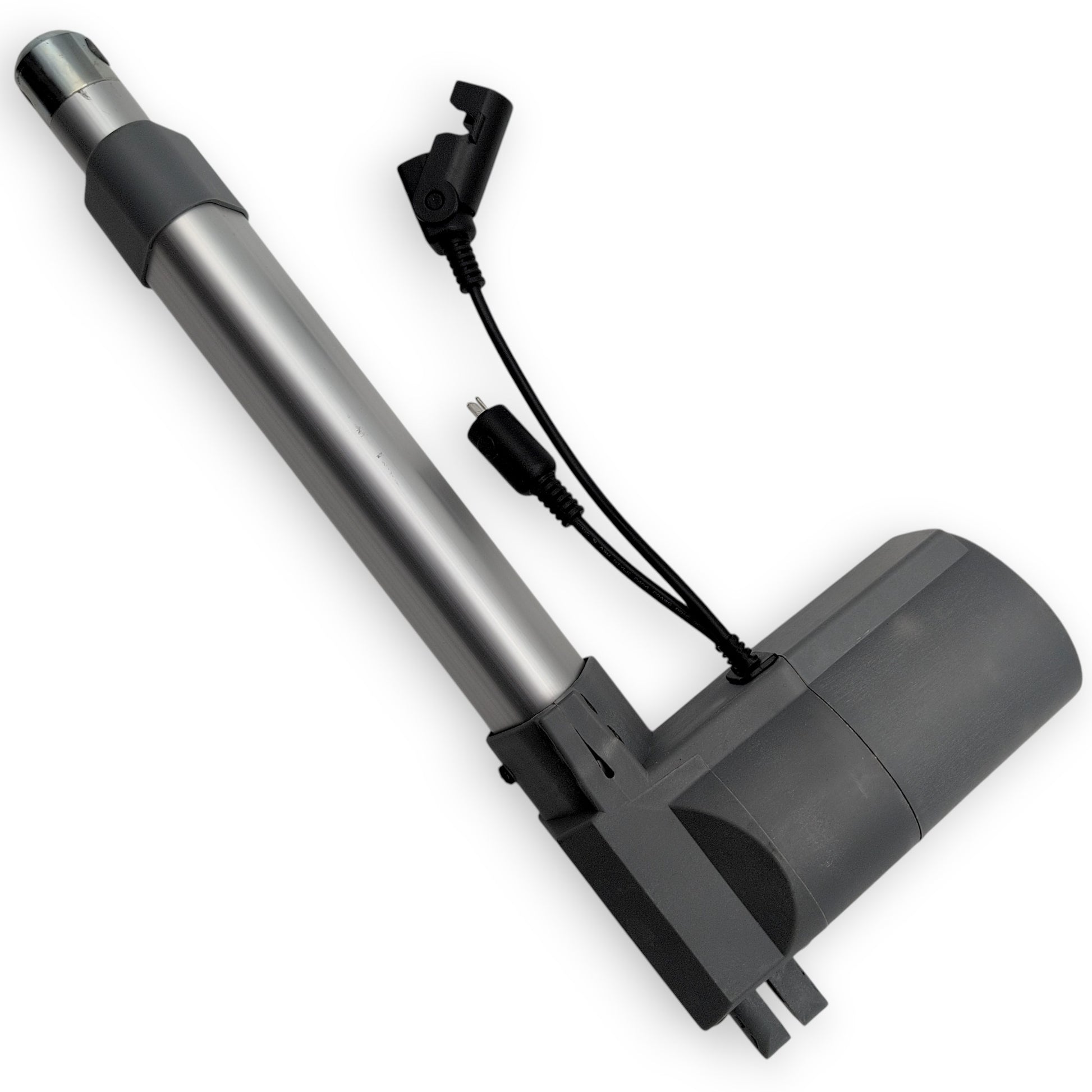

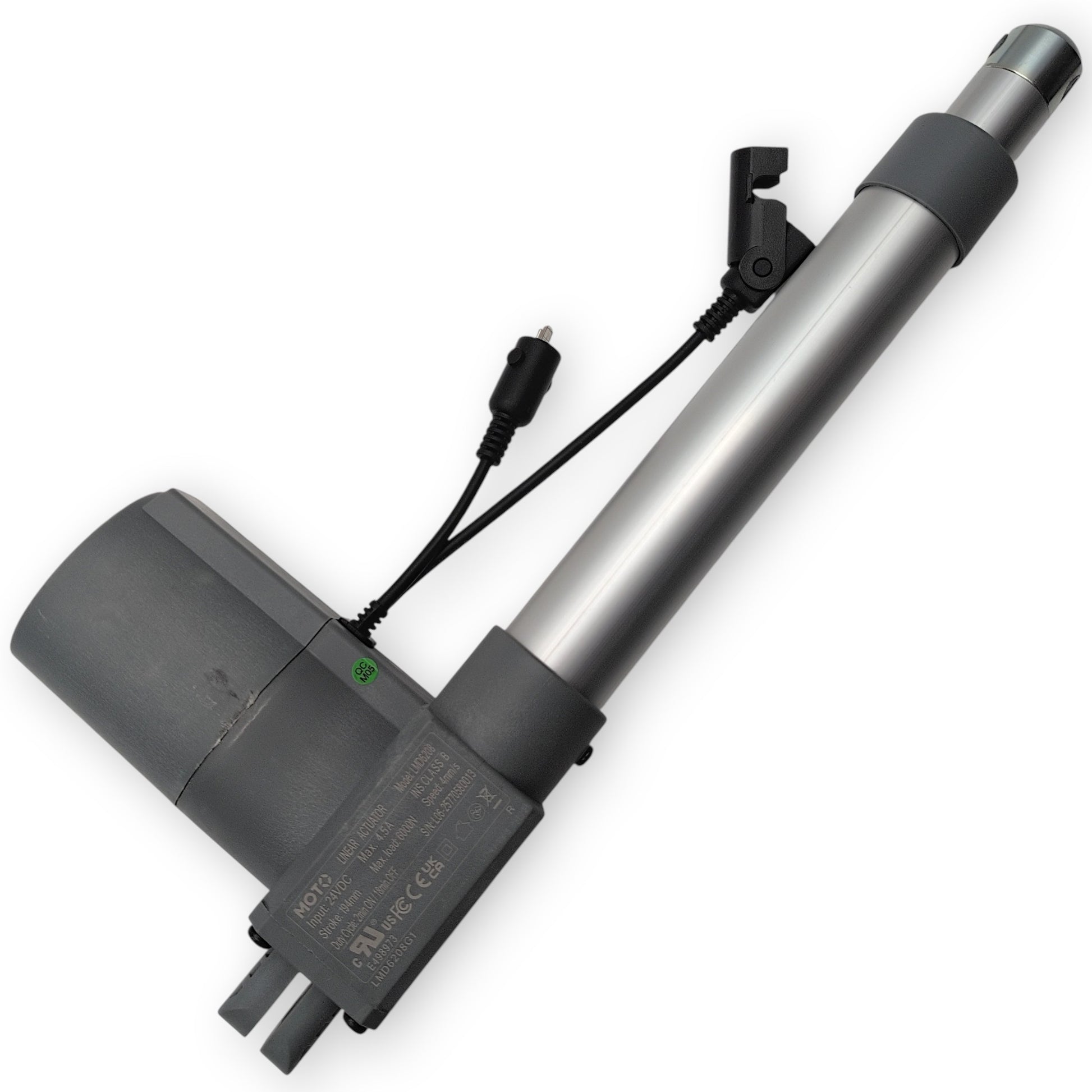

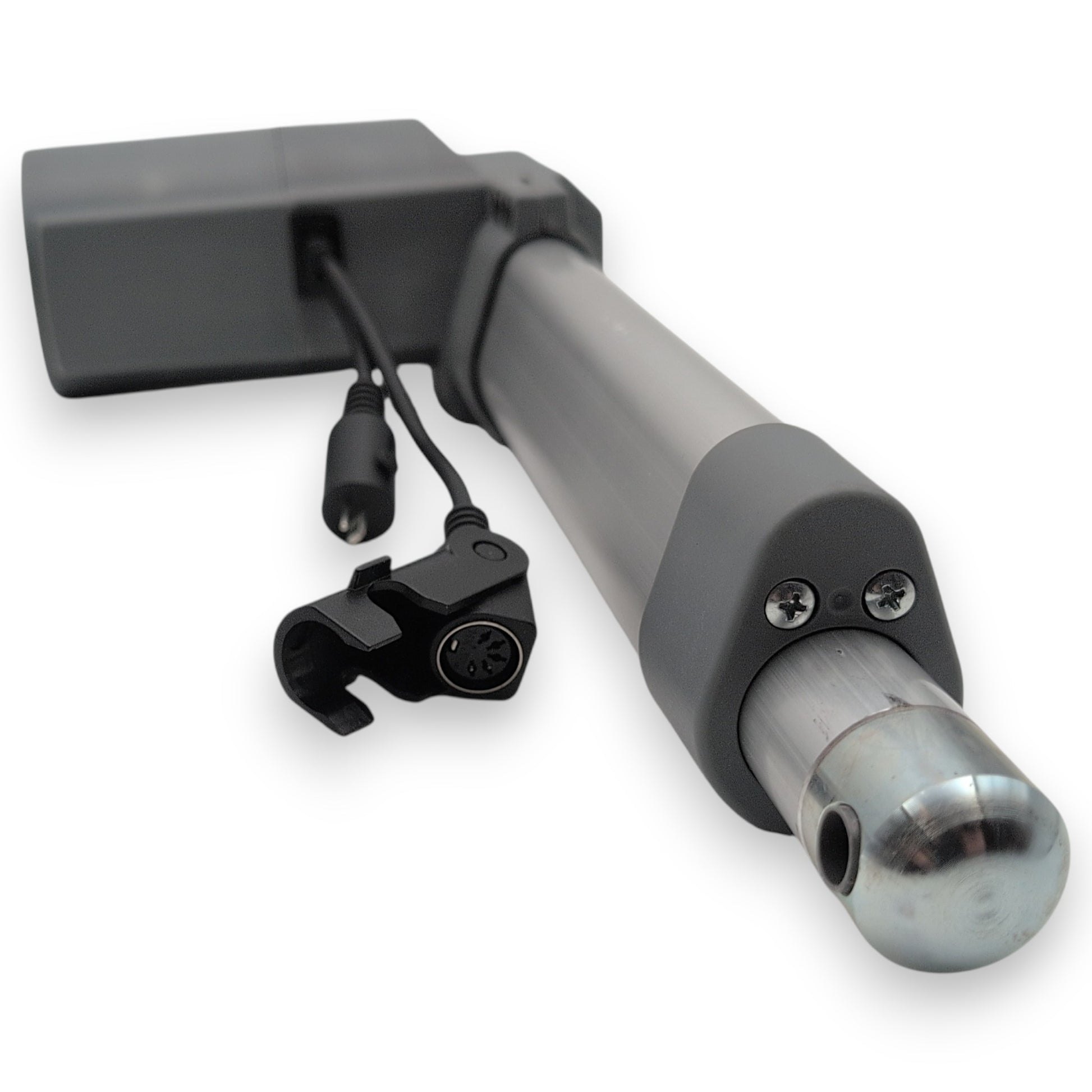

This linear actuator motor features a stroke length of 194 mm and a maximum load capacity of 6000N. The motor utilizes a 2-pin male and 5-pin female connector configuration with a lever clamp.

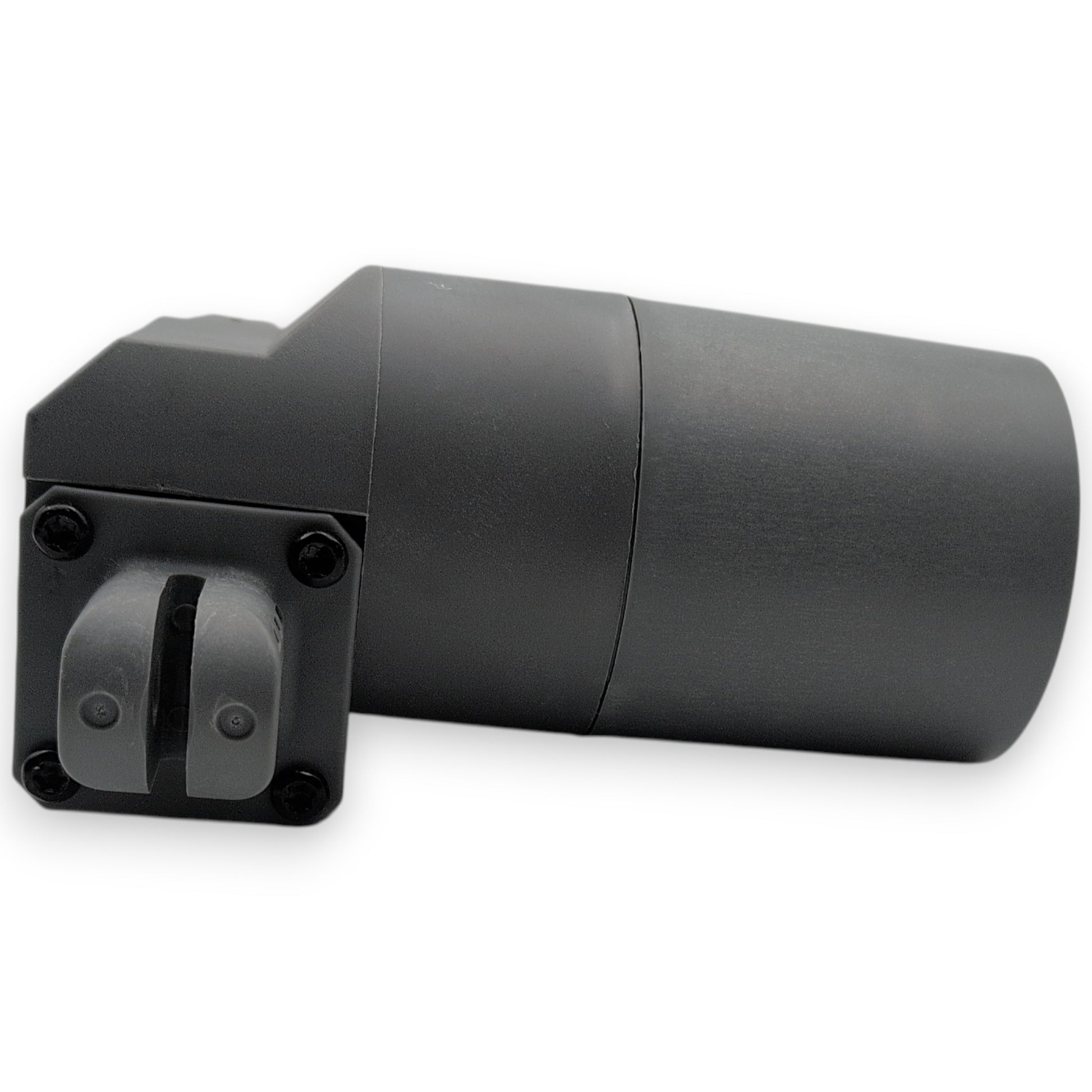

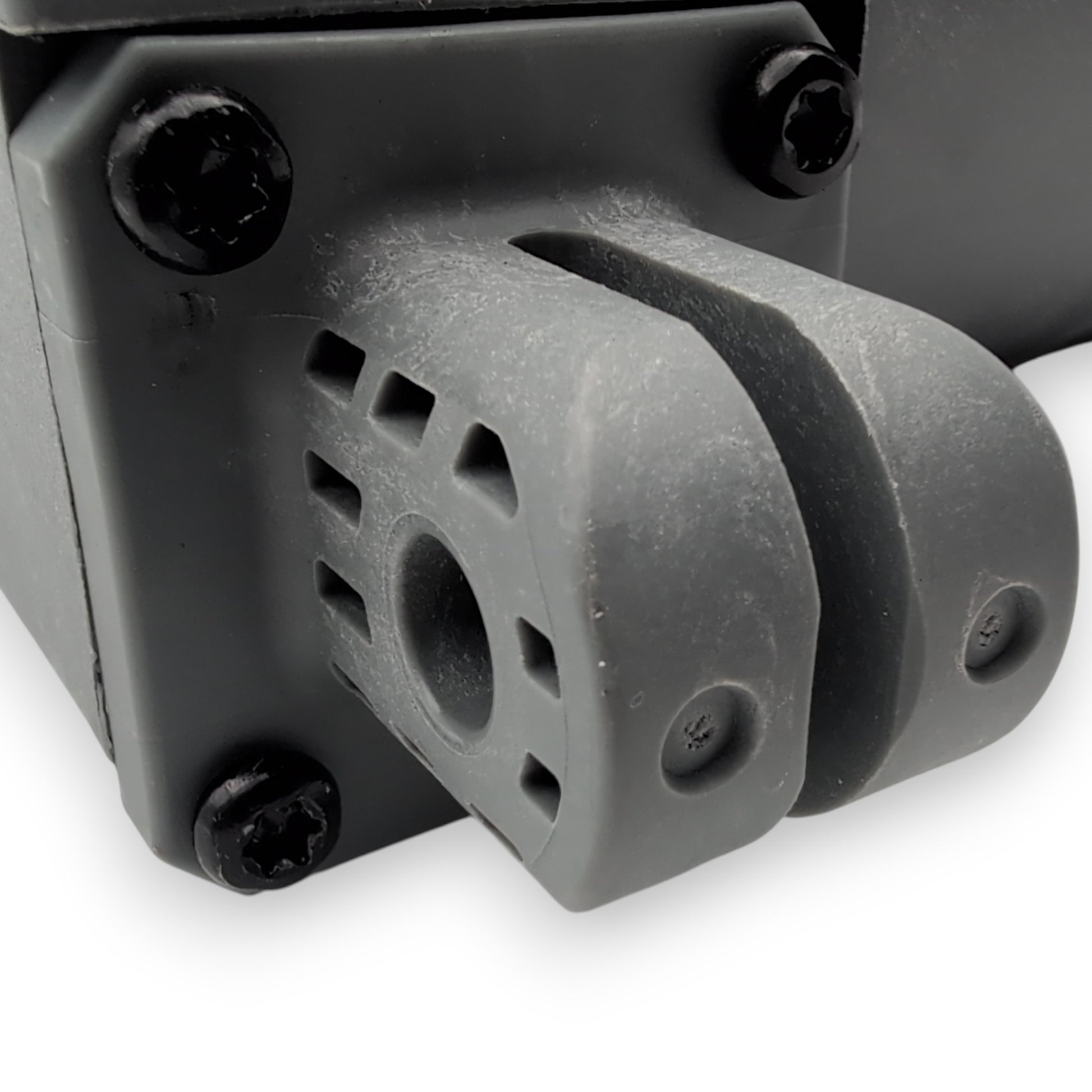

Note: The manufacturer does not offer the motor end as a separate part. A complete motor must be ordered if the end is damaged. Ends for Okin and Richmat motors are not compatible with this unit.
- Manufacturer:
- Pride Mobility
- Part Number:
- MOT2504188
- Model Numbers:
- LMD6208, LMD6208G1

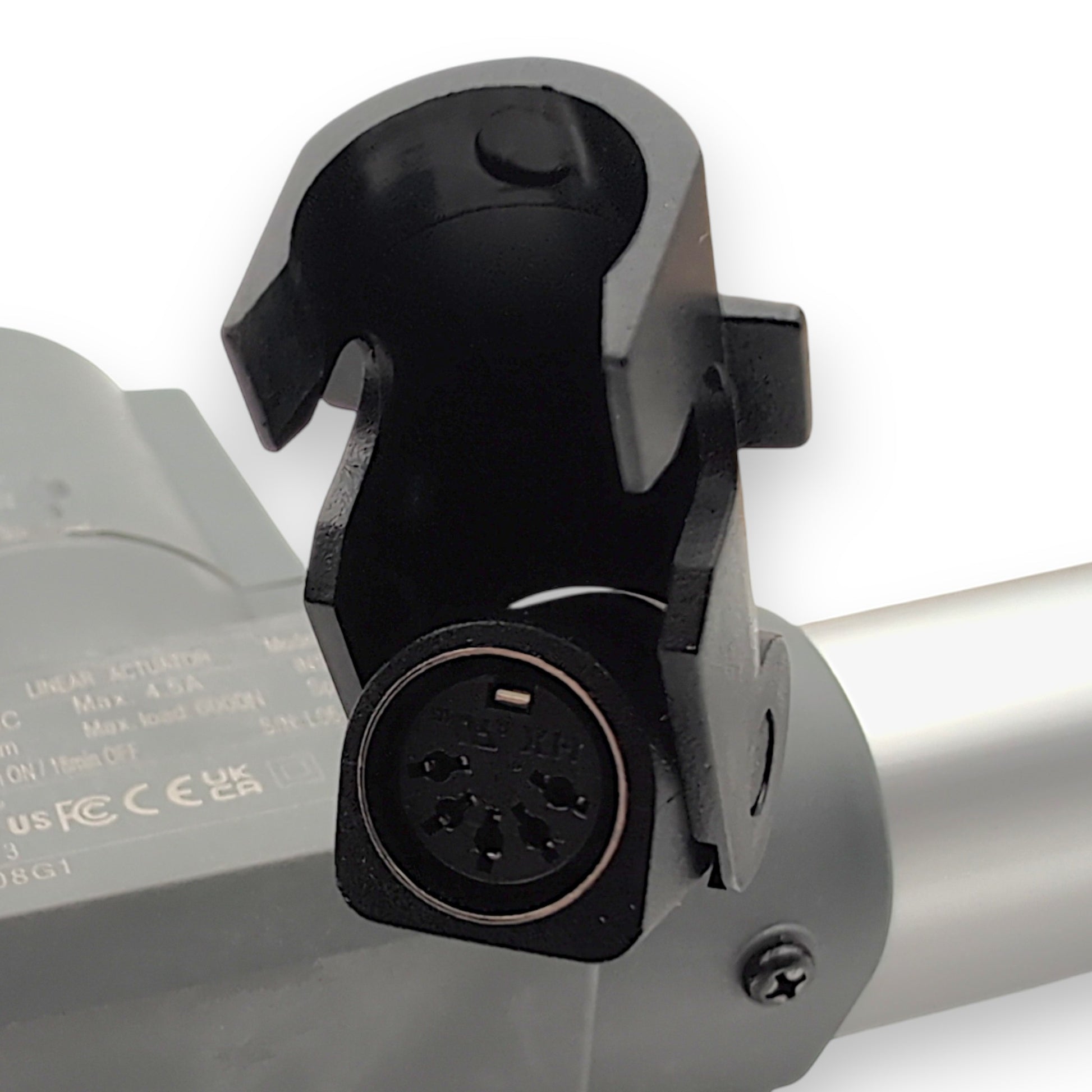

- Connectors:

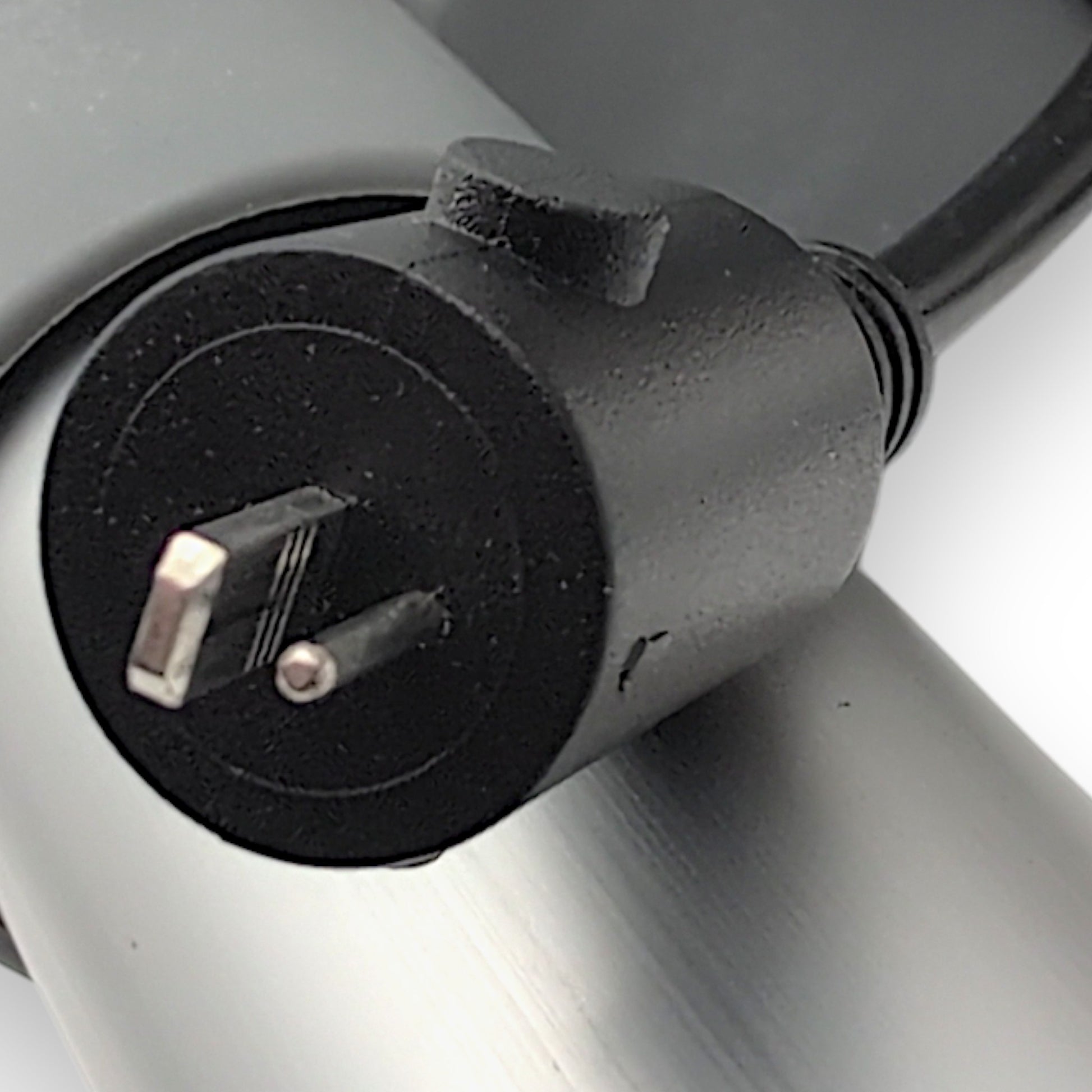

- 2-pin male, 5-pin female with lever (clamp)

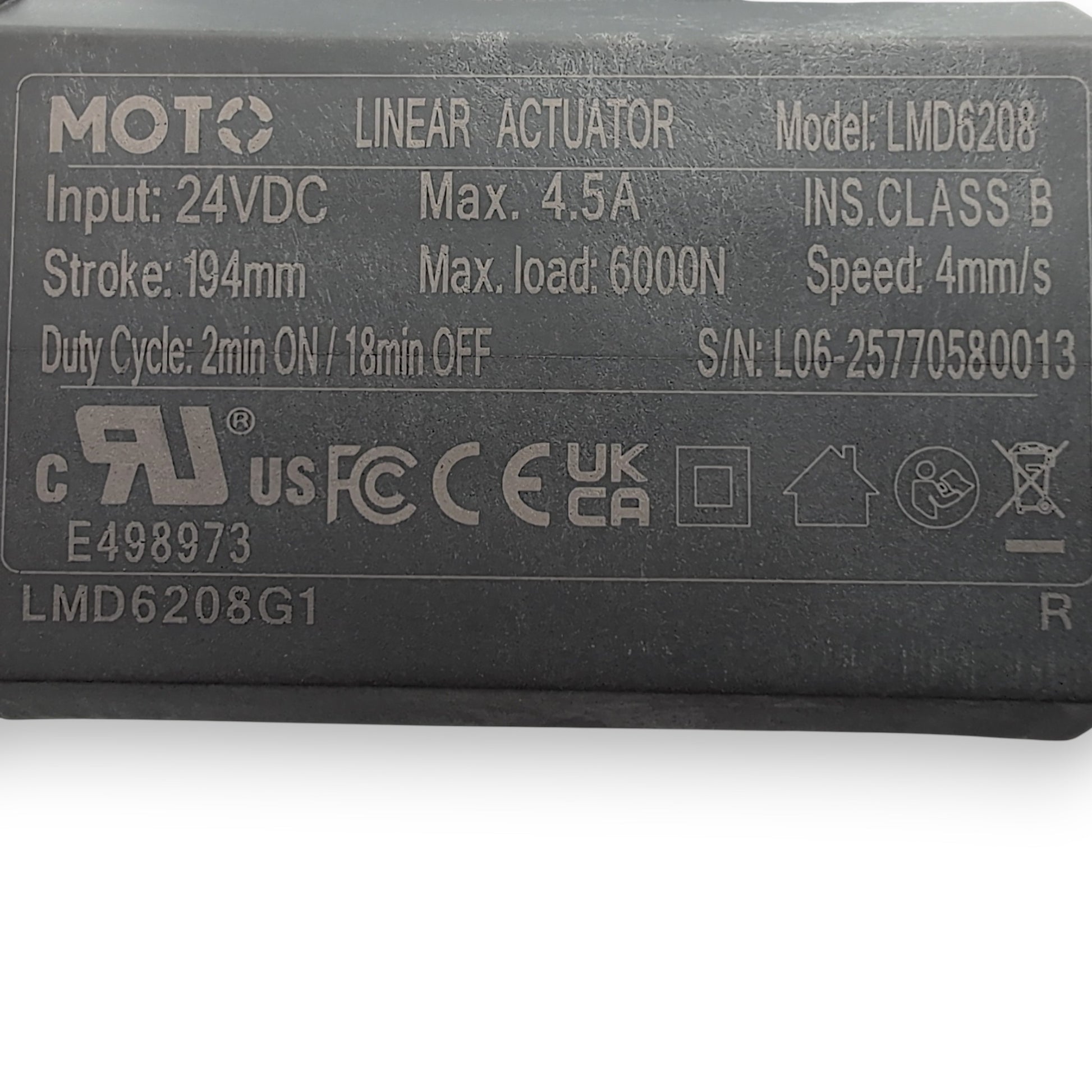

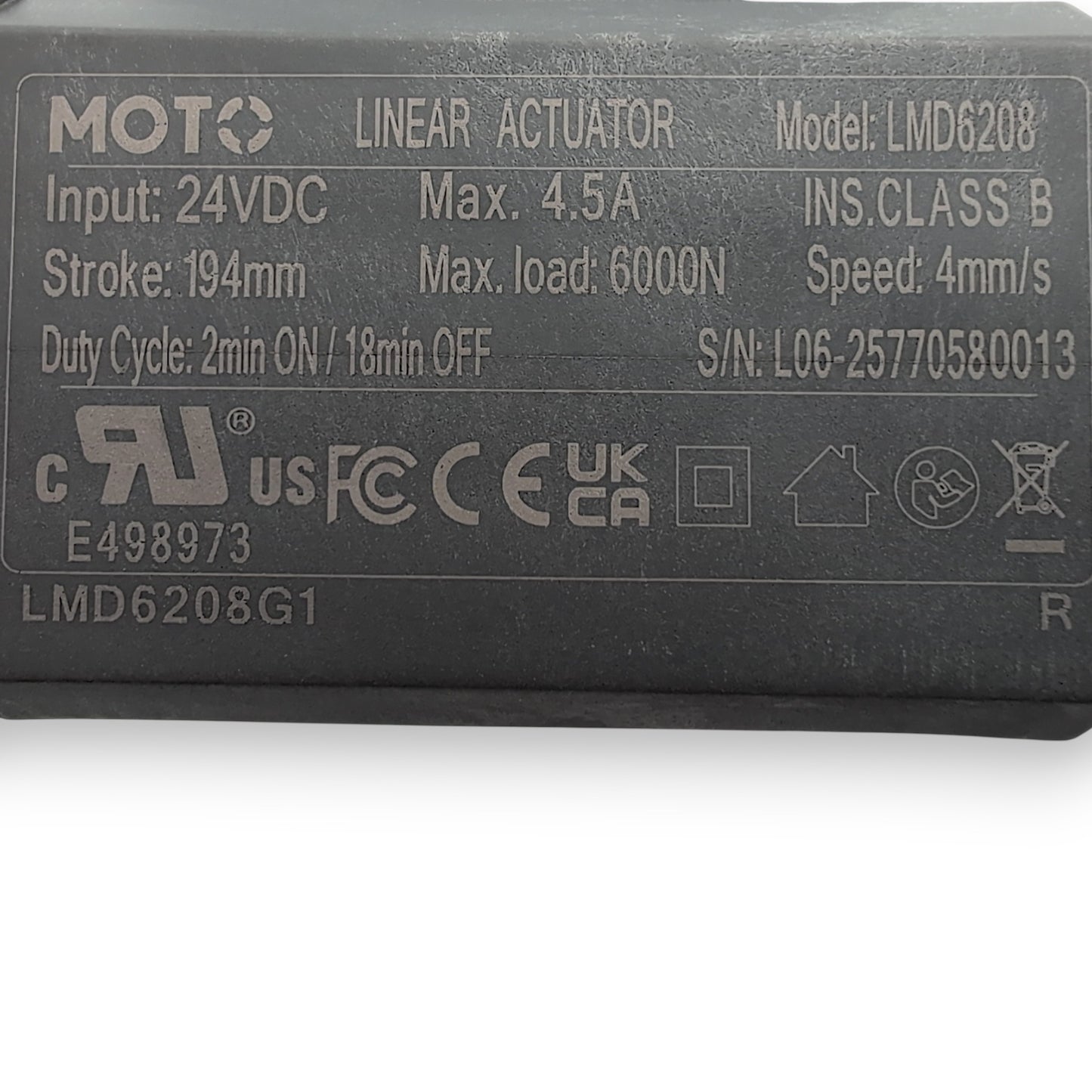

Product Specifications
- Brand:
- FBS or HHC
- Stroke:
- 194 mm
- Input:
- 24 volt DC
- Max Current:
- 4.5 amps
- Max Load:
- 6000N
- Speed:
- 4 mm per second
- Duty Cycle:
- 2 min ON / 18 min OFF
