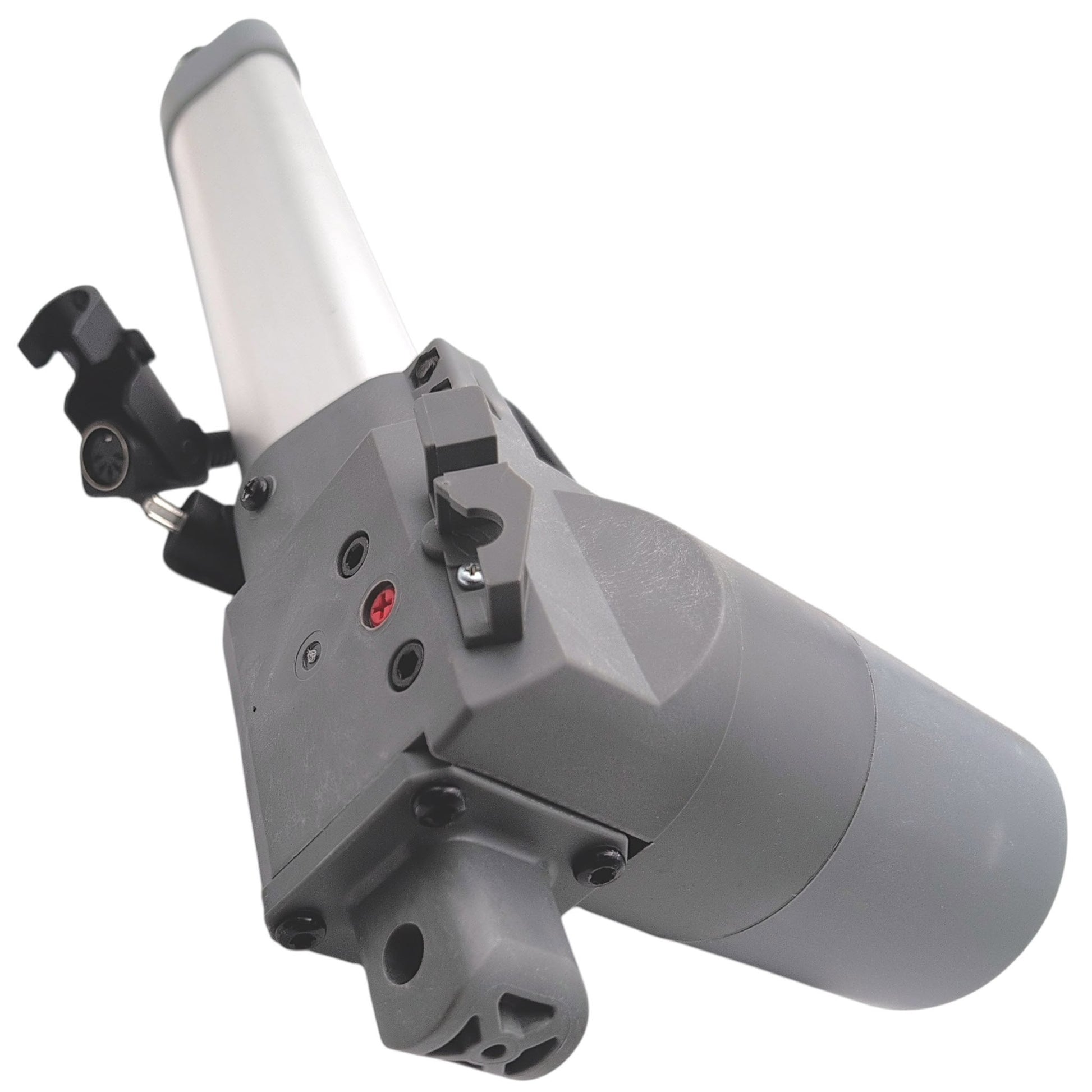

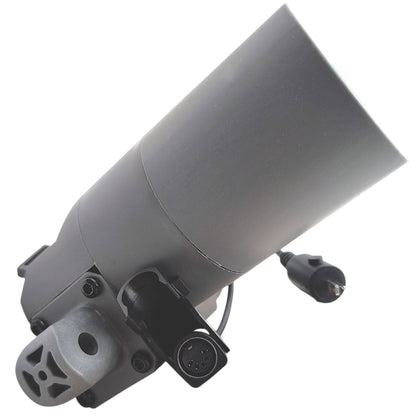

Pride Mobility/Mega Motion MOT150003/MD6208D1-R-Z Lift Recliner Slave Motor

Product Description

Genuine OEM replacement slave motor linear actuator (Part Number: MOT150003)(Moto Model Number: LMD6208D1-R-Z)  manufactured by Moto Motion / HHC for Pride Mobility and Mega Motion lift chairs. This dual-lead motor directly replaces older model numbers LMD6208D and LMD6208D-R-Z.

Description From Pride Mobility Service Manual: Medical motor, slave motor, dual lead, lift chair, domestic, w/capacitor, (HHC: LMD6208D-R-Z)

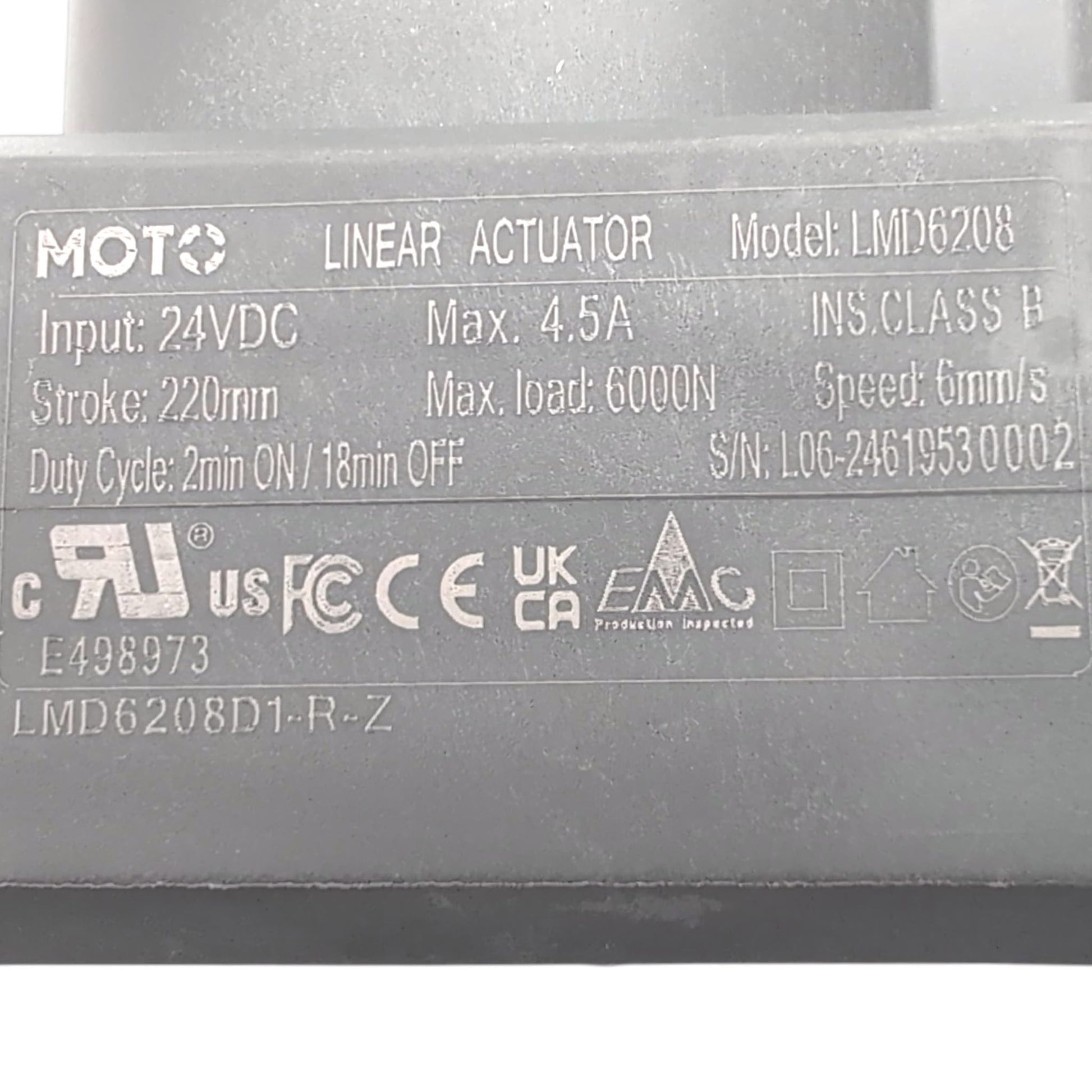

Specifications & Dimensions:

Brands:

Pride Mobility & Mega Motion

Manufacturer:

Moto Motion / HHC

Pride Mobility Part Number:

MOT150003

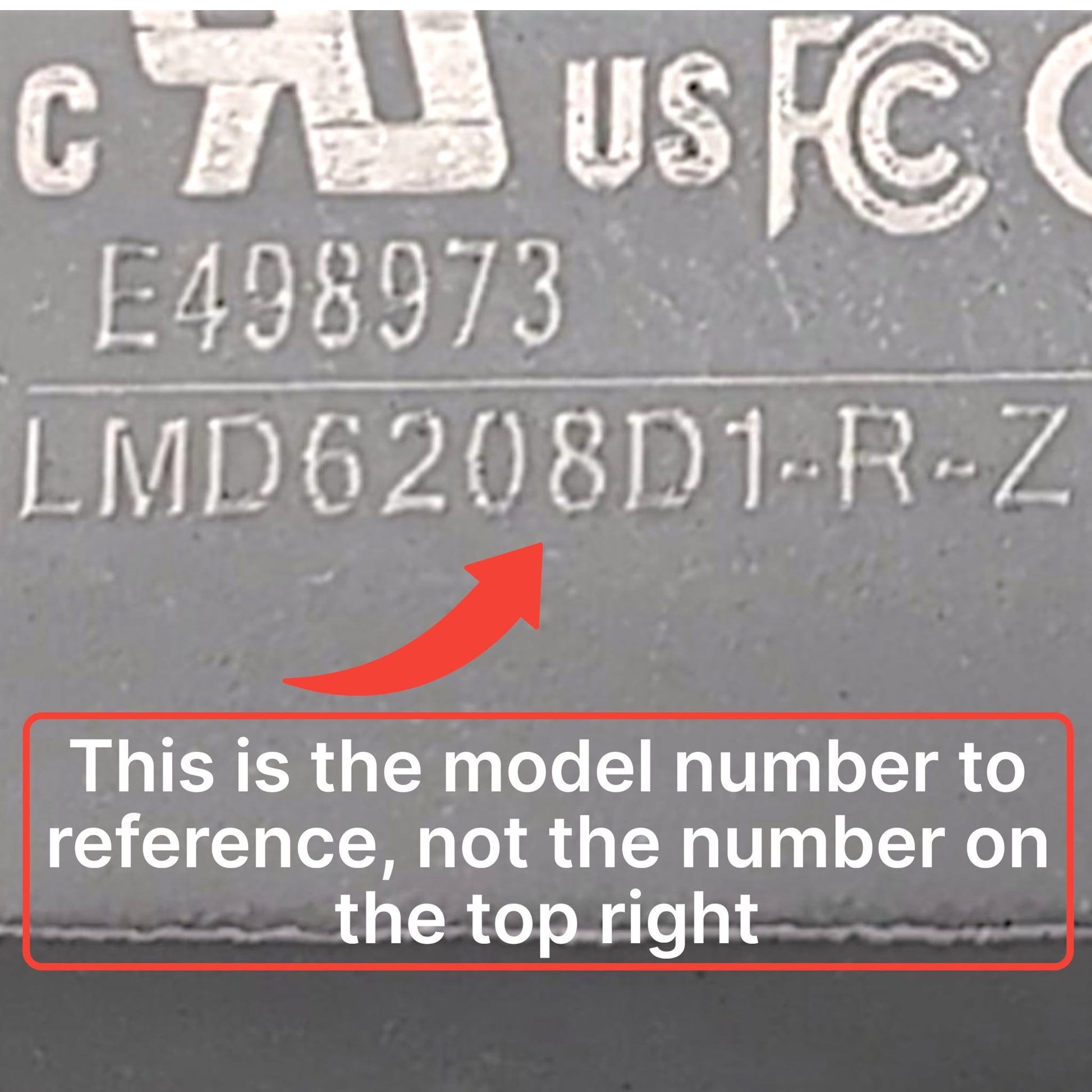

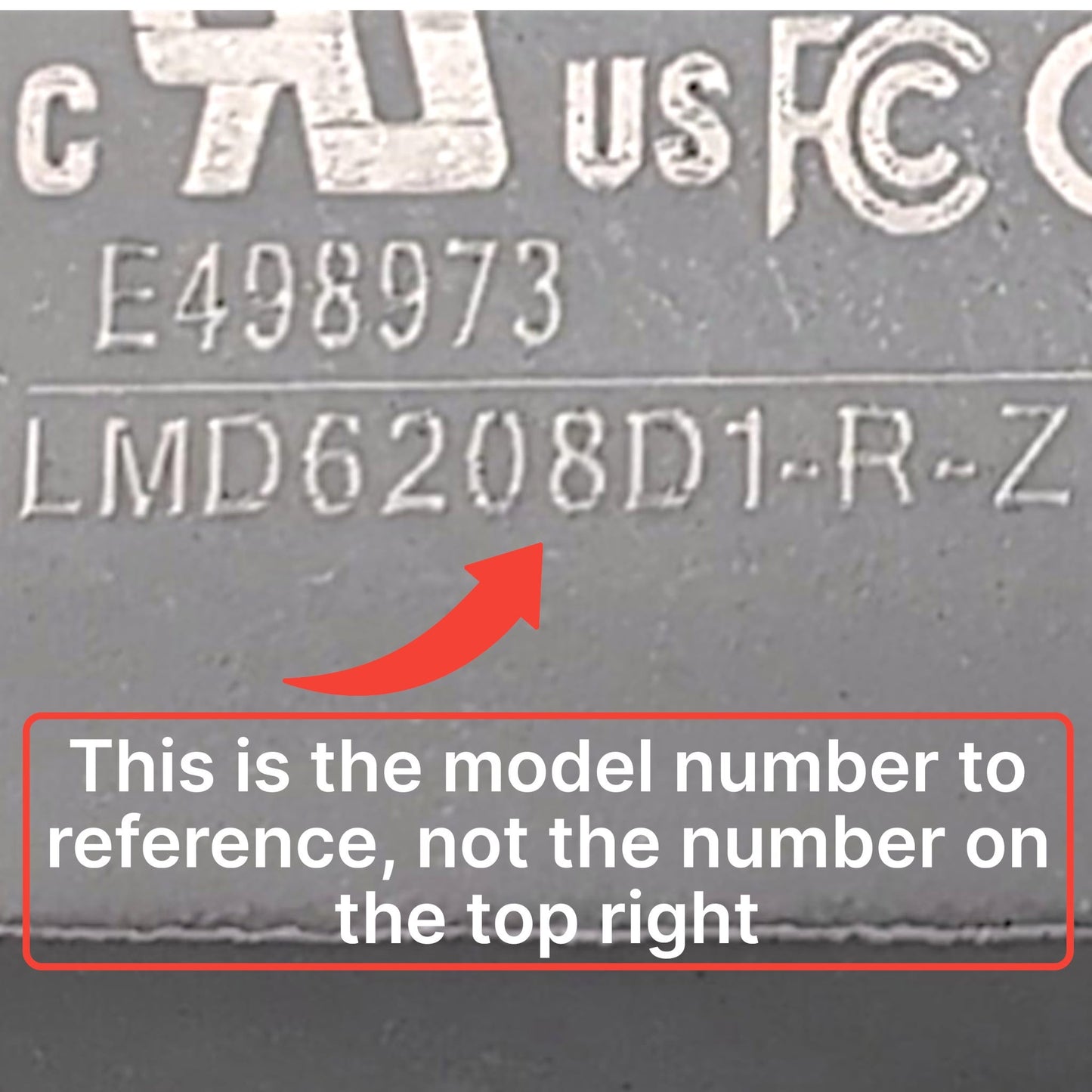

Moto / HHC Model Number:

LMD6208D1-R-Z

Replaces Model Numbers:

LMD6208D, LMD6208D-R-Z

Moto / HHC Base Model:

LMD6208

Motor Type:

Linear Actuator / Slave Motor With Capacitor

Connector Types:

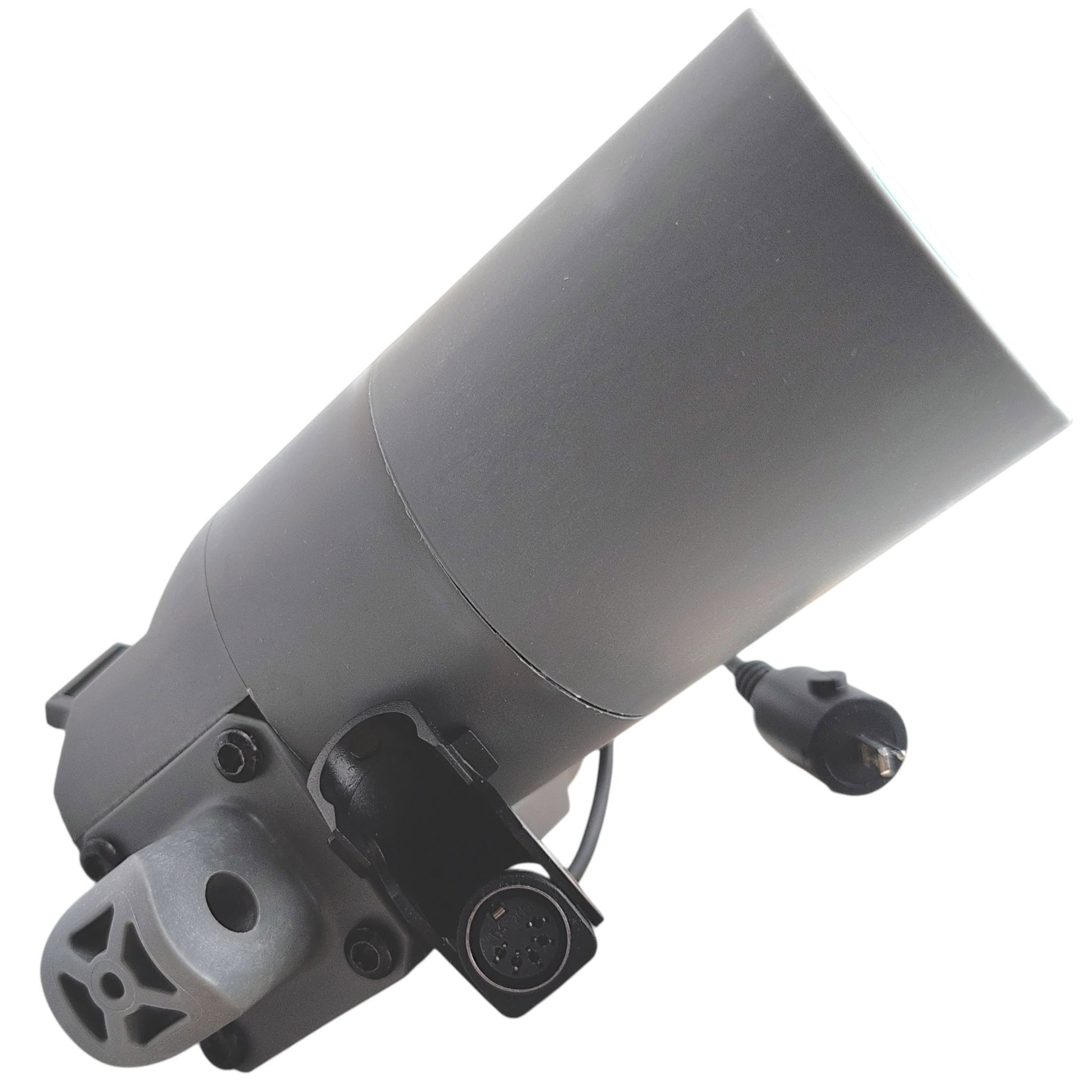

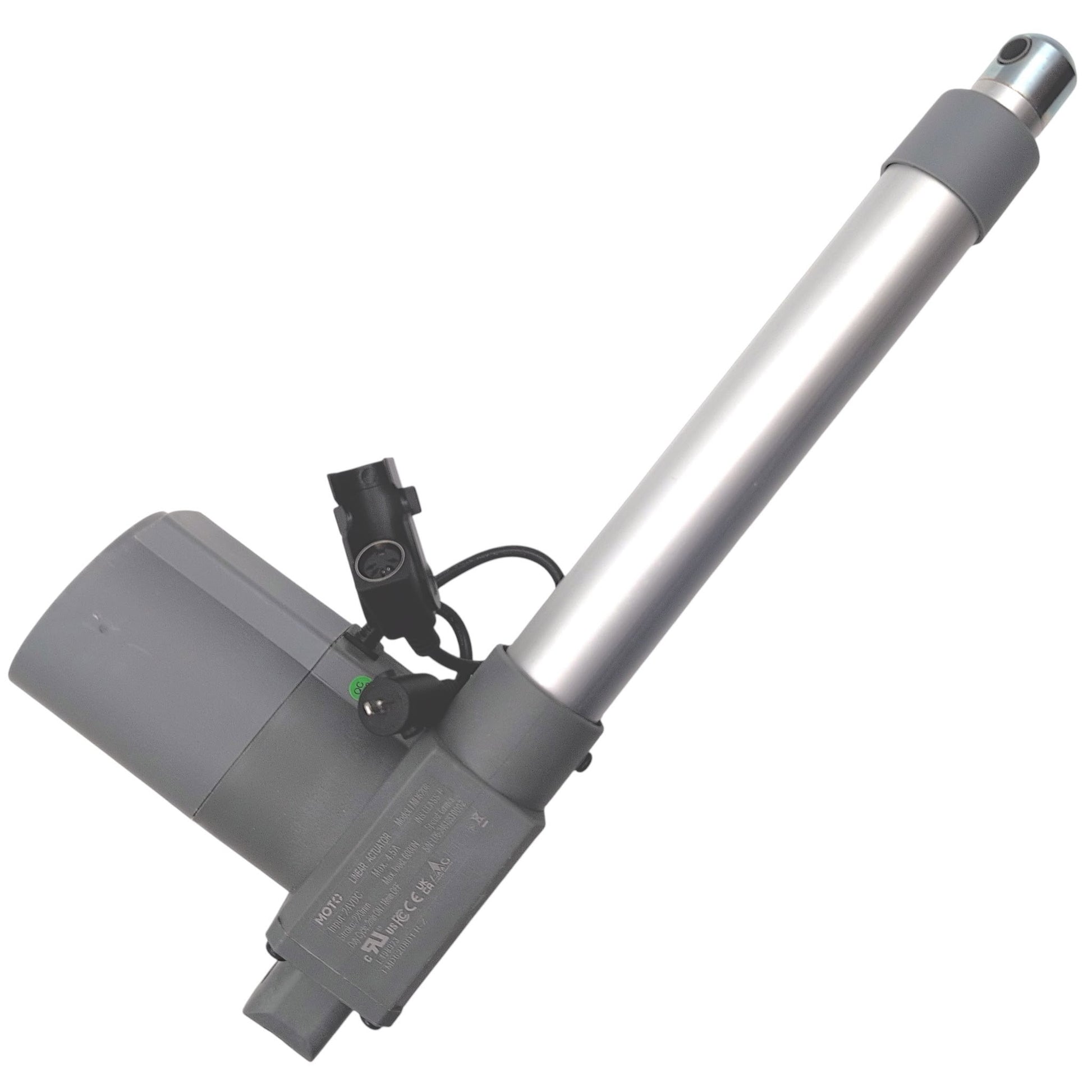

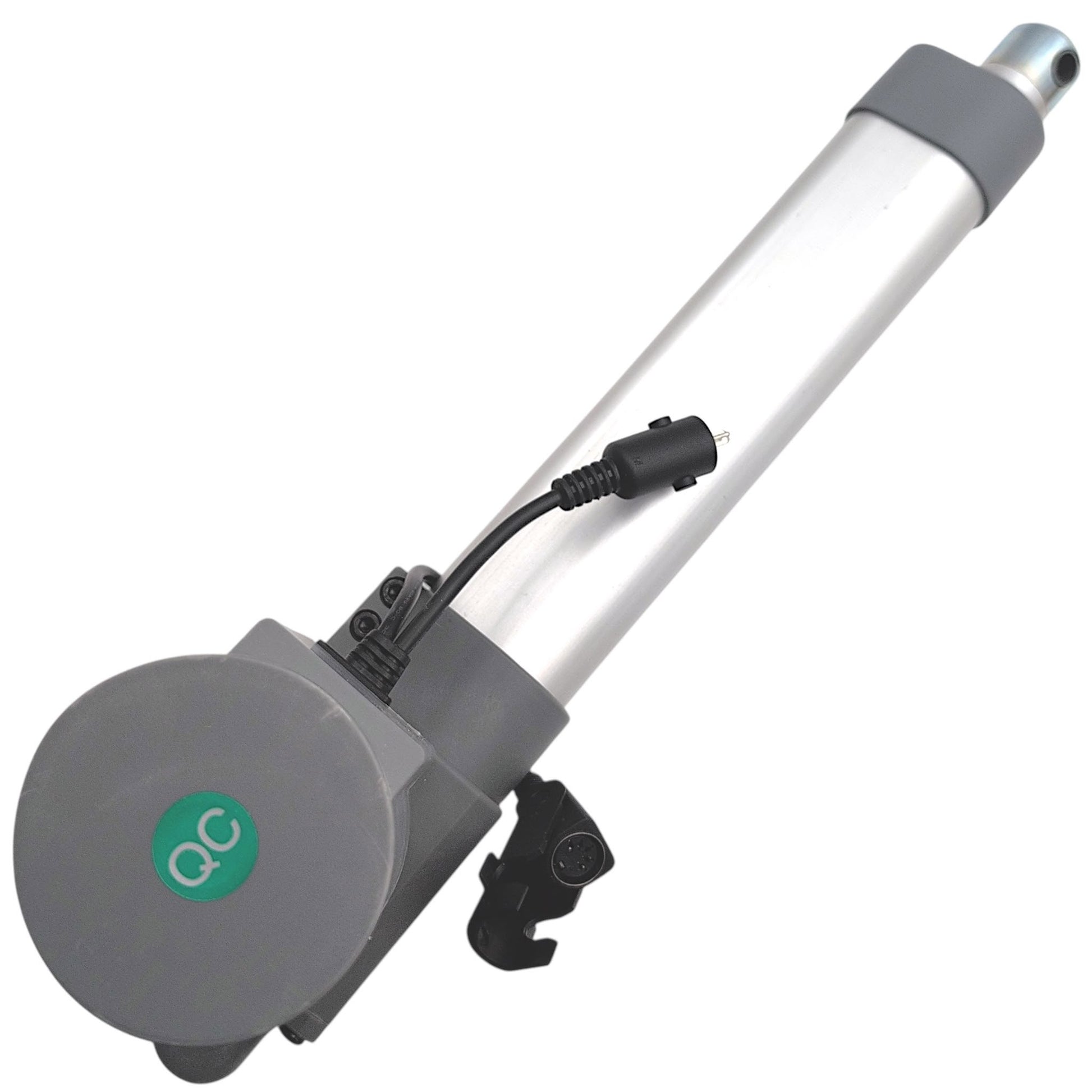

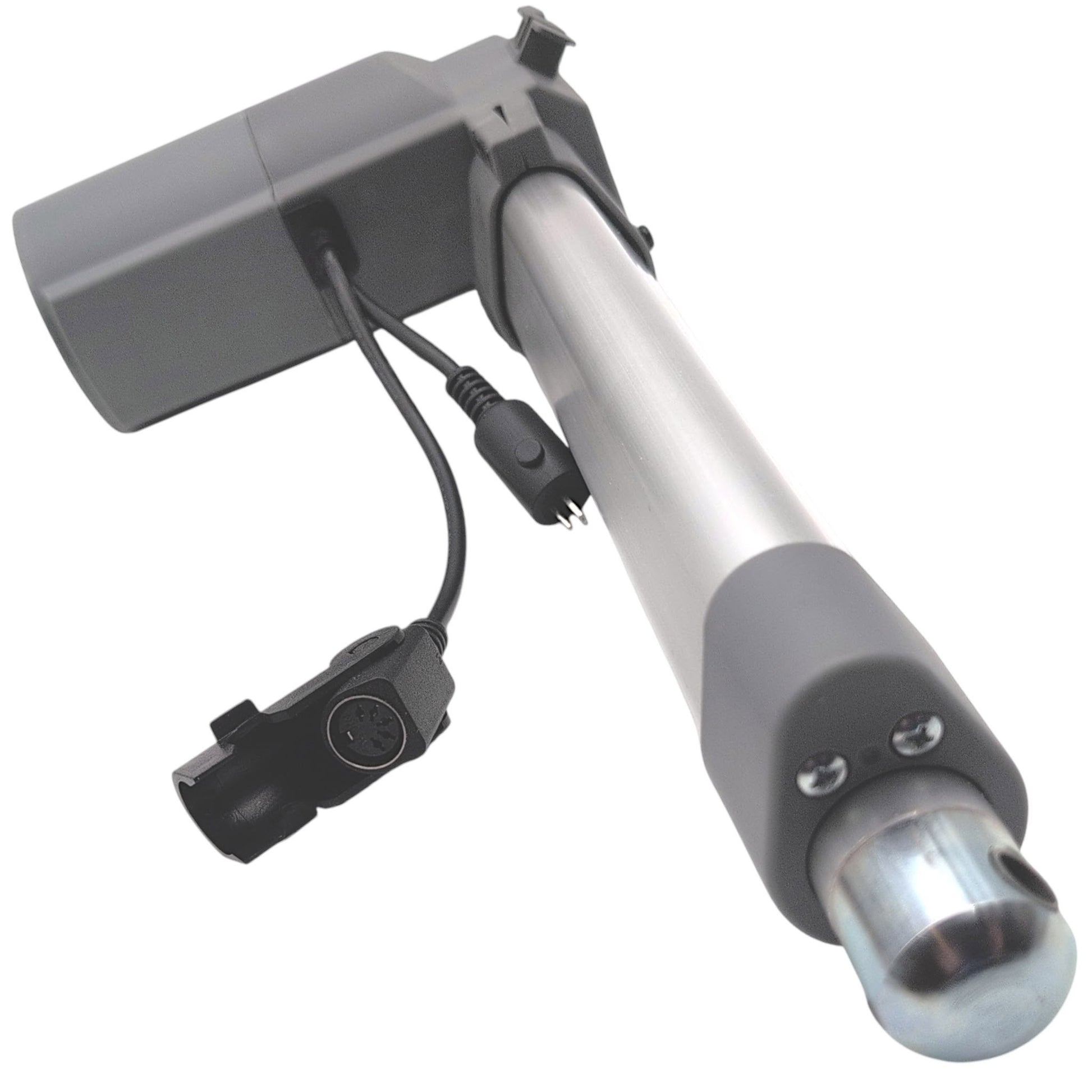

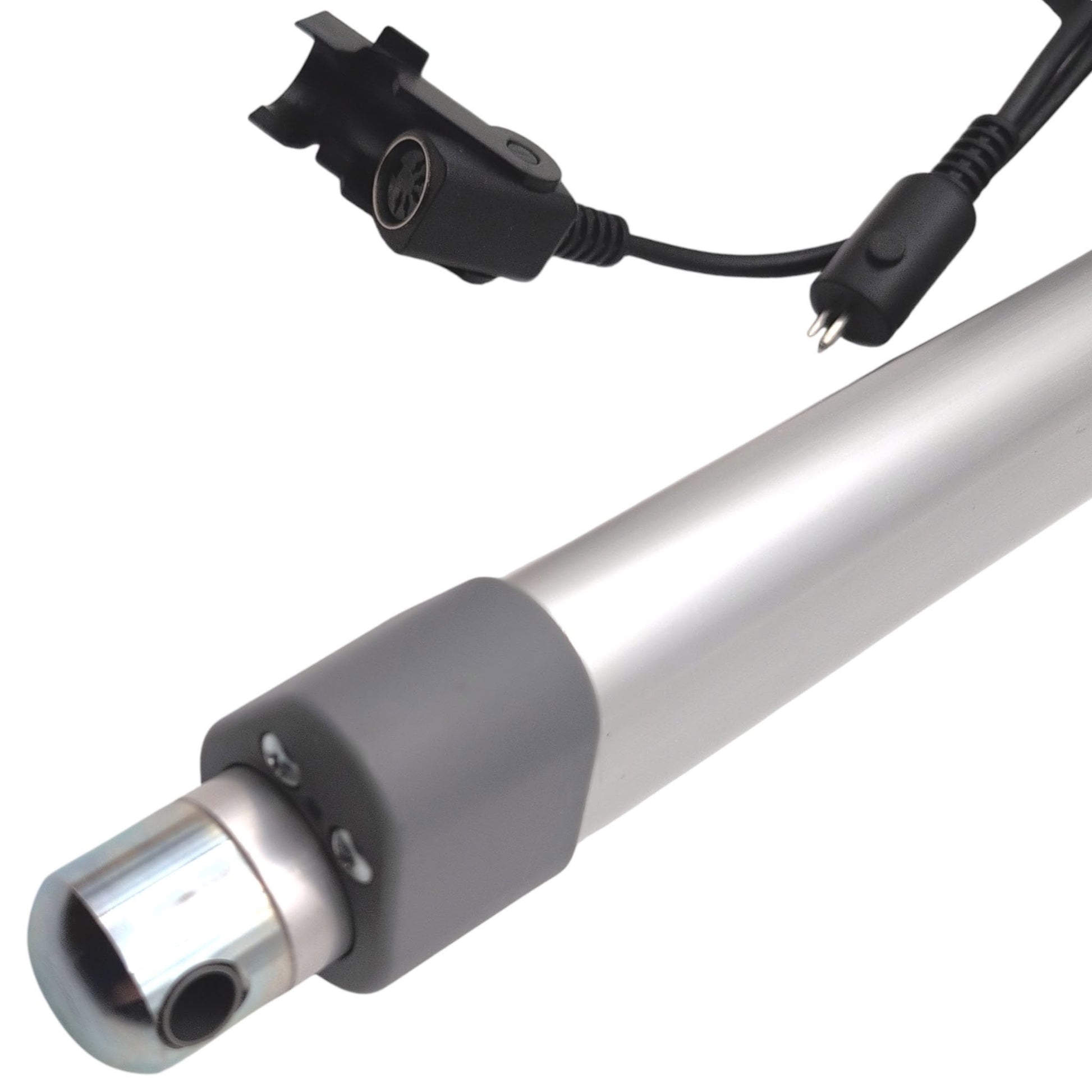

5-Pin Black Din Connector with Clamp & 2-Pin Connector

Input:

24 Volts DC Max. 4.5 Amps

Stroke:

220 mm (8.66 inches)

Max. Load:

6000N

Speed:

6 mm/s (0.24 inches/s)

Duty Cycle:

2min ON / 18min OFF

Length (Fully Retracted):

Approx. 418 mm (16.46 inches)

Width:

83 mm (3.27 inches)

Height:

165 mm (6.50 inches)

Weight:

5.6 Pounds

Color:

Gray & Silver

Insulation Class:

B
