Pride Mobility | LMD6208B1-H | MOT2302983 | Lift Recliner Chair Back Motor

Name: Pride Mobility | LMD6208B1-H | MOT2302983 | Lift Recliner Chair Back Motor
Brand: Pride Mobility
SKU: MOT2302983
Price: 169.95 USD
Availability: InStock

$169.95 USD

~~$215.00 USD~~ $169.95 USD

Our Price Sold Out

Free Shipping On Most Items Over $40+ (Contiguous US Only) Shipping: Calculated at checkout Shipping Policy

In stock

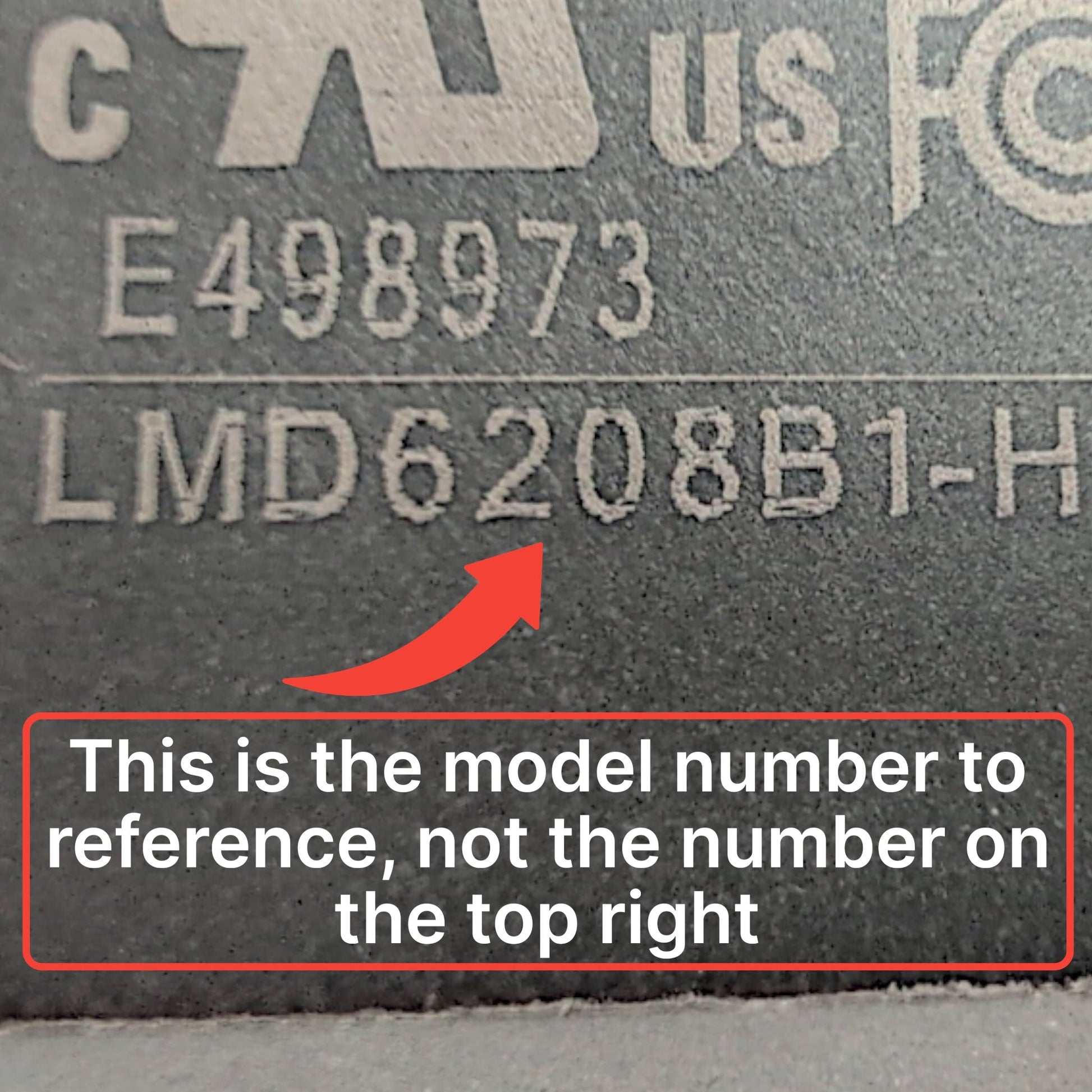

You are replacing an FBS, HHC or Moto branded actuator. These companies are all merged and current replacements are branded as "Moto". Please view the complete product description & view all pictures before ordering. These motors have 2 model numbers, one complete model number on the bottom left and one on the top right. The model number on the top right is used between different motors and can't be relied upon for finding the correct motor. Be sure the model numbers, part number, connector color and pin count are the same. Note: FBS motors do not have the complete model number listed on them and you will need to match the connector type with model number.

We also have a diagnostic video within the pictures. If you are hearing a clicking sound, 9 times out of 10, this is a control box issue.

Free ground shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
30 Day Return Policy

Fulfillment: Usually ships in 1-2 business days
This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects

Product Description

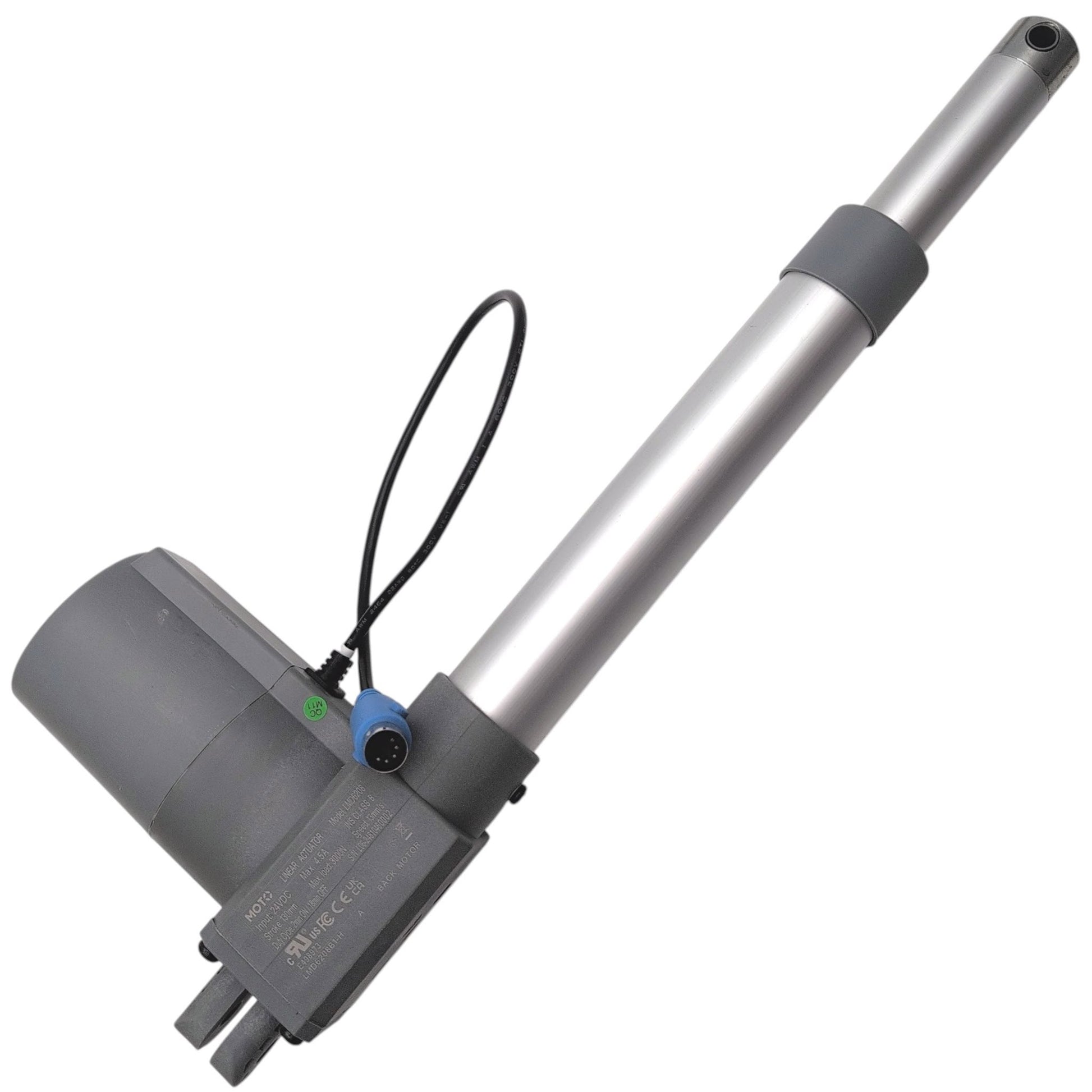

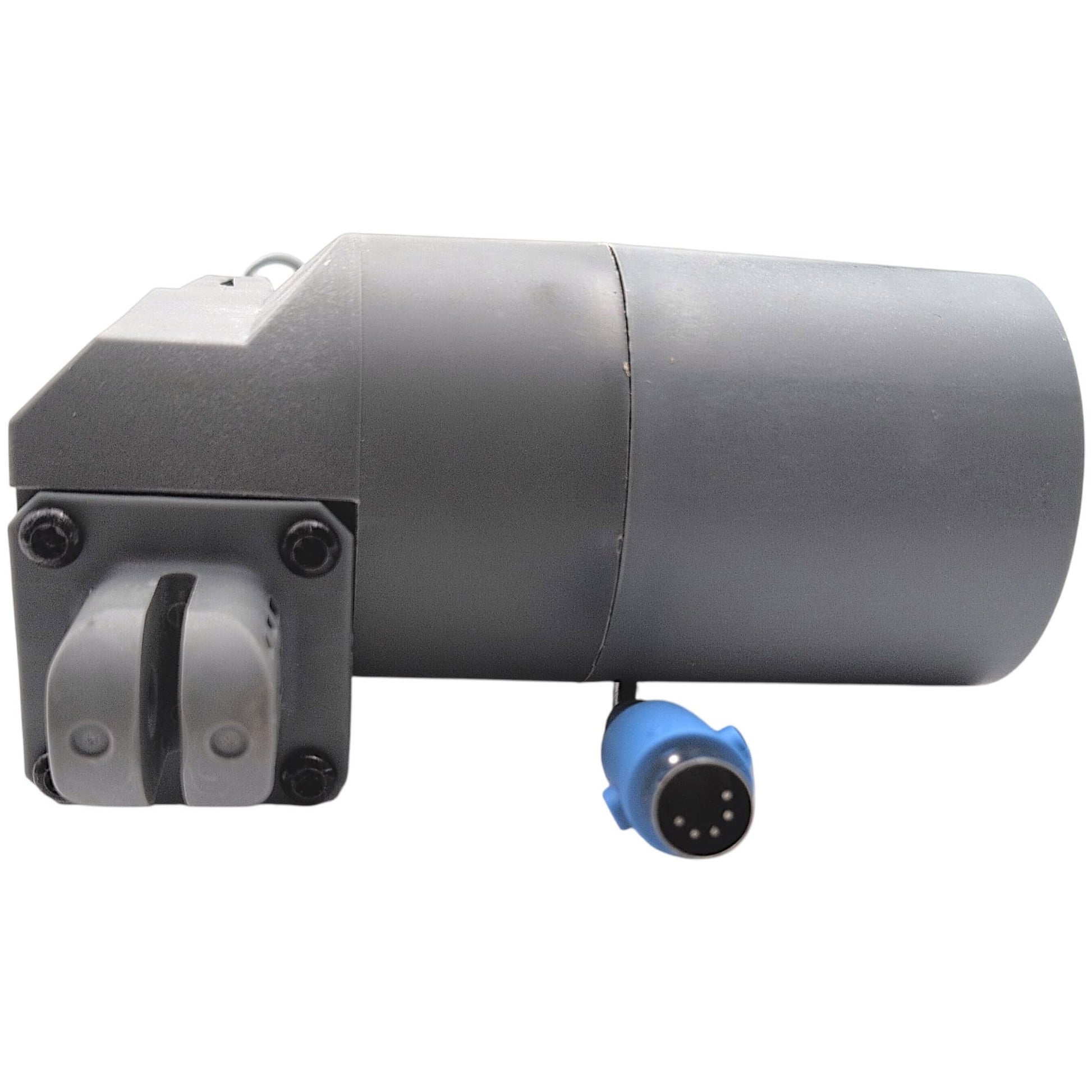

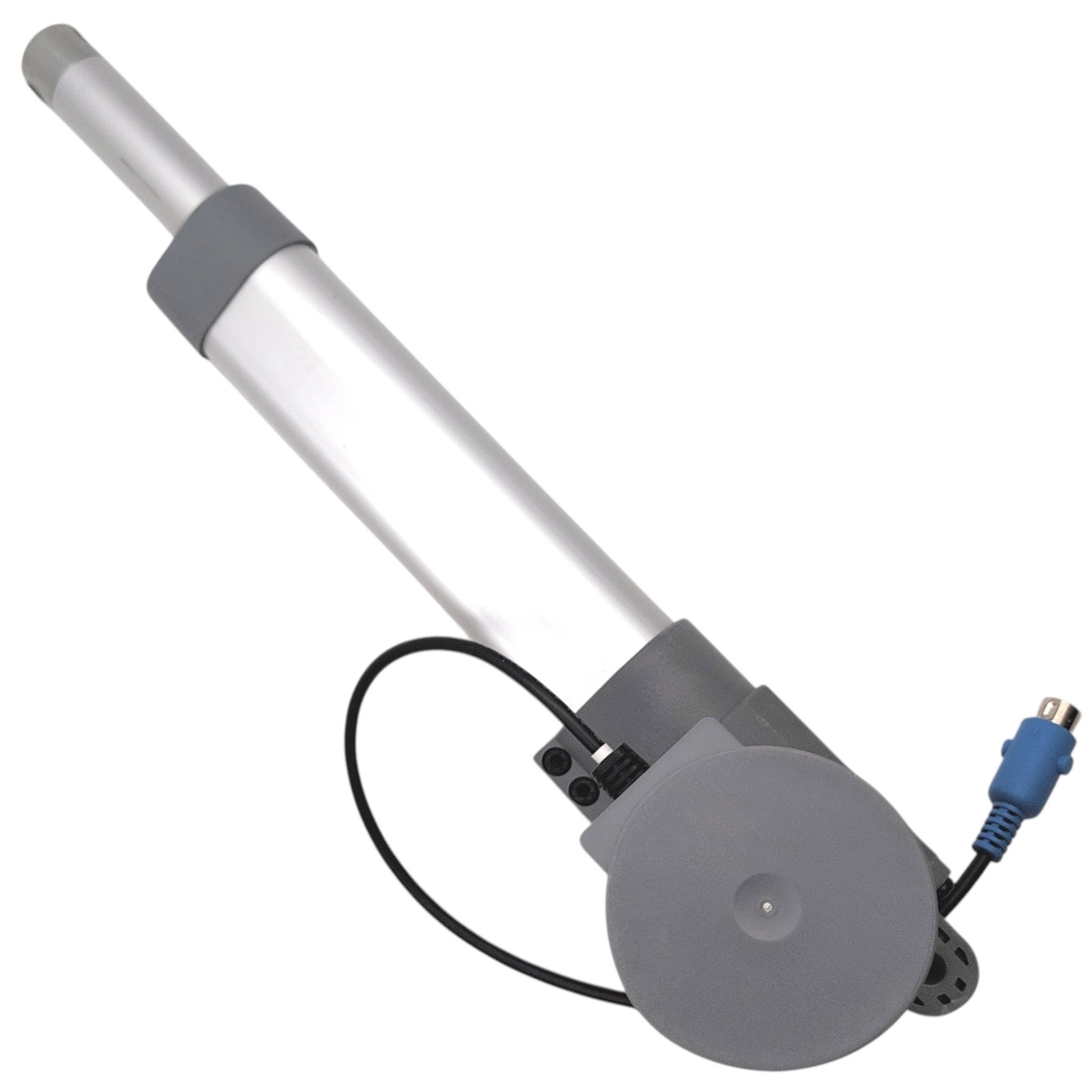

Pride Mobility Linear Actuator, Back Motor with 5-pin Blue Connector.

Description From Pride Mobility Service Manual : MOTOR,SLAVE MOTOR,LIFT CHAIR,BACK,(HHC: LMD6208B1-H-00000A)

Important Note! | Please Read Before Ordering

Brand:: Pride Mobility
Manufacturer:: Moto / HHC
Pride Mobility Part Number:: MOT2302983
Moto / HHC Model Number:: LMD6208B1-H
Moto / HHC Base Model:: LMD6208
HHC:: LMD6208B1-H-00000A (not written on the motor itself)

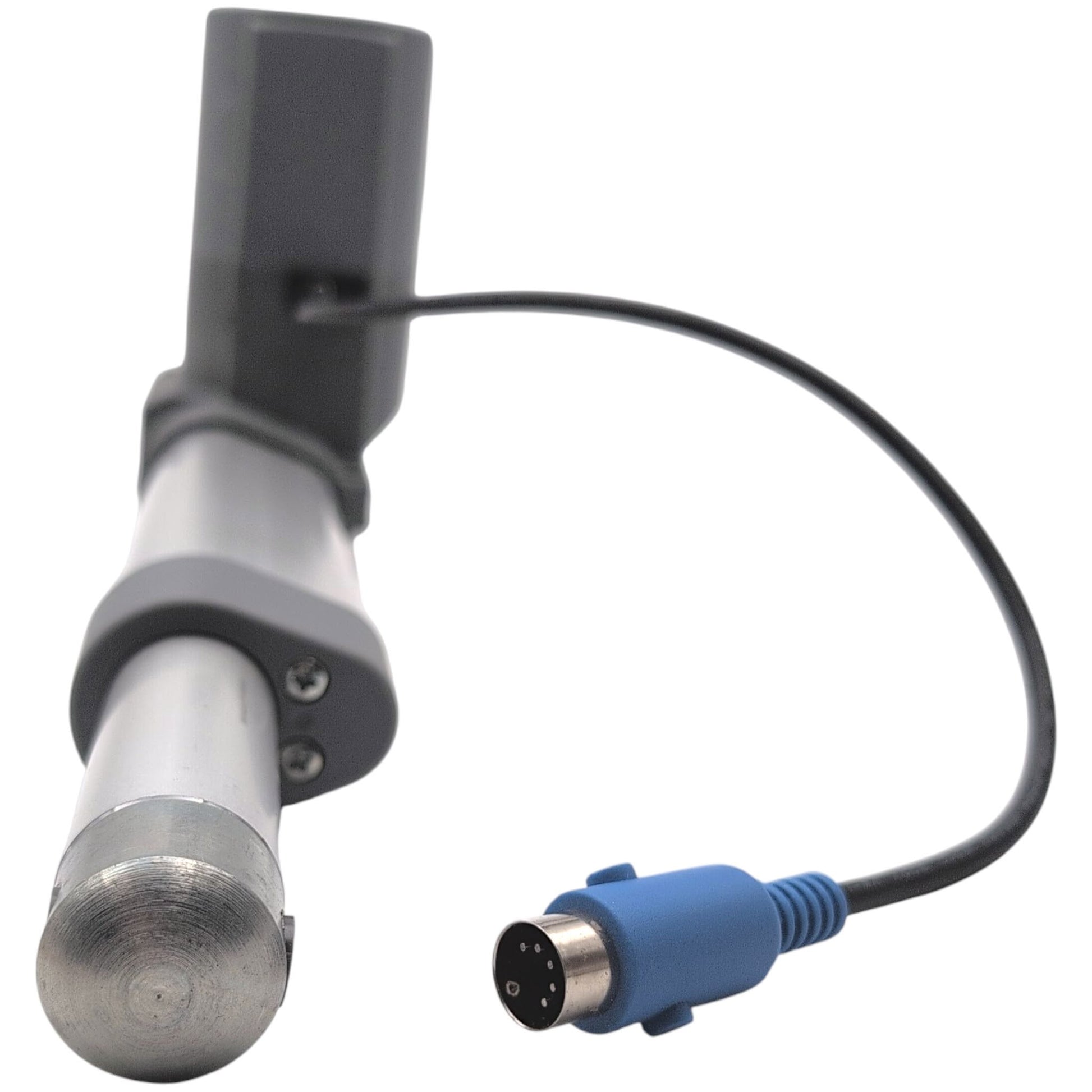

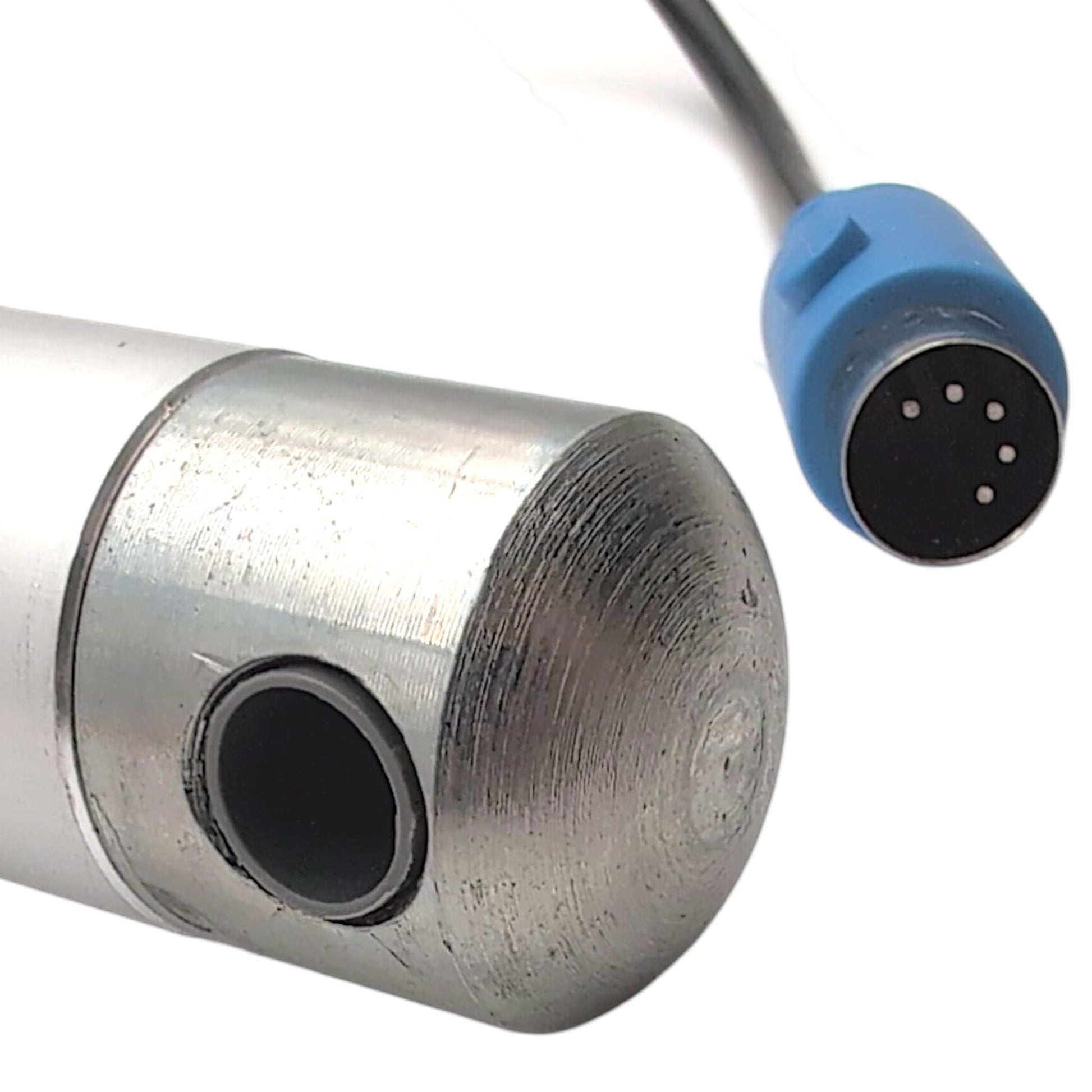

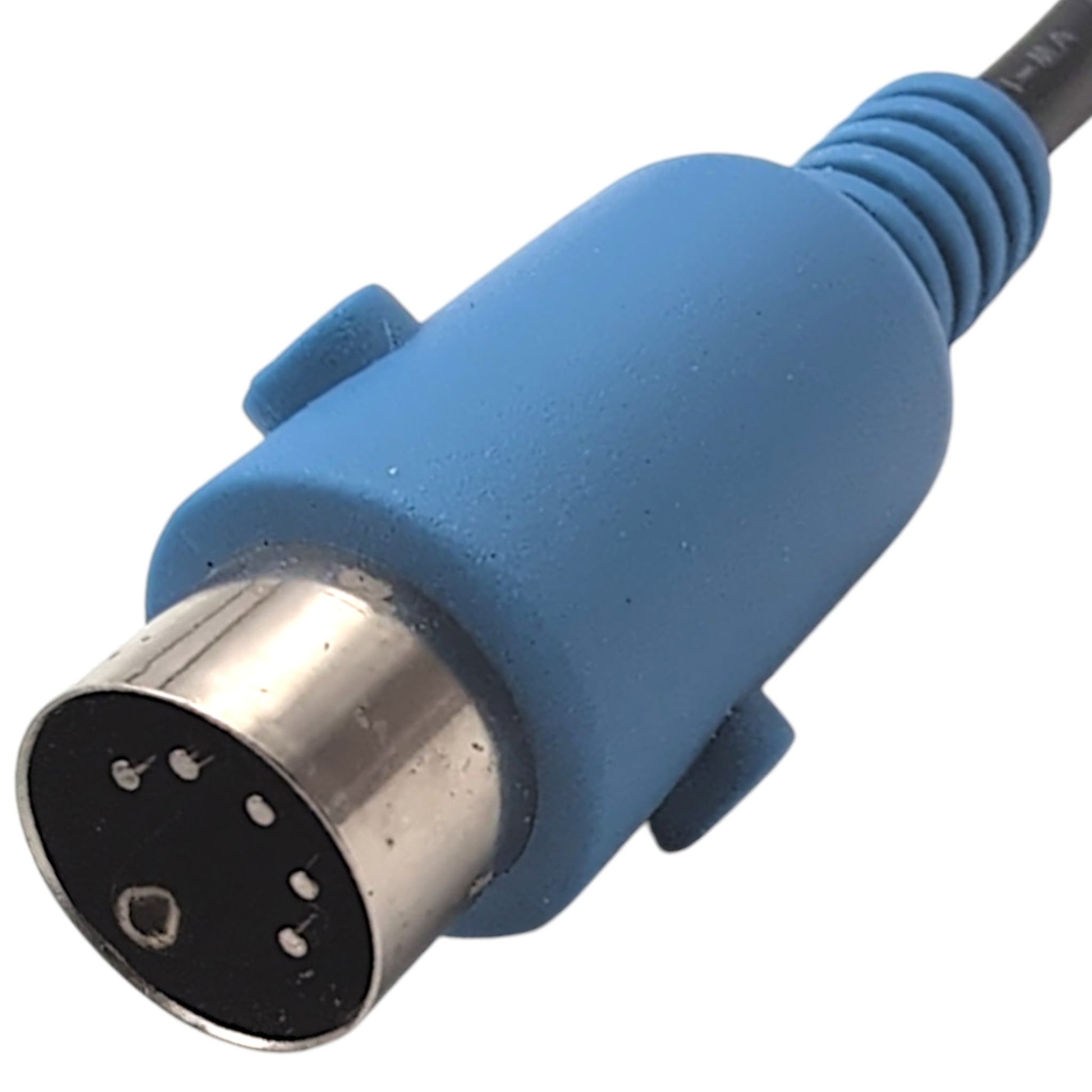

Connector Type:: 5-Pin Blue Din Connector

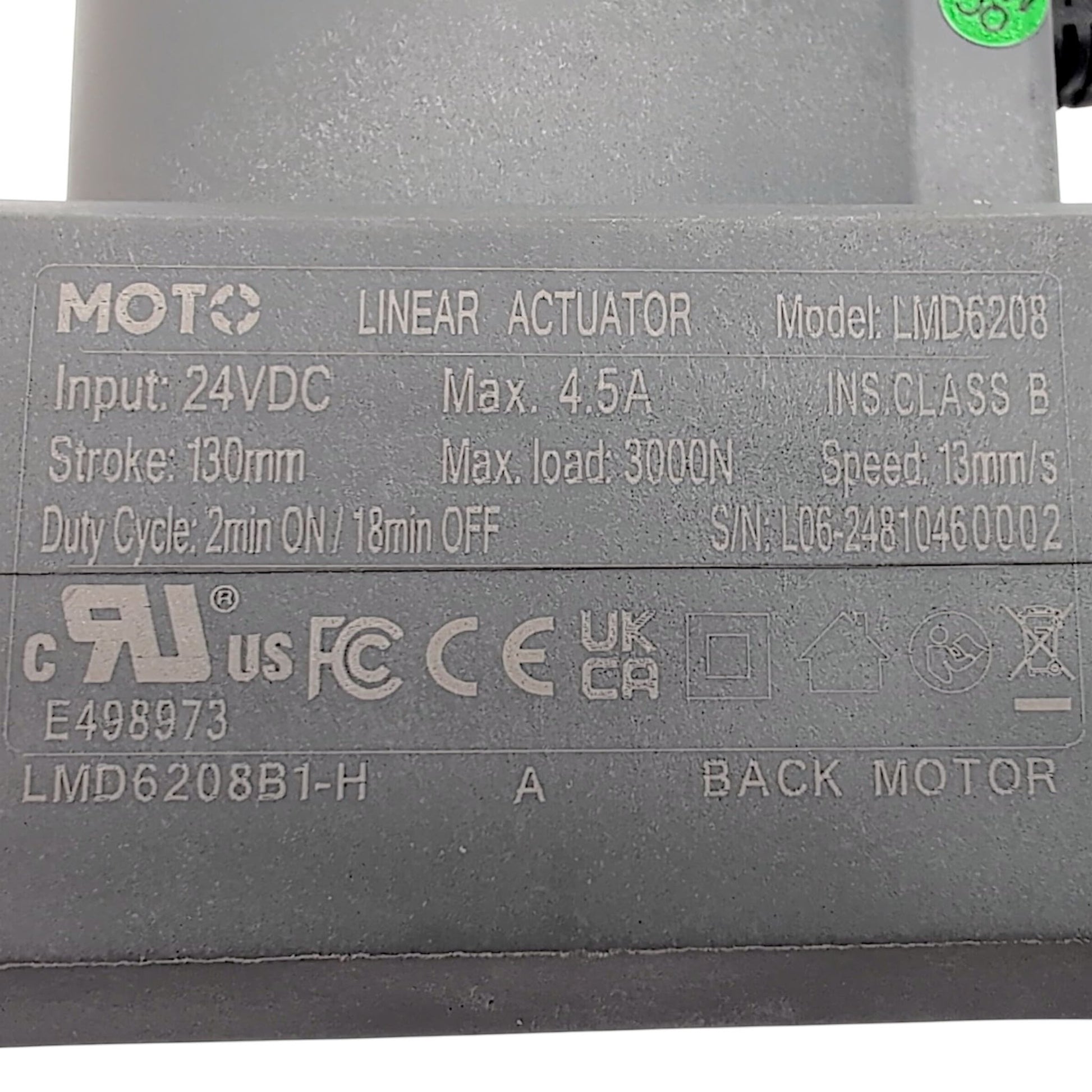

Input:: 24 Volts DC Max. 4.5 Amps
Stroke:: 130mm

Additional Specifications

Motor Type:: Linear Actuator / Back Motor
Max. Load:: 3000N
Ins. Class:: B
Speed:: 13mm per Second
Duty Cycle:: 2min ON / 18min OFF
Length:: 418mm (Fully Retracted. Approximate)
Width:: 85mm
Height:: 165mm
Weight:: 5.3 Pounds
Color:: Gray & Silver
