Pride Mobility | LMD6208G1-H | MOT2403529 | Lift Recliner Chair Base Motor with Hall Sensor

Name: Pride Mobility | LMD6208G1-H | MOT2403529 | Lift Recliner Chair Base Motor with Hall Sensor
Brand: Pride Mobility
SKU: MOT2403529
Price: 159.95 USD
Availability: InStock

$159.95 USD

~~$202.42 USD~~ $159.95 USD

Our Price Sold Out

Free Shipping On Most Items Over $40+ (Contiguous US Only) Shipping: Calculated at checkout Shipping Policy

In stock

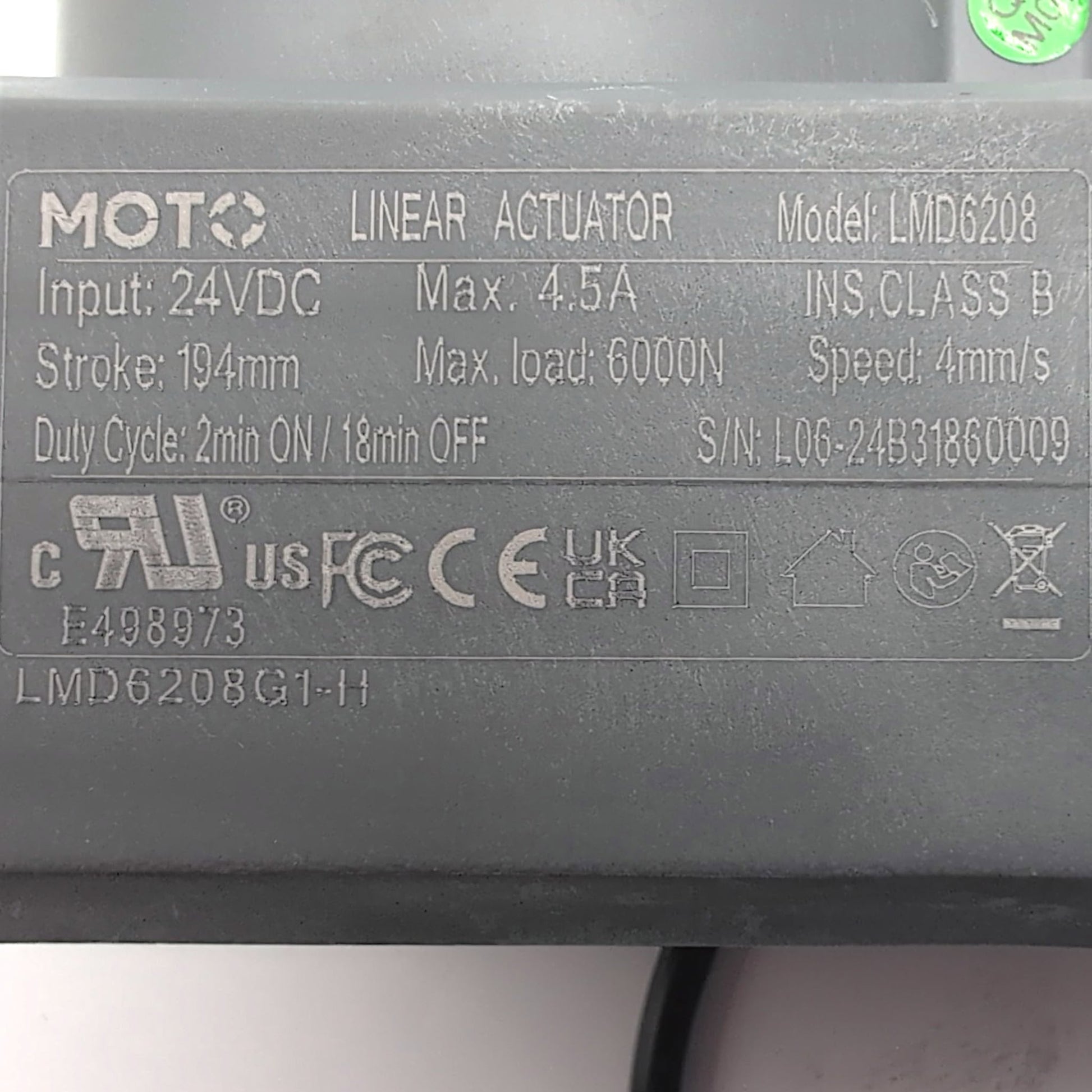

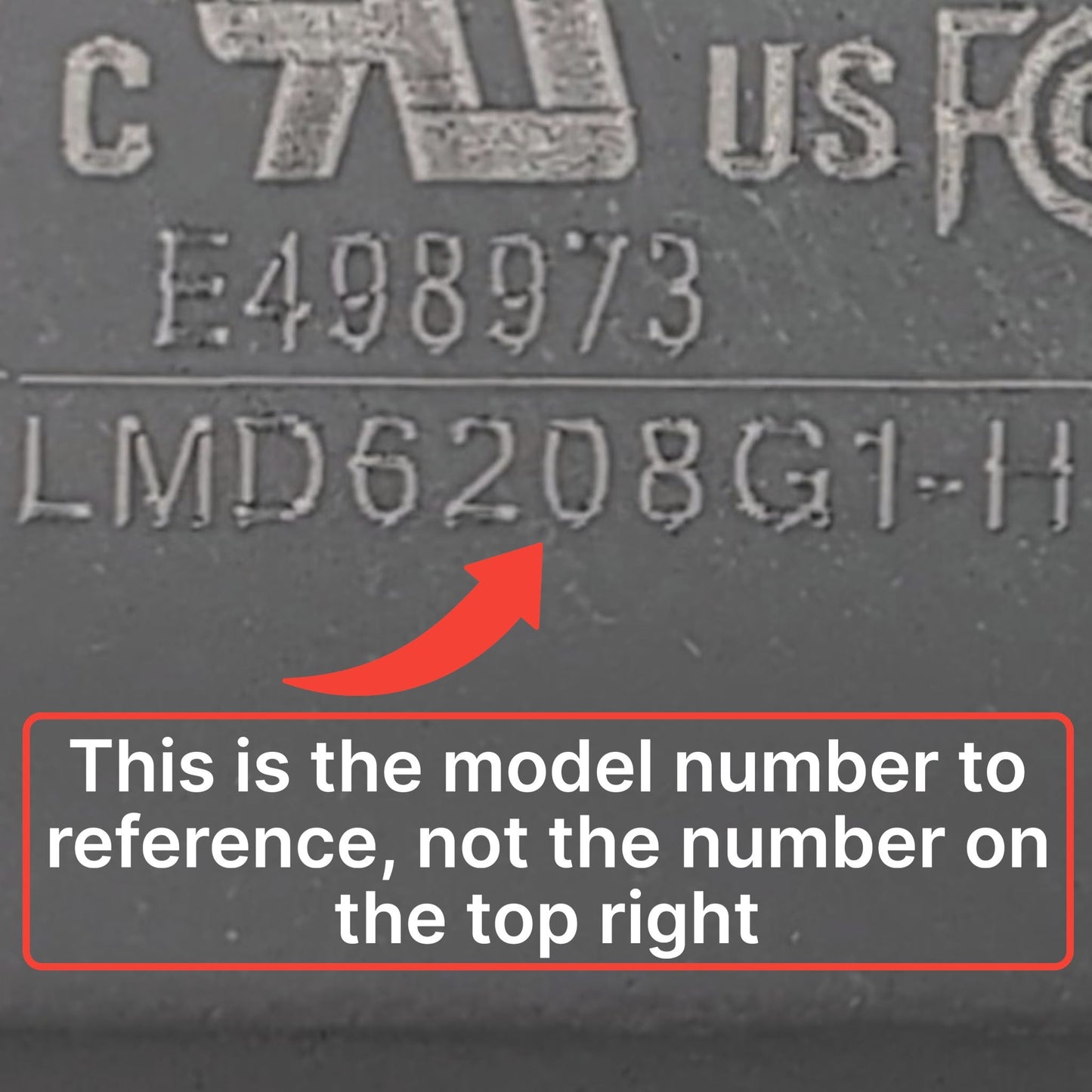

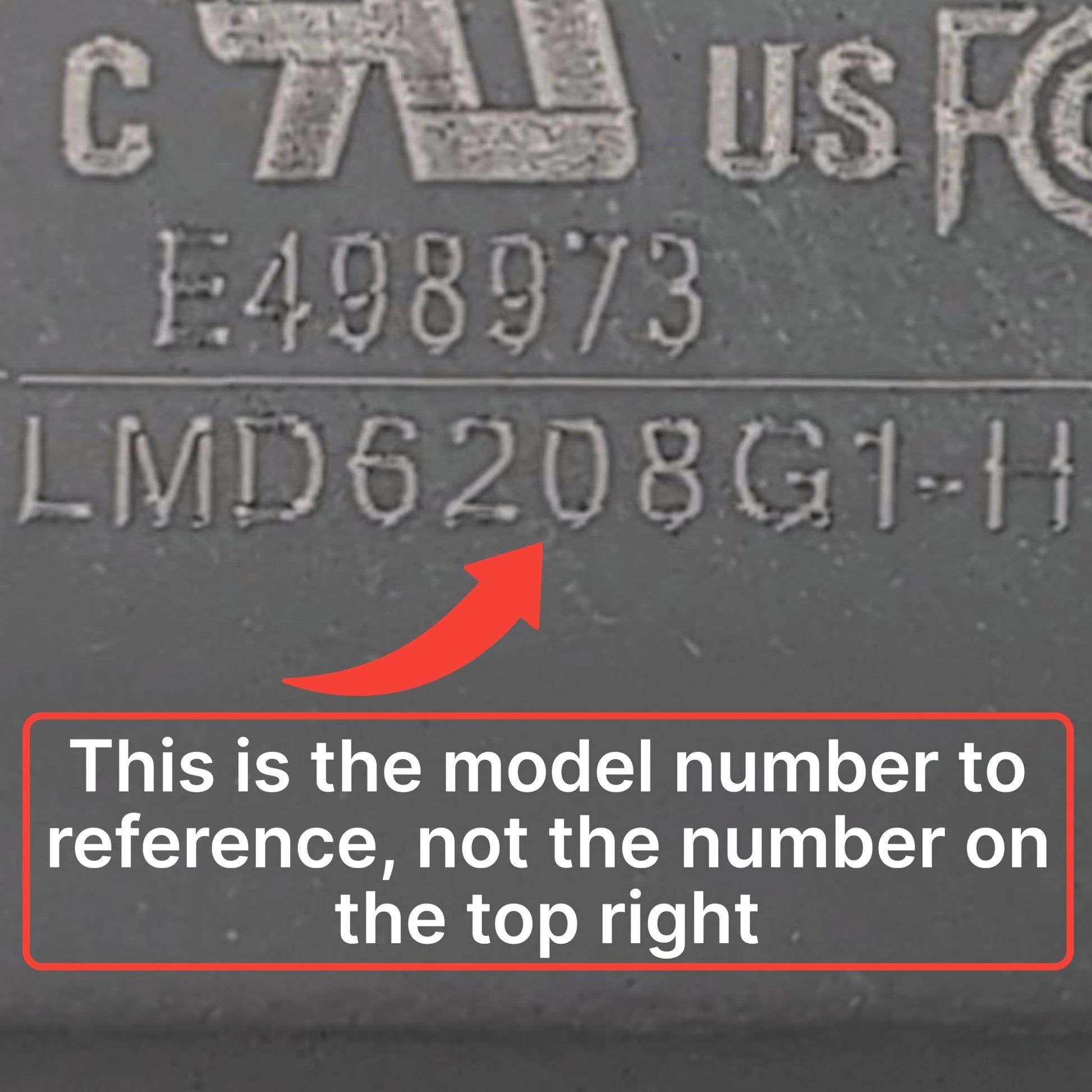

You are replacing an FBS, HHC or Moto branded actuator. These companies are all merged and current replacements are branded as "Moto". Please view the complete product description & view all pictures before ordering. These motors have 2 model numbers, one complete model number on the bottom left and one on the top right. The model number on the top right is used between different motors and can't be relied upon for finding the correct motor. Be sure the model numbers, part number, connector color and pin count are the same. Note: FBS motors do not have the complete model number listed on them and you will need to match the connector type with model number.

We also have a diagnostic video within the pictures. If you are hearing a clicking sound, 9 times out of 10, this is a control box issue.

Free ground shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
30 Day Return Policy

Fulfillment: Usually ships in 1-2 business days
This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects

Product Description

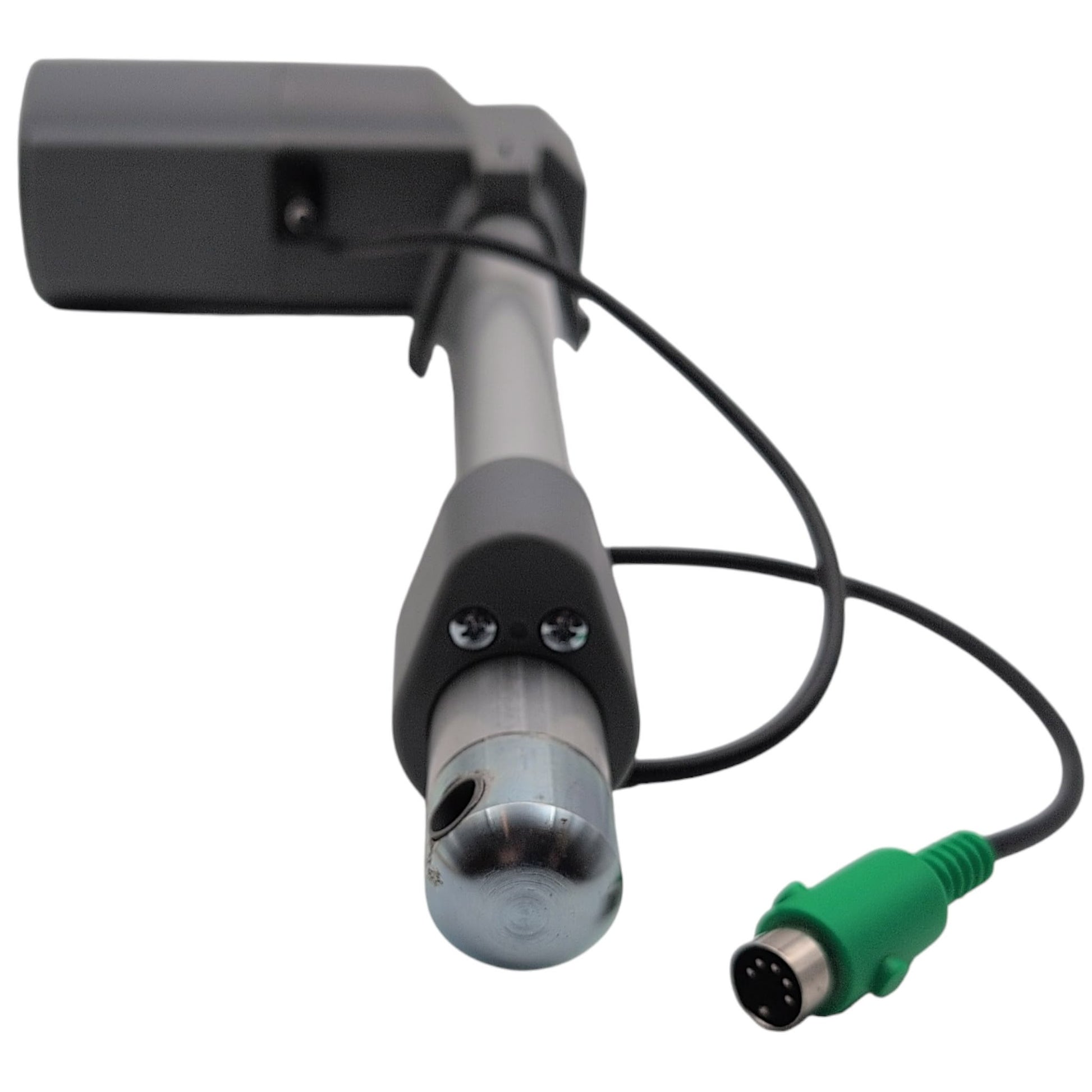

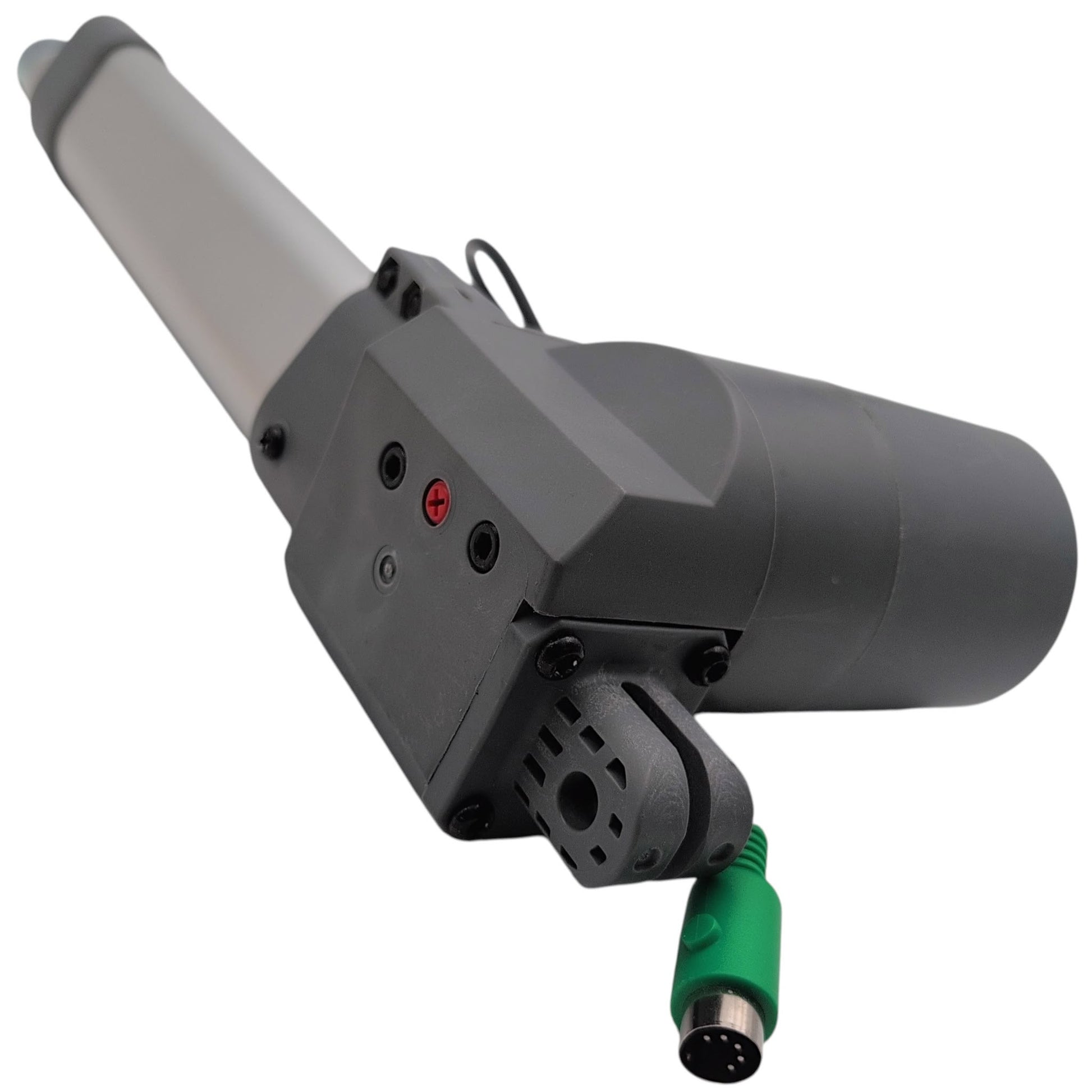

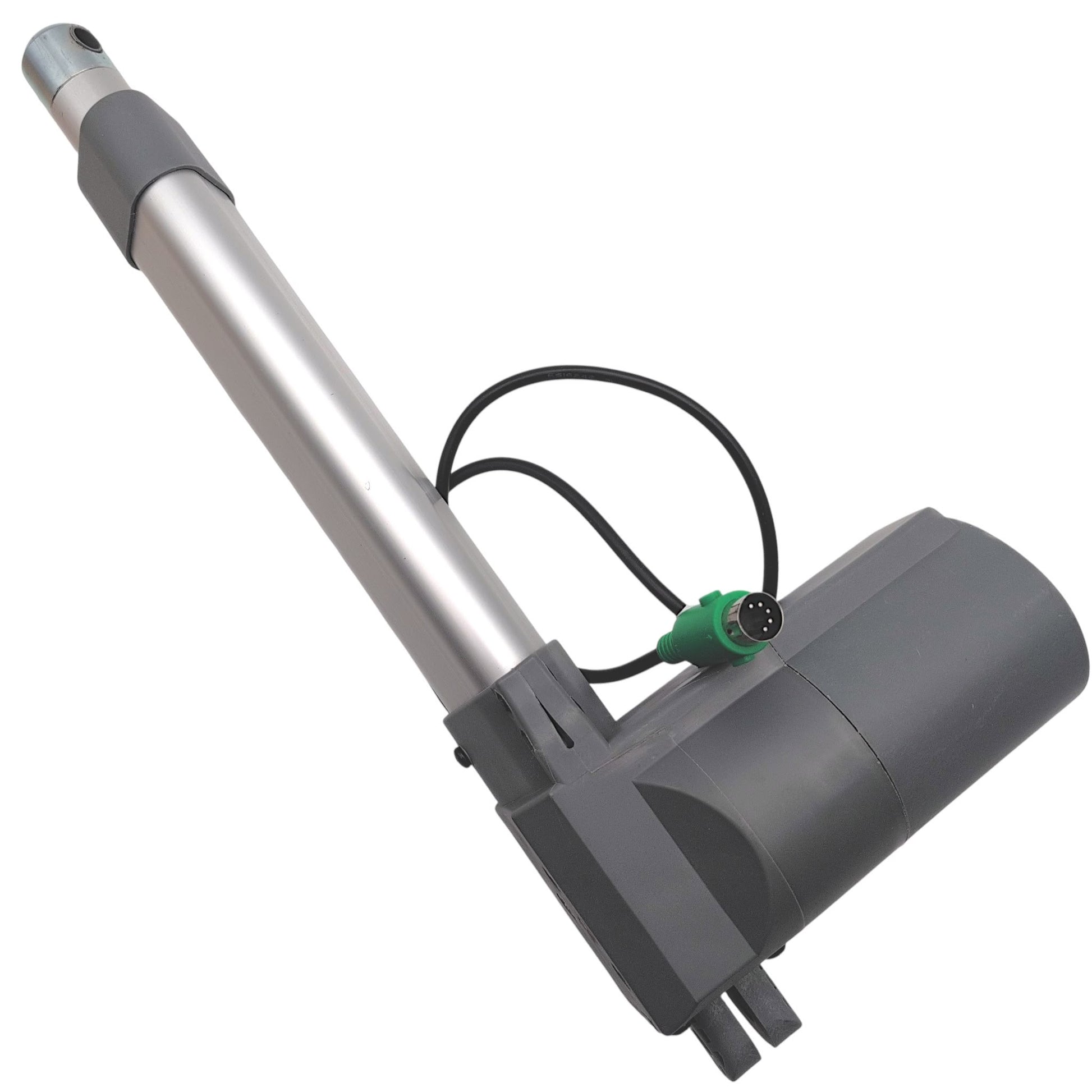

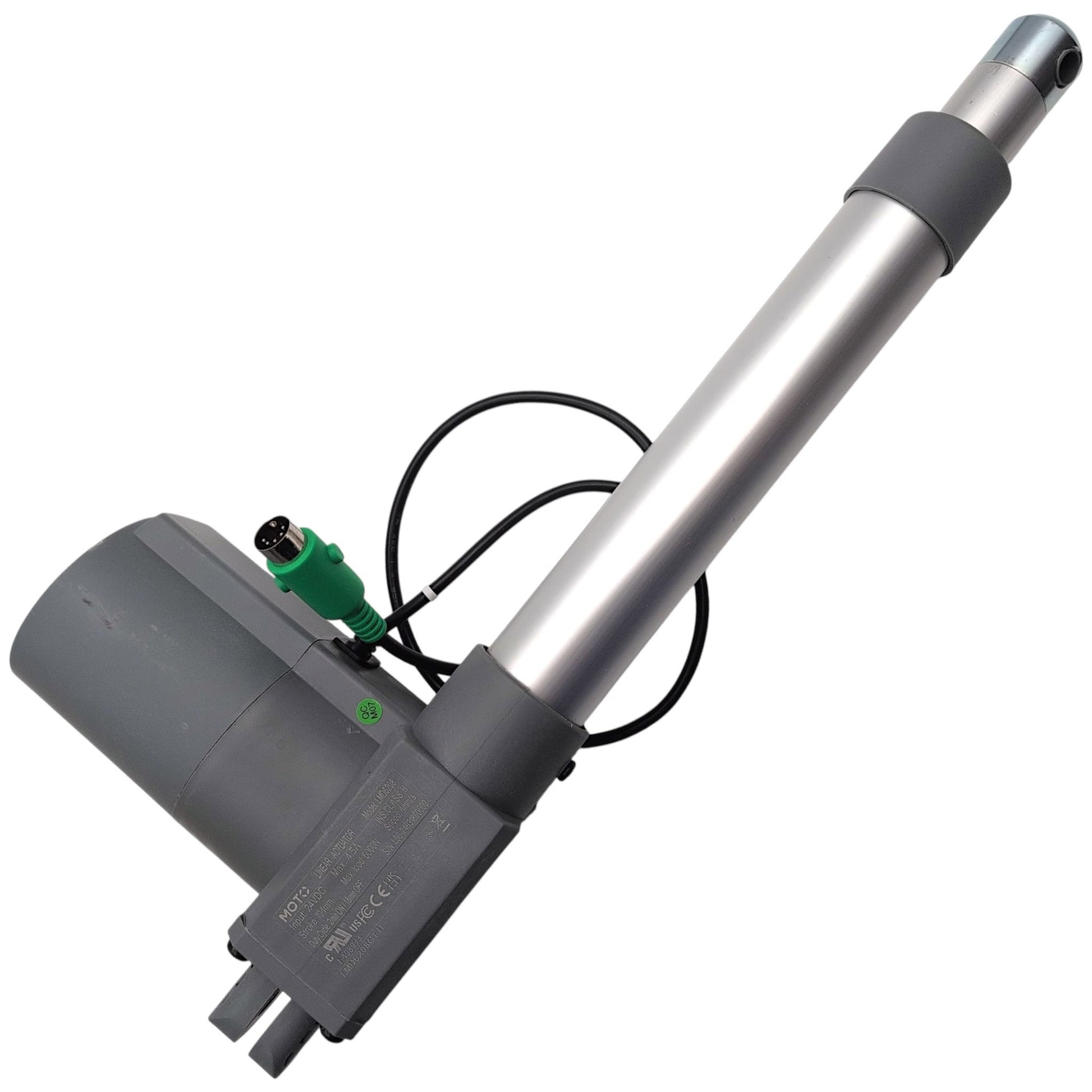

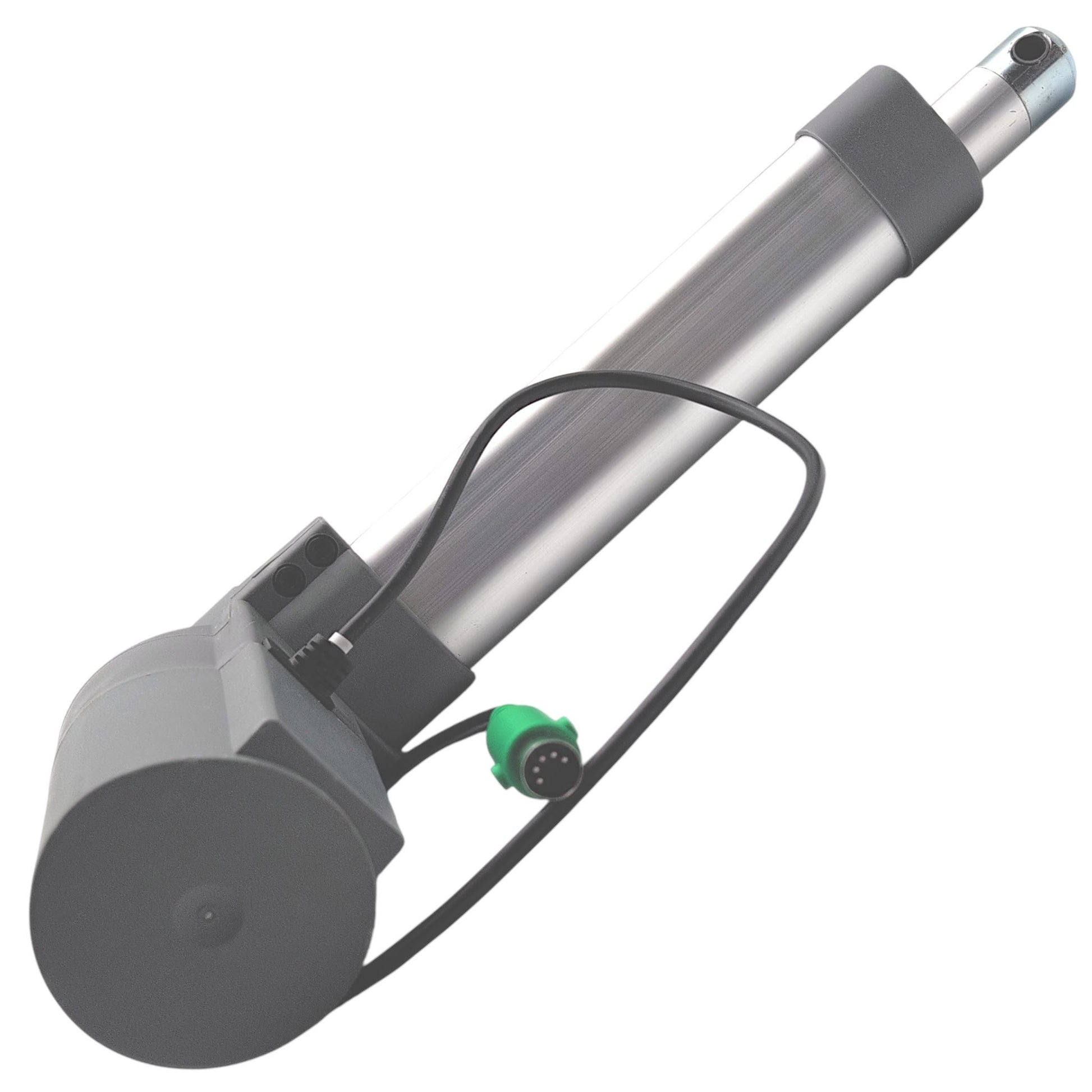

Genuine OEM replacement base linear actuator motor with Hall sensor (Part Number: MOT2403529) manufactured by Moto Motion / HHC for Pride Mobility and Mega Motion power lift recliners, as well as select Ashley and Franklin Furniture chairs. Identified by Model Number: LMD6208G1-H, this motor replaces part number LMD6208G1-H-00000P and uses a 5-pin Green Connector.

Description From The Pride Mobility Service Manual: Motor, Base Motor, W/Hall Censor, W/Hardware, Tru Motion (HHC: LMD6208G1-H-00000)

Important Note! | Please Read Before Ordering

Specifications:

Brands:: Pride Mobility & Mega Motion
Manufacturer:: Moto Motion / HHC Linear Actuator (Replaces FBS)
Pride Mobility Part Number:: MOT2403529
Moto / HHC Model Number:: LMD6208G1-H
Moto / HHC Base Model:: LMD6208
Replaces:: LMD6208G1-H-00000P

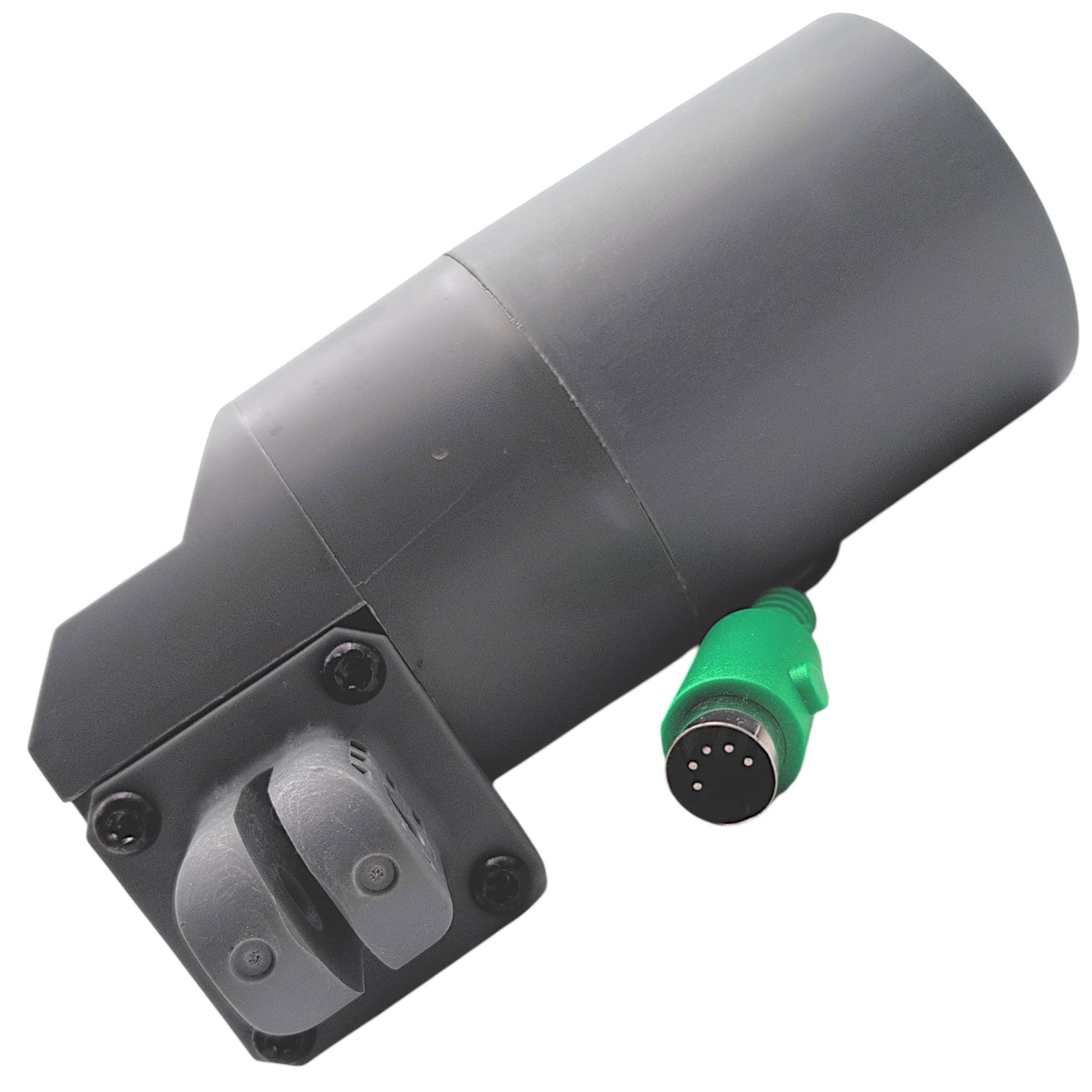

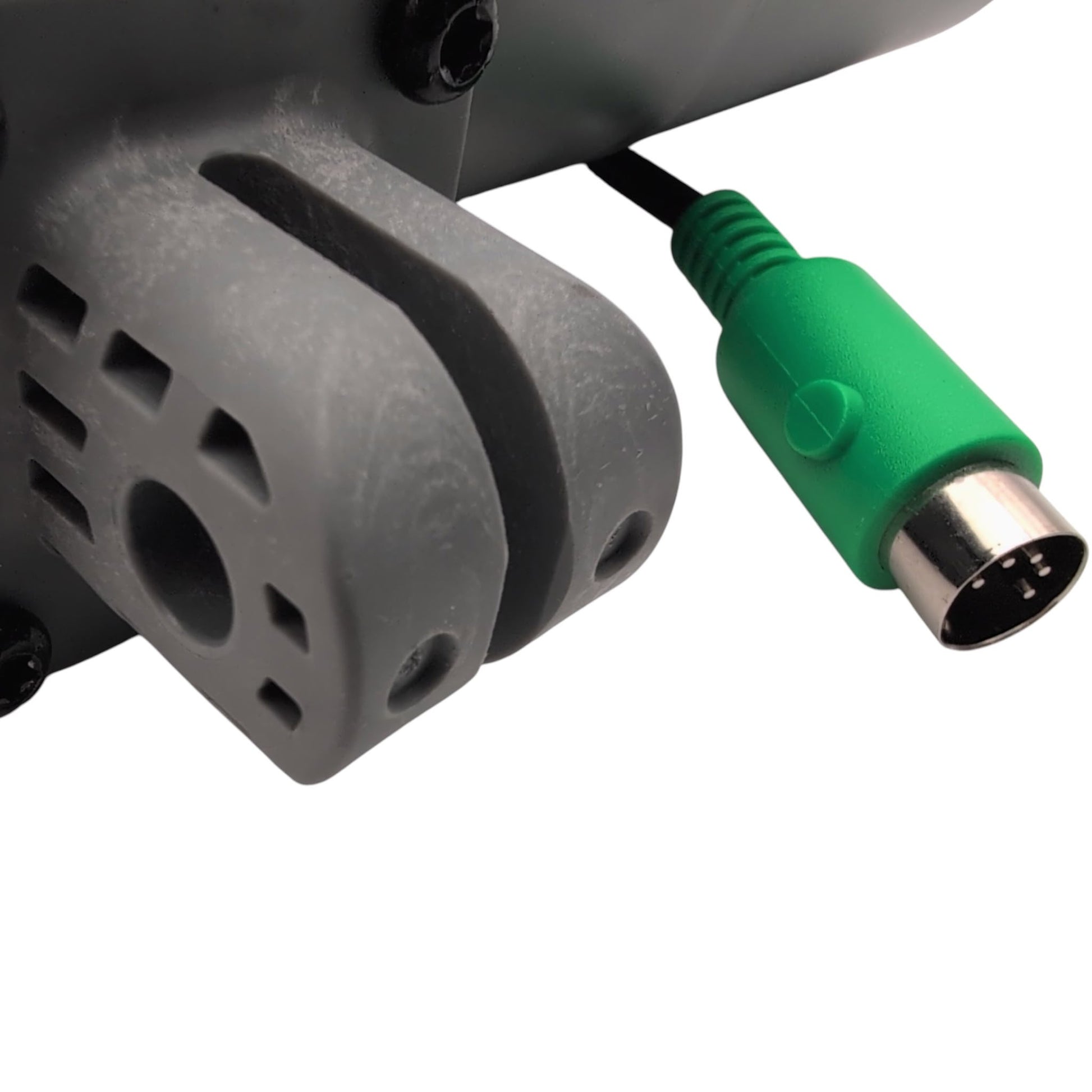

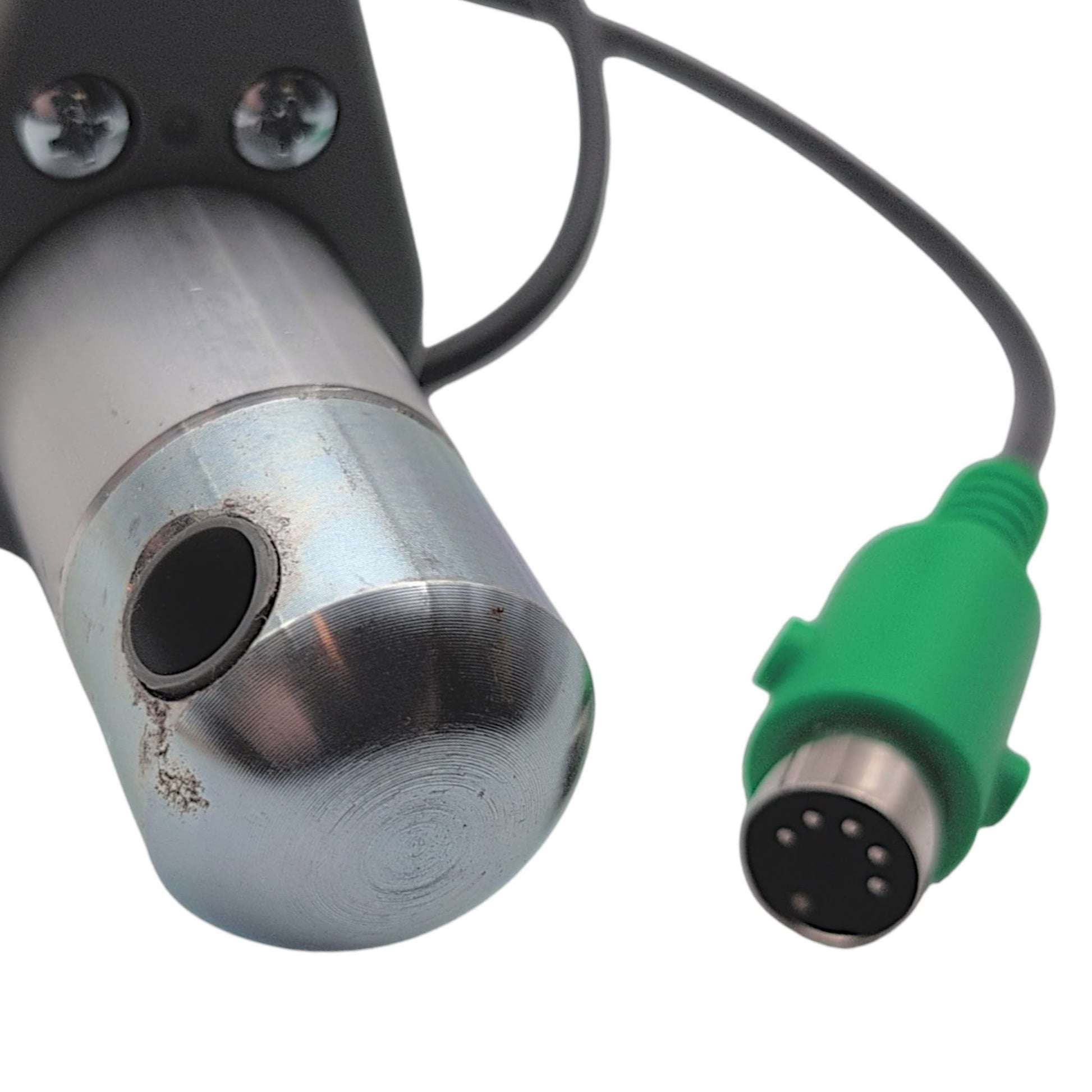

Connector Type:: 5-Pin Green Din Connector
Input:: 24 Volts DC Max. 4.5 Amps
Stroke:: 194mm
Max. Load:: 6000N
Speed:: 4mm per Second
Duty Cycle:: 2min ON / 18min OFF

Compatibility

Pride Mobility Sitting Pretty Series:: Model Number LC435(S)(M)(L)
Mega Motion Trio Mezzo:: Model Number MM-3600
Mega Motion:: Model Number MM-5401
Other Brands:: Various Ashley Furniture & Franklin Furniture Chairs

Additional Specifications

Motor Type:: Linear Actuator / Base Motor With Hall Sensor
Ins. Class:: B
Length:: 418mm (Fully Retracted. Approximate)
Width:: 83mm
Height:: 162mm
Weight:: 5.8 Pounds
Color:: Gray & Silver
