Pride Mobility Moto/HHC Lift Chair Motor - LMD80219B-3 / MOT1707326
Pride Mobility Moto/HHC Lift Chair Motor - LMD80219B-3 / MOT1707326
In stock
Couldn't load pickup availability
- Free 2-day shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
- Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
- 30 Day Return Policy
- Fulfillment: Usually ships in 1-2 business days
- This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects
Product Description

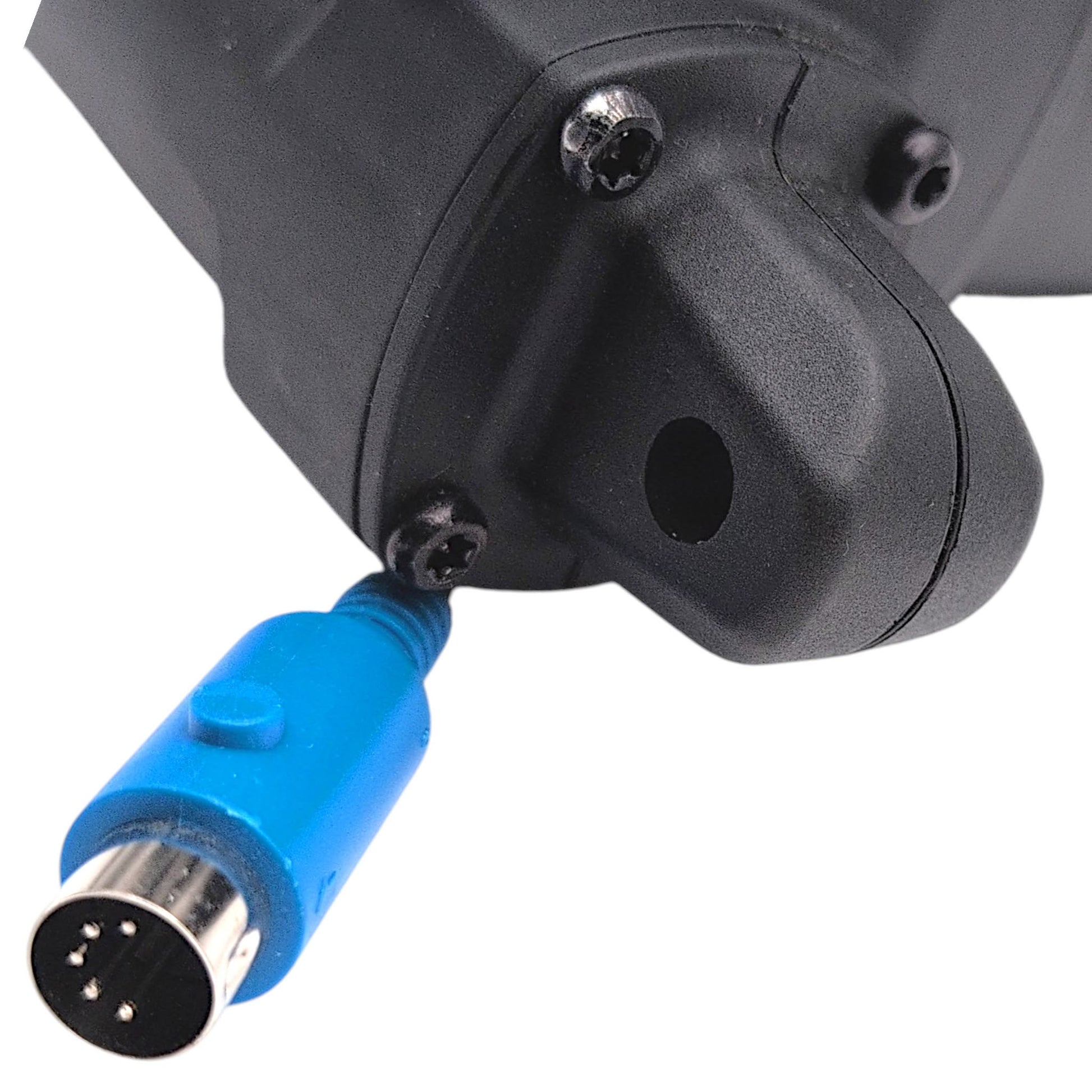

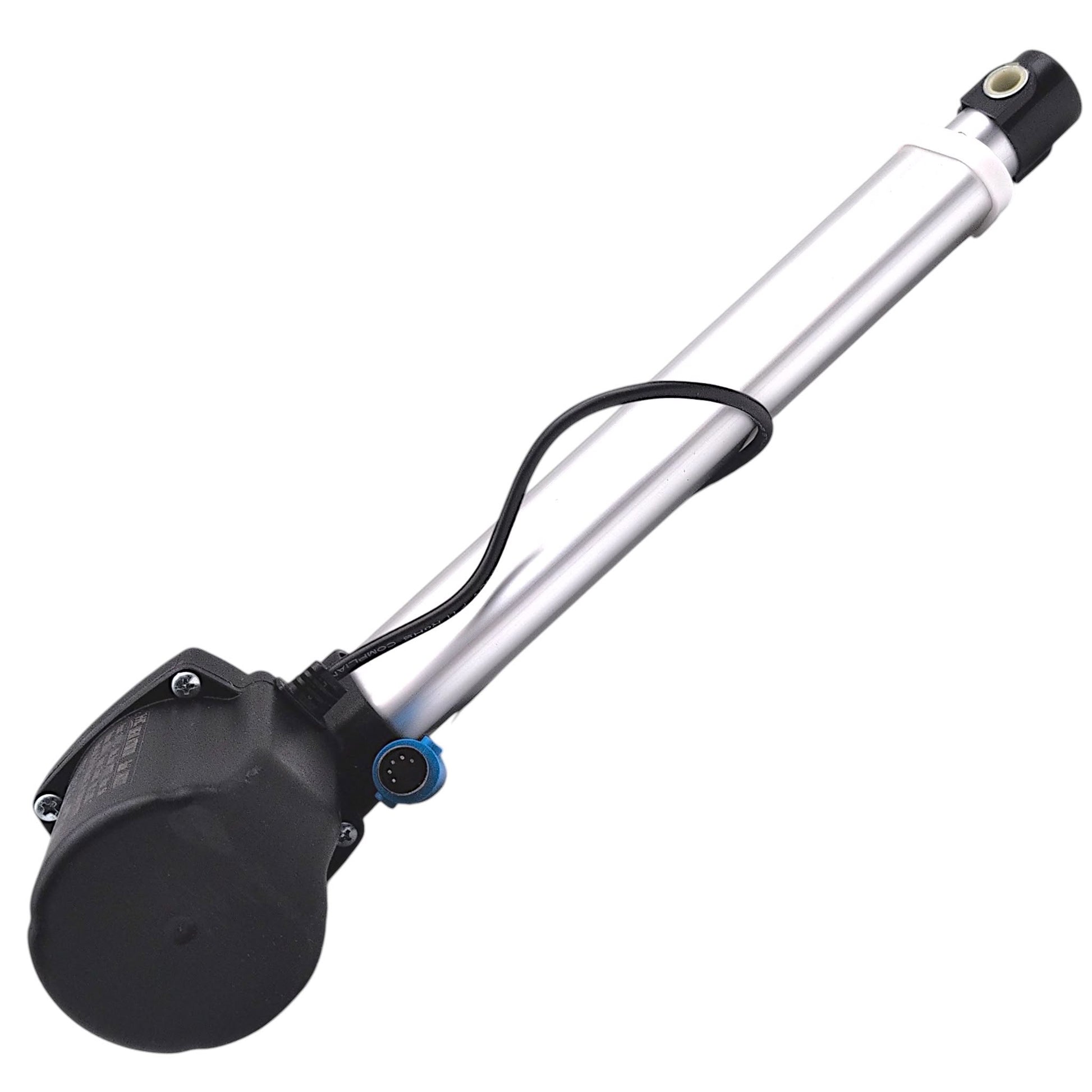

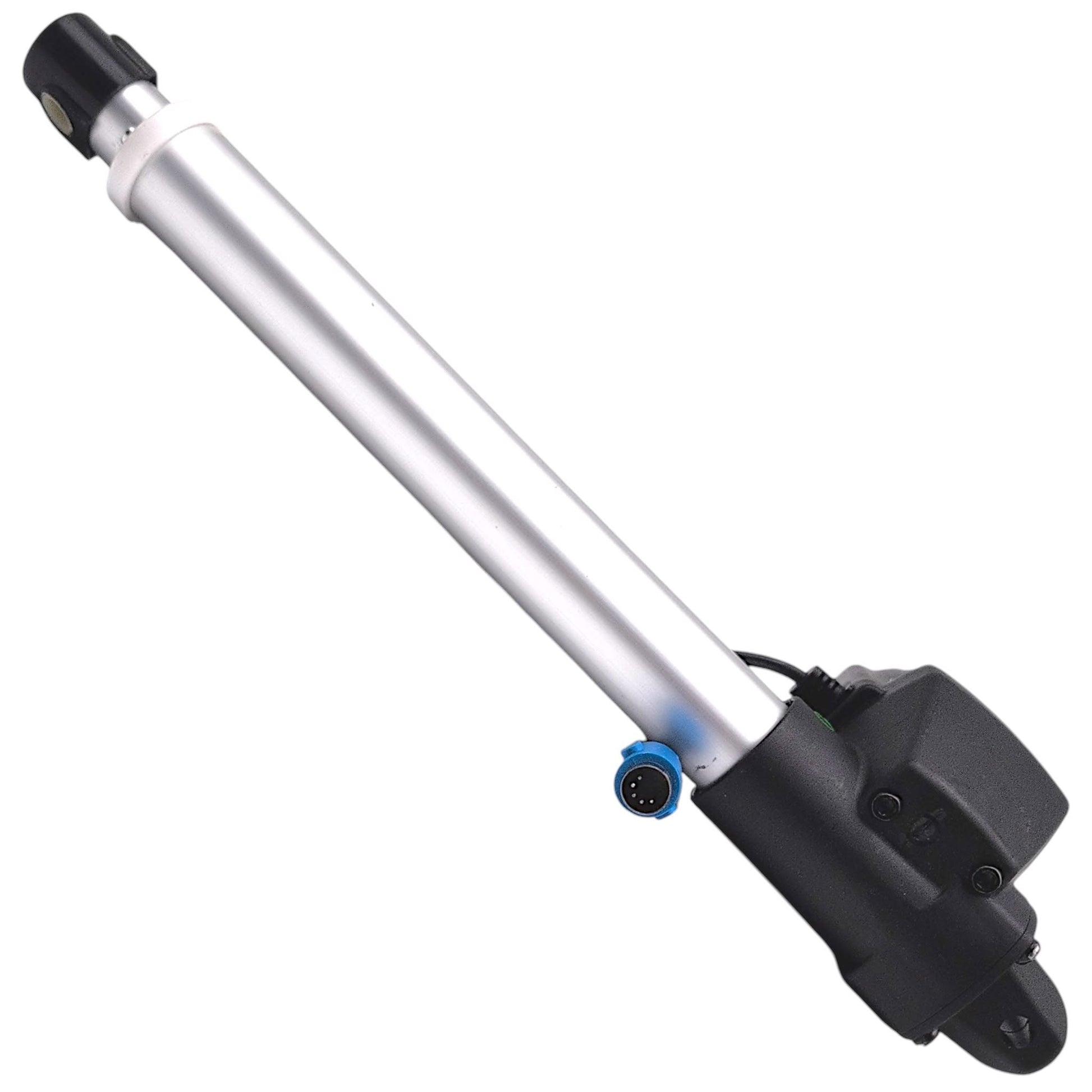

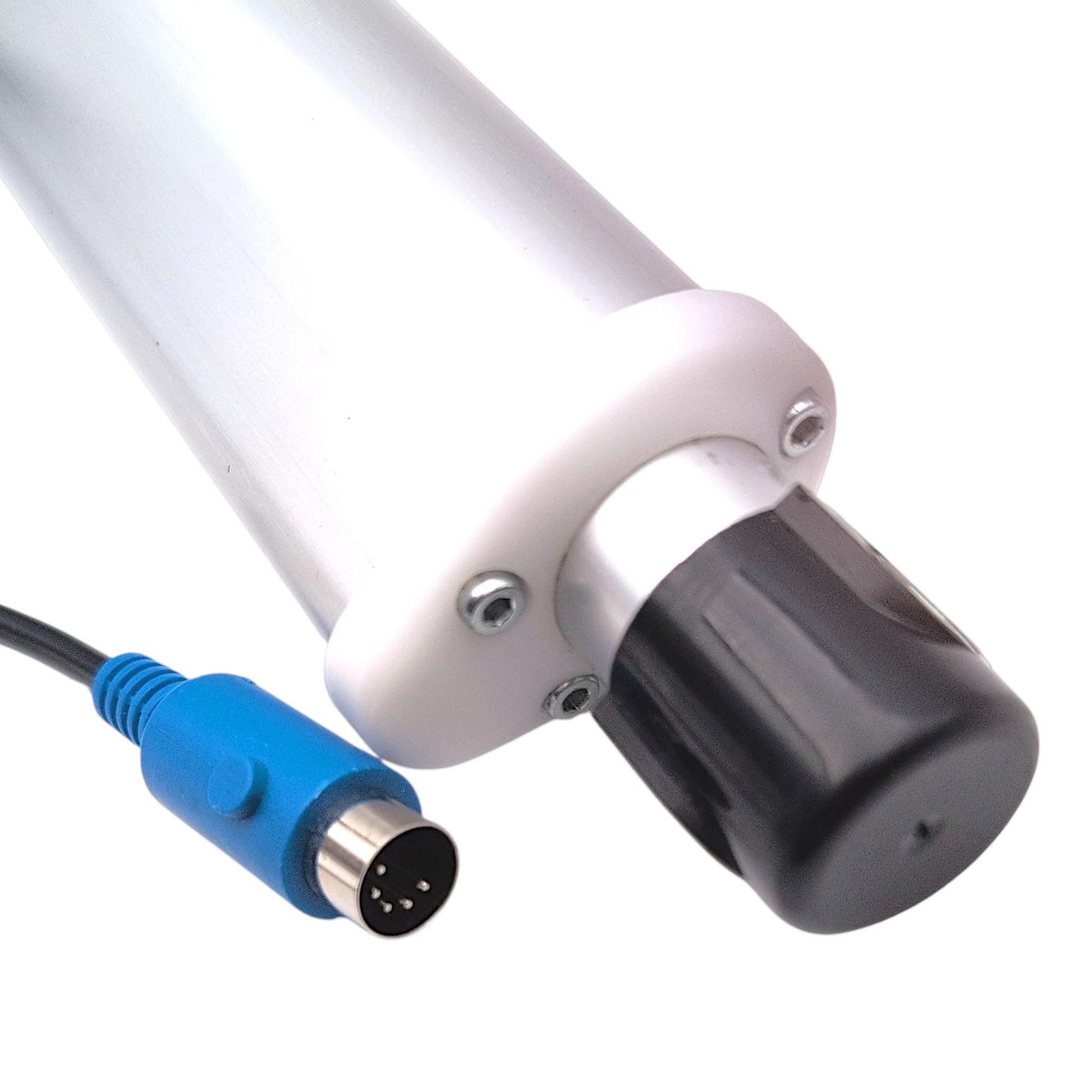

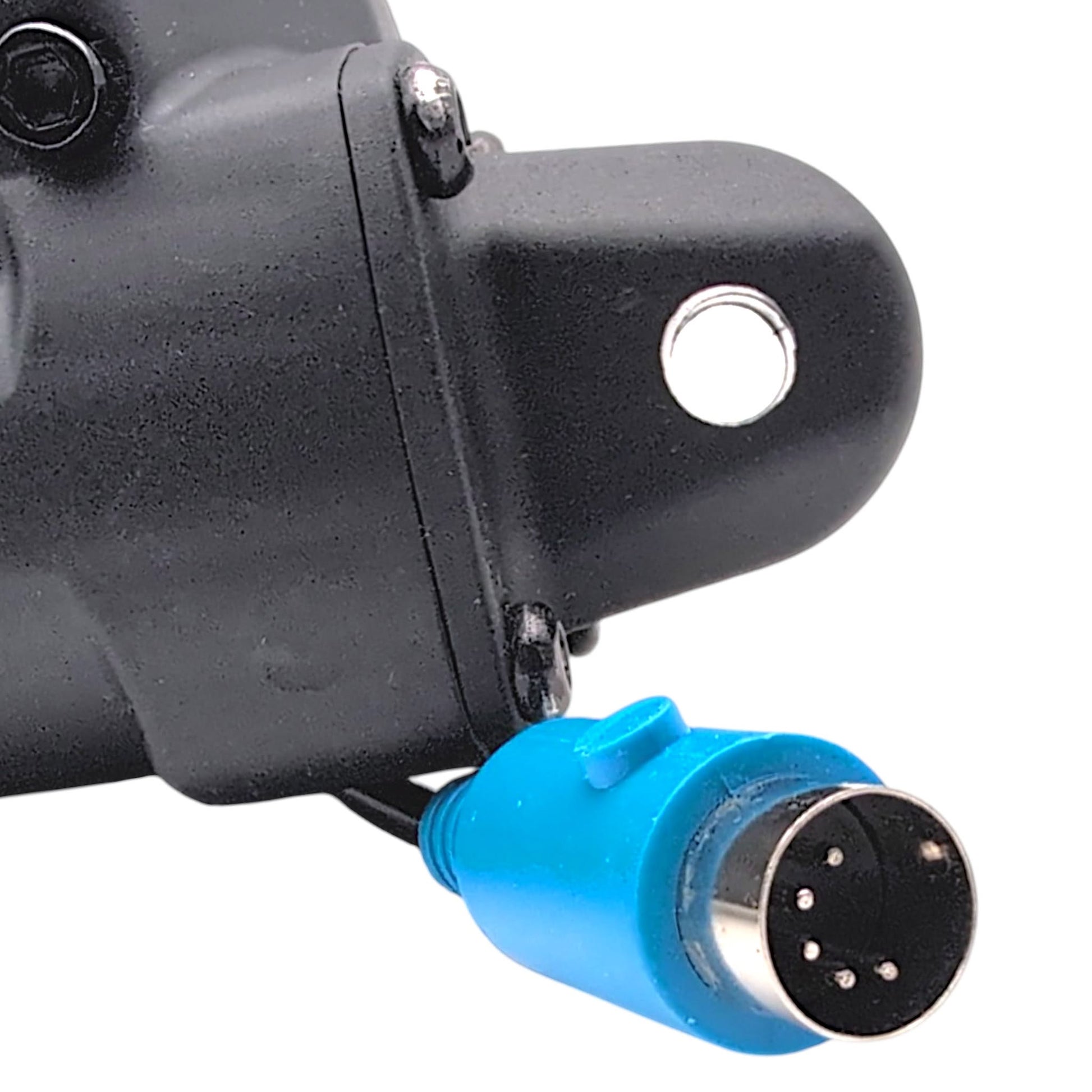

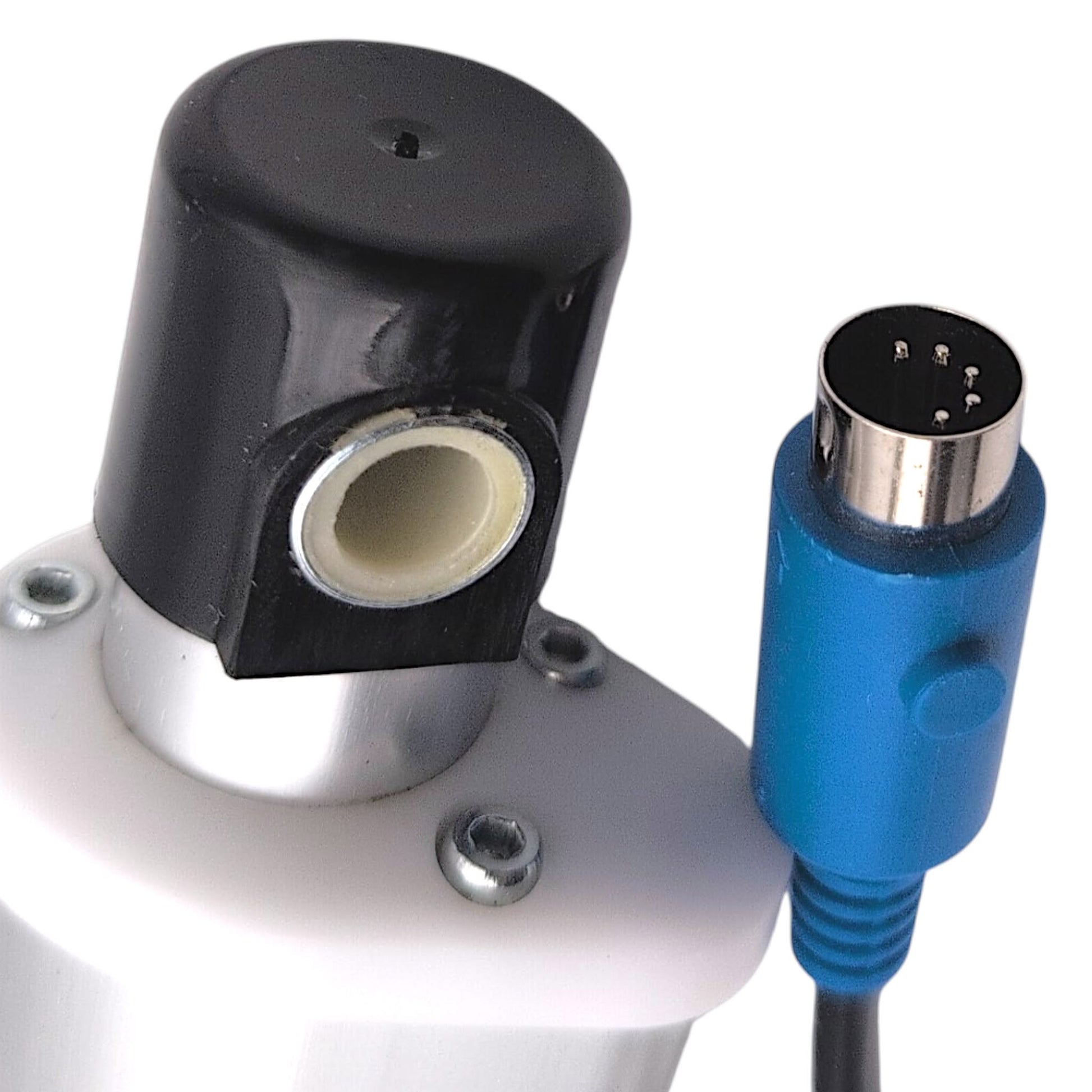

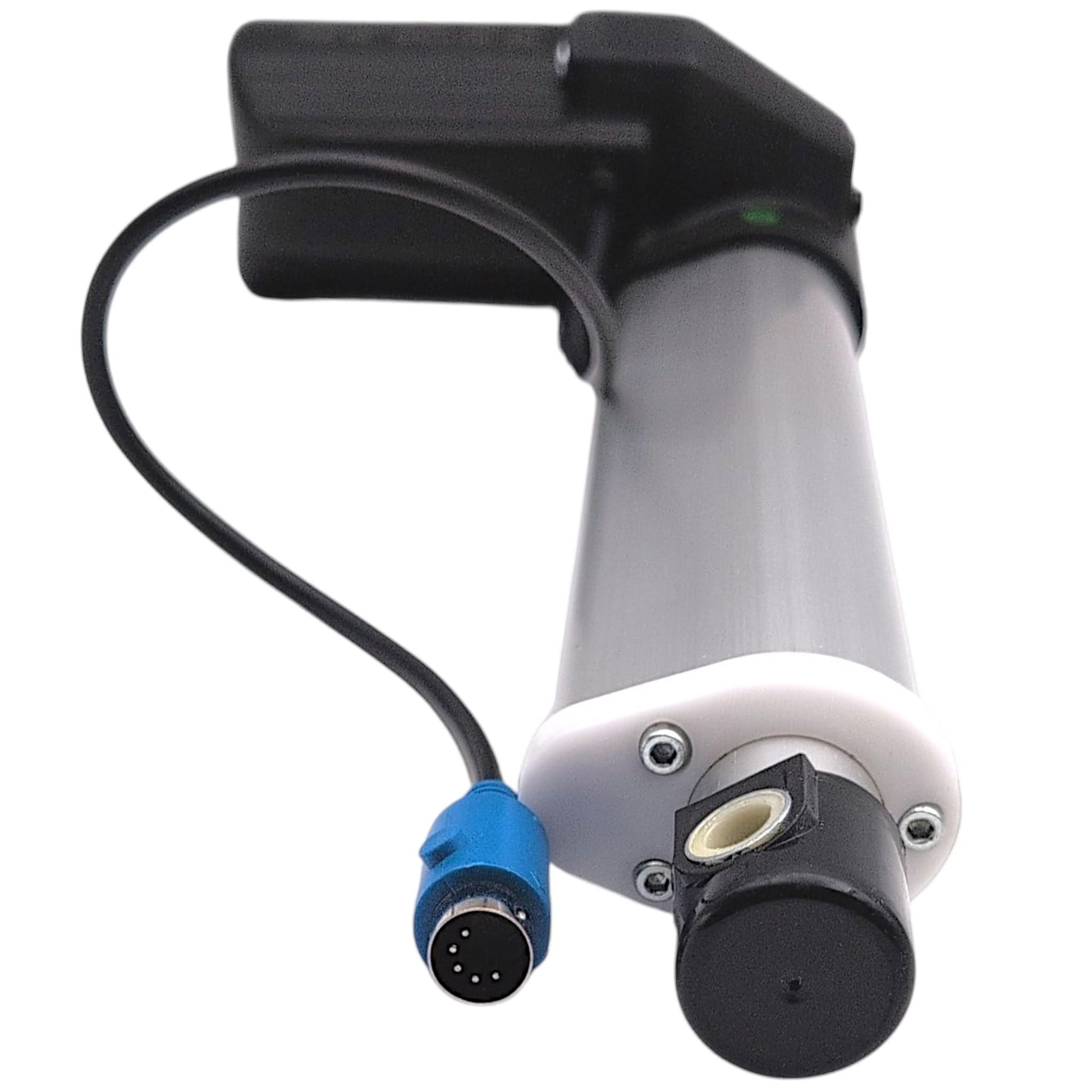

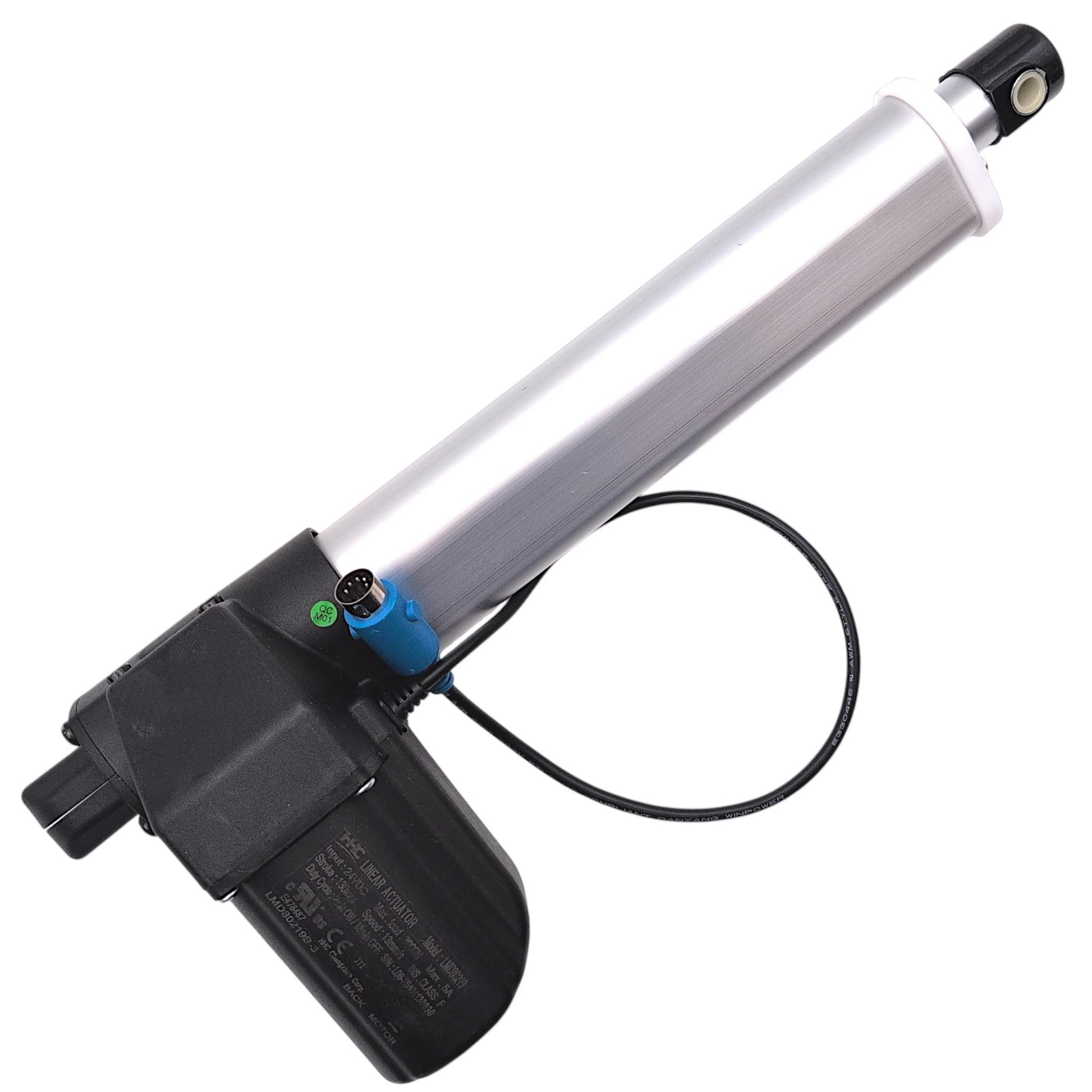

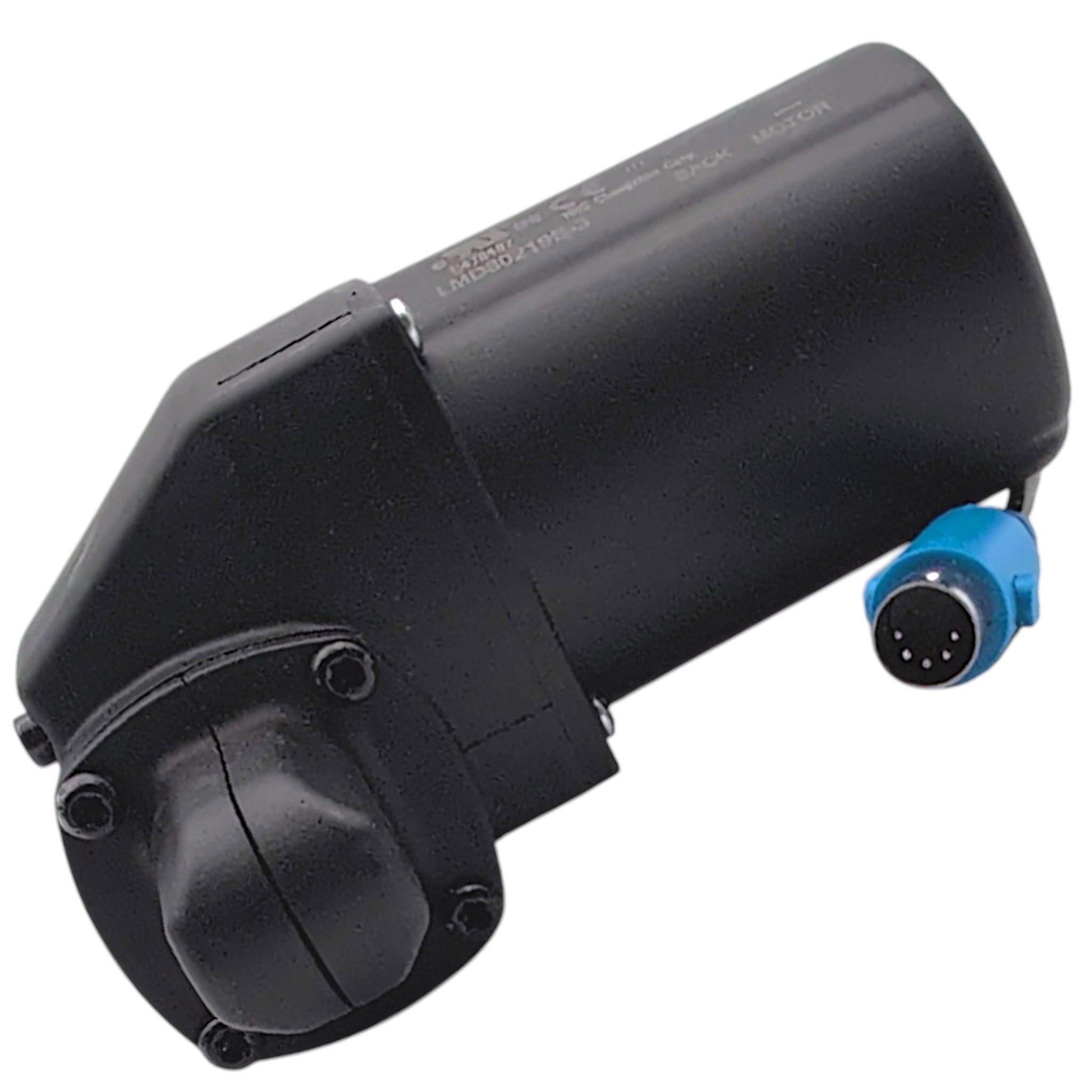

Genuine OEM replacement linear actuator back motor (Part Number: MOT1707326) manufactured by Moto Motion / HHC for Pride Mobility VivaLift! power lift recliners. Identified by Model Number: LMD80219B-3, this motor features a 5-pin blue DIN connector and ensures smooth, reliable positioning of your chair's backrest.
Description From The Pride Mobility Service Manual: Motor, back, lay flat, 716 dual motor, (HHC: LMD80219B-3)
Important Note! | Please Read Before Ordering
- Brands:
- Pride Mobility
- Manufacturer:
- Moto Motion / HHC Linear Actuator (Replaces FBS)
- Pride Mobility Part Number:
- MOT1707326
- Moto / HHC Model Number:
- LMD80219B-3
- Moto / HHC Base Model:
- LMD80219

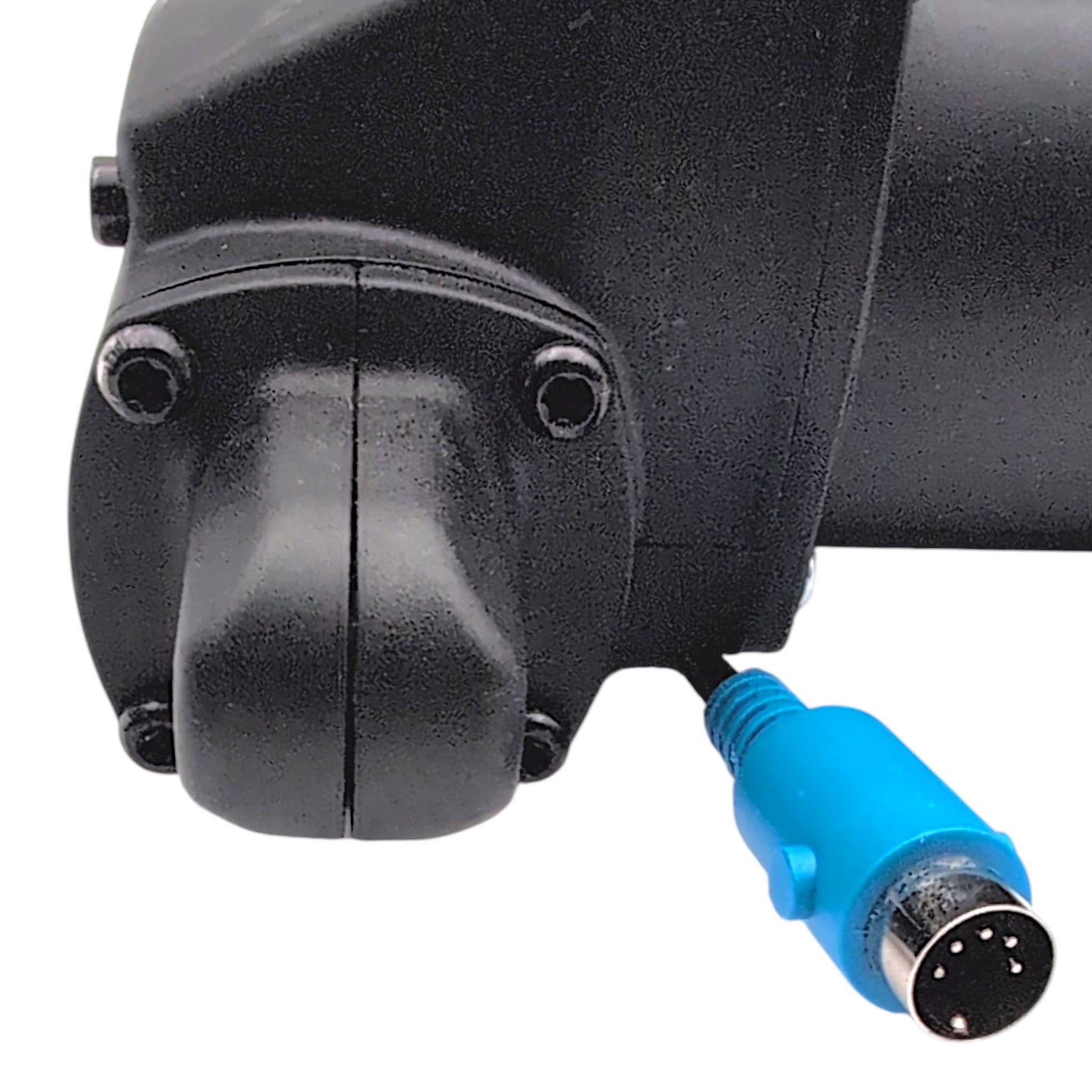

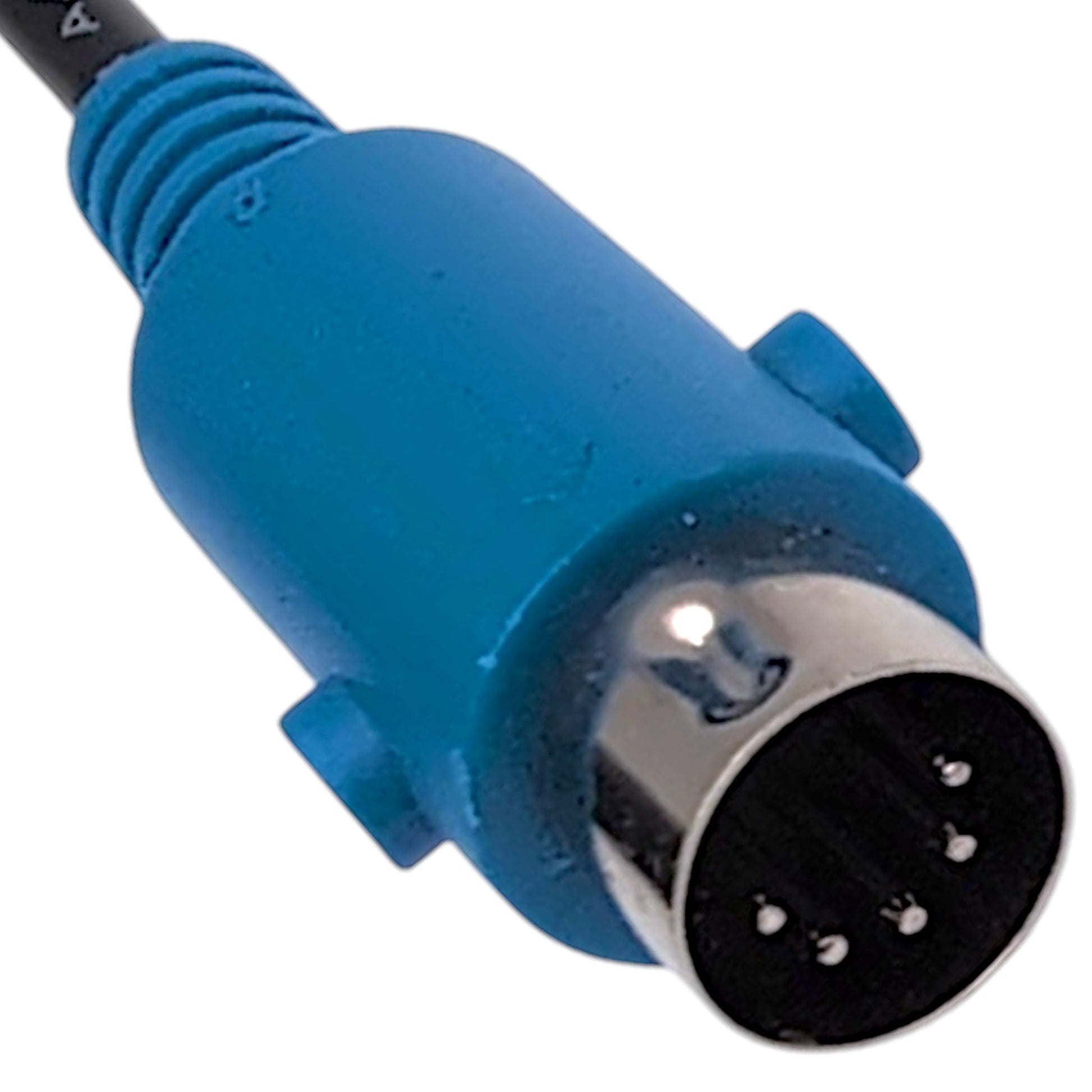

- Connector Type:

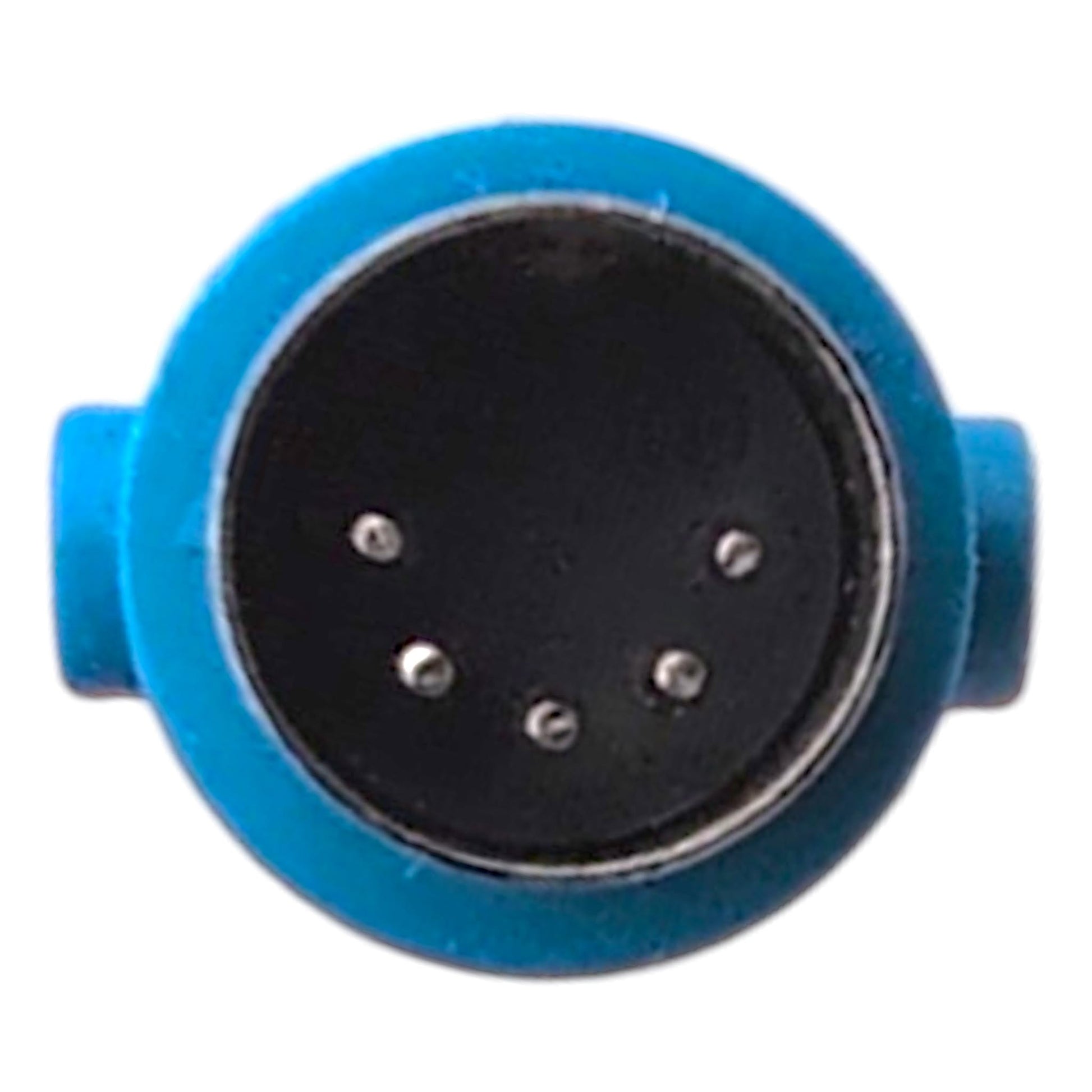

- 5-Pin Blue Din Connector

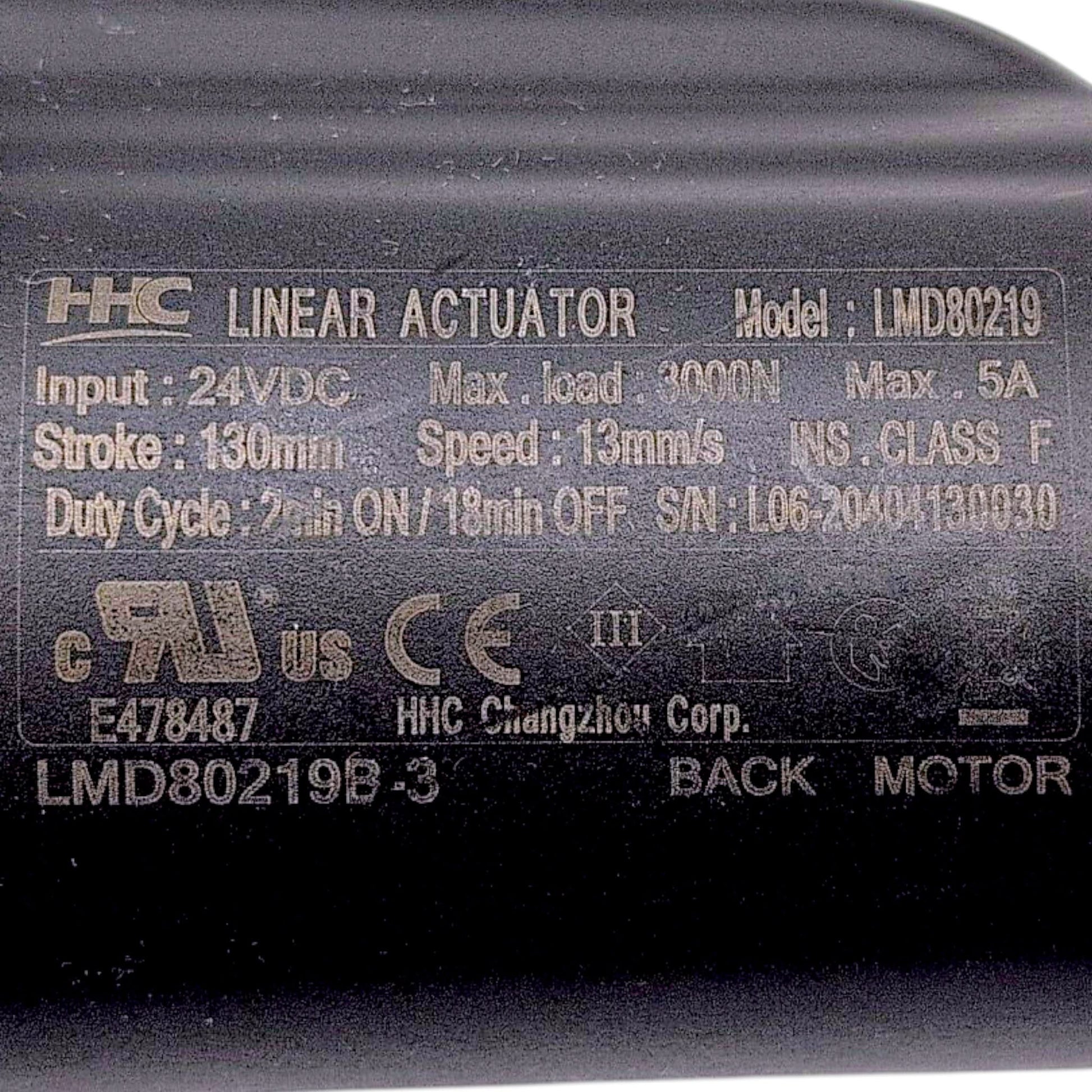

- Input:
- 24 Volts DC Max. 5 Amps
- Stroke:
- 130 mm (5.12 inches)
- Max. Load:
- 3000N
- Speed:
- 13 mm/s (0.51 inches/s)
- Duty Cycle:
- 2min ON / 18min OFF
Power Lift Chair Compatibility
- Pride Mobility VivaLift! Tranquil / Tranquil 2:
- PLR935S, PLR935LT, PLR935PW
- Pride Mobility VivaLift! Legacy:
- PLR958L, PLR958M
- Pride Mobility VivaLift! Urbana / Urbana 2:
- PLR965M
- Pride Mobility VivaLift! Sierra:
- PLR970M
- Pride Mobility VivaLift! Elegance / Elegance 2:
- PLR975M, PLR975L
- Pride Mobility VivaLift! Atlas:
- PLR985M
- Pride Mobility VivaLift! Atlas Plus / Atlas Plus 2:
- PLR2985
Additional Specifications
- Motor Type:
- Back Motor / Linear Actuator
- Length:
- Approx. 425 mm (16.73 inches) (Fully Retracted)
- Width:
- 155 mm (6.10 inches)
- Height:
- 90 mm (3.54 inches)
- Cord Length:
- 472 mm (18.58 inches)
- Weight:
- 4.35 Pounds
- Color:
- Black & Silver
- Insulation Class:
- F
- Certifications:
- cRUus: E478487
