Pride Mobility / Mega Motion LMD6208M1-H2 (LMD6208M1-8) Linear Actuator - Green Connector - MOT2205150

Name: Pride Mobility / Mega Motion LMD6208M1-H2 (LMD6208M1-8) Linear Actuator - Green Connector - MOT2205150
Brand: Pride Mobility
SKU: MOT2205150
Price: 159.95 USD
Availability: InStock

$159.95 USD

~~$214.73 USD~~ $159.95 USD

Our Price Sold Out

Free Shipping On Most Items Over $40+ (Contiguous US Only) Shipping: Calculated at checkout Shipping Policy

In stock

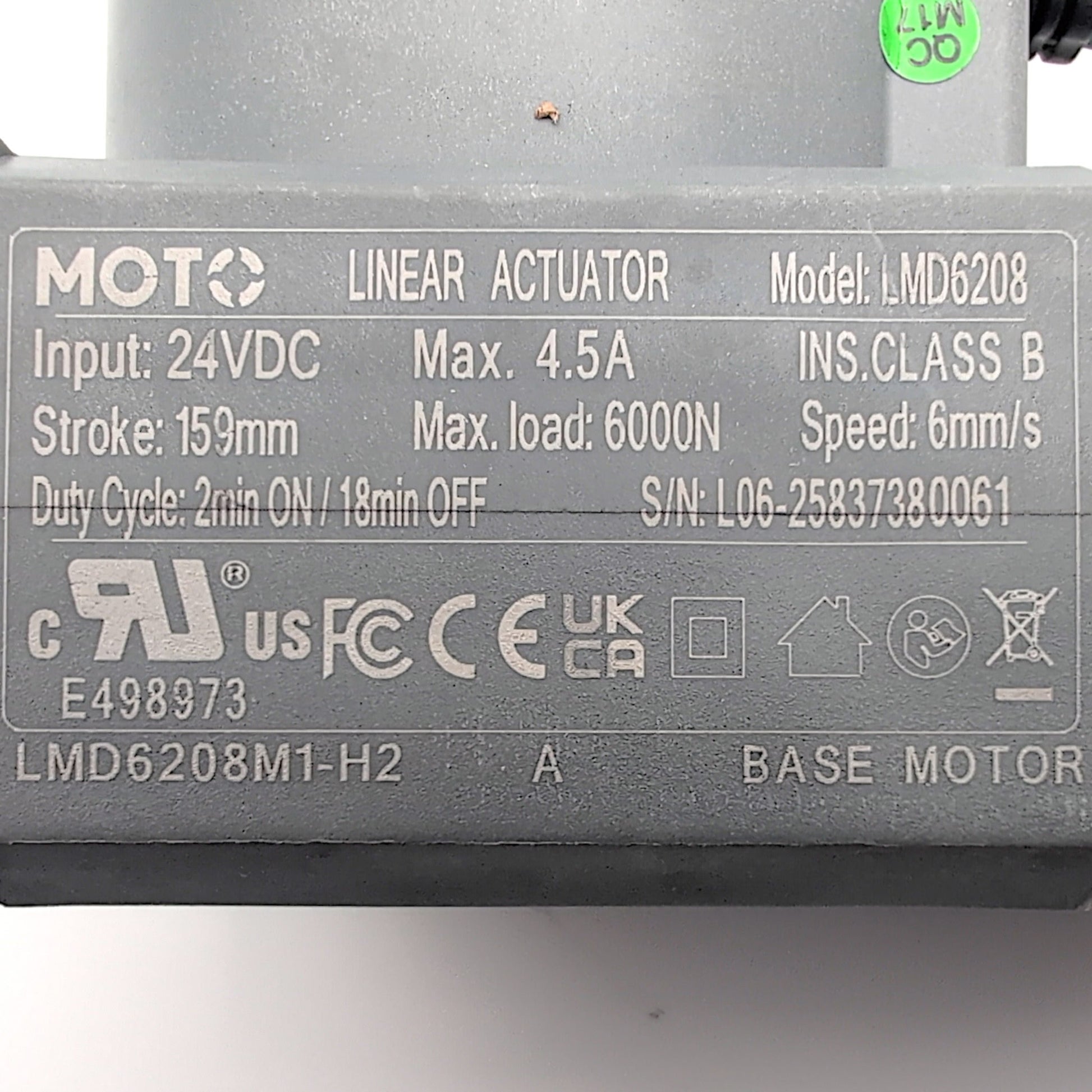

You are replacing an FBS, HHC or Moto branded actuator. These companies are all merged and current replacements are branded as "Moto". Please view the complete product description & view all pictures before ordering. These motors have 2 model numbers, one complete model number on the bottom left and one on the top right. The model number on the top right is used between different motors and can't be relied upon for finding the correct motor. Be sure the model numbers, part number, connector color and pin count are the same. Note: FBS motors do not have the complete model number listed on them and you will need to match the connector type with model number.

We also have a diagnostic video within the pictures. If you are hearing a clicking sound, 9 times out of 10, this is a control box issue.

Free ground shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
30 Day Return Policy

Fulfillment: Usually ships in 1-2 business days
This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects

Product Description

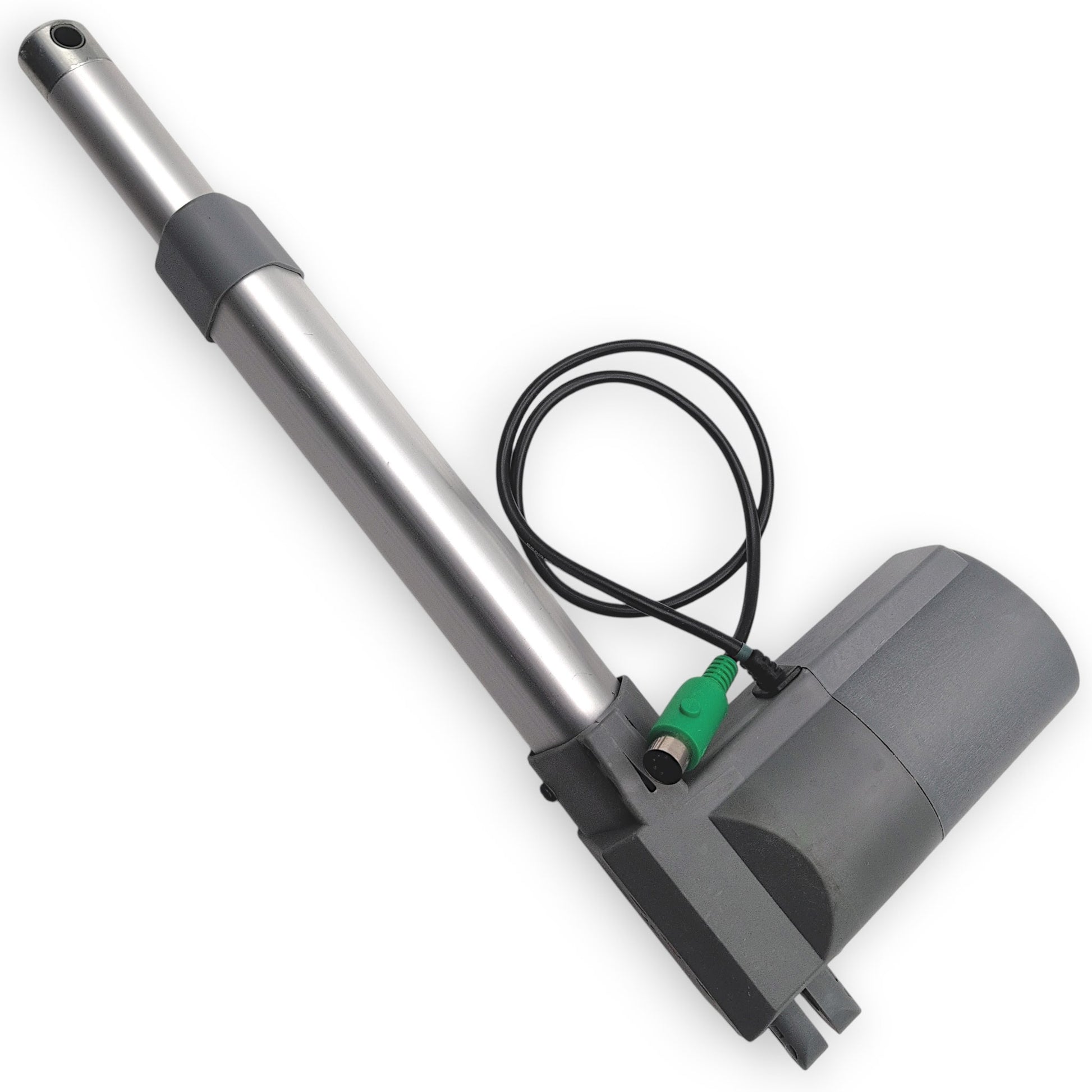

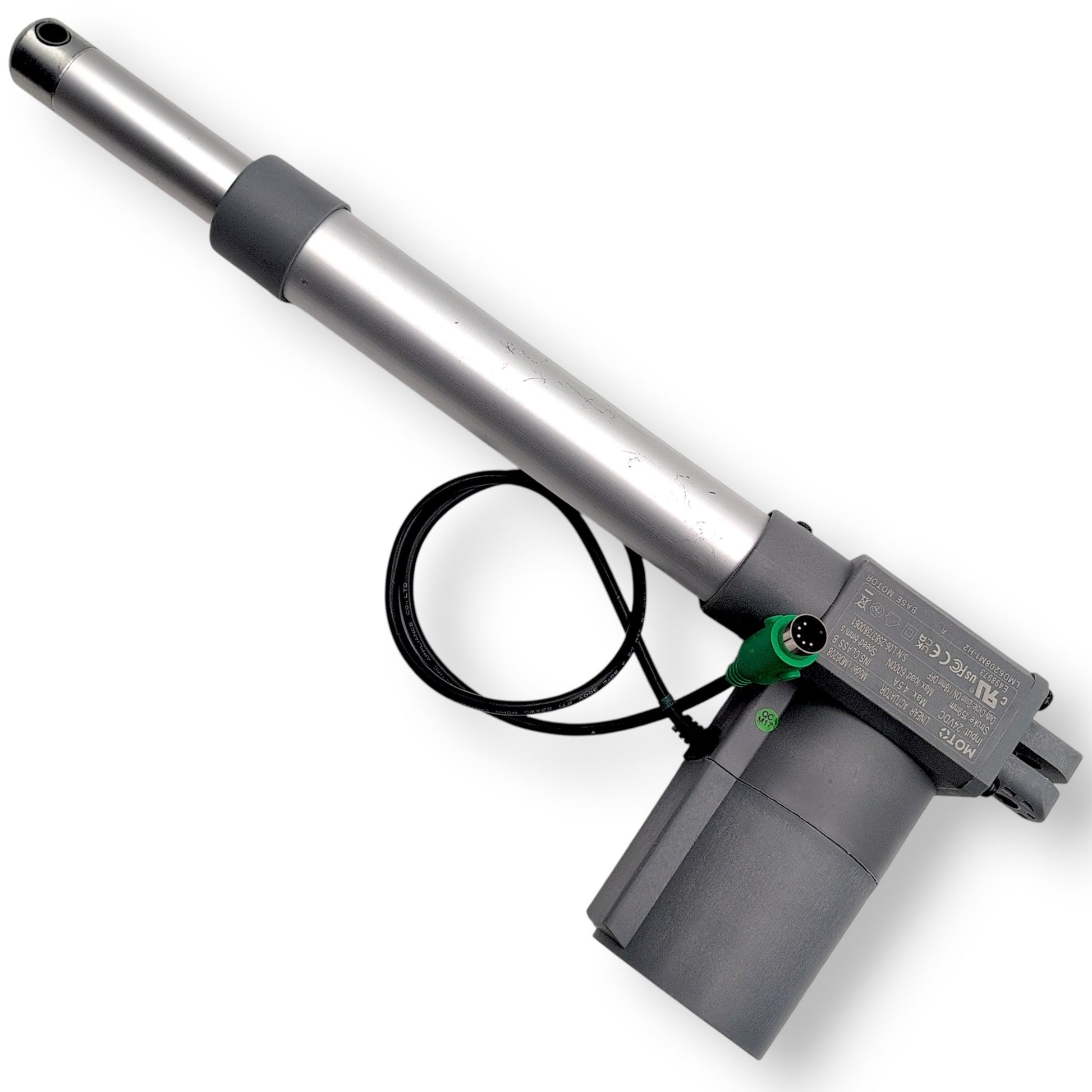

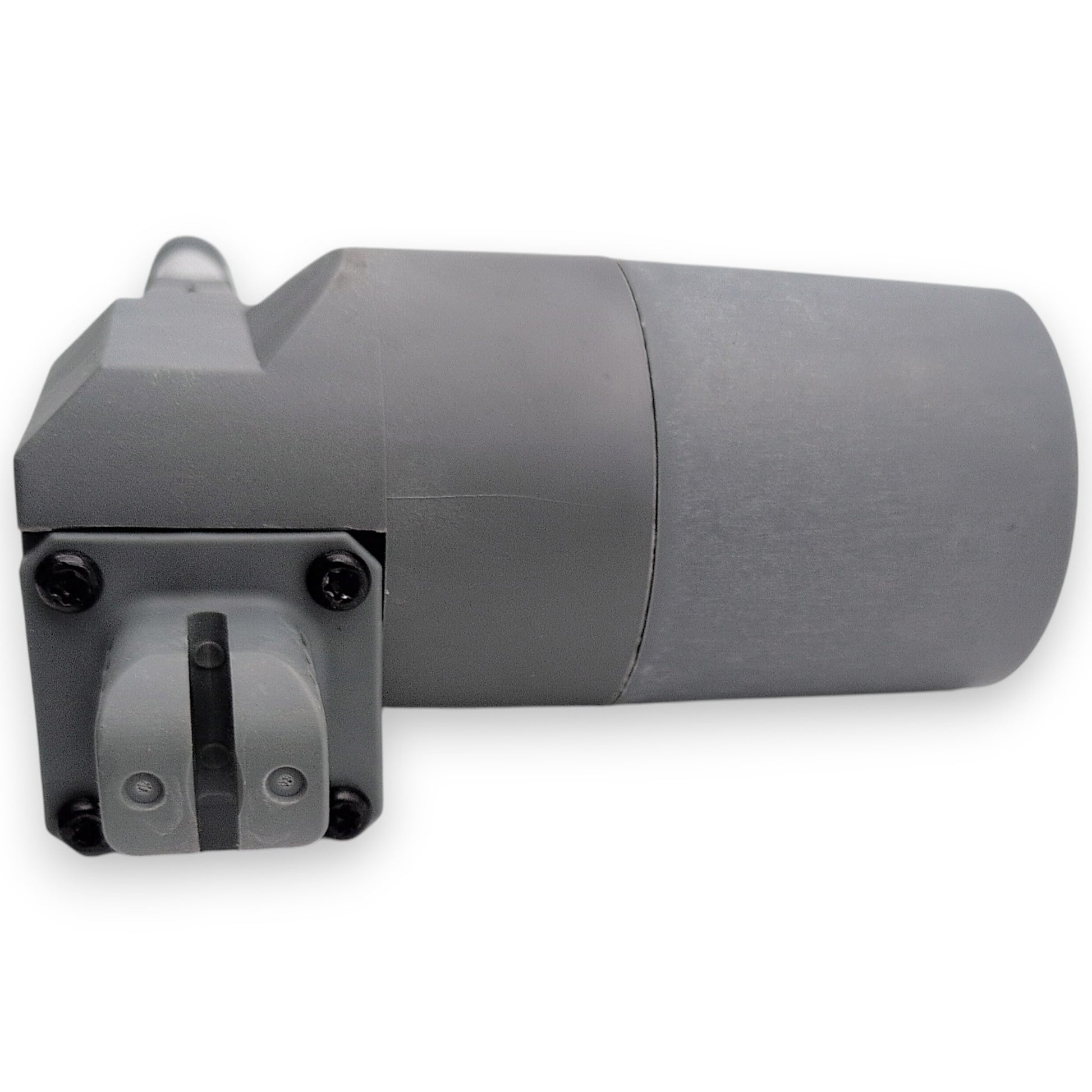

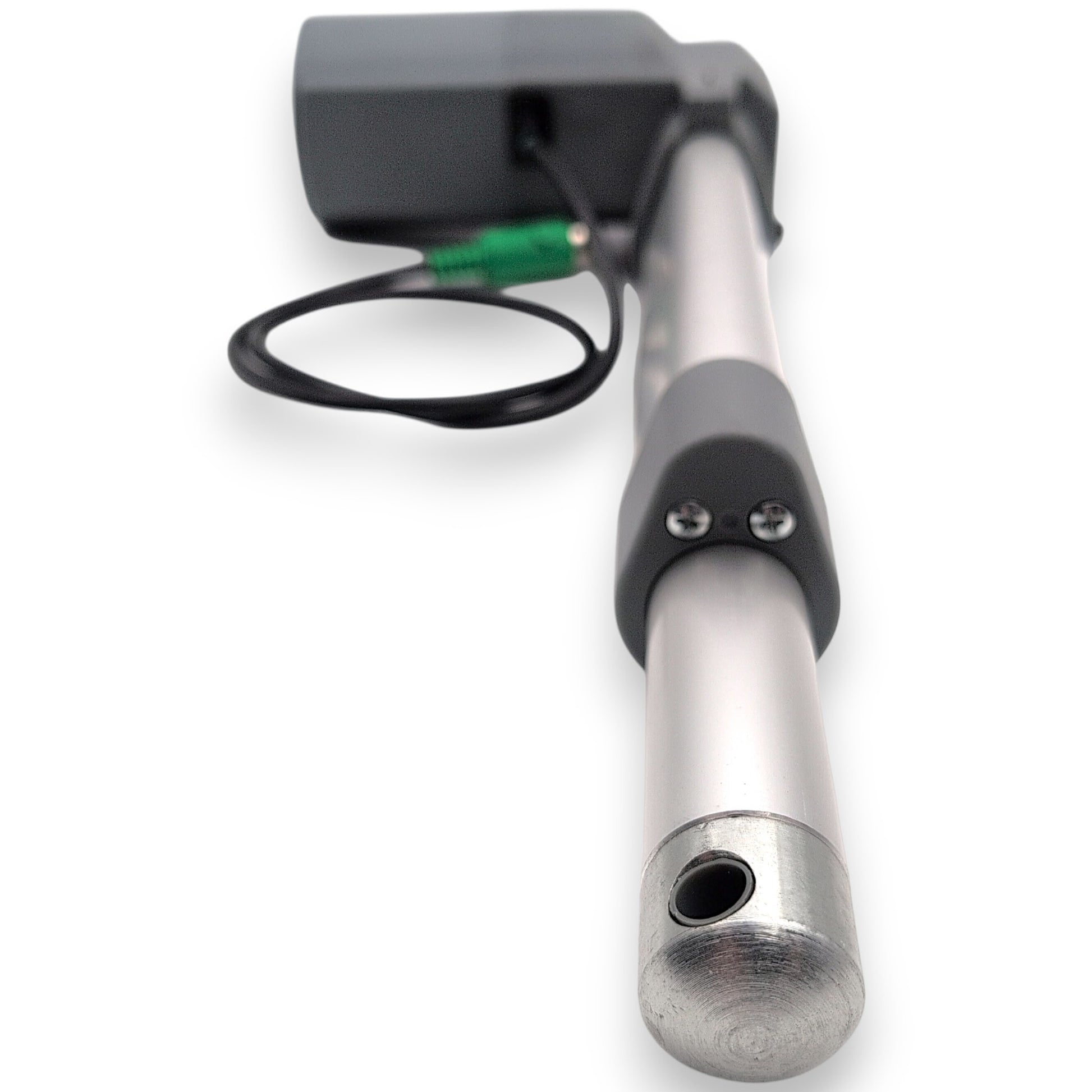

Genuine OEM replacement linear actuator (Part Number: MOT2205150) for select Pride Mobility power lift chairs. Manufactured by FBS or Moto Motion / HHC, this motor features a 159 mm stroke and a standard 5-pin green 🟢 connector. It is also identified by the specific model number LMD6208M1-H2 and replaces LMD6208M1-8.

Important Note! | Please Read Before Ordering

Specifications & Dimensions:

Brand:: Pride Mobility & Mega Motion
Manufacturer:: FBS / Moto Motion / HHC
Pride Mobility Part Number:: MOT2205150
Model Numbers:: LMD6208M1-H2, Replaces LMD6208M1-8
Component Type:: Linear Actuator

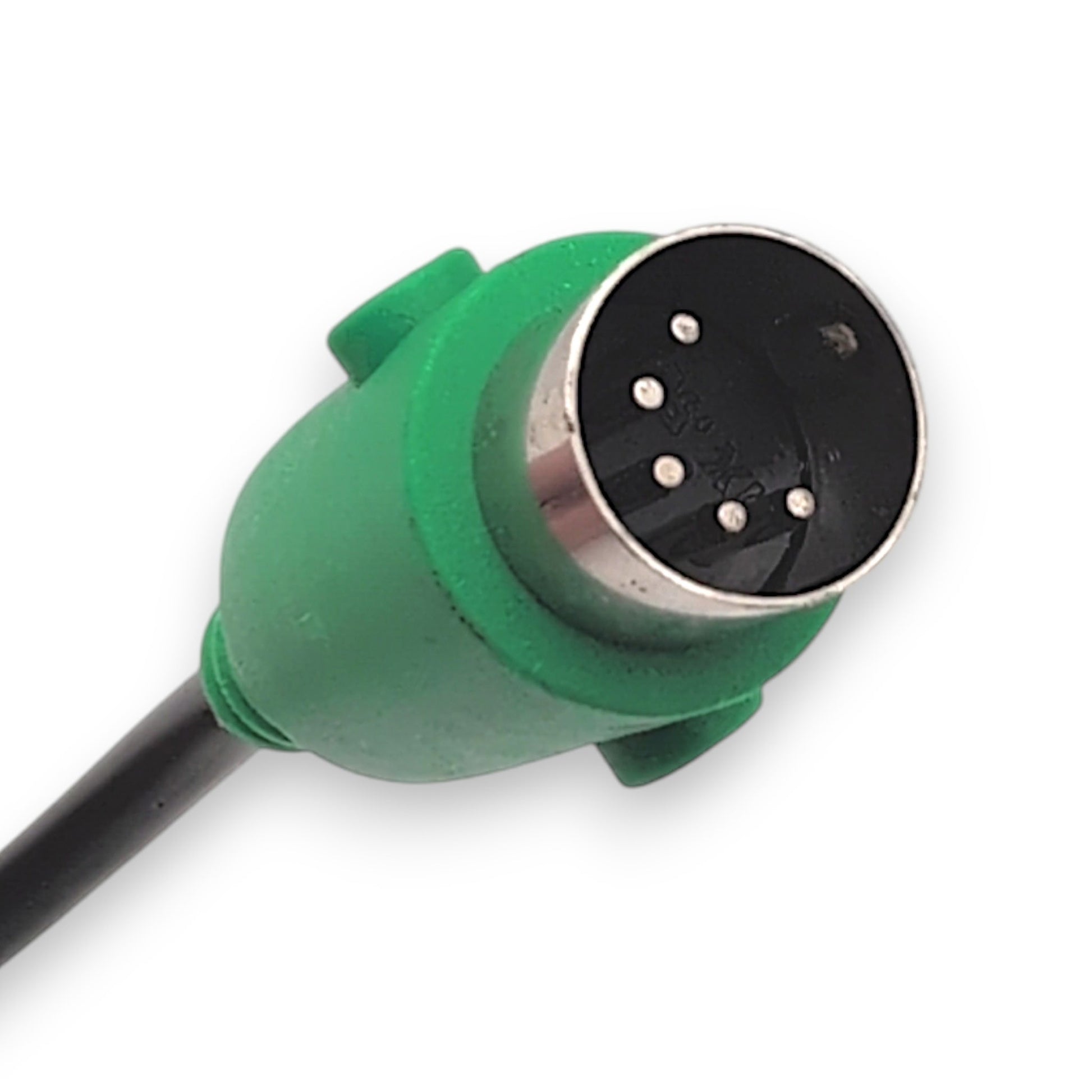

Connector Type:: 5-Pin Green 🟢 Connector
Stroke:: 159 mm (6.26 inches)

View full details
