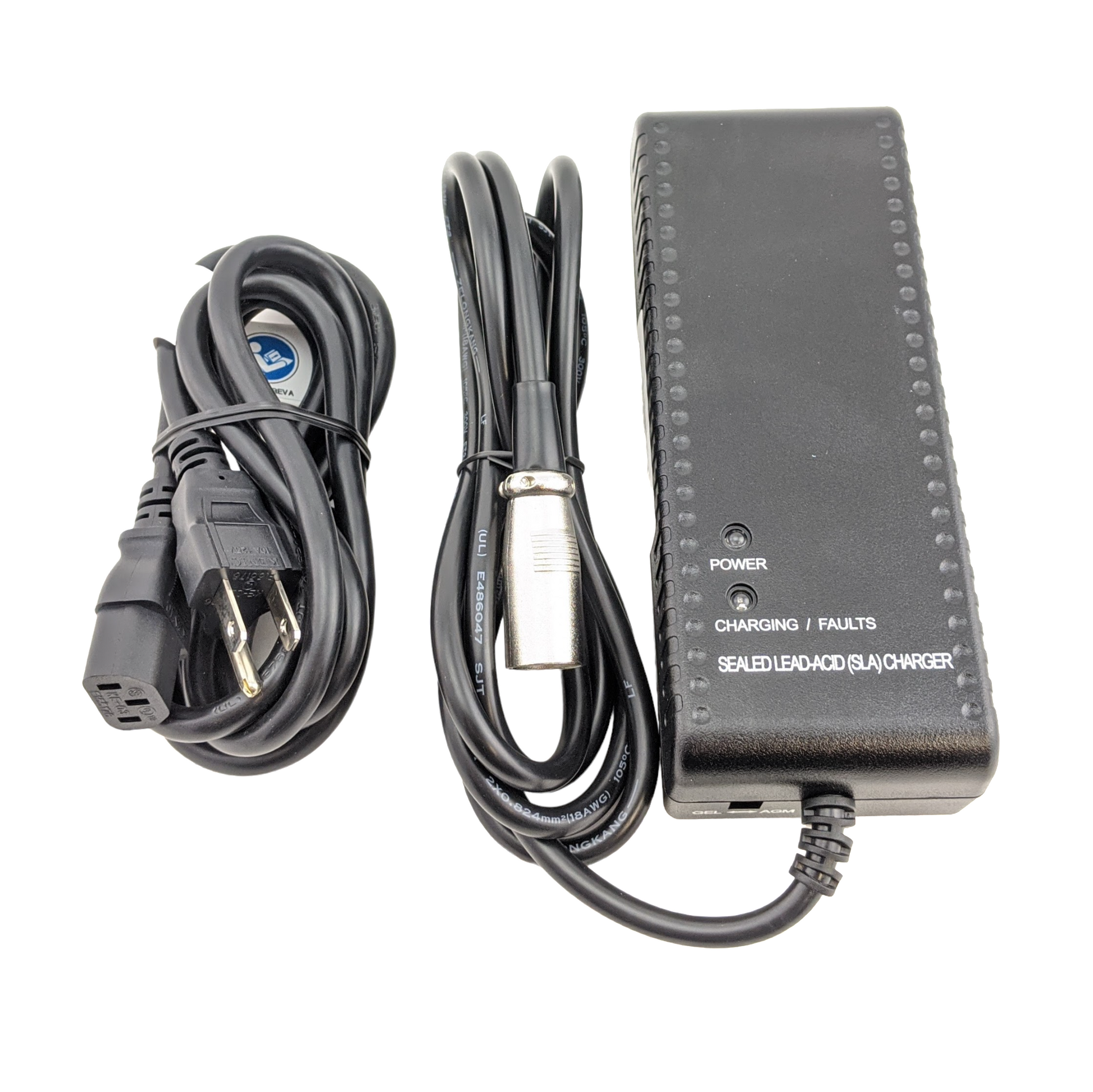

• xlr 3-pin mobile scooter charger top view with both cables. UPG Part Number: 24BC3500T-4
  • A Picture of, Revision C Model Number: A24030-10C, and Revision D Model Number: A24030-10D. Stating " While This Is a Universal Charger, 24BC3500T-4, Replaces These Older Pride Mobility OEM Chargers As Their Current Official OEM charger."

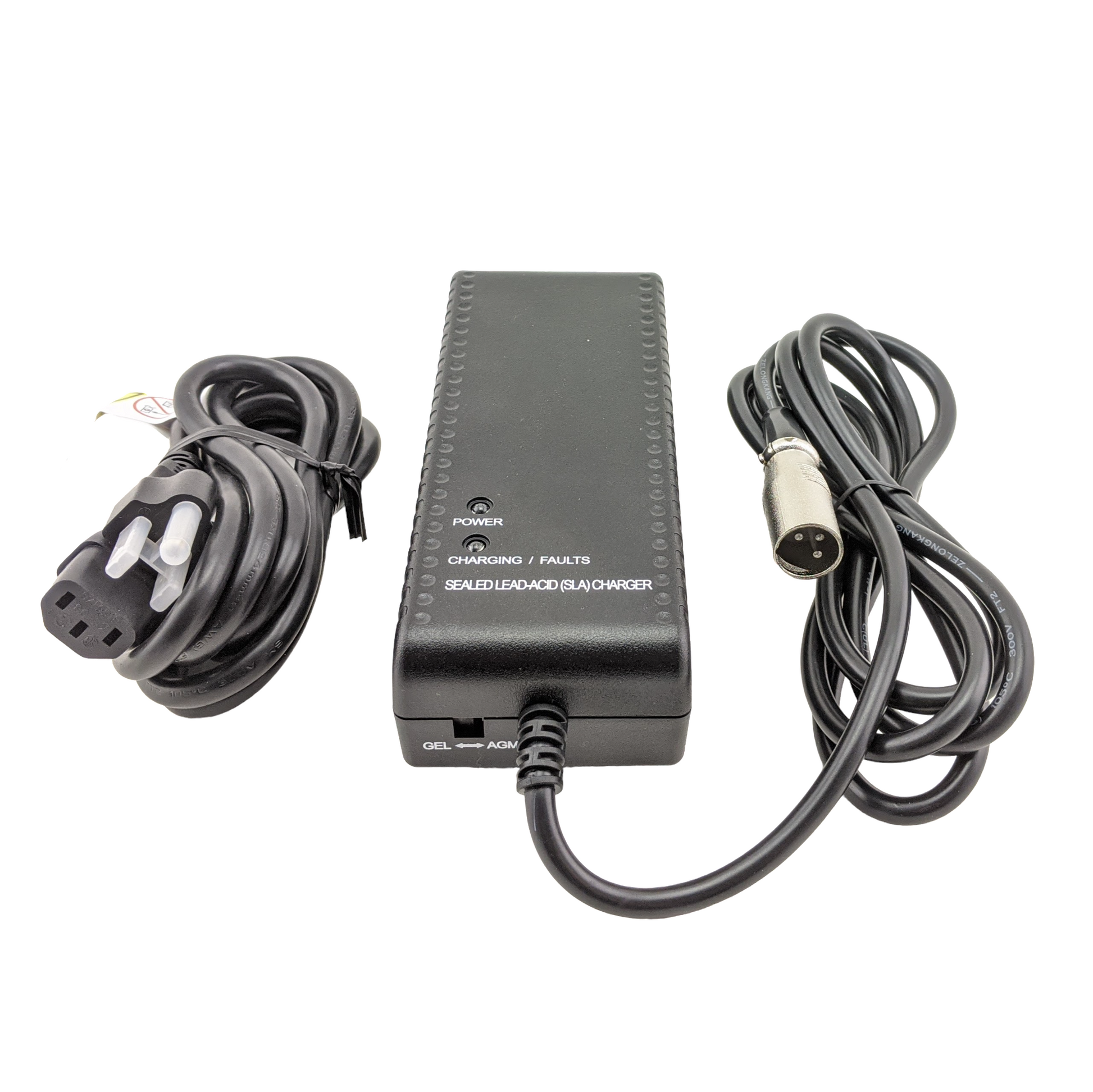

  • front view showing the GEL and AGM switch

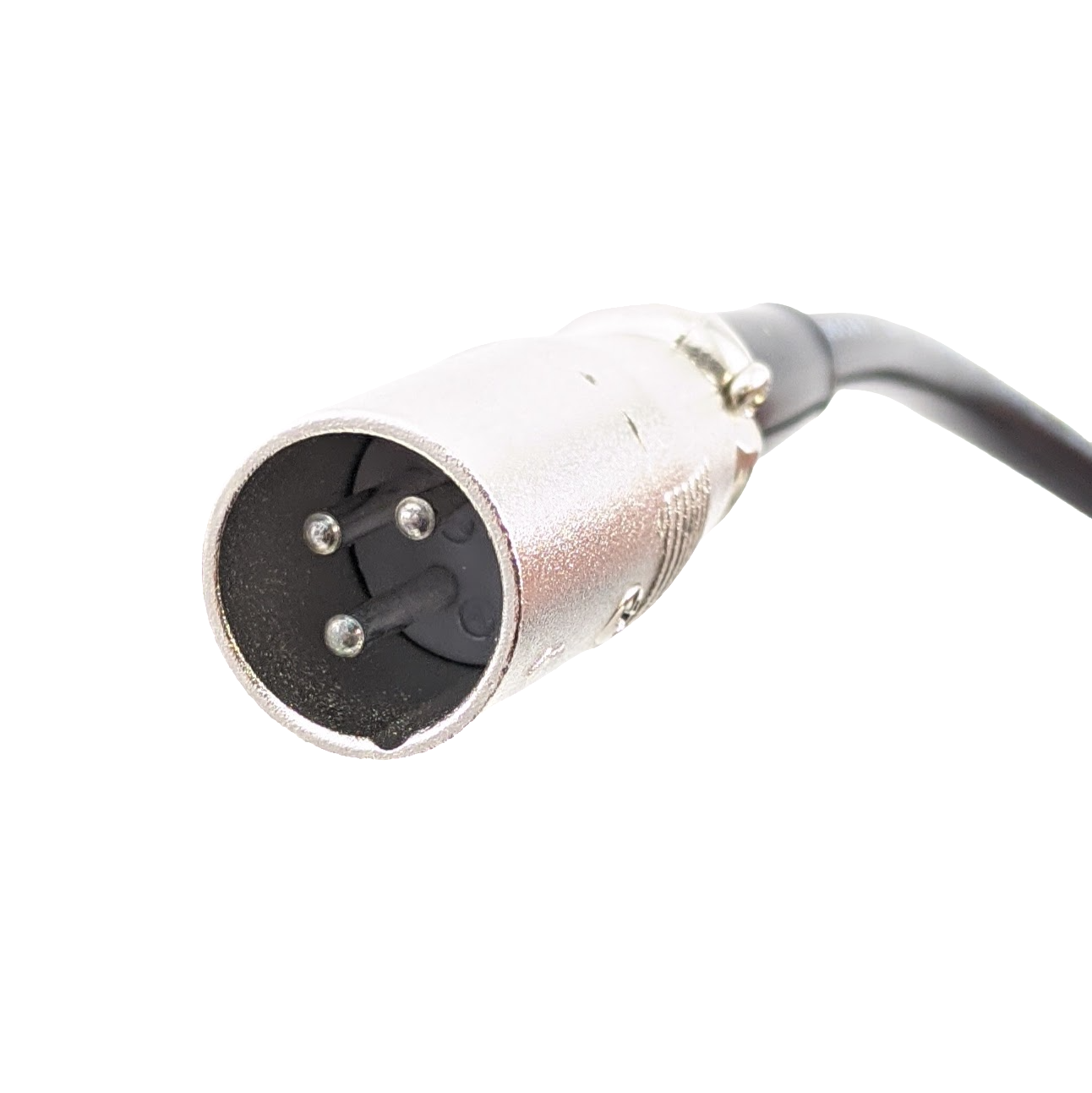

  • Closeup of the 3-pin XLR connector

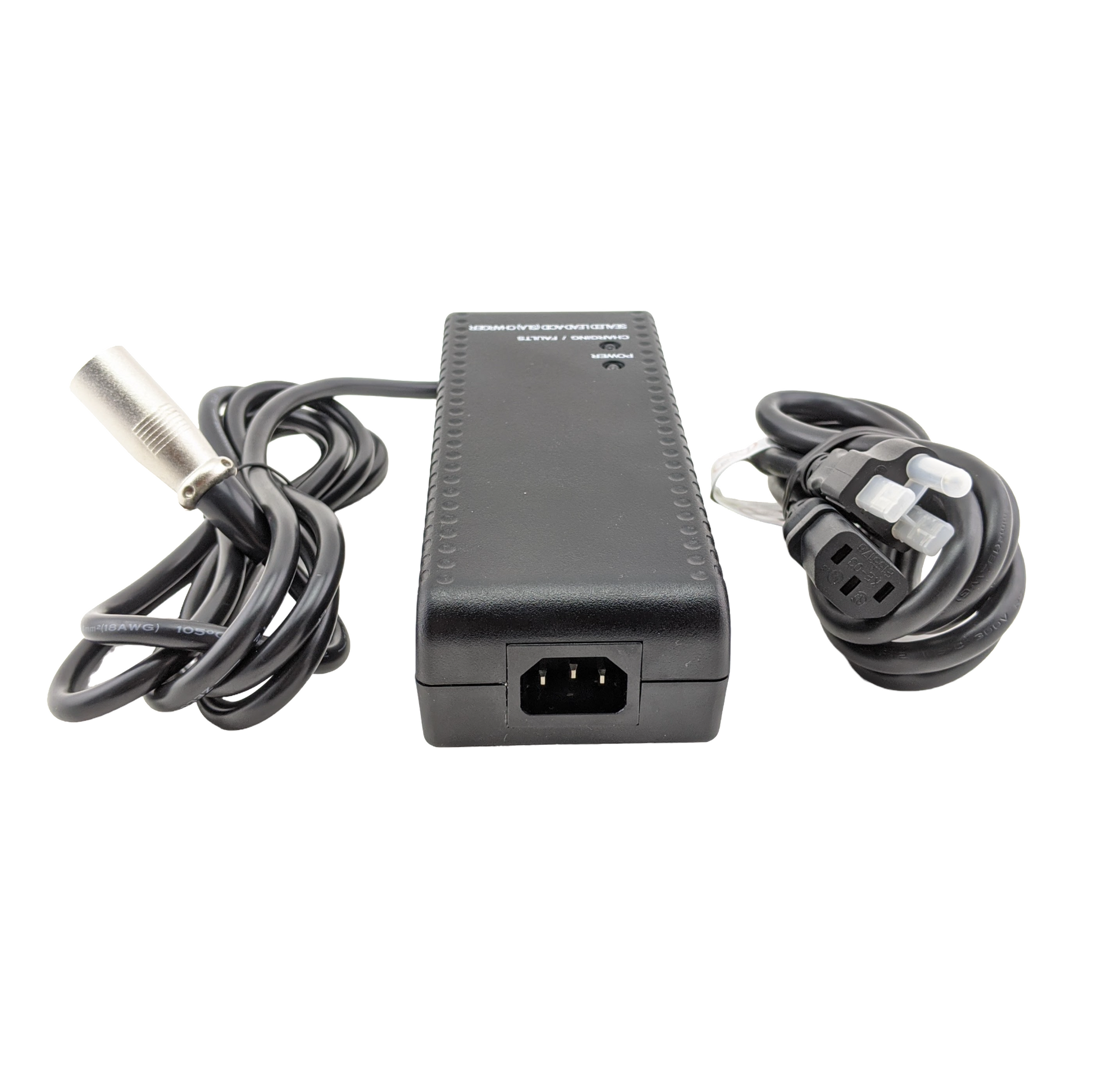

  • back view shing the 3-pin port reserved for the power cord

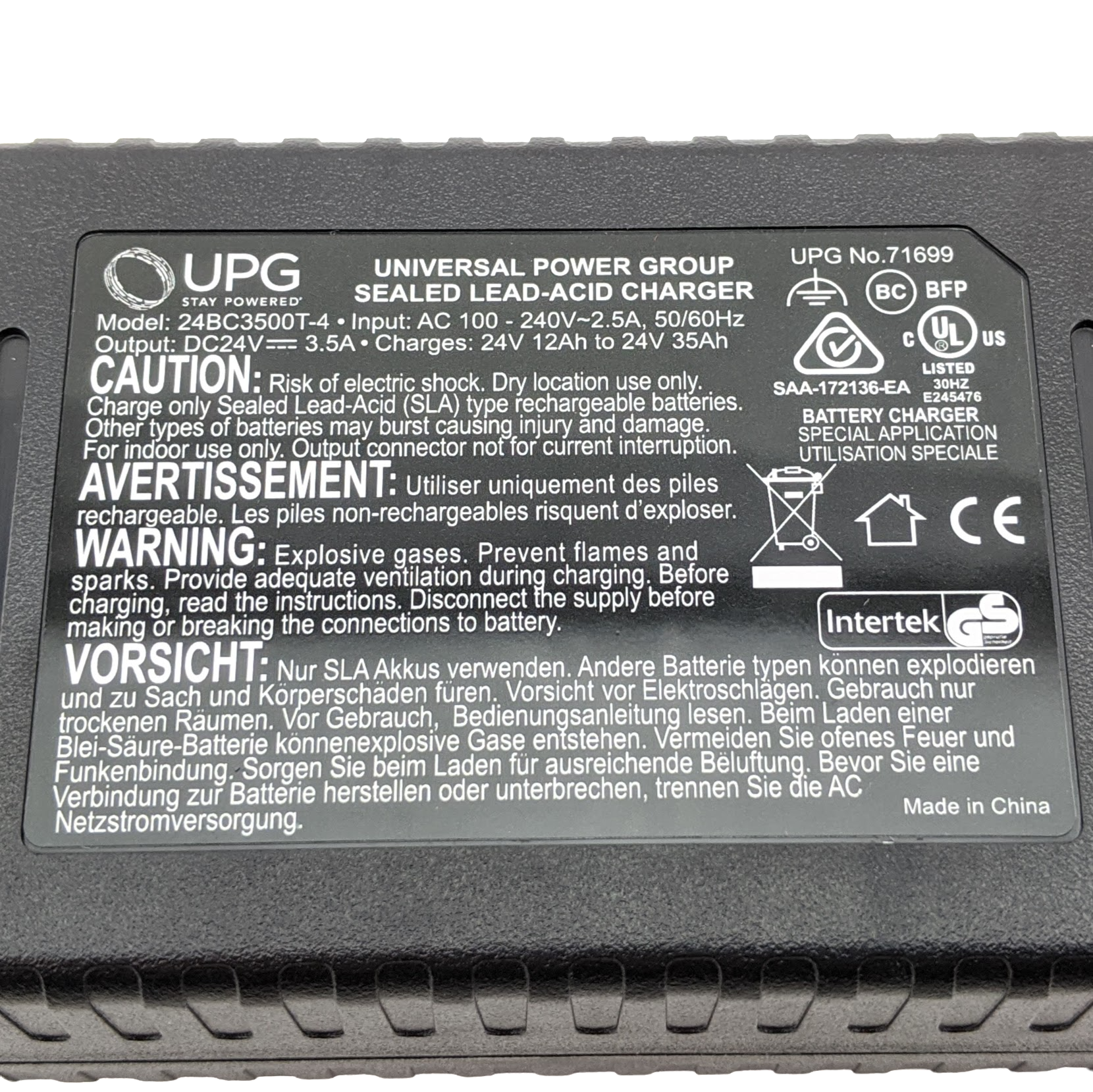

  • product Label with specifications

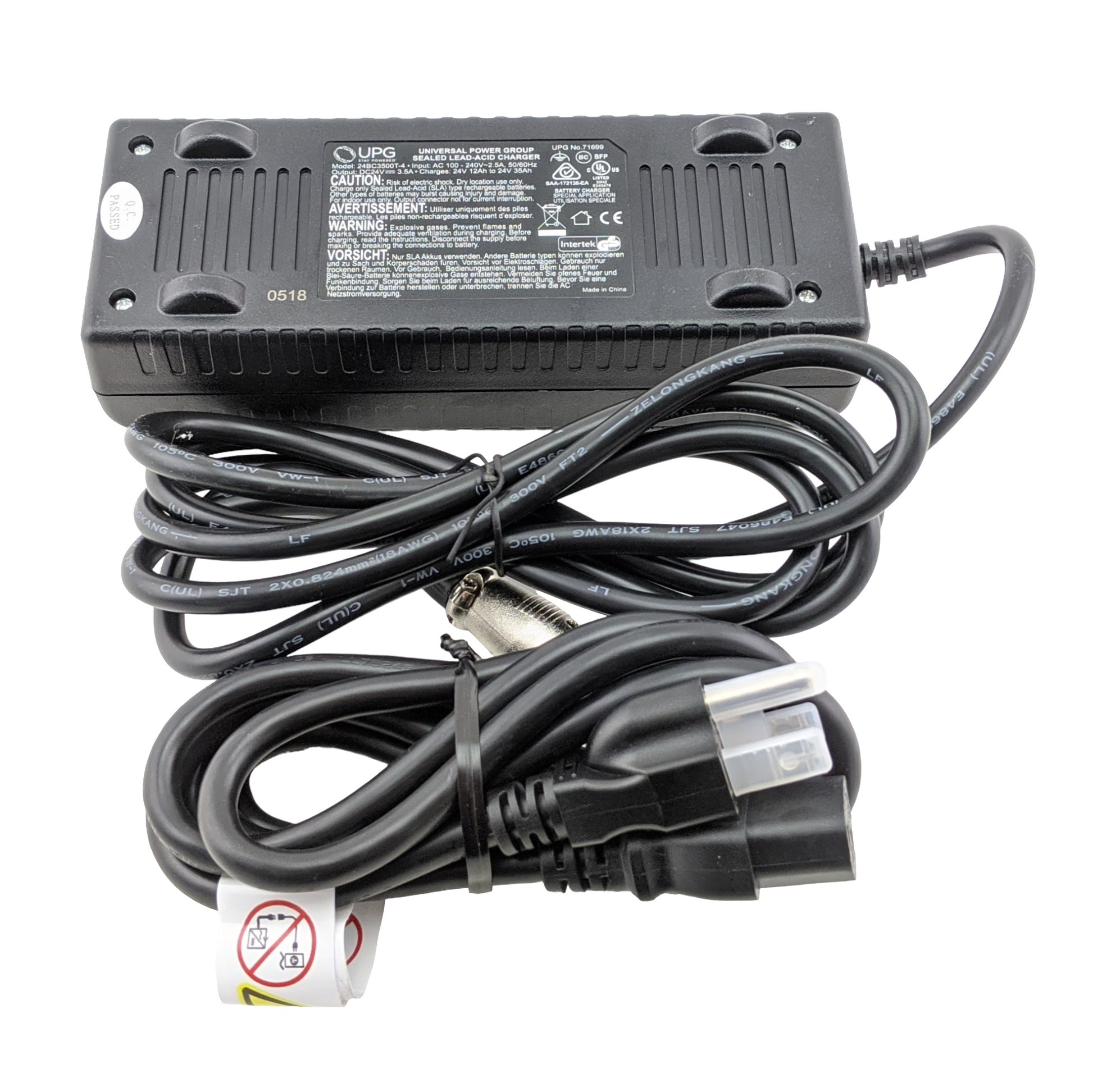

  • Bottom view with both cables

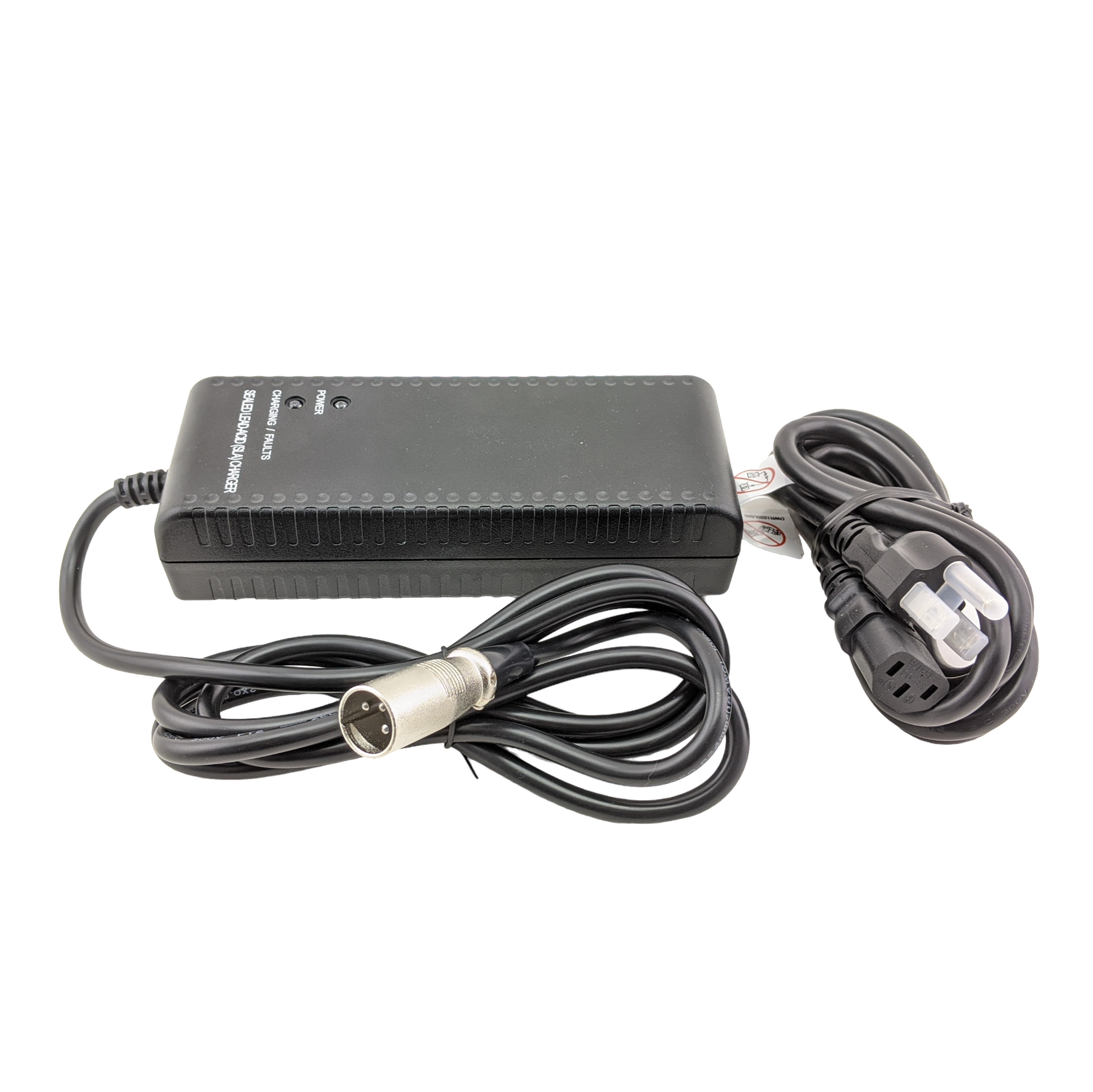

  • side view
  • box that the charger ships with

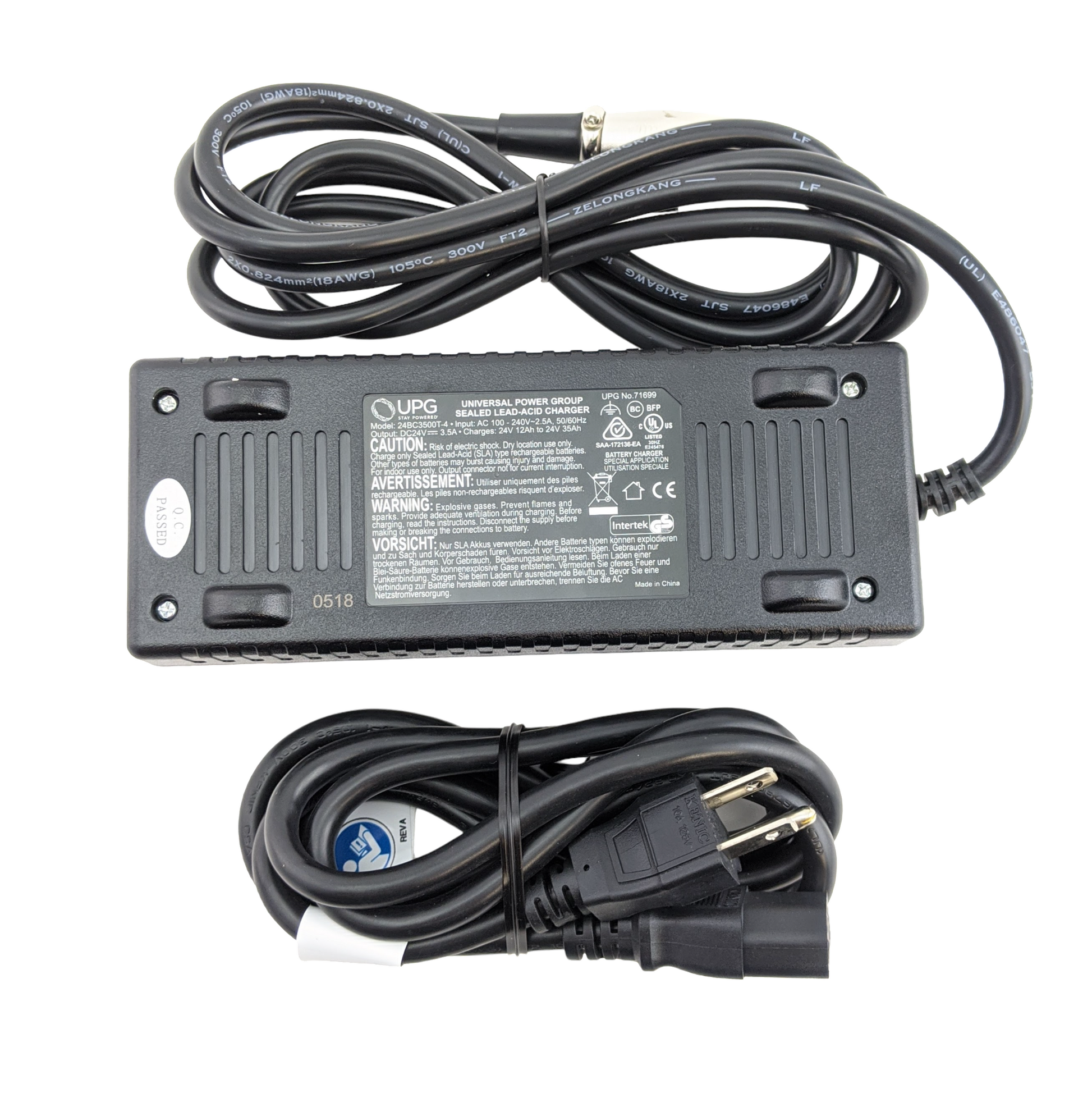

  • bottom view 2

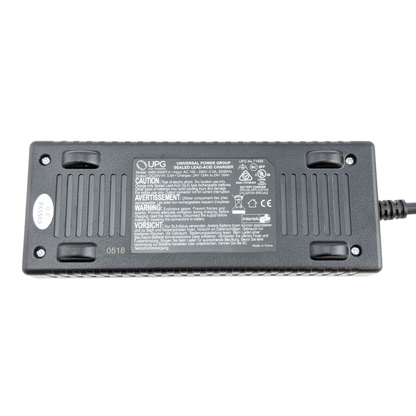

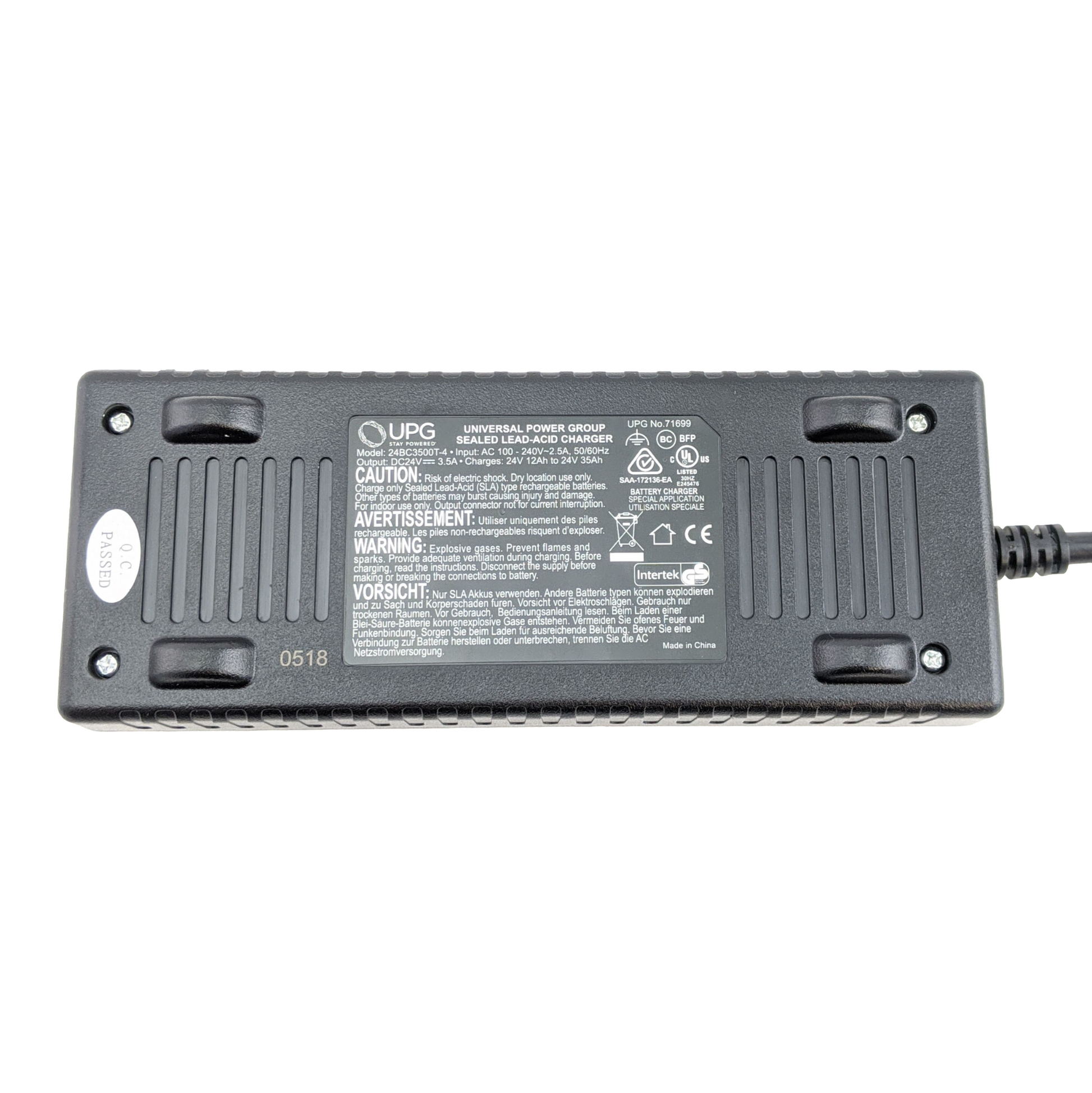

  • bottom view without cables

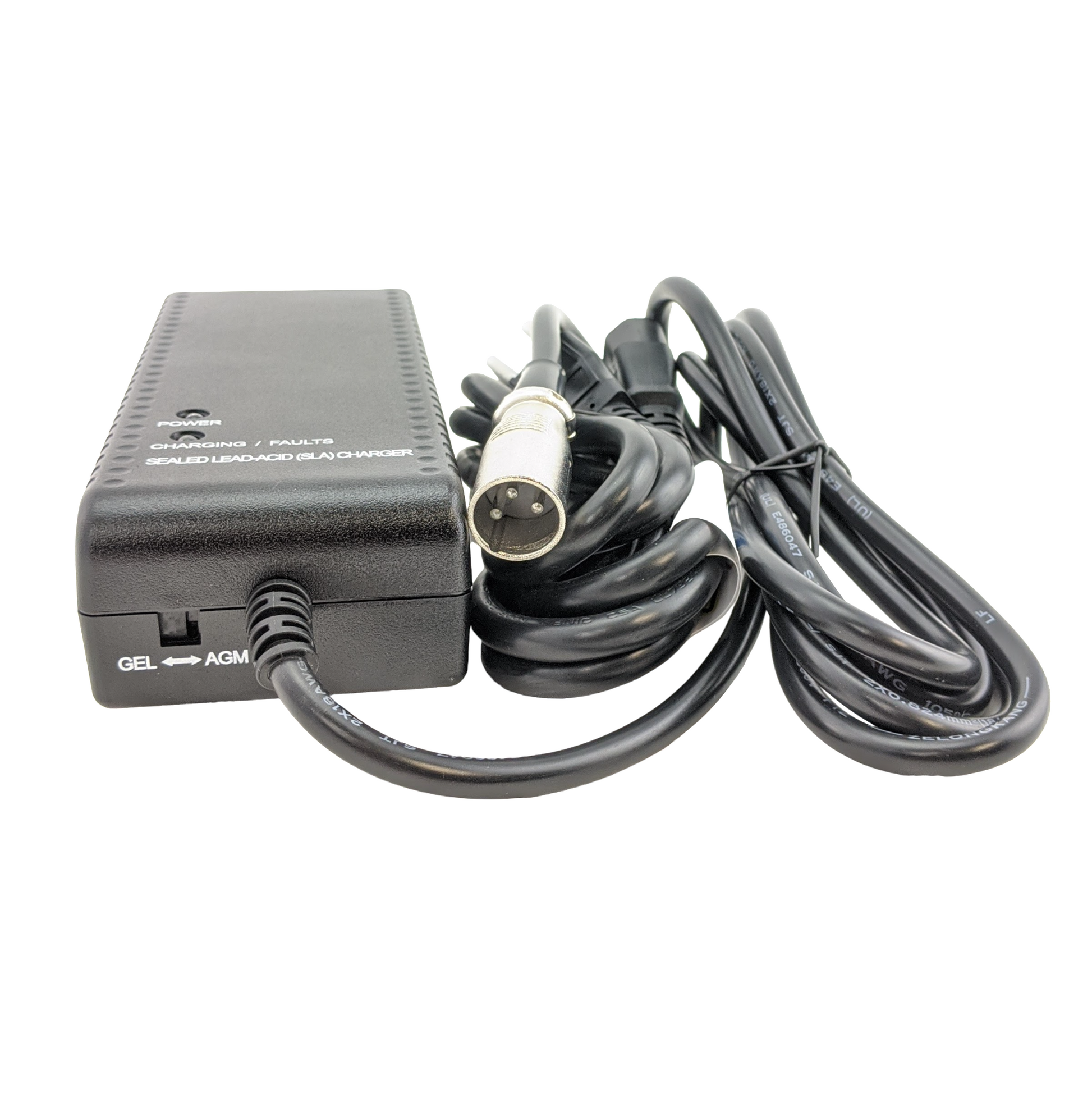

  • front view 2 with 3-pin xlr and AGM / GEL switch
1 12

UPG

UPG 24V 3.5 Amp Battery Charger XLR 3-Pin 24BC3500T-4 Mobility Scooter Power Wheelchair

UPG 24V 3.5 Amp Battery Charger XLR 3-Pin 24BC3500T-4 Mobility Scooter Power Wheelchair

$69.99 USD
$99.99 USD $69.99 USD
Our Price Sold Out
Free Shipping On Most Items Over $40+ (Contiguous US Only) Shipping: Calculated at checkout Shipping Policy

In stock
  • Free 2-day shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
  • Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
  • 30 Day Return Policy
  • Fulfillment: Usually ships in 1-2 business days
  • This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects

Product Description

This charger is a Universal Fit for most mobility devices that use a 24V system and a standard 3-pin XLR (round) charging port. It is optimized for batteries ranging from 12Ah to 35Ah. This Automatic Battery Charger is specifically designed for 24-volt Sealed Lead Acid (SLA), Absorbent Glass Mat (AGM), and Gel Cell batteries. It features a smart 3-stage charging cycle (Constant Current, Constant Voltage, Float) to safely maintain battery health. Not For Use With Lithium Batteries.

This is Pride Mobility's Current Official OEM 24V, 3.5A, Charger (Part Number: ELE1803400)

Product Features

  • Manufacturer: Universal Power Group (UPG)
  • Model Number: 24BC3500T-4
  • Pride Mobility Part Number: ELE1803400 (Replaces Old Part Numbers: A24030-10D  &  A24030-10C)
  • UPG Number: 71699
  • Output: 24 volts 3.5 amp
  • Charges: 24V 12Ah to 24V 35Ah Batteries
  • Input: AC 100-240V 2.5A, 50/60Hz

Safety features

  • Short-circuit Protection – protects the charger from short-circuit damage
  • Overcurrent Protection – protects the charger from overcurrent demand
  • Overvoltage Protection – protects the batteries from damage.
  • Battery Polarity Reversal – protects the charger and batteries against incorrectly installed batteries
  • Low Battery Voltage – when the battery ls under14V, the charger will not engage

Scooter Compatibility

Universal Fit:

Compatible with any 24-Volt scooter or power chair using a standard 3-Pin Round XLR connector with batteries ranging from 12Ah to 35Ah.
Pride Mobility:
This is an Upgrade for Prides A24030-10D & A24030-10C Chargers. It Also Fits most Go-Go, Jazzy, Jet, and Revo models (with off-board charging).
Golden Technologies:
Fits most Buzzaround (GB series) and LiteRider (GL series) models.
Drive Medical:
Fits most Spitfire, Scout, Phoenix, and Ventura models.
Other Brands:
Invacare, Shoprider, Merits Health, Bruno, and Rascal.
Exclusions:
Not for use with Lithium-Ion batteries. Not compatible with Everest & Jennings models using reversed polarity.
