Pride Mobility

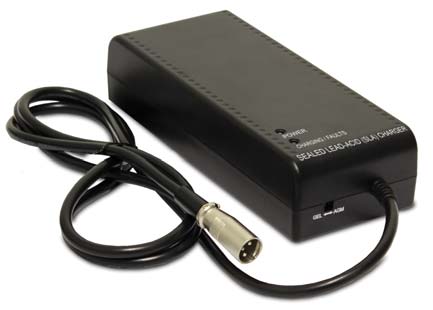

Charger - 24BC8000T-4

Charger - 24BC8000T-4

$139.95 USD
$150.00 USD $139.95 USD
Sale Sold out
Shipping calculated at checkout.
  • FREE Shipping - On orders over $40.00 shipping to the US
  • Leaves Warehouse - Next Business Day
  • Return Policy - 30 Days
  • Warranty - 1 Year
  • Connector - 3-pin Round

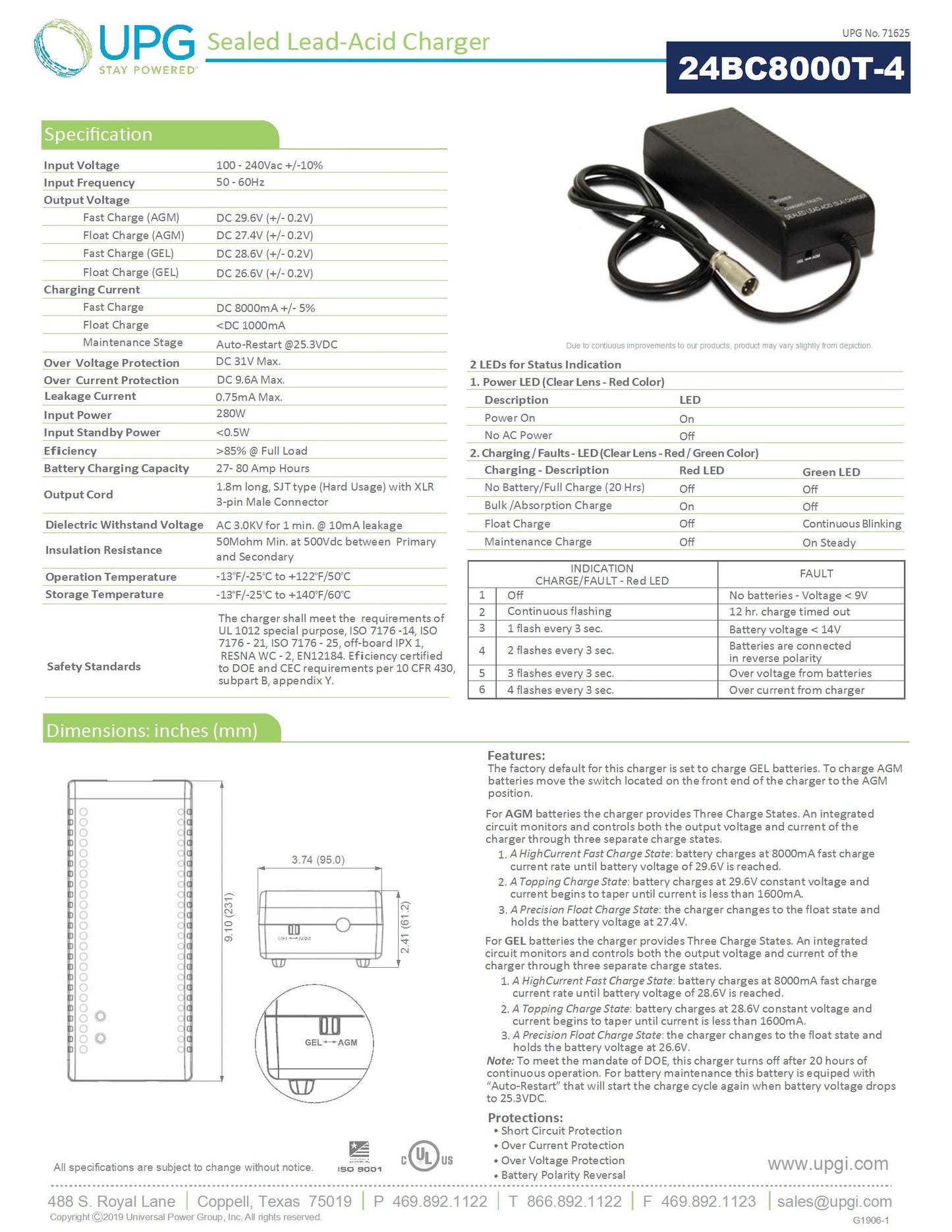

  • Manufacturer - UPG
  • Model# - 24BC8000T-4
  • Input Voltage 100 - 240Vac +/-10%
  • Input Frequency 50 - 60Hz
  • Over Voltage Protection DC 31V Max.
  • Over Current Protection DC 9.6A Max.
  • Leakage Current 0.75mA Max.
  • Input Power 280W
  • Output Voltage
  • Fast Charge (AGM) DC 29.6V (+/- 0.2V)
  • Float Charge (AGM) DC 28.6V (+/- 0.2V)
  • Fast Charge (GEL) DC 27.4V (+/- 0.2V)
  • Float Charge (GEL) DC 26.6V (+/- 0.2V)
  • Charging Current
  • Fast Charge DC 8000mA +/- 5%
  • Float Charge <DC 1000mA
  • Maintenance Stage Auto-Restart @25.3VDC
  • Specification
  • Input Standby Power <0.5W
  • Efficiency >85% @ Full Load
  • Battery Charging Capacity 27- 80 Amp Hours
  • Output Cord
  • Dielectric Withstand Voltage
  • Insulation Resistance
  • Operation Temperature: -13 F/-25 C to +122 F/50 C
  • Storage Temperature: -13 F/-25 C to +140 F/60 C
  • Safety Standards: The charger shall meet the requirements of
    UL 1012 special purpose, ISO 7176 -14, ISO
    7176 - 21, ISO 7176 - 25, off-board IPX 1,
    RESNA WC - 2, EN12184. Efficiency certified
    to DOE and CEC requirements per 10 CFR 430,
    subpart B, appendix Y.
  • Features:
  • Protections:
  • 1.8m long, SJT type (Hard Usage) with XLR
  • 3-pin Male Connector
  • AC 3.0KV for 1 min. @ 10mA leakage
  • A HighCurrent Fast Charge State: battery charges at 8000mA fast charge
  • current rate until battery voltage of 29.6V is reached.
  • 1.
  • A Topping Charge State: battery charges at 29.6V constant voltage and
  • current begins to taper until current is less than 1600mA.
  • 2.
  • A Precision Float Charge State: the charger changes to the float state and
  • holds the battery voltage at 27.4V.
  • 3.
  • For AGM batteries the charger provides Three Charge States. An integrated
  • circuit monitors and controls both the output voltage and current of the
  • charger through three separate charge states.
  • The factory default for this charger is set to charge GEL batteries. To charge AGM
  • batteries move the switch located on the front end of the charger to the AGM
  • position.
  • A HighCurrent Fast Charge State: battery charges at 8000mA fast charge
  • current rate until battery voltage of 28.6V is reached.
  • 1.
  • A Topping Charge State: battery charges at 28.6V constant voltage and
  • current begins to taper until current is less than 1600mA.
  • 2.
  • A Precision Float Charge State: the charger changes to the float state and
  • holds the battery voltage at 26.6V.
  • Short Circuit Protection
  • Over Current Protection
  • Over Voltage Protection
  • Battery Polarity Reversal
  • 3.
  • For GEL batteries the charger provides Three Charge States. An integrated
  • circuit monitors and controls both the output voltage and current of the
  • charger through three separate charge states.
  • 50Mohm Min. at 500Vdc between Primary
