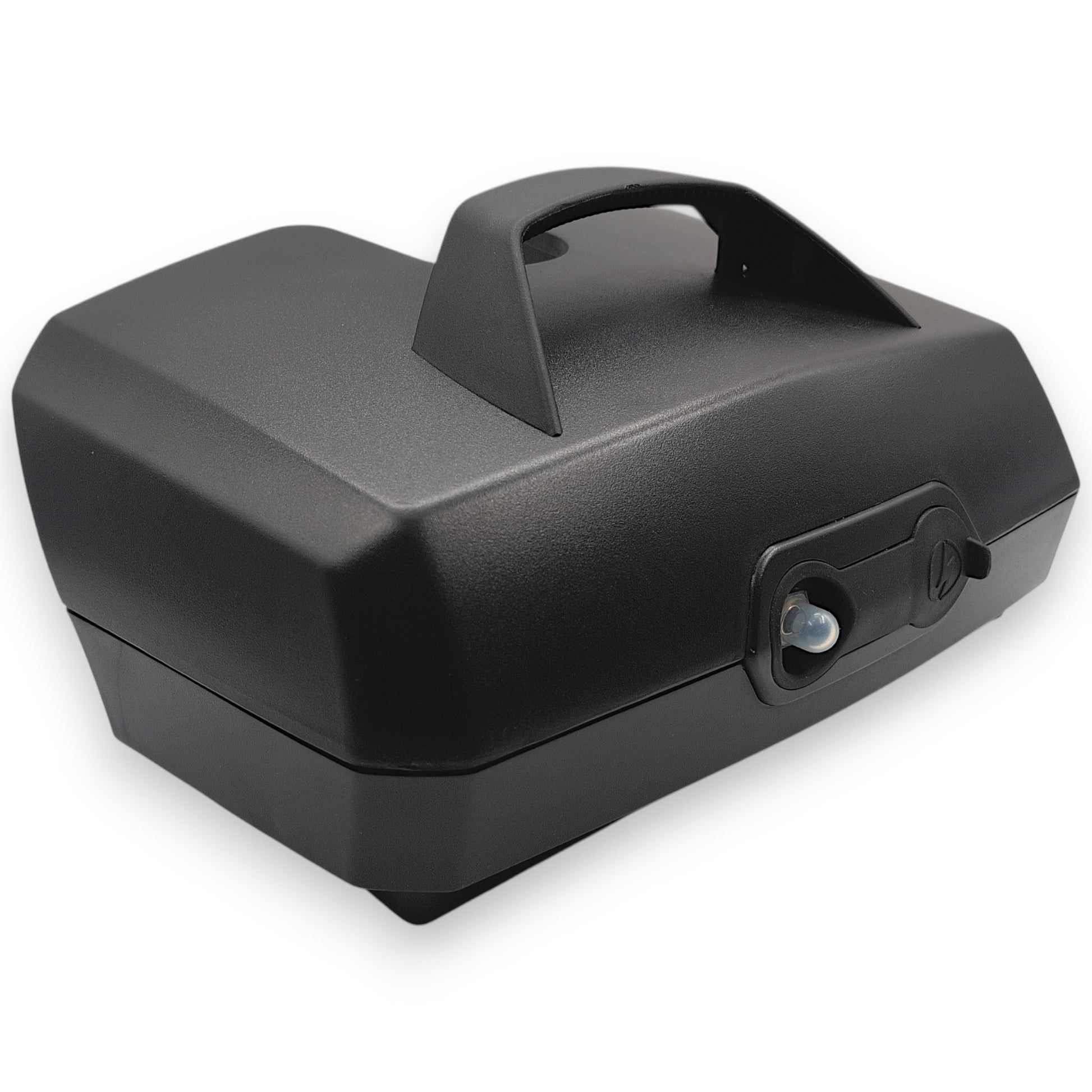

• front / left view of battery box part number mbe-121a-battpack

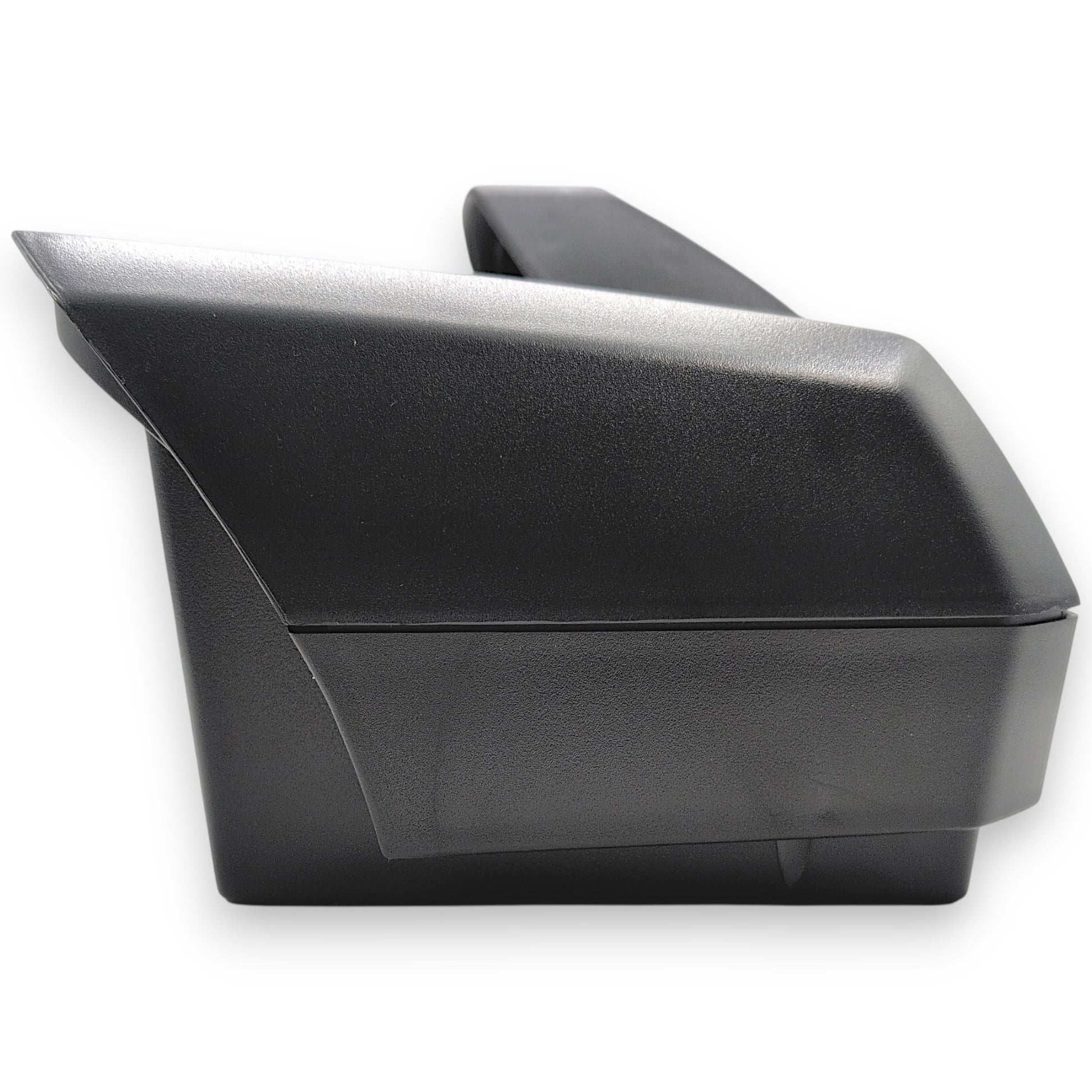

  • side view

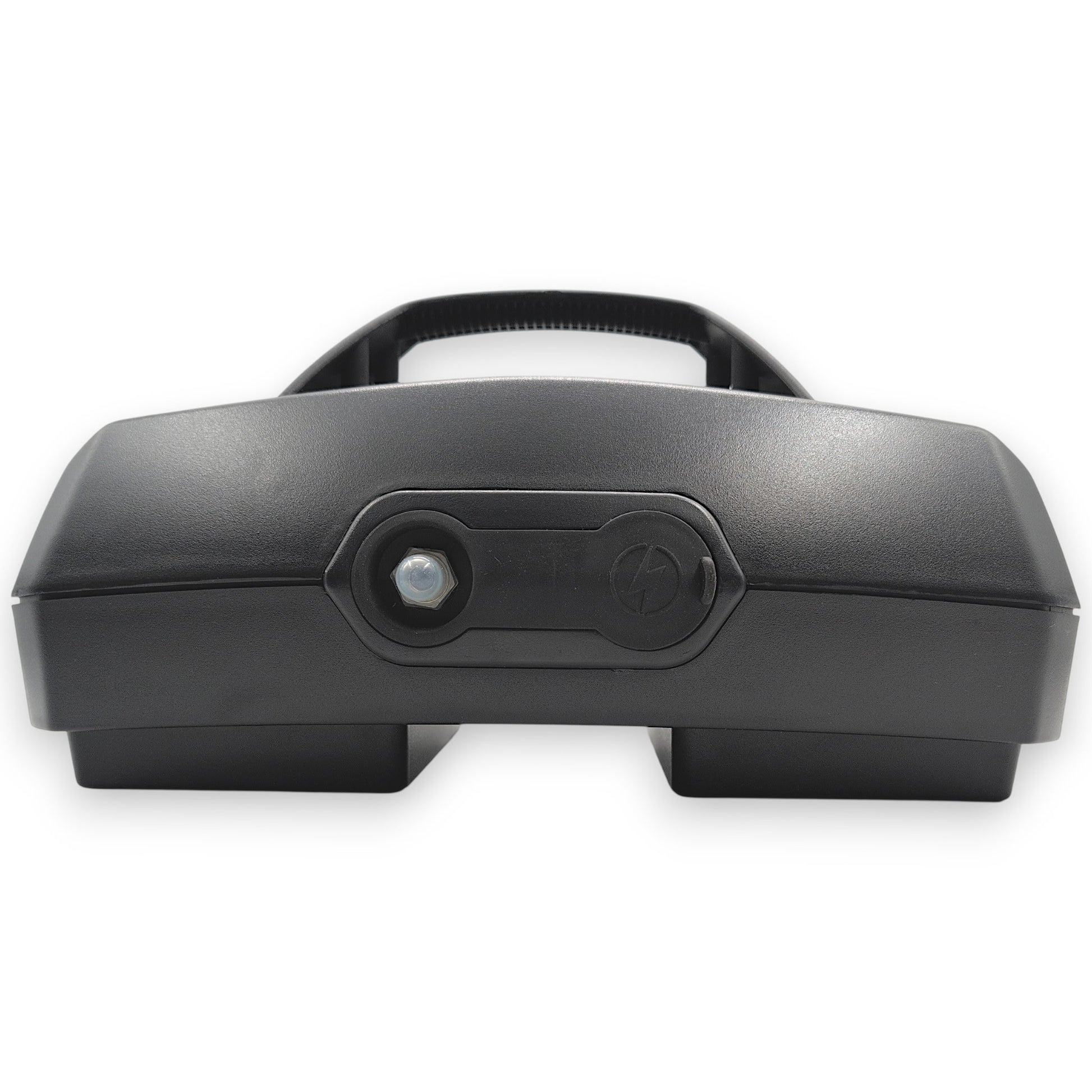

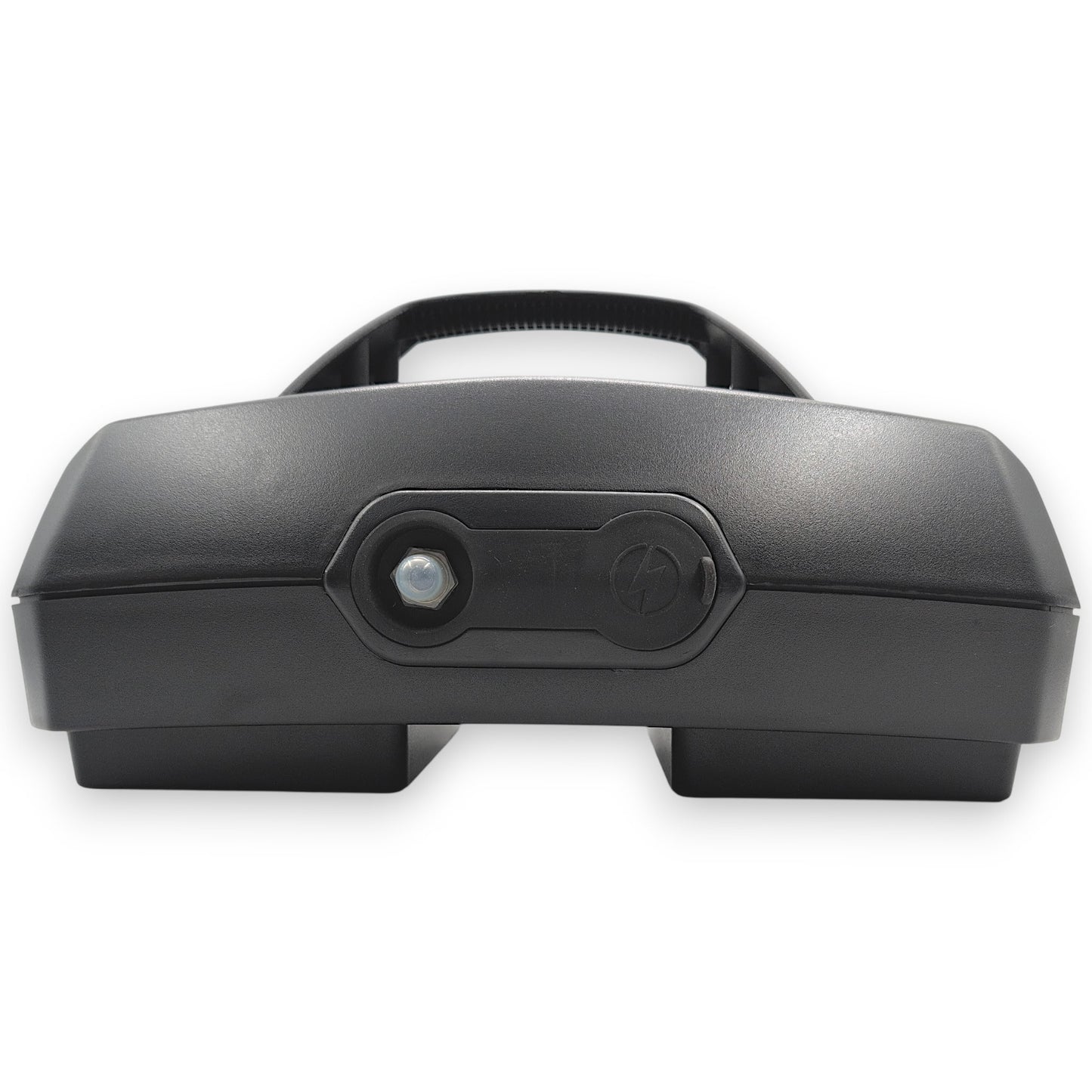

  • Front view

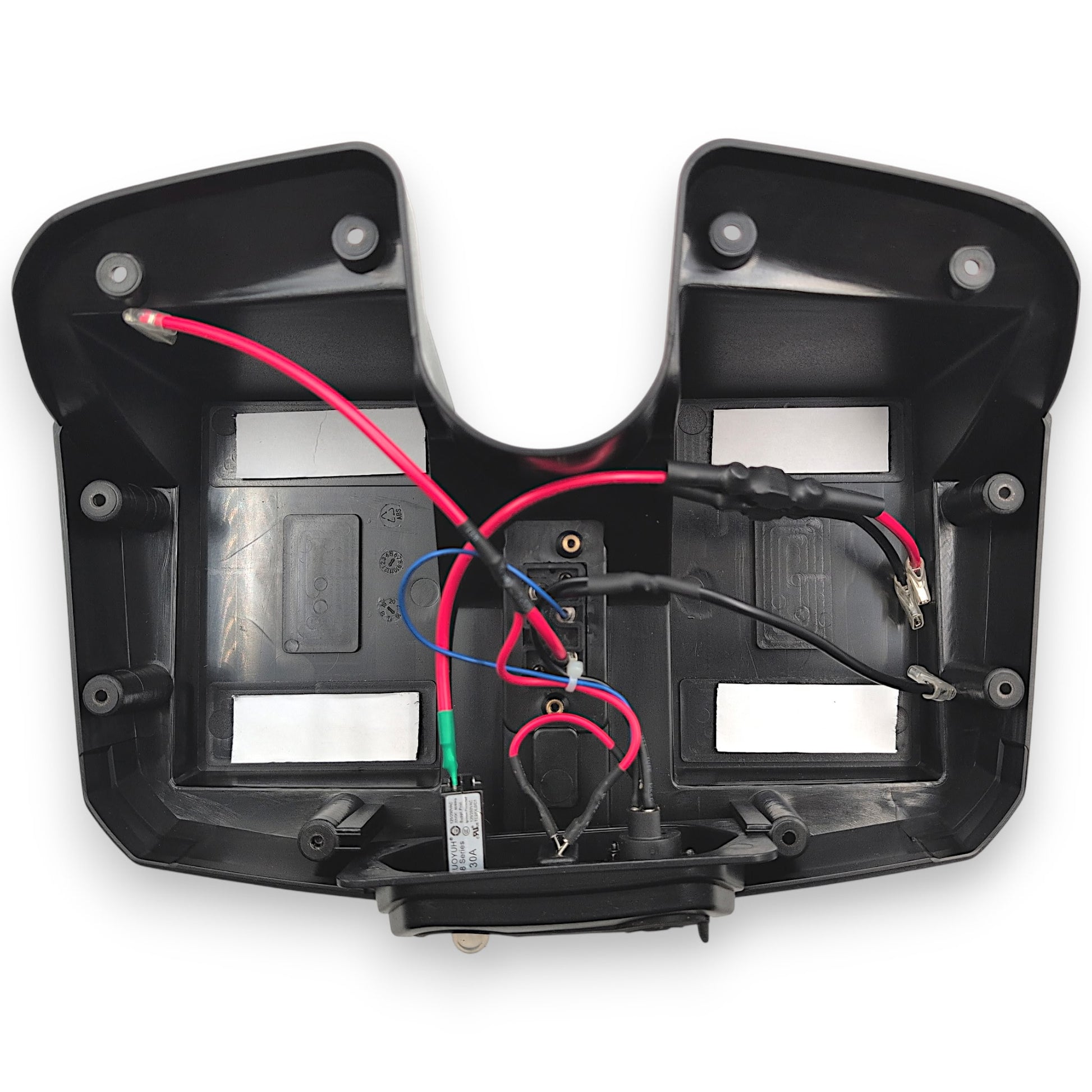

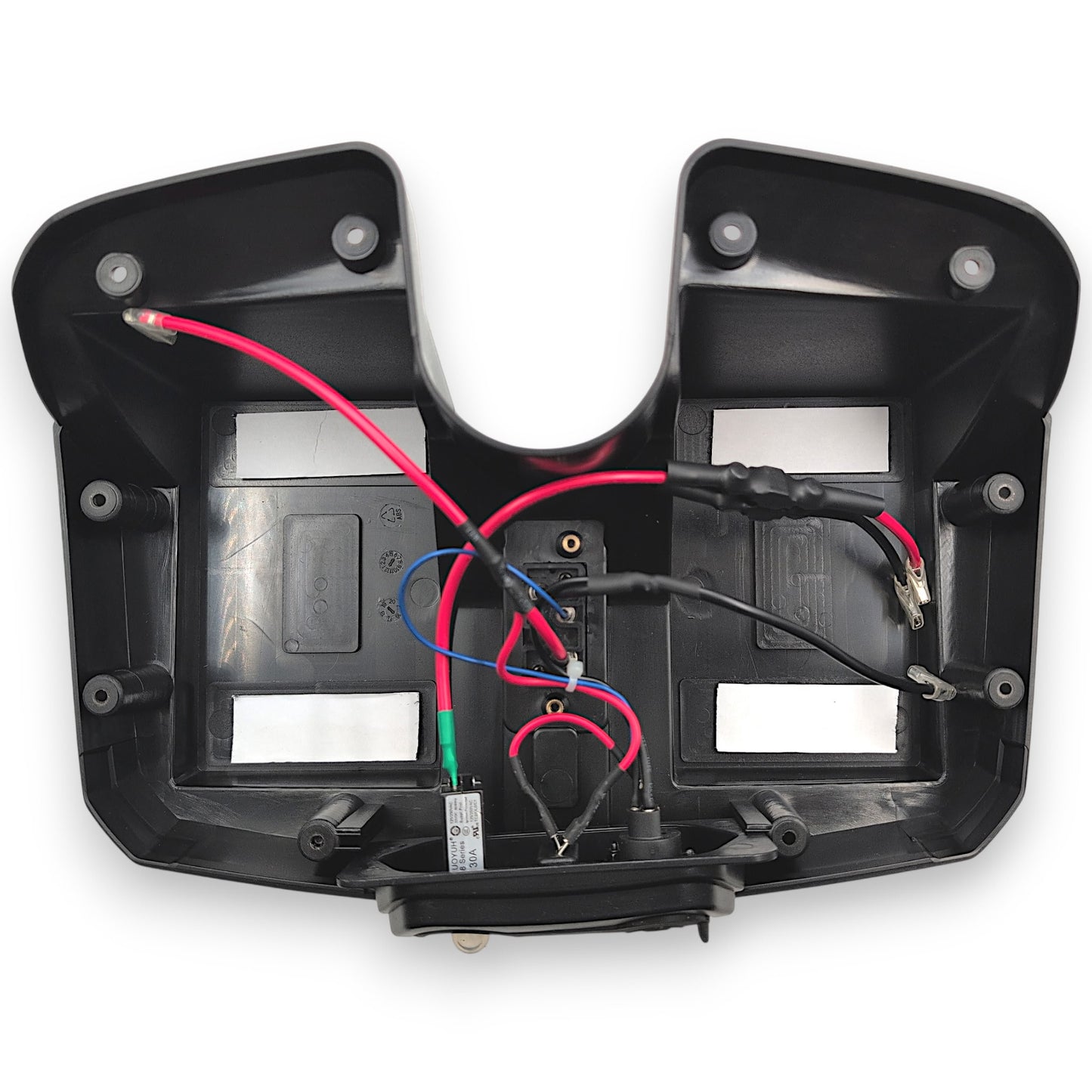

  • inside of battery box with out batteries installed, showing the boxes wiring and connectors

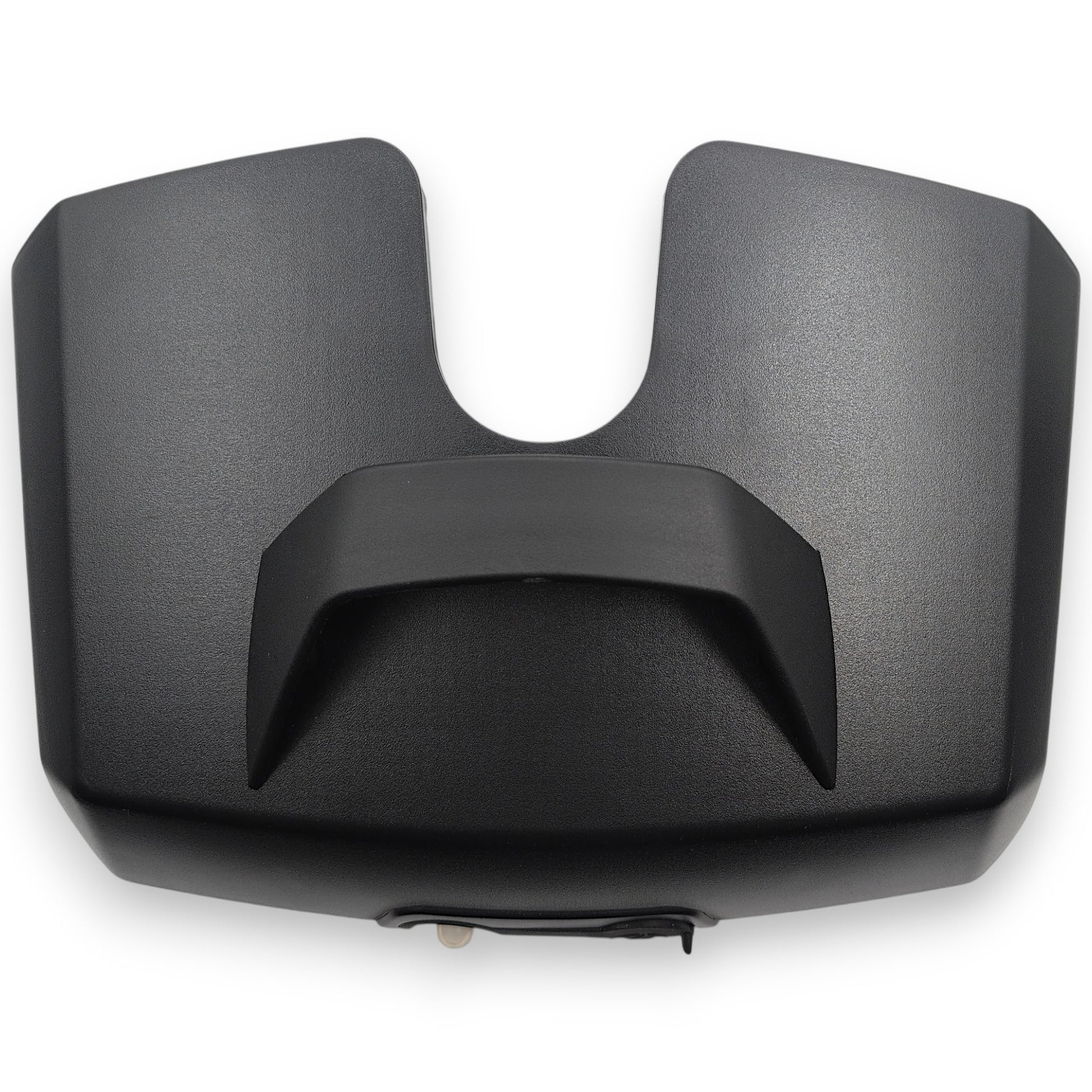

  • top view

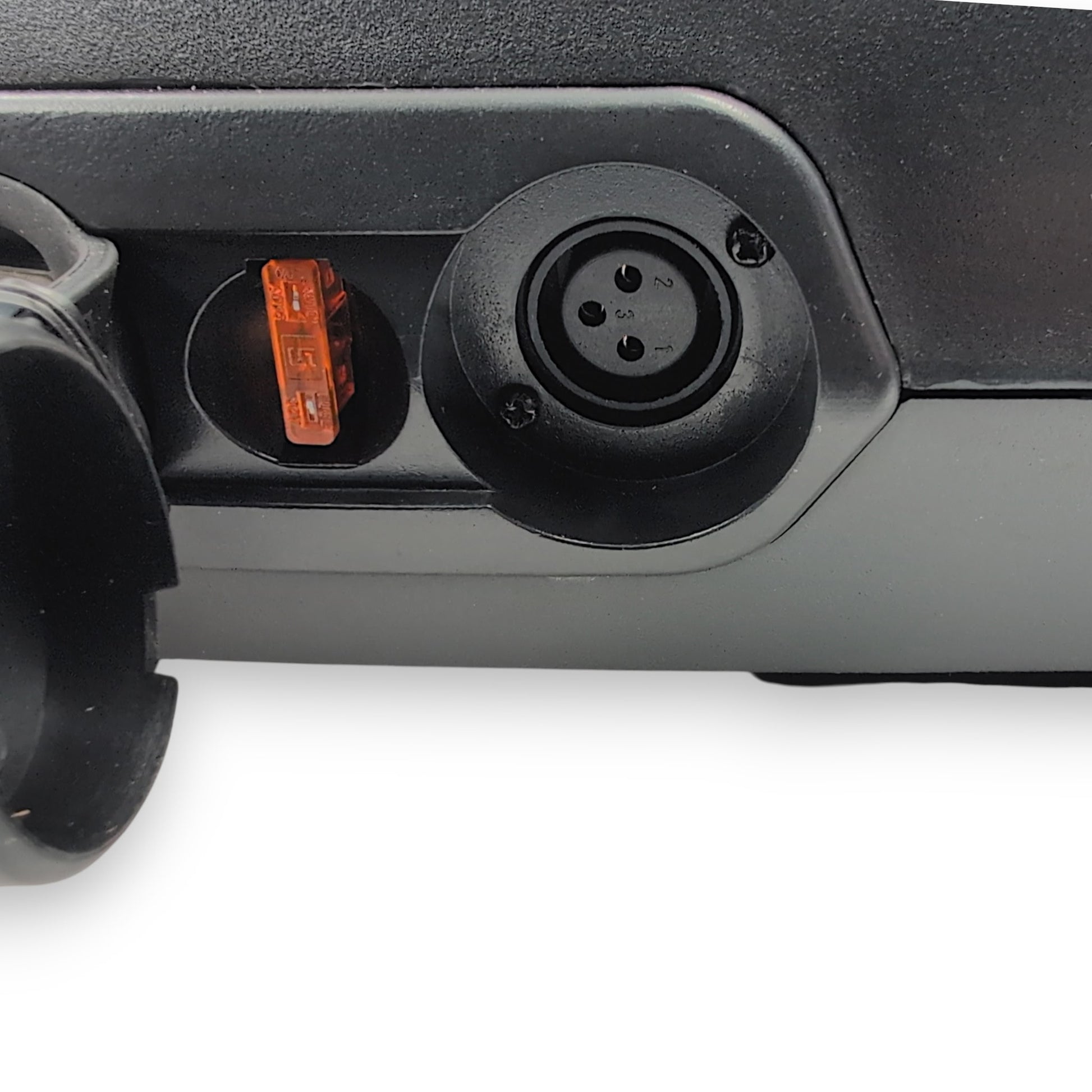

  • connector cover in an open state showing the 5 amp fuse and 3 pin female xlr connector for charging

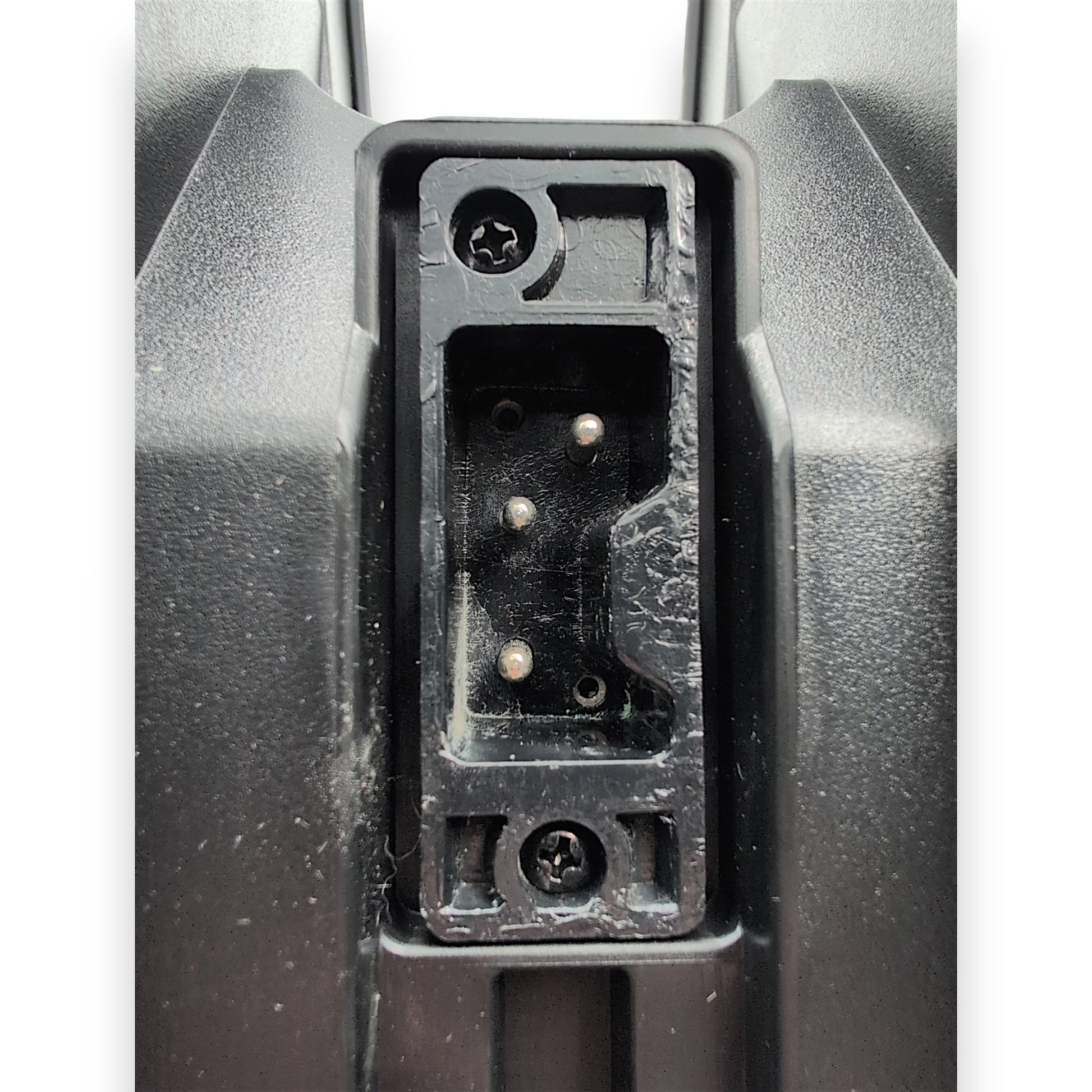

  • bottom connector that connects to the scooter. 3 pins

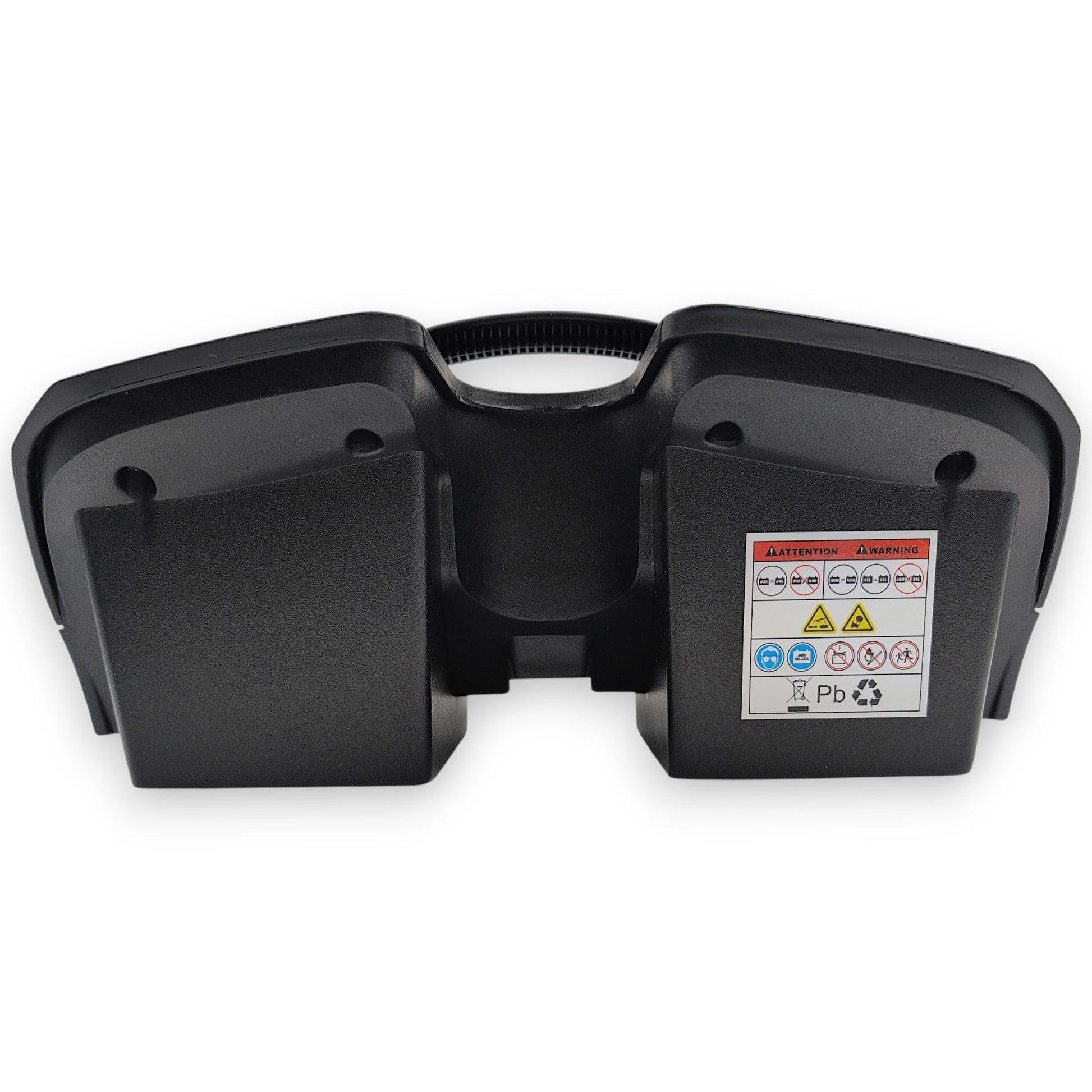

  • back view

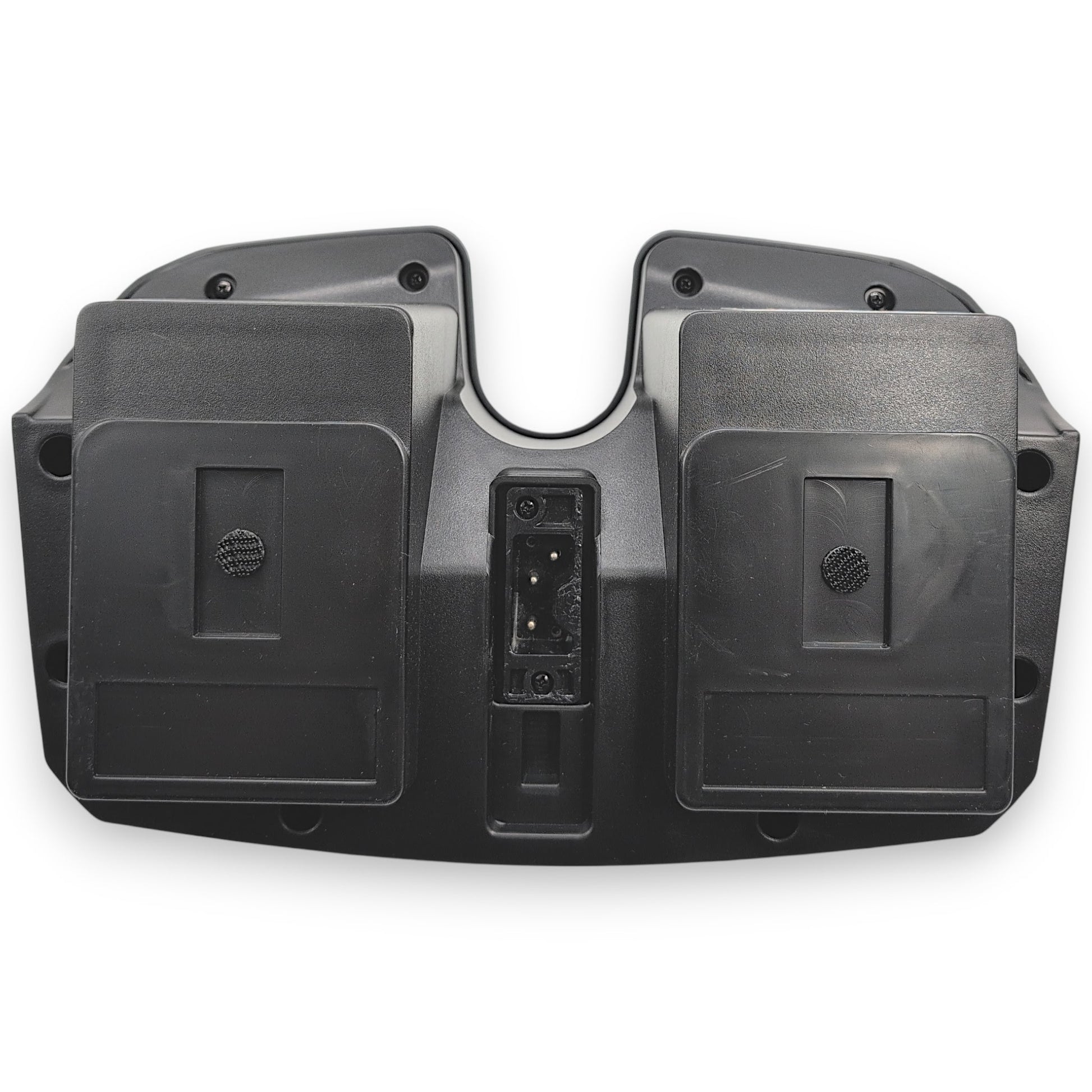

  • bottom view

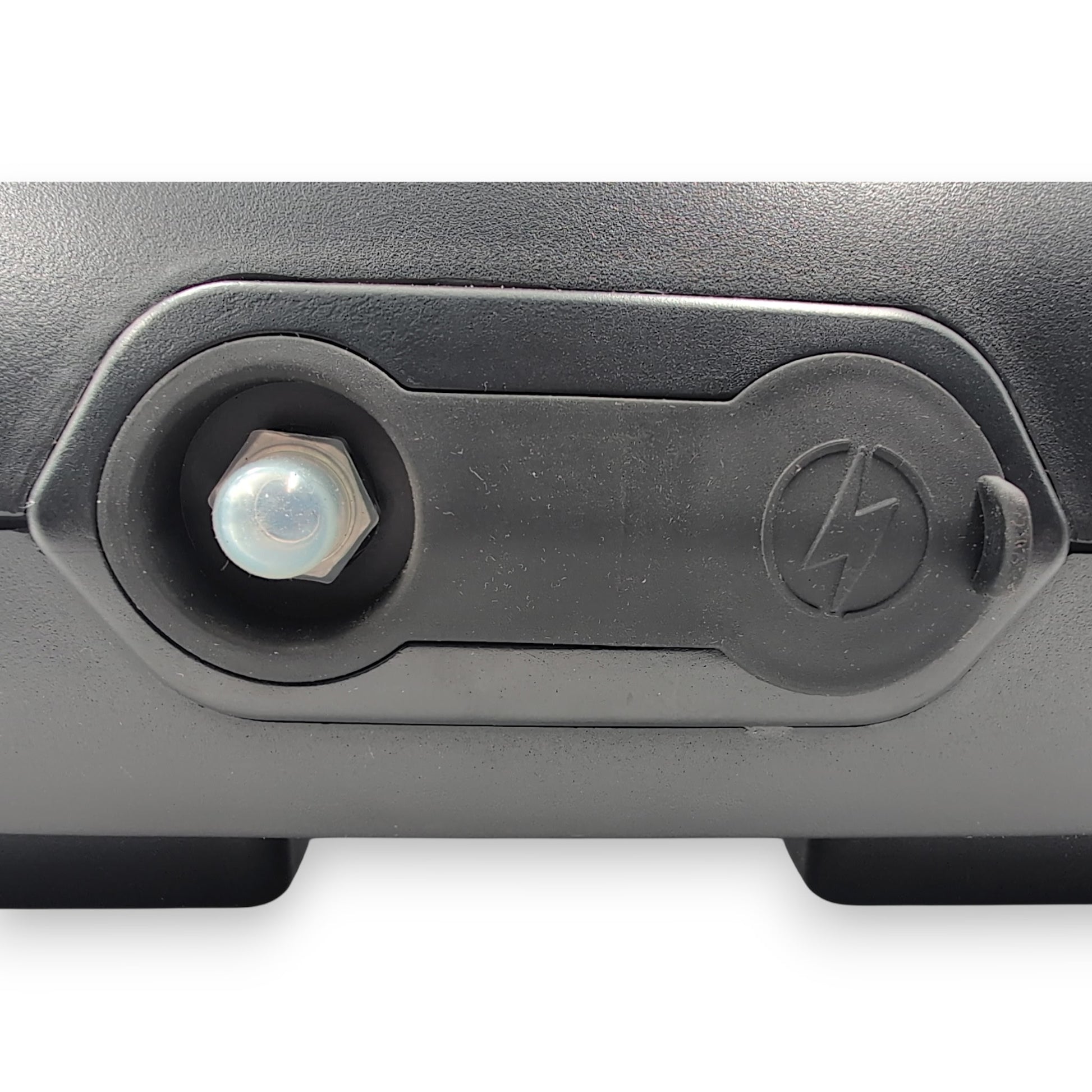

  • front closeup showing 30 amp circuit breaker reset switch and charging port location with cover on

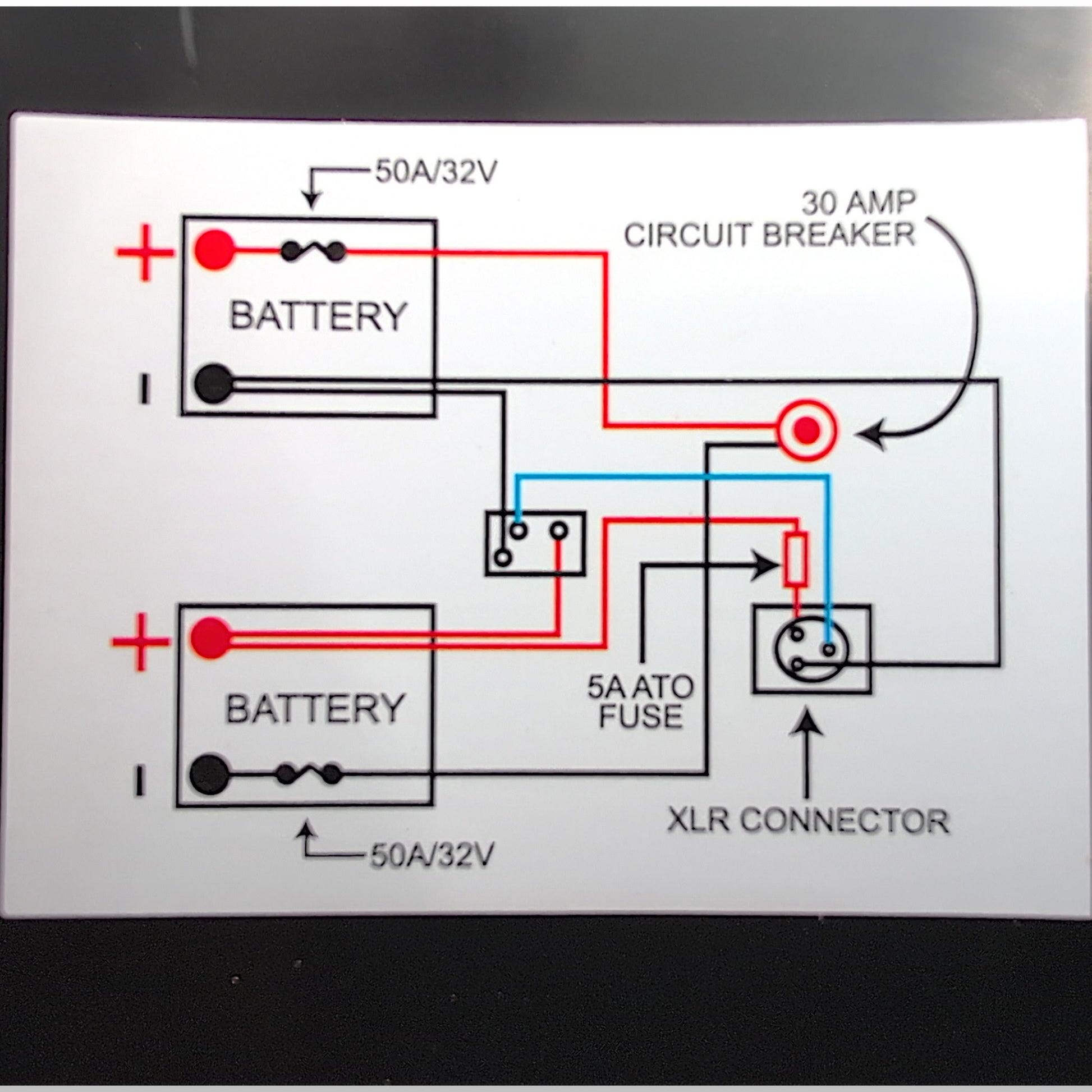

  • wiring schatic diagram found inside the underside of the battery packs lid

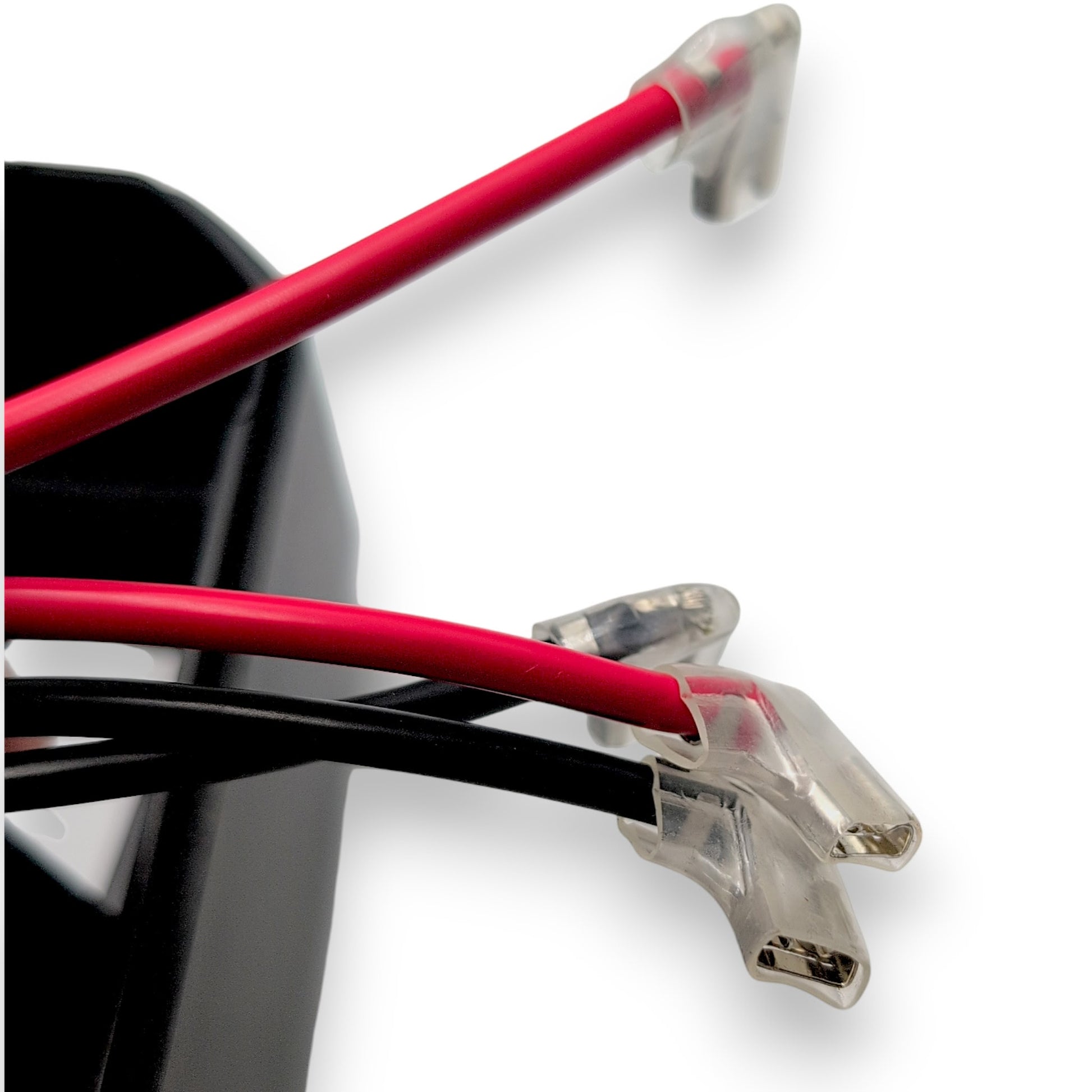

  • closeup of the spade connectors that connect to the batteries

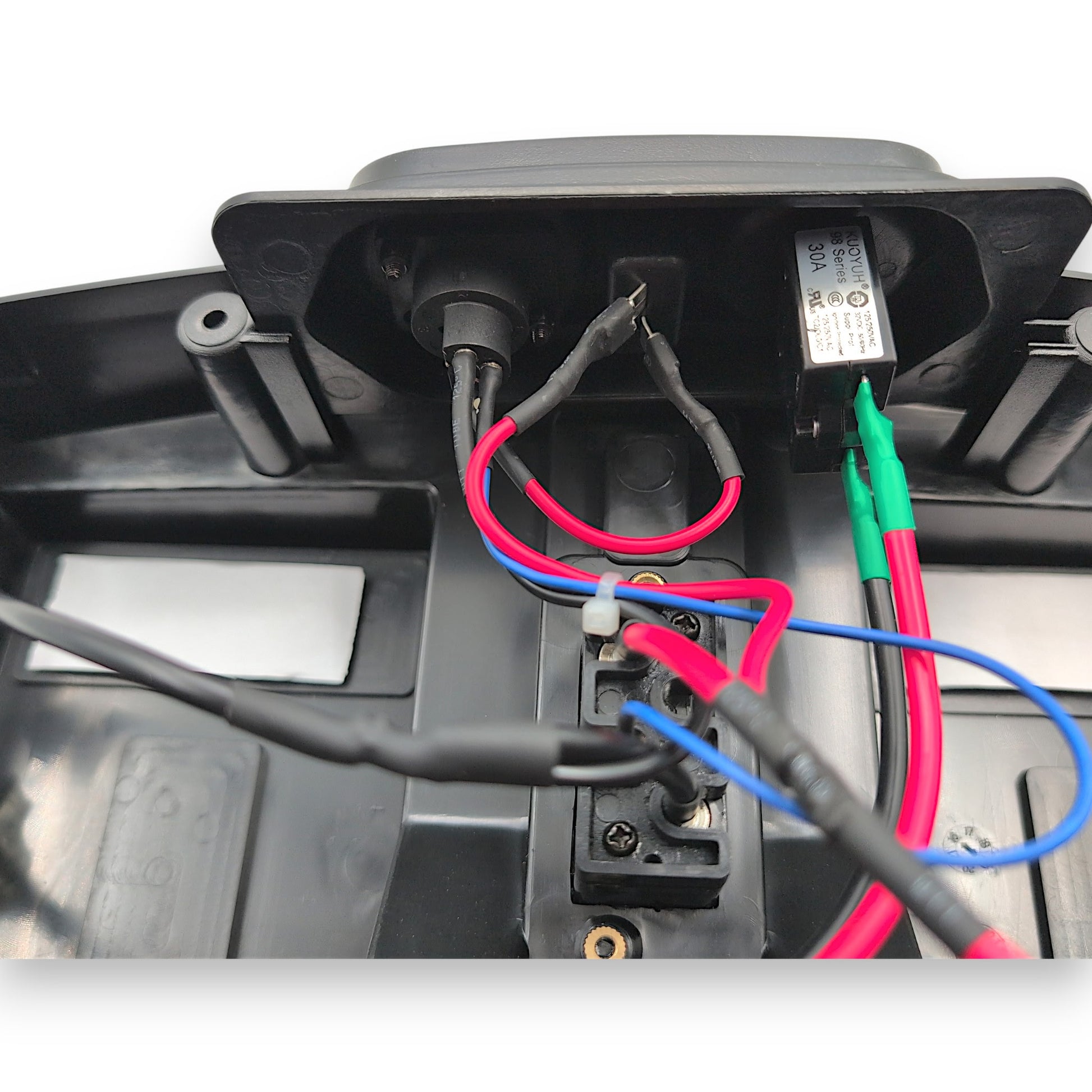

  • 30 amp circuit breaker, and connectors. rom inside the battery box

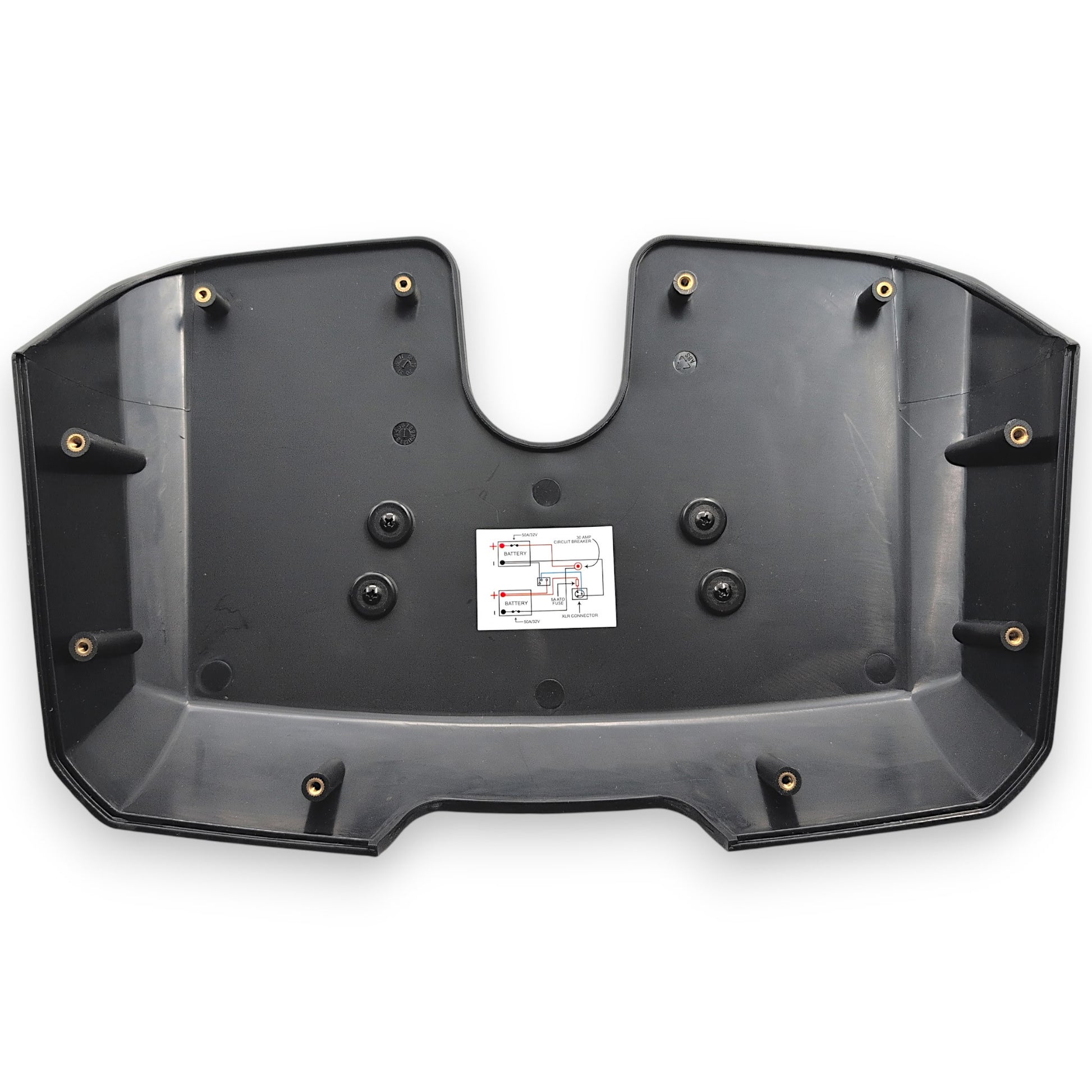

  • inside of the lid
1 14

Golden Technologies

Golden Buzzaround LT XL Battery Pack | For GB121, GB124 | MBE-121A-BATTPACK

Golden Buzzaround LT XL Battery Pack | For GB121, GB124 | MBE-121A-BATTPACK

$109.95 USD
$112.00 USD $109.95 USD
Our Price Sold Out
Free Shipping On Orders Over $40.00! Shipping: Calculated at checkout Shipping Policy

In stock

Battery Box Options
  • Included: Free Ground Shipping On This Product (United States Only)
  • 30 Day Return Policy
  • Fulfillment: Leaves Warehouse By The Next Business Day
  • This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects

Product Features:

  • Description: One OEM battery box/pack with circuit breaker, wiring harness, and electrical connectors, with 3 optional battery selections.
  • Part Number: MBE-121A-BATTPACK
  • Manufacturer: Golden Technologies
  • Compatible: With Buzzaround LT and XL Models, GB121 and GB124 ONLY.

Battery Pack Variations:

  • No Batteries: Battery Box & Wiring Only

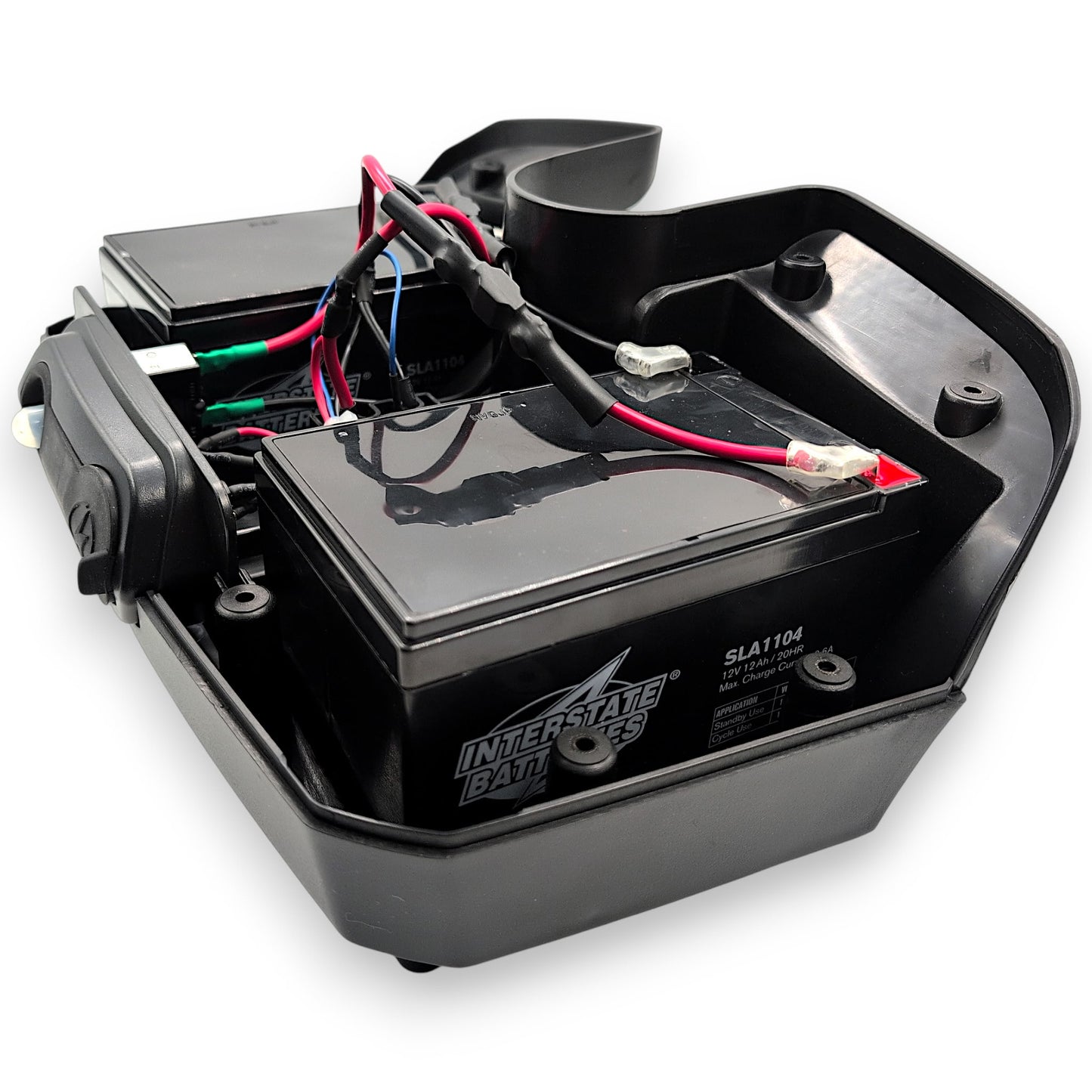

  • Interstate SLA1104: Comes with Two 12 Volt, 12 Amp, Standard Batteries Installed

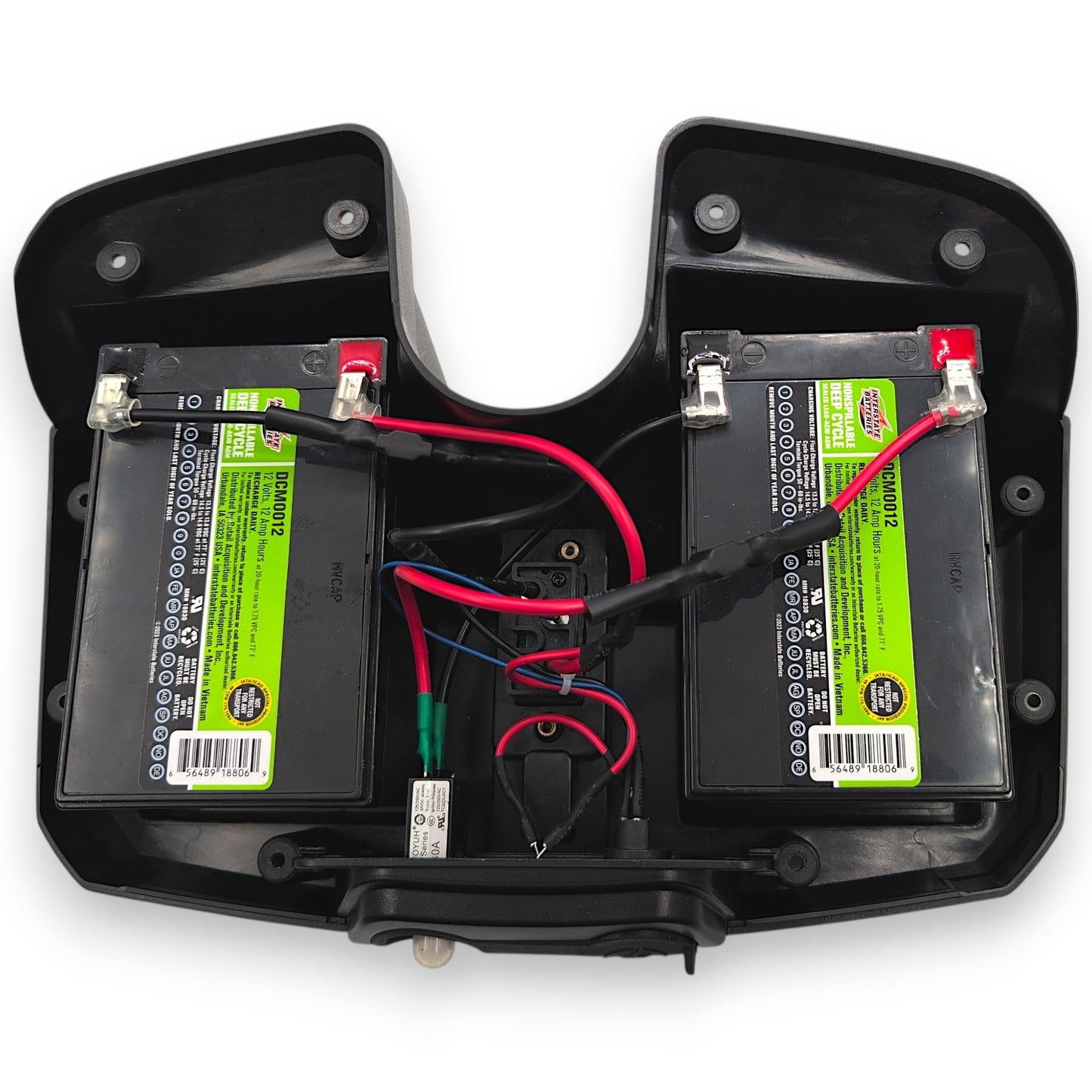

  • Interstate DCM0012: Comes with Two 12 Volt, 12 Amp, Deep Cycle Batteries Installed

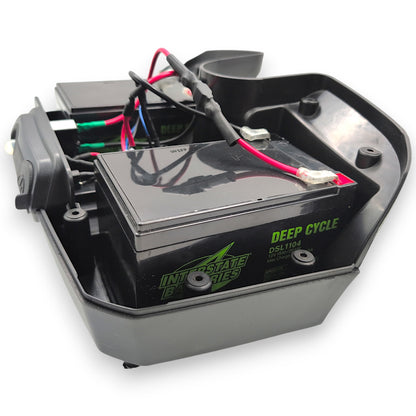

  • Interstate DSL1104: Comes with Two 12 Volt, 15 Amp, Deep Cycle Batteries Installed
