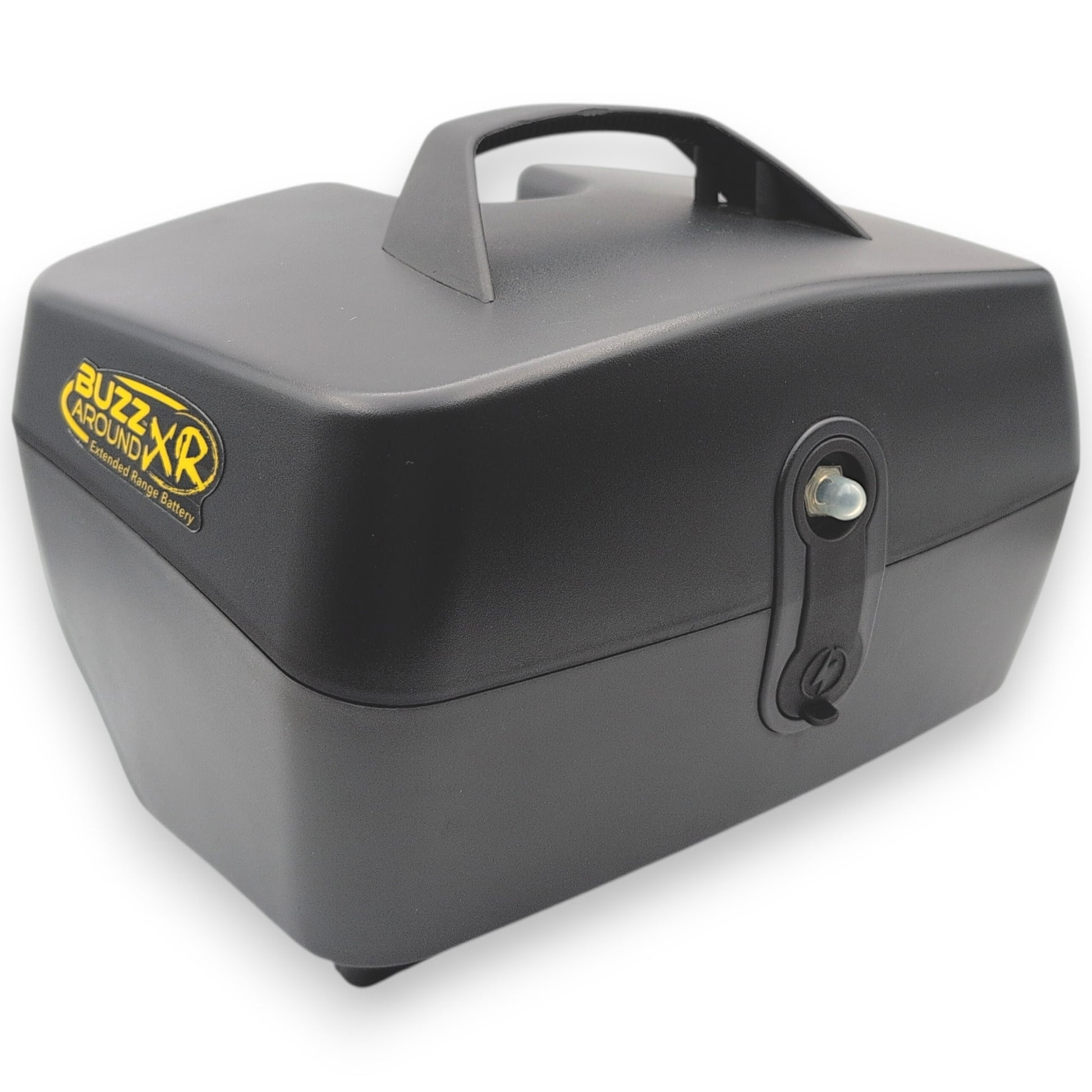

• Front / Left Angle View

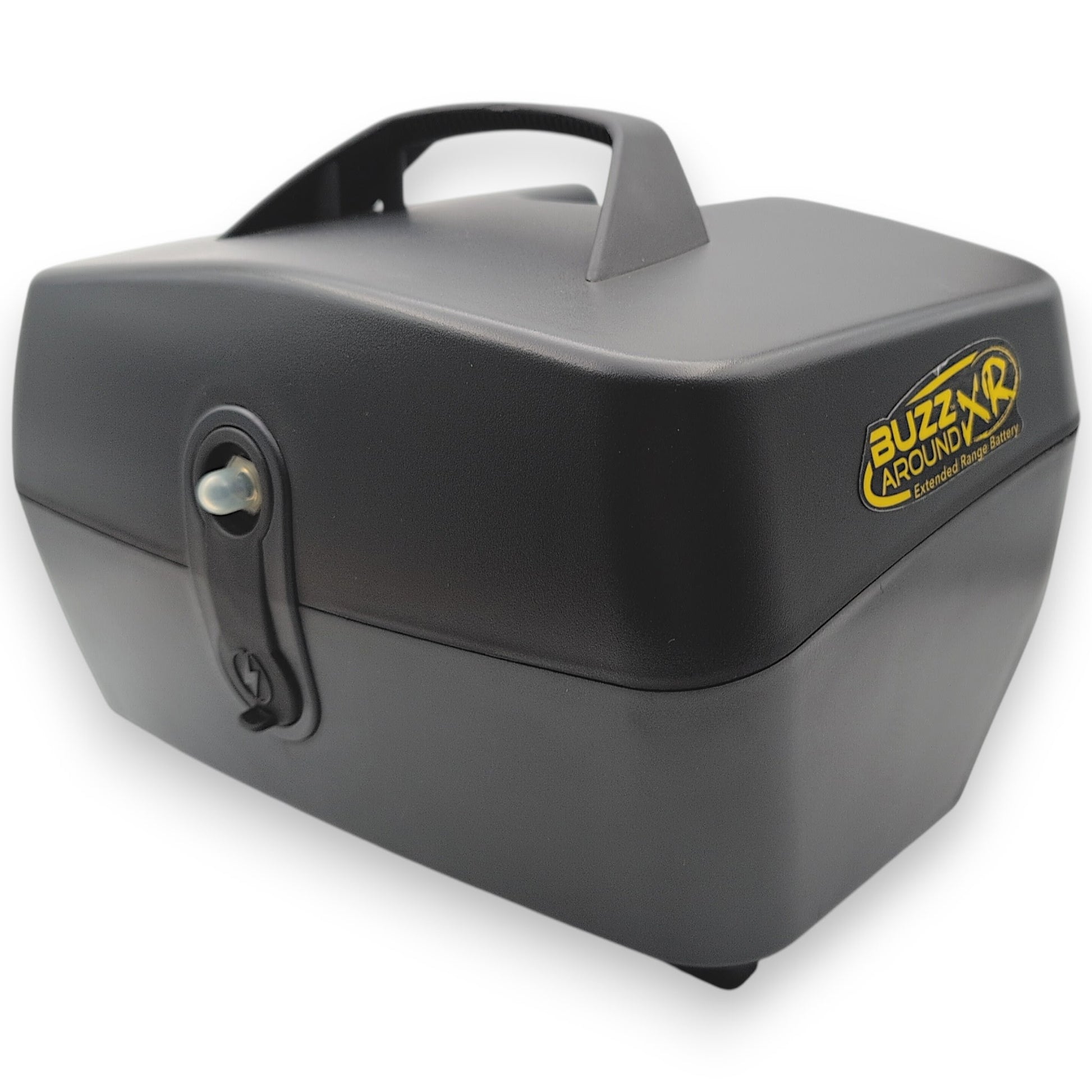

  • Front / Right angle view

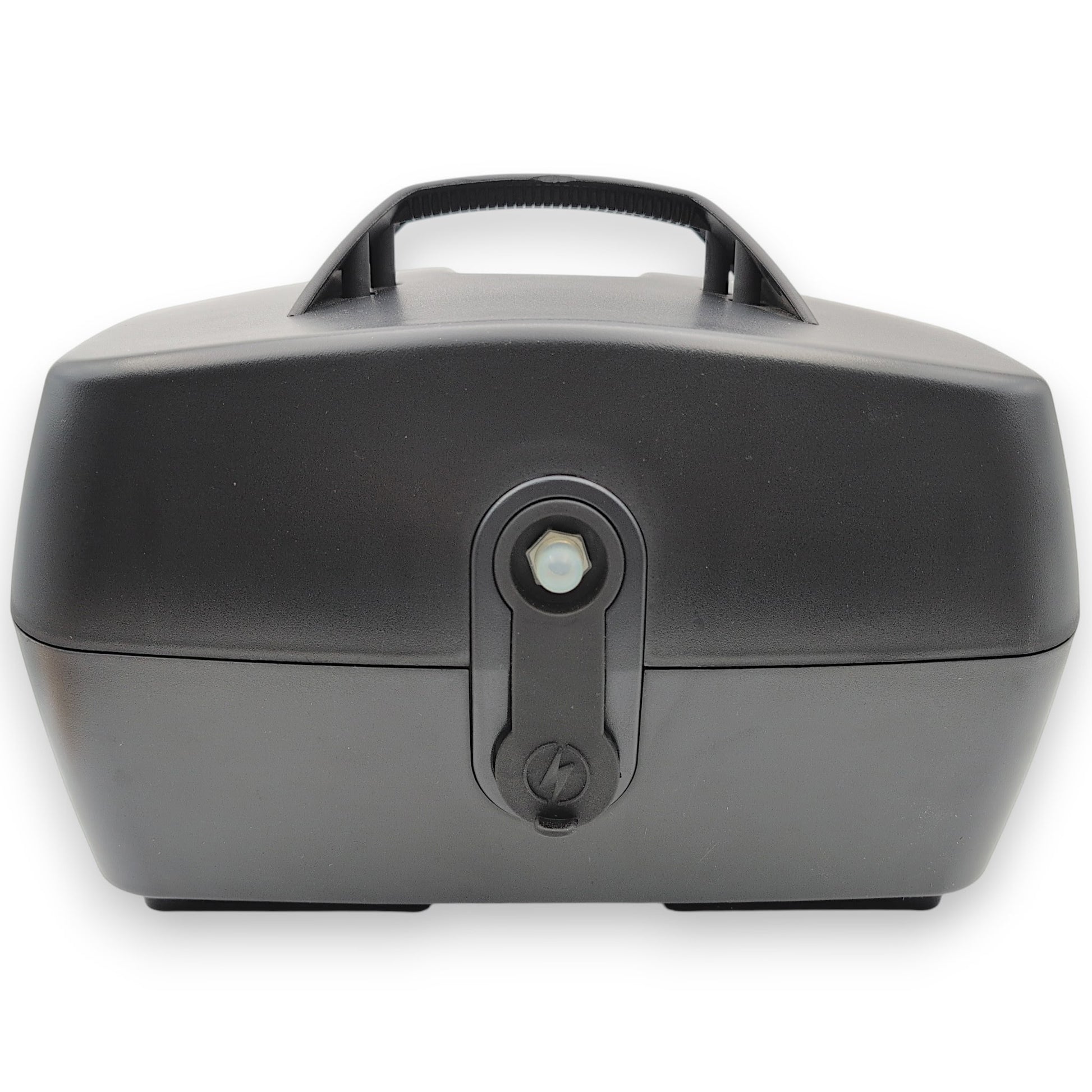

  • Front View

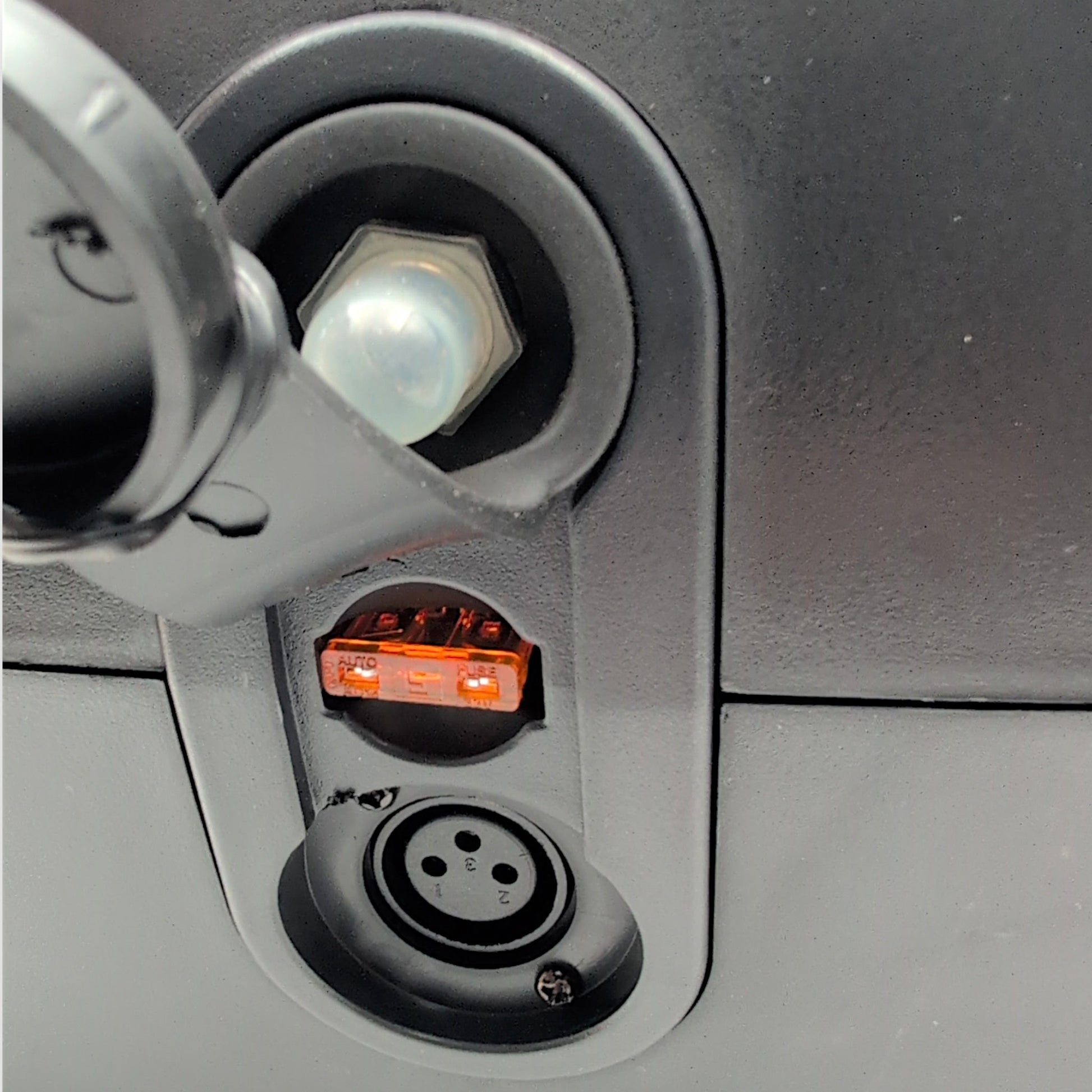

  • Cover lifted off of the front port. Shows the 3-pin XLR charging port, a 5 Amp Fuse, and the reset switch for the circuit breaker

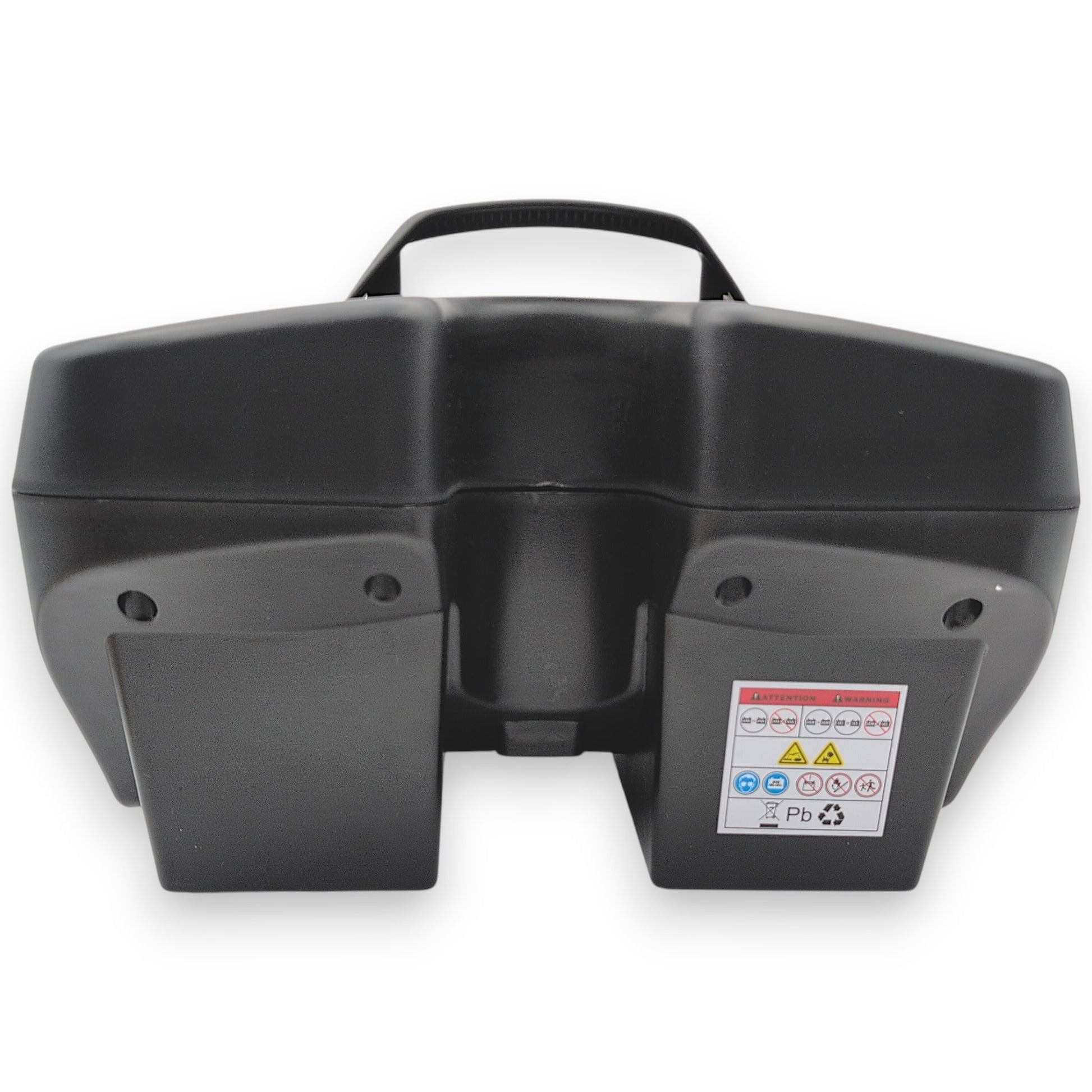

  • back view

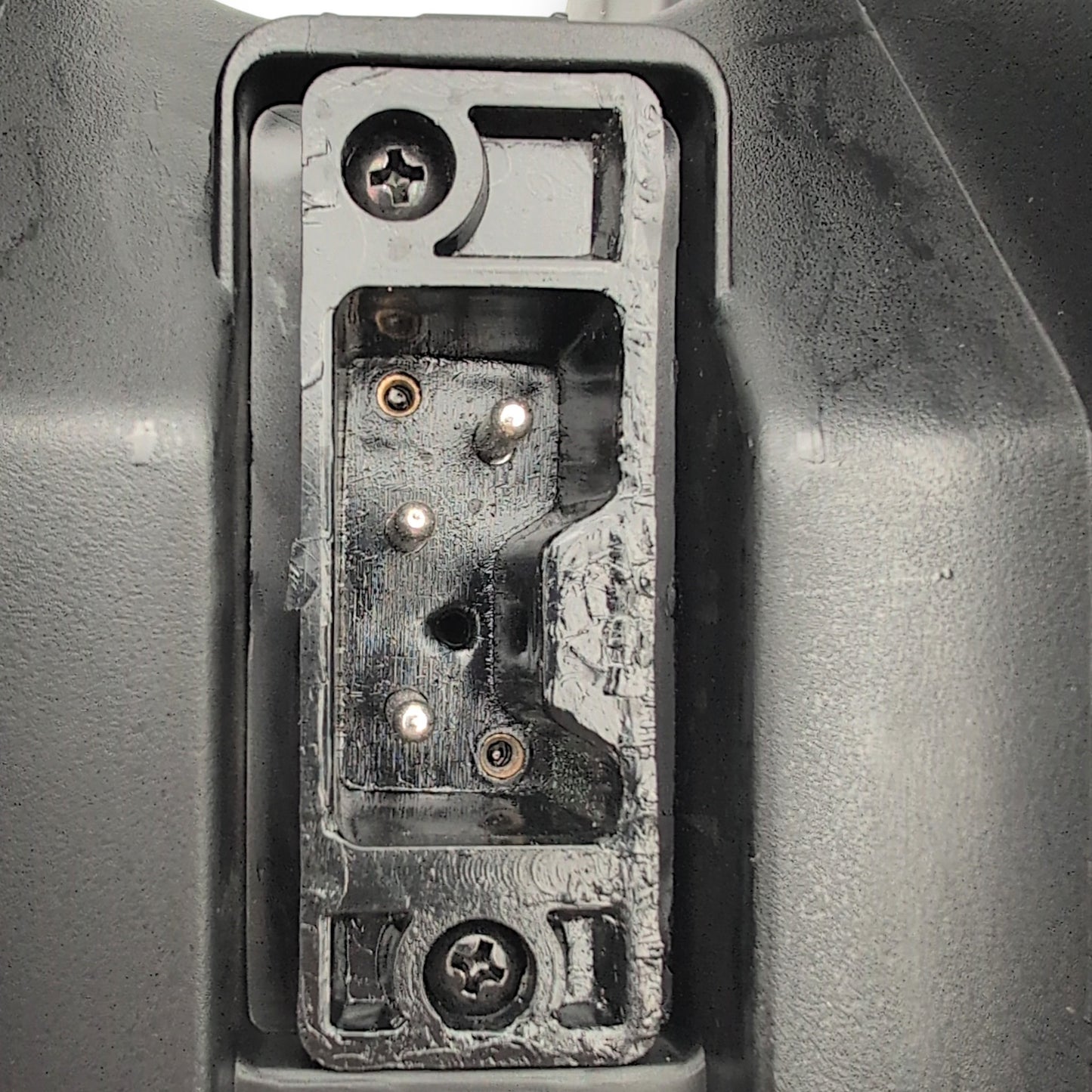

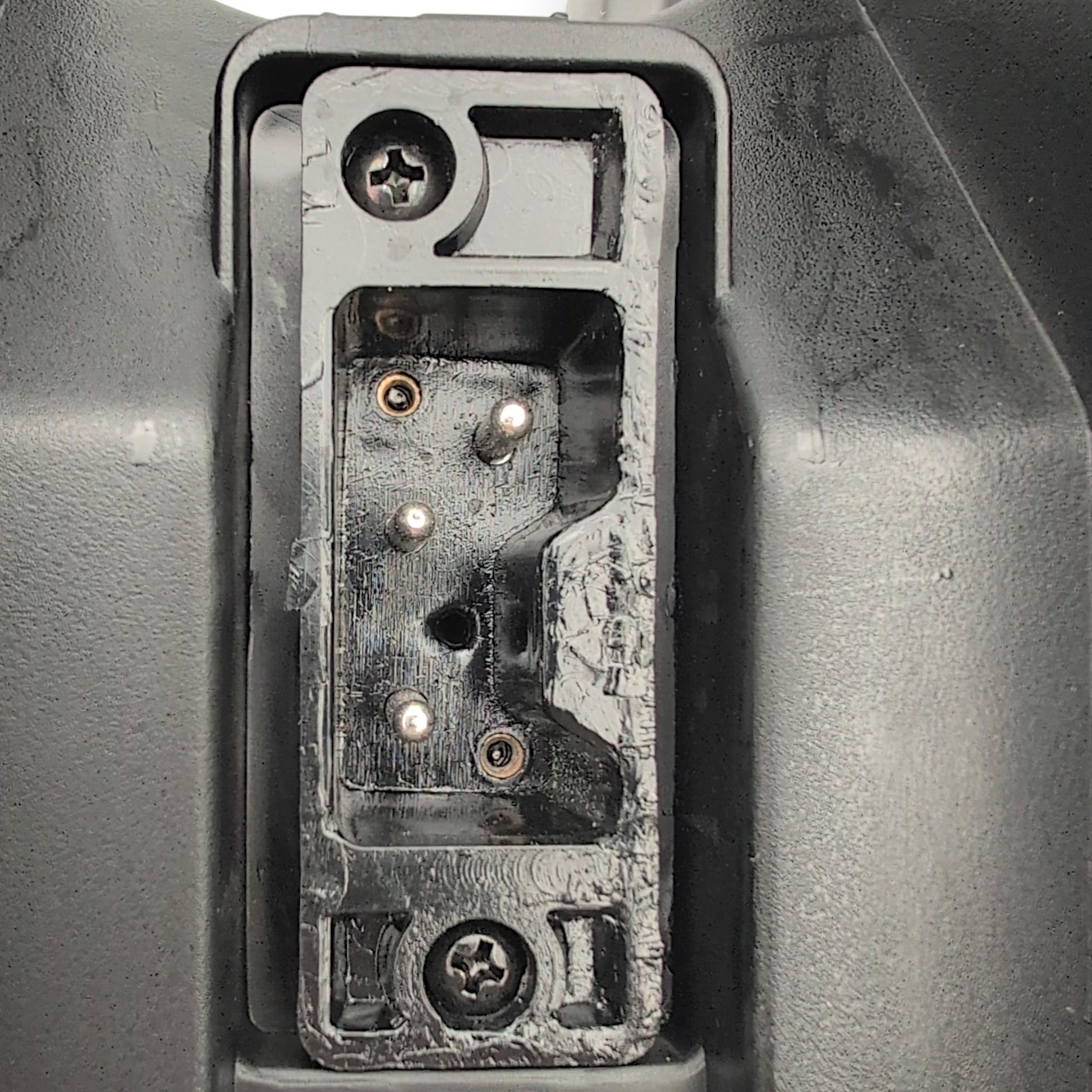

  • Closeup o the 3-pin port on the bottom of the battery box. used to connect the battery box to the scooter

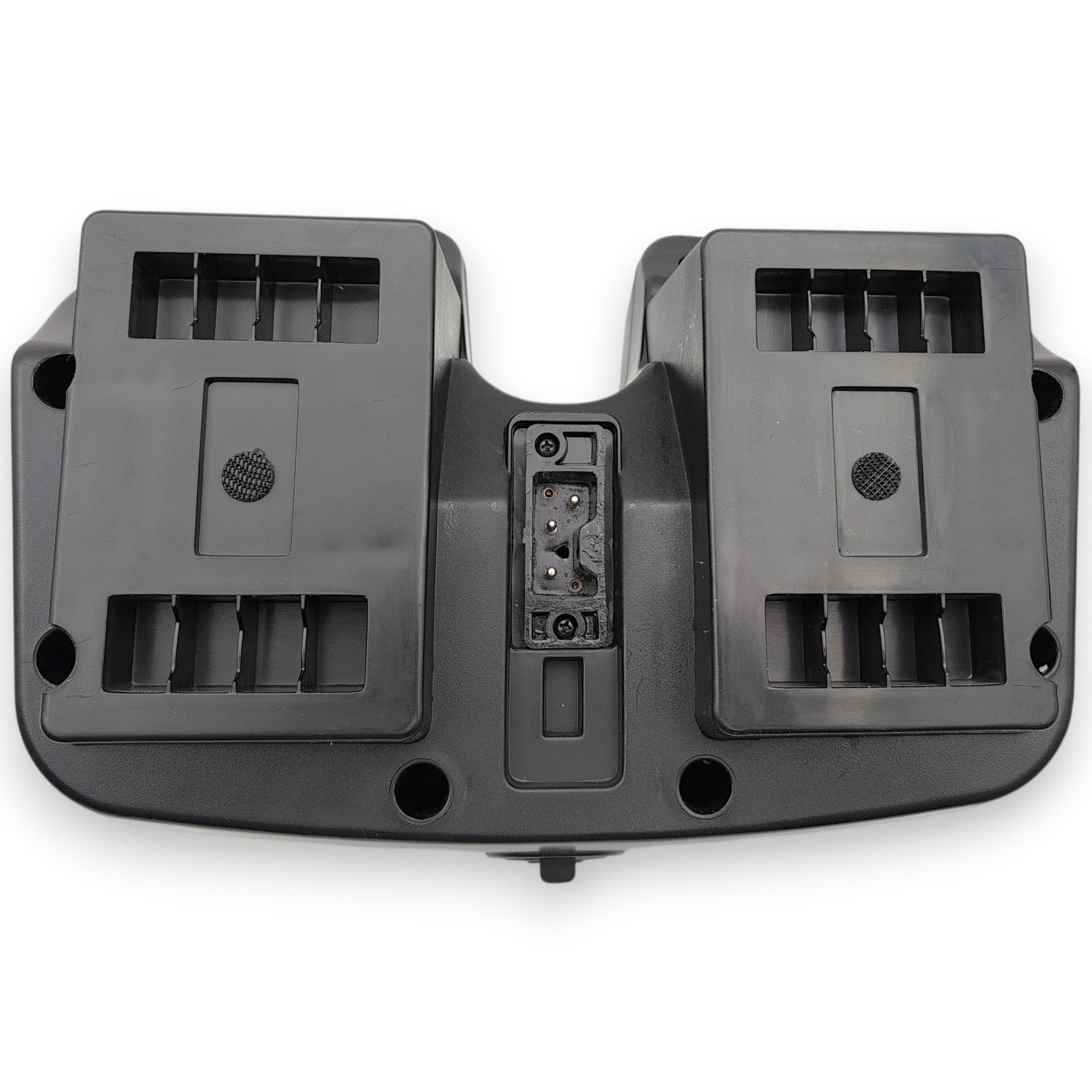

  • bottom view

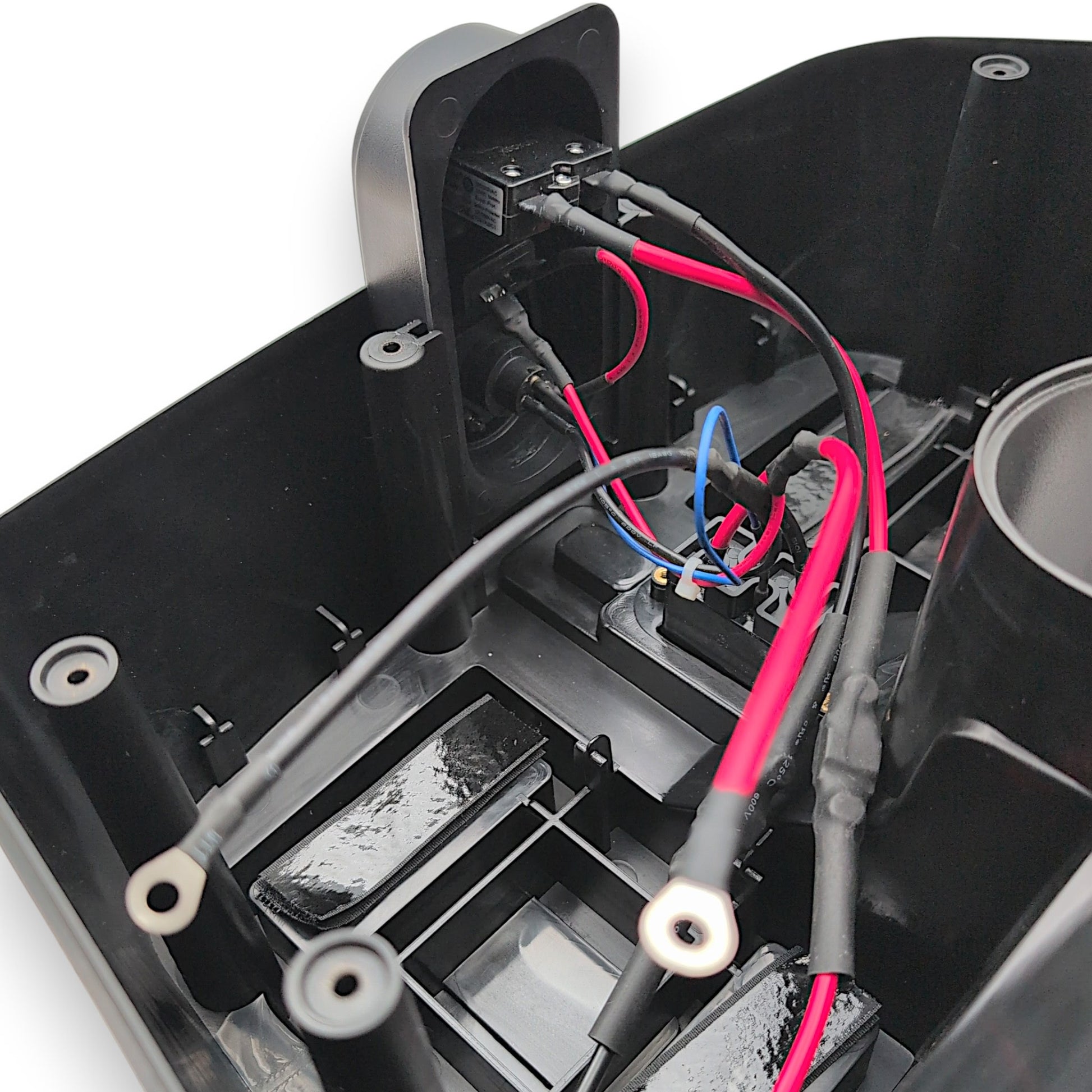

  • view of the wiring, 30 Amp circuit breaker, ports, battery ring terminals connectors from inside the battery box

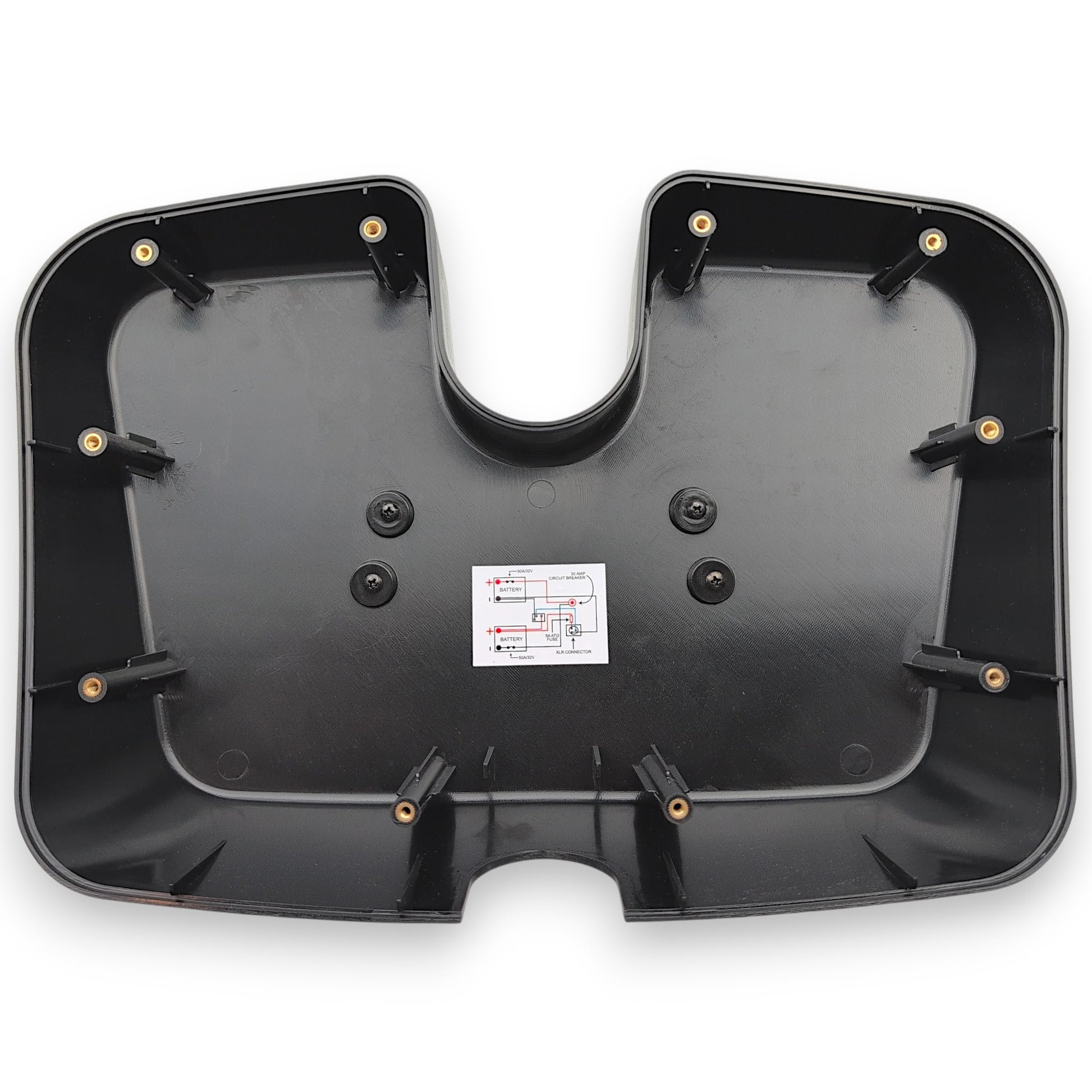

  • view from inside of the lid showing the wiring diagram location

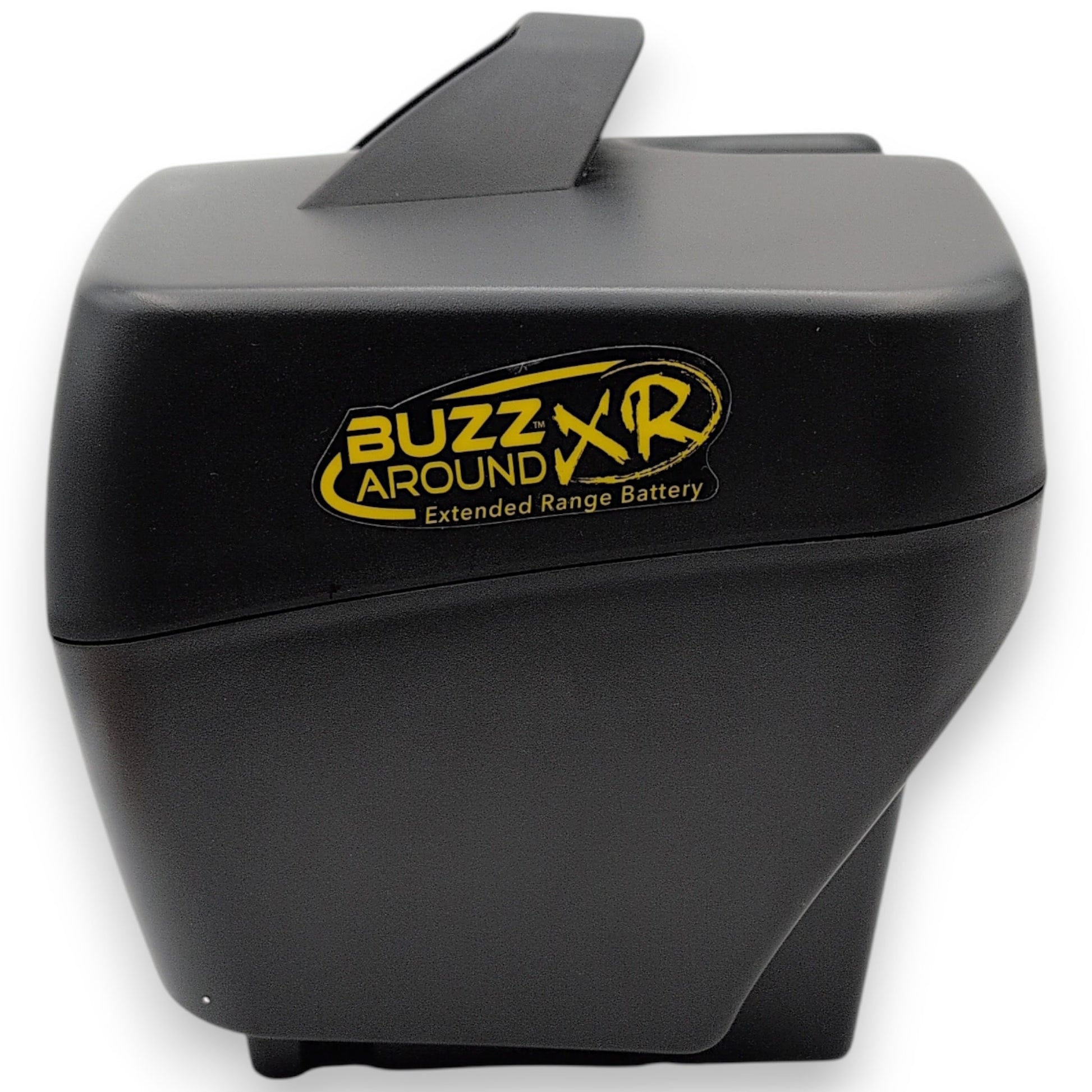

  • right side view

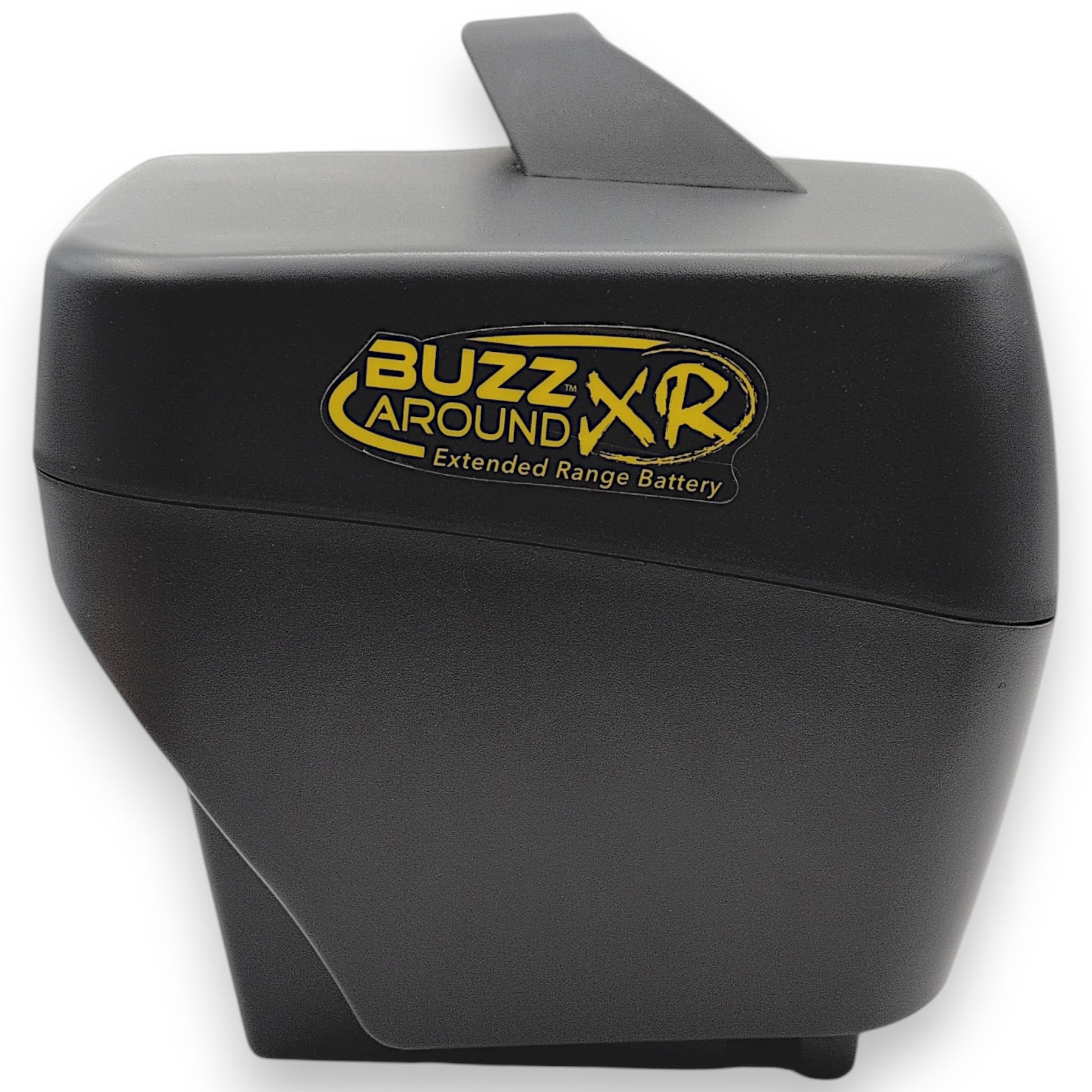

  • left side view

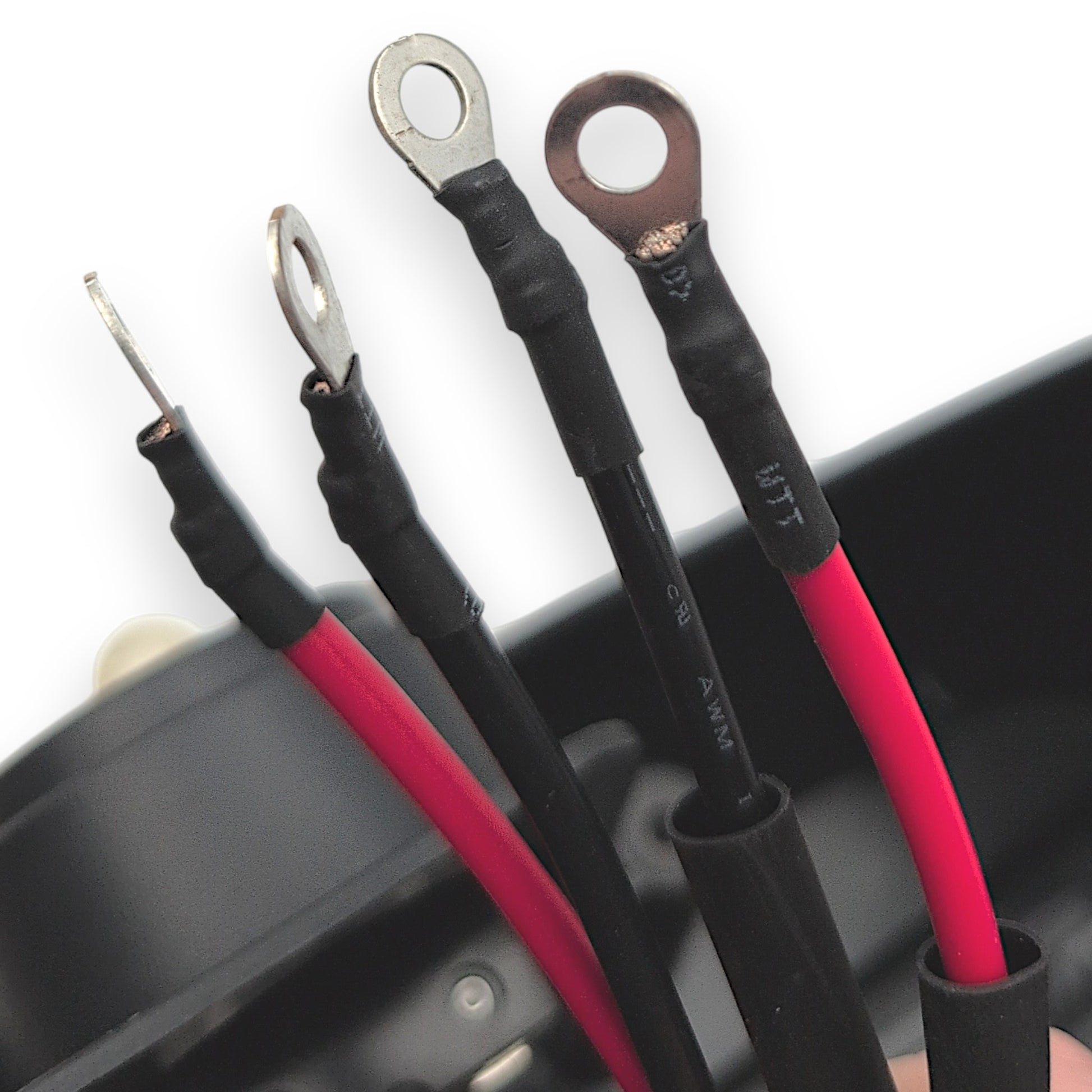

  • closeup of the four ring terminals used to connect the batteries to the box

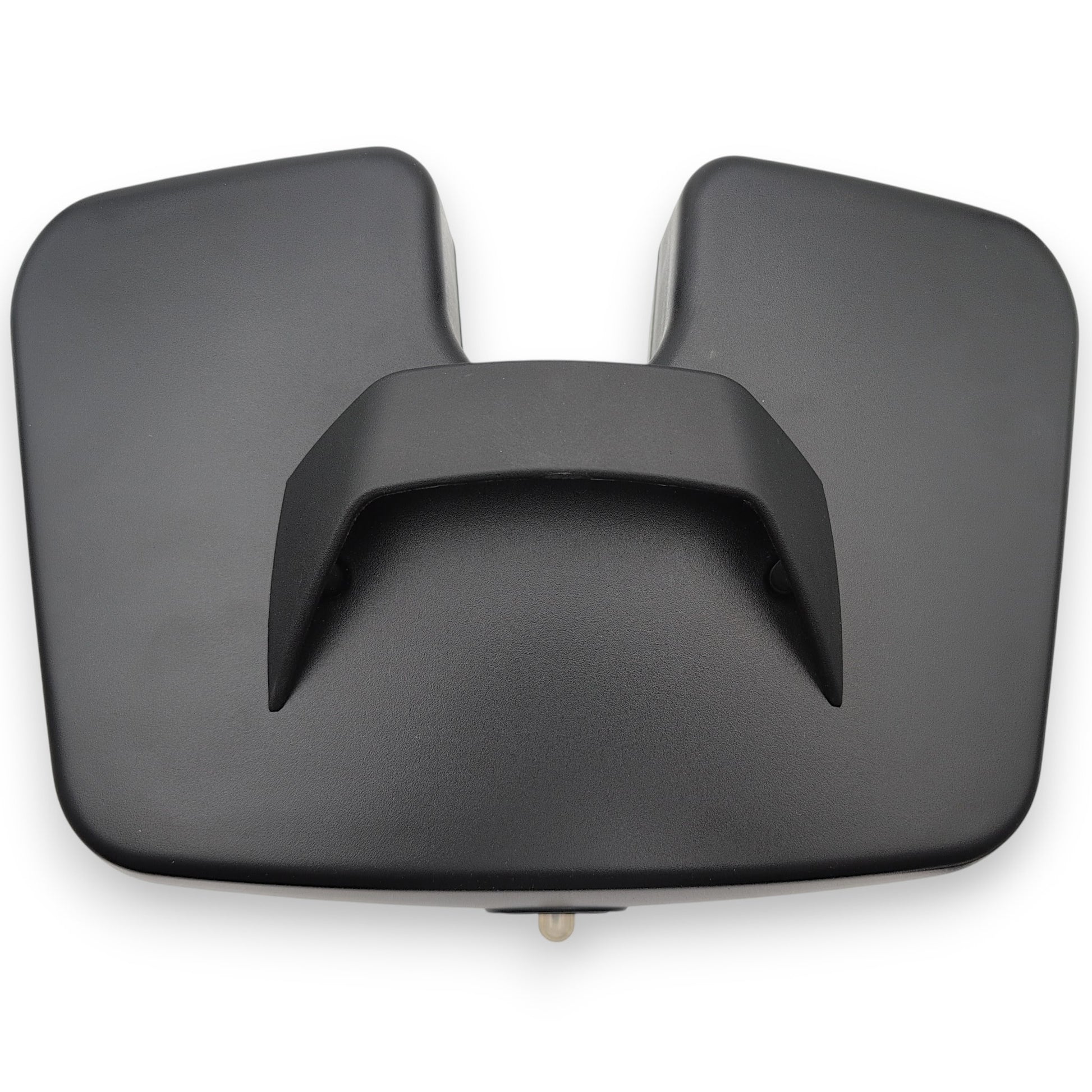

  • top view

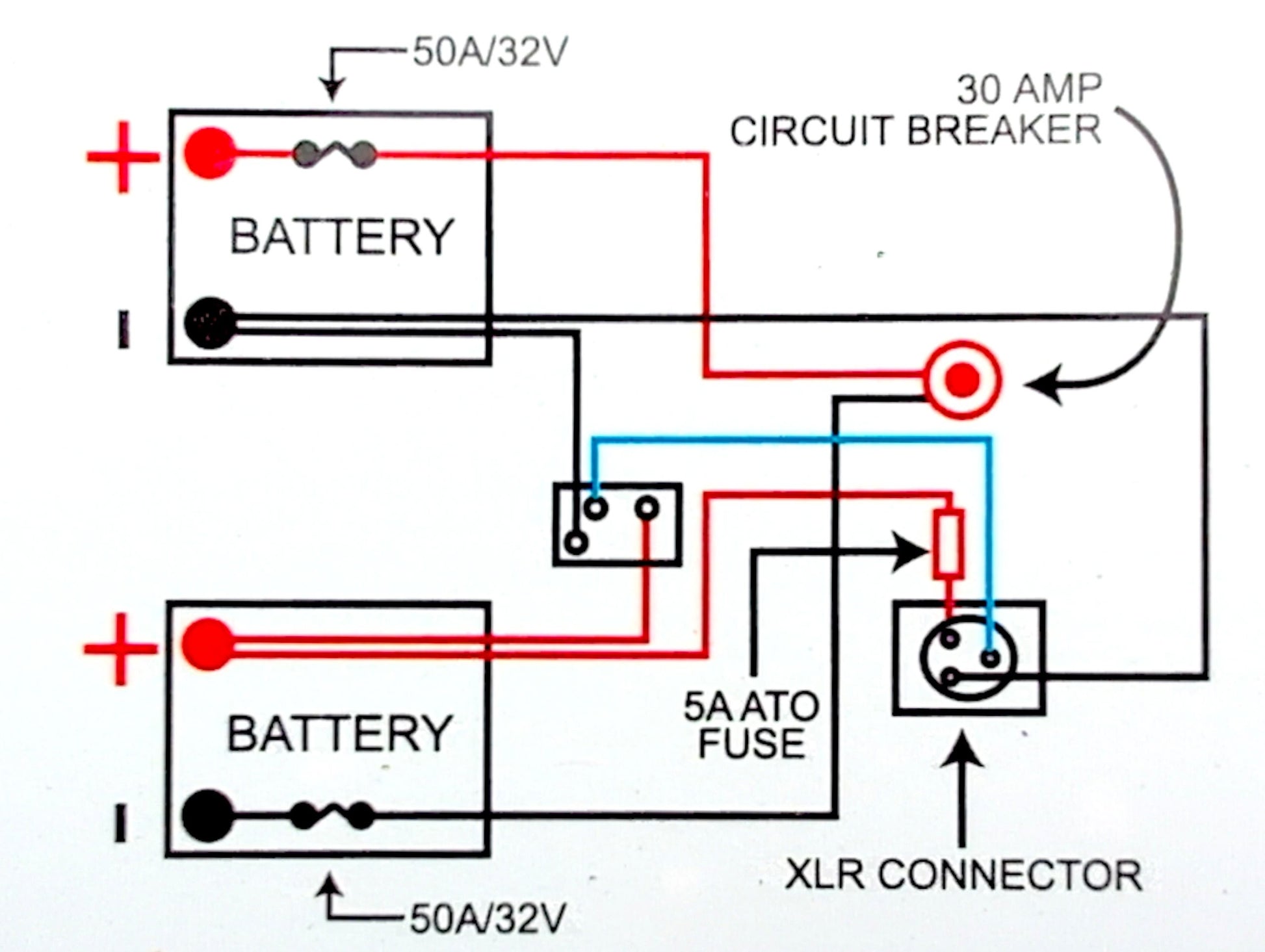

  • First install the 22 Amp Hour batteries with the terminals pointing inward in the battery box. connect the positive (red) wire with 50 Amp / 32 Volt in line fuse to the battery on the right. connect the negative (black) wire with 50 Amp / 32 Volt in line fuse to the battery on the Left. Connect the negative wire without a fuse, to the battery on the right. Connect the positve wire without a fuse to the battery on the left.

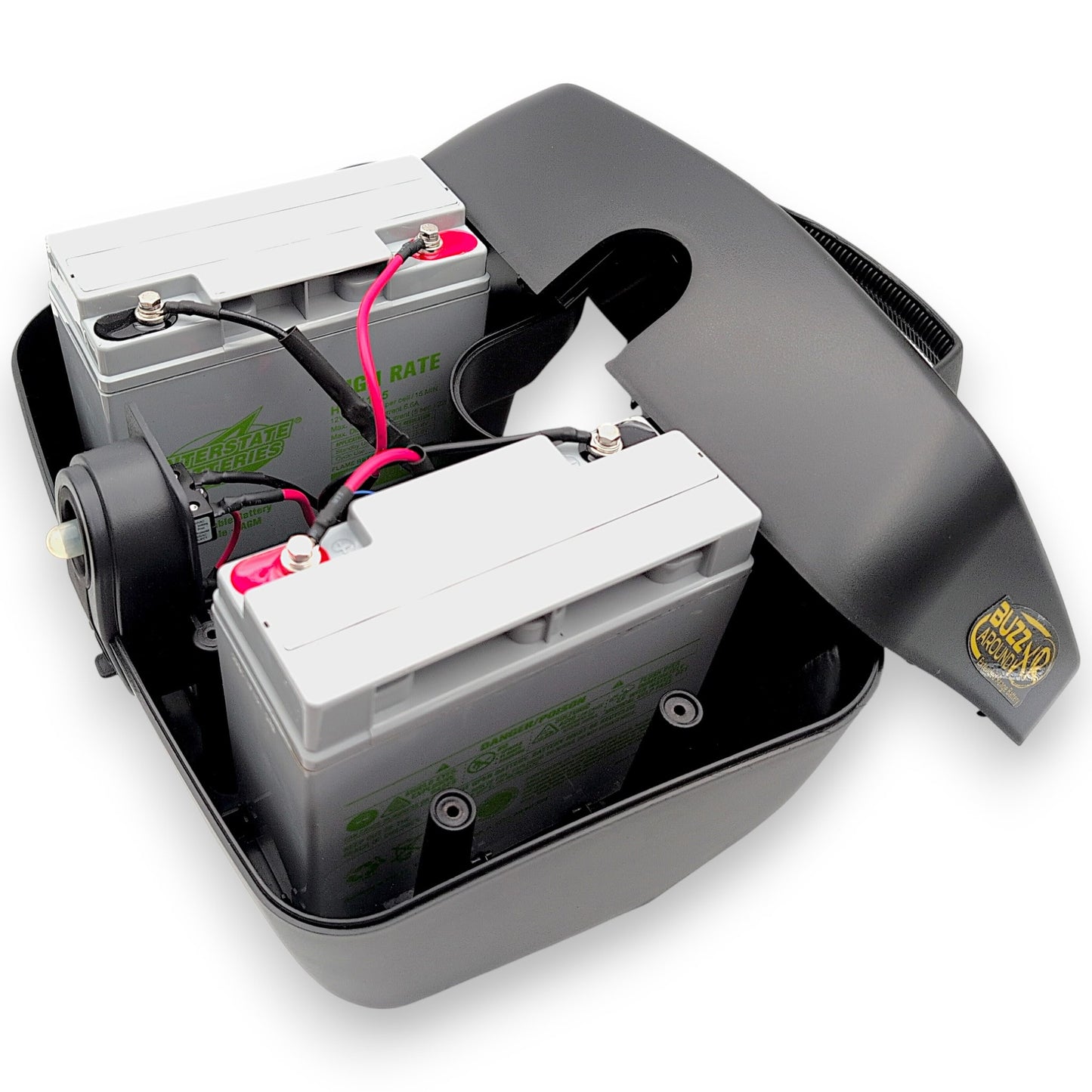

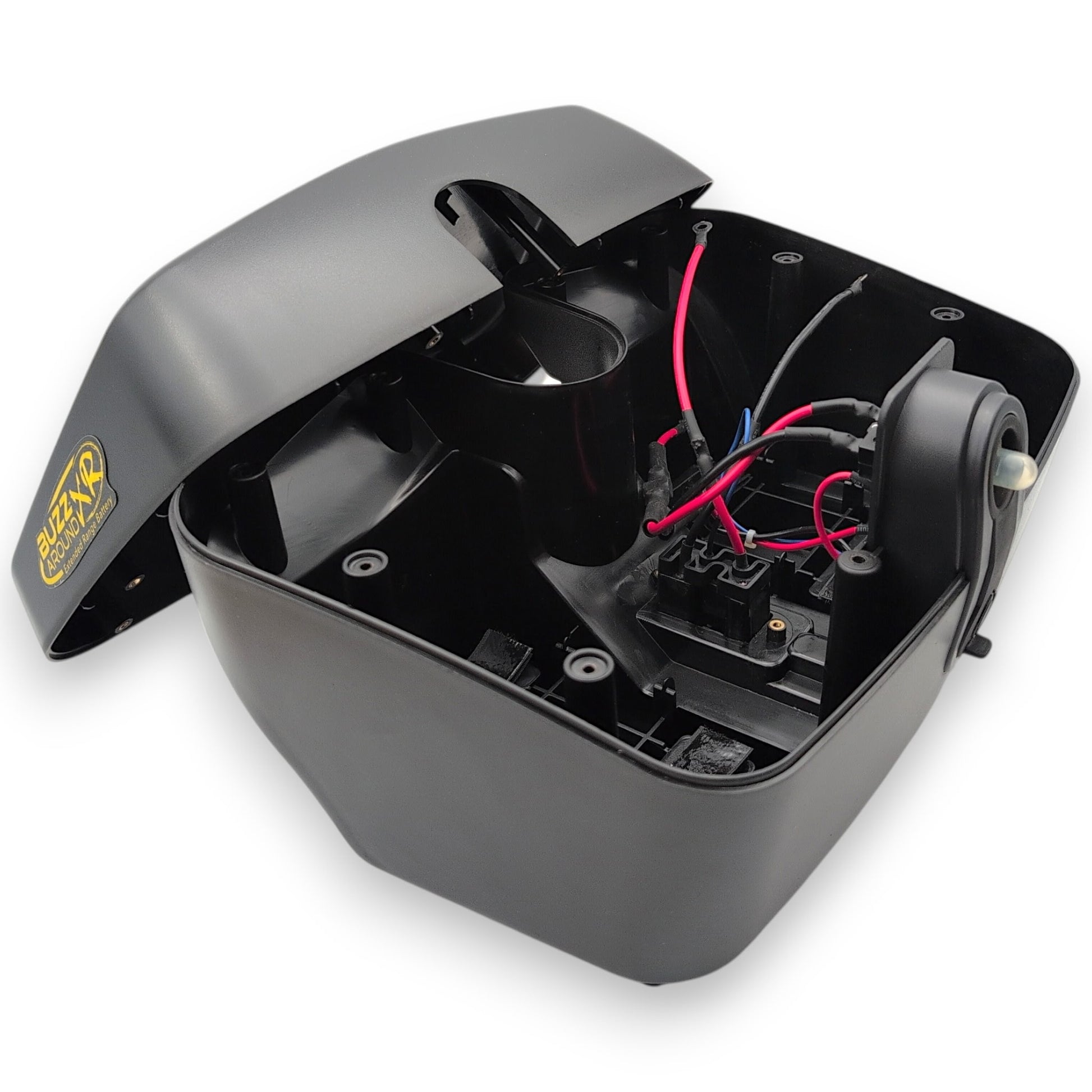

  • battery box with the lid removed
1 15

Golden Technologies

Golden Buzzaround XL GB121 / GB124 Battery Pack | MBE-BZBATTBOX-XR, MBE-BZBATT22-XR

Golden Buzzaround XL GB121 / GB124 Battery Pack | MBE-BZBATTBOX-XR, MBE-BZBATT22-XR

$249.99 USD
$249.99 USD
Our Price Sold Out
Free Shipping On Most Items Over $40+ (Contiguous US Only) Shipping: Calculated at checkout Shipping Policy

In stock

Battery Box Options
  • Free ground shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
  • 30 Day Return Policy
  • Fulfillment: Usually ships in 1-2 business days
  • This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects

Product Description

This extended range (XR) battery pack is designed exclusively for the GB121 and GB124 Golden Technologies Buzzaround mobility scooters. Available as either an empty housing or a fully assembled pack, this component accommodates larger 22AH batteries to provide an operating range of up to 18 miles.

Works as an upgrade from The Standard 12 Volt, 12Ah Battery Pack, Part Number: MBE-121A-BATTPACK that is often found on these scooters.

Brand:
Golden Technologies
Part Number (Box Only):
MBE-BZBATTBOX-XR
Part Number (Complete Assembly):
MBE-BZBATT22-XR (Includes two 22AH Batteries)
Range:
Up to 18 Miles

Scooter Compatibility
Golden Buzzaround XL 3-Wheel:
Model Number GB121 (fits GB121B-STD.X)
Golden Buzzaround XL 4-Wheel:
Model Number GB124 (fits GB124A-STD.X)
Golden Buzzaround XLS-HD 3-Wheel:
Model Number GB121-SHZ (fits GB121B-SHZ)
Golden Buzzaround XLS-HD 4-Wheel:
Model Number GB124-SHZ (fits GB124A-SHZ)

Does Not Fit The Following Models
Buzzaround XL-HD 3-wheel:
Model Number GB117
Buzzaround XL-HD 4-wheel:
Model Number GB147
Buzzaround XLS-HD 3-wheel:
Model Number GB117-SHZ
Buzzaround XLS-HD 4-wheel:
Model Number GB147-SHZ

Battery Wiring Diagram and Installation

Installation guide for those that bought the empty battery box and are installing their own batteries

First install the 22 Amp Hour batteries with the terminals pointing inward (See image below) in the battery box. connect the positive (red) wire with 50 Amp / 32 Volt in line fuse to the battery on the right. connect the negative (black) wire with 50 Amp / 32 Volt in line fuse to the battery on the Left. Connect the negative wire without a fuse, to the battery on the right. Connect the positve wire without a fuse to the battery on the left.

Battery Box Variations
  • No Batteries: Battery Box & electrical components only
  • Interstate HSL1125: Comes with Two 12 Volt, 22 Amp, High Rate Batteries Installed

Additional Battery Warranty Information
