Golden Technologies - GM1450-RM Recline Motor - Richmat HJA65 - Maxi Comfort & Ultra Comfort Stellar Chairs
Golden Technologies - GM1450-RM Recline Motor - Richmat HJA65 - Maxi Comfort & Ultra Comfort Stellar Chairs
In stock
Couldn't load pickup availability
- Free ground shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
- Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
- 30 Day Return Policy
- Fulfillment: Usually ships in 1-2 business days
- This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects
Product Description

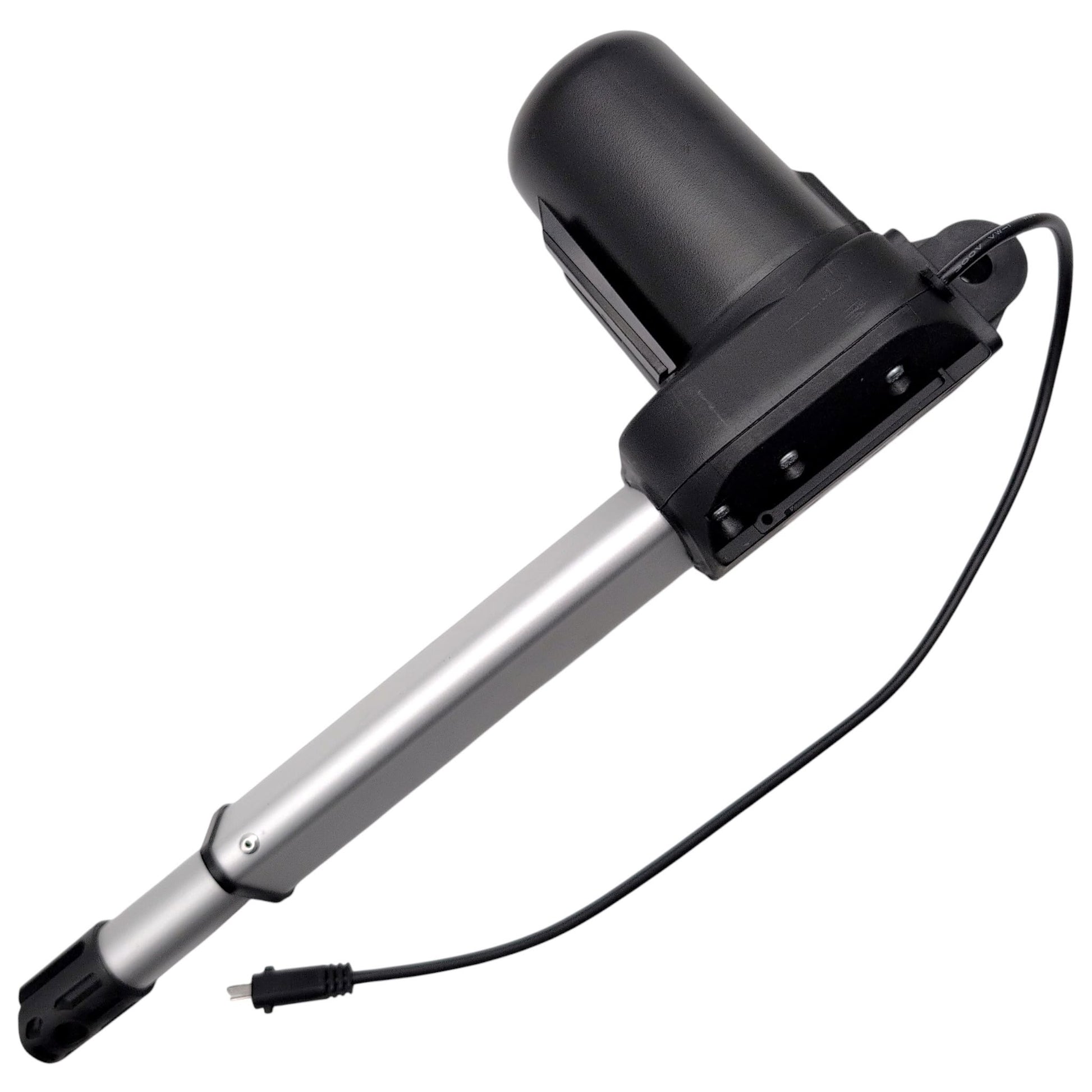

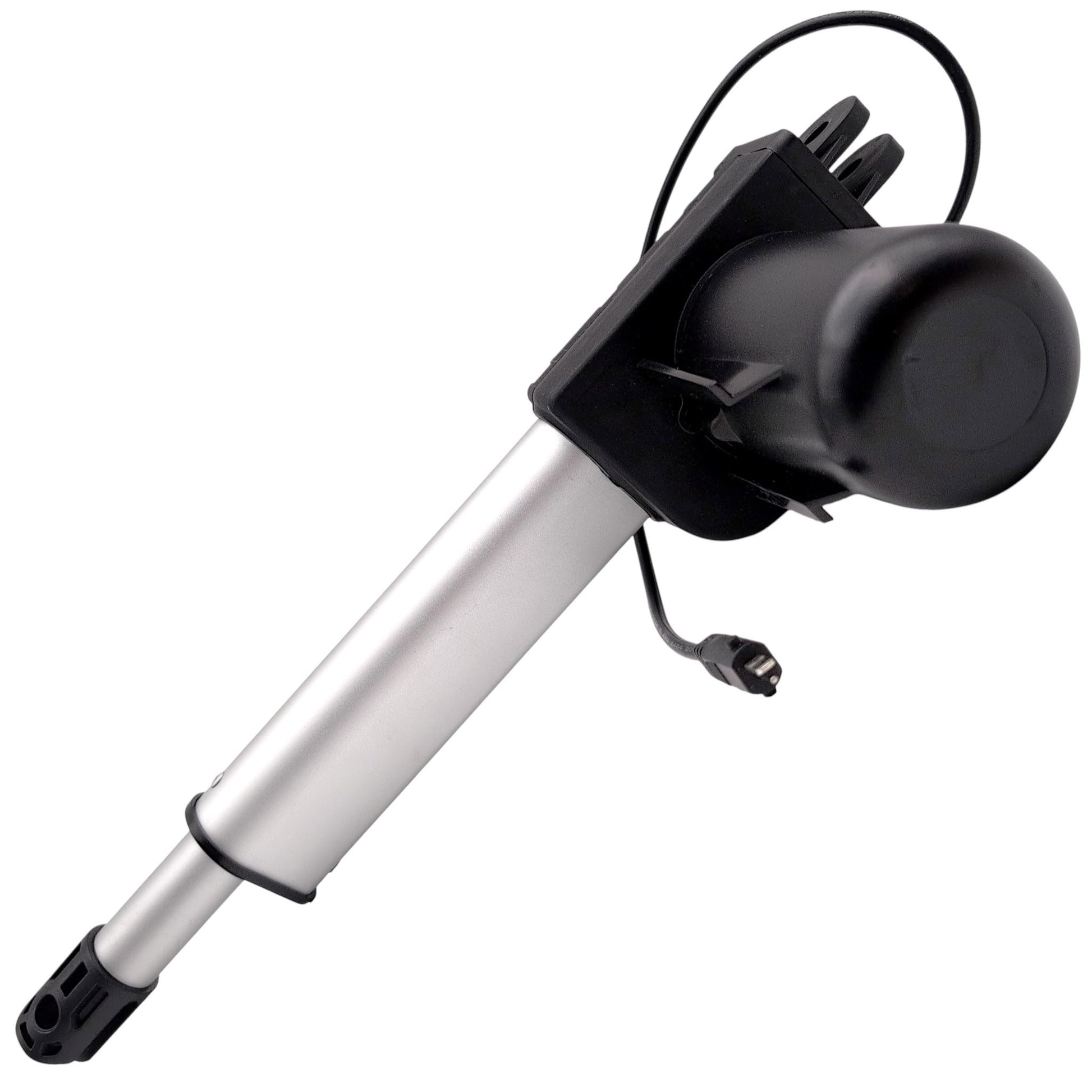

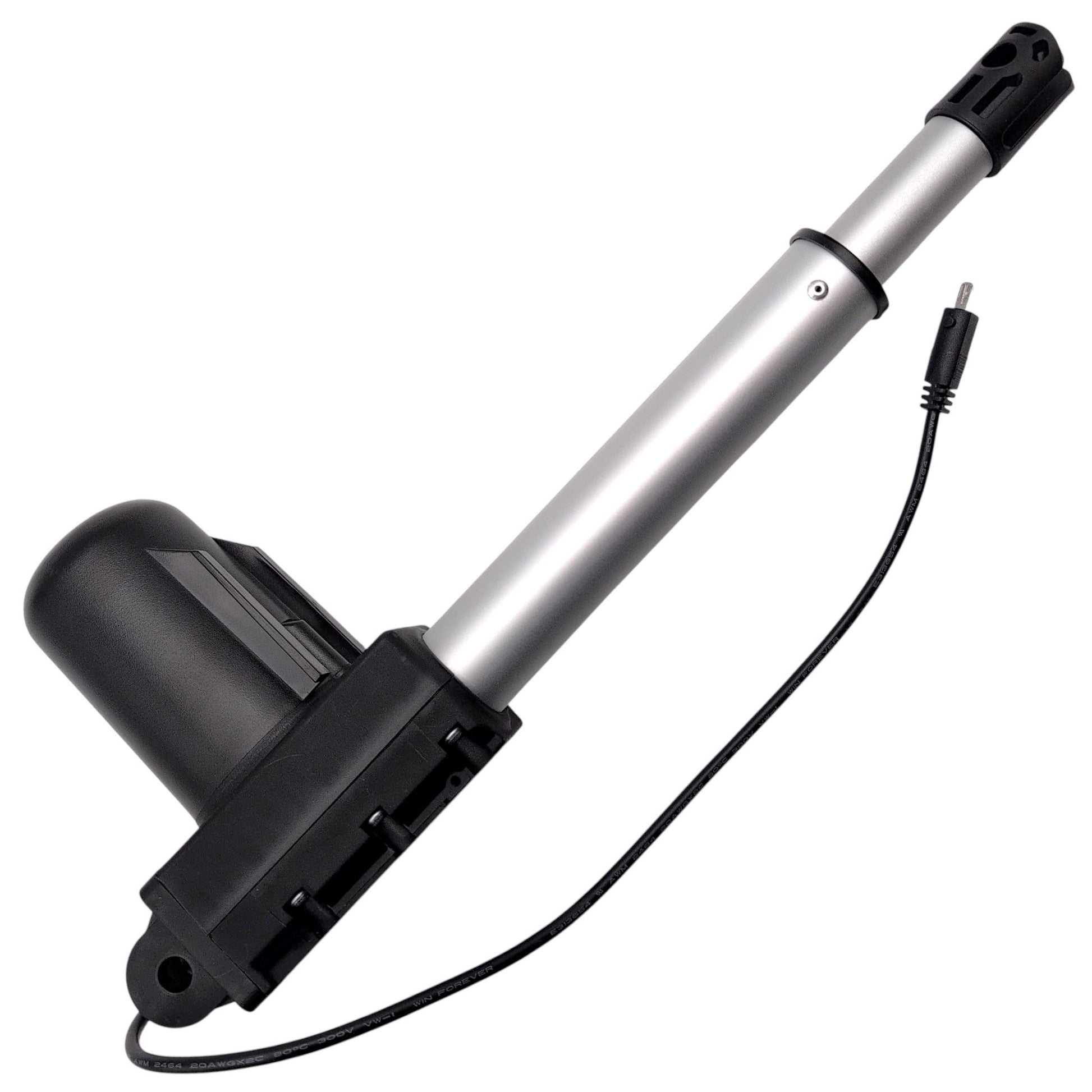

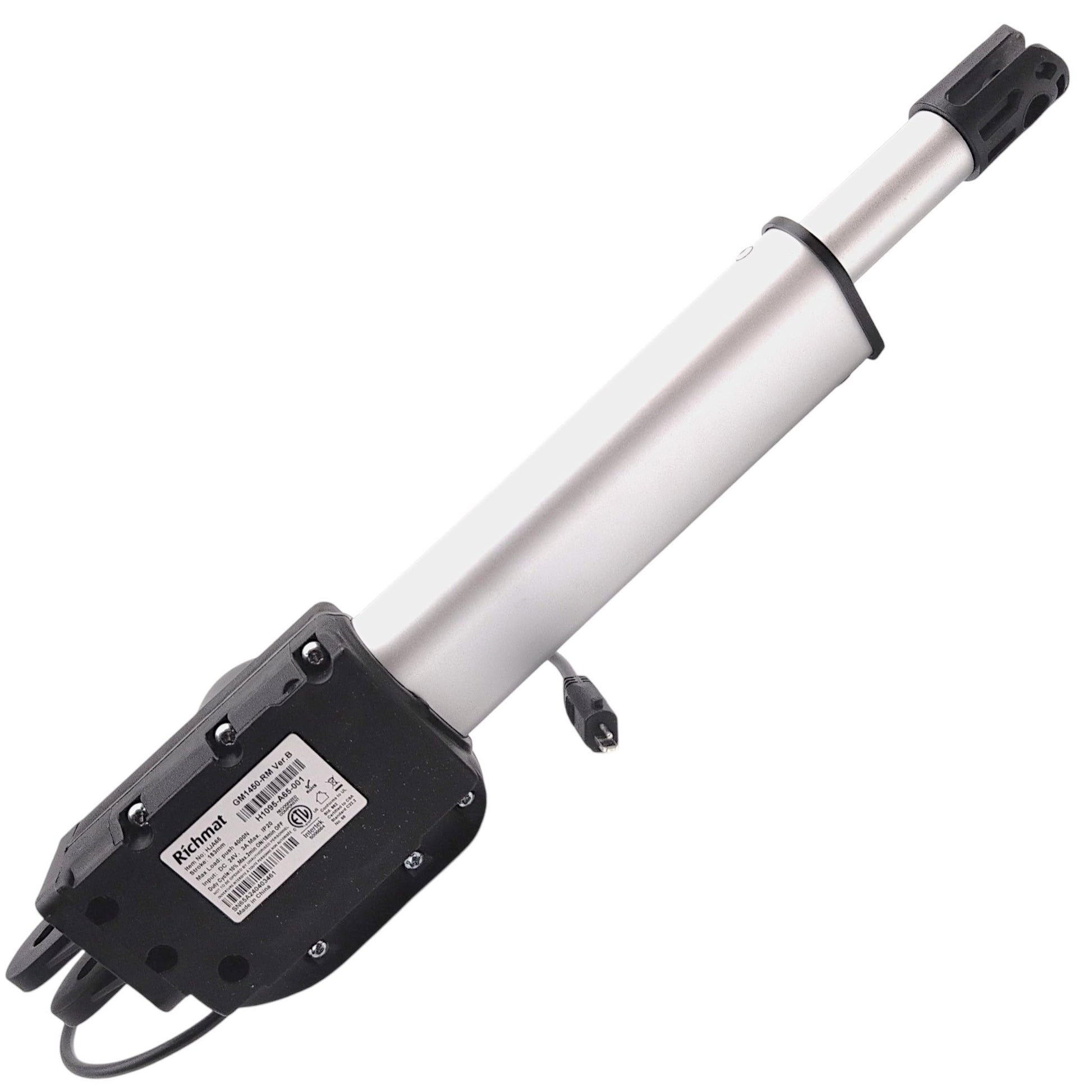

Genuine OEM replacement linear actuator/recline motor (Part Number: GM1450-RM) manufactured by Richmat for Golden Technologies and Ultra Comfort power lift recliners. Also identified by Richmat Item Number: HJA65, this 24V DC motor has a Stroke of 183mm and Replaces Part Numbers: GM756R (OKIN) & GM2000-RM
Description From The Golden Technologies & Ultra Comfort Service Manuals : Chair Recline Motor 1450 Richmat Original ending 008
- Brands:
- Golden Technologies & Ultra Comfort
- Manufacturer:
- Richmat
- Golden Technologies Part Number:
- GM1450-RM
- Richmat Item Number:
- HJA65
- Replaces Part Numbers:
- GM756R (OKIN) & GM2000-RM

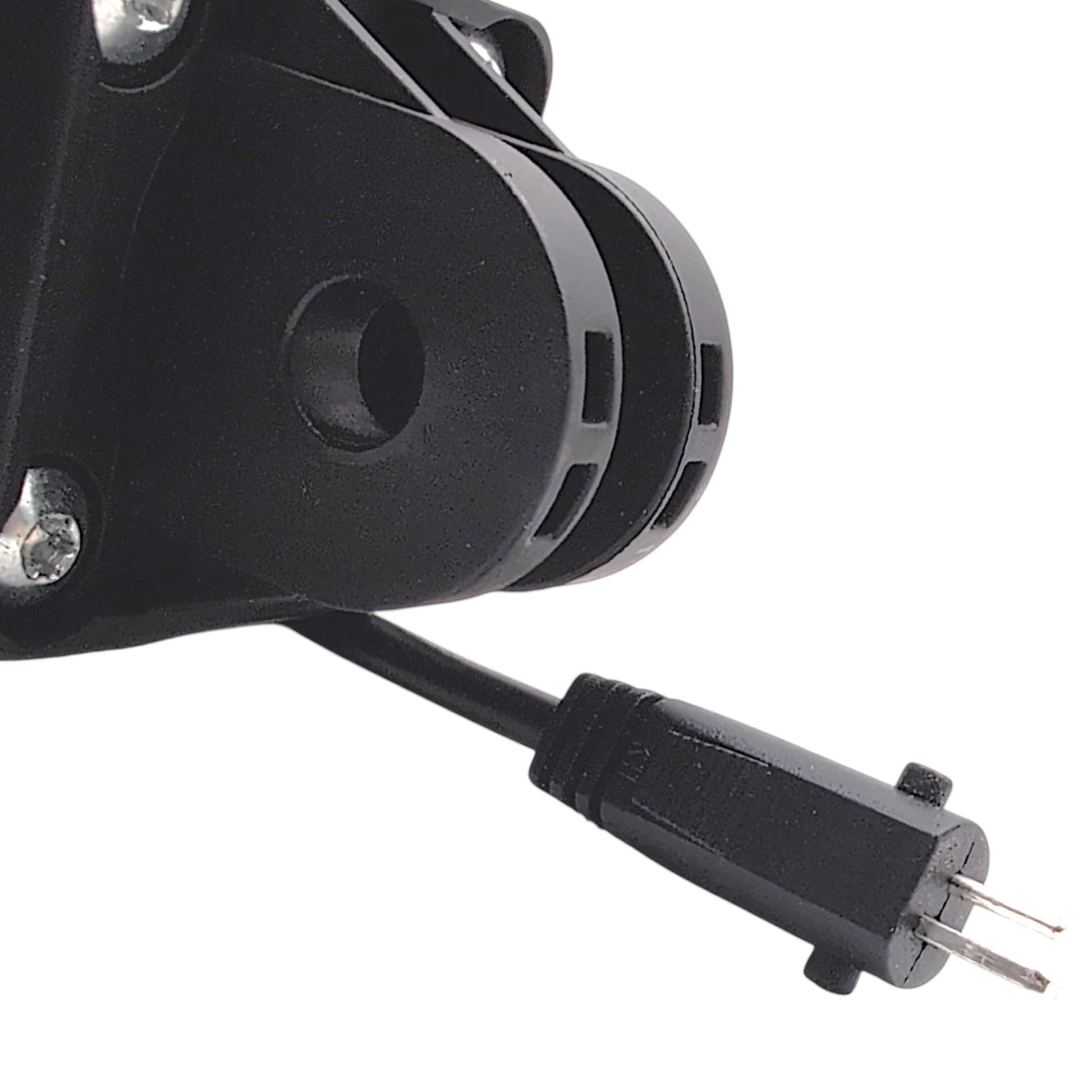

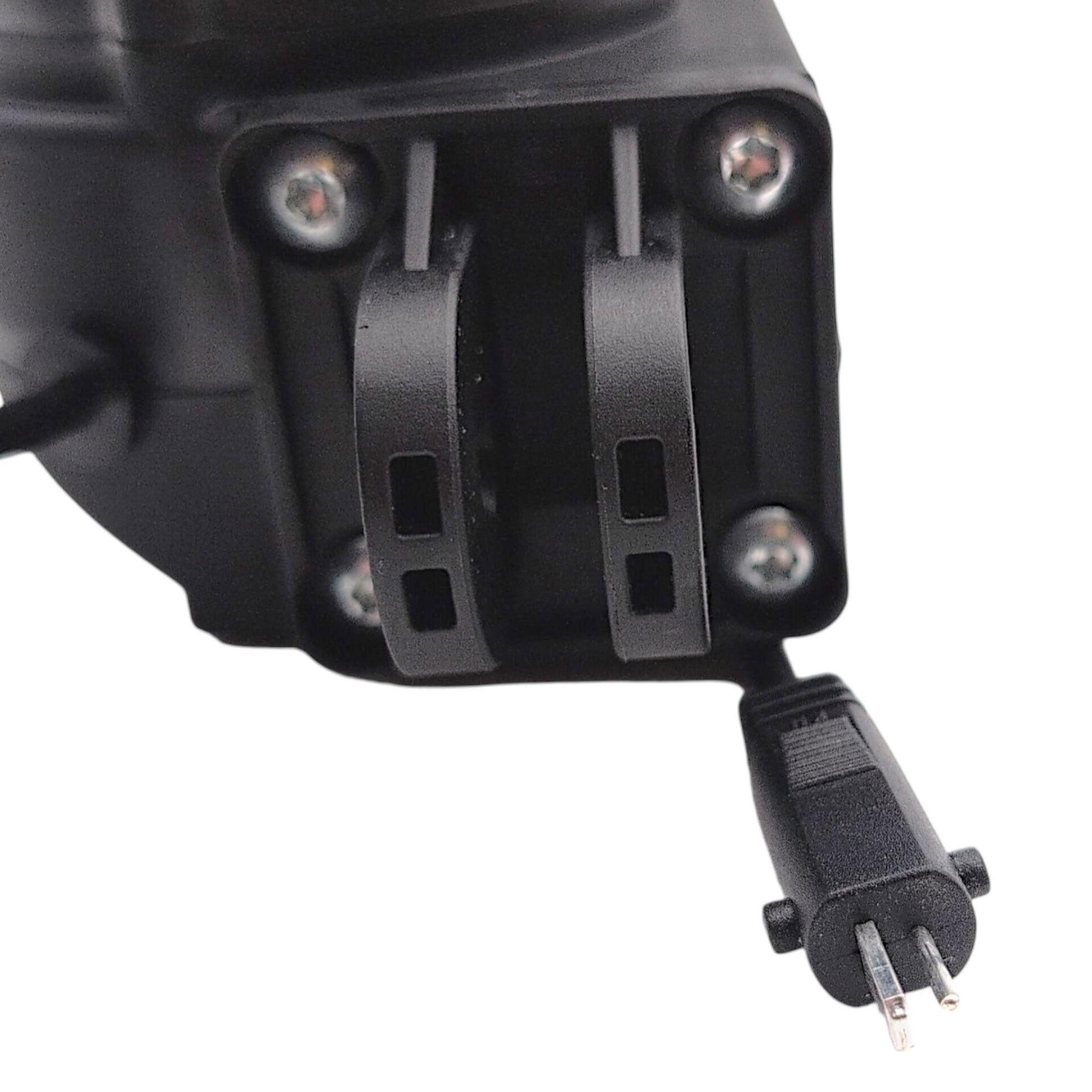

- Connector Type:
- 2-Pin ( Black) Male Connector
- Input:
- 24 Volts DC, 3 Amps Max.
- Stroke:
- 183mm
- Max. Load (Push):
- 4000N
- Duty Cycle:
- 10% Max., 2min ON / 18min OFF
Lift Recliner Chair Compatibility
- Golden Technologies Maxi Comfort Series:
- Model Numbers PR712, PR510-SME, PR510-MLA, PR756MC, PR756L, PR508M, PR505JP, PR505S, PR505M, PR505L, PR-505TAL, PR713, PR535-PSA, PR535-M, PR535-L, PR535-T, PR630, PR512-MLA, PR514-MLA, PR632, PR119
- Ultra Comfort Stelar Series:
- Model Numbers UC550-M26, UC559-M26, UC550-JPT, UC550-MED, UC550-LRG, UC556-SME, UC556-MLA, UC559-SMA, UC559-MED, UC559-LRG, UC520-M, UC682-MED-DSB, UC792-MED, UC556-M, UC794-MED, UC798-MLA, UC680-M , UC682-M, UC558-MLA, UC570-JPT, UC570-MED, UC570-LRG
Additional Specifications
- Motor Type:
- Linear Actuator / Recline Motor

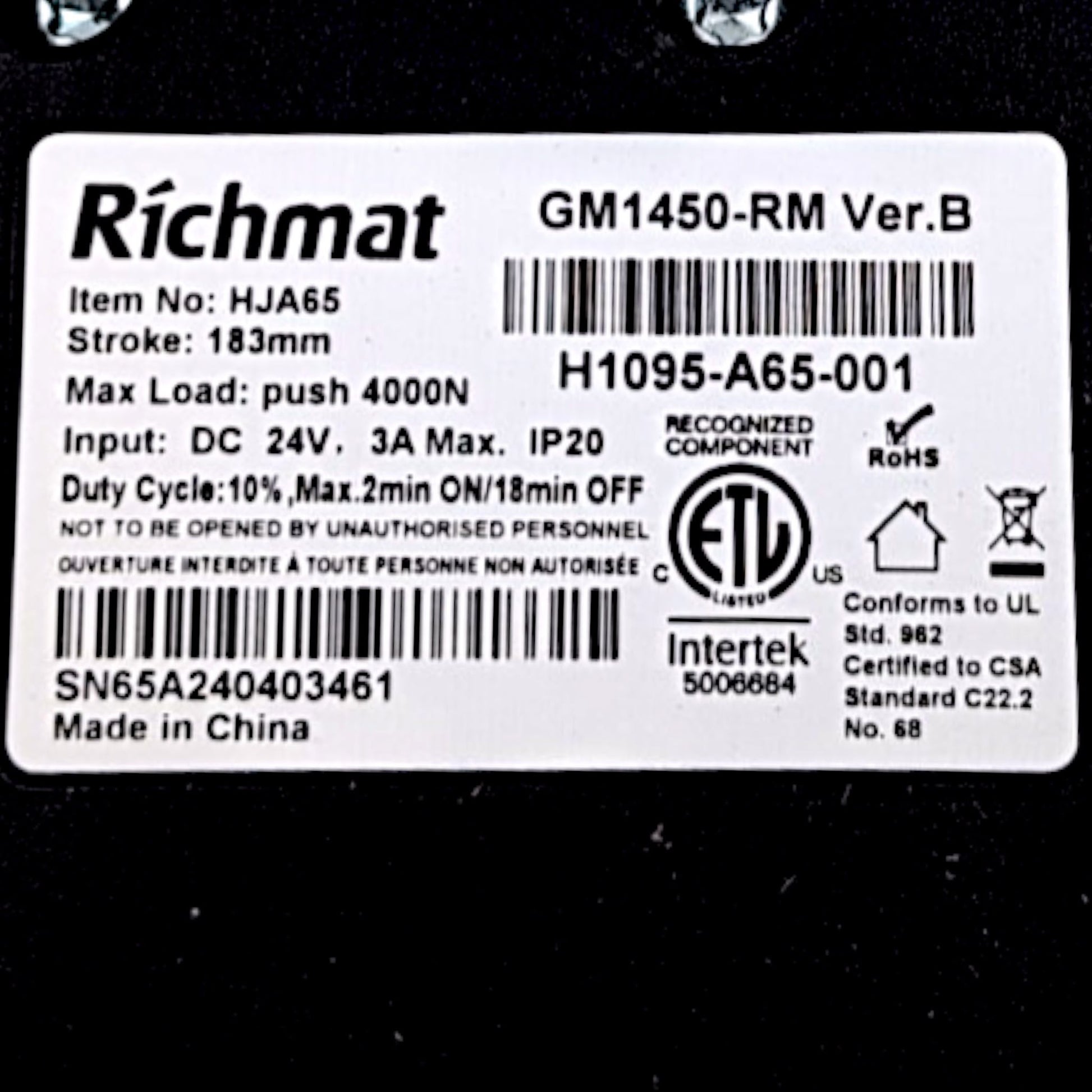

- Intertek Number:
- 5006684
- Length:
- 412mm (Fully Retracted. Approximate)
- Width:
- 83mm
- Height:
- 152mm
- Weight:
- 4 Pounds
- Color:
- Gray & Silver
