Golden Technologies Motor | GM1411-LM | Replaces GM1410-LM | Chendi 63ZY24-ST03-24-394.212-8 ST03-GN0137-014
Golden Technologies Motor | GM1411-LM | Replaces GM1410-LM | Chendi 63ZY24-ST03-24-394.212-8 ST03-GN0137-014
In stock
Couldn't load pickup availability
- Free 2-day shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
- Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
- 30 Day Return Policy
- Fulfillment: Usually ships in 1-2 business days
- This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects
Product Description

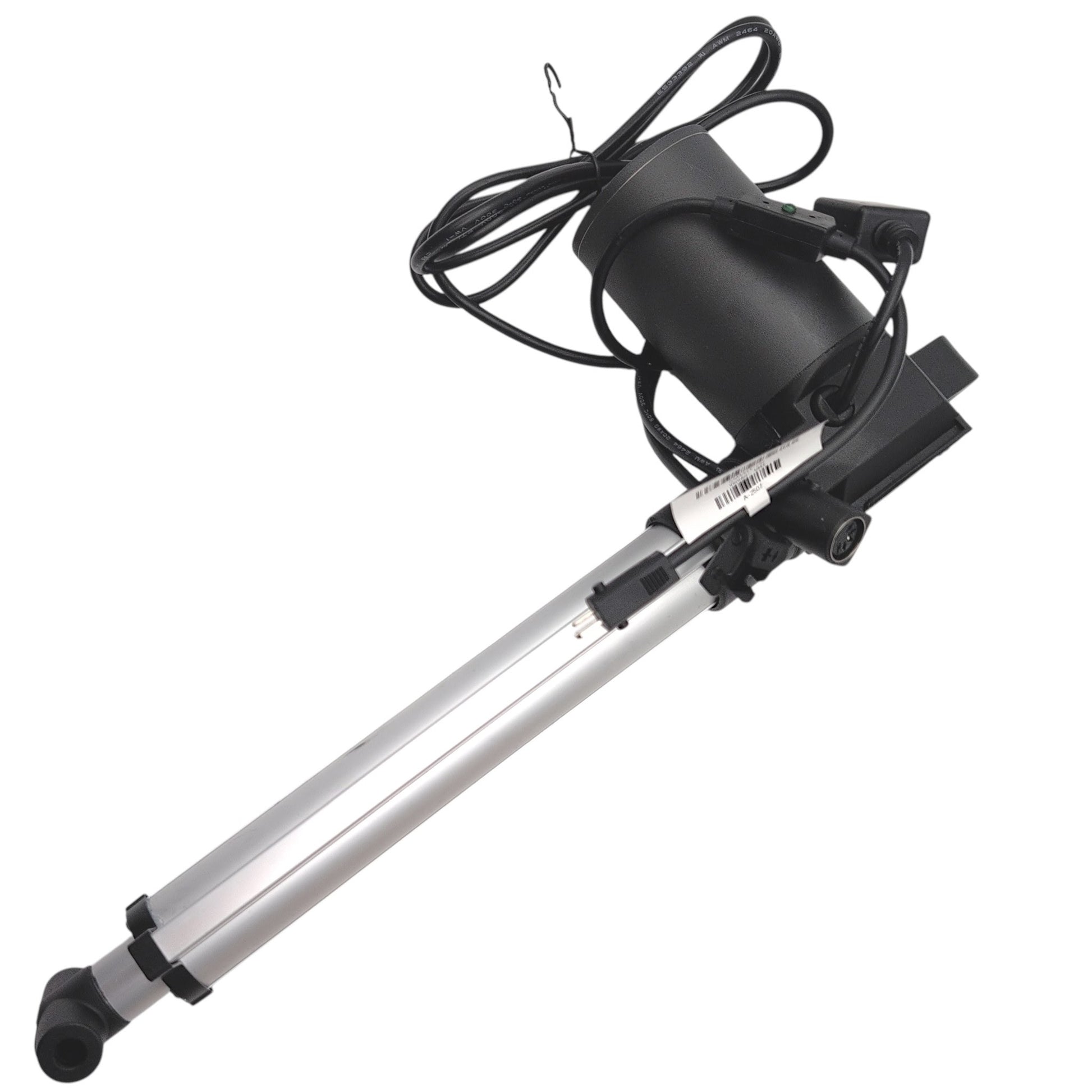

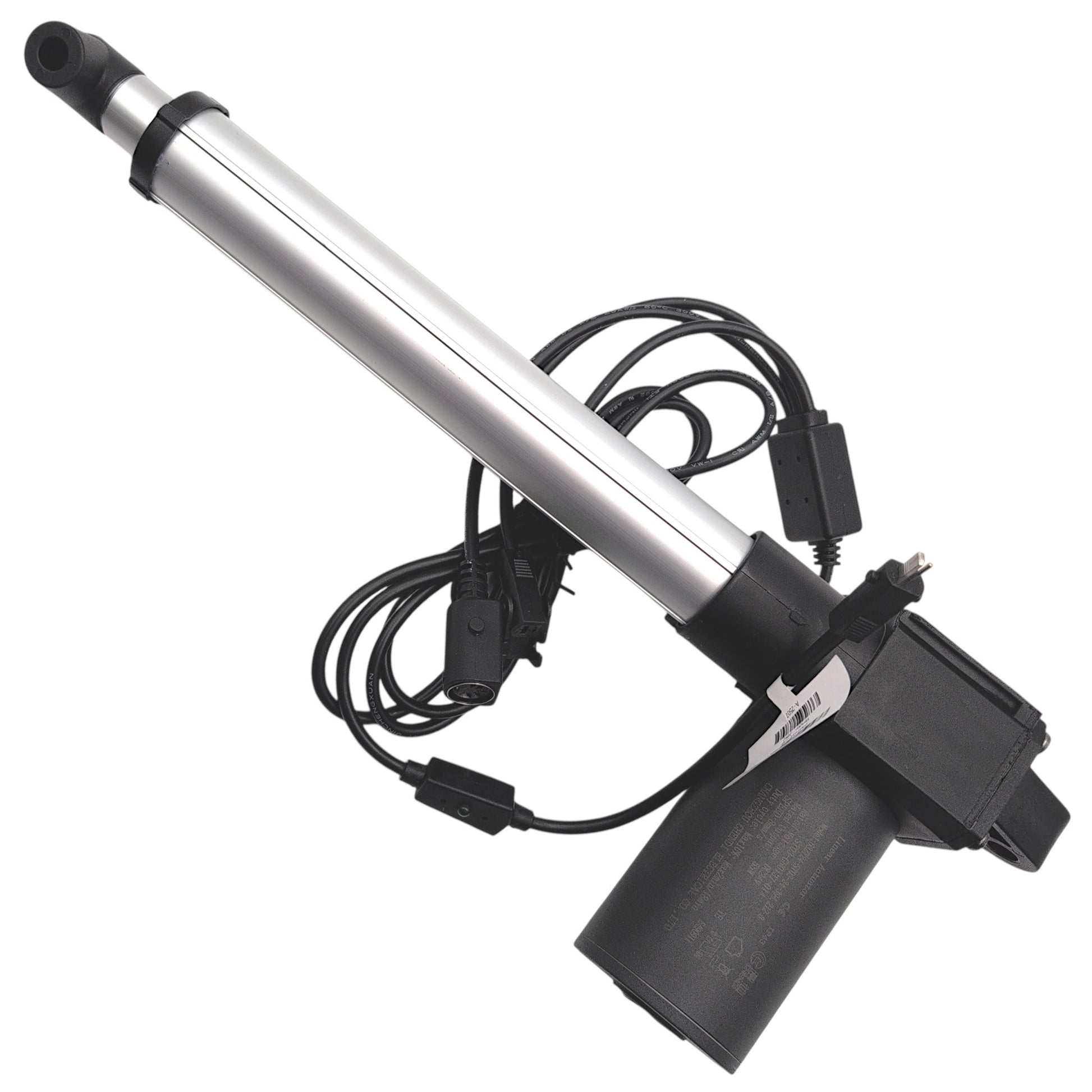

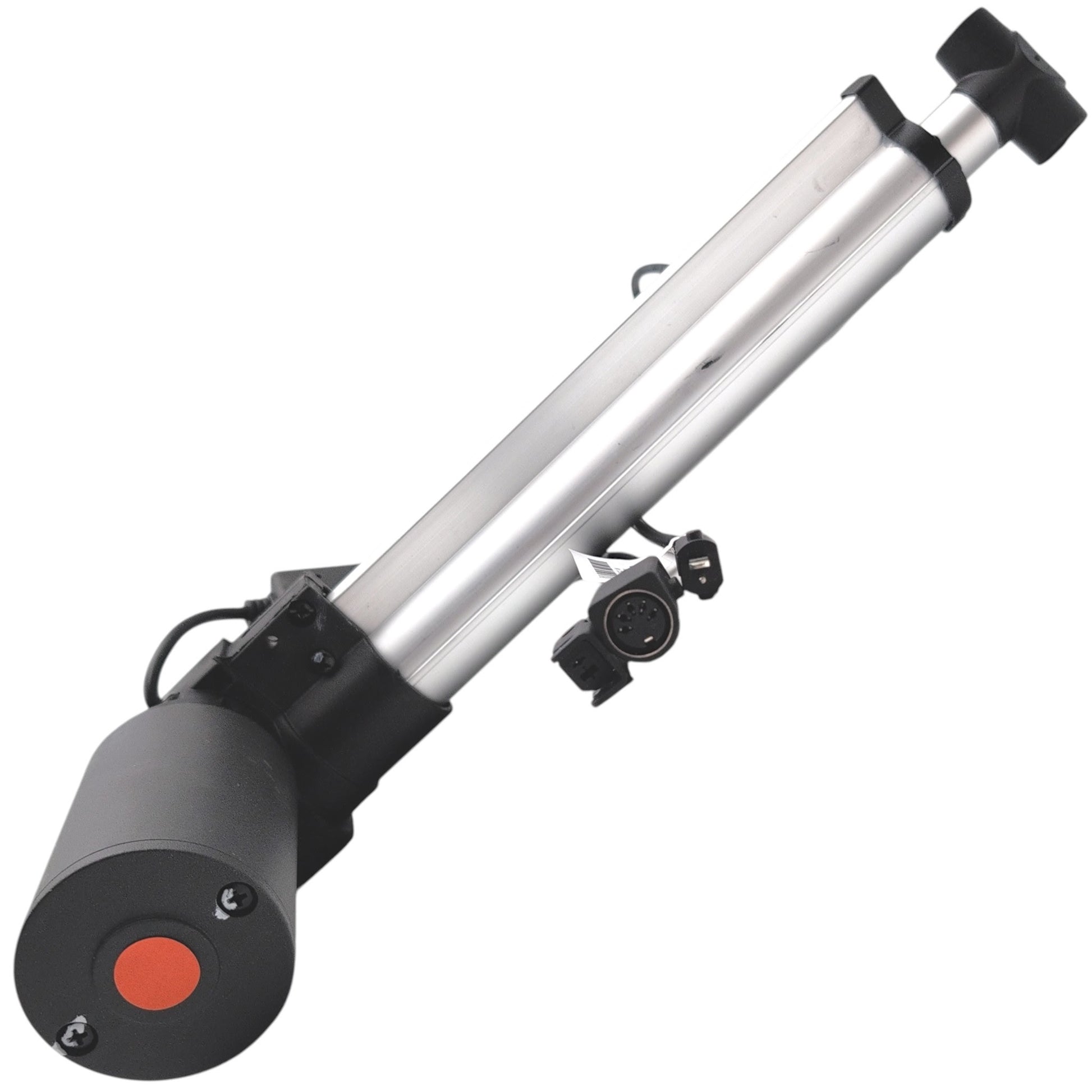

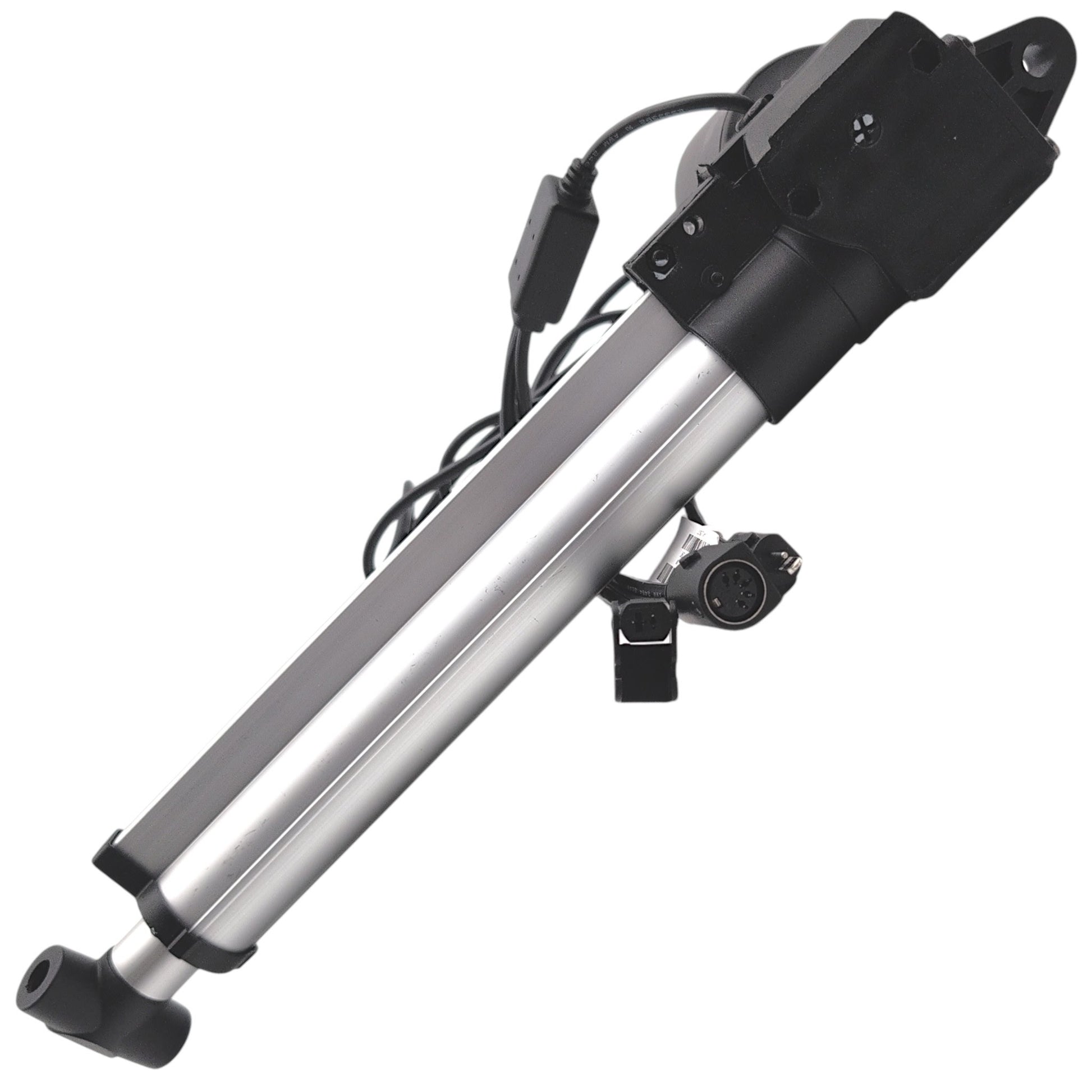

OEM Replacement Linear Actuator motor, manufactured by Chendi for Golden Technologies, Ultra Comfort and other lift chairs. This motor replaces several older models, including the GM1410-LM, GM1400-LM, GM1500-LM_Okin 72276 (This is only for certain Models). Fits Golden Technologies Lift Chair Models: PR116, PR-355 Monarch Series, PR531 Comforter Series, PR401S Cambridge Series, and alot more. Check the compatibility list below.

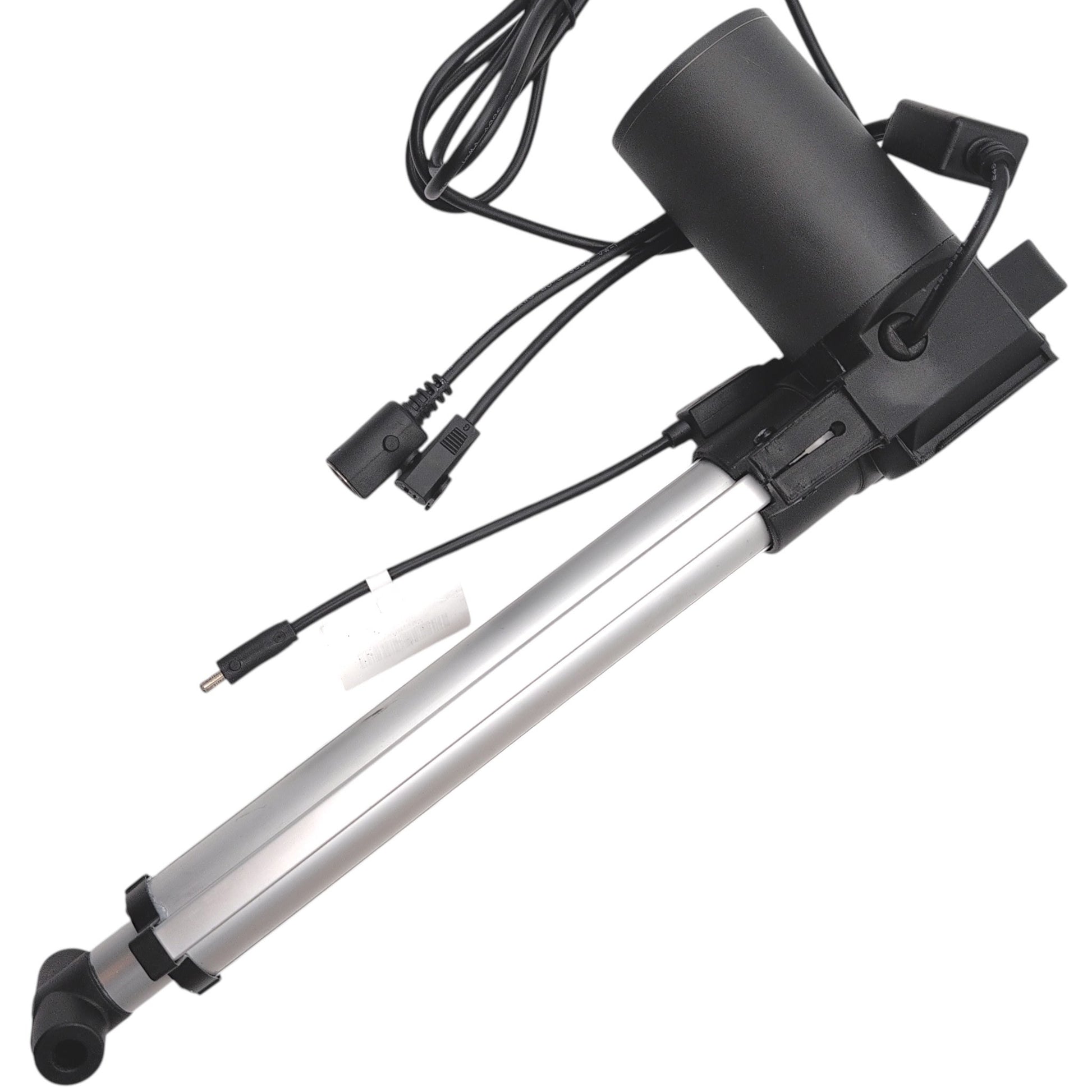

Please Note: When replacing older models such as the GM1410-LM, you may notice this motor includes an additional 2-pin female connector. This is an accessory cable that is not required for your installation. Simply leave it disconnected; this is the correct, updated OEM replacement.
- Brand:
- Golden Technologies & Ultra Comfort
- Manufacturer:
- Changzhou Chendi Electrical Co. ,LTD
- Golden Technologies Part Number:

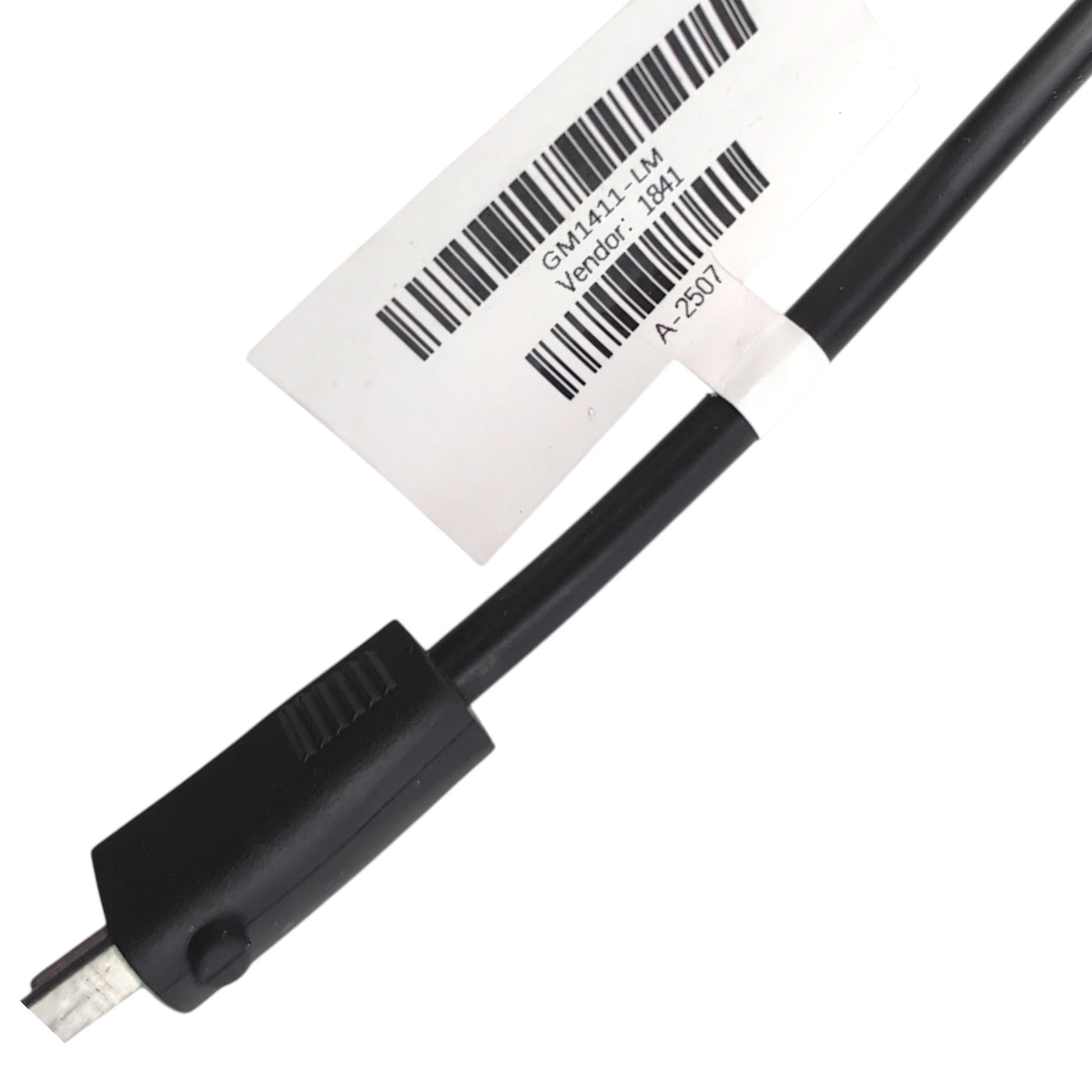

- GM1411-LM

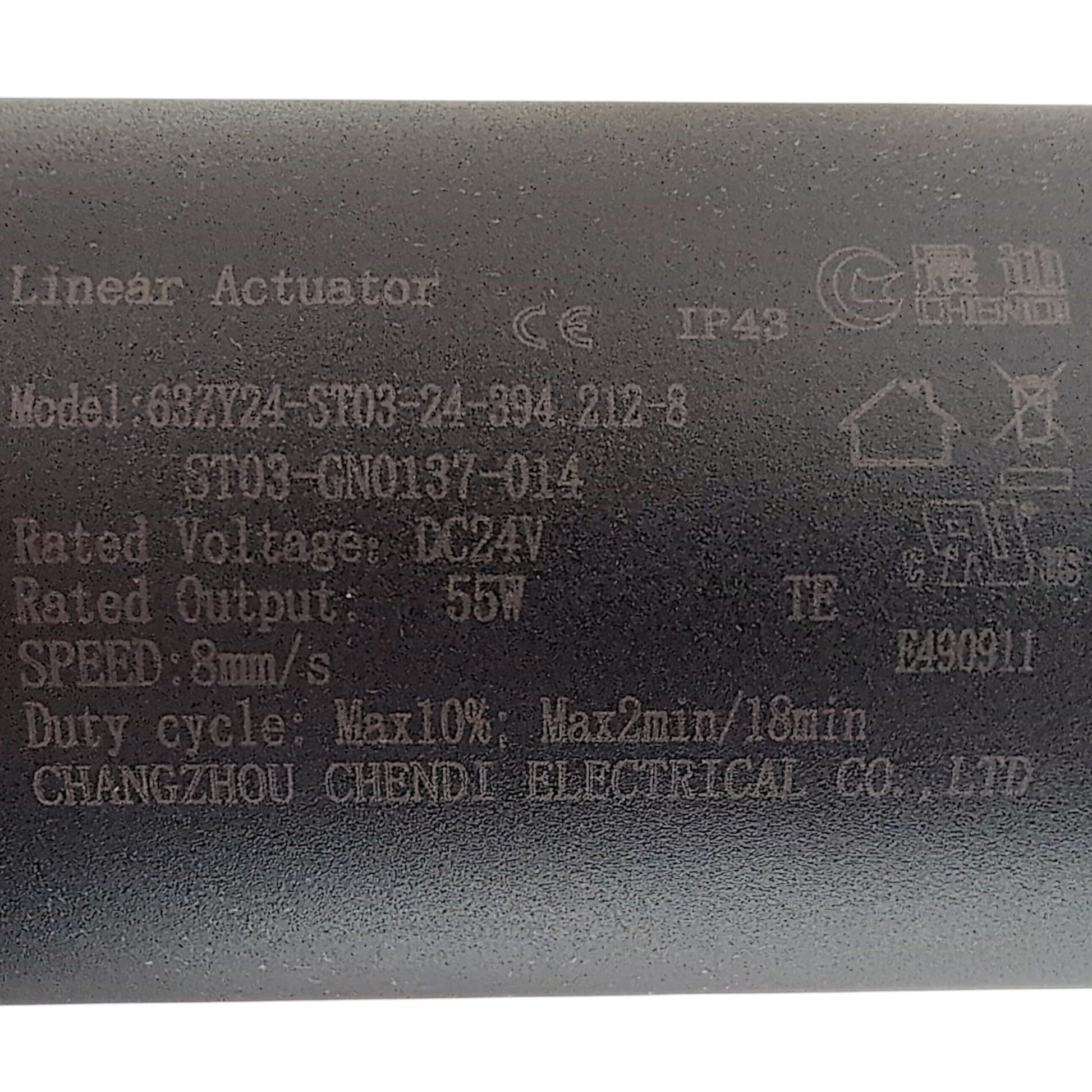

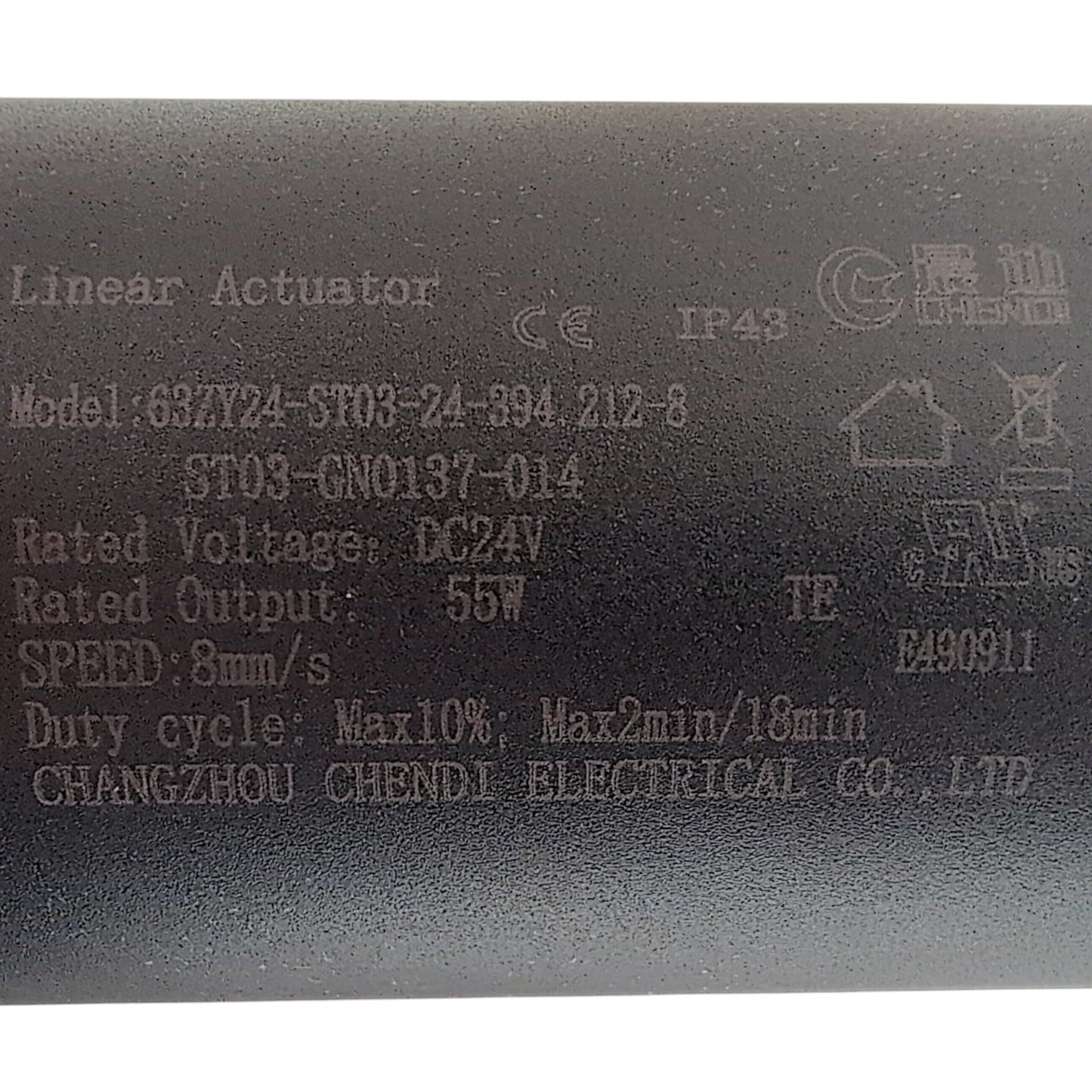

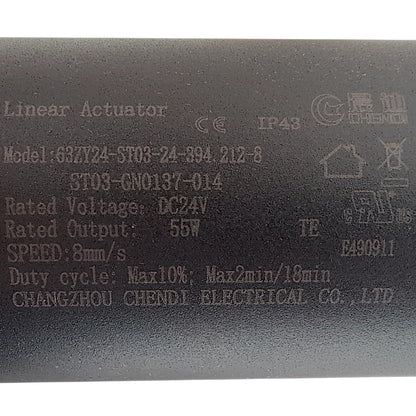

- Chendi Model Number:
- 63ZY24-ST03-24-394.212-8
- Chendi Part Number:
- ST03-GN0137-014
- Replaces Part Numbers:
- GM1410-LM, GM1400-LM
- Replaces Chendi Model / Part Number (GM1410-LM):
- 63ZY24-ST03-24-394.212-8 / ST03-GN0137-007
- Replaces These Additional Chendi Model Numbers:
- 63ZY29-ST03-24-394.212-8 / ST03-24-394.212-8 / ST03-29-394.212-8

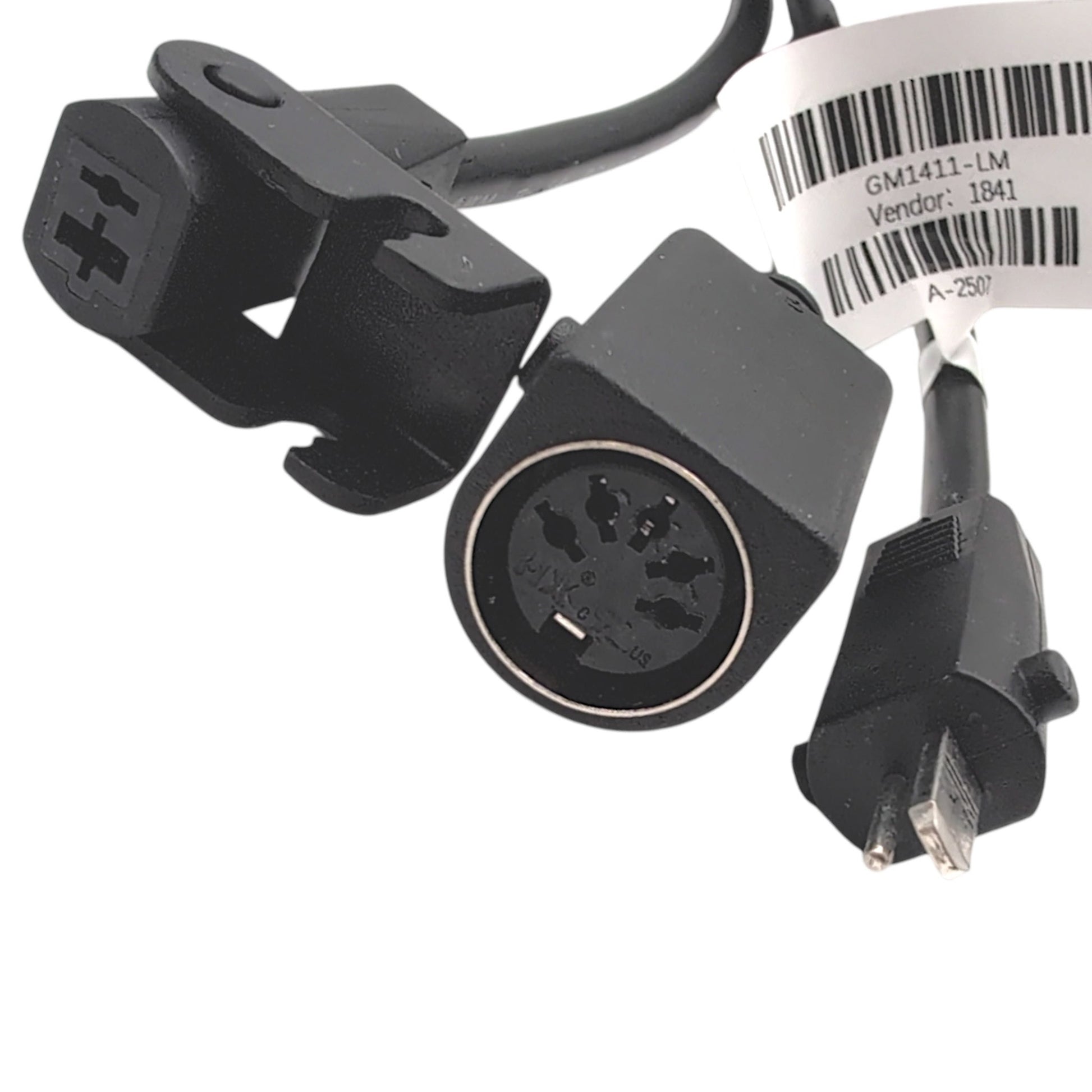

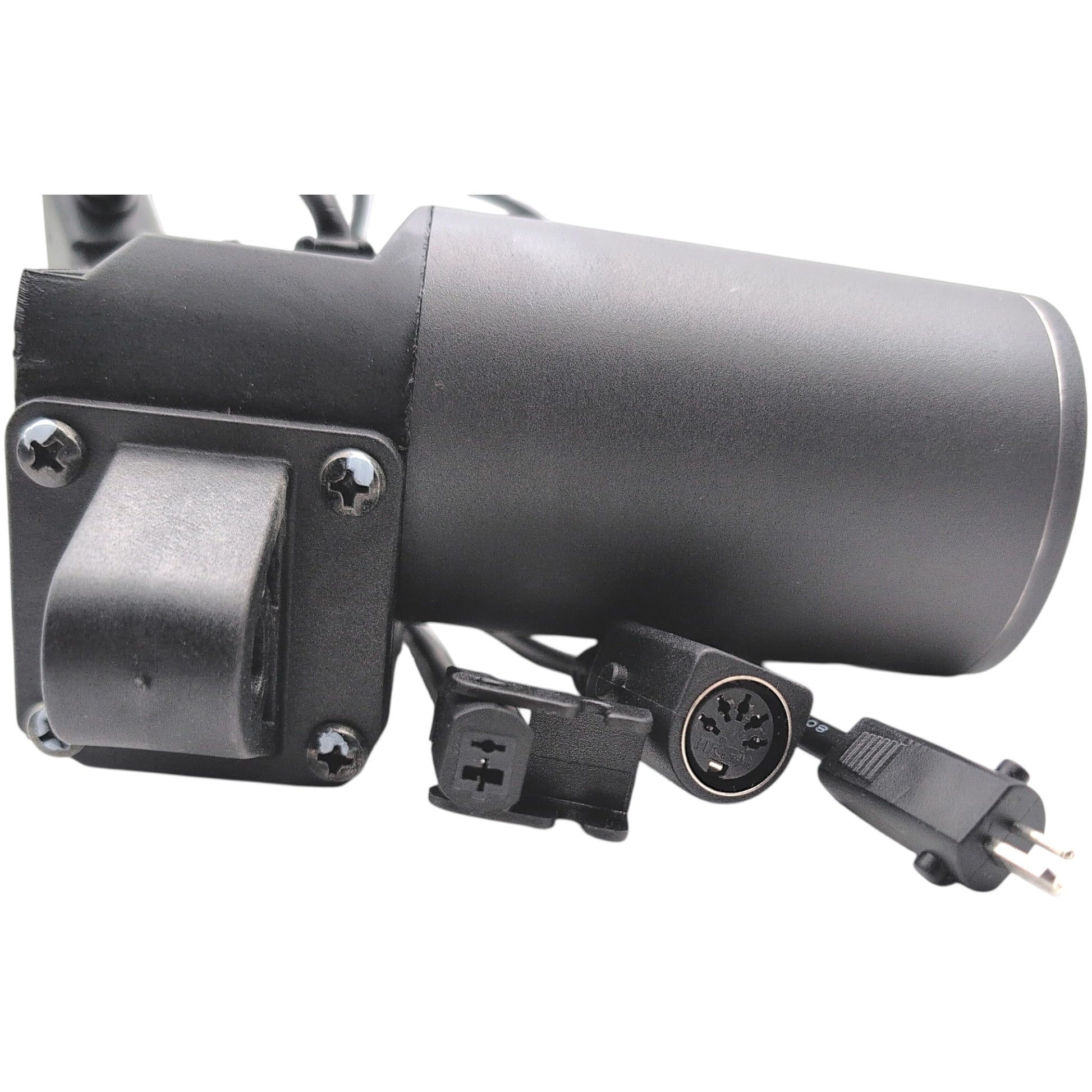

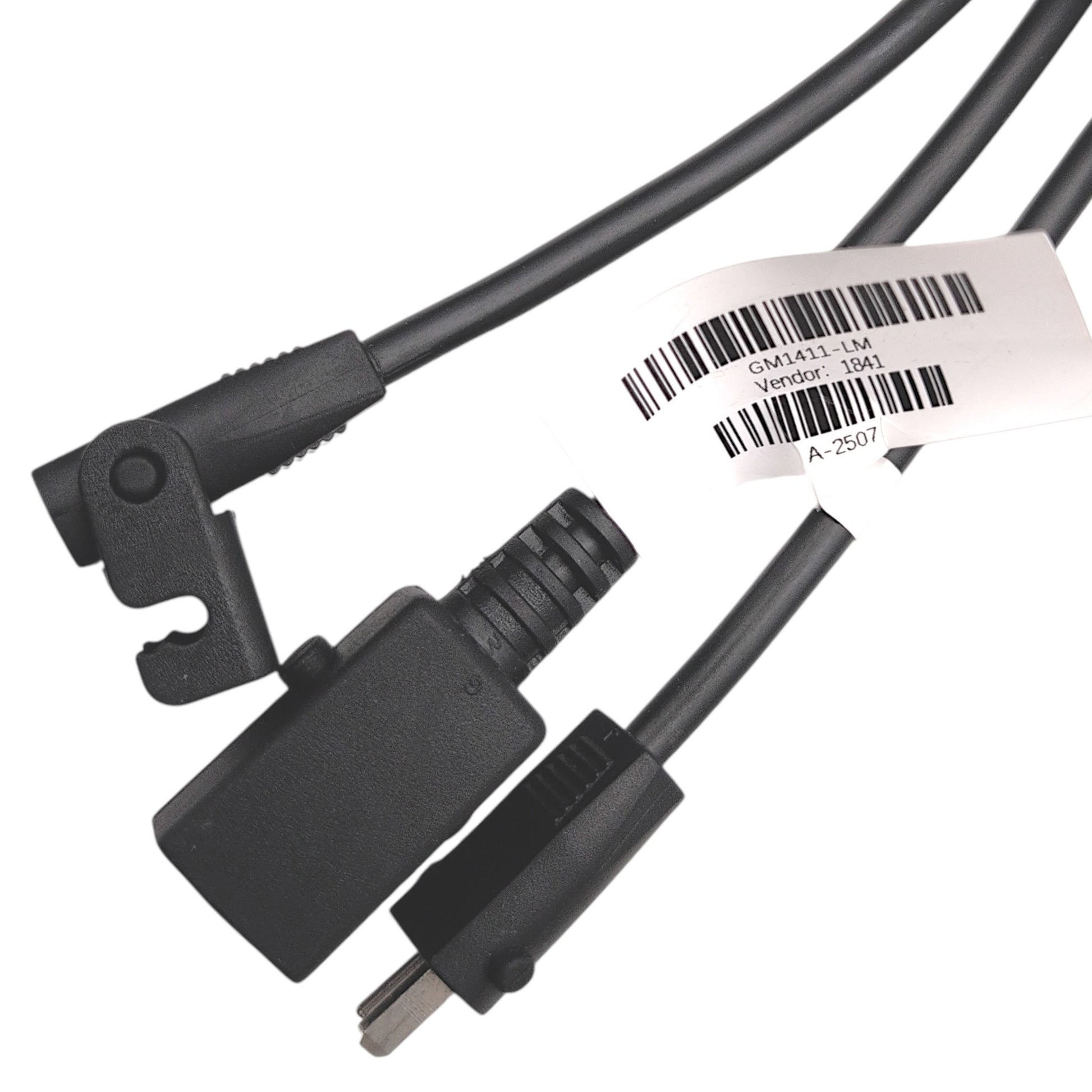

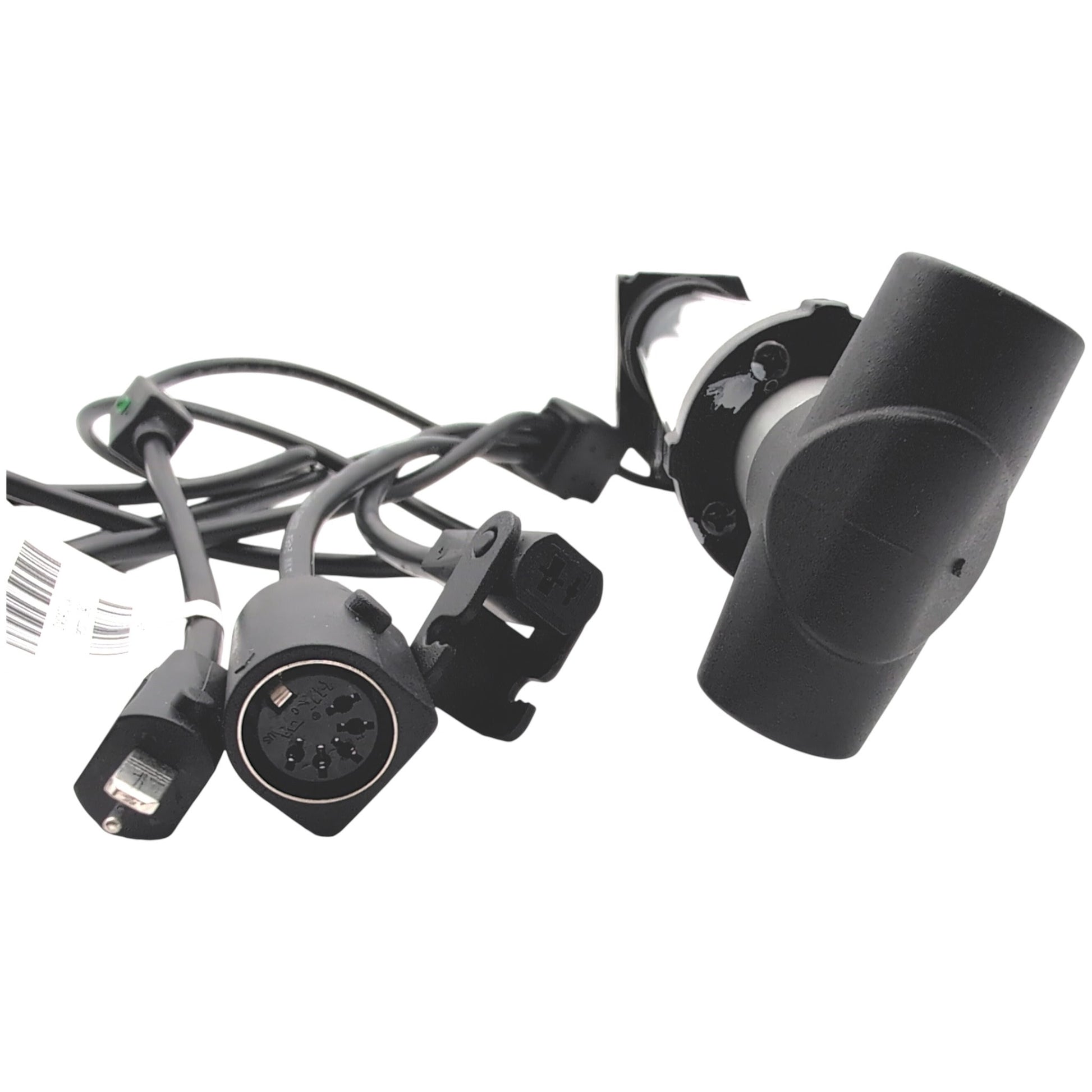

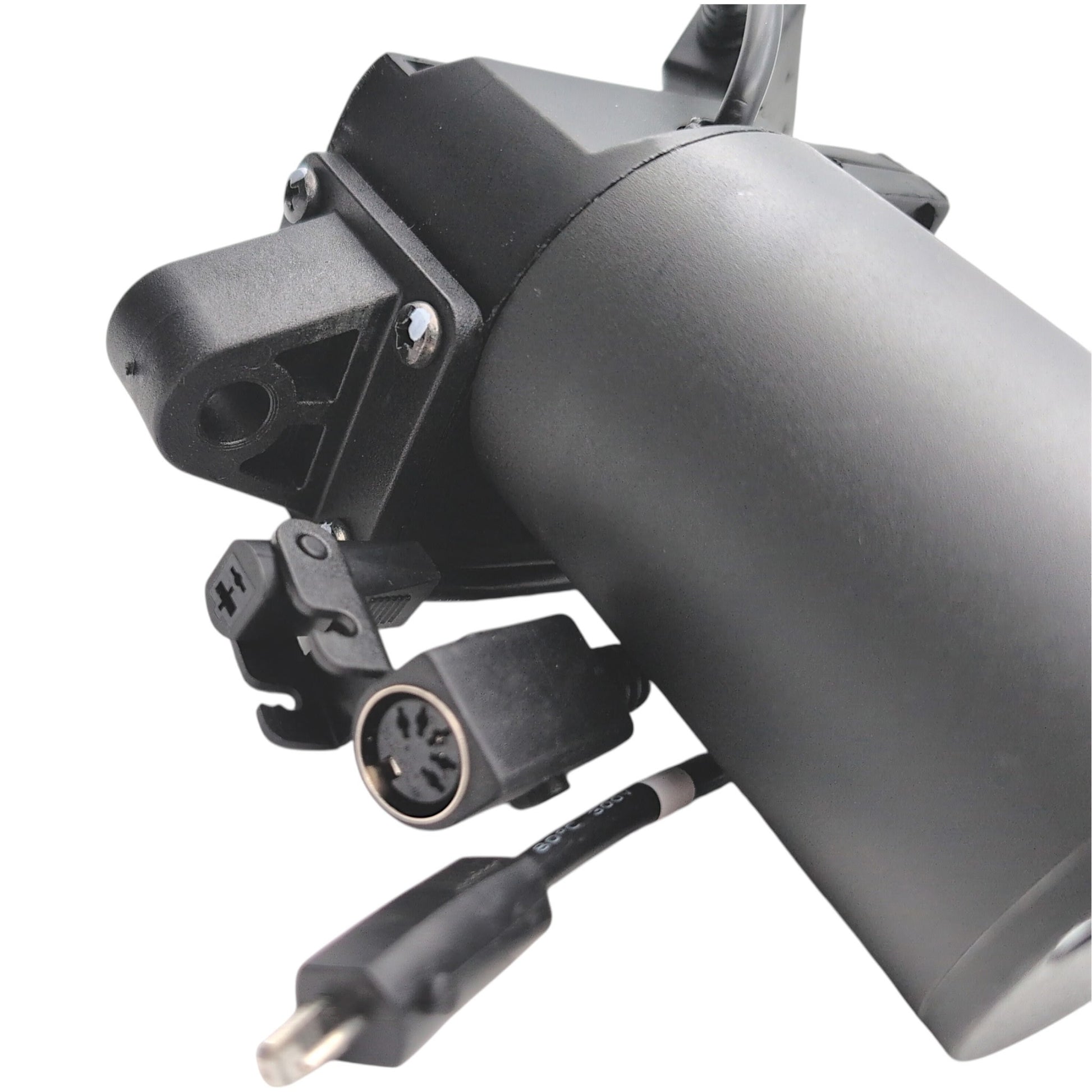

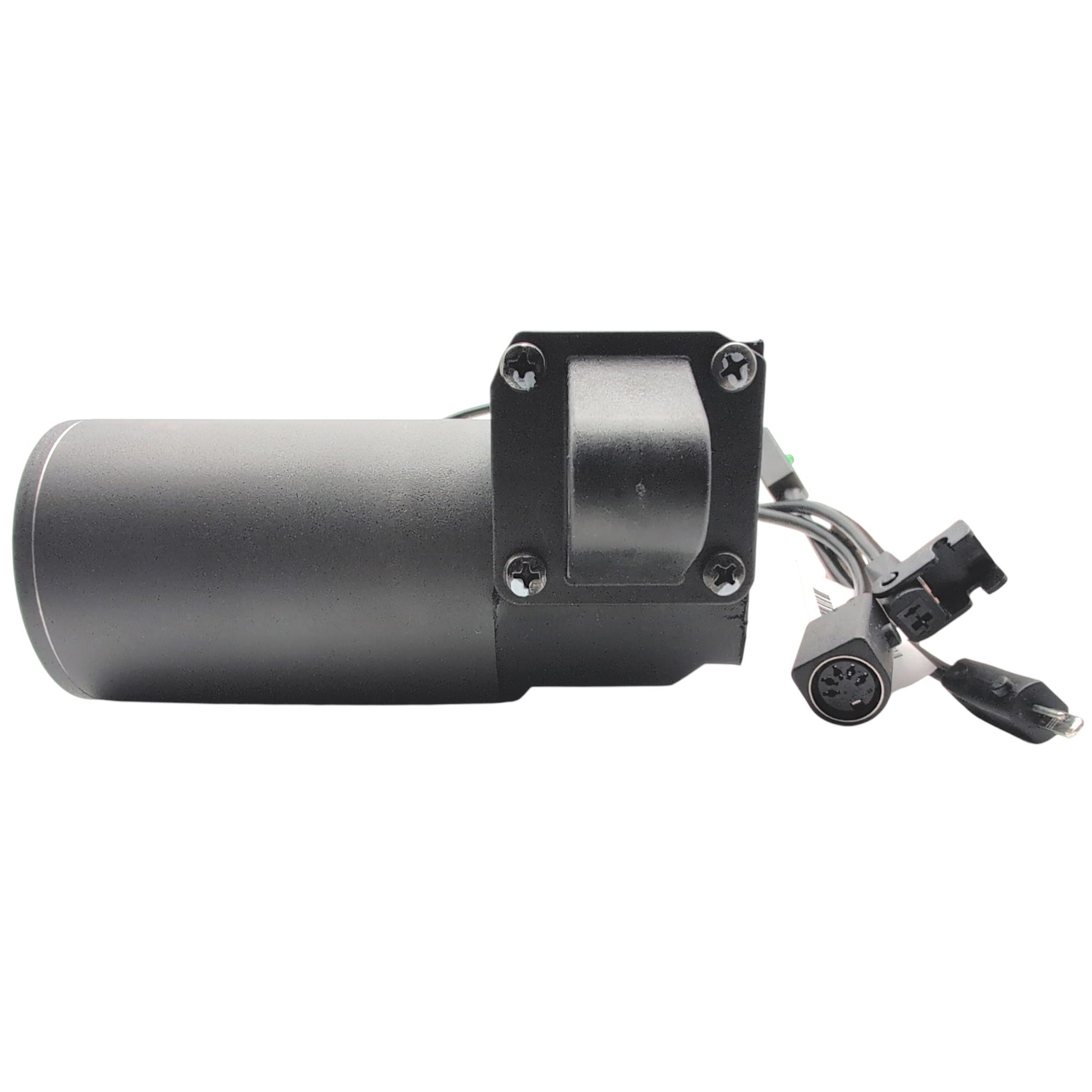

- Connectors:
- 5-Pin Female, 2-Pin Male, 2-Pin Female With Clamp
- Works With Extension Cable Part Number:
- ZK1100-EXT, ZKAD-EXT, ZK404-EXT, LCMHR-C53
- Works With Remote Part Numbers:
- ZK1200-HC, ZK1200-HC-1, ZK404-HC, ZK404-UC, ZKUC-20, ZKUC-20-1, HV4200-HC, ZK1300-HC
- Works With Lift Frames:
- LM5100, LM5000C, LM5120
- Voltage:
- 24 Volts DC
- Speed:
- 8mm per Second
- Stroke:
- 212mm / 8.35 Inches
- Length (Fully Retracted):
- 394mm / 15.51 Inches
- Duty Cycle:
- 10% Max / 2mins / 18mins
- Does Not Replace Chendi Model Number:
- 63ZY24-ST03-24-394.212-8H (The "H" at the end means it has a Hall Sensor. If you have that model you will need Part Number: GM3100-LM)
Lift Recliner Chair Compatibility
- Golden Technologies Cambridge:
- PR401S
- Golden Technologies Comforter:
- PR501 (JPT)(SMA)(MED)(LRG)(TAL), PR501-S23, PR501-LR6
- Golden Technologies Comforter Wide:
- PR531 (PSA)(MED)(LRG)(TAL), PR531-S23
- Golden Technologies Capri:
- PR200 (MED)
- Golden Technologies Monarch:
- PR355 (MED)(LRG)
- Golden Technologies Other Models:
- PR116, PR117, PR118-MED, PR202-MED, PR401 (SME)(MLA)(L), PR404, PR747, PR643, PR410, PR751TY, PR752, PR451, PR359(MED)(LRG)
- Ultra Comfort America:
- UC114 (MED), UC212 (MED), UC214 (MED), UC332 (MED)(LRG), UC342, UC480 (MLA), V480 (w/ heat and massage), UC482 (MED), UC484 (MED), UC486-MLA, UC536, UC542 (JPT)(SMA)(MED)(LRG), UC549, UC774, UC790, UC808
Additional Specifications
- Motor Type:
- Linear Actuator
- Weight:
- 4.2 Pounds
- Width:
- 2 15/16 Inches
- Height:
- 5 5/8 Inches
- Color:
- Black / Silver
- Certifications:
- UL Listed E490911, IP43
