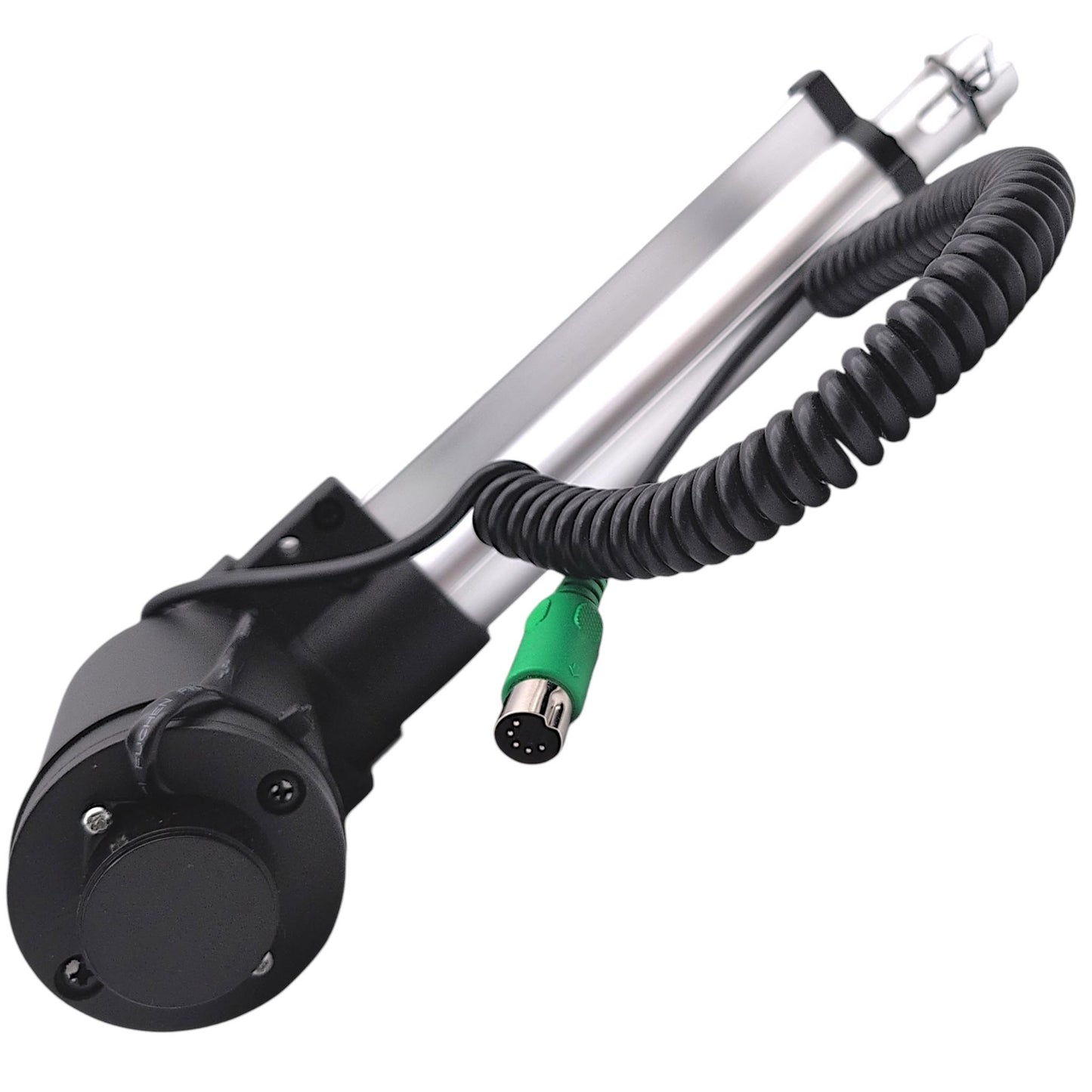

Golden Technologies Motor GM3101-RM | Replaces GM3100-RM | Chendi 63ZY24-ST03-24-327.173-12H ST03-GN0137-005

Golden Technologies Motor GM3101-RM | Replaces GM3100-RM | Chendi 63ZY24-ST03-24-327.173-12H ST03-GN0137-005

$239.00 USD
$298.00 USD $239.00 USD
Our Price Sold Out
Free Shipping On Most Items Over $40+ (Contiguous US Only) Shipping: Calculated at checkout Shipping Policy

In stock
  • Free ground shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
  • Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
  • 30 Day Return Policy
  • Fulfillment: Usually ships in 1-2 business days
  • This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects

Product Description

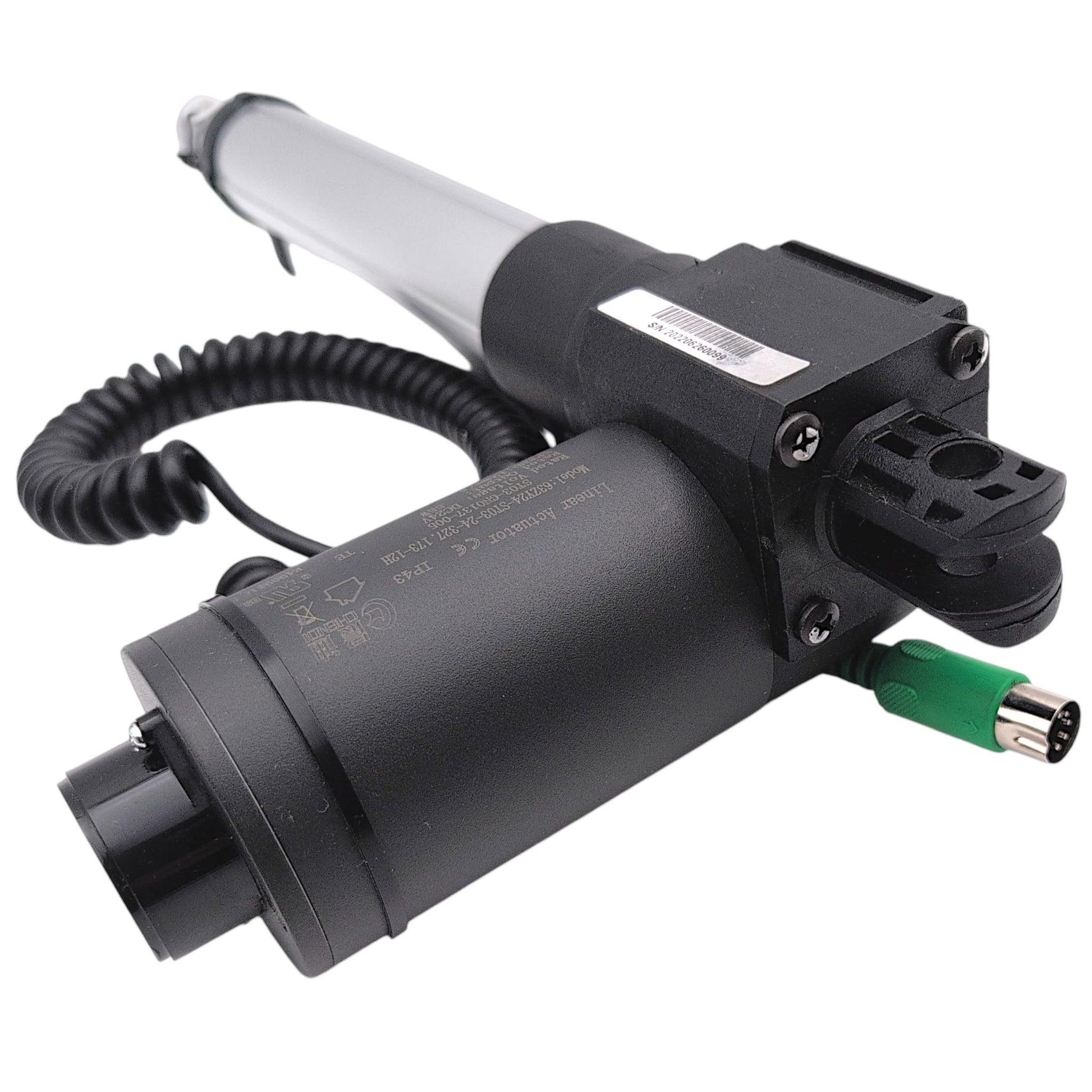

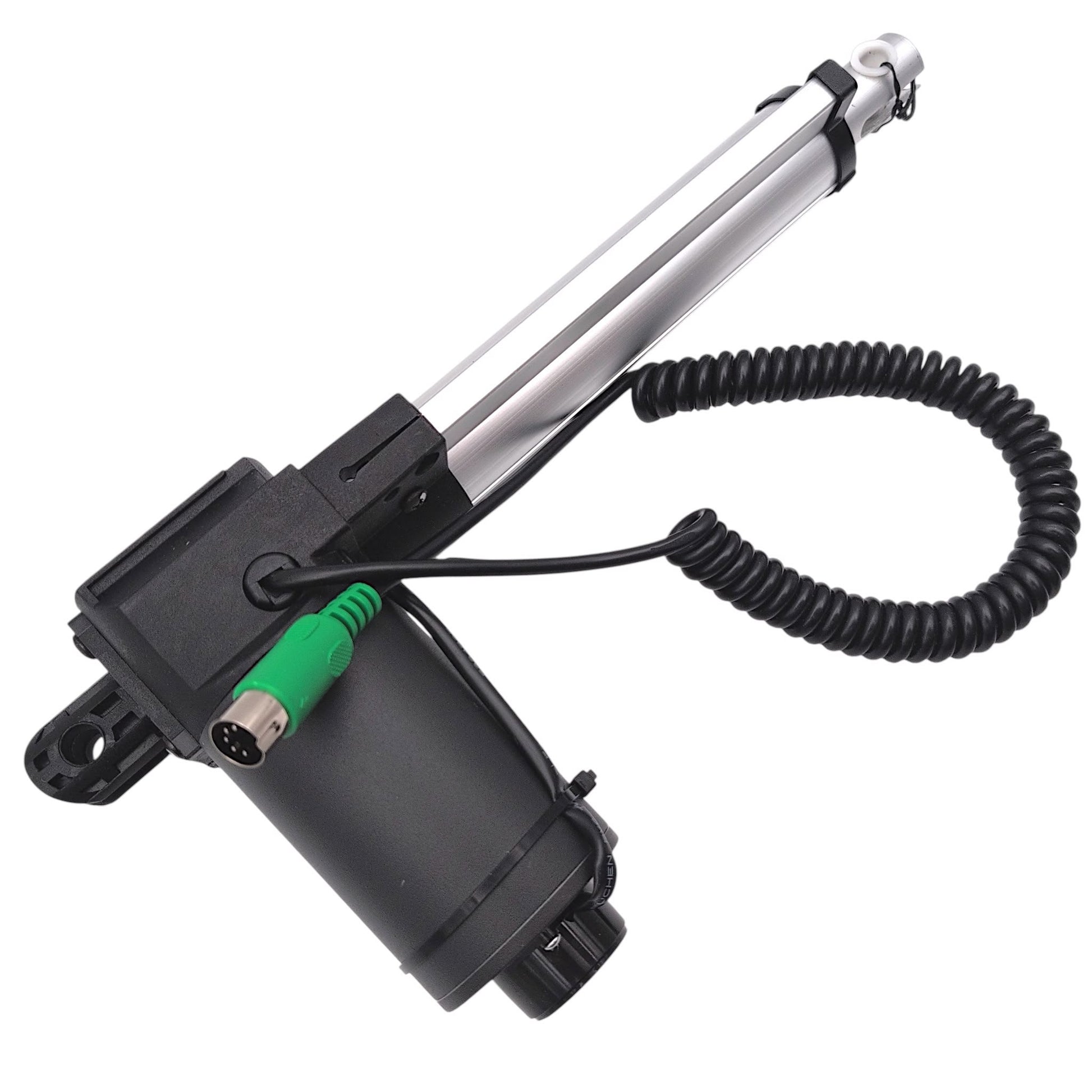

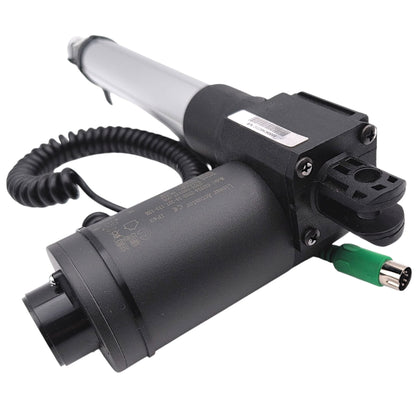

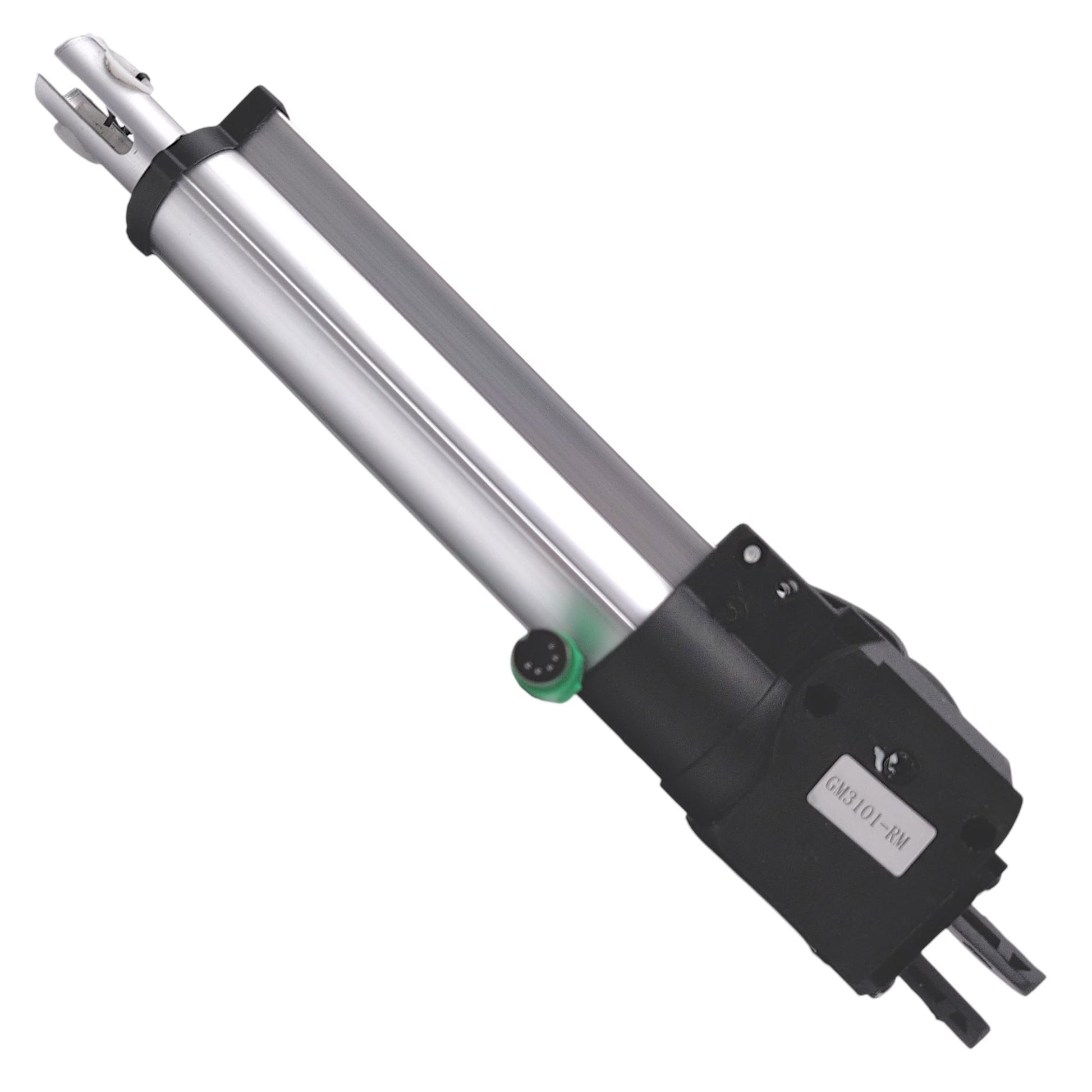

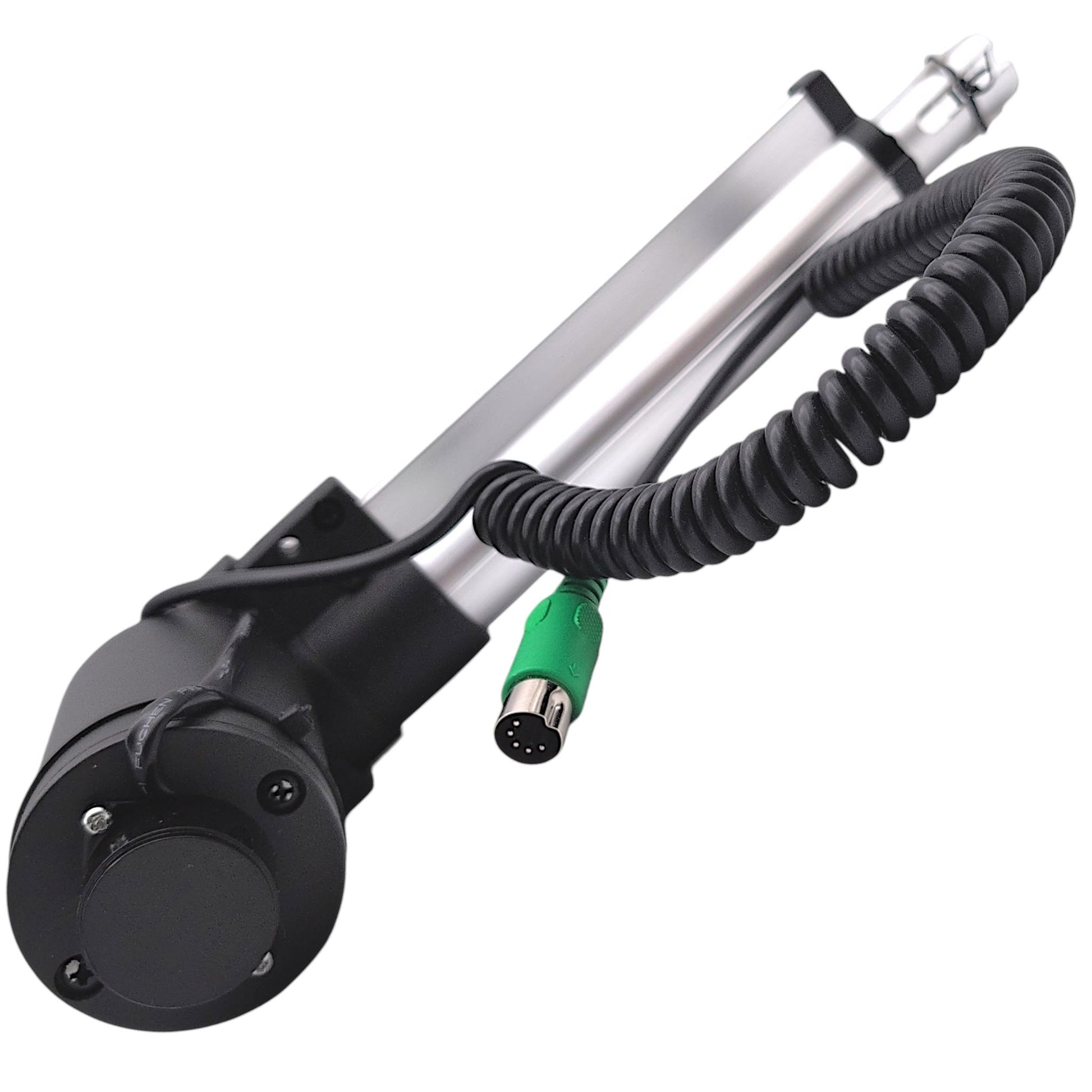

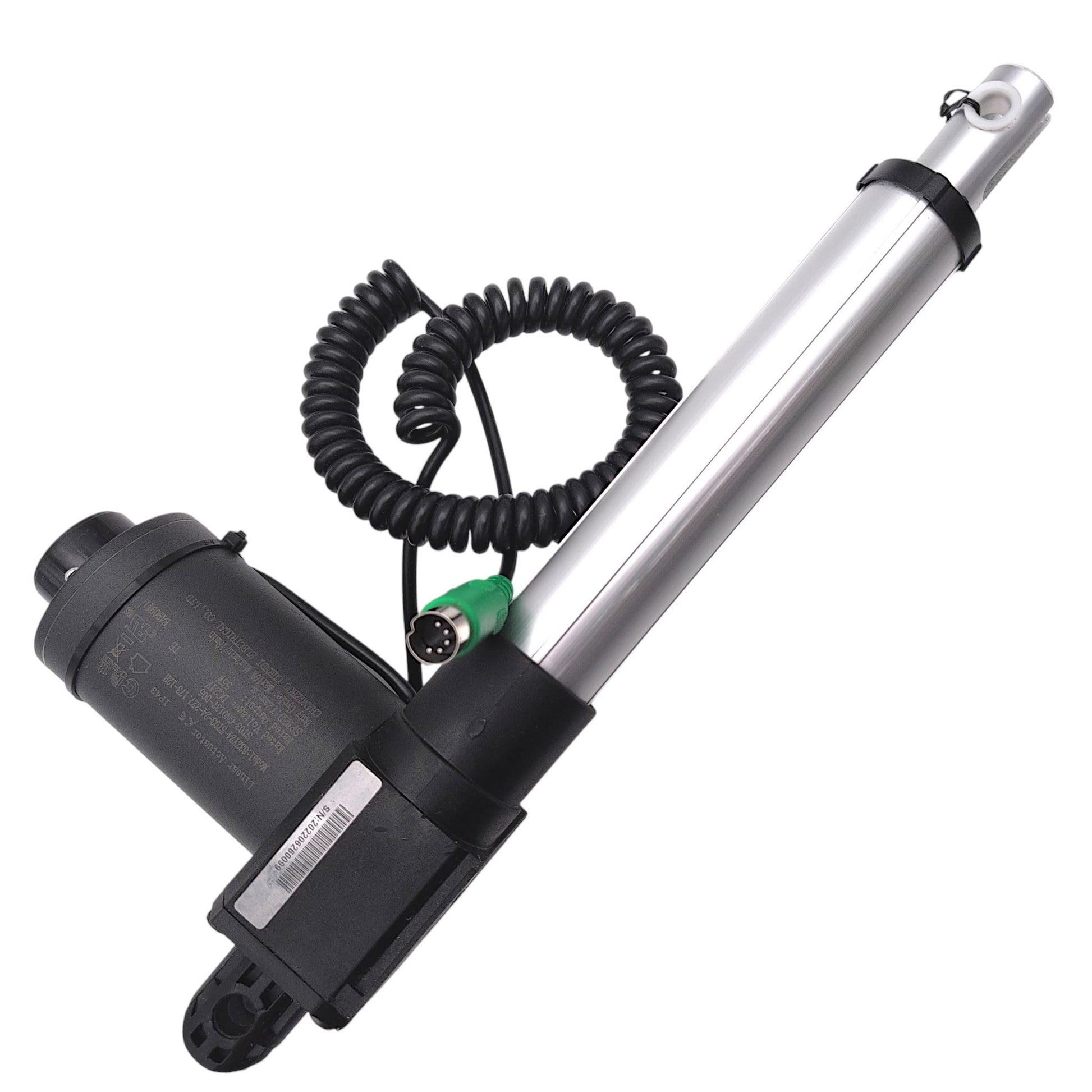

Genuine OEM replacement back motor with Hall sensor (500 mm extended) designed for select Golden Technologies and UltraComfort lift chairs. This linear actuator (Part Number: GM3101-RM) directly replaces the older GM3100-RM model and features a green 5-pin male straight connector. Manufactured by Chendi Electrical Co., LTD.

Specifications & Dimensions:

Brand:
Golden Technologies & Ultra Comfort
Manufacturer:
Changzhou Chendi Electrical Co., LTD
Golden Technologies Part Number:
GM3101-RM
Motor Type:
Back Motor with Hall Sensor (500 MM Extended)

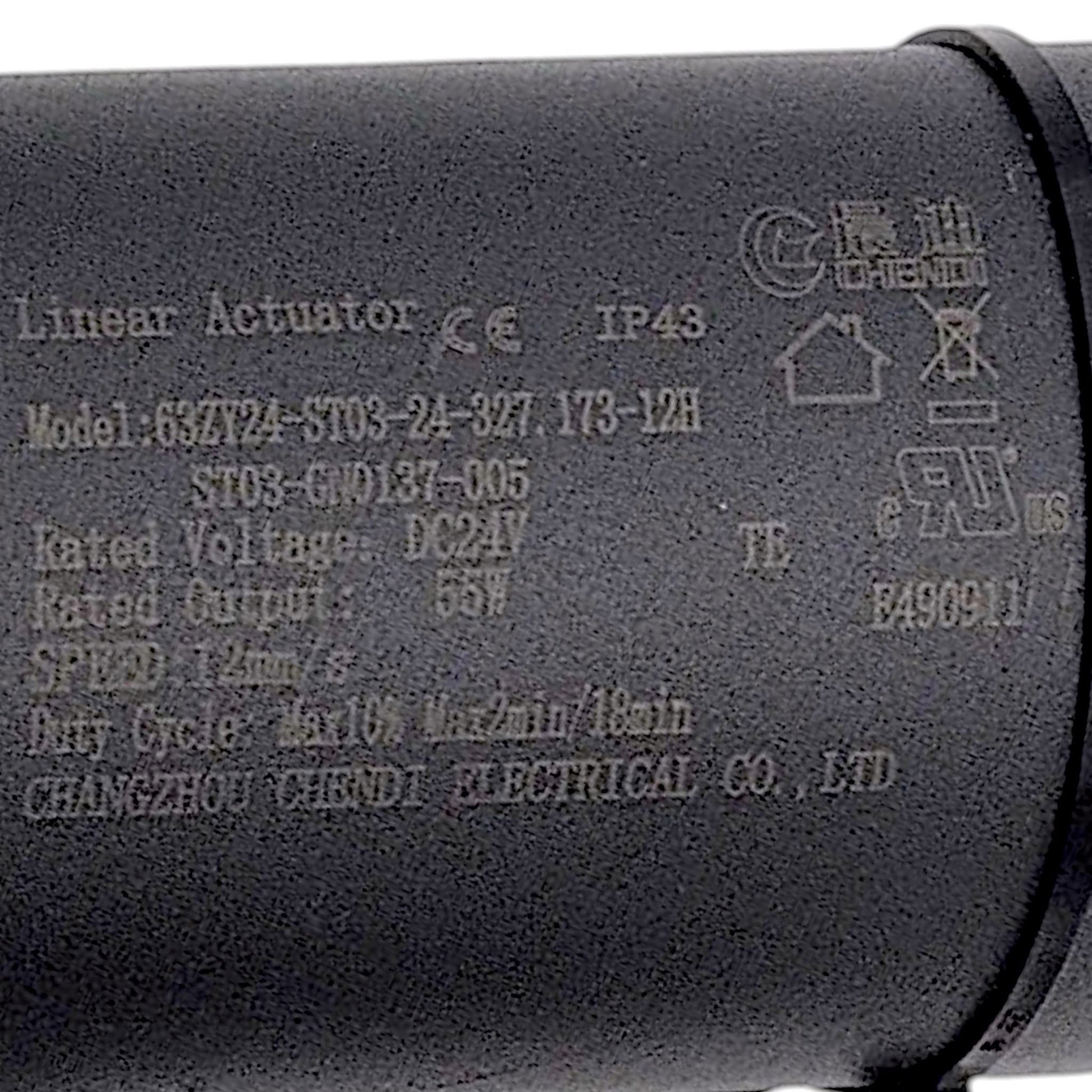

Chendi Model Number:
63ZY24-ST03-24-327.173-12H
Chendi Part Number:
ST03-GN0137-005
Replaces Golden Technologies Part Number:
GM3100-RM
Replaces Chendi Model / Part Number (GM3100-RM):
63ZY24-ST03-24-330.183-12H / ST03-GN0137-004
Replaces These Additional Chendi Model Numbers:
63ZY29-ST03-24-394.212-8 / ST03-24-394.212-8 / ST03-29-394.212-8
Connectors:

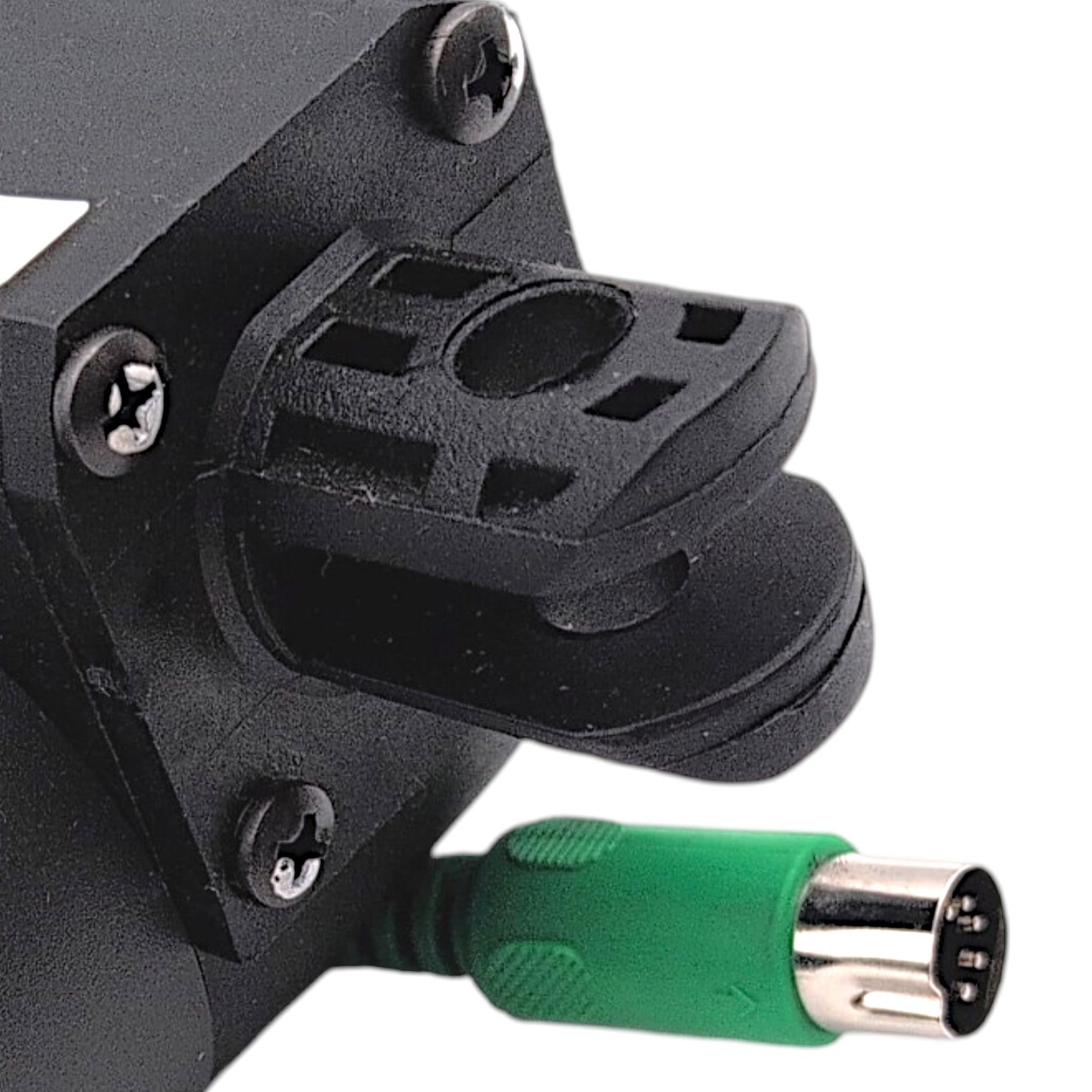

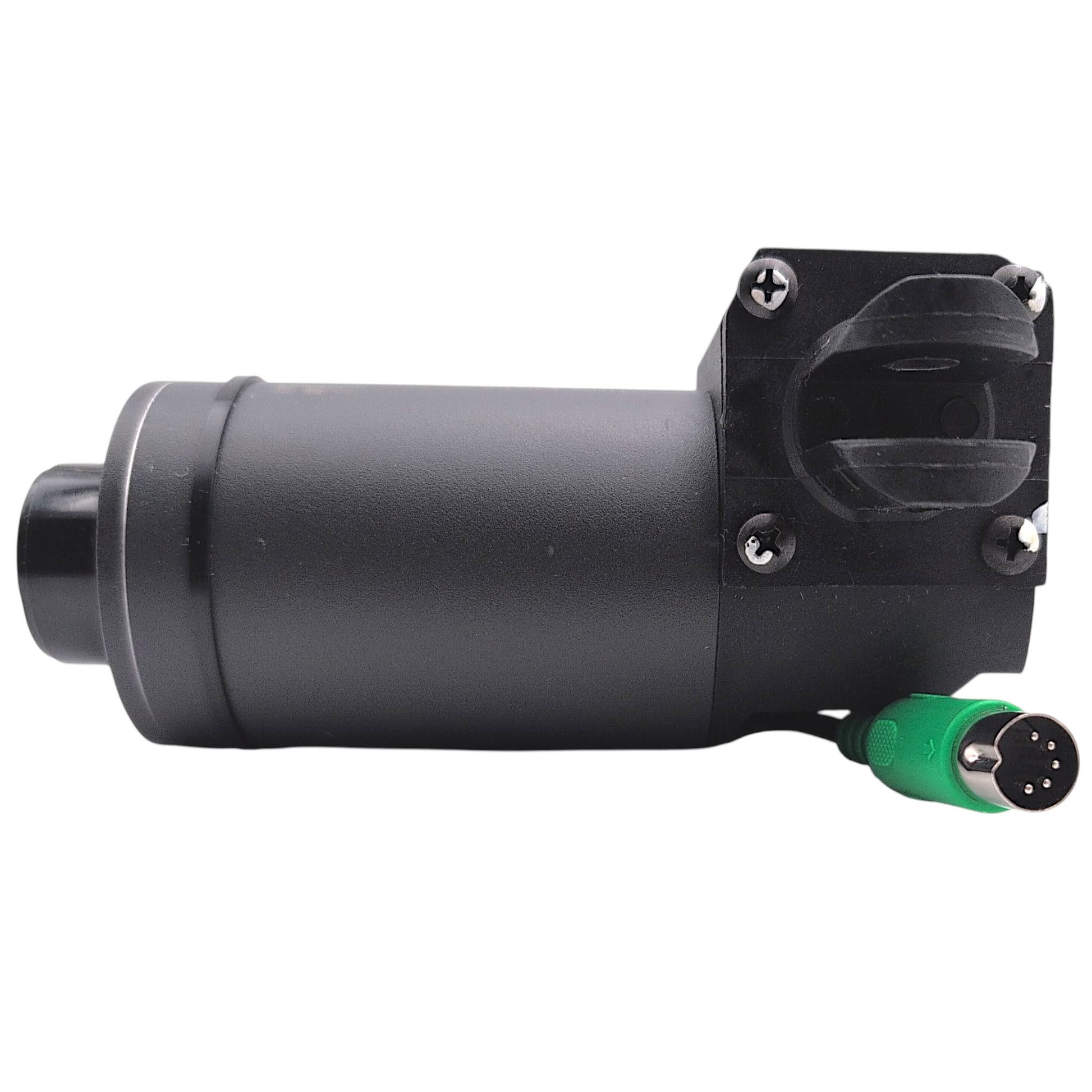

( Green) 5-Pin Male Straight Connector
Works With Control Box Part Numbers:
GM3100-CB, GM3200-CB
Found on Chairs with Remote Part Numbers:
ZK3100-C5M, ZK3200-UC, ZK3100-C5M-UC
Rated Voltage:
24 Volts DC
Rated Output:
55 Watts
Speed:
12mm per Second
Duty Cycle:
Max 10% | Max 2min/18min

Additional Specifications
Motor Type:
Linear Actuator
Color:
Black / Silver
Certifications:
UL Listed E490911, IP43

Lift Chair Compatibility
Compatible Golden Technologies Models
MaxiComfort Series: PR515-MLA, PR761-MLA
DeLuna Series: PR446-MED, PR446-LAR
Other Models: PR130
Compatible UltraComfort Models
Stellar Series: UC562-MLA, UC799-MLA (Stellar Eclipse)
Explorer Series: UC476-MED
Other Models: UC682-MED
