PowerFirst PF2408LP 24V 8 Amp Mobility Scooter Charger - Golden Technologies MBE-0038

PowerFirst PF2408LP 24V 8 Amp Mobility Scooter Charger - Golden Technologies MBE-0038

$249.95 USD
$314.00 USD $249.95 USD
Our Price Sold Out
Free Shipping On Most Items Over $40+ (Contiguous US Only) Shipping: Calculated at checkout Shipping Policy

In stock
  • Free 2-day shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
  • Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
  • 30 Day Return Policy
  • Fulfillment: Usually ships in 1-2 business days
  • This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects

Product Description

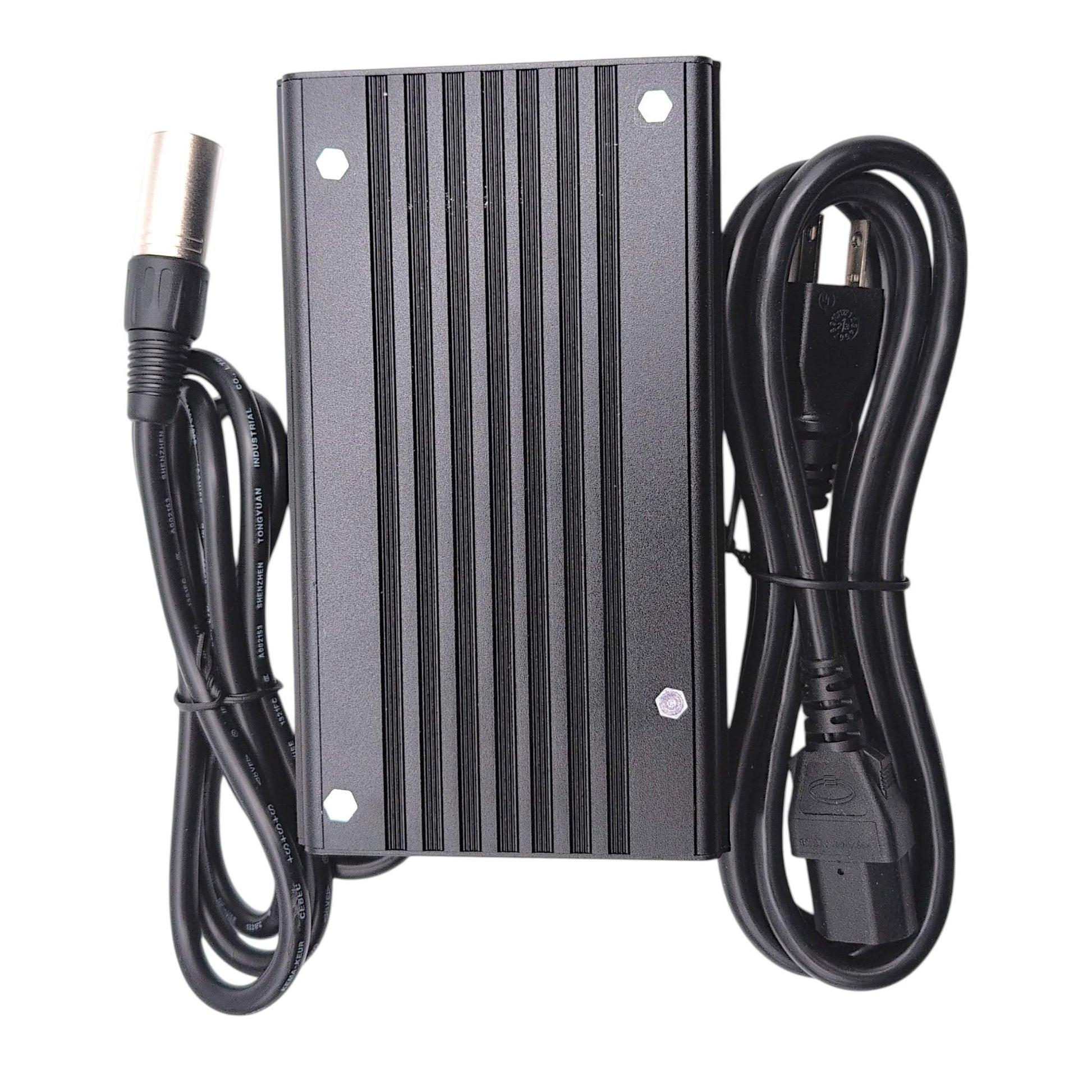

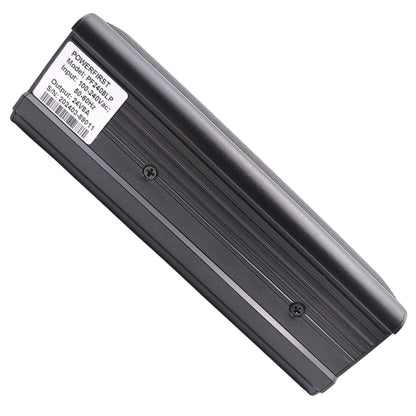

The PowerFirst PF2408LP is a premium, high-reliability 24V 8A smart battery charger, also sold as Golden Technologies Part Number: MBE-0038. Designed for global efficiency, this 240W charger provides precise charging profiles for 24V lead acid or Gel cell type rechargeable batteries. Engineered specifically for harsh operating conditions, it is widely used for electric wheelchairs, mobility scooters (including the Golden Companion series), and medical equipment. It features an active variable-speed cooling fan for peak optimal performance and advanced electronic protection against short circuits and reverse polarity.

Important Note For Golden Companion Users| Please Check Your Battery Size

Specifications:

Brands:
PowerFirst / Golden Technologies
PowerFirst Model Number:
PF2408LP
Golden Technologies Part Number:
MBE-0038
DC Output:
24 VDC, 8A
Maximum DC Output Power:
240 W
Maximum DC Output Voltage:
33.6 V
Deep Discharge Recovery:
10V (Minimum Voltage)
AC Input:
100-240 VAC ±10%, 50/60 Hz
Maximum AC Input Current:
2.6 A
Battery Compatibility:
24V lead acid or Gel cell type rechargeable batteries

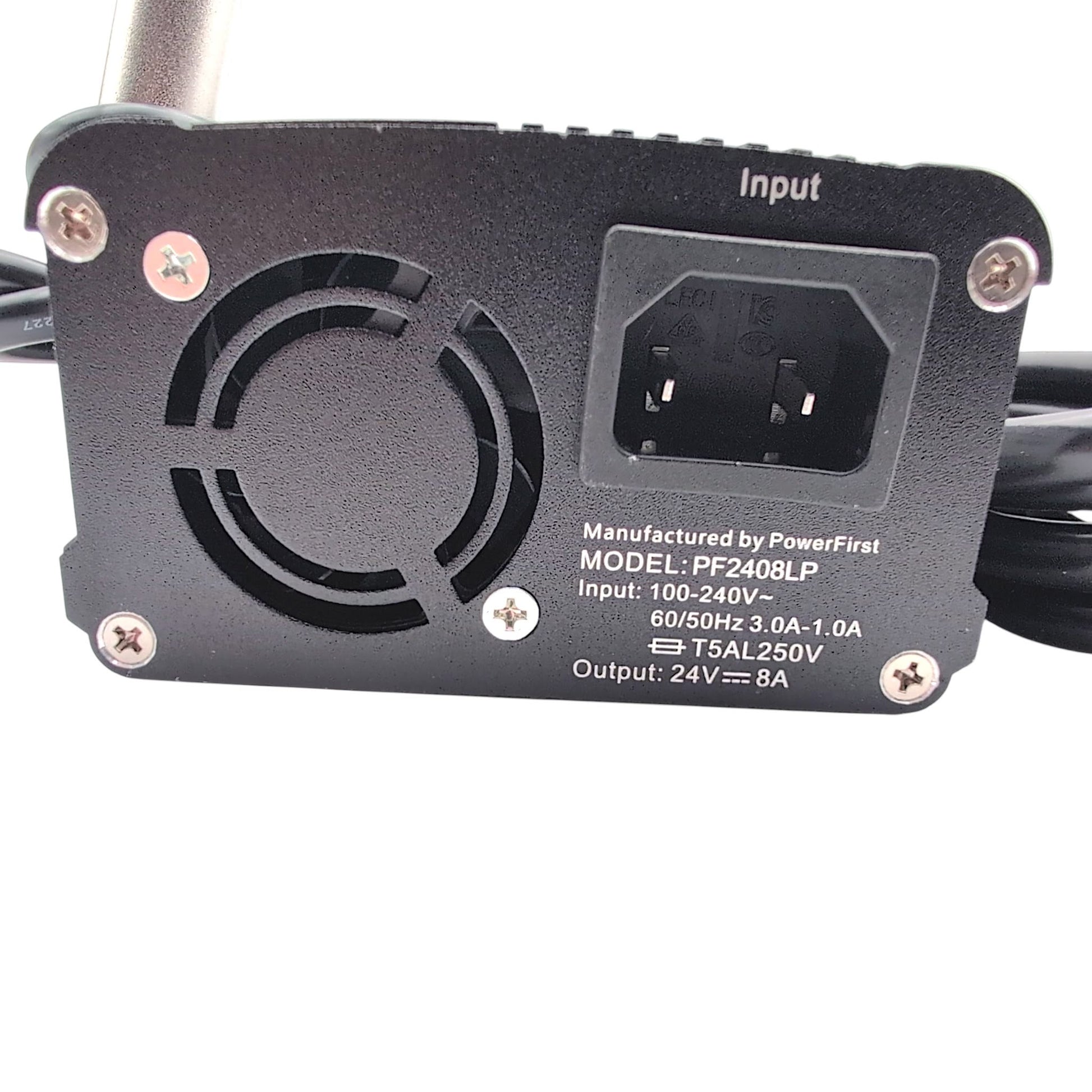

Cooling System:
Active cooling with variable speed fan (DC 12V 0.12A, 40 x 10 mm)
Protections:
Reverse polarity (Electronic protection with auto-reset) and Short circuit (Electronic current limit)
Dimensions:
168 mm L x 95.2 mm W x 55 mm H
Weight:
1 kg

Mobility Scooter Compatibility
Compatible Golden Technologies Models (Requires 50Ah Batteries)
Companion Series: Model Numbers GC340, GC340B-S50, GC440, GC440B-S50

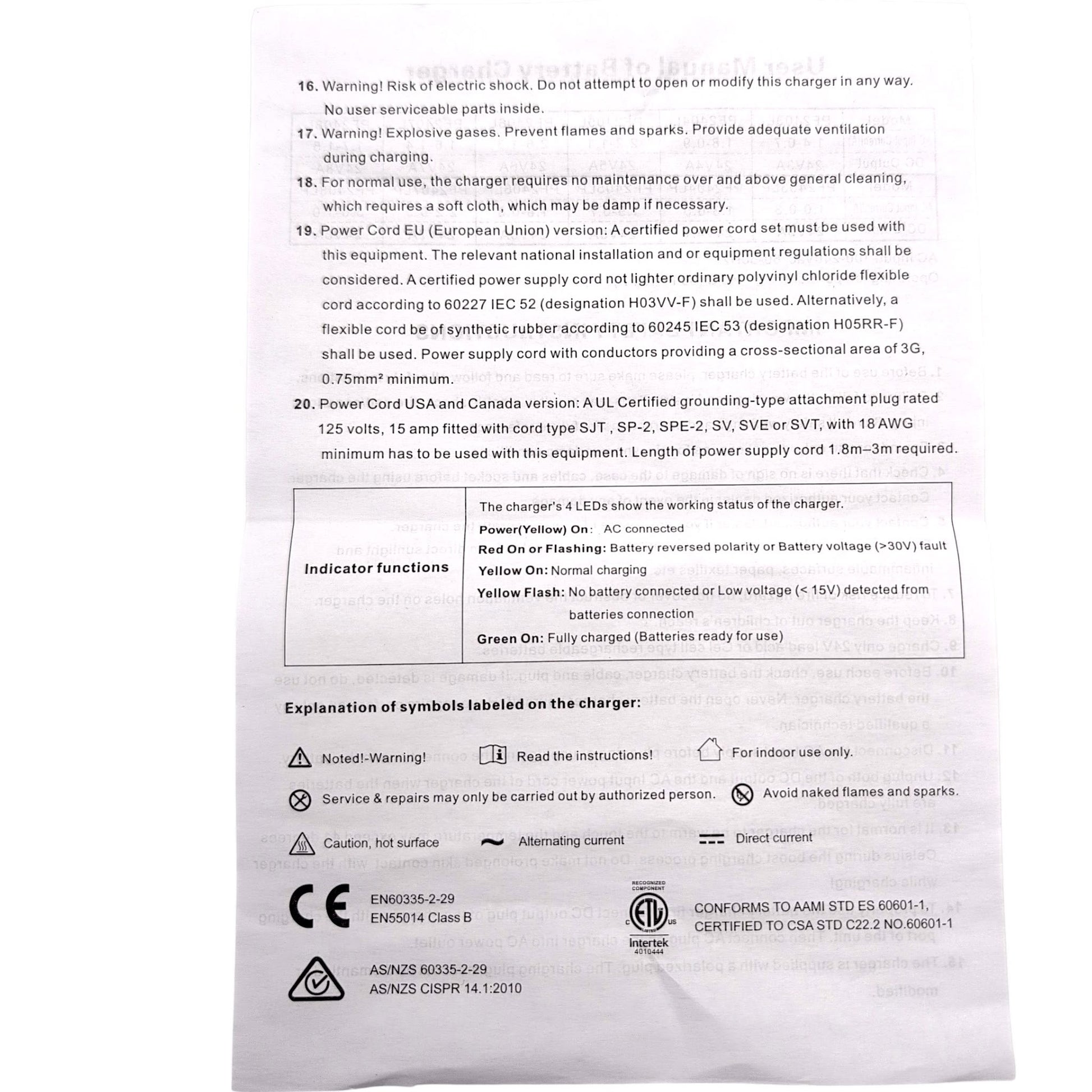

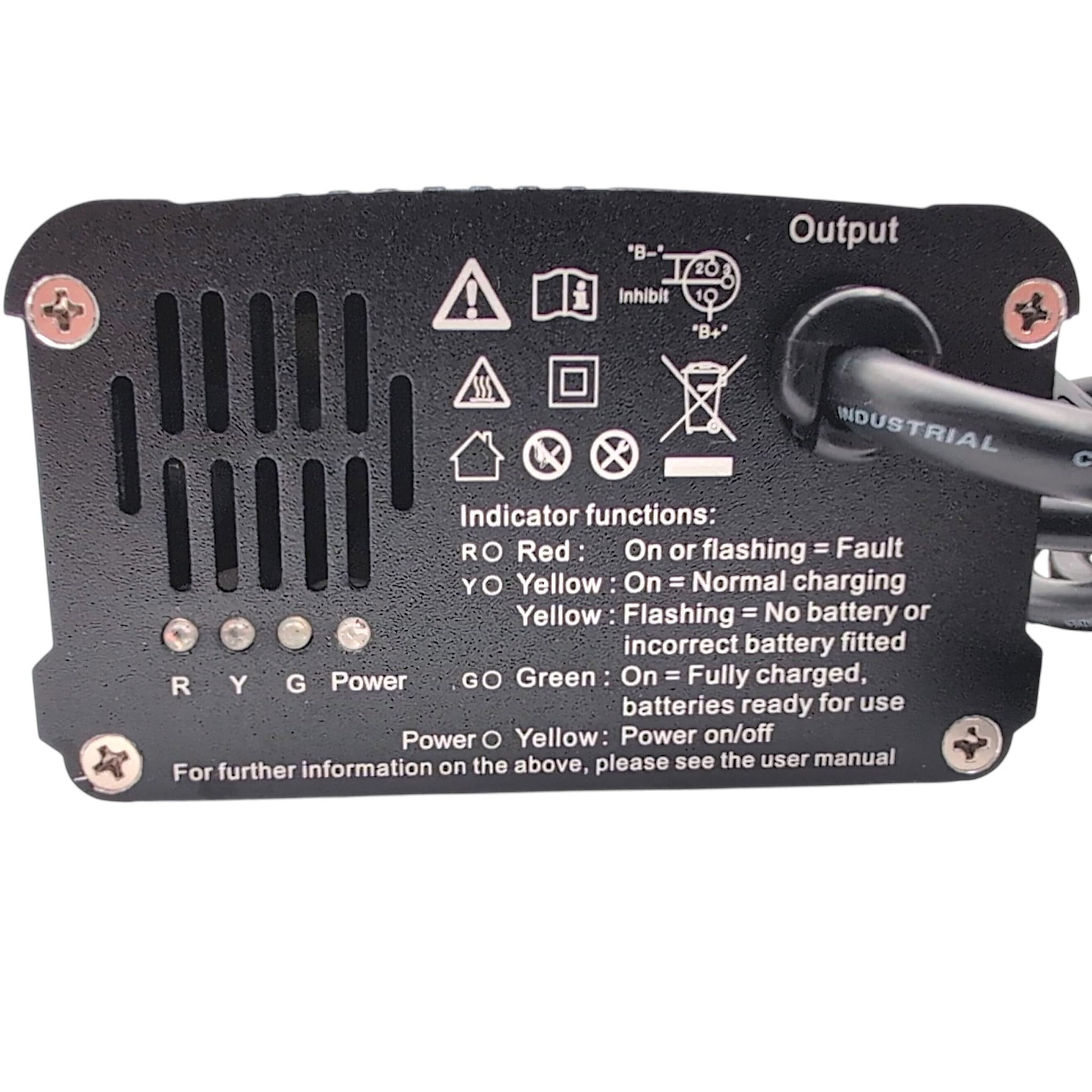

LED Indicator Functions Guide
Yellow On (Power):
AC connected
Yellow On (Charging):
Normal charging
Green On:
Fully charged (Batteries ready for use)
Yellow Flash:
No battery connected or Low voltage (<15V) detected from batteries connection
Red On or Flashing:
Battery reversed polarity or Battery voltage (>30V) fault

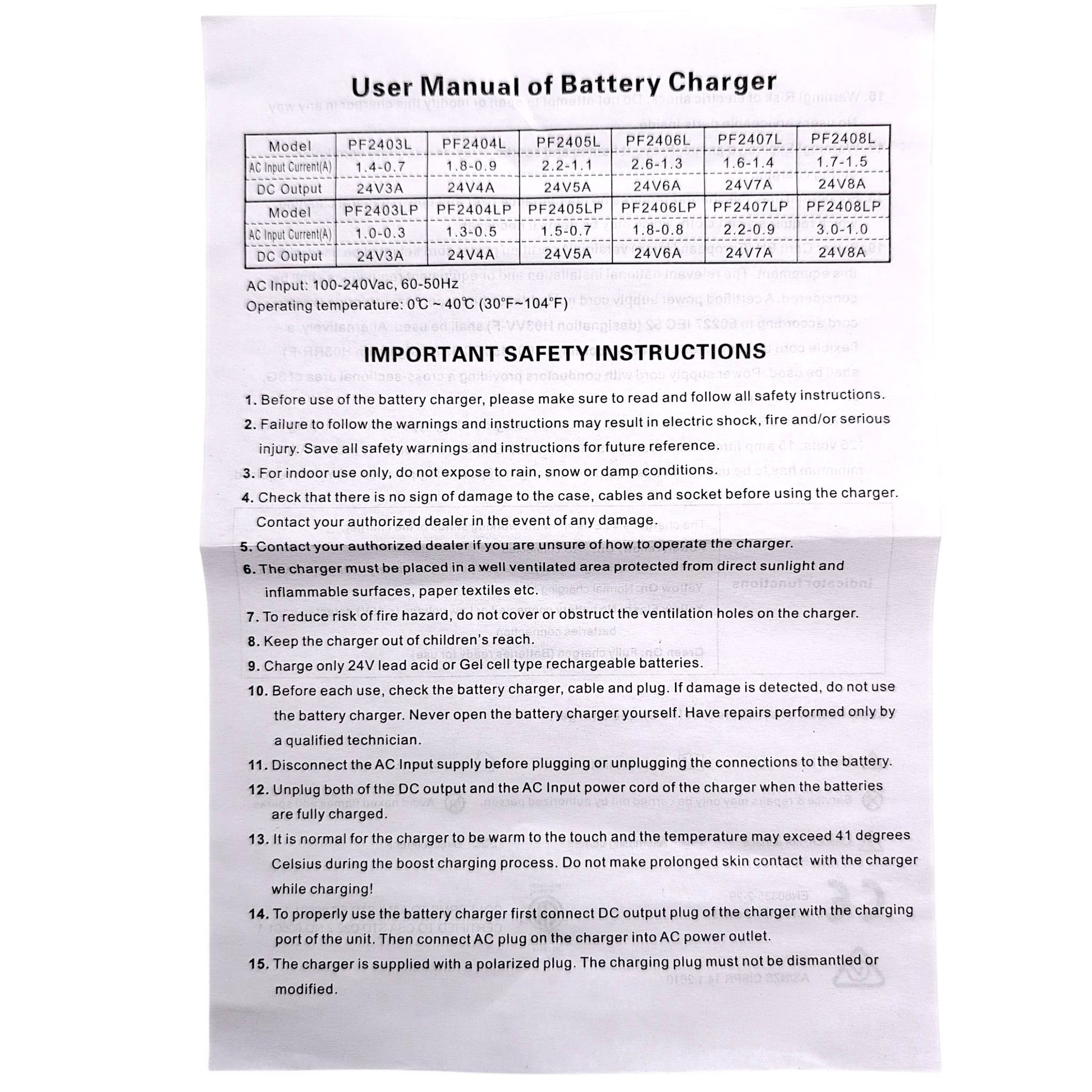

User Manual & Safety Instructions
  1. Before use of the battery charger, please make sure to read and follow all safety instructions.
  2. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all safety warnings and instructions for future reference.
  3. For indoor use only, do not expose to rain, snow or damp conditions.
  4. Check that there is no sign of damage to the case, cables and socket before using the charger. Contact your authorized dealer in the event of any damage.
  5. Contact your authorized dealer if you are unsure of how to operate the charger.
  6. The charger must be placed in a well ventilated area protected from direct sunlight and inflammable surfaces, paper textiles etc.
  7. To reduce risk of fire hazard, do not cover or obstruct the ventilation holes on the charger.
  8. Keep the charger out of children's reach.
  9. Charge only 24V lead acid or Gel cell type rechargeable batteries.
  10. Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician.
  11. Disconnect the AC Input supply before plugging or unplugging the connections to the battery.
  12. Unplug both of the DC output and the AC Input power cord of the charger when the batteries are fully charged.
  13. It is normal for the charger to be warm to the touch and the temperature may exceed 41 degrees Celsius during the boost charging process. Do not make prolonged skin contact with the charger while charging!
  14. To properly use the battery charger first connect DC output plug of the charger with the charging port of the unit. Then connect AC plug on the charger into AC power outlet.
  15. The charger is supplied with a polarized plug. The charging plug must not be dismantled or modified.
  16. Warning! Risk of electric shock. Do not attempt to open or modify this charger in any way. No user serviceable parts inside.
  17. Warning! Explosive gases. Prevent flames and sparks. Provide adequate ventilation during charging.
  18. For normal use, the charger requires no maintenance over and above general cleaning, which requires a soft cloth, which may be damp if necessary.
  19. Power Cord EU (European Union) version: A certified power cord set must be used with this equipment. The relevant national installation and or equipment regulations shall be considered. A certified power supply cord not lighter ordinary polyvinyl chloride flexible cord according to 60227 IEC 52 (designation H03VV-F) shall be used. Alternatively, a flexible cord be of synthetic rubber according to 60245 IEC 53 (designation H05RR-F) shall be used. Power supply cord with conductors providing a cross-sectional area of 3G, 0.75mm² minimum.

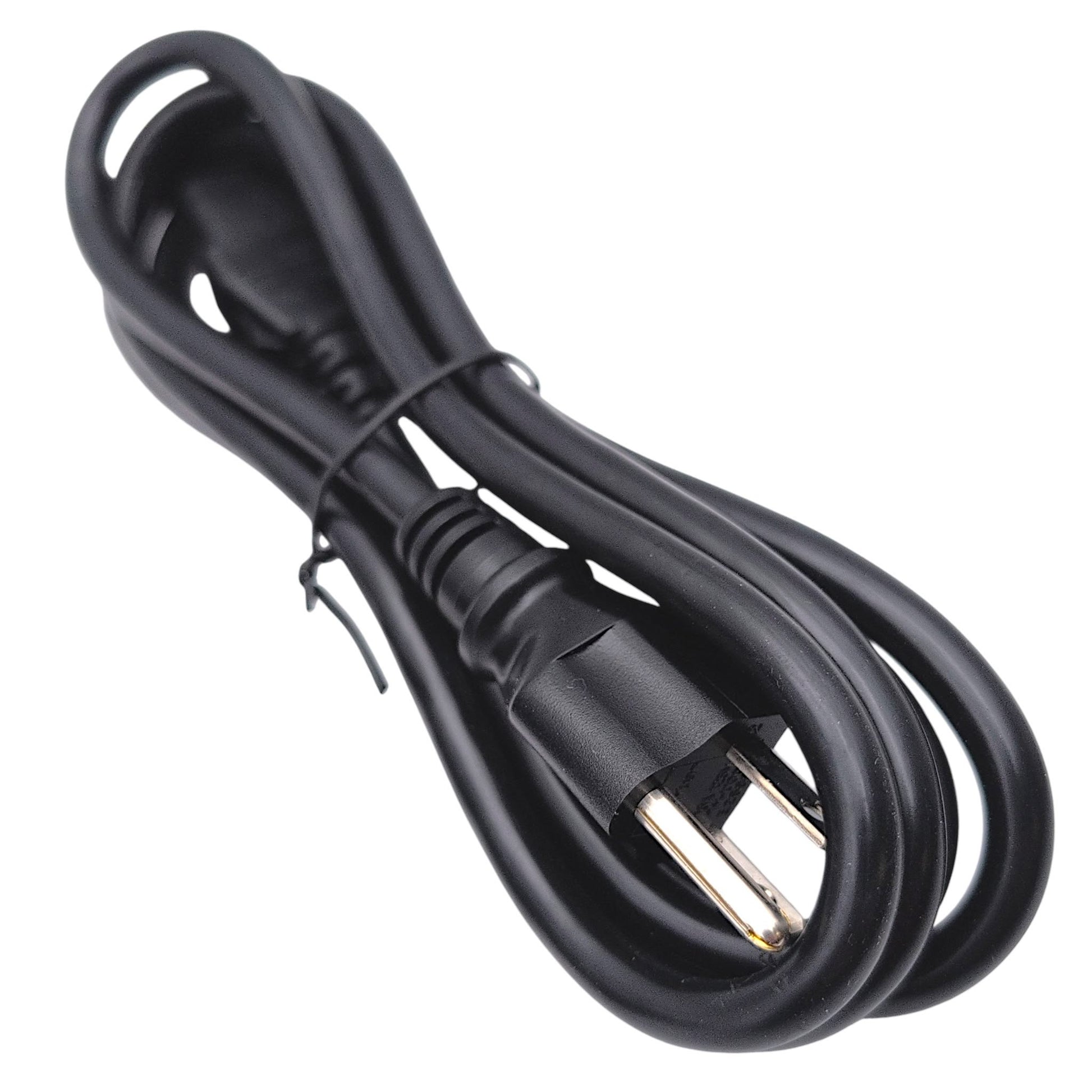

  20. Power Cord USA and Canada version: A UL Certified grounding-type attachment plug rated 125 volts, 15 amp fitted with cord type SJT, SP-2, SPE-2, SV, SVE or SVT, with 18 AWG minimum has to be used with this equipment. Length of power supply cord 1.8m-3m required.

Certifications & Operating Environment
Certifications:
CE, CB, UKCA, BC, DOE, ROHS
Medical & Mobility Standards:
Meets ISO 7176-21:2009 standard. Conforms to AAMI STD ES 60601-1 and certified to CSA STD C22.2 NO.60601-1
Energy Efficiency:
California Energy Commission (CEC) compliant
Enclosure Rating:
IP21
Operating Temperature:
-20°C to +45°C (Derated at >45°C)
Storage Temperature:
-40°C to +60°C
