Pride 24V 8A Lithium Charger Pursuit 2 SC7312 - ELE2300934

Two-Stage Charging:

Delivers a high current fast charge (8,000mA) until 28.8V is reached, followed by a constant voltage topping charge that tapers off until current is less than 500mA.

Fully Automatic Operation:

Safely charges and maintains a full charge, automatically stopping after 20 hours to comply with DOE mandates while actively monitoring the battery with an auto-restart function.

Short Circuit Protection:

Prevents damage caused when operating in a short circuit condition. The charger is "self-recovering" once the fault condition is removed.

Reverse Polarity Protection:

Prevents damage if positive and negative polarities are connected in reverse.

Over-Current & Over-Voltage Protection:

Safeguards the charger from overcurrent demand and protects the batteries from over-voltage damage.

Low Voltage Protection:

The charger will not start charging if the battery voltage is below a preset value (9-17V).

Note: Short interval charging is acceptable with Lithium-ion batteries and will help the performance and longevity of the battery.

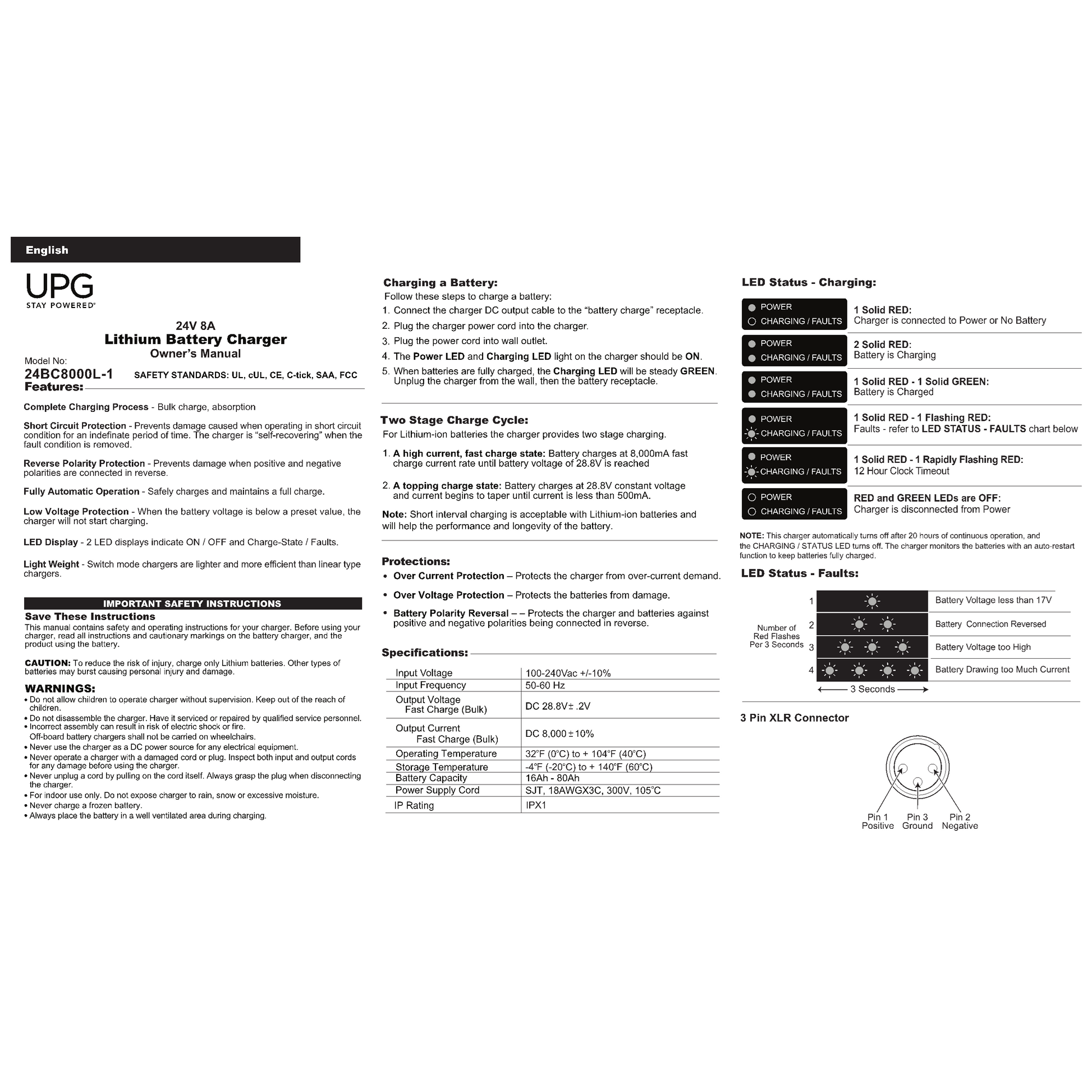

Step 1:

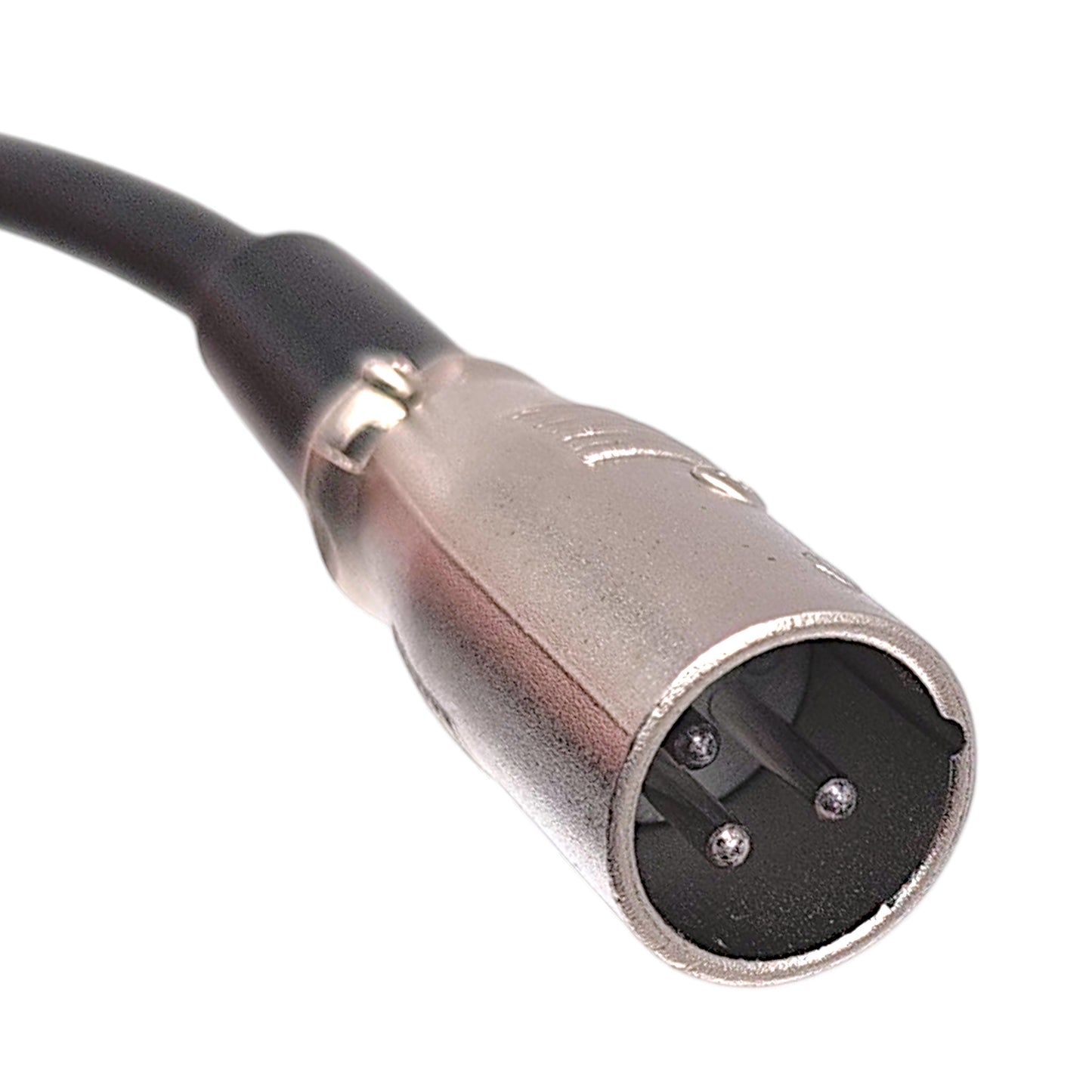

Connect the charger DC output cable to the "battery charge" receptacle on the product to be charged using the 3-Pin XLR connector. An LED on the connector will illuminate signifying that a secure connection has been made.

Step 2:

Plug the charger power cord into the charger.

Step 3:

Plug the power cord into a wall outlet.

Step 4:

The Power LED and Charging LED light on the charger should be ON.

Step 5:

When batteries are fully charged, the Charging LED will be steady GREEN. Unplug the charger from the wall, then the battery receptacle.

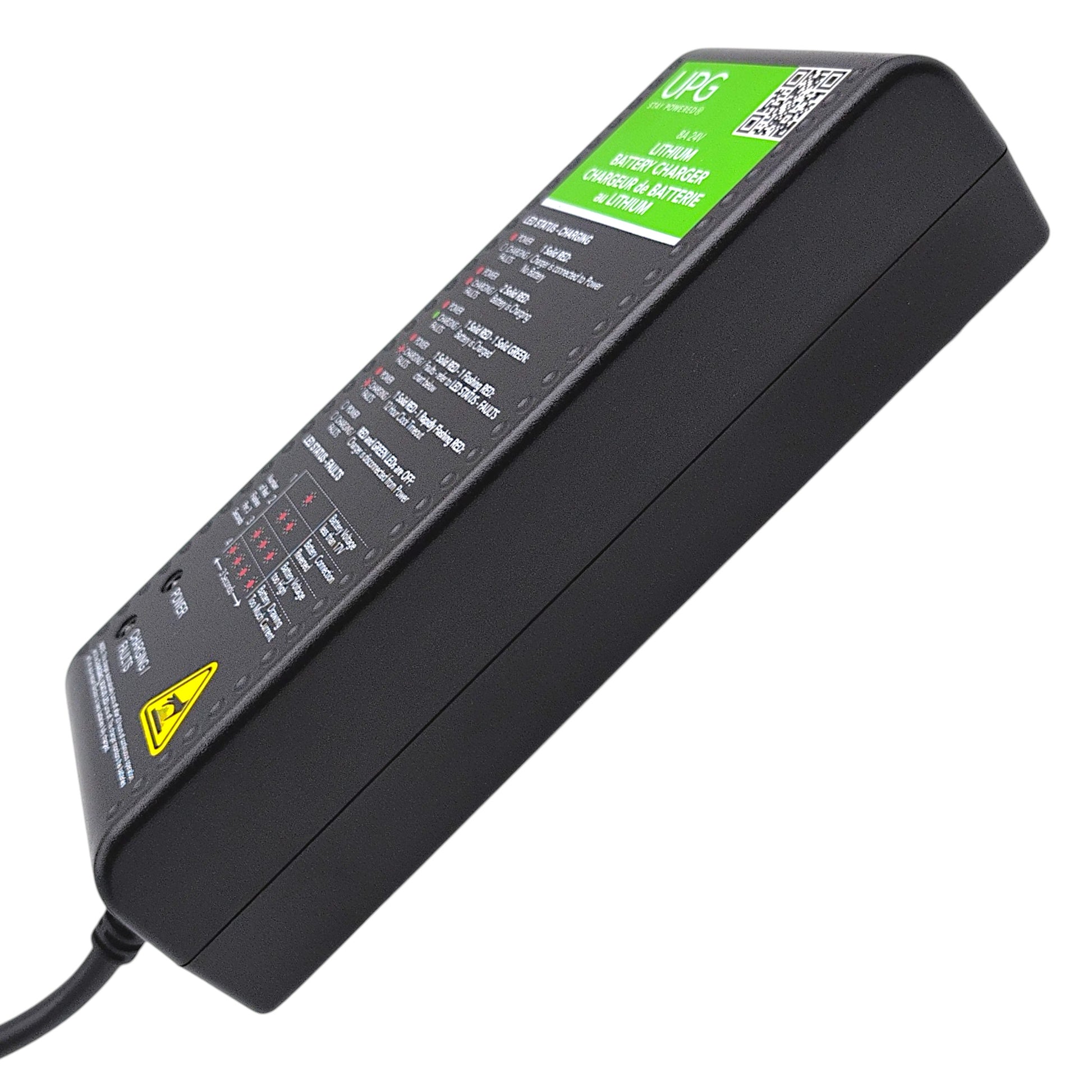

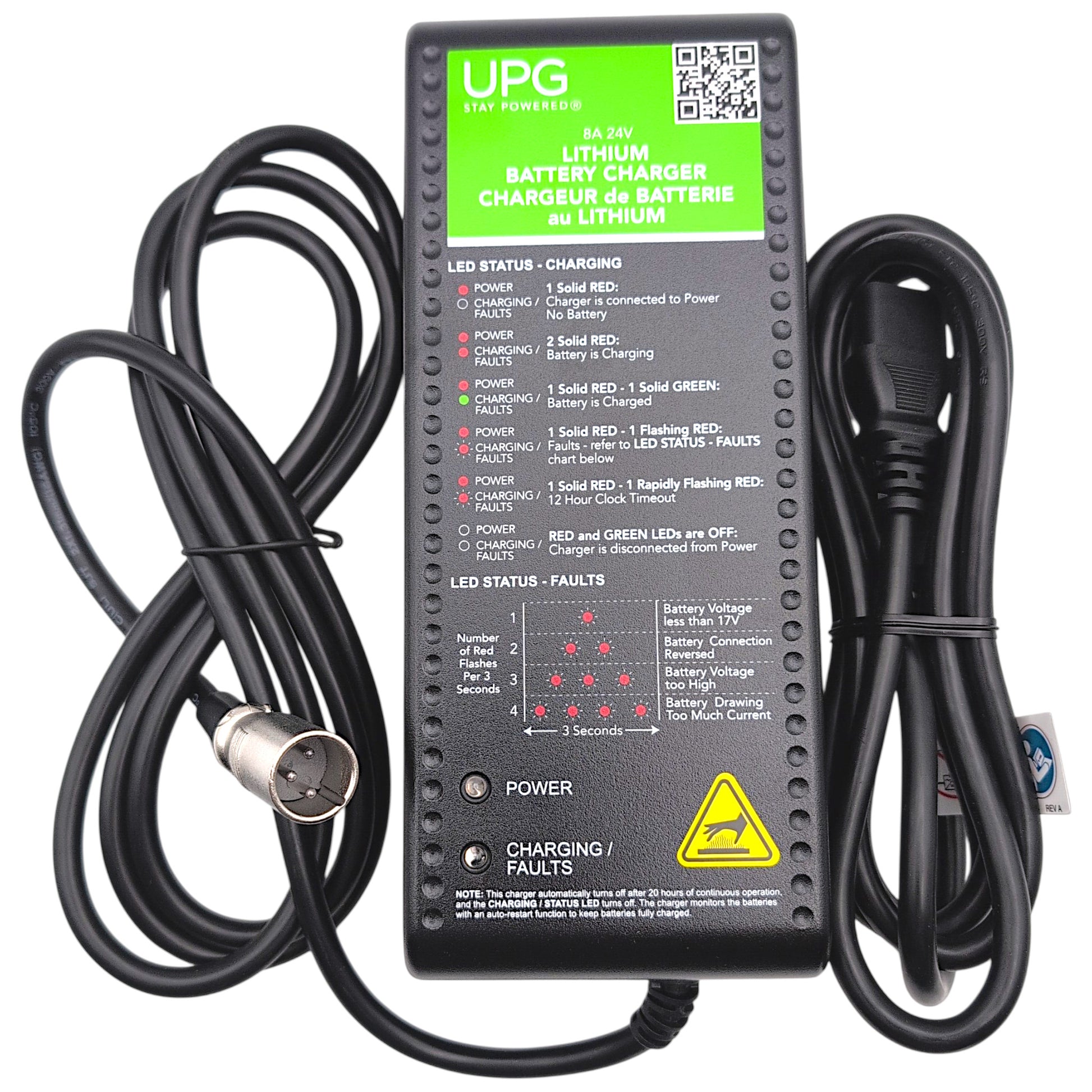

Power LED (Red):

On:

Power On

Off:

No AC Power

Charging / Faults LED (Dual-Color):

No Battery:

Red LED: Off | Green LED: Off

Bulk / Absorption Charge:

Red LED: On | Green LED: Off

Full Charge (Current < 500mA):

Red LED: Off | Green LED: Solid On

12-Hour Clock Timeout:

Red LED: Continuous Blinking (2Hz) | Green LED: Off

Low Battery Voltage (9-17V):

Red LED: 1 Blink every 3 seconds | Green LED: Off

Reverse-Polarity Connection:

Red LED: 2 Blinks every 3 seconds | Green LED: Off

Over-Voltage Fault:

Red LED: 3 Blinks every 3 seconds | Green LED: Off

Over-Current Fault:

Red LED: 4 Blinks every 3 seconds | Green LED: Off

Environment:

For indoor use only. Do not expose charger to rain, snow, or excessive moisture. Always place the battery in a well-ventilated area during charging.

Usage Warnings:

Never charge a frozen battery. Do not allow children to operate charger without supervision. Never use the charger as a DC power source for any electrical equipment.

Cord Safety:

Never operate a charger with a damaged cord or plug. Inspect both input and output cords for damage before use. Always grasp the plug when disconnecting; never unplug by pulling on the cord itself.

Maintenance:

Do not disassemble the charger. Have it serviced or repaired by qualified service personnel. Incorrect assembly can result in risk of electric shock or fire.

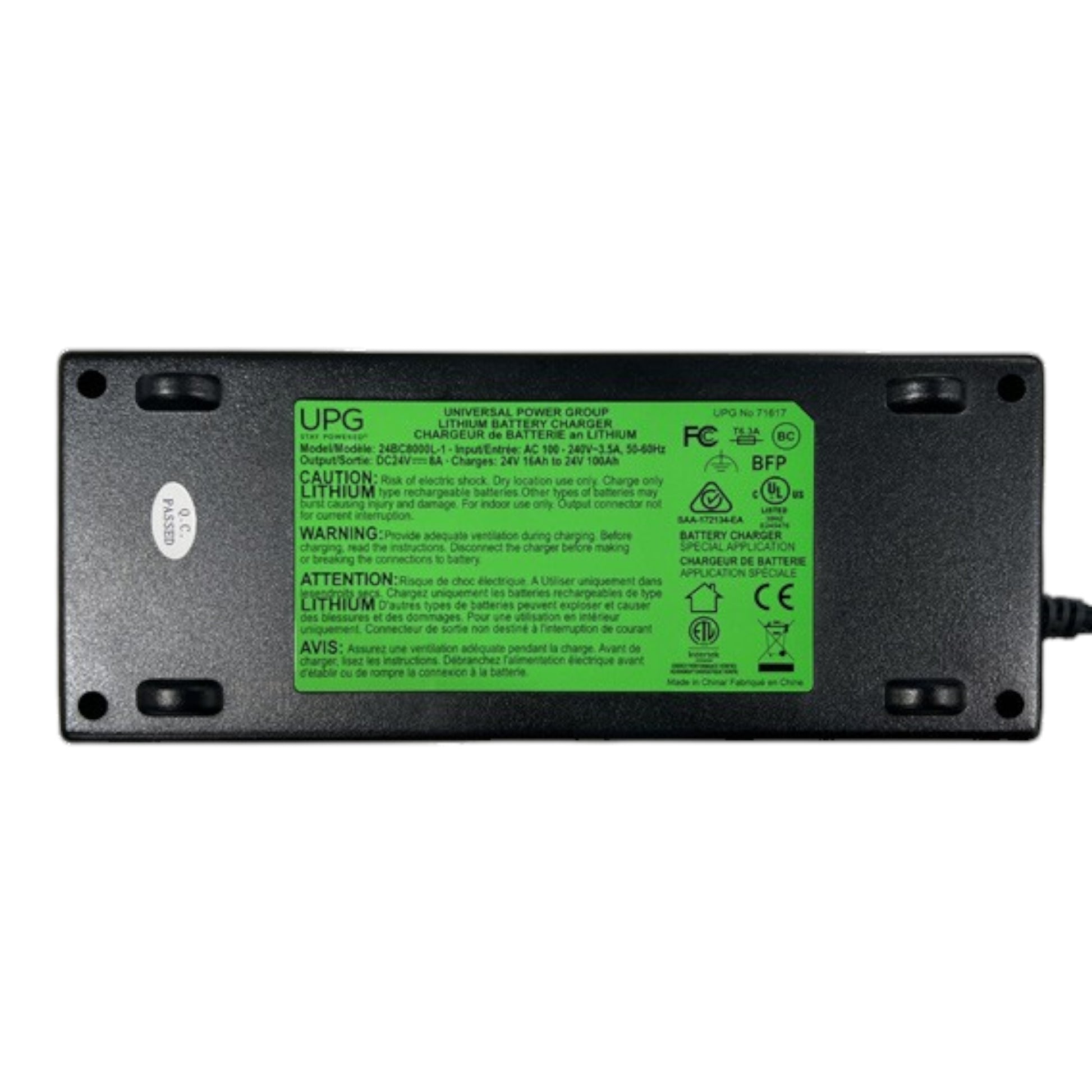

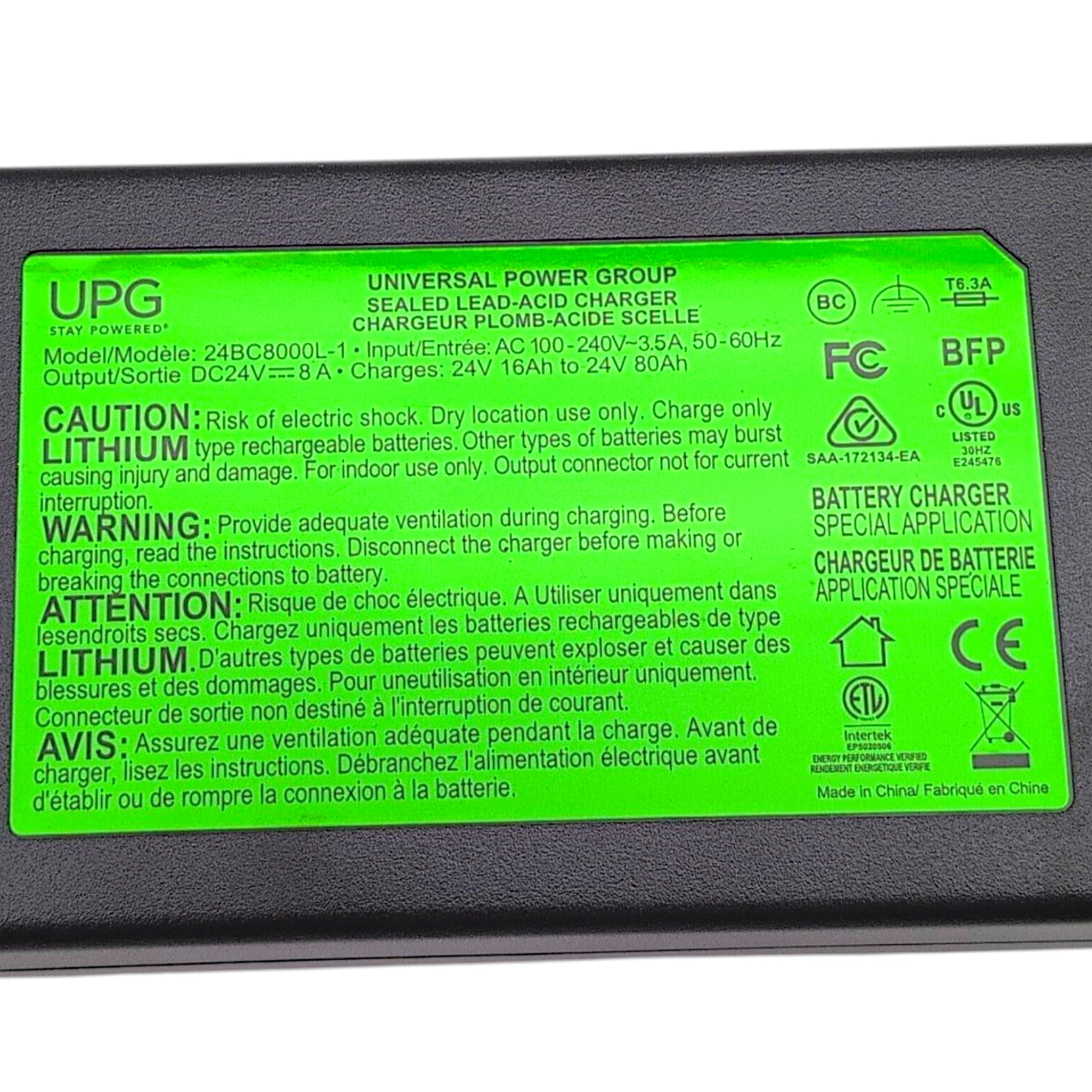

Safety Certifications:

Tested and certified to meet UL, CUL, CE, C-tick, and SAA safety standards.

FCC Compliant:

Complies with Part 15 of the FCC Rules as a Class B digital device, ensuring reasonable protection against harmful interference in residential installations.

Universal Power Group (UPG) warrants this unit to be free from defects in material and workmanship for a period of 1 year from the date of sale to the original user or purchaser. This warranty is non-transferable. If the unit malfunctions or fails within the 1-year period because of a defect in material or workmanship, UPG will replace or repair the unit with a new or remanufactured product or component.

This warranty excludes malfunctions or failure caused by repairs made by an unauthorized person, mishandling, modifications, normal wear, unreasonable use, or damage to the product. For warranty service and instructions, please contact your retailer or place of purchase (a proof of purchase will be required). For technical questions, inquire at: technicalsupport@upgi.com.
