Pride Mobility & Quantum B-Style Cup Holder ACCASMB2287
Pride Mobility & Quantum B-Style Cup Holder ACCASMB2287
In stock
Couldn't load pickup availability
- Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
- 30 Day Return Policy
- Fulfillment: Usually ships in 1-2 business days
- This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects
Product Description

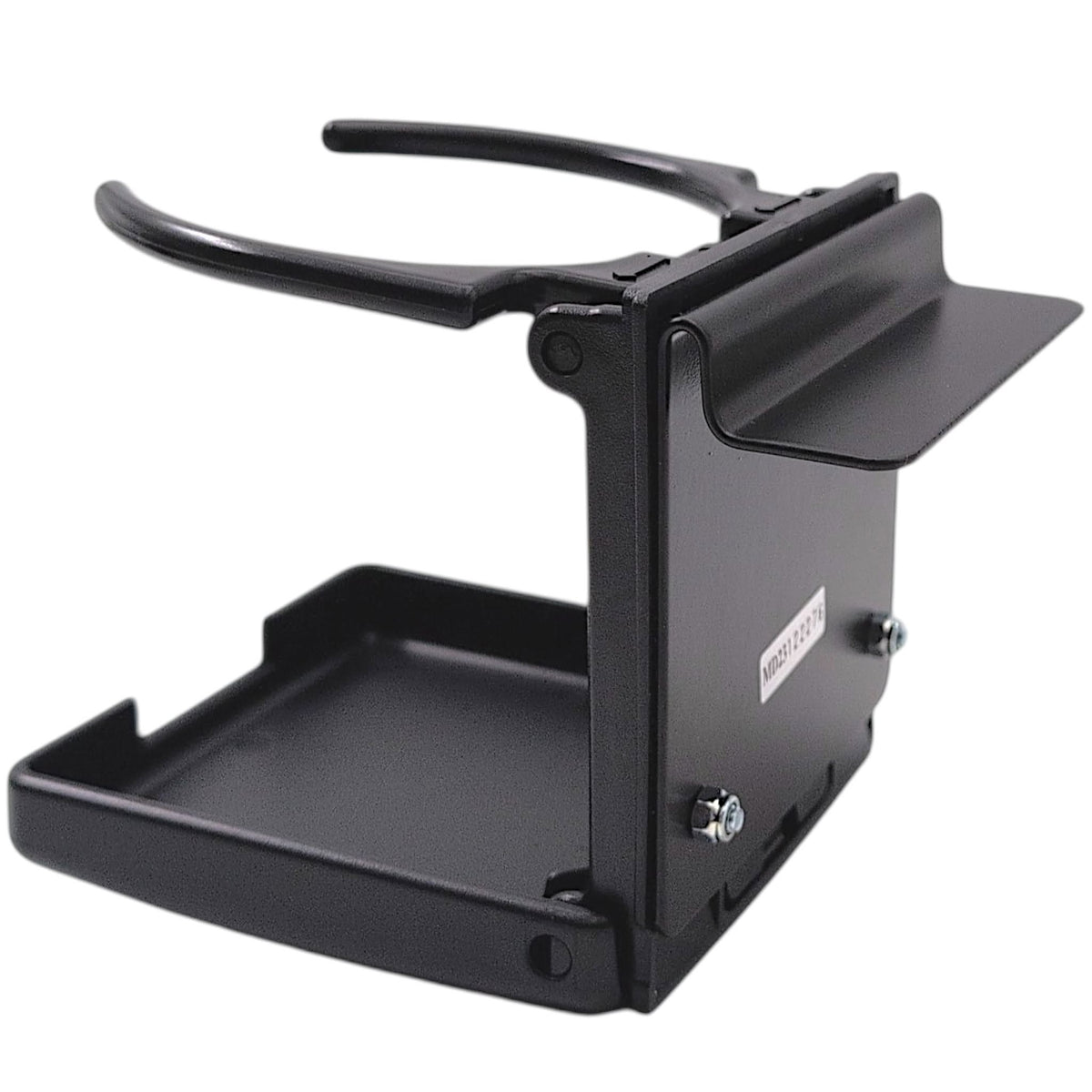

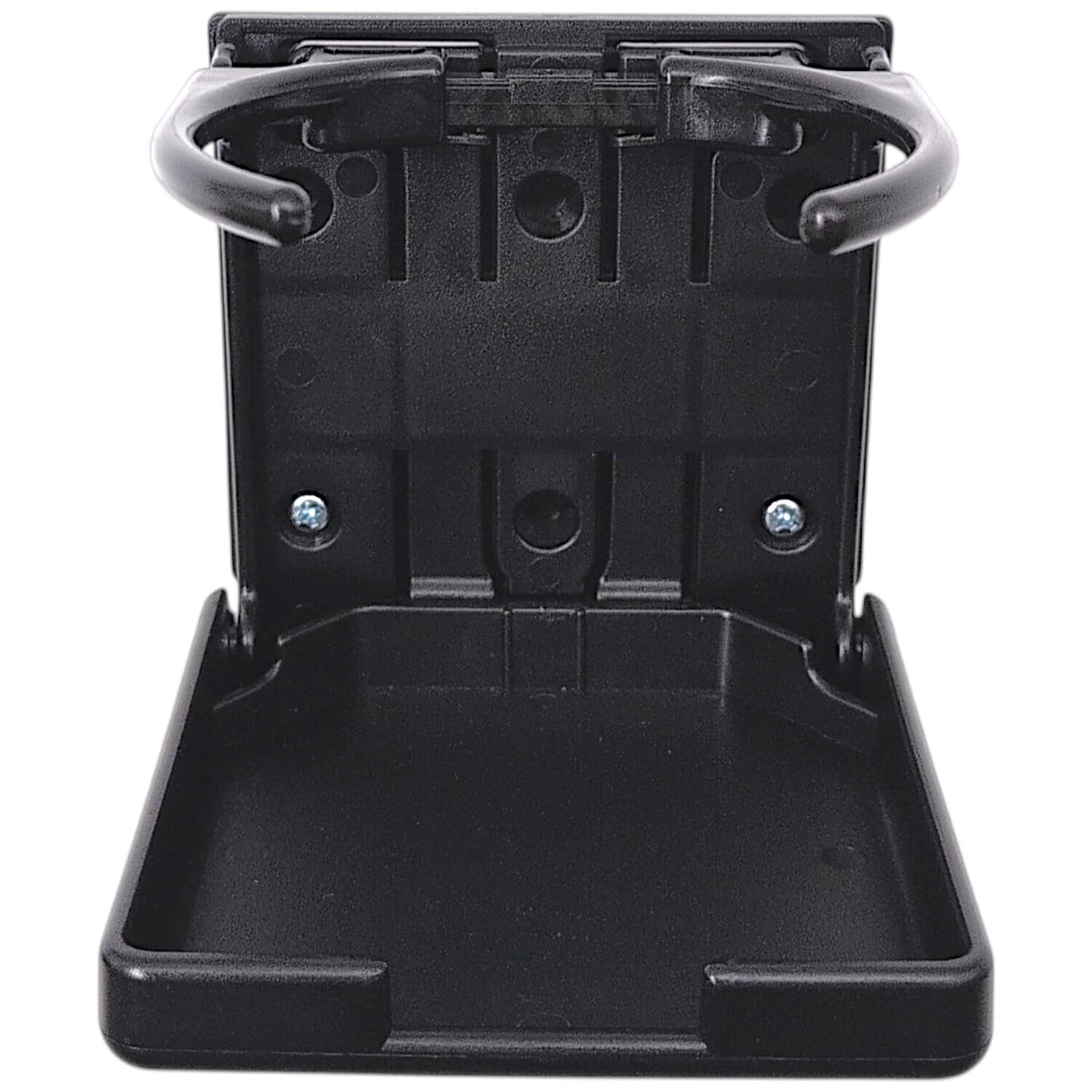

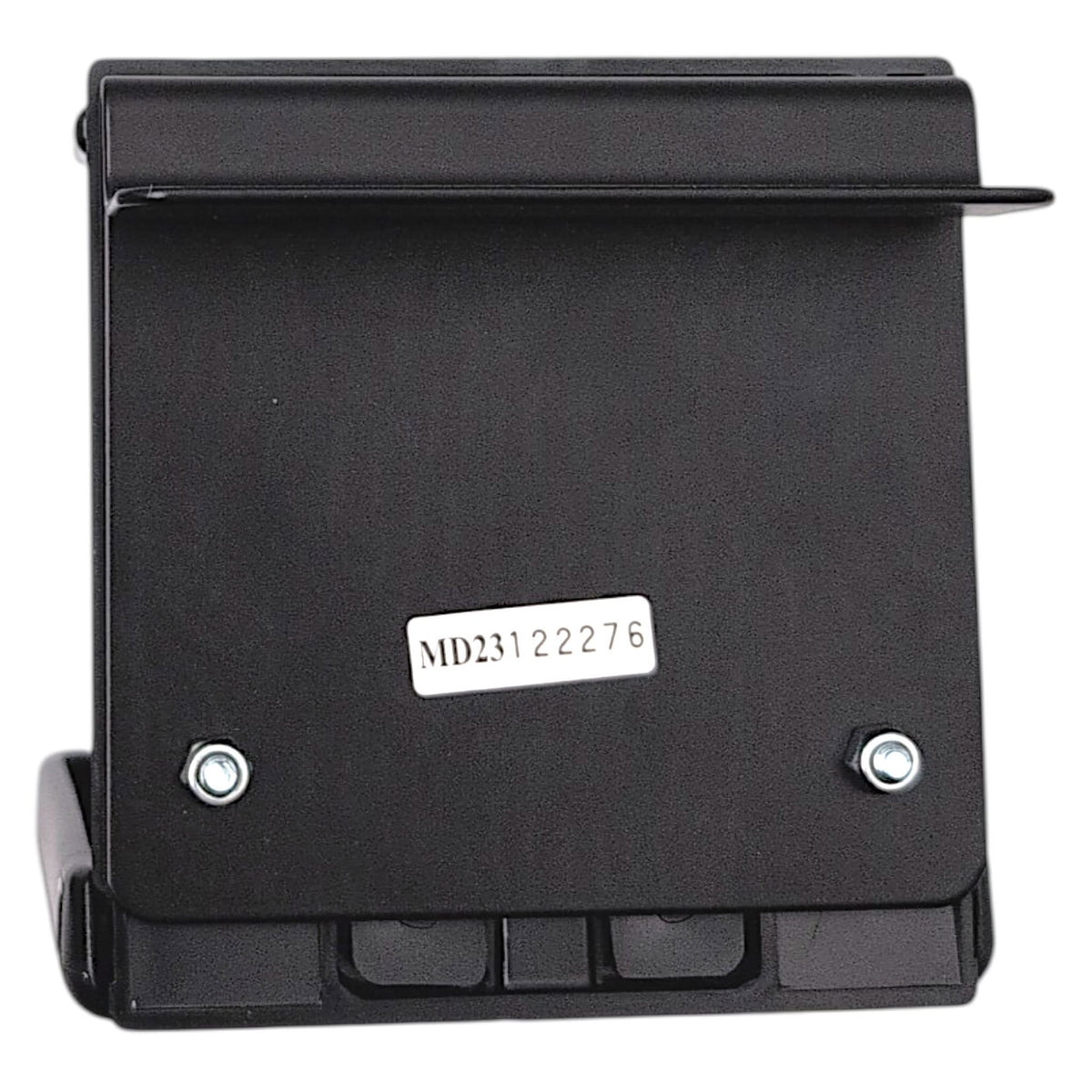

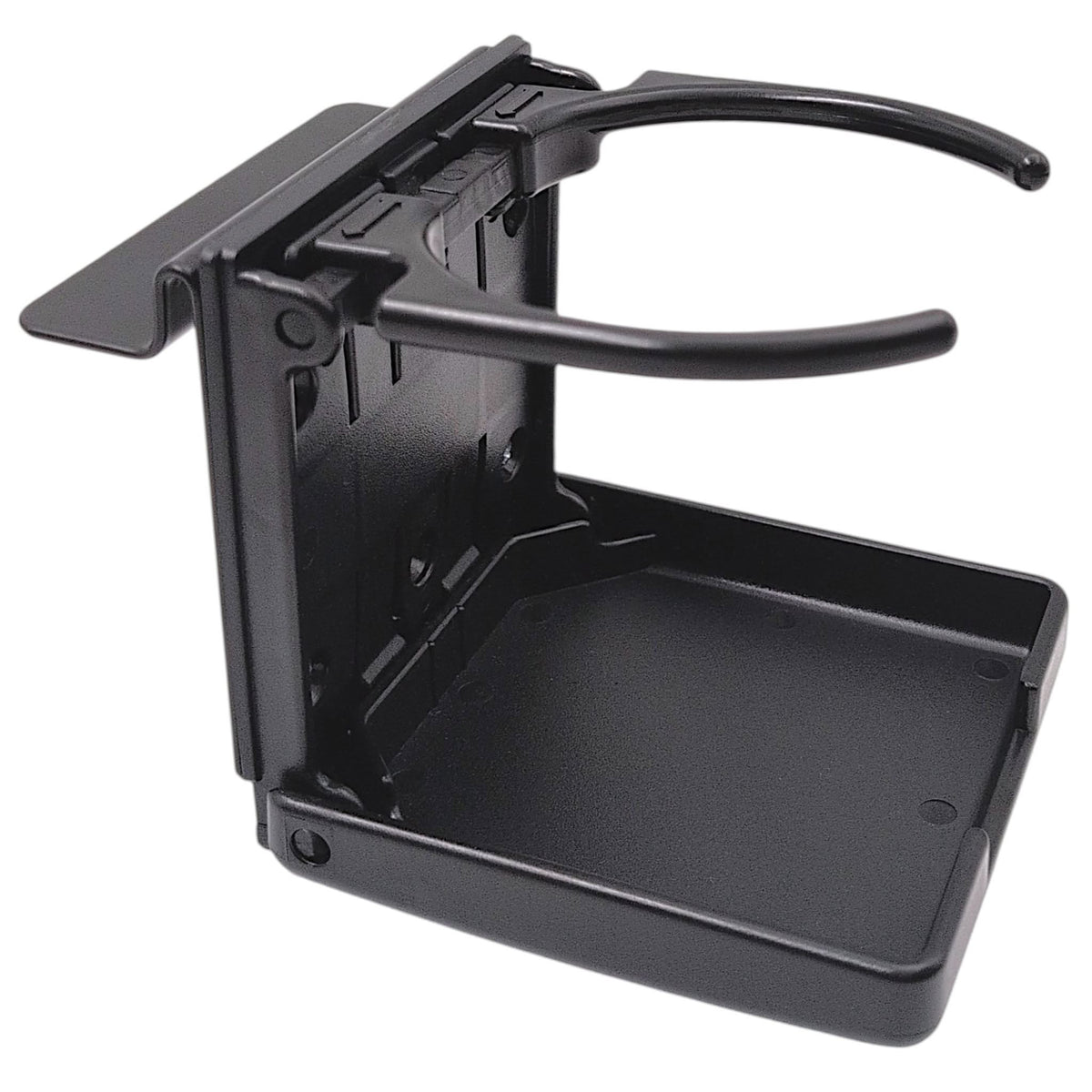

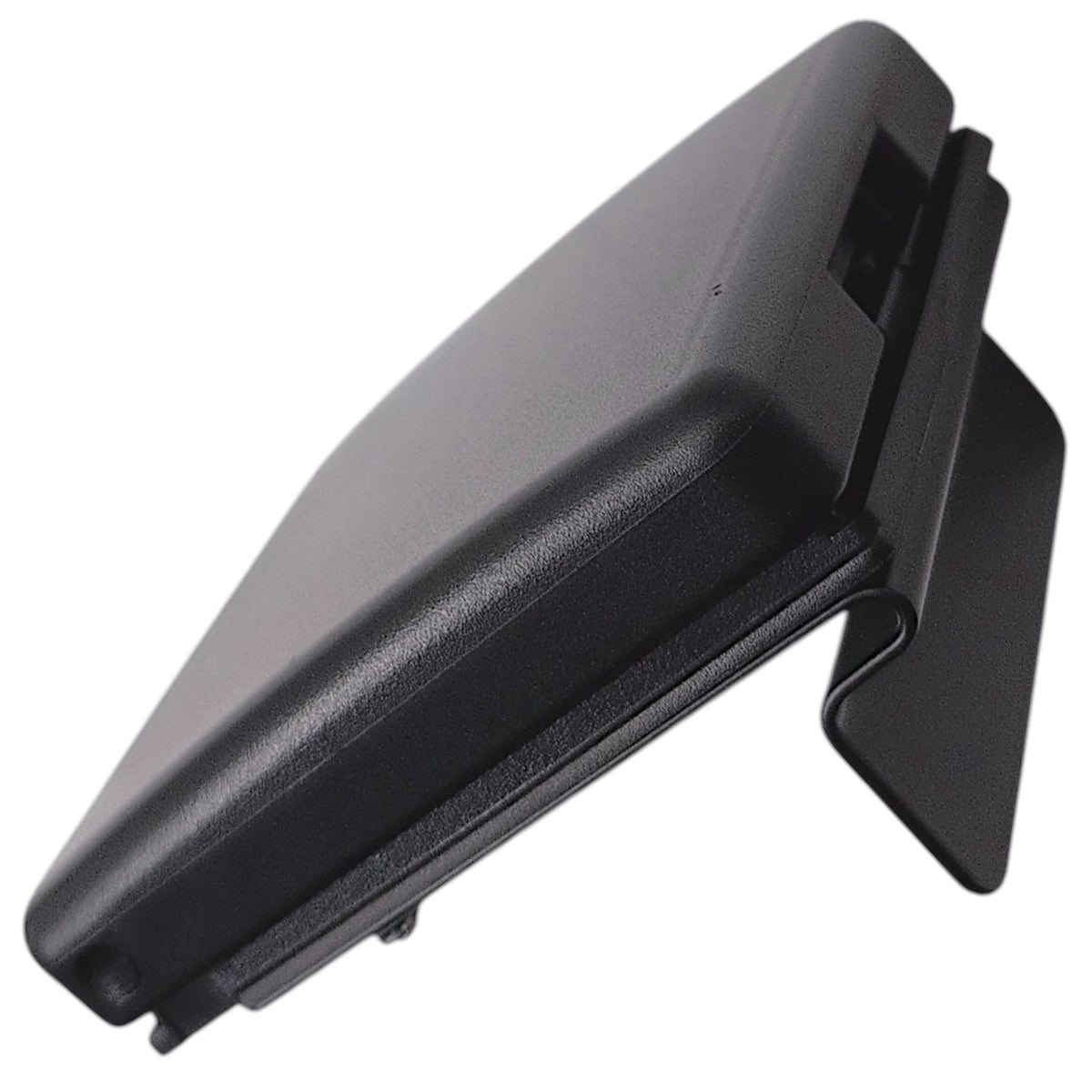

OEM Pride Mobility and Quantum Rehab B-Style Cup Holder Assembly (Part Number: ACCASMB2287). The B-Style Cup Holder mounts in between the armrest & the armrest trough/holder of compatible scooters and power wheelchairs. Folds flat when not in use. All necessary installation hardware is included.
Note Before Ordering:

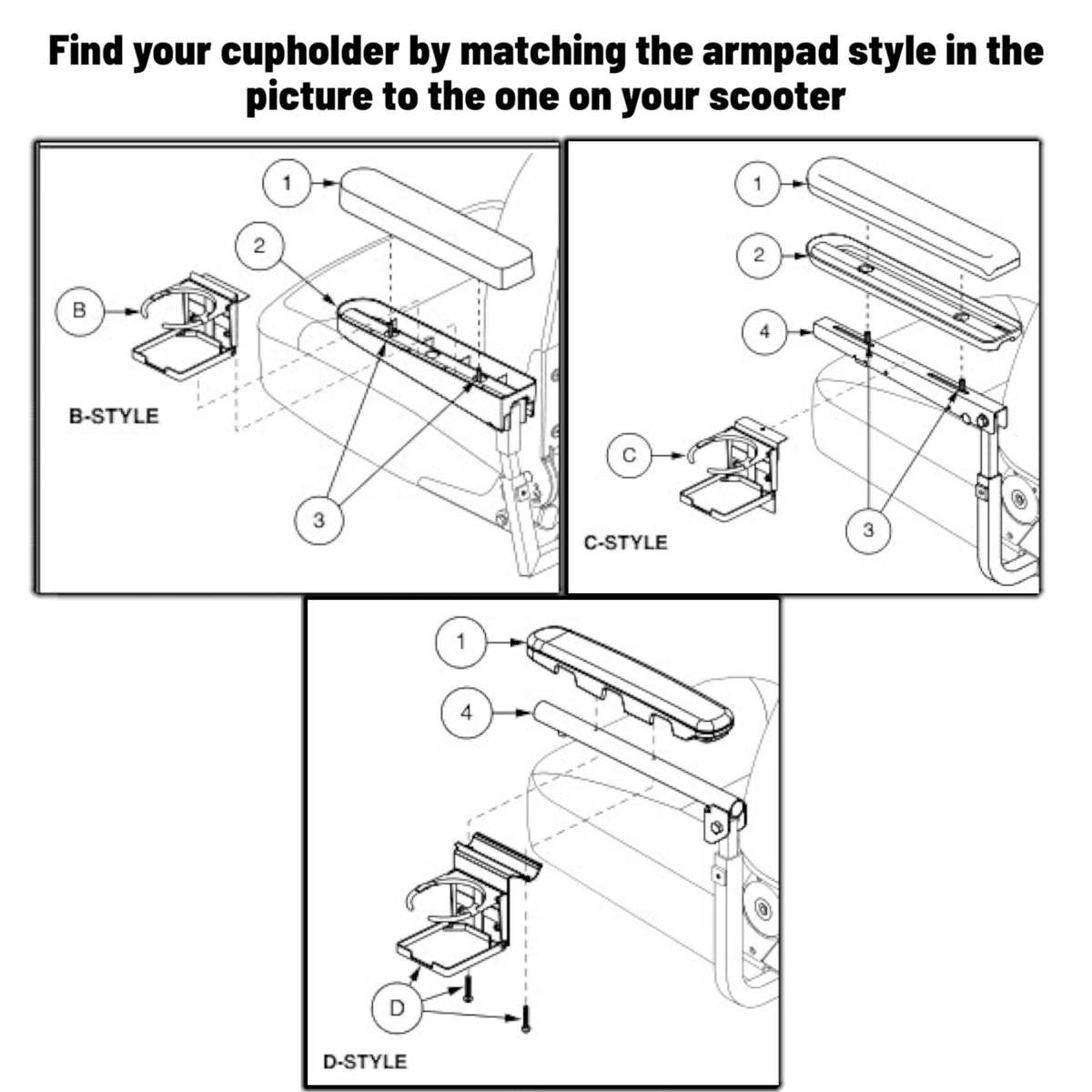

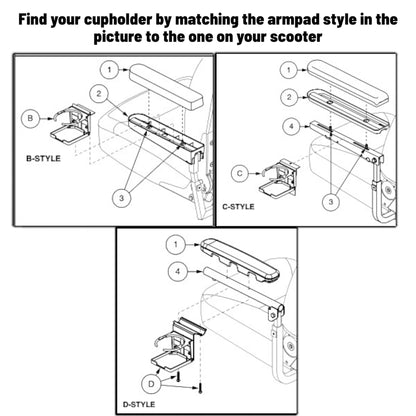

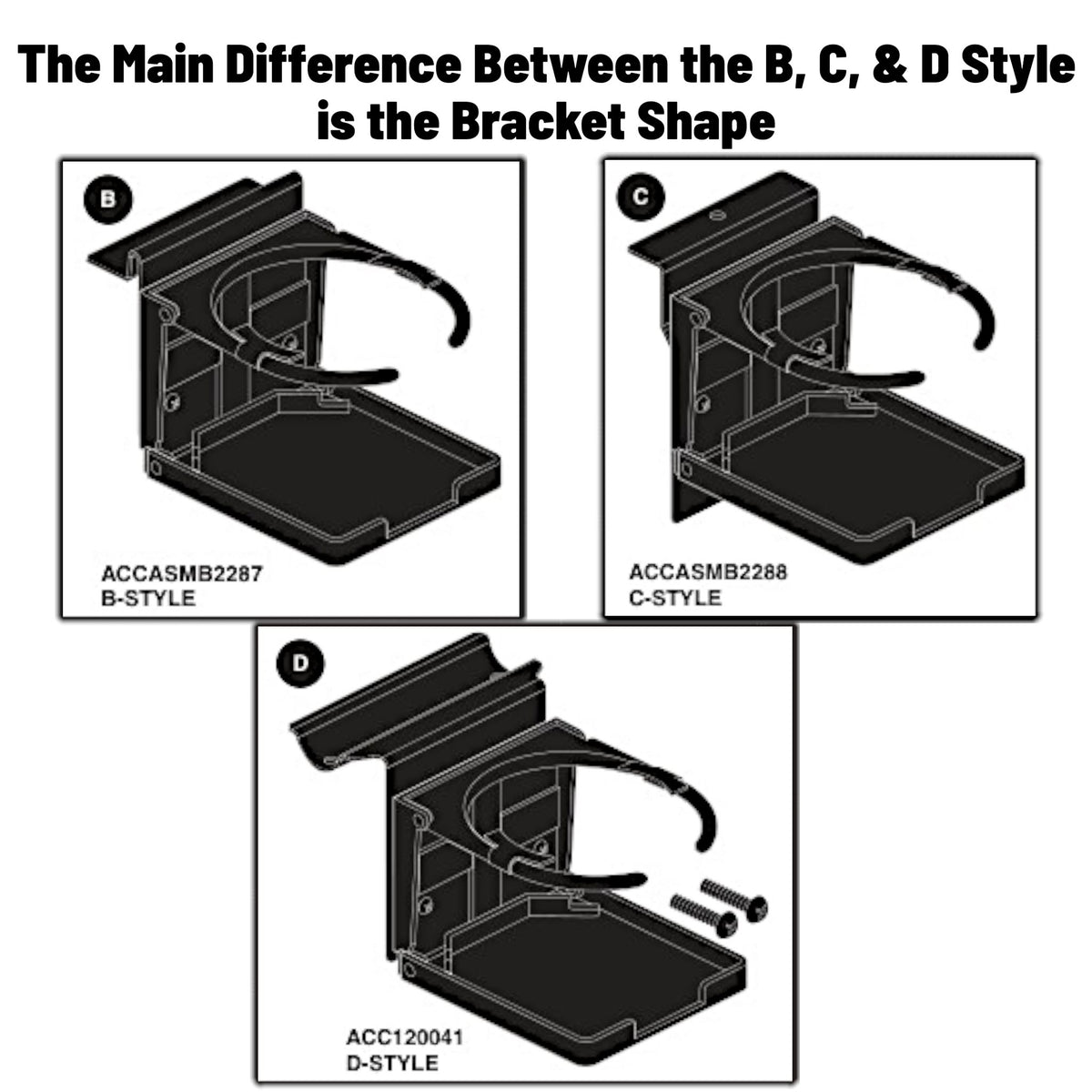

This is the B-Style cup holder. Pride Mobility manufactures three visually similar cup holder brackets that fit different armrest types: B-Style (ACCASMB2287), C-Style (ACCASMB2288), and D-Style (ACC120041). Please view all pictures, read the installation instructions & verify your exact model or seating system in the compatibility lists below prior to ordering.
Specifications:
- Manufacturer:
- Pride Mobility / Quantum Rehab
- Part Number:
- ACCASMB2287
- Product Type:
- Armrest Mounted Cup Holder

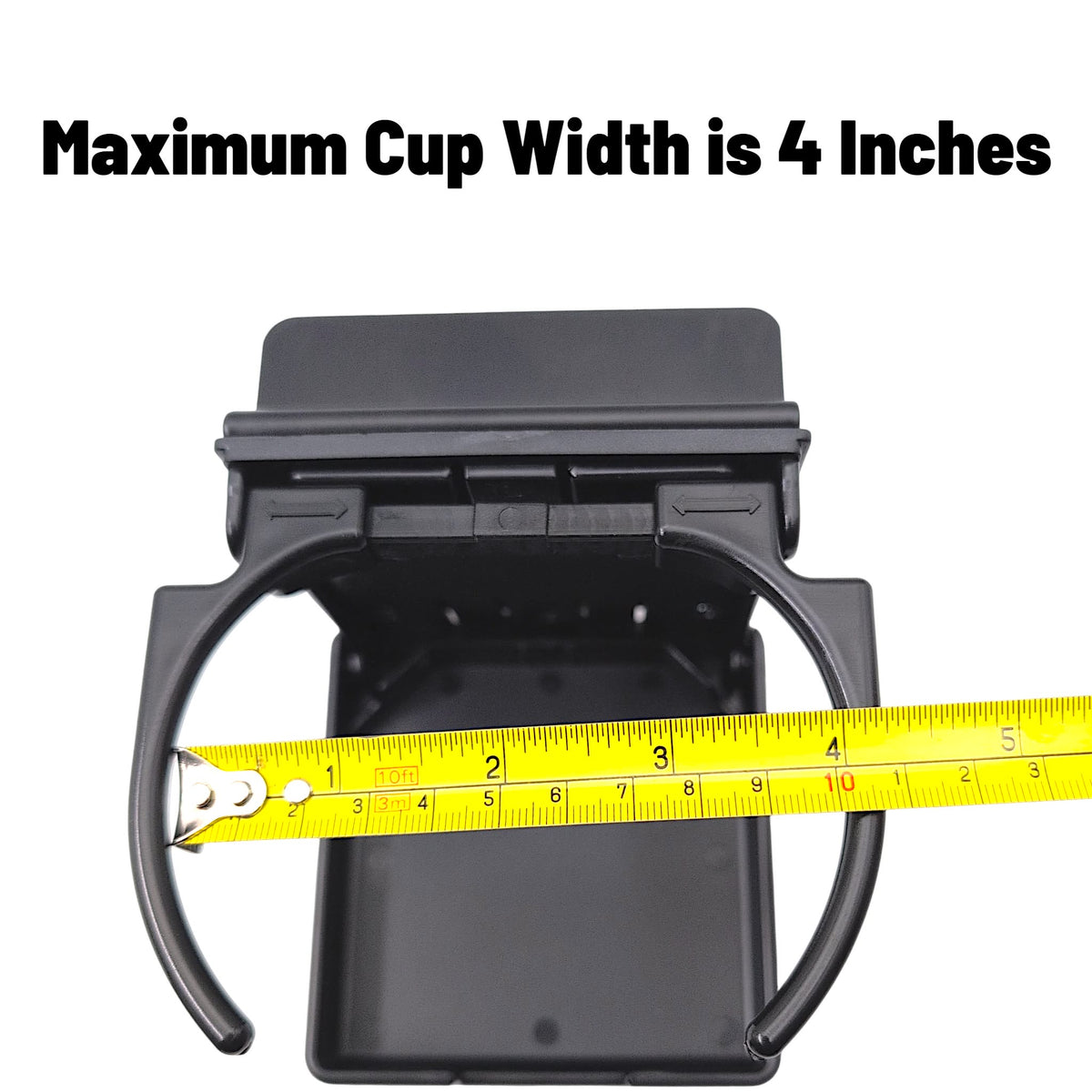

- Dimensions (Opened):
- 162 mm x 114 mm x 108 mm
- Dimensions (Collapsed):
- 105 mm x 105 mm x 74 mm
- Weight:
- 0.31 kg

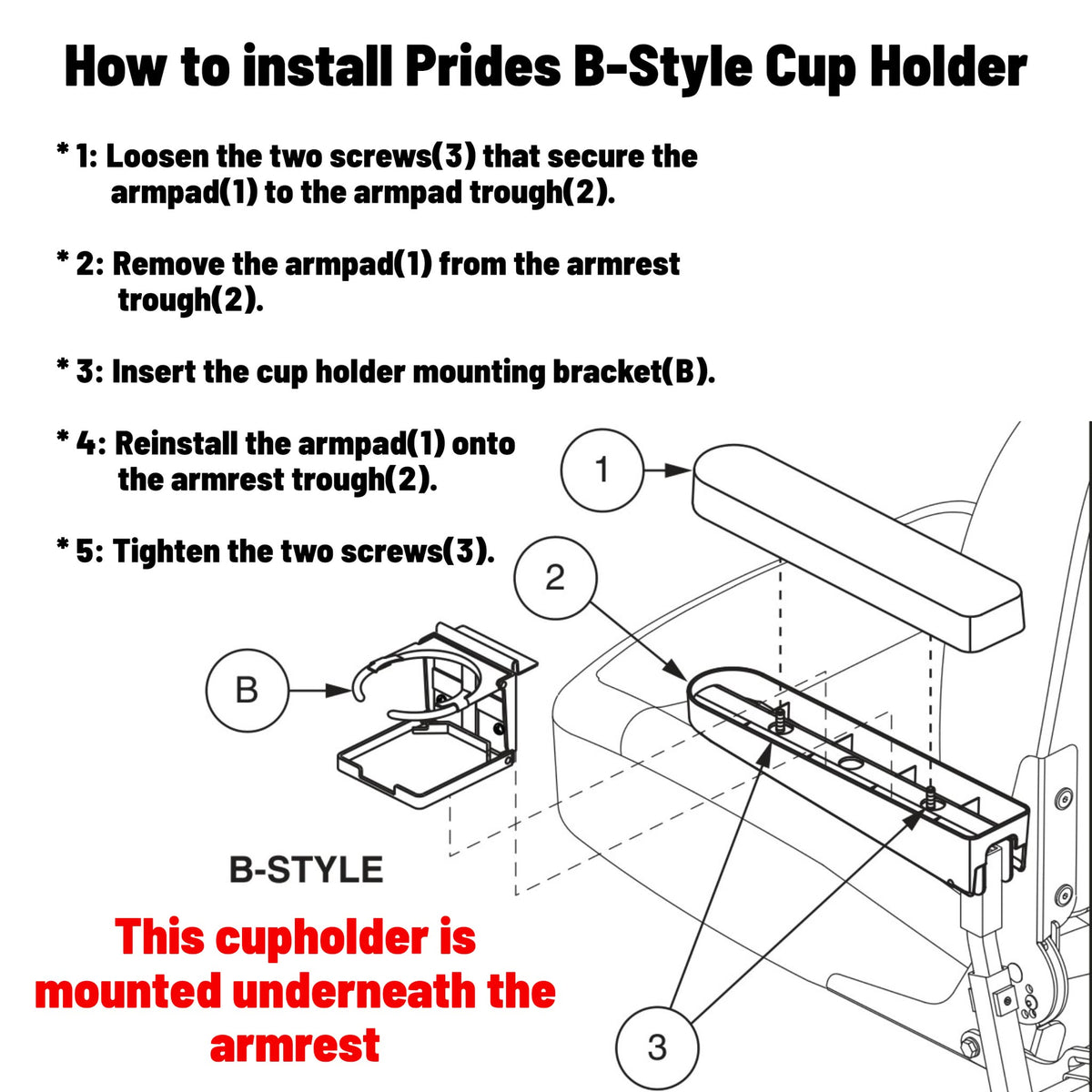

Installation Instructions

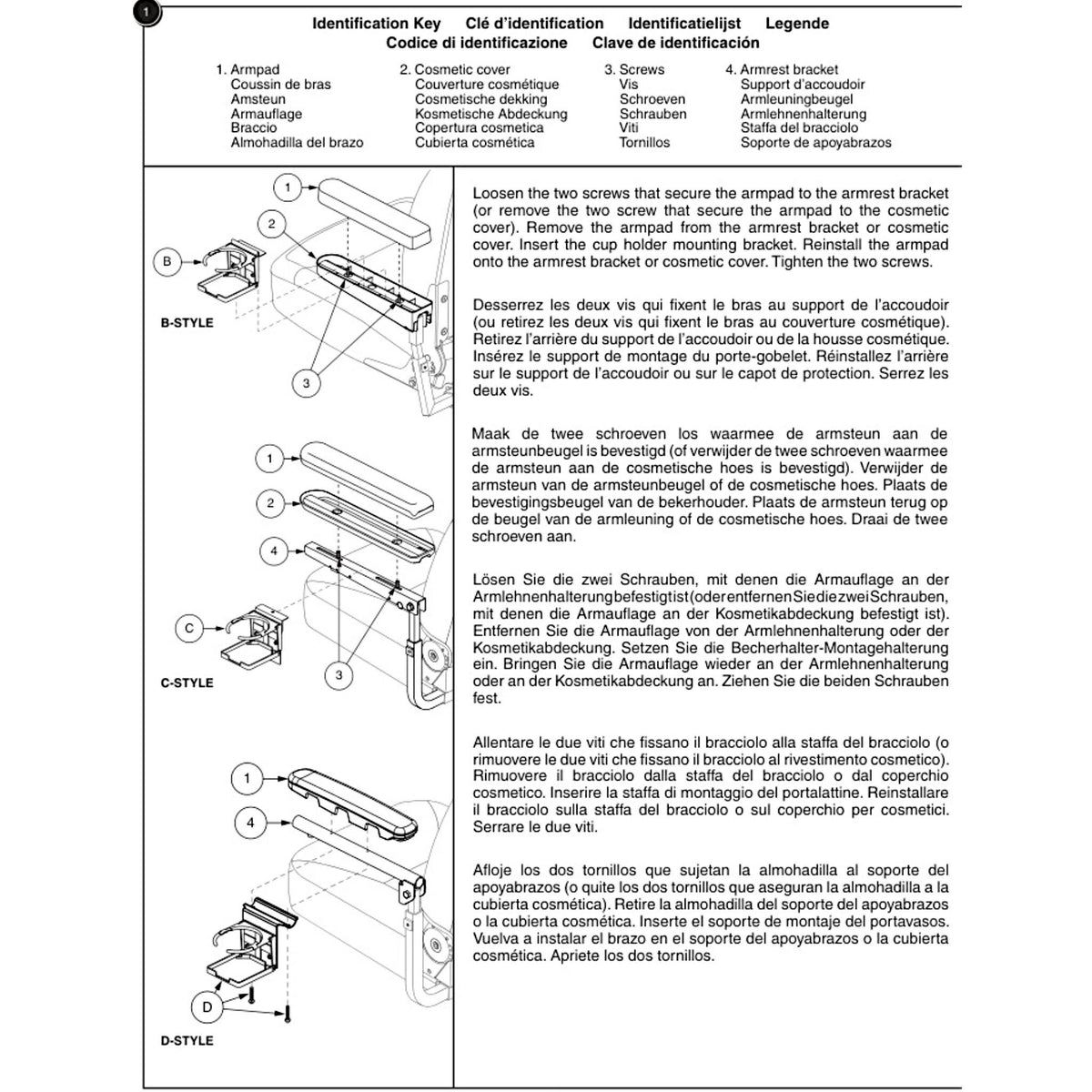

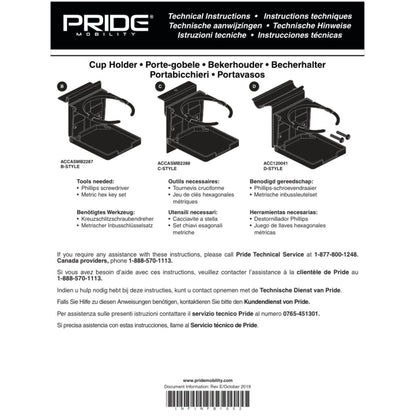

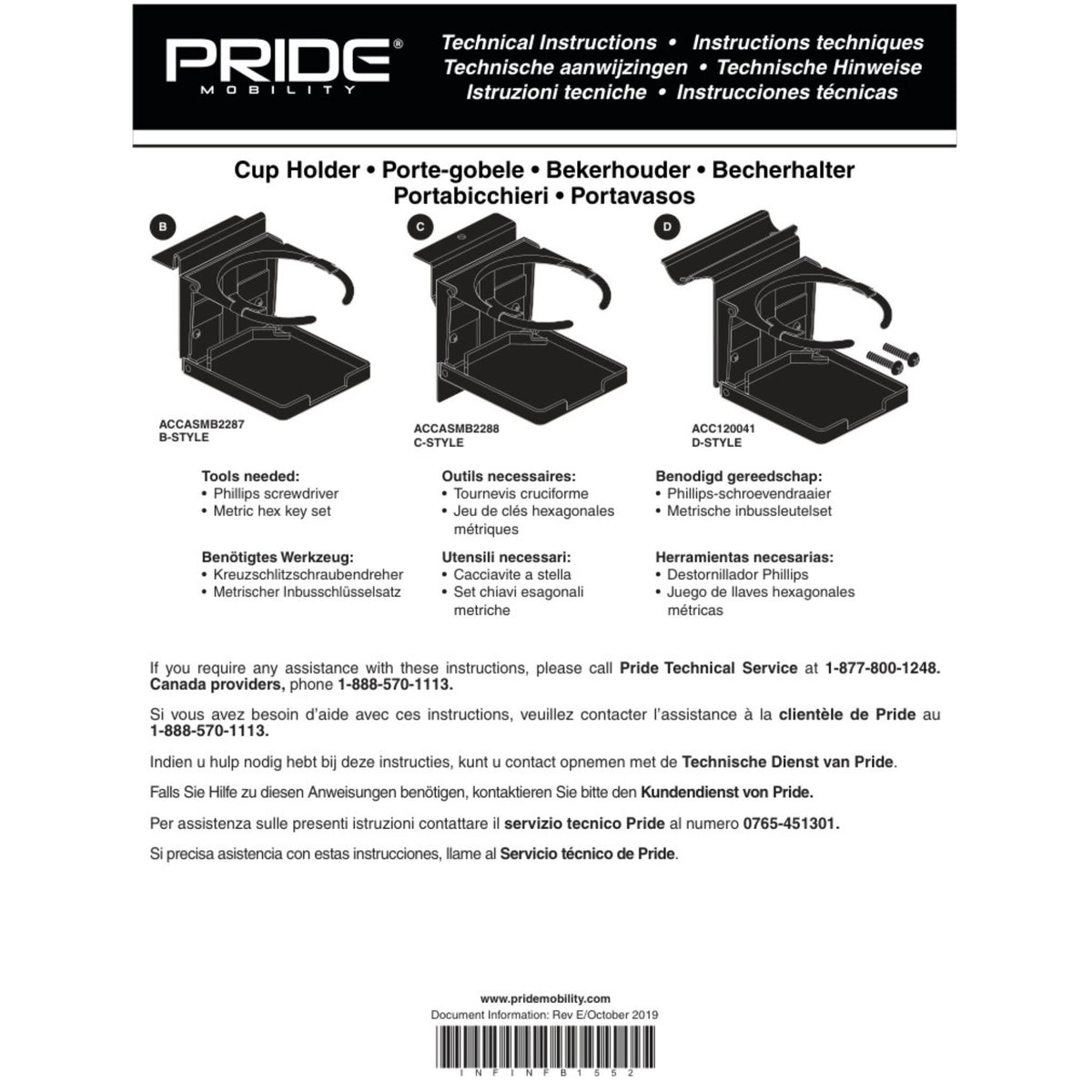

A PDF file of Pride Mobilitys installation instructions (INFINFB1552) can be found here.
Tools Needed: Phillips screwdriver or Metric hex key set
- Loosen the two screws (3) that secure the armpad (1) to the armpad trough (2).
- Remove the armpad (1) from the armrest trough (2).

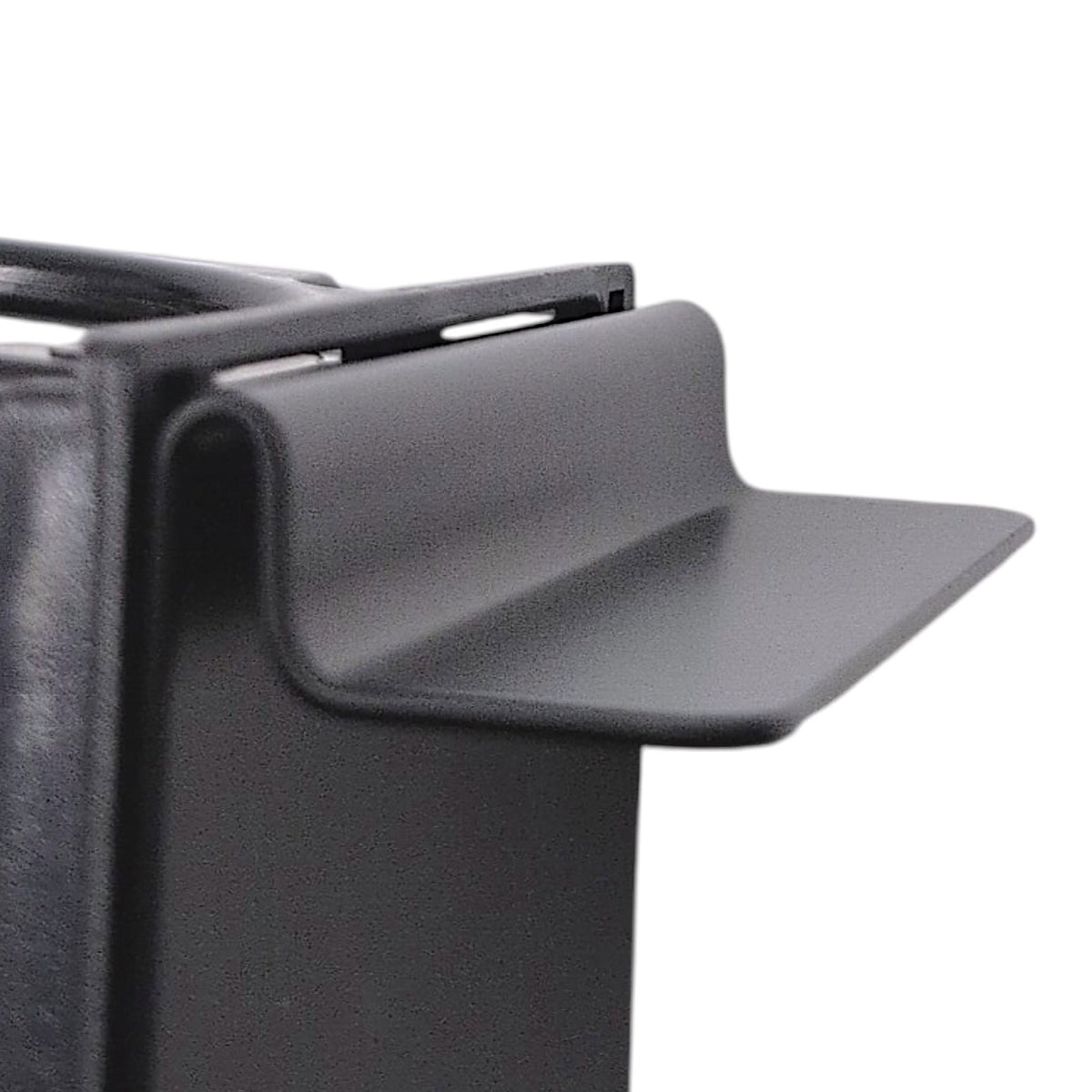

- Insert the cup holder mounting bracket (B).
- Reinstall the armpad (1) onto the armrest trough (2).
- Tighten the two screws (3).
Compatible Pride Mobility Scooters
- Maxima (3-Wheel & 4-Wheel)
- Victory 9 (3-Wheel & 4-Wheel)
- Victory 10 (3-Wheel & 4-Wheel)
- Victory 10.2 (3-Wheel & 4-Wheel)
- Victory LX Sport
Compatible Quantum Power Chairs
- 4Front Series: 4Front
- J Series: J6, J6 VA
- Q Series: Q4, Q500, Q600, Q600 E, Q600 Sport Series, Q600 XL, Q610, Q614, Q640
- Q Edge Series: Q6 Edge, Q6 Edge 2, Q6 Edge 2 X, Q6 Edge 3, Q6 Edge HD, Q6 Edge X, Q6 Edge Z
- Q1000 Series: Q1103 Ultra, Q1402, Q1450, Q1650
- Q6000 Series: Q6000, Q6000 XL, Q6000Z Series, Q6400, Q6400Z
- R Series: R4000, R4000 Athena, R4400
- Trek Series: Trek
Compatible Seating Systems
Works with the following seat configurations:
- Captain's and Contoured Seating
- Captain's Seat w/ Trough Style Armpads (Deluxe Contour, CRS, 22 Inch Wide, & Pillow Top Shuxin Seats)
