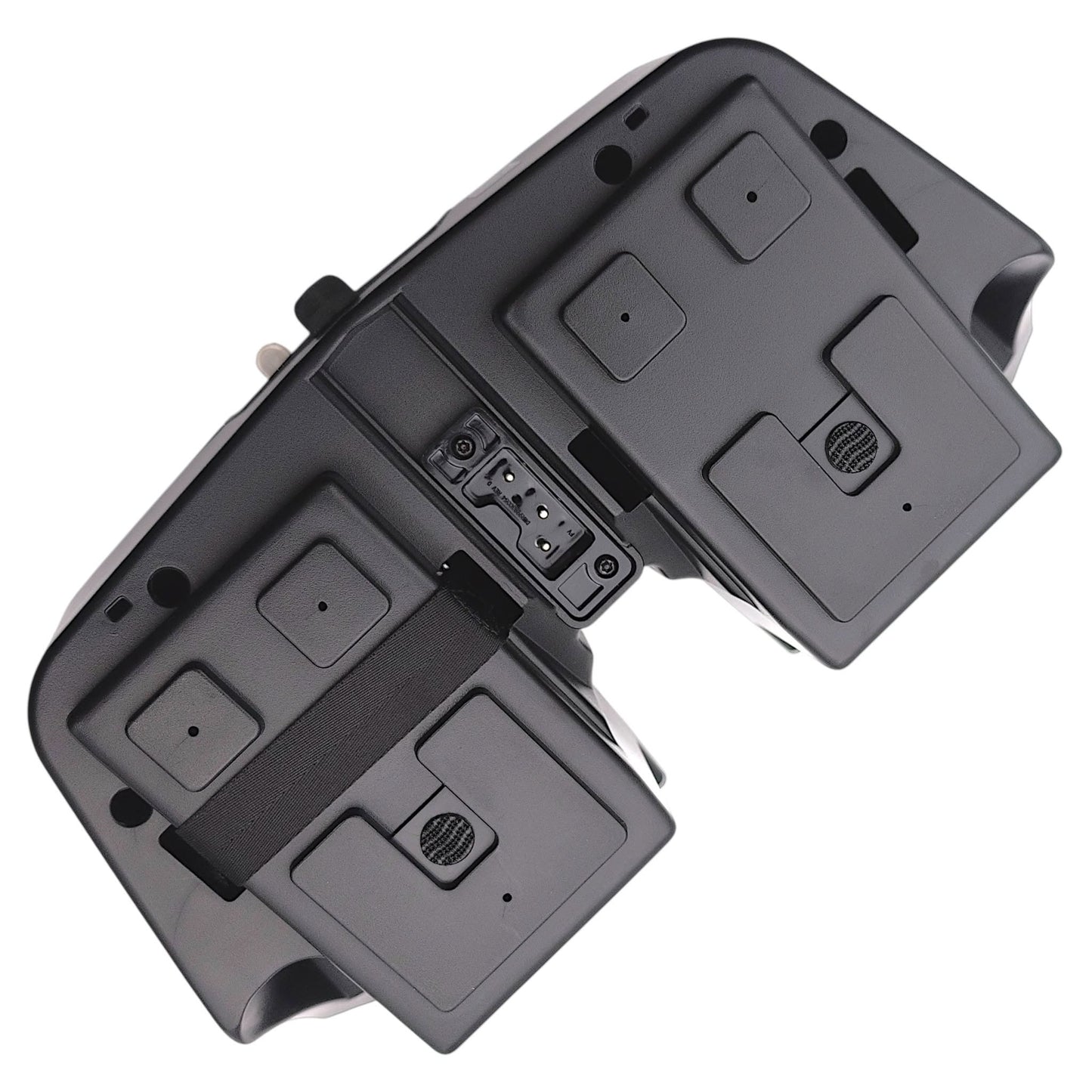

Pride Mobility Go-Go Endurance Li 8Ah Lithium Battery (BAT2005749)
Pride Mobility Go-Go Endurance Li 8Ah Lithium Battery (BAT2005749)
In stock
Couldn't load pickup availability
- 30 Day Return Policy
- Fulfillment: Usually ships in 1-2 business days
- This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects
Product Description

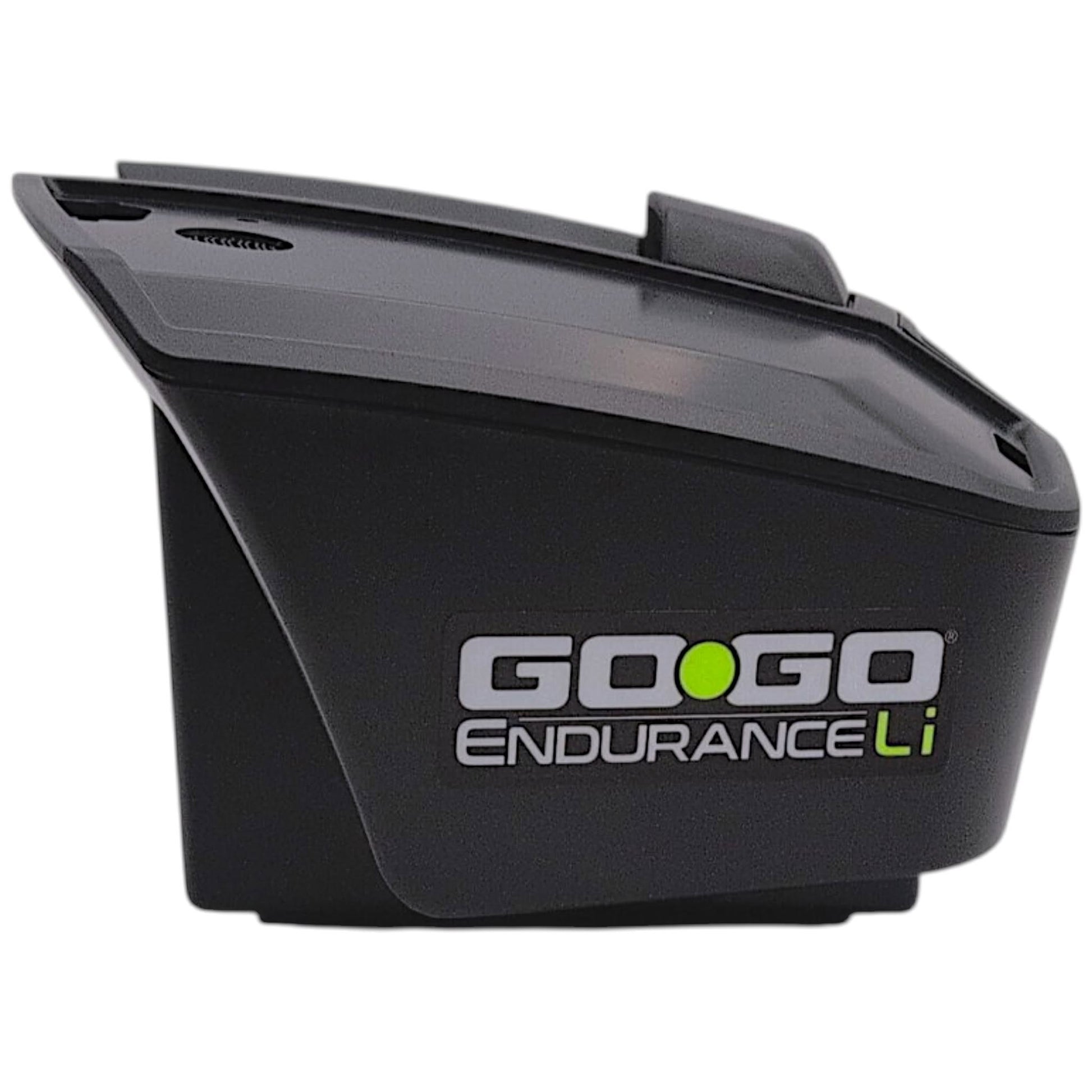

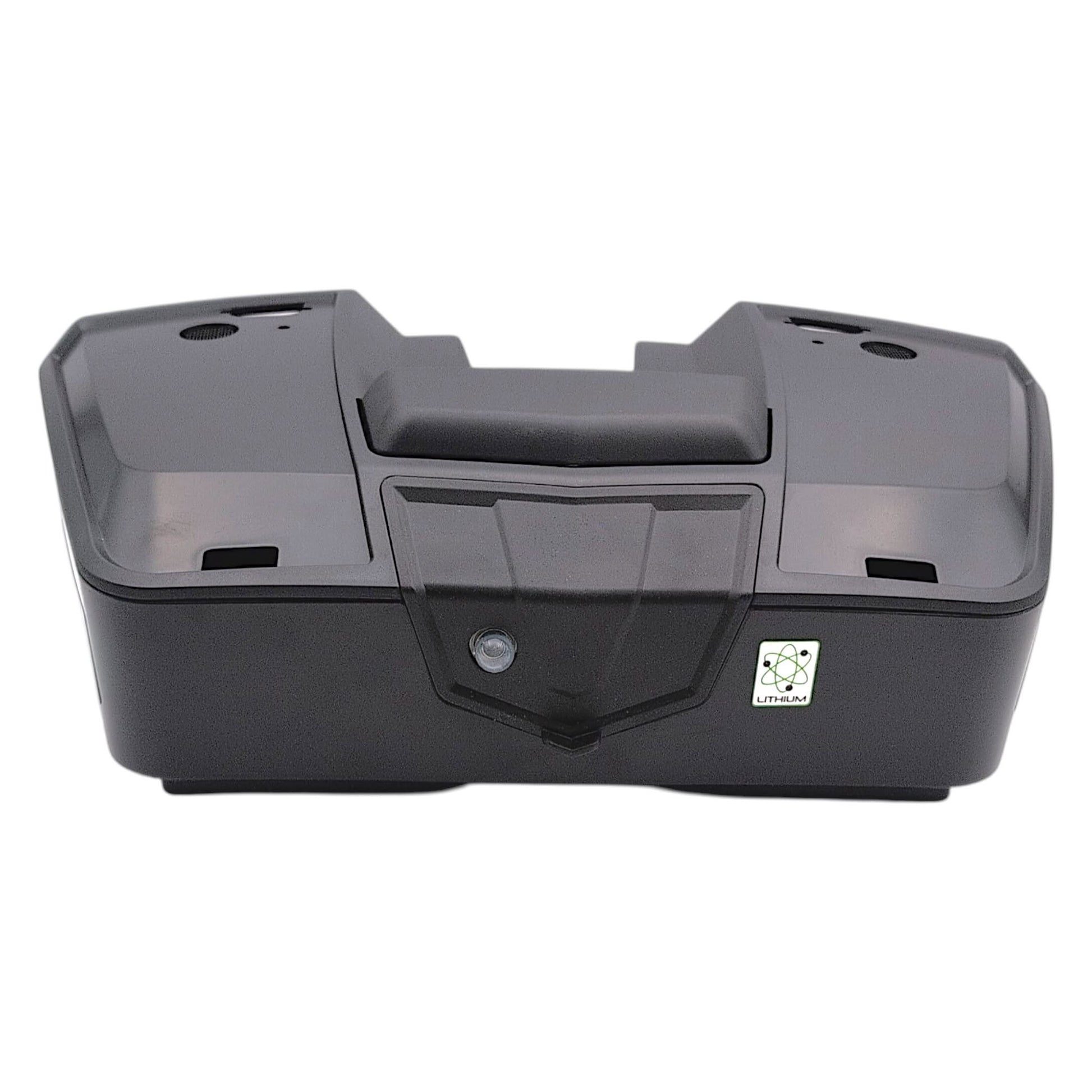

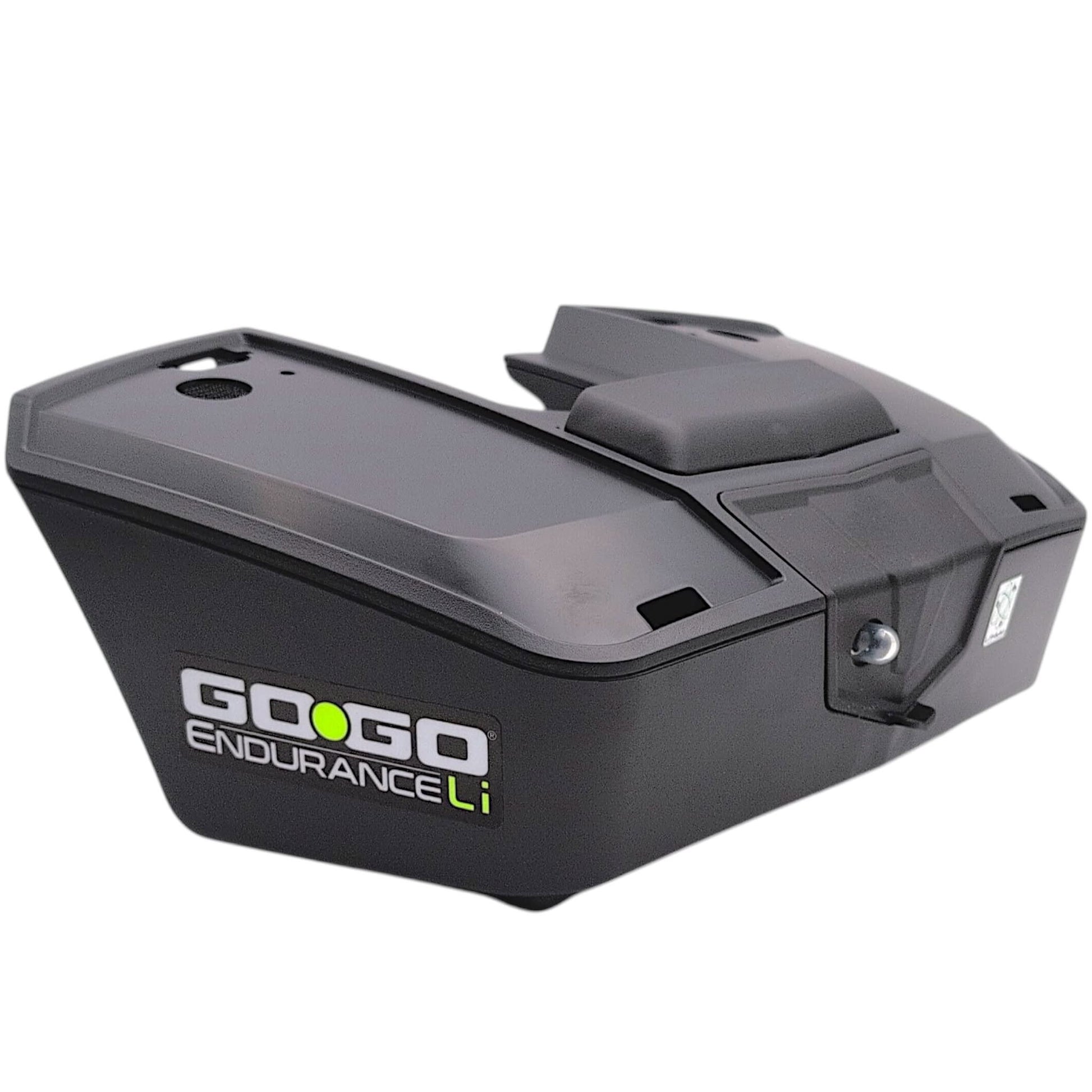

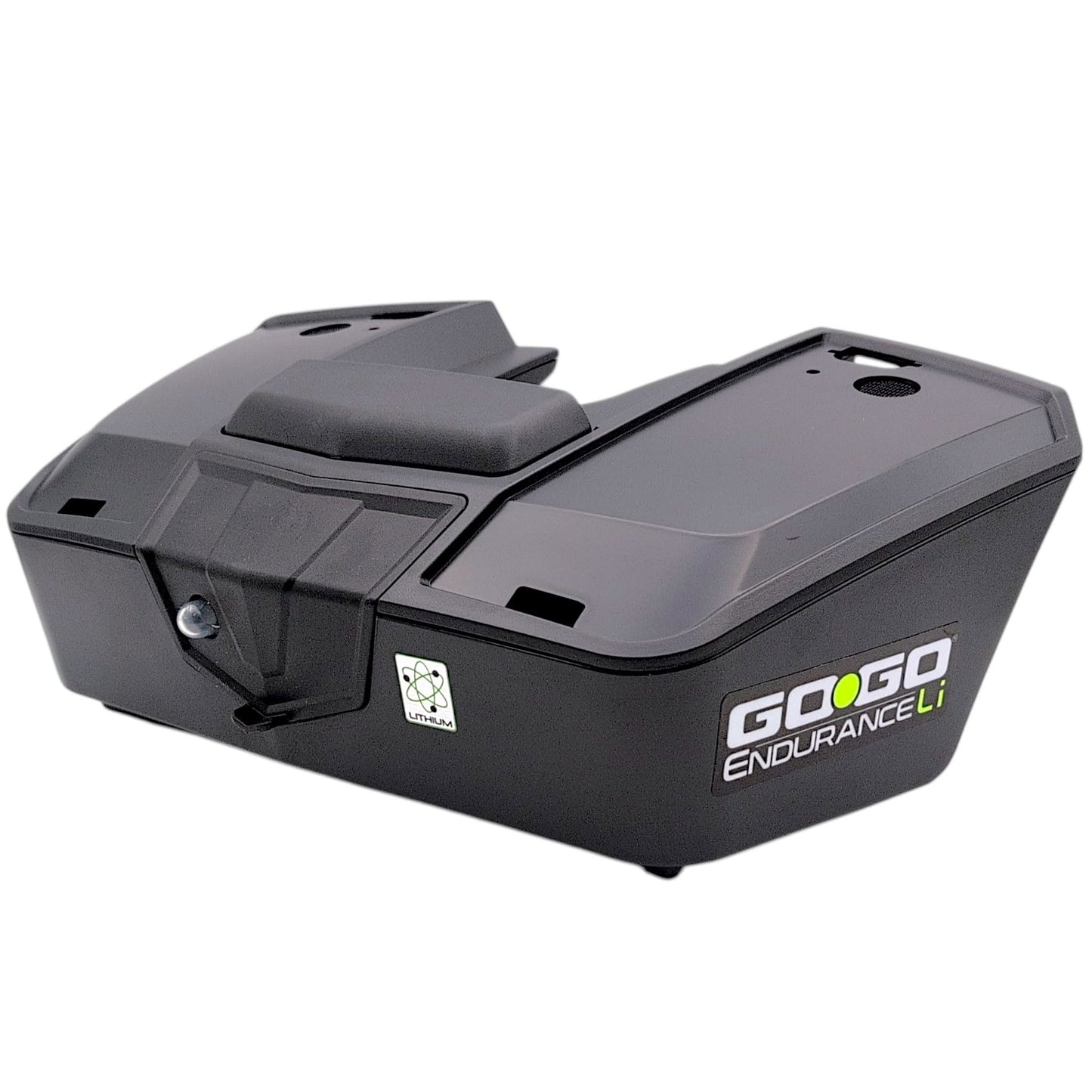

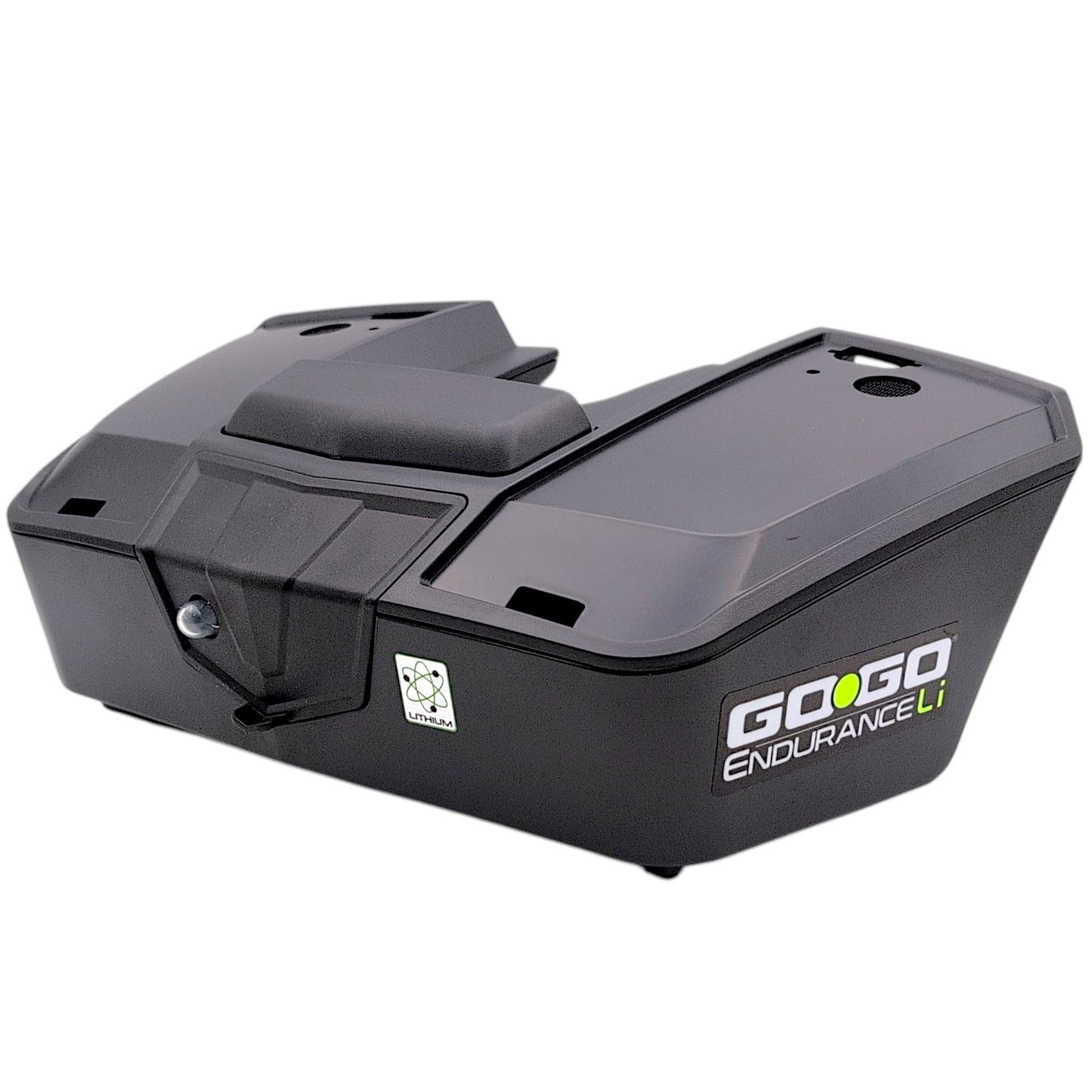

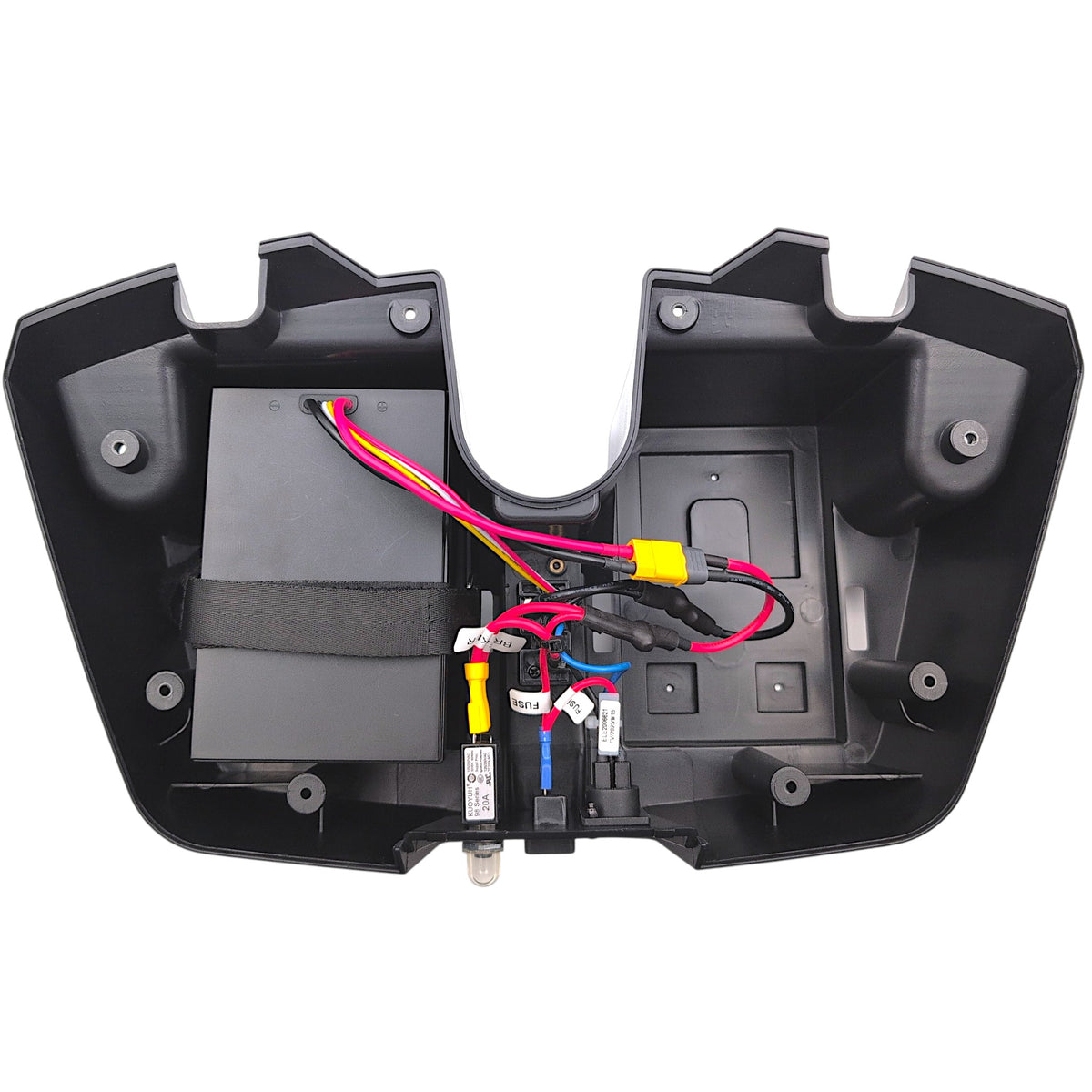

OEM Pride Mobility 8 Amp-hour (Ah) Standard Lithium Battery Box Assembly (Part Number: BAT2005749) for the Go-Go Endurance Li and Maxx Li mobility scooters (Fits Model Numbers: S50LXLIT & S54LXLIT). This battery pack meets ROHS and CE safety standards, and is UN38.3 certified for Air Travel.
Upgrade Option Available: We also carry the high-capacity 16Ah Maxx Li Battery Pack (BAT2005745) for extended range.
Please Note: This battery pack does not include the Garnet Red or Gray shroud inserts. You will need to reuse your original inserts or purchase a new shroud kit separately (Garnet Red: DGN2008481 / Gray: DGN2007610).

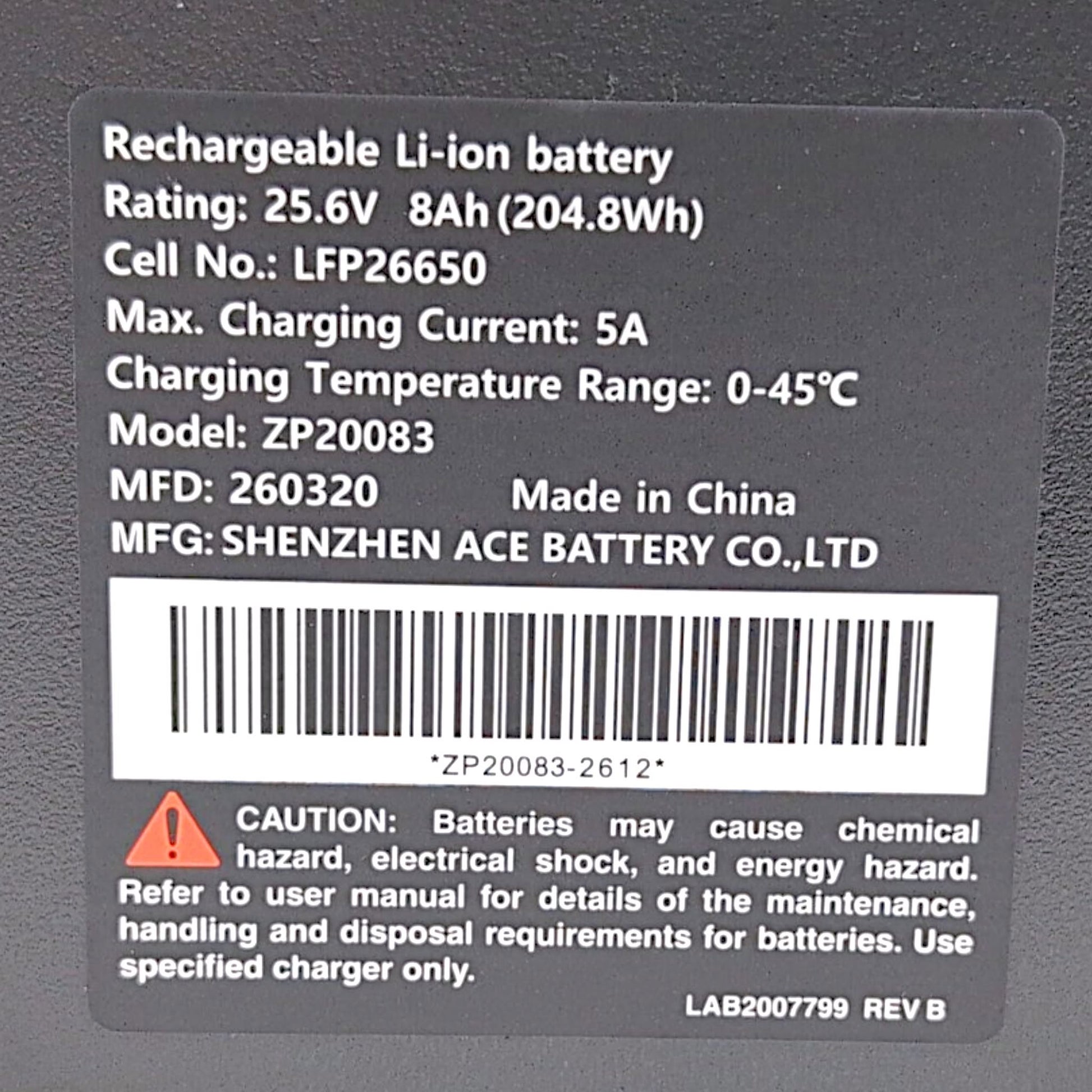

Specifications:
- Manufacturer:
- Pride Mobility
- Part Number:
- BAT2005749

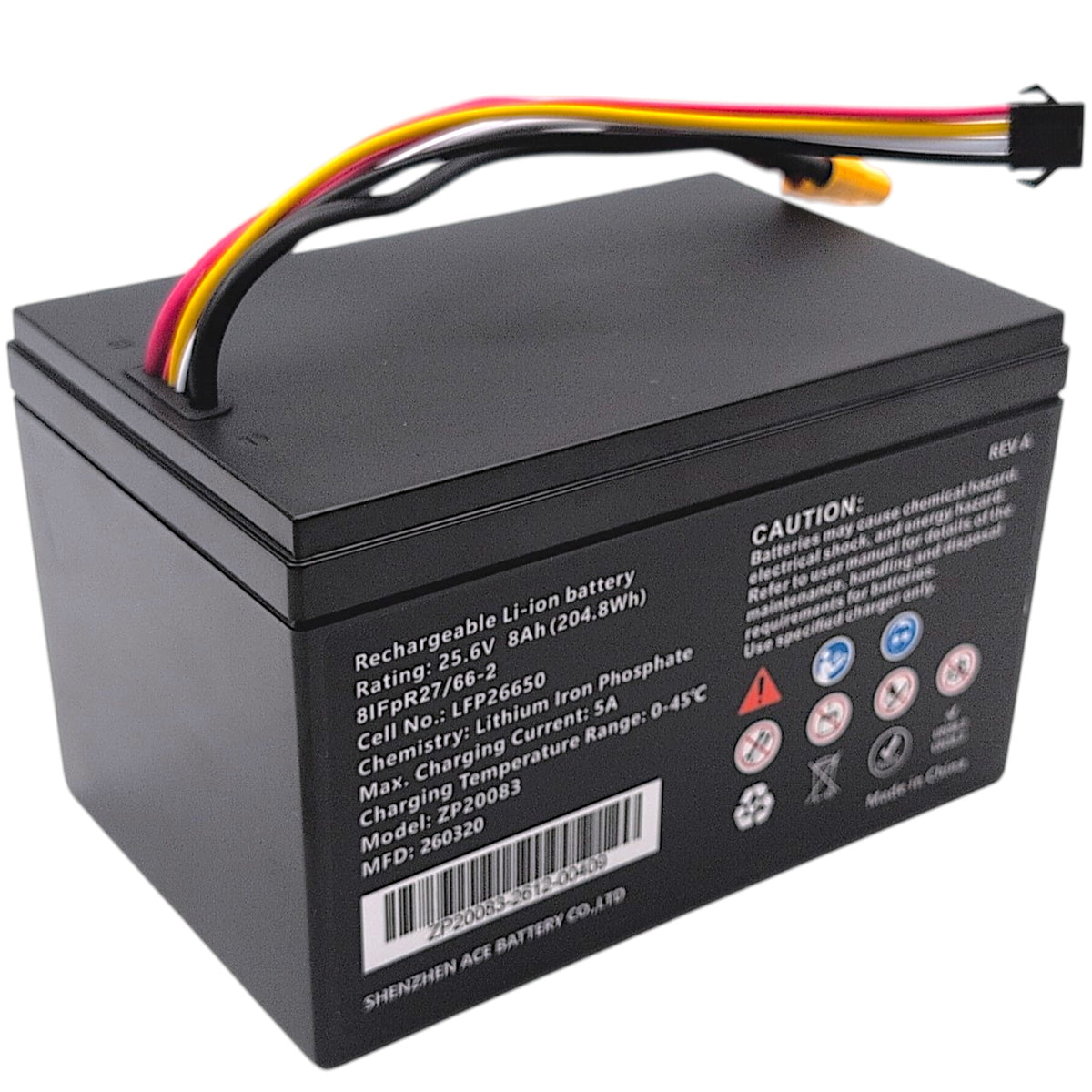

- OEM Manufacturer of the internal Lithium Battery:
- Shenzen Ace Battery Co.,Limited
- Battery Chemistry:
- Lithium-Ion (Li-Ion)
- Battery Model:
- ZP20083
- Cell Number:
- LFP26650

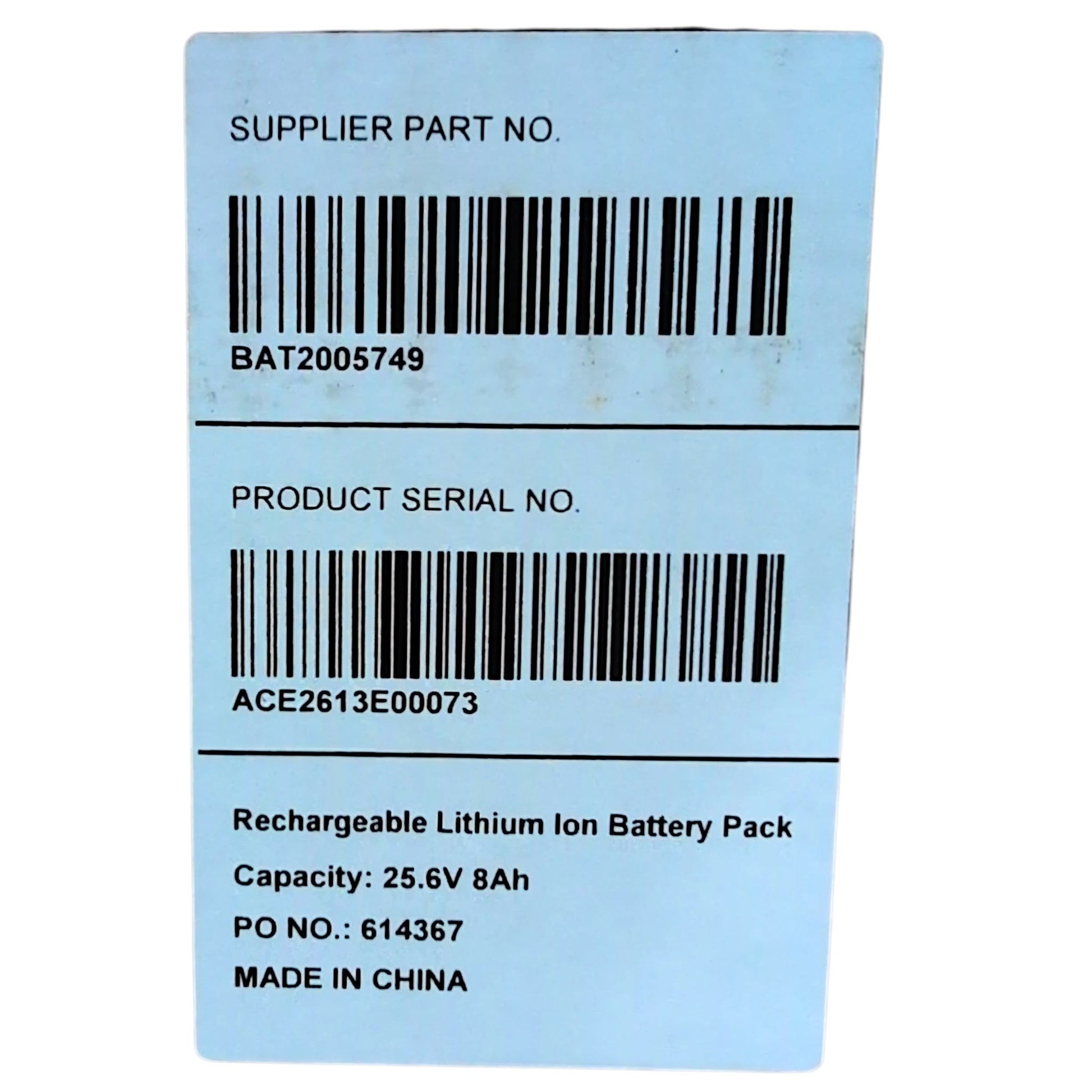

- Voltage & Capacity:
- 25.6V, 8Ah (204.8Wh)
- Maximum Charging Current:
- 5A
- Charging Temp Range:
- 0-45°C
- Product Type:
- Battery Box Assembly

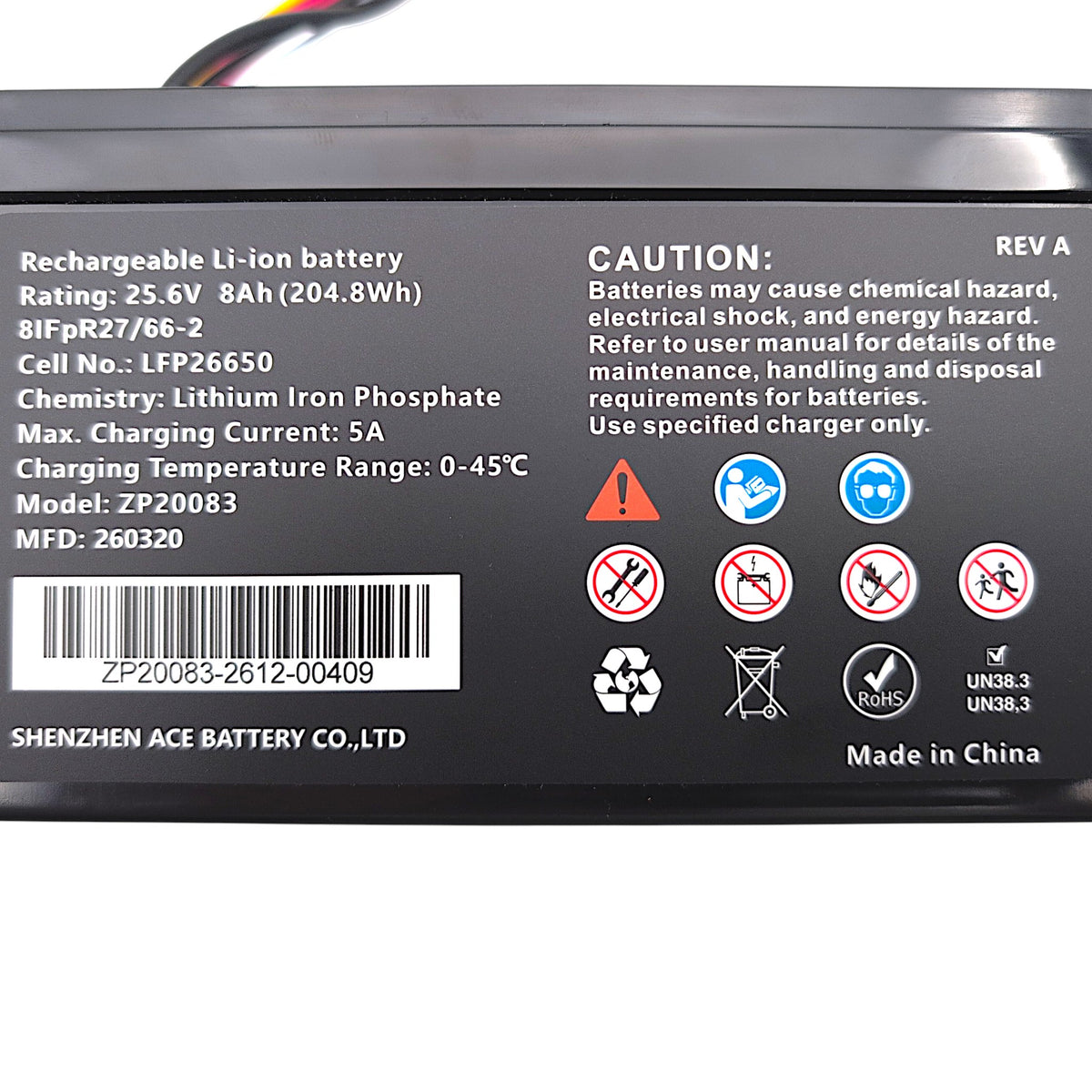

- IEC Battery Designation Code & Breakdown: 8IFpR27/66-2
- 8: Eight cells connected end-to-end to create a 25.6-volt battery pack.
- I: Lithium-ion core technology.
- F: Iron Phosphate (LiFePO4) chemistry. For improved safety and a long lifespan.
- p & R: Cylindrical shape, meaning it uses round, tube-styled internal cells inside the battery box.
- 27/66: Battery cell dimensions, measuring roughly 27mm wide by 66mm tall.
- -2: The manufacturer's design revision or internal build variant.

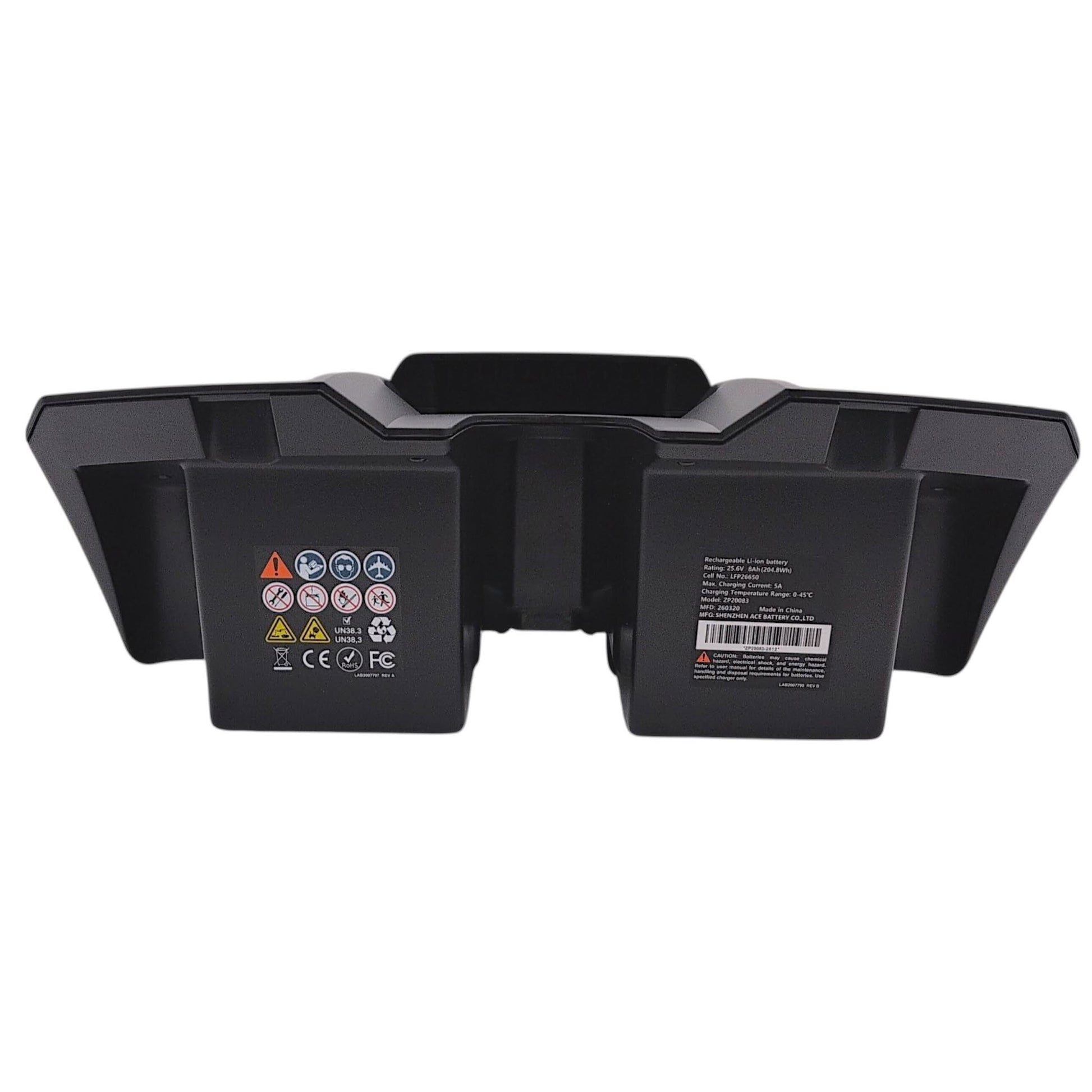

Battery Certifications:
- UN38.3 Certified:
- Ensures the lithium battery has passed rigorous environmental, mechanical, and electrical testing standards required for the safe transportation of lithium batteries, including clearance for air travel.
- RoHS Compliant:
- Indicates the product restricts the use of specific hazardous materials (such as lead, mercury, and cadmium) commonly found in electrical and electronic products, promoting environmental and user safety.
- CE Certified:
- Indicates conformity with health, safety, and environmental protection standards required for products sold within the European Economic Area (EEA).
- FCC Certified:
- Verifies that the electromagnetic interference generated by the device is within limits approved by the Federal Communications Commission, ensuring safe operation without disrupting other electronics.

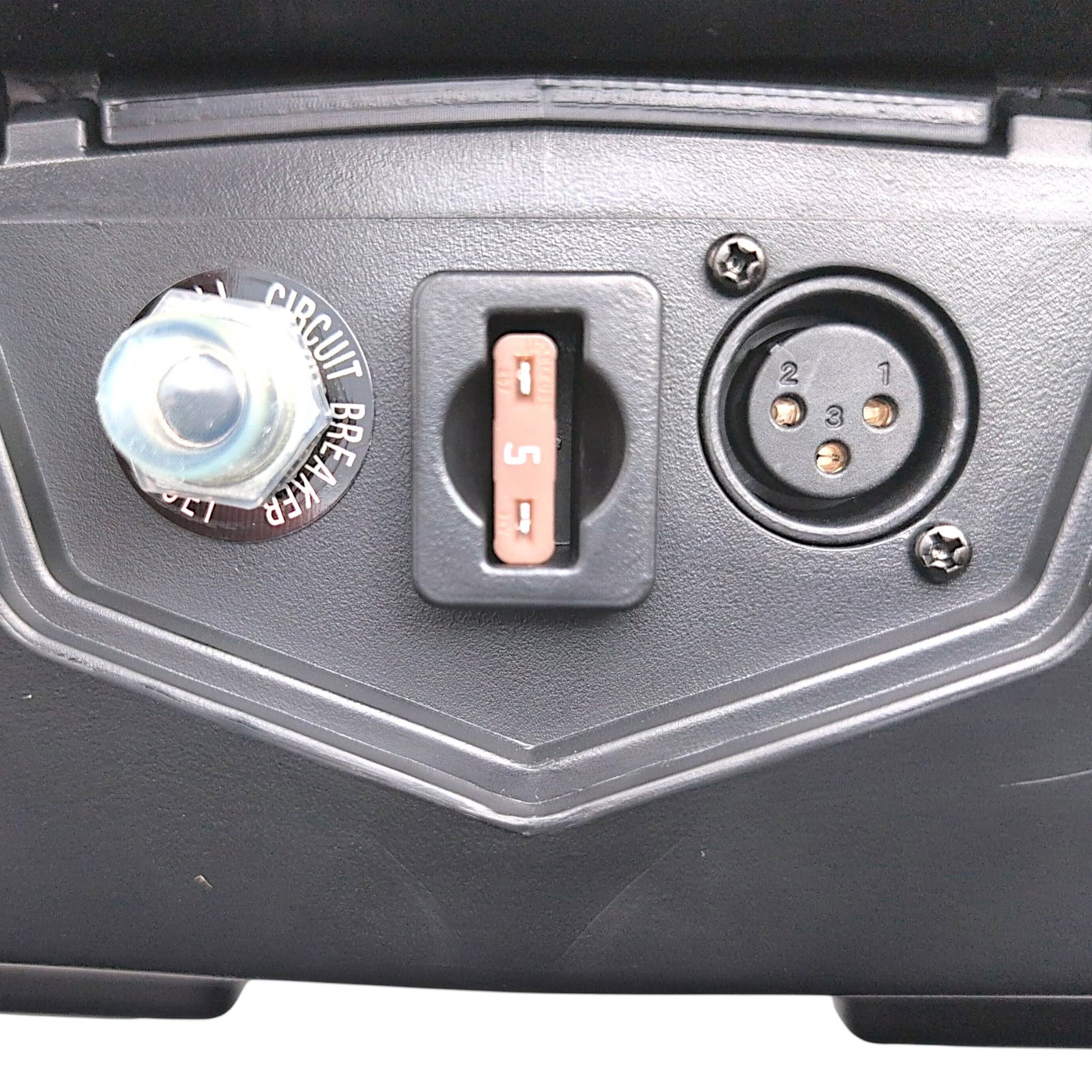

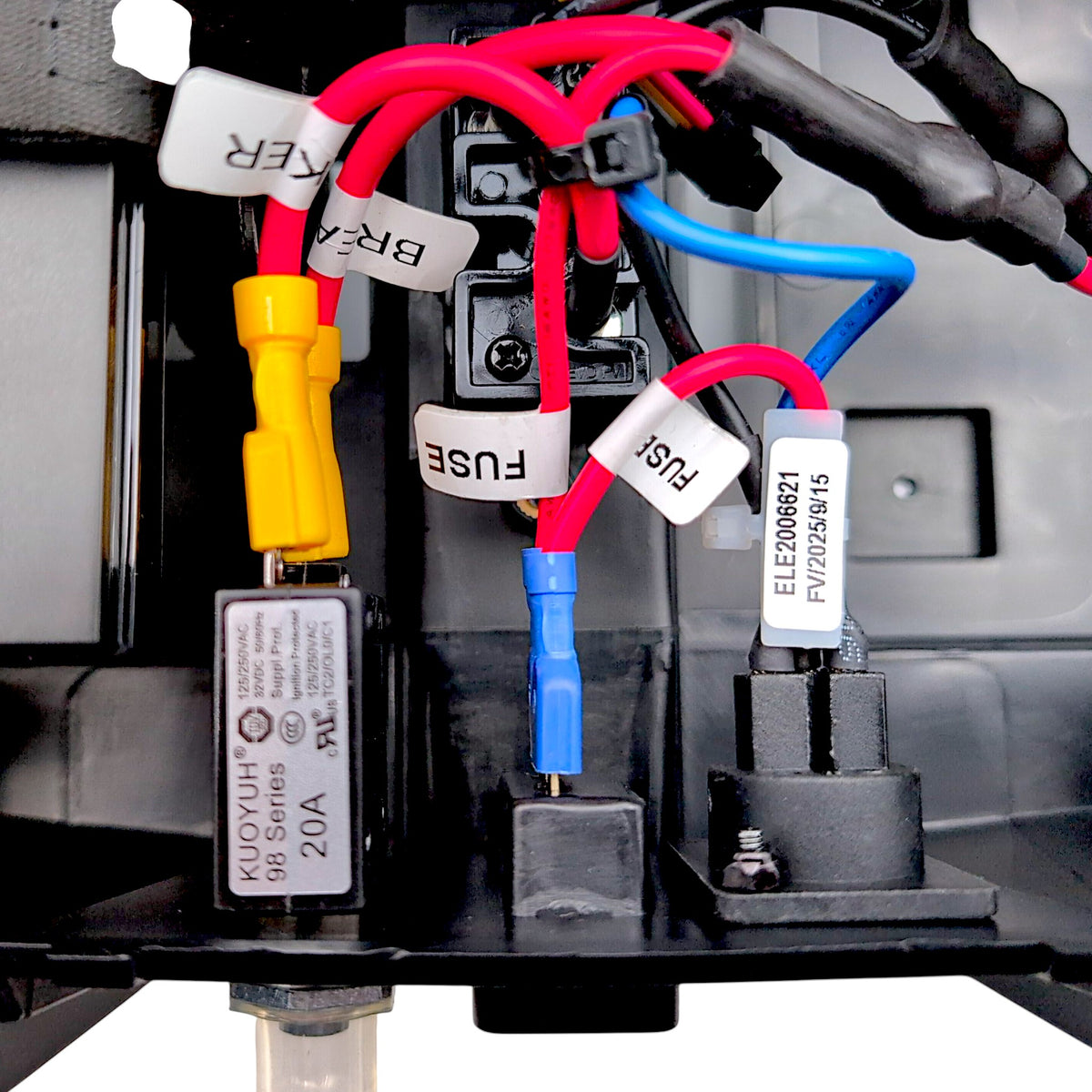

Replacement Part Information:
- 5 Amp Fuse Part Number:
- ELEFUSE1013 (Littlefuse: 257005)
- XLR Port With Harness Part Number:
- ELE2006621 (Pride currently does not offer a replacement for this)
- 20 Amp Circuit Breaker Part Number:
- ELECBRK1026 (Kuoyuh 98 Series)
Compatible Mobility Scooters
- S50LXLIT: Go-Go Endurance Li & Maxx Li (3-Wheel)
- S54LXLIT: Go-Go Endurance Li & Maxx Li (4-Wheel)
