Pride Mobility Sleeve Bearing 15mm x 35mm x 11mm BRGSLV1030

Product Description

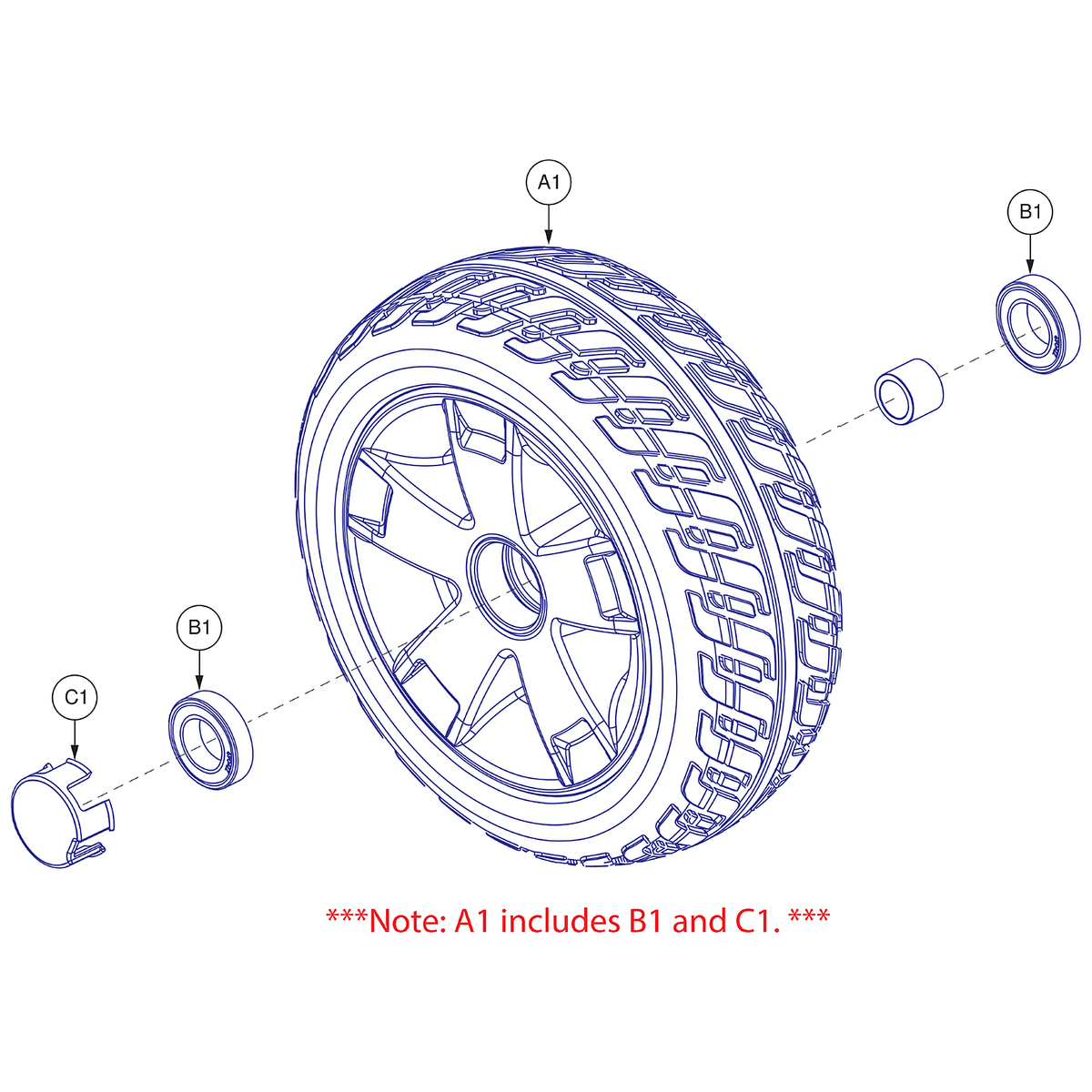

Genuine OEM Pride Mobility replacement sleeve bearing, 15 mm inner diameter by 35 mm outer diameter by 11 mm thick (Peer Bearing 6202-2RS) (Part Number: BRGSLV1030). The Pride parts diagram for the front 4-wheel assembly of the VA Victory 10 (models ending in 1001 and 1002) labels this bearing as item B1, along with the front wheel assembly with PU foam, black tire and silver rim (WHLASMB1778, A1) and the silver wheel cap (DWR1203B002A, C1). It is listed in the Pride service manuals for the Celebrity, Hurricane, Victory 10, Victory Platinum and Victory Sport scooters (see the full lists below).

Description From The Pride Mobility Service Manual: bearing, sleeve, 15MM ID x 35MM OD x 11MM thk, (peer bearing: 6202-2RS), C1005-046.

Specifications:

Manufacturer:

Pride Mobility

Part Number:

BRGSLV1030

Product Type:

Bearing

Inner Diameter:

15 mm

Outer Diameter:

35 mm

Thickness:

11 mm

Peer Bearing:

6202-2RS

Pride Parts Diagram Position:

B1
