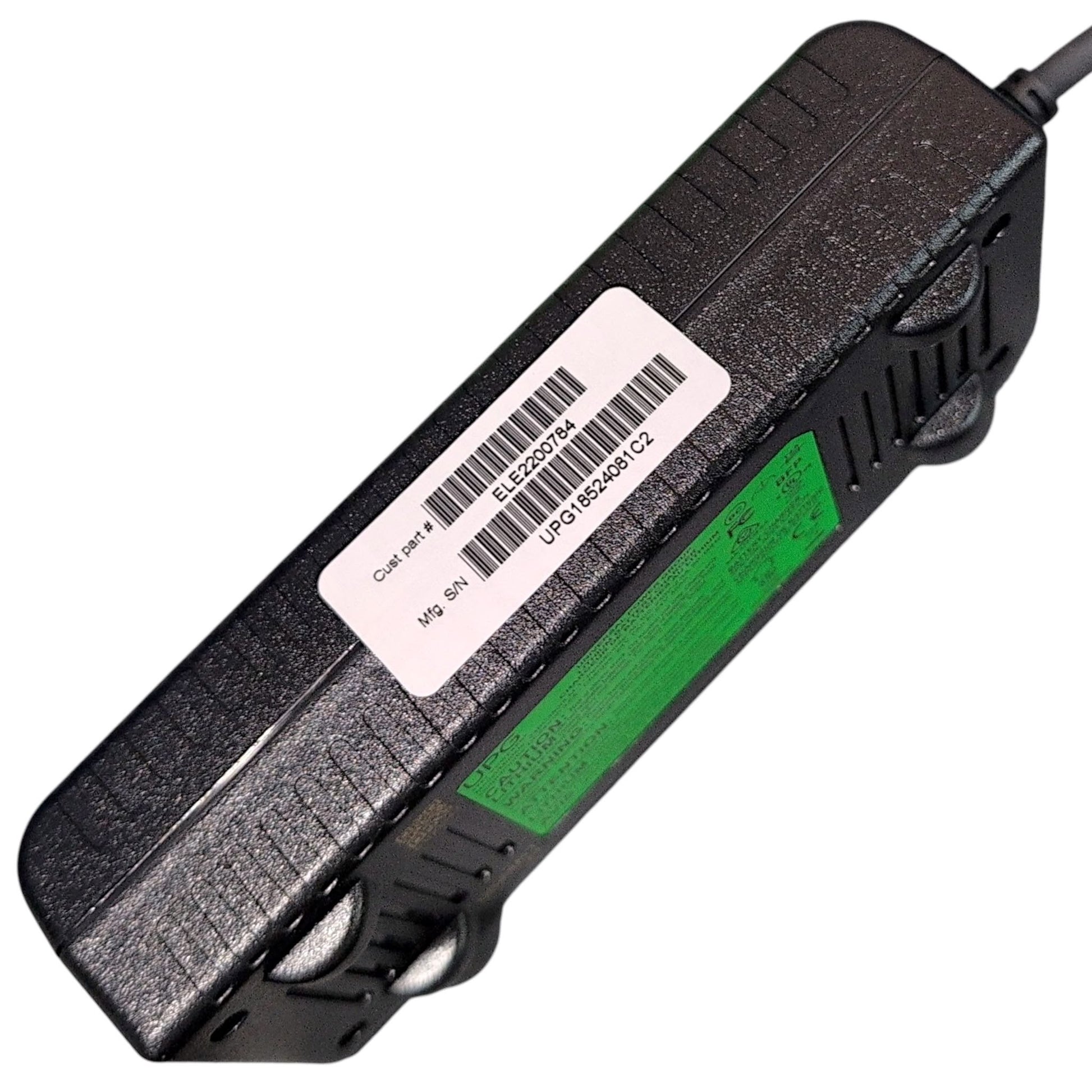

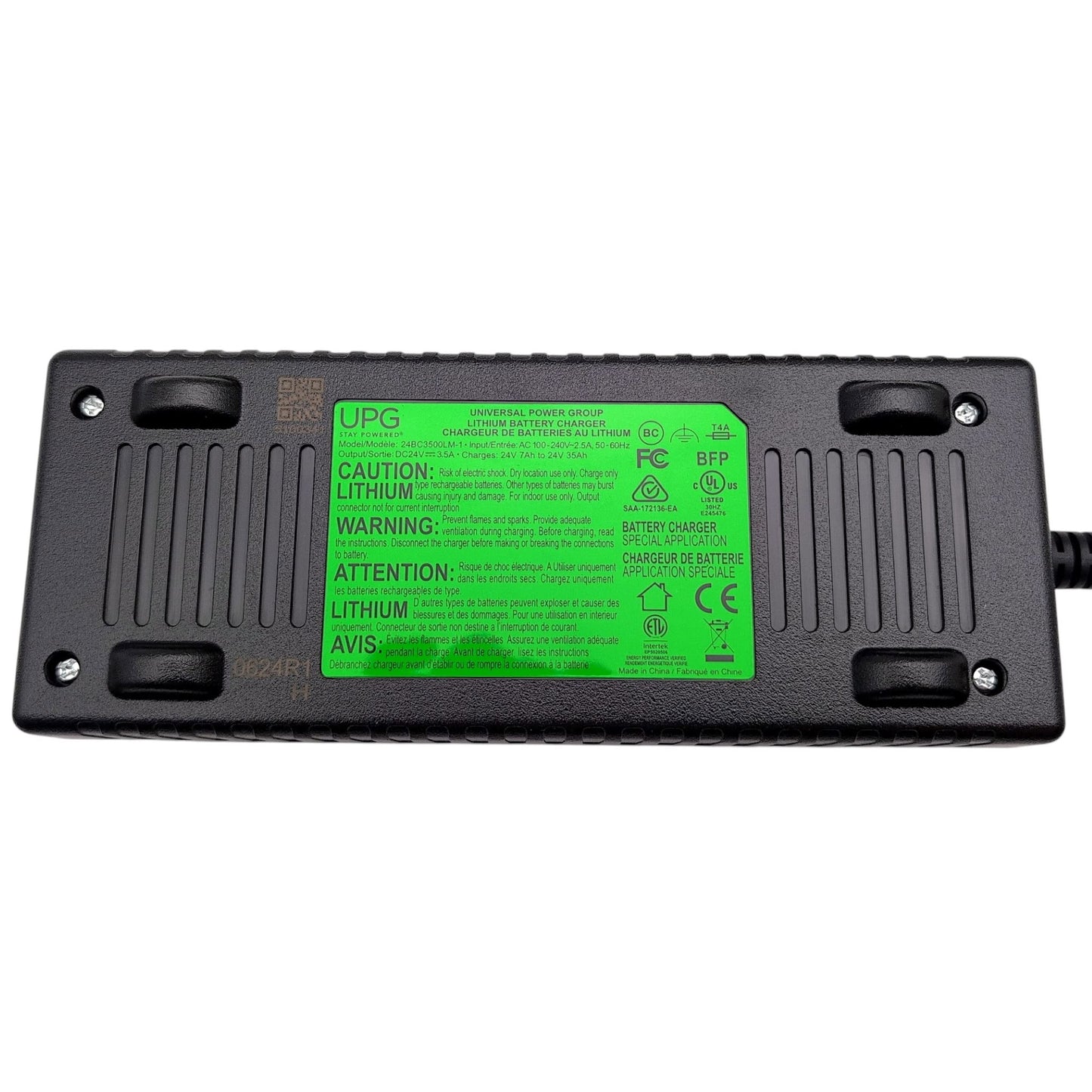

Pride Super Portable & AL+ 24V 3.5A Lithium Charger | ELE2200784

Pride Mobility Go-Go Super Portable:

Model Number SC15

Pride Mobility Go-Go Super Portable:

Model Number SC15M

Pride Mobility Go-Go Endurance AL+:

Model Number SC54ALX

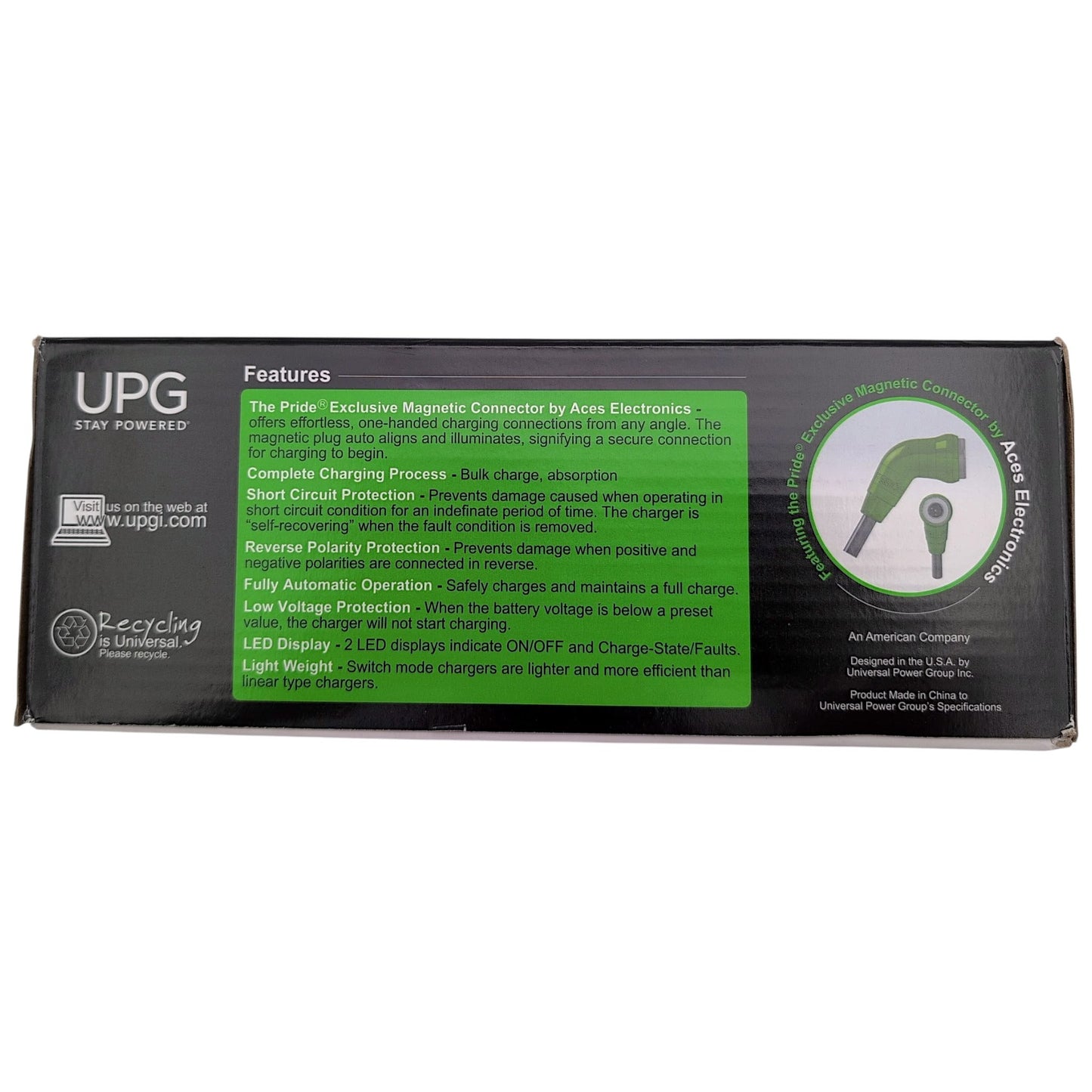

Over Current Protection:

Protects the charger from over-current demand.

Over Voltage Protection:

Protects the batteries from damage.

Short Circuit Protection:

Prevents damage caused when operating in short circuit condition for an indefinite period of time. The charger is "self-recovering" when the fault condition is removed.

Reverse Polarity Protection:

Prevents damage when positive and negative polarities are connected in reverse.

Low Voltage Protection:

When the battery voltage is below a preset value, the charger will not start charging.

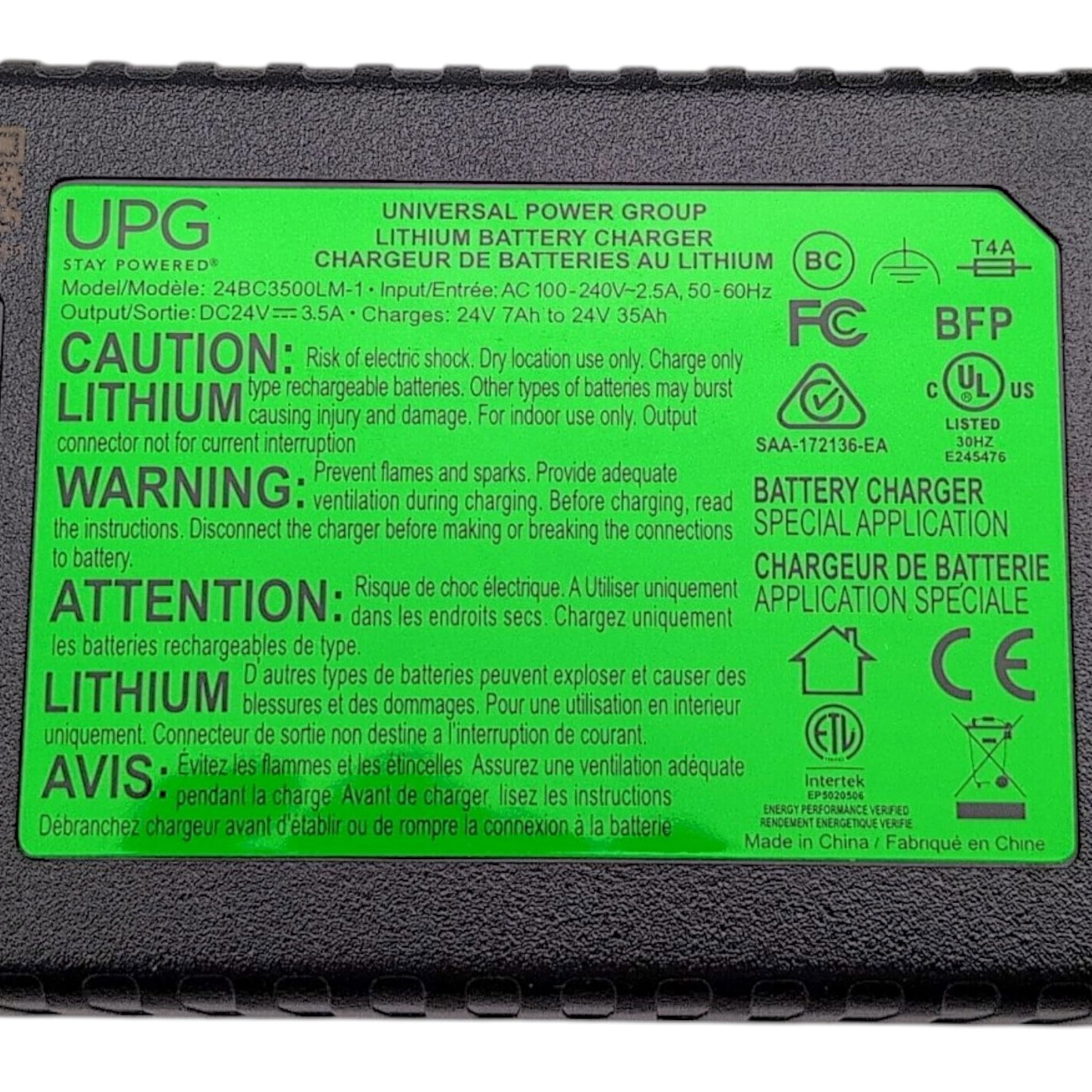

Safety Standards:

UL: Tested and certified to meet stringent U.S. safety standards.

cUL: Tested and certified to meet Canadian electrical safety standards.

CE: Meets European Union health, safety, and environmental protection requirements.

C-tick: Complies with Australian electromagnetic compatibility (EMC) requirements.

SAA: Certified to meet Australian and New Zealand electrical safety requirements.

FCC: Complies with U.S. Federal Communications Commission limits for electromagnetic interference.

Input Voltage:

100-240Vac +/-10%

Input Frequency:

50-60 Hz

Output Voltage Fast Charge (Bulk):

DC 28.8V + 0.2V

Output Current Fast Charge (Bulk):

DC 3,500mA

Operating Temperature:

32°F (0°C) to + 104°F (40°C)

Storage Temperature:

-4°F (-20°C) to + 140°F (60°C)

Battery Capacity:

7Ah - 35Ah (Suggested)

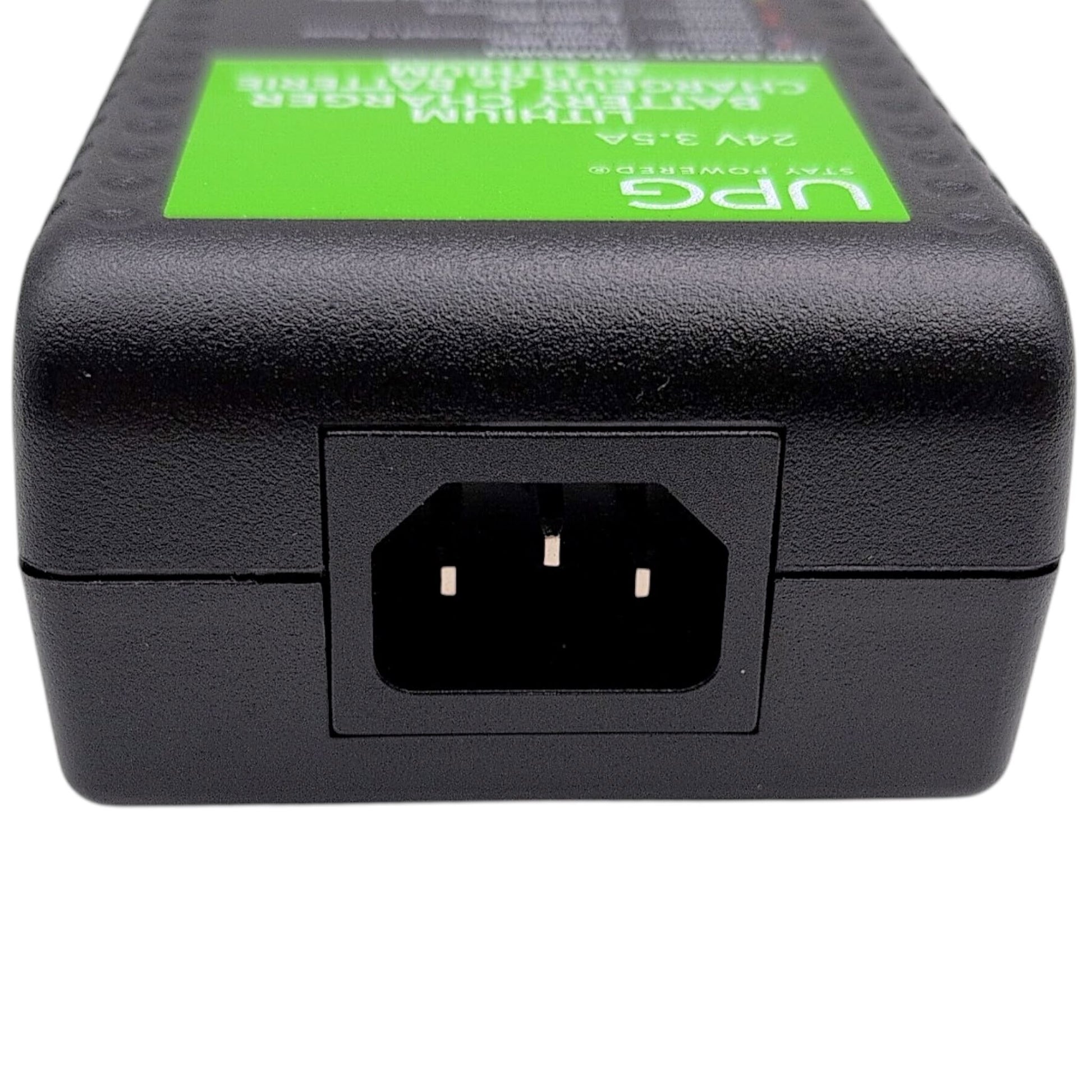

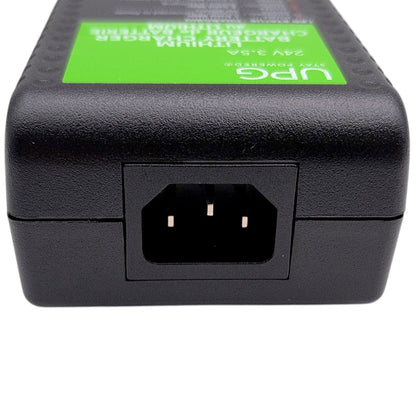

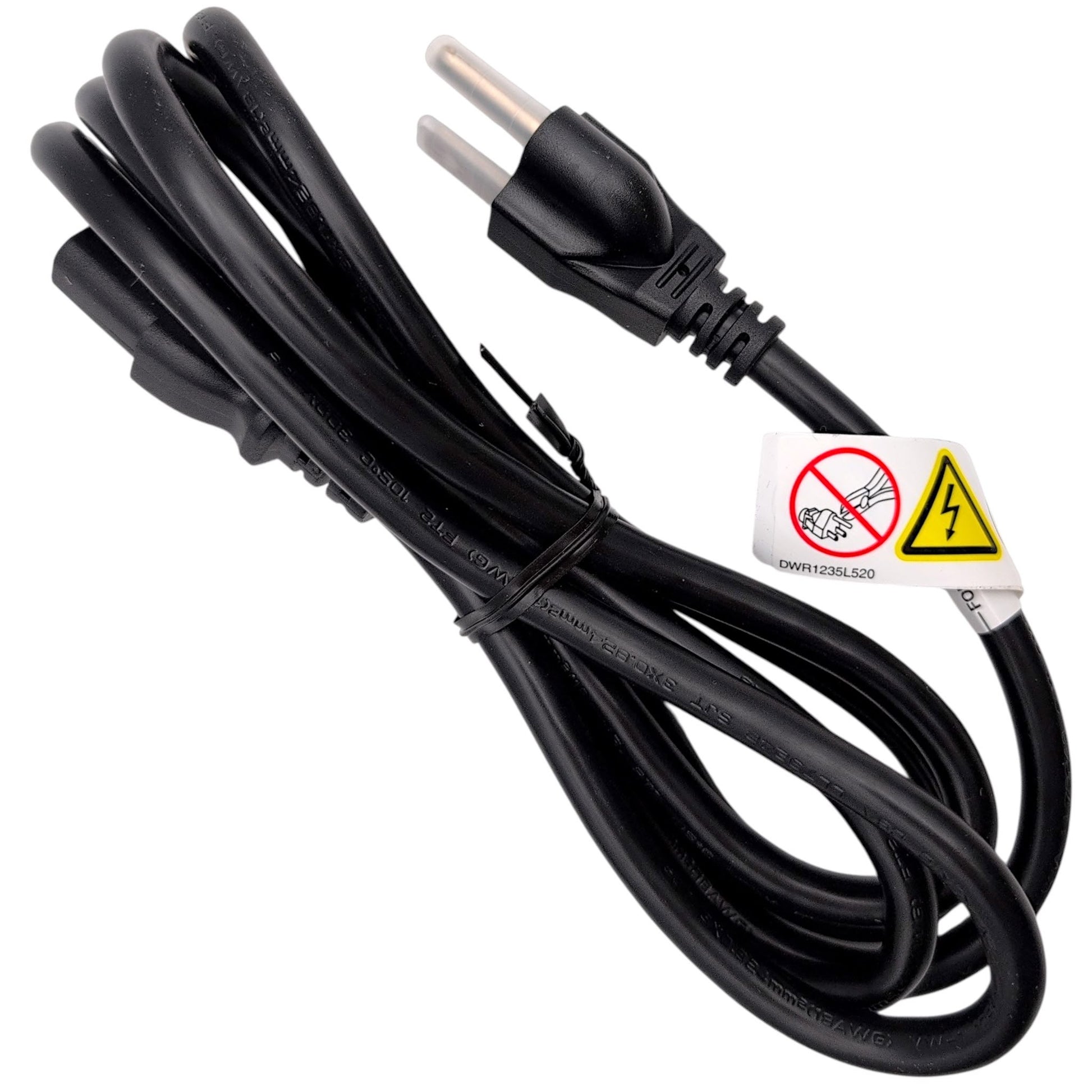

Power Supply Cord:

SJT, 18AWGX3C, 300V, 105°C

IP Rating:

IPX1

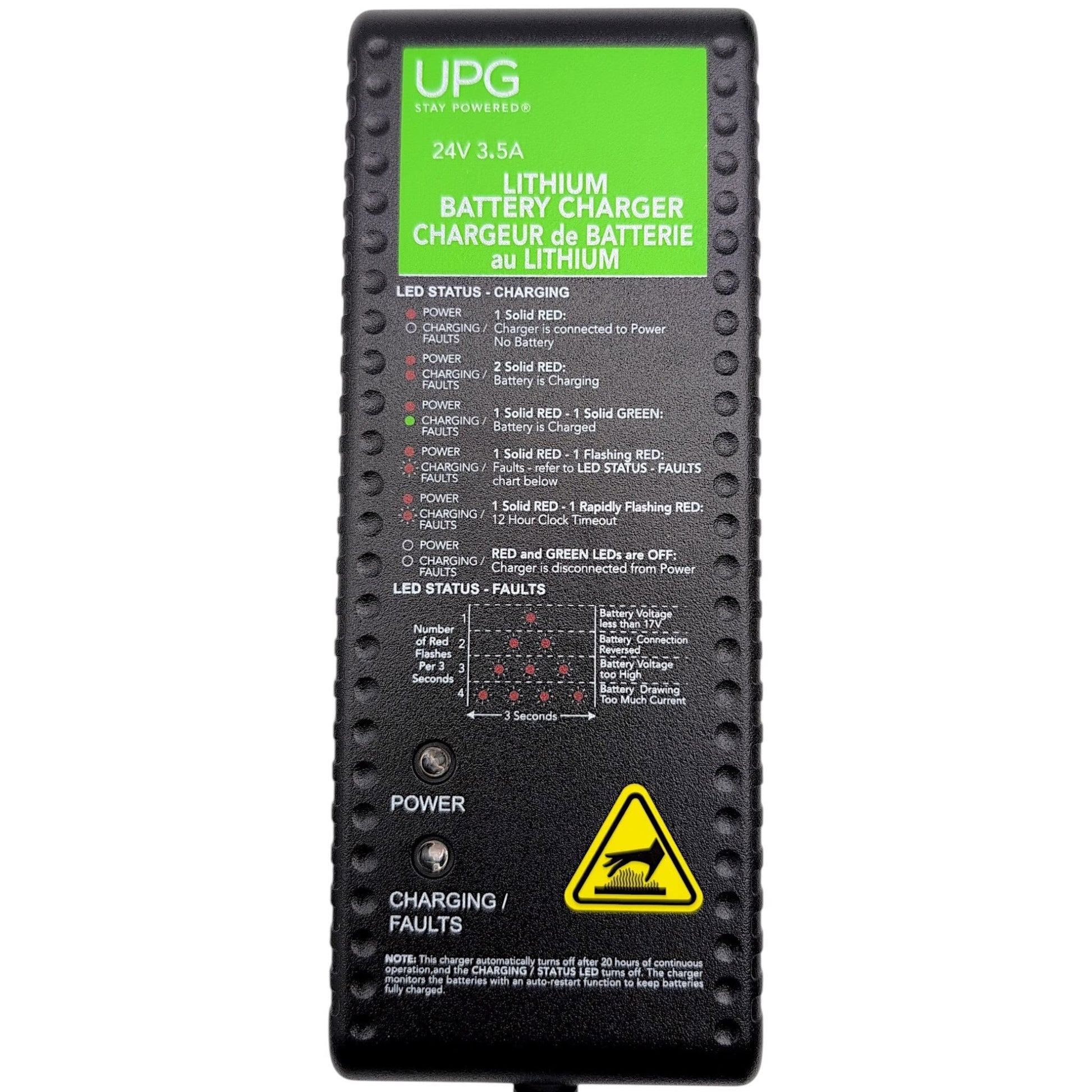

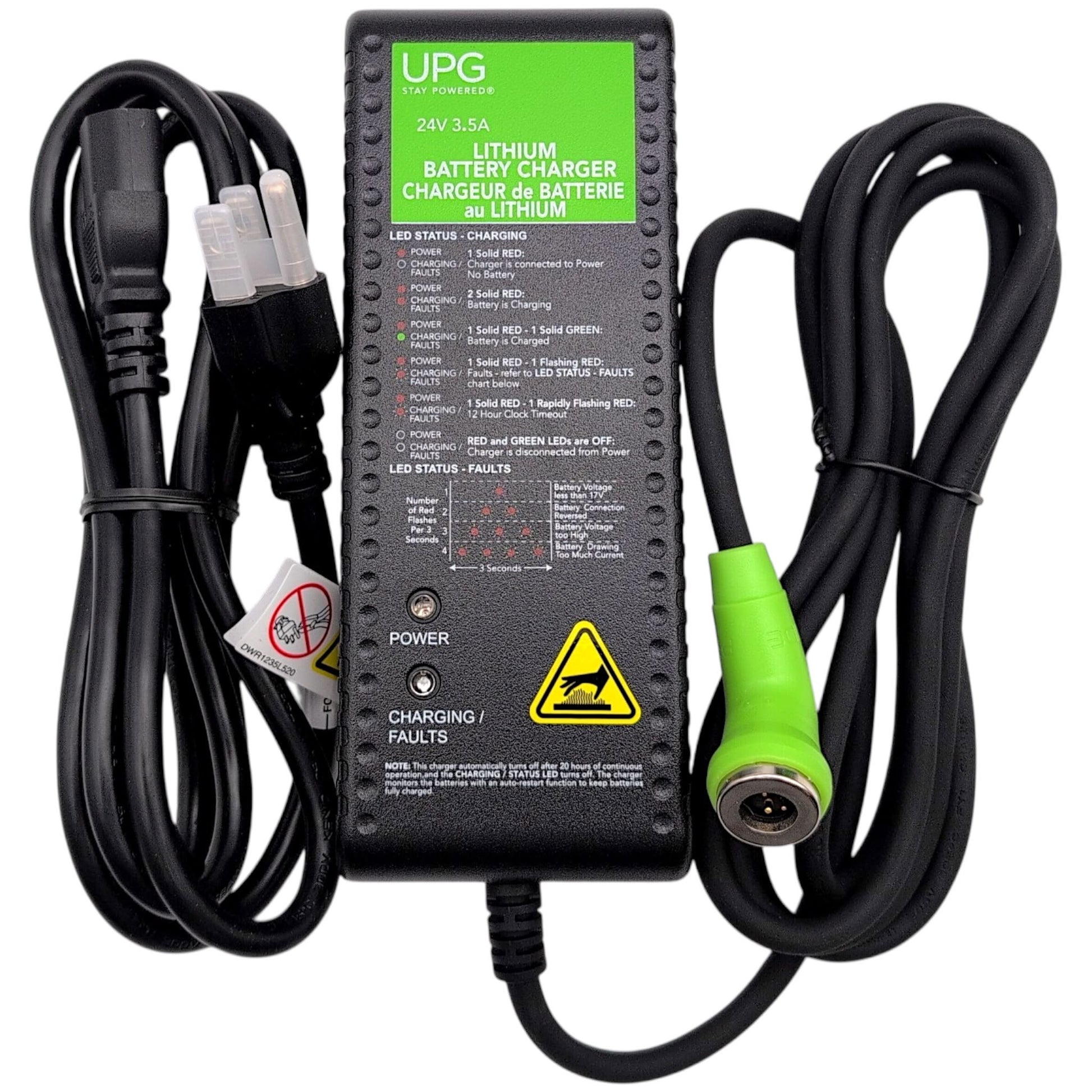

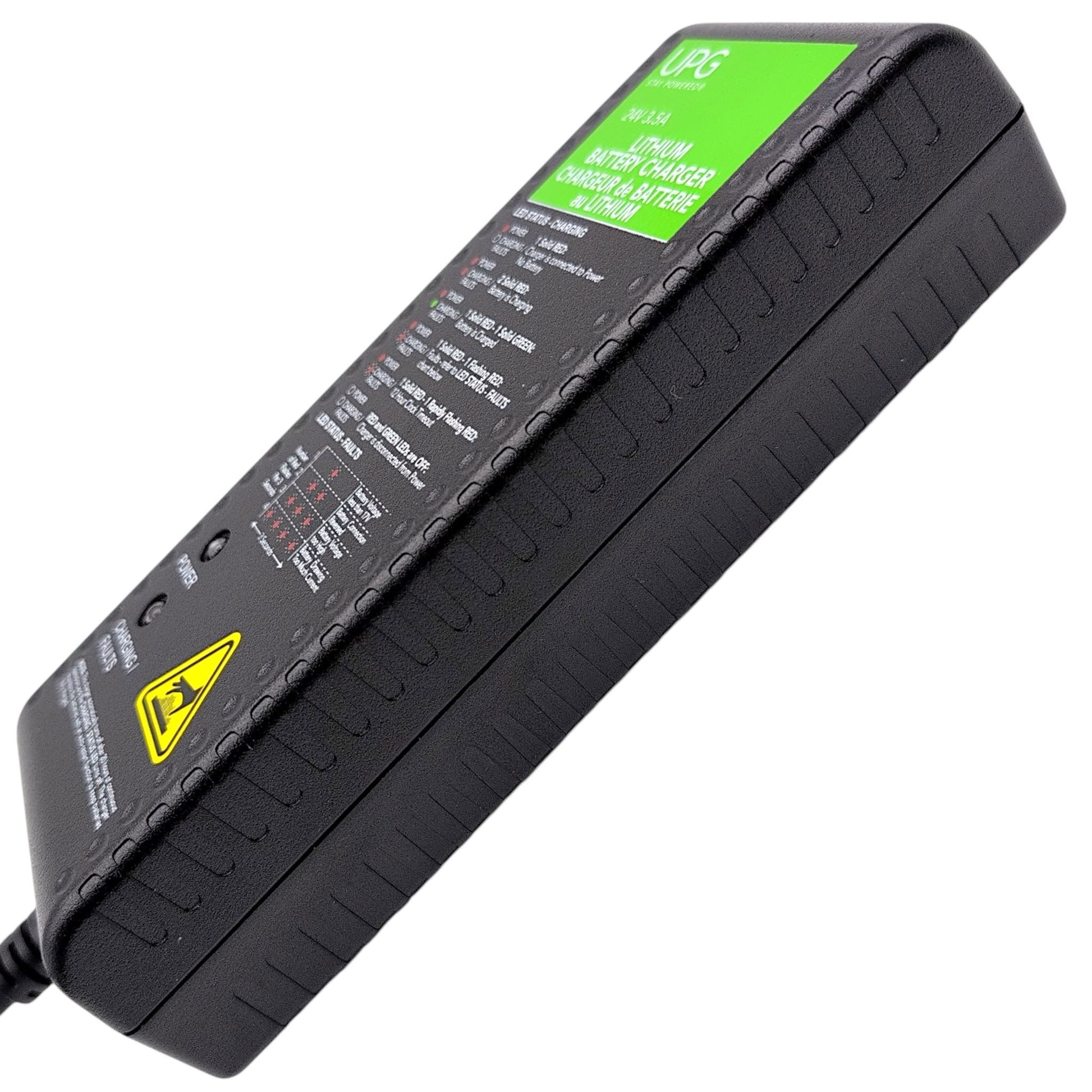

1 Solid RED:

Charger is connected to Power or No Battery

2 Solid RED:

Battery is Charging

1 Solid RED - 1 Solid GREEN:

Battery is Charged

1 Solid RED - 1 Flashing RED:

Faults - refer to LED STATUS - FAULTS chart below

1 Solid RED - 1 Rapidly Flashing RED:

12 Hour Clock Timeout

RED and GREEN LEDs are OFF:

Charger is disconnected from Power

NOTE: To comply with the DOE mandate this charger automatically turns off after 20 hours of continuous operation and the CHARGING / STATUS LED turns off. If left connected to batteries, the charger monitors the batteries with an auto-restart function to keep batteries fully charged.

Number of Red Flashes Per 3 Seconds:

1 Flash:

Battery Voltage less than 17V

2 Flashes:

Battery Connection Reversed

3 Flashes:

Battery Voltage too High / Battery Drawing too Much Current

4 Flashes:

Battery Drawing too Much Current

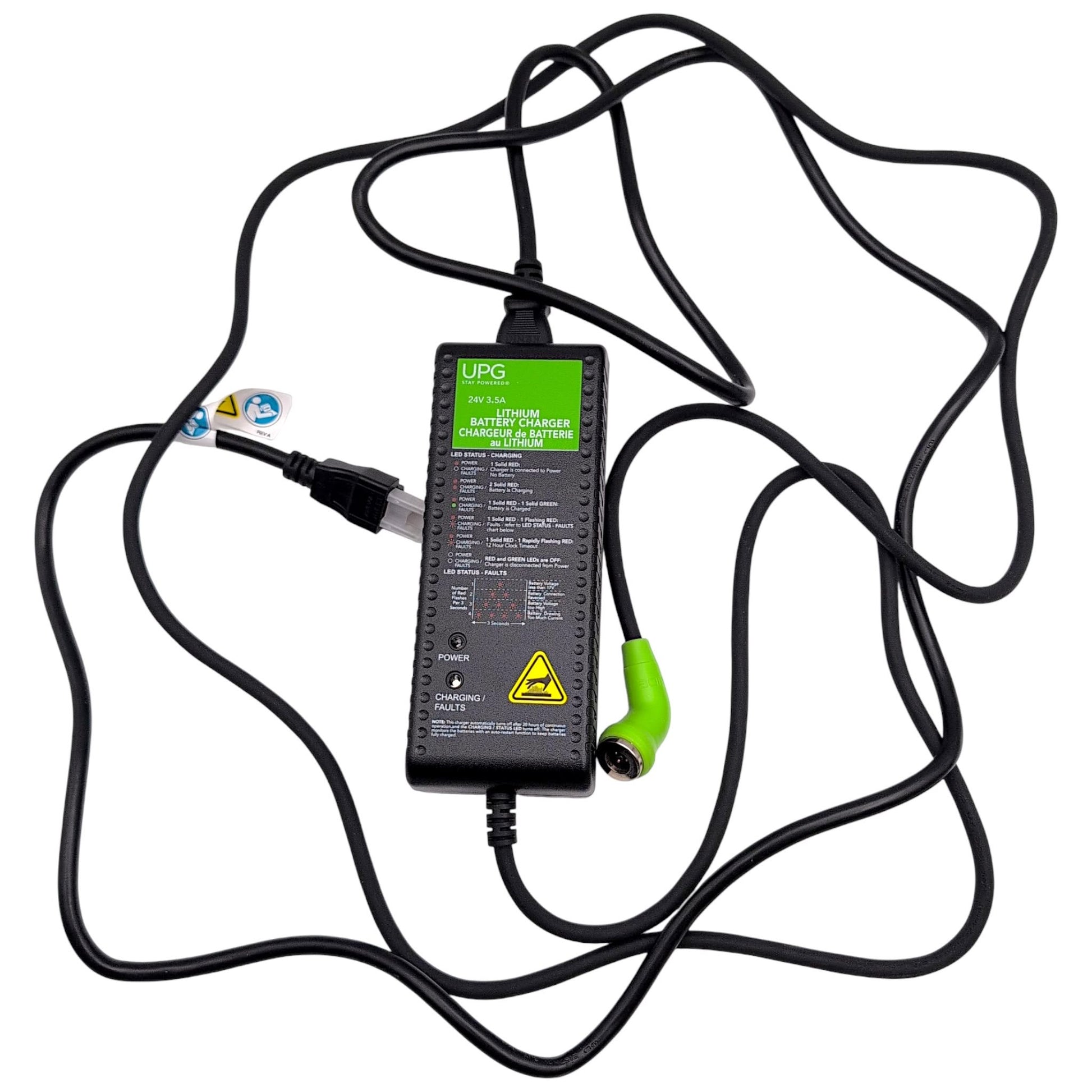

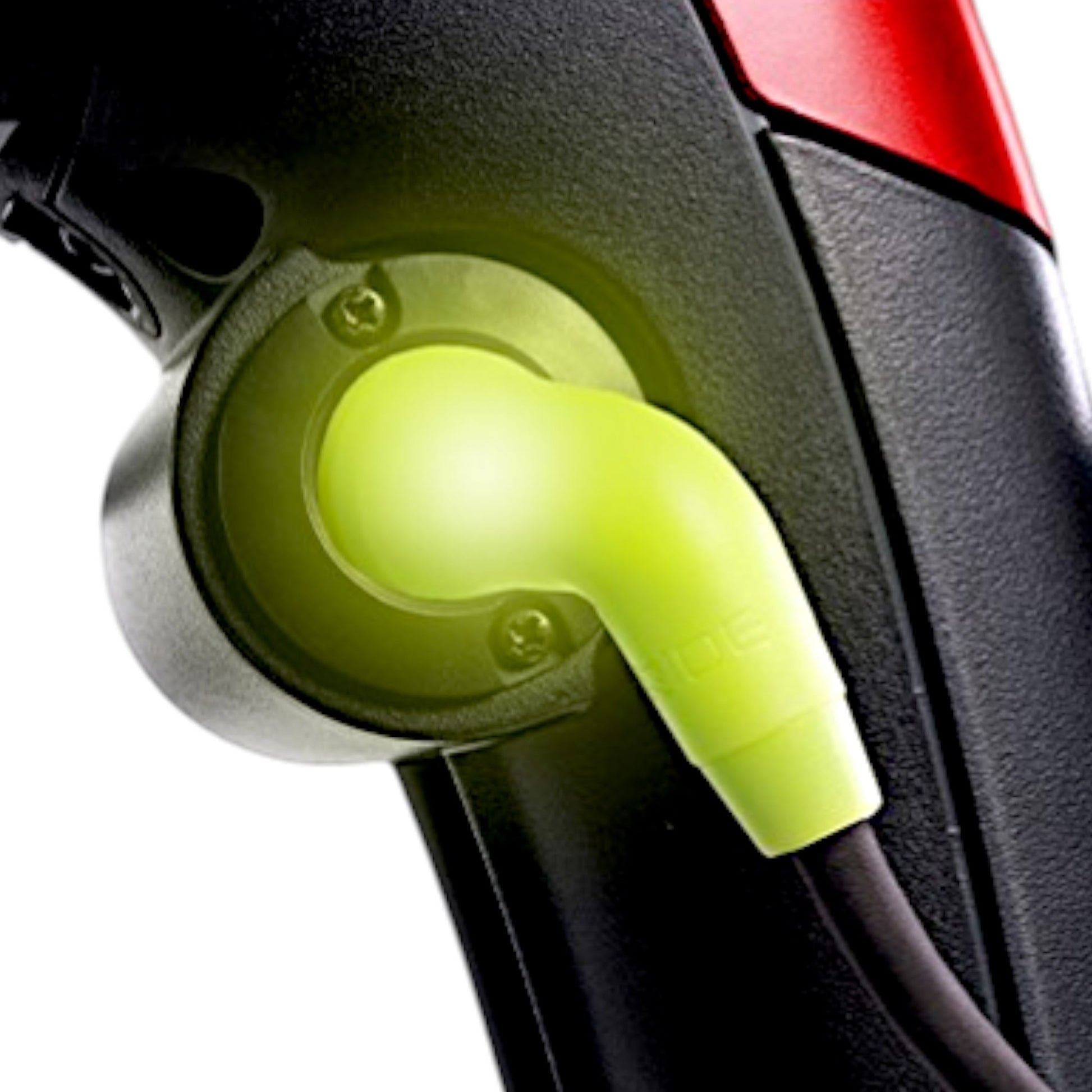

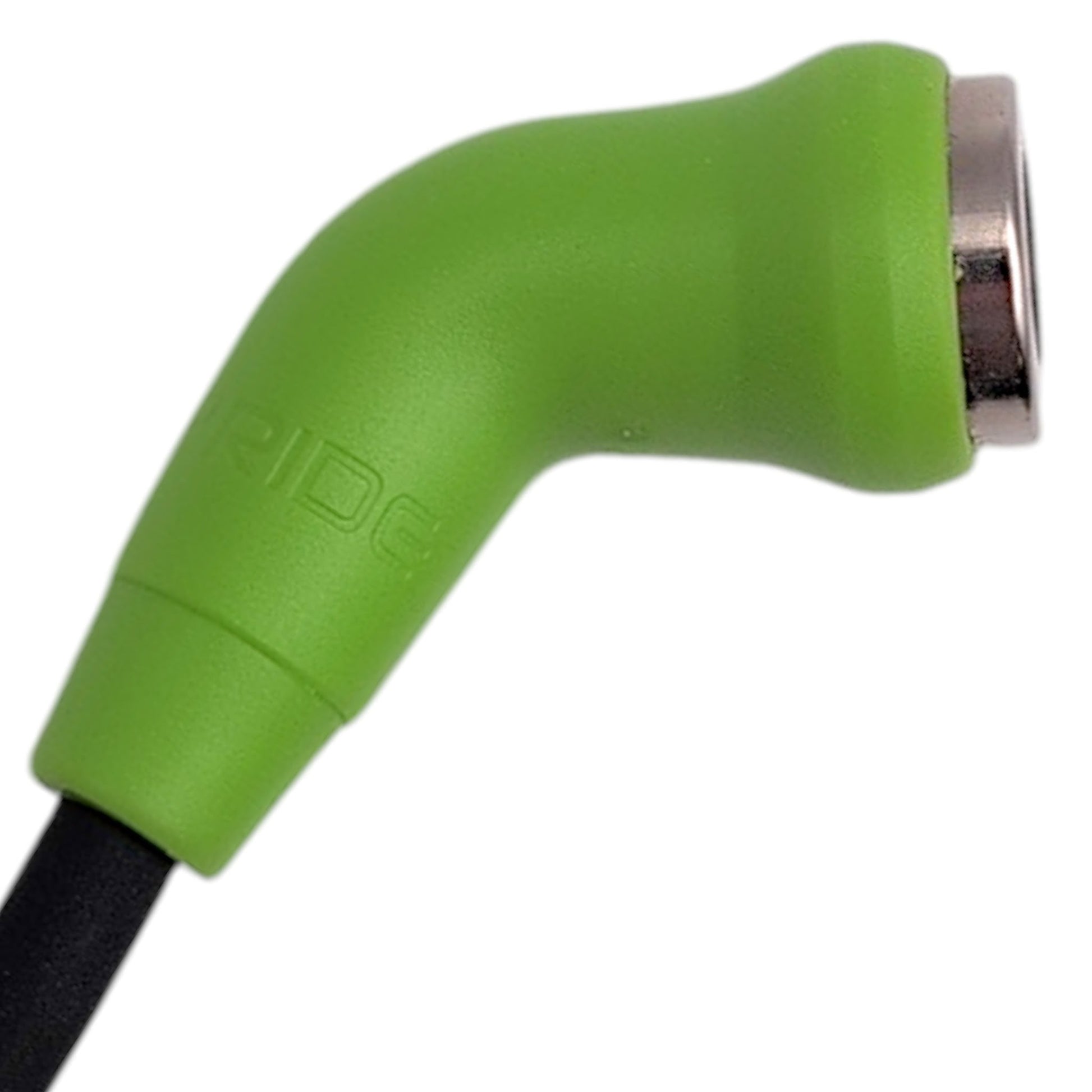

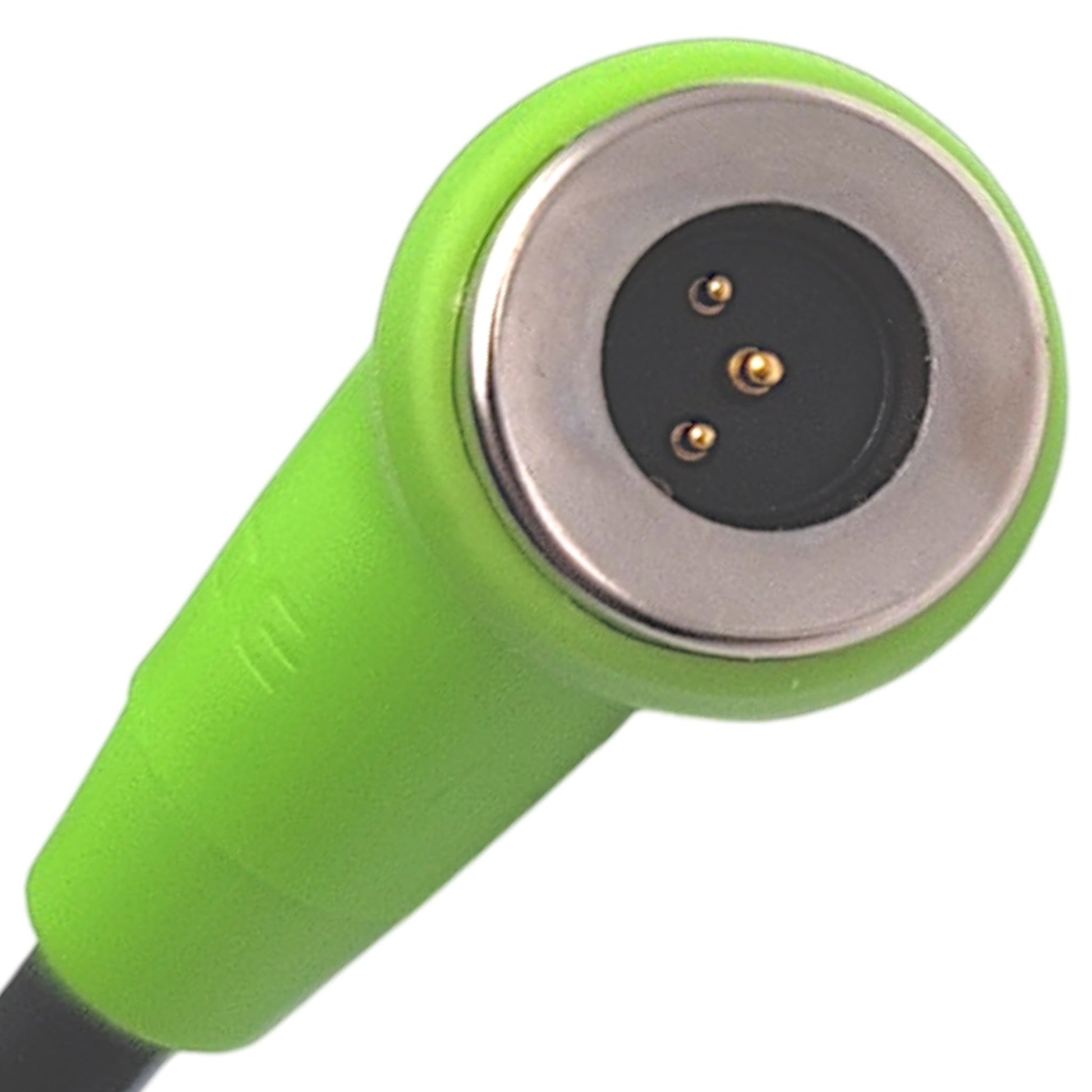

1. Connect the charger's DC output cable to the battery charging receptacle of the product to be charged using the magnetic connector. An LED light on the connector illuminates, indicating a secure connection has been made.
2. Plug the power cord into the charger.
3. Plug the power plug into the wall socket.
4. The Power LED and Charging LED light on the charger should be ON.
5. When batteries are fully charged, the Charging LED will be steady GREEN. Unplug the charger from the wall, then the battery receptacle.

Two Stage Charge Cycle for Lithium-ion batteries:

• A high current, fast charge state: Battery charges at 3,500mA fast charge current rate until battery voltage of 28.8V is reached.
• A topping charge state: Battery charges at 28.8V constant voltage and current begins to taper until current is less than 500mA.

Note: Short interval charging is acceptable with Lithium-ion batteries and will help the performance and longevity of the battery.
