Pride Mobility | LMD6208M1-H | MOT2007410 | Lift Recliner Chair Base Motor
Pride Mobility | LMD6208M1-H | MOT2007410 | Lift Recliner Chair Base Motor
In stock
Couldn't load pickup availability
- Included: Free Ground Shipping On This Product (Contiguous US Only)
- 30 Day Return Policy
- Fulfillment: Usually ships in 1-2 business days
- This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects
Product Description
Linear Actuator, Base Motor With Hall Sensor. For Pride VivaLift Radiance series and other models. Usually found in dual motor setups.

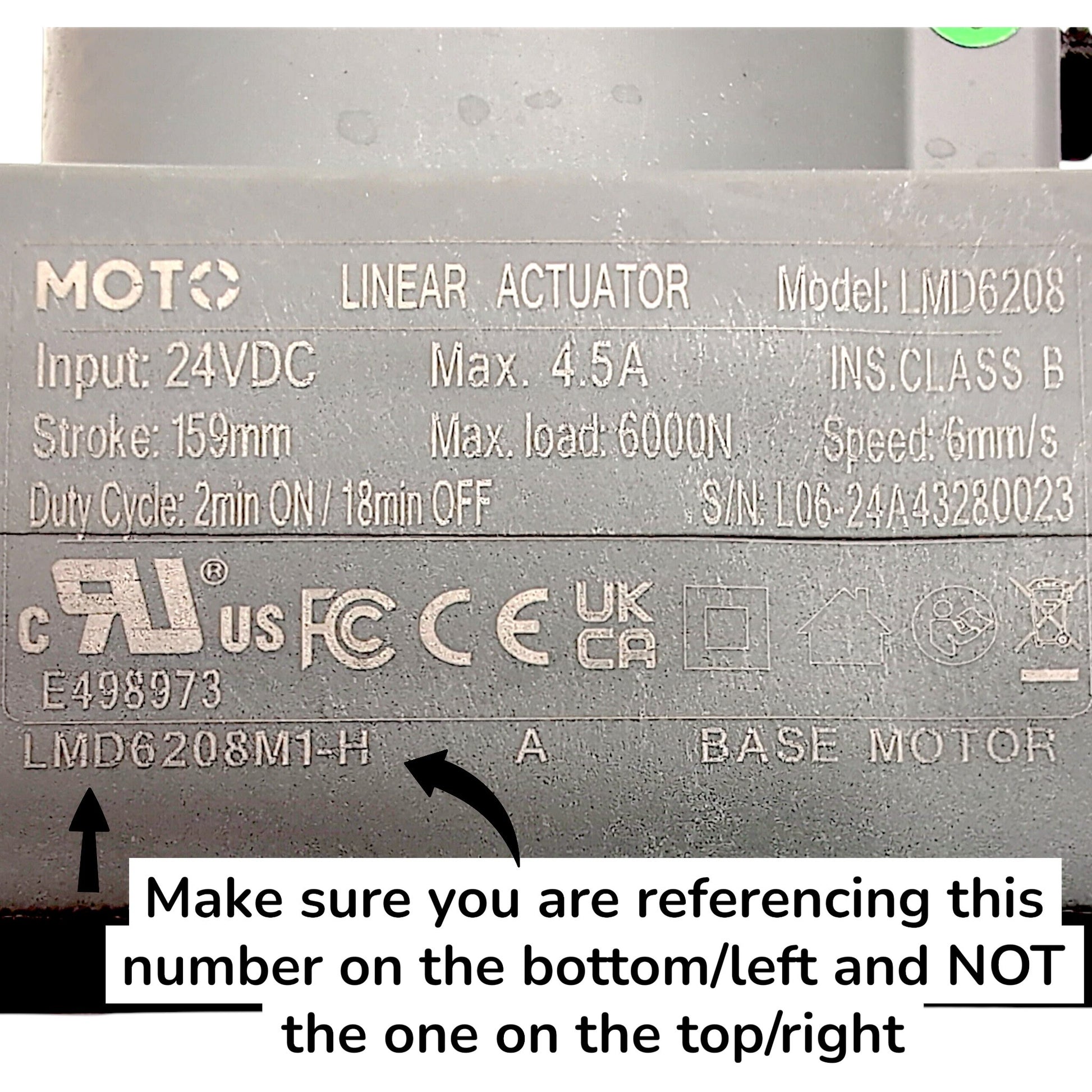

Please make sure you are getting the correct model. The Model Number you need is on the bottom left section of the label on the motor. The part of the label that says "Model:" can be misleading because this is actually the "Base" model, or Reference Model that many models are based on.
Another thing that makes these actuators with the same reference model number distinct from each other is the connector type and color. So, always check these 3 things when ordering. The connector Color, Connector Type, and that Model number found on the bottom left of the product label.
- Brand:
- Pride Mobility
- Manufacturer:
- Moto / HHC
- Pride Mobility Part Number:
- MOT2007410
- Moto / HHC Base Model:
- LMD6208
- Model Number:
- LMD6208M1-H
- Replaces / Compatible With Model Numbers:
- LMD6208M-H, LMD6208M-H-00000A
- Connector Type:

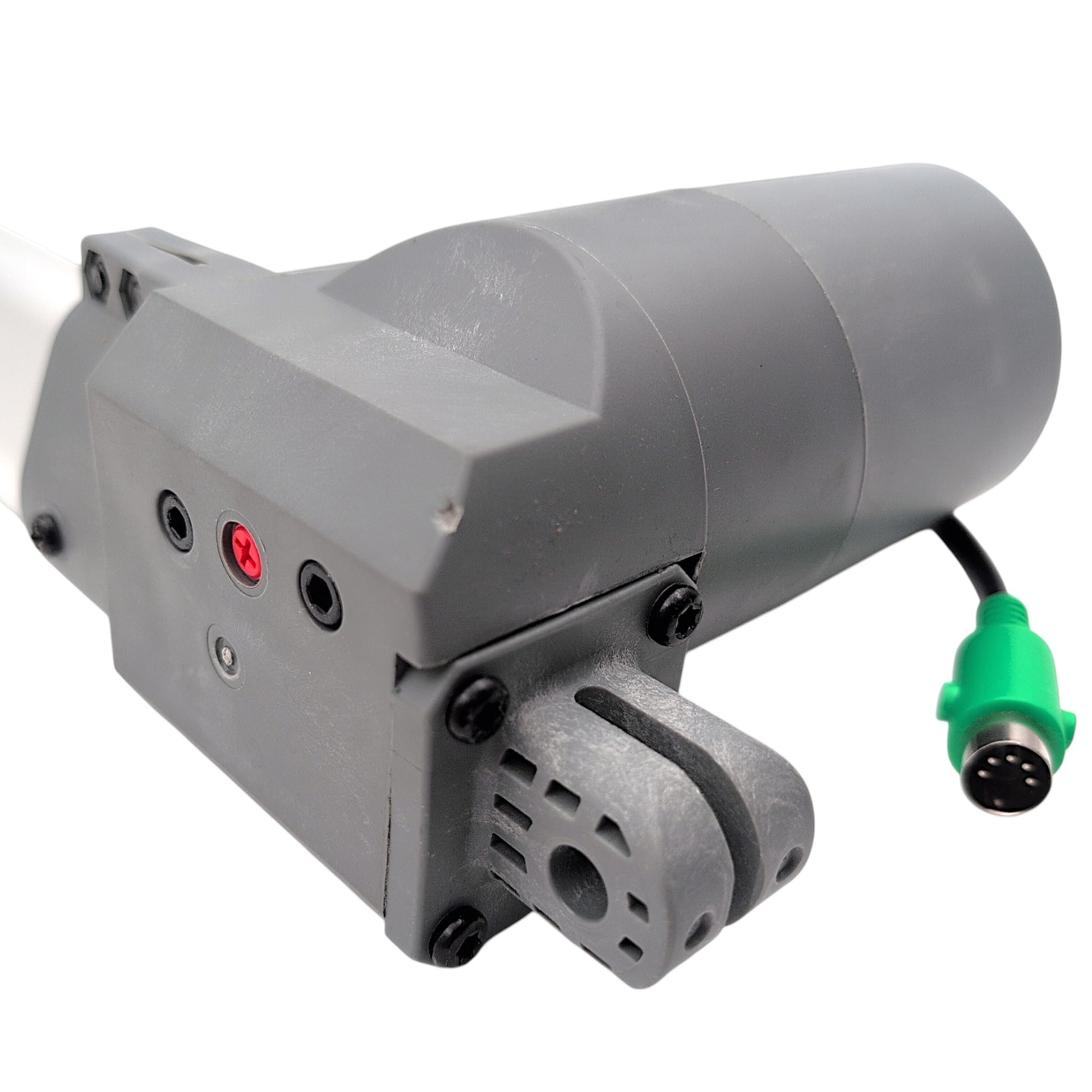

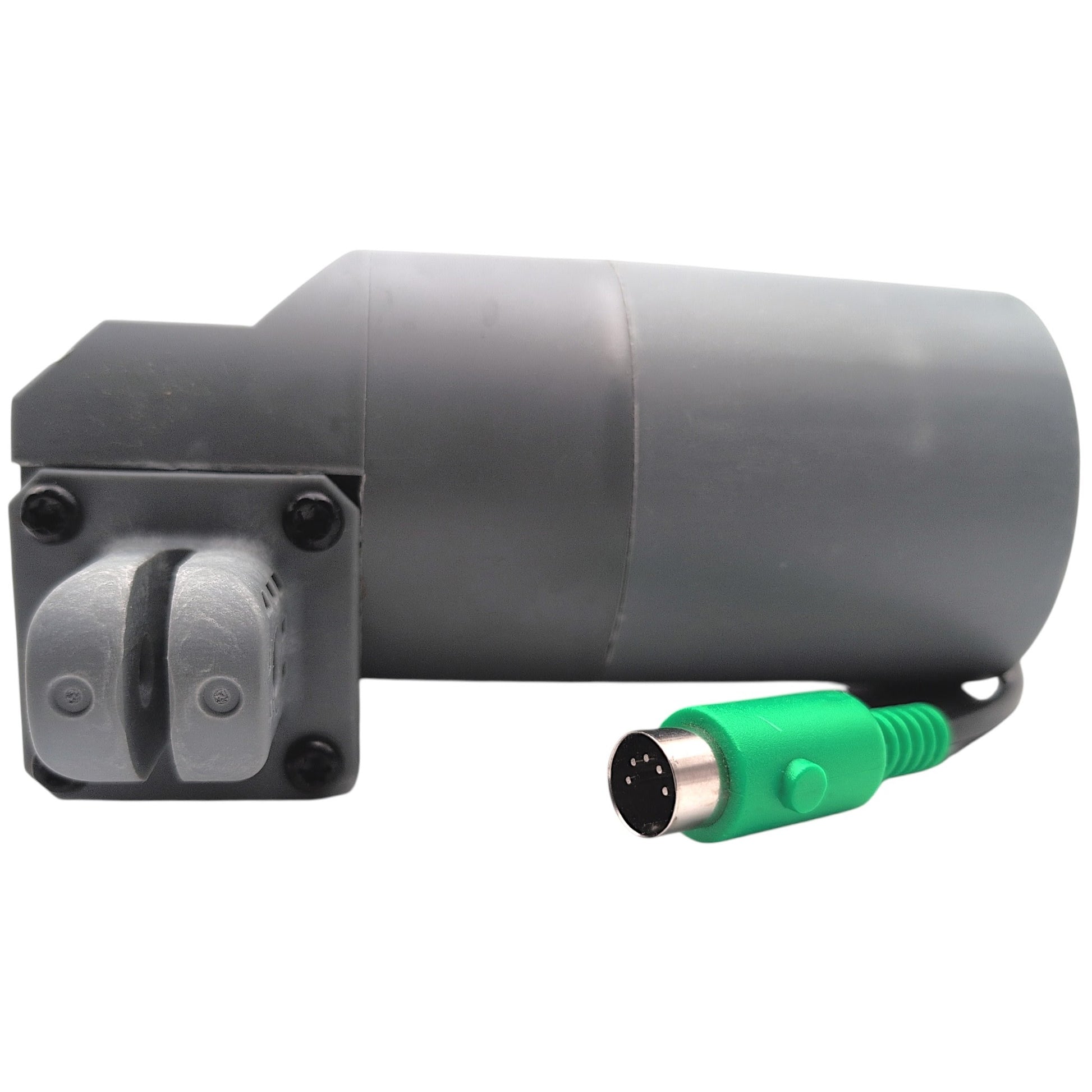

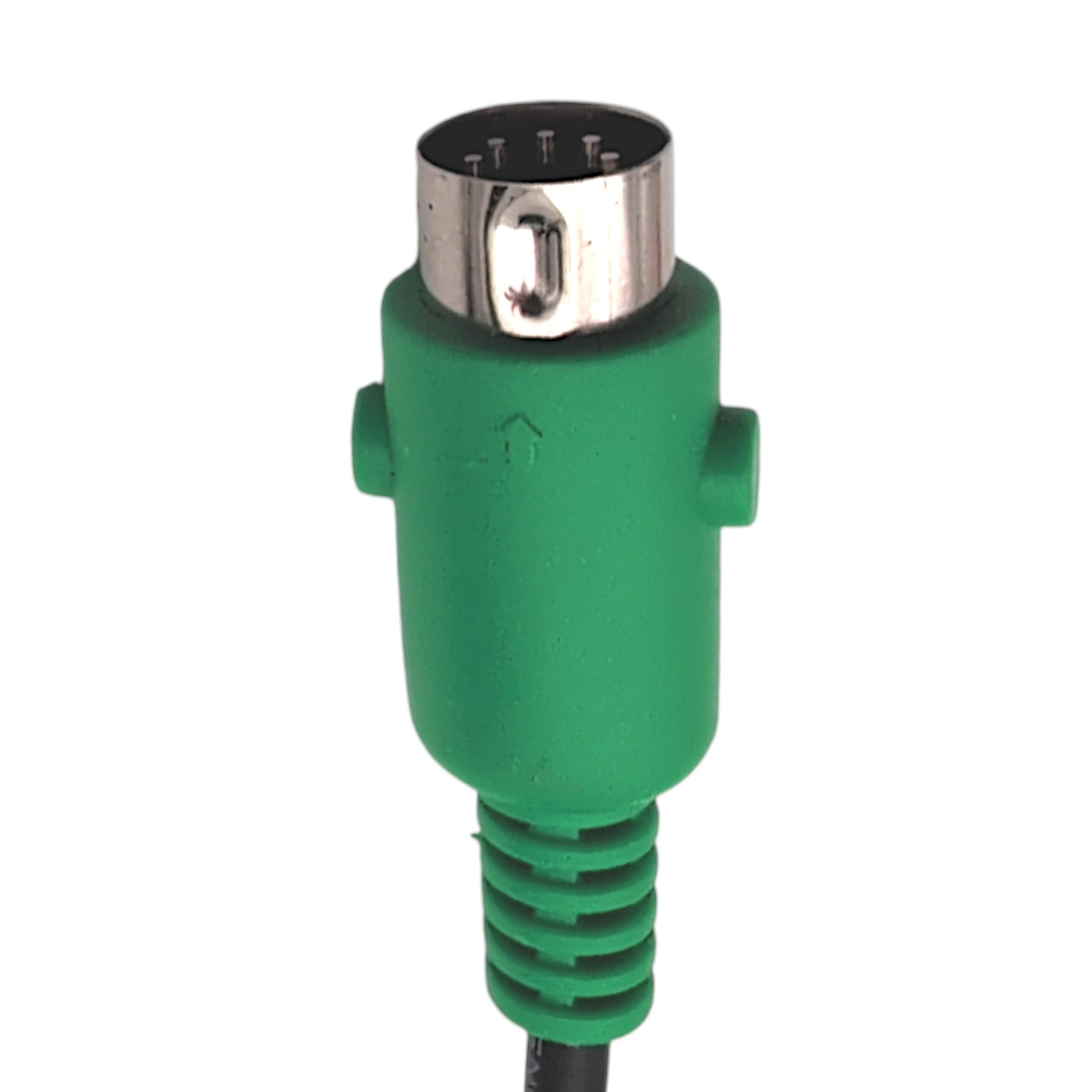

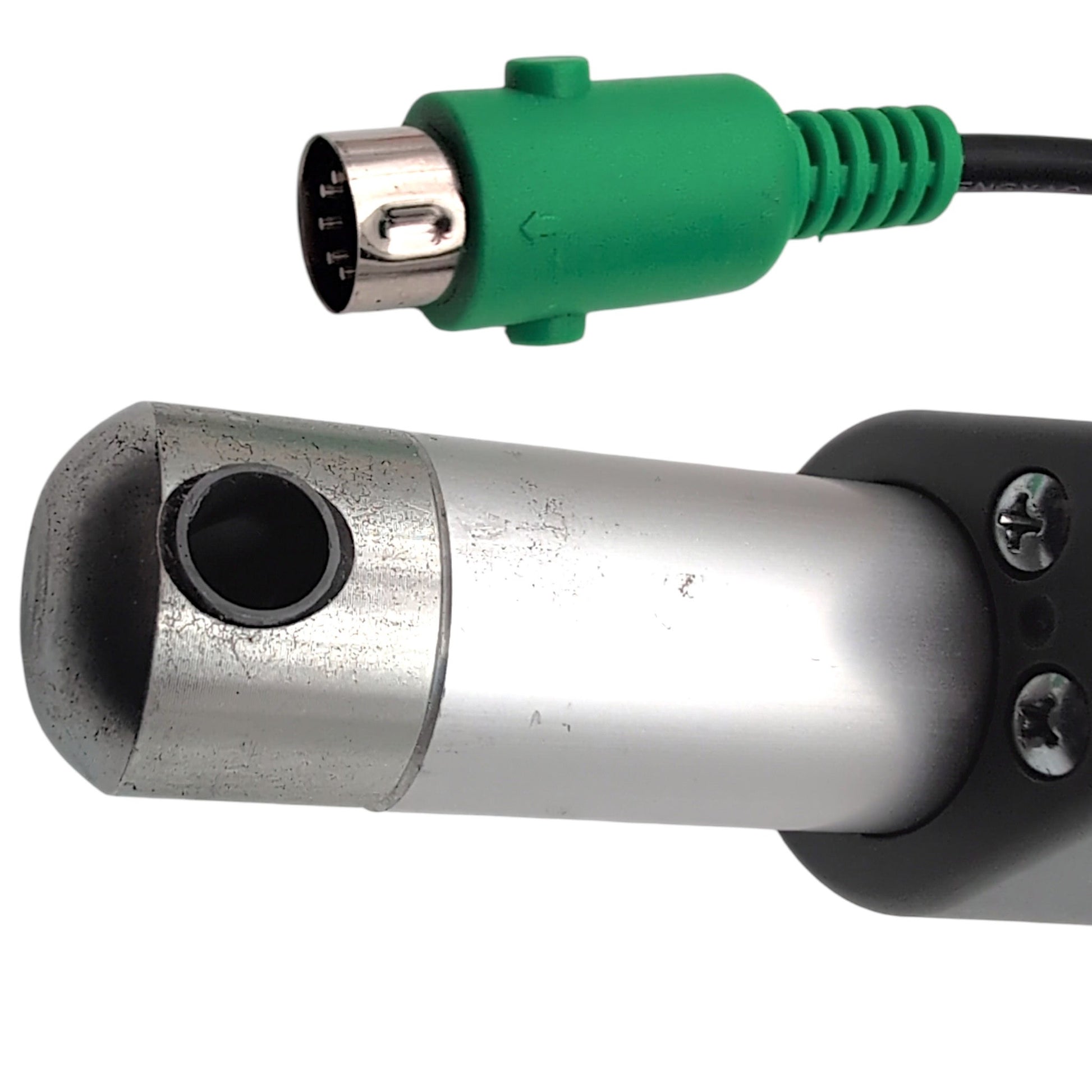

- 5-Pin Green Din Connector
- Input:
- 24 V DC Max. 4.5 Amps
- Stroke:
- 155mm (rev B) or 159mm (rev A)
- Compatible With:
- Pride VivaLift! Radiance Series: Model Number PLR3955(S)(PW)(M)(LT)
Additional Specifications
- Motor Type:
- Linear Actuator / Base Motor
- Max. Load:
- 6000N
- Ins. Class:
- B
- Speed:
- 6mm per Second
- Duty Cycle:
- 2min ON / 18min OFF
- Length:
- 17 1/8 Inches (Fully Retracted)
- Width:
- 3 3/8 Inches
- Height:
- 6 1/2 Inches
- Weight:
- 5 1/2 Pounds
- Color:
- Gray & Silver
