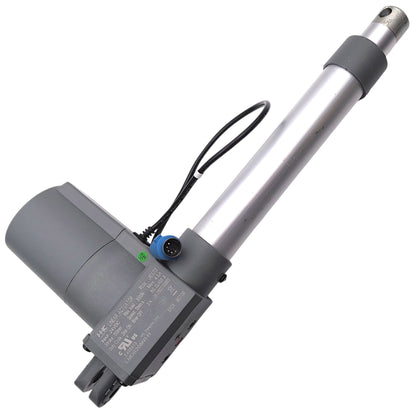

Pride PLR-3955 Viva-Lift Radiance LMD6208N1-H Back Motor - Blue Connector - MOT2007409
Pride PLR-3955 Viva-Lift Radiance LMD6208N1-H Back Motor - Blue Connector - MOT2007409
In stock
Couldn't load pickup availability
- Free ground shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
- Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
- 30 Day Return Policy
- Fulfillment: Usually ships in 1-2 business days
- This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects
Product Description

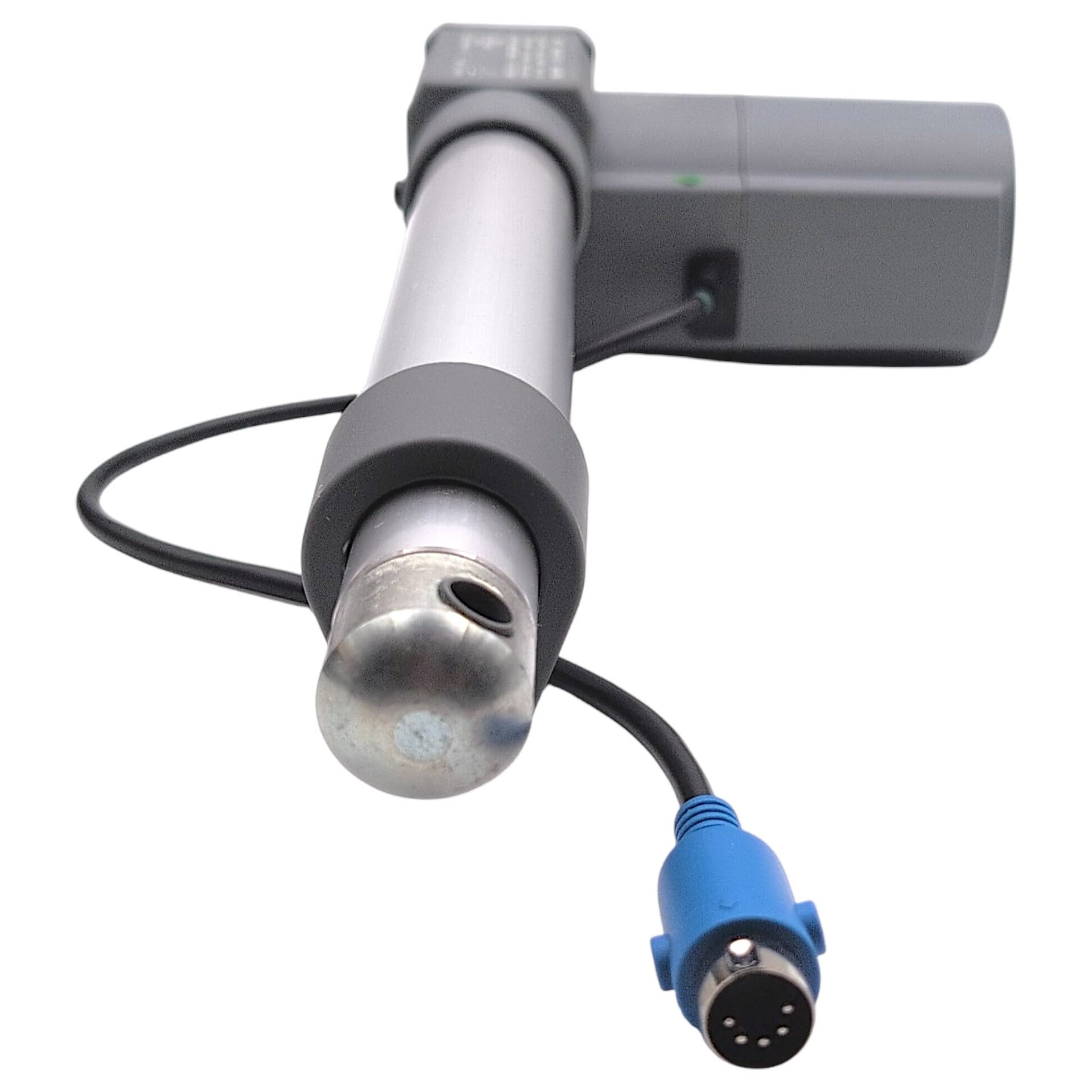

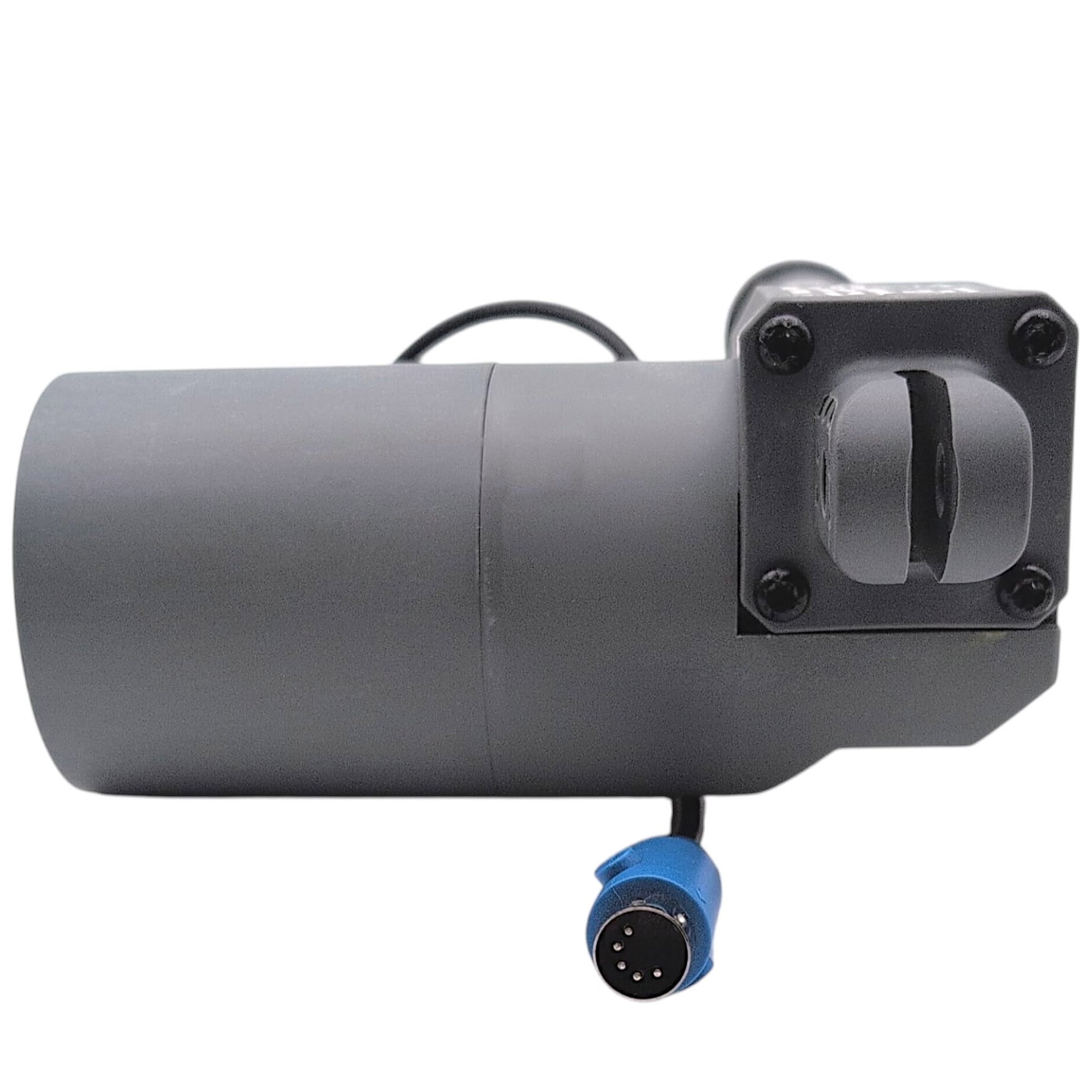

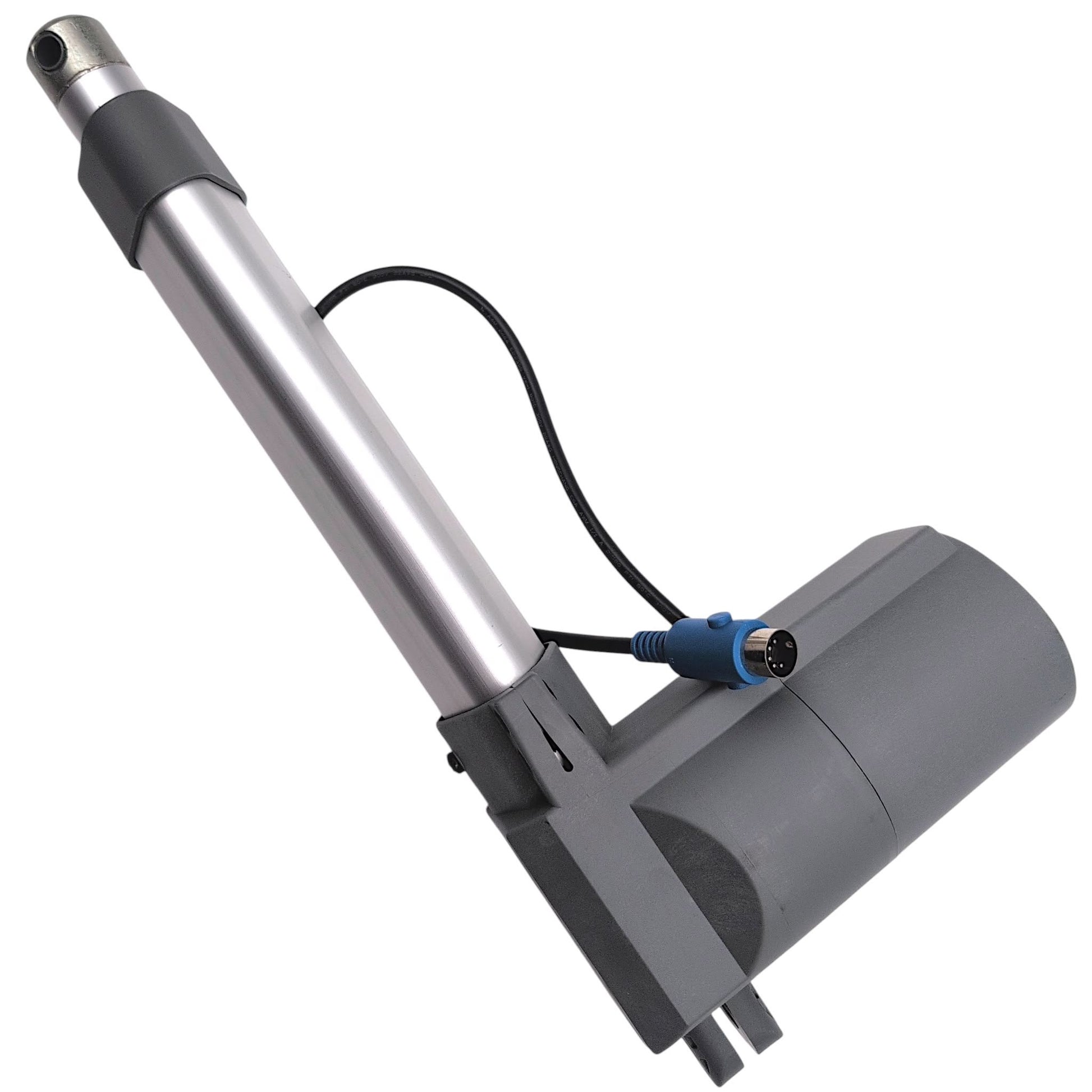

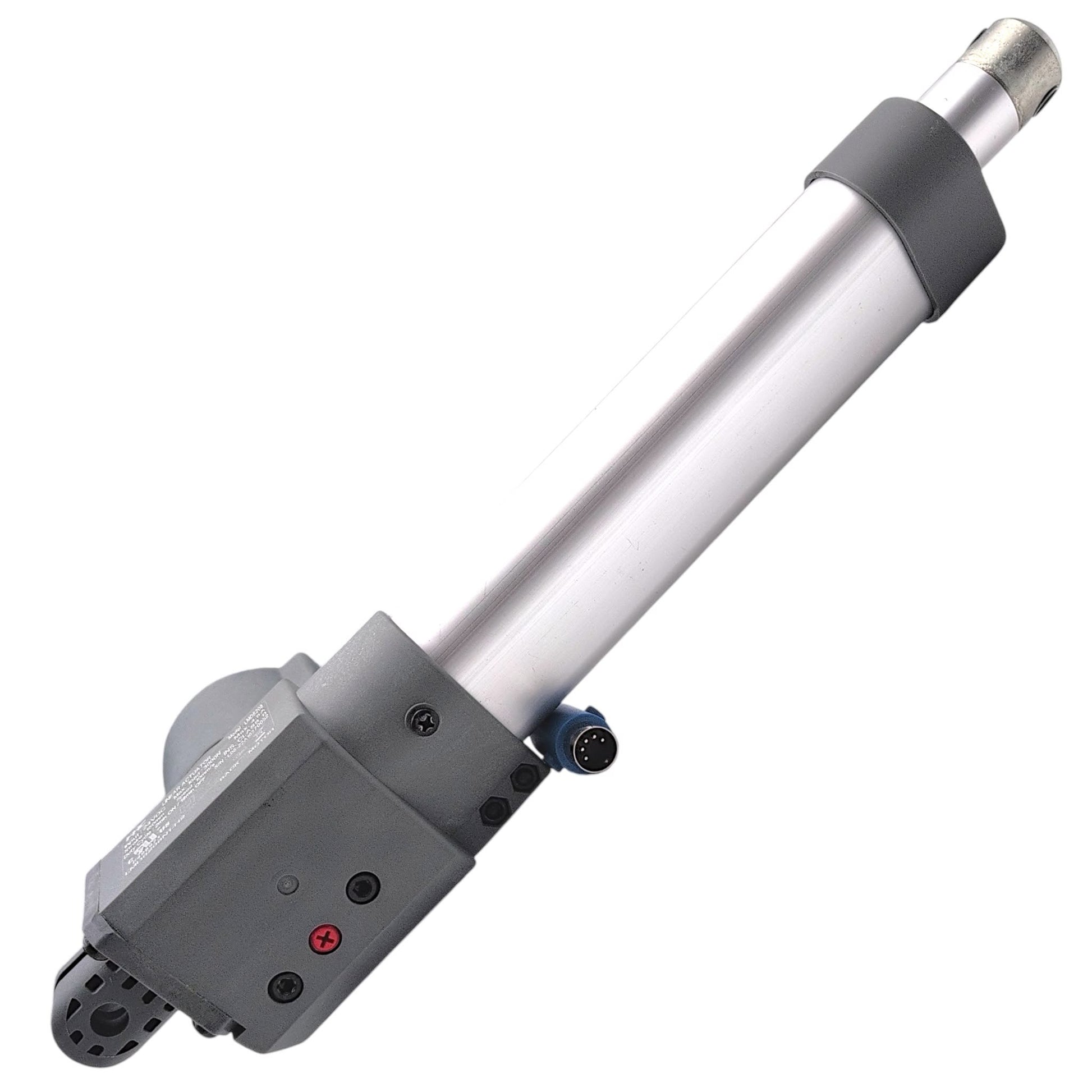

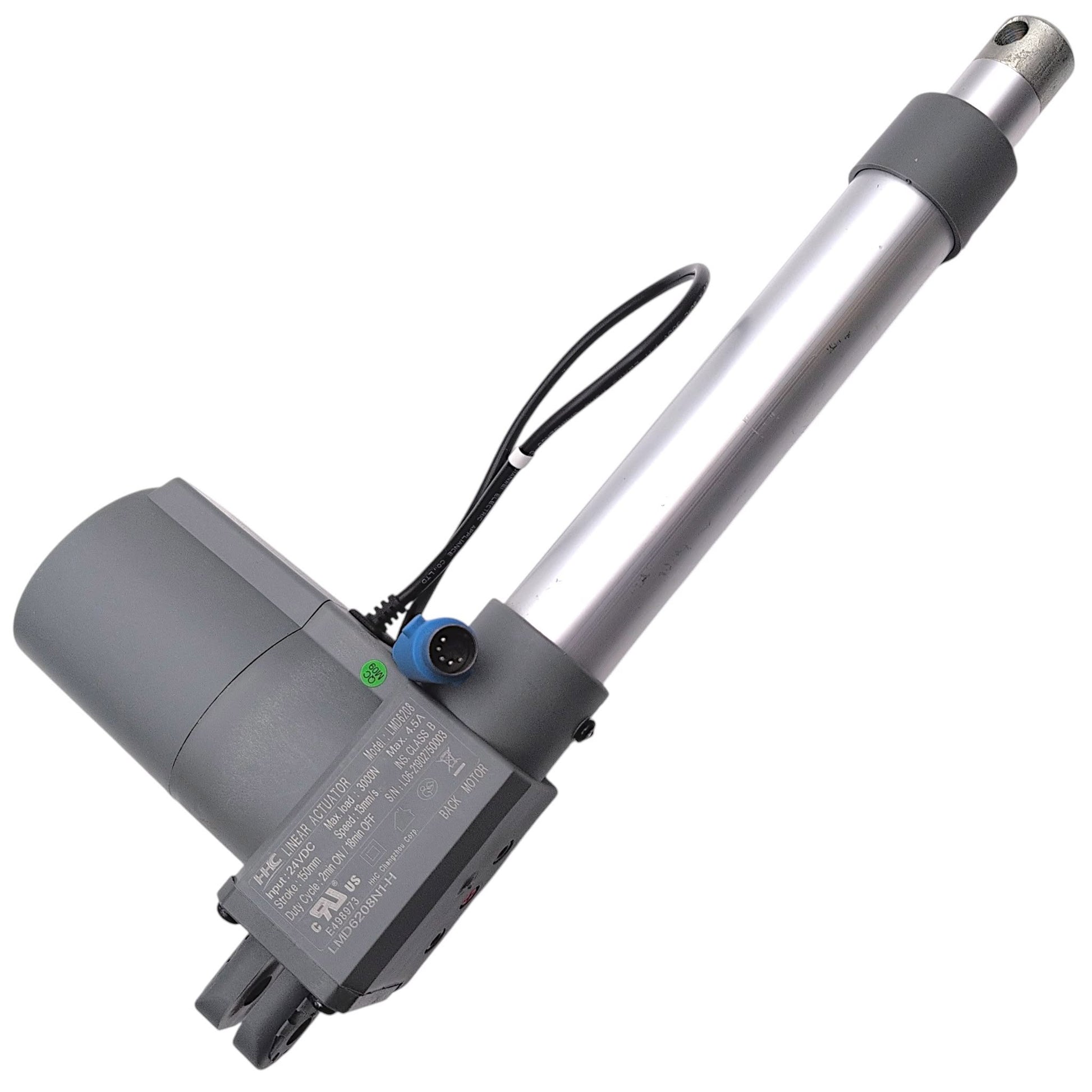

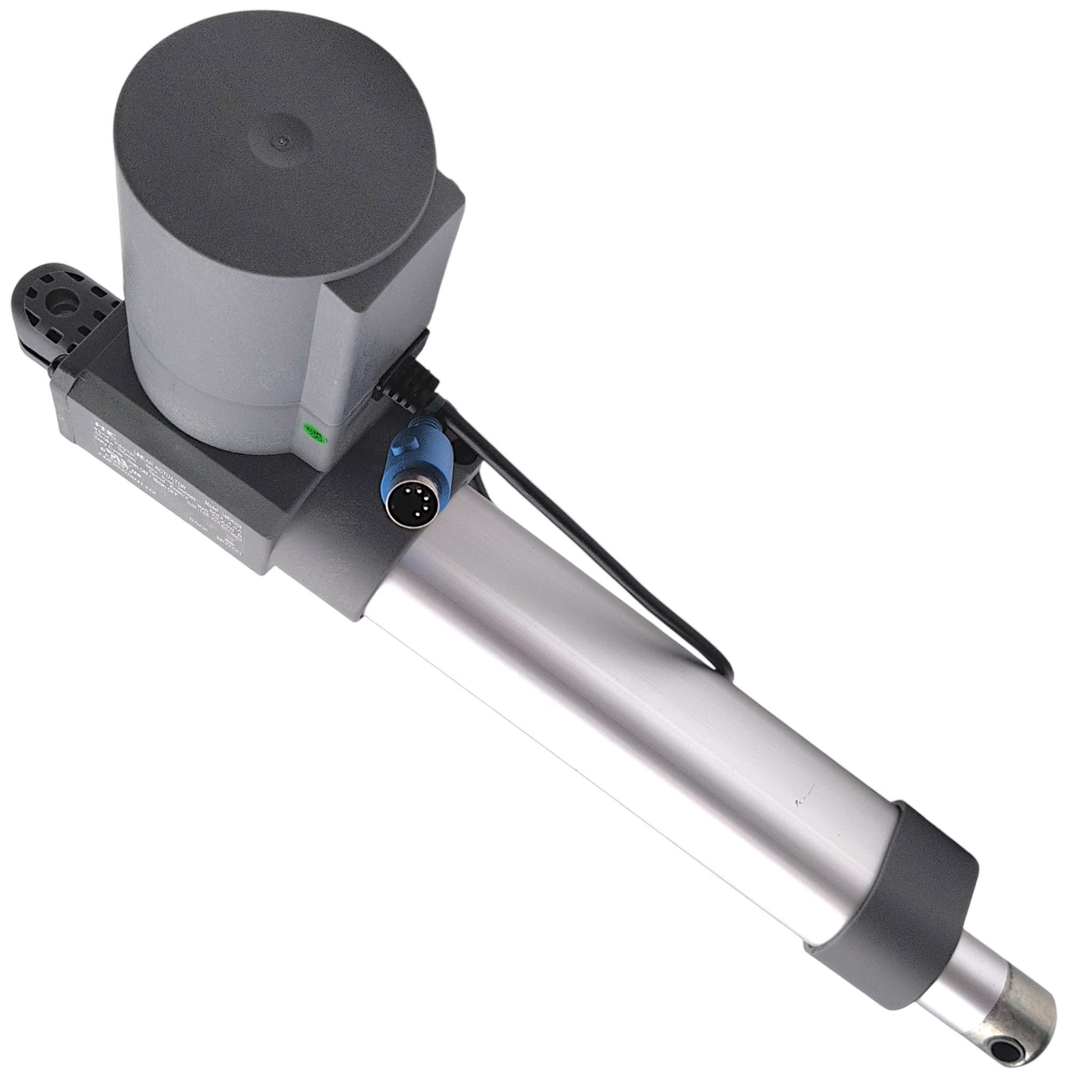

Genuine OEM replacement back motor linear actuator (Part Number: MOT2007409) manufactured by Moto Motion / HHC specifically for Pride Mobility Viva-Lift! Radiance PLR-3955 power lift recliners. This Trendelenburg-capable motor features a Hall sensor, a standard 5-pin Blue connector, and operates at a speed of 13 mm/s.
Description From Pride Mobility Service Manual: Motor, back, lay flat, w/hall censor, w/hardware, Trendelenberg, (HHC: LMD6208N-H-00000A)
Important Note! | Please Read Before Ordering

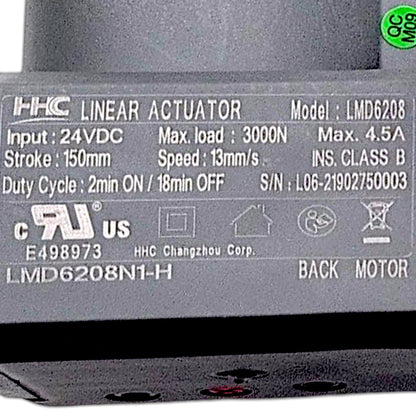

Specifications & Dimensions:
- Brands:
- Pride Mobility & Mega Motion
- Manufacturer:
- Moto Motion / HHC (Replaces FBS)
- Note: While your original part may say FBS or HHC, the manufacturer now operates under the Moto (or Moto Motion) brand. It is the exact same company, just with an updated name for their official replacement parts.
- Pride Mobility Part Number:
- MOT2007409
- Moto / HHC Model Number:
- LMD6208N1-H
- Moto / HHC Base Model:
- LMD6208
- Motor Type:
- Back Motor / Linear Actuator

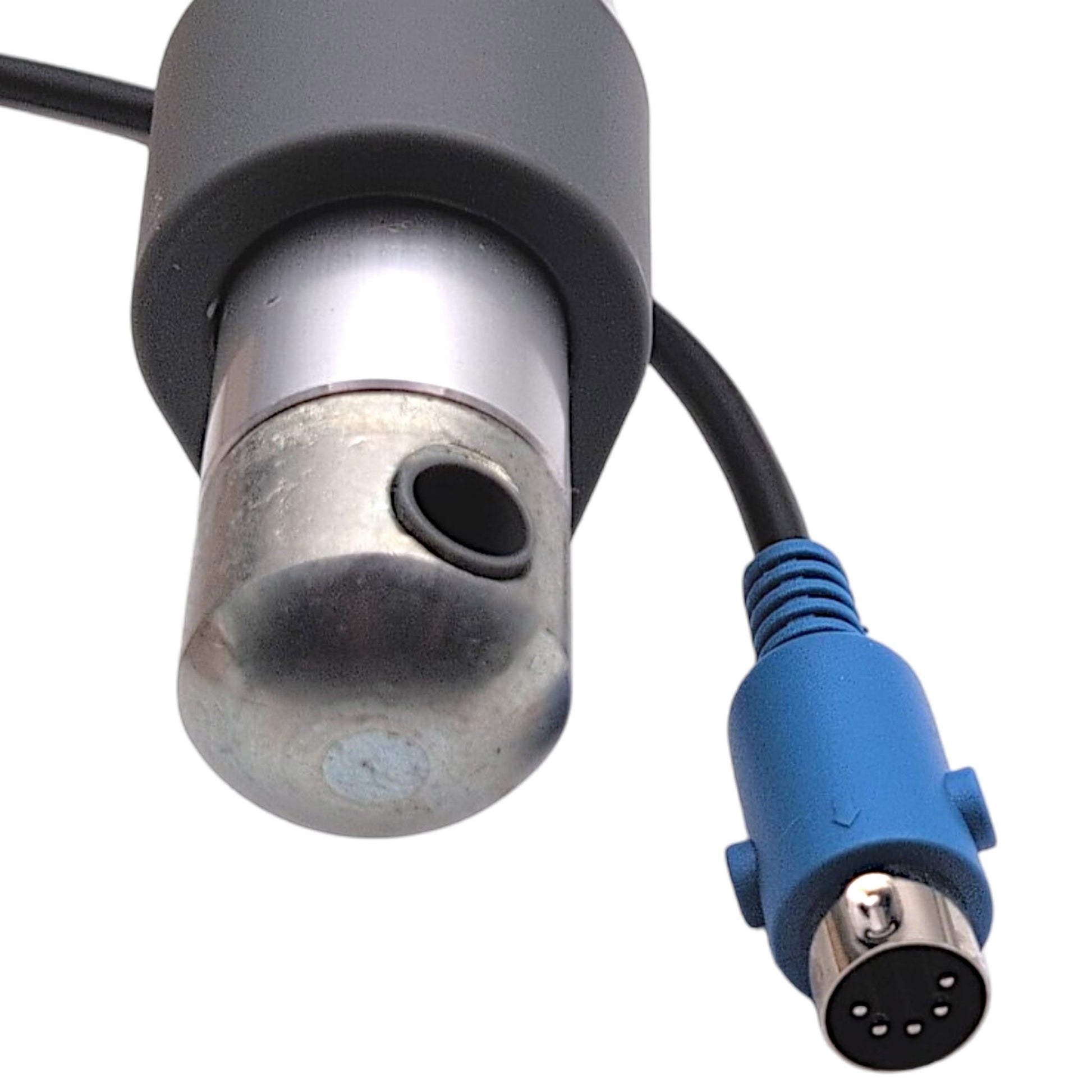

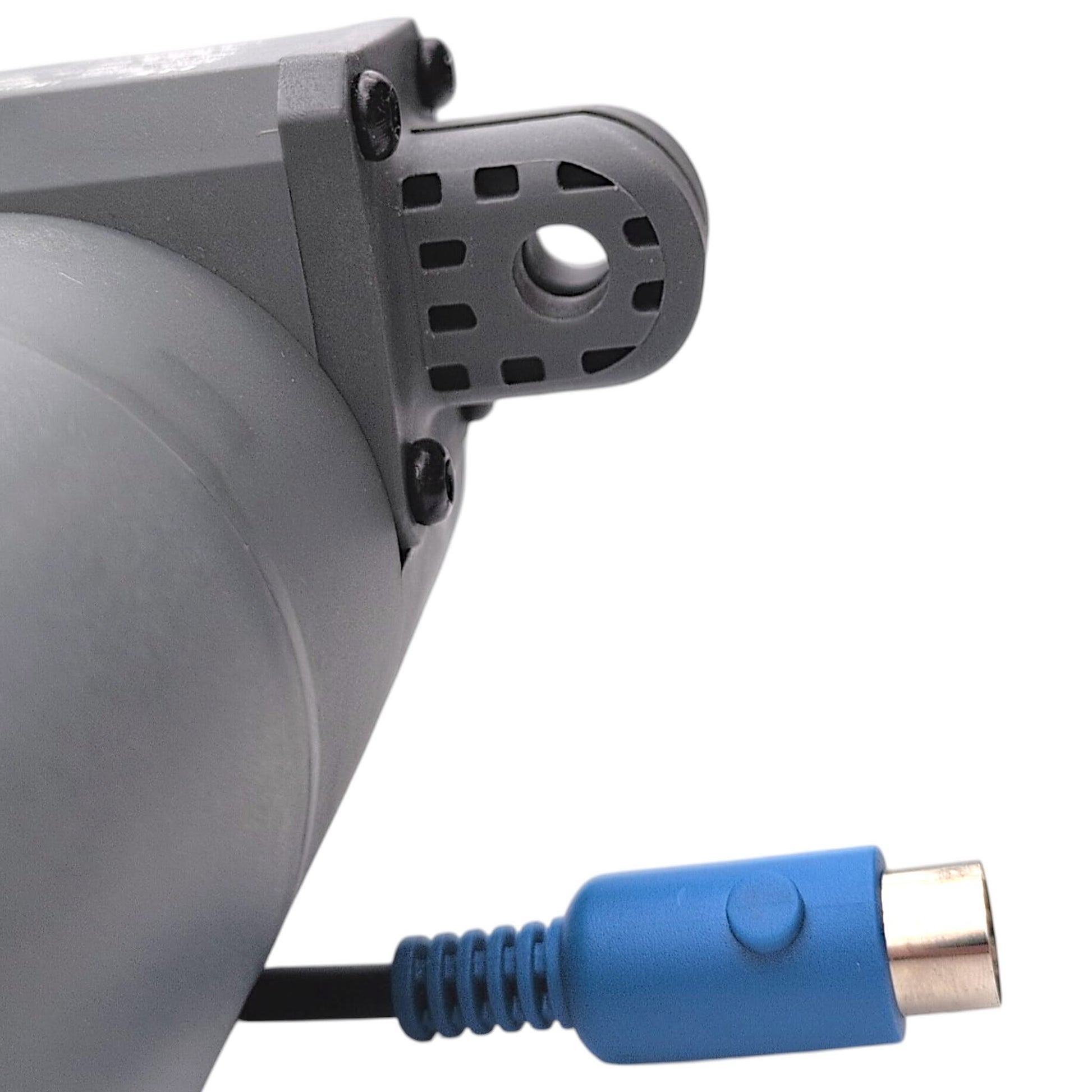

- Connector Type:

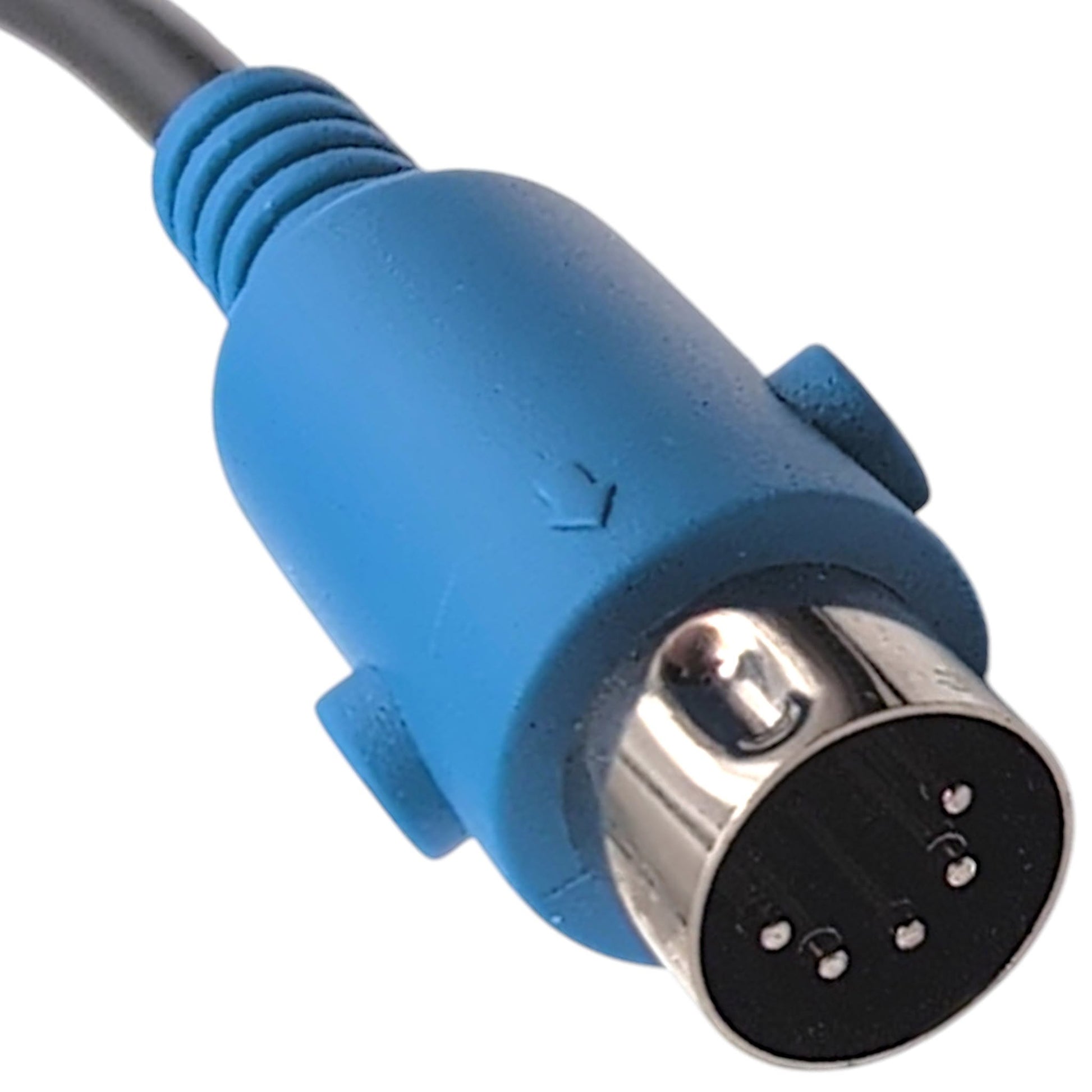

- 5-Pin Blue DIN Connector (Straight 180 Degrees)

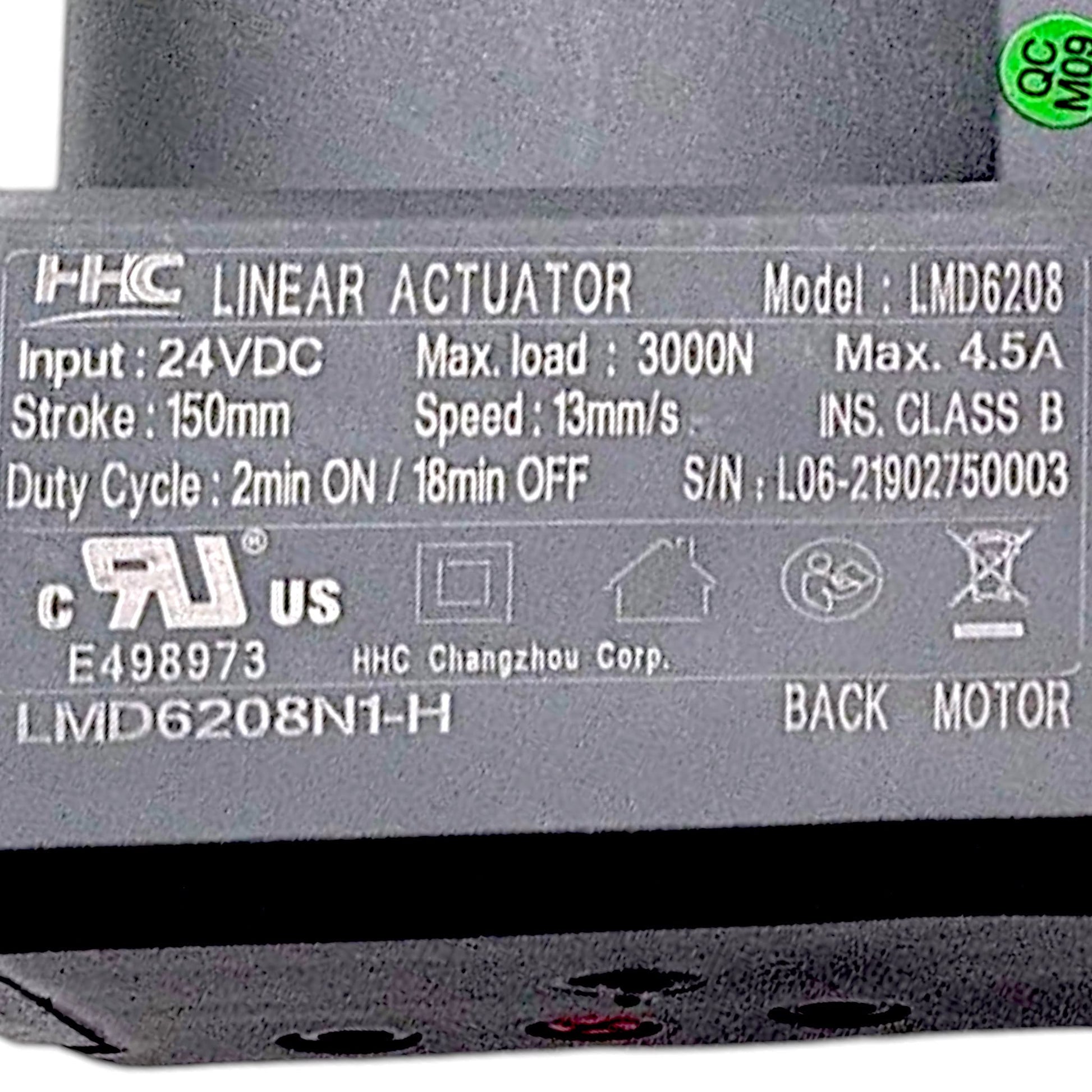

- Input:
- 24 Volts DC Max. 4.5 Amps
- Stroke:
- 150 mm (5.91 inches)
- Max. Load:
- 3000N (Newton)
- Speed:
- 13 mm/s (0.51 inches/s)
- Duty Cycle:
- 2min ON / 18min OFF
Lift Recliner Chair Compatibility
- Pride Mobility Viva-Lift! Radiance Series:
- Model Numbers PLR3955, PLR3955LT, PLR3955M, PLR3955PW, PLR3955S
Additional Specifications
- Length (Fully Retracted):
- Approx. 400 mm (15.75 inches)
- Width:
- 83 mm (3.27 inches)
- Height:
- 165 mm (6.50 inches)
- Cord Length:
- 465 mm (18.31 inches)
- Weight:
- 5.35 Pounds
- Color:
- Gray & Silver
- Insulation Class:
- B
- Certifications:
- cRUus: E498973
