Pride Mobility

Pride Mobility Deltadrive 85152 Replacement Lift Recliner Motor - MOT1609899

Pride Mobility Deltadrive 85152 Replacement Lift Recliner Motor - MOT1609899

$129.95 USD
$172.43 USD $129.95 USD
Our Price Sold Out
Free Shipping on Orders $40+ (Contiguous US Only) Shipping: Calculated at checkout Shipping Policy

In stock
  • Free 2-day shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
  • Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
  • 30 Day Return Policy
  • Fulfillment: Usually ships in 1-2 business days
  • This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects

Product Description

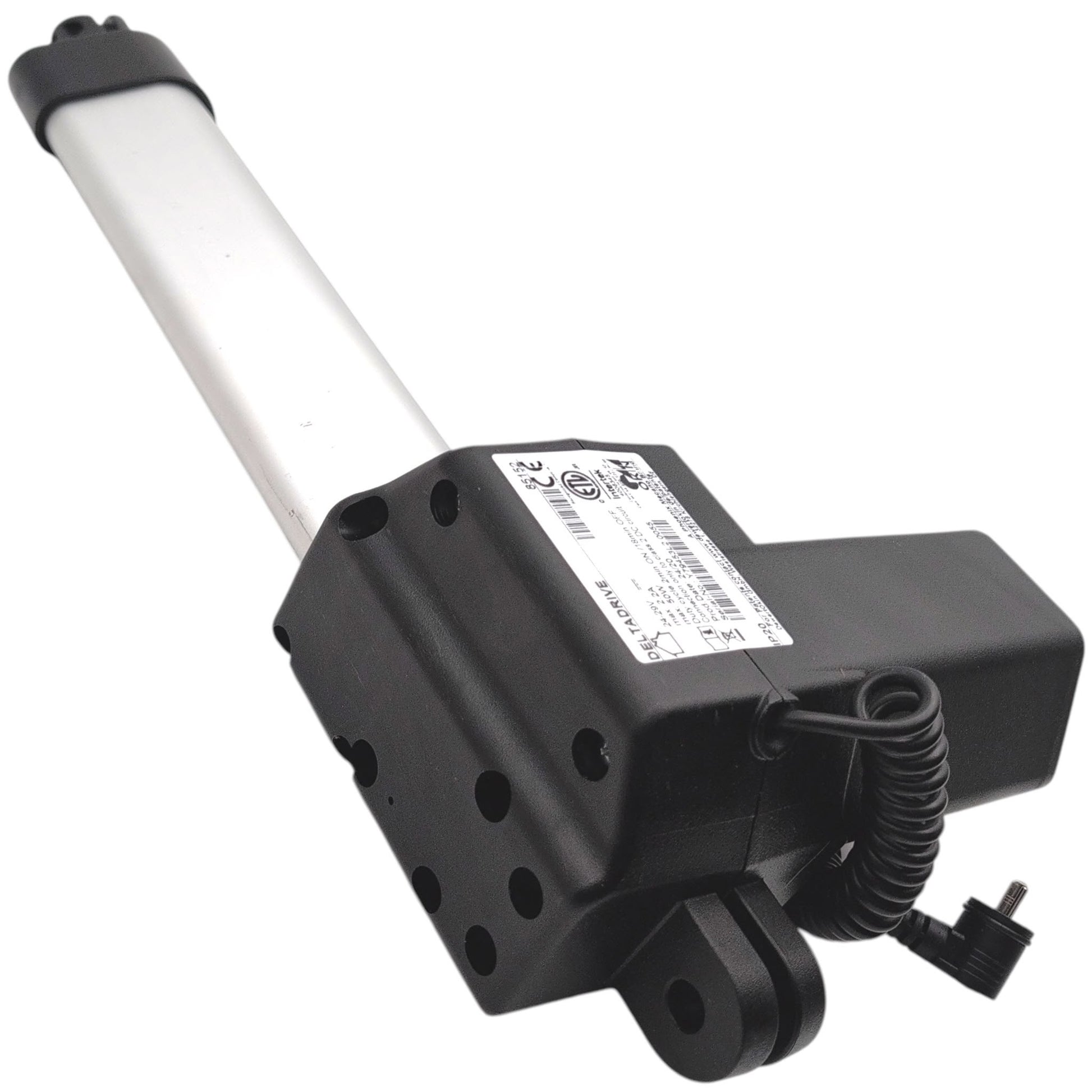

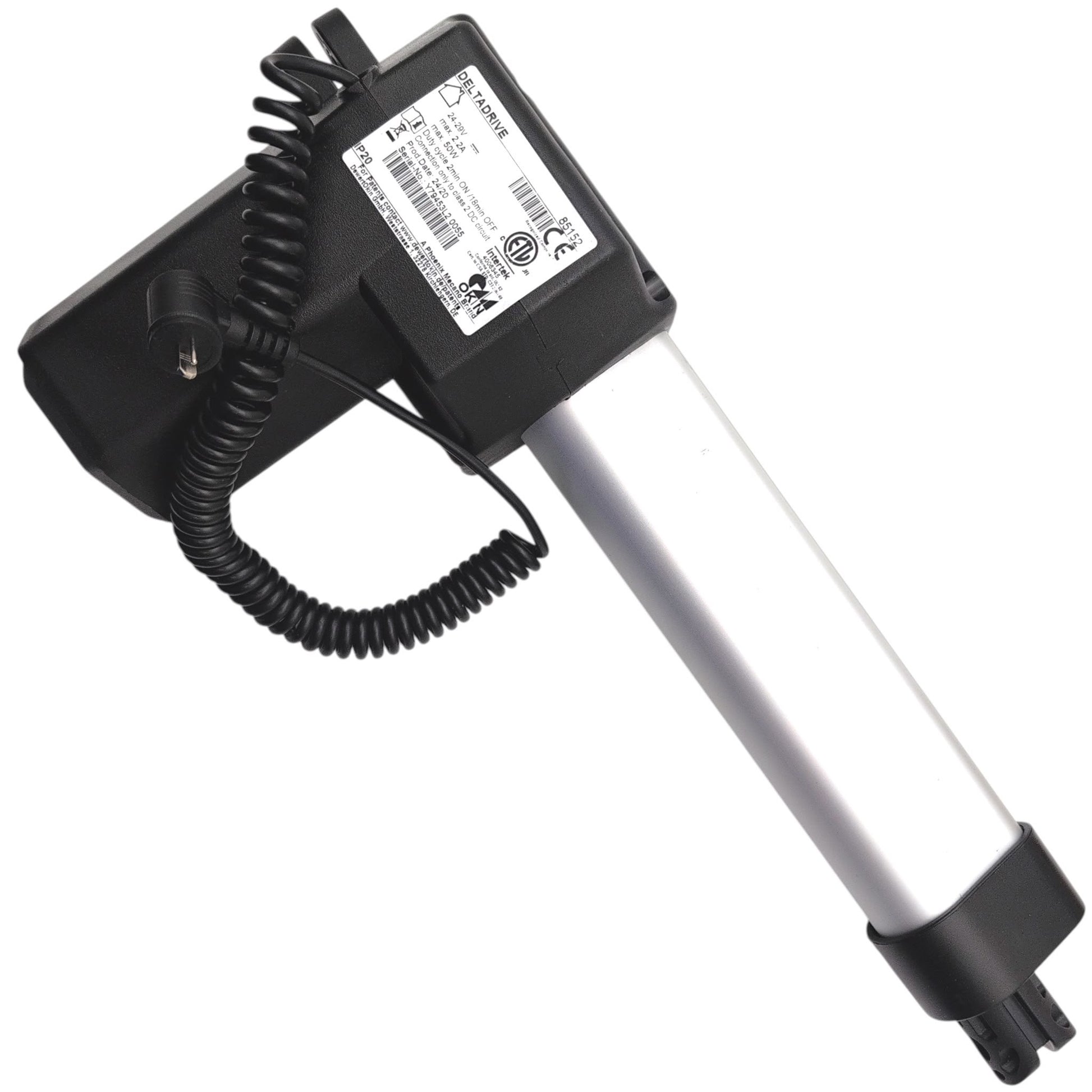

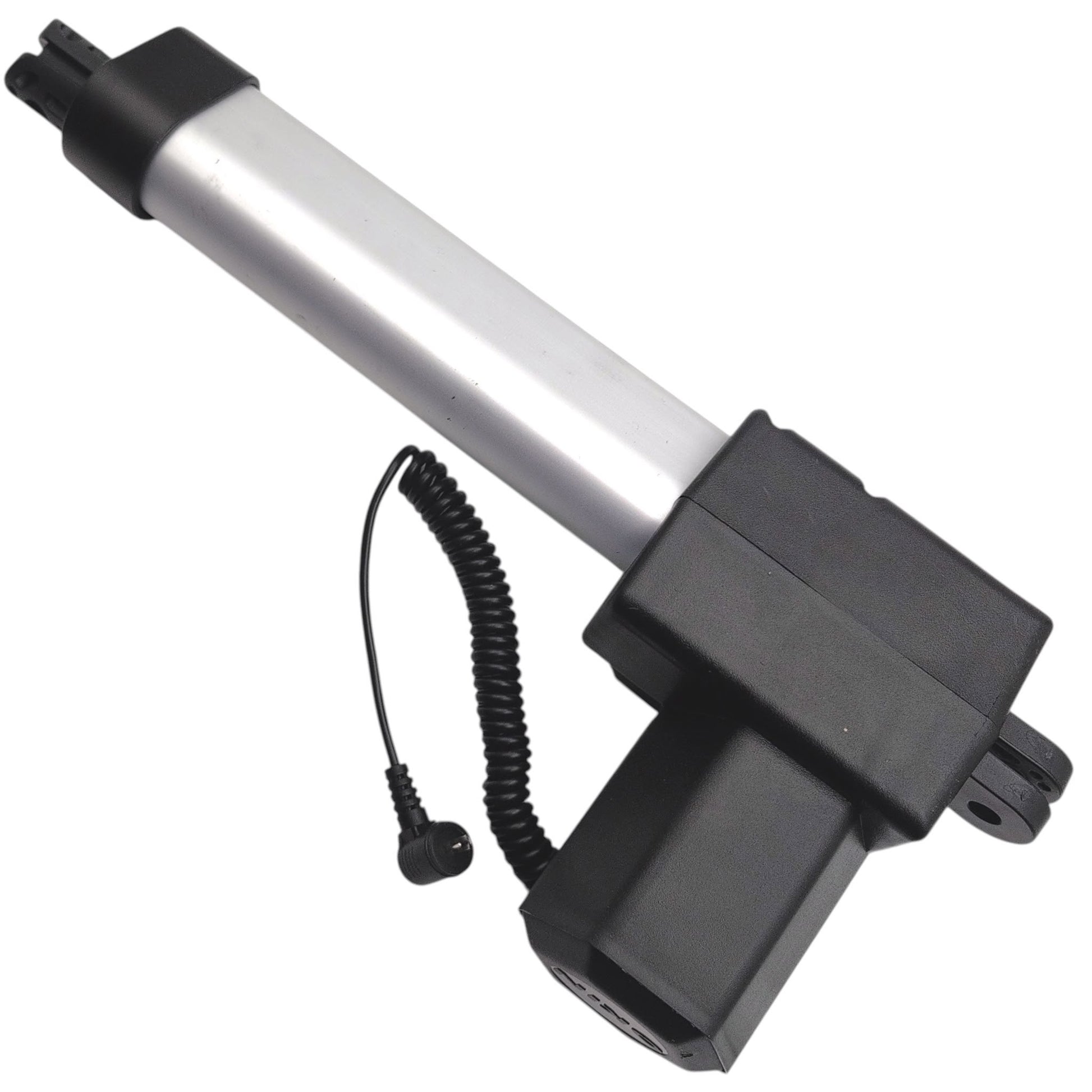

Genuine OEM replacement lift motor linear actuator (Part Number: MOT1609899) manufactured by Okin for Pride Mobility and Mega Motion power lift recliners. This Deltadrive Model Number: 85152 features a standard 2-pin Black connector.

Description From Pride Mobility Service Manual: Motor, lift, EMC, Delta Drive, DZ-SW-384-206, (Okin: 85152)

Specifications & Dimensions:

Brands:
Pride Mobility & Mega Motion
Manufacturer:
Okin
Pride Mobility Part Number:
MOT1609899

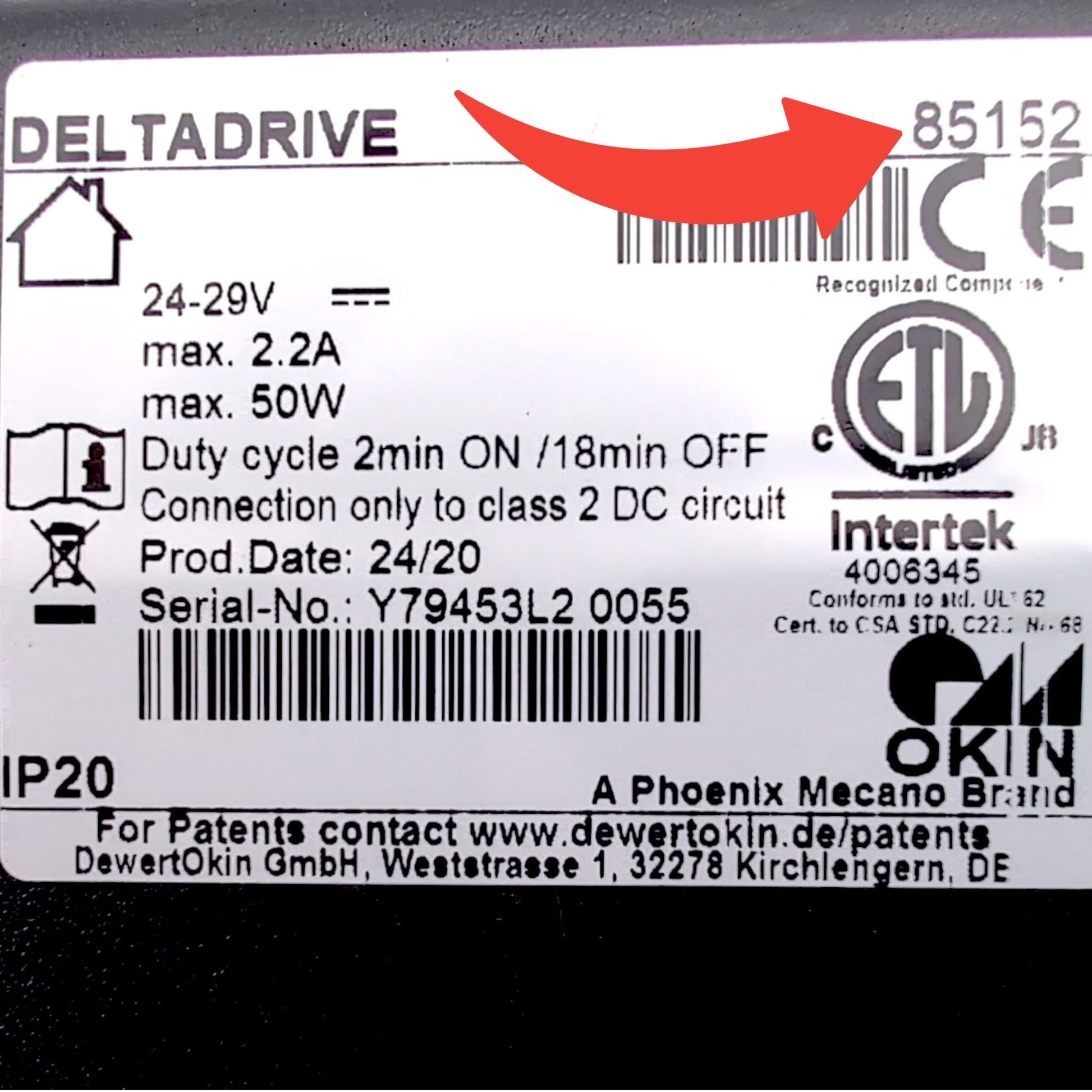

Okin Model Number:
85152 (Deltadrive)
Replaced By Part Number:
MOT2007074 (Limoss: MD120-01-L3-384-206)
Motor Type:
Lift Motor / Linear Actuator
Connector Type:

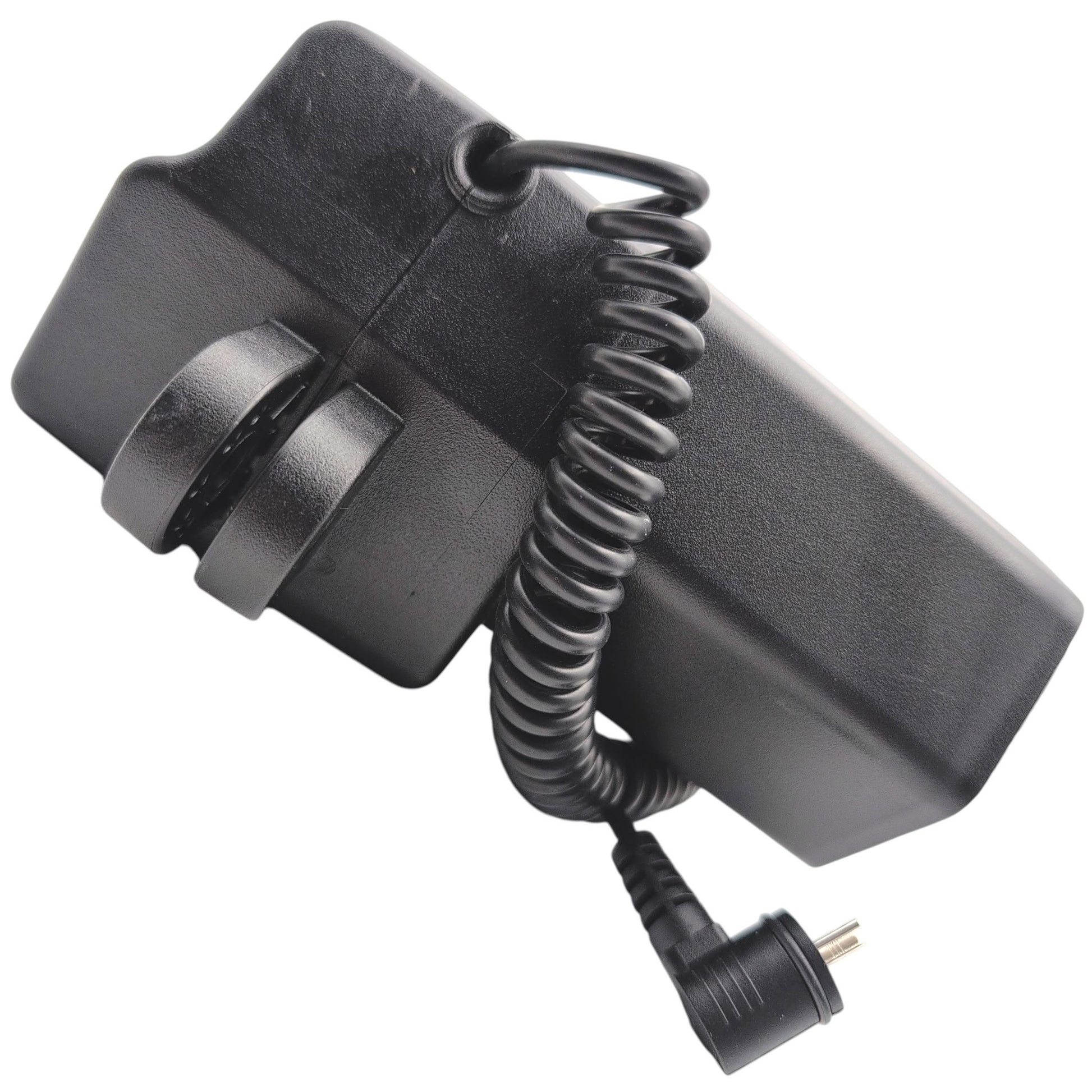

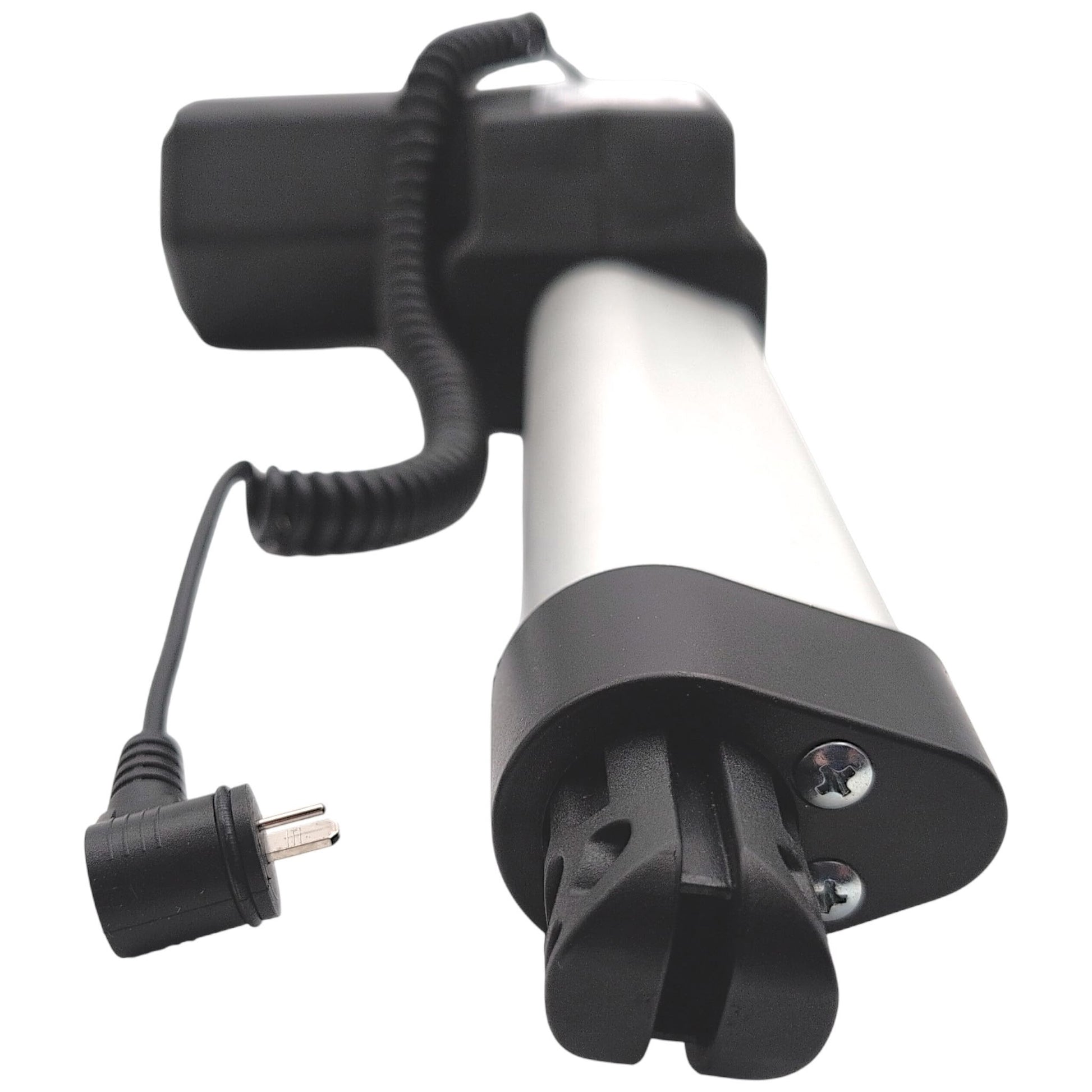

2-Pin Black Connector

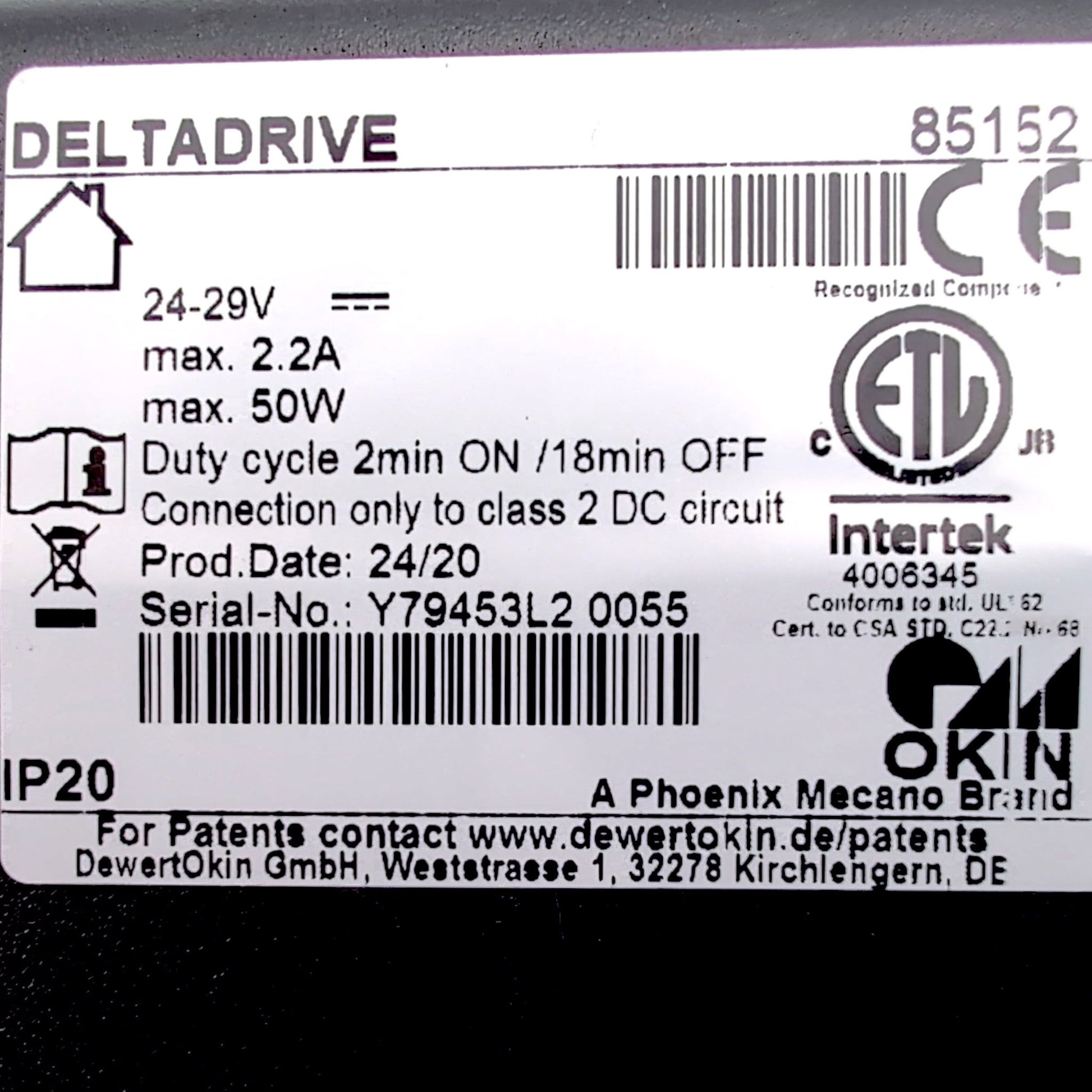

Input:
24-29 Volts DC / Max. 2.2 Amps / Max. 50 Watts
Duty Cycle:
2min ON / 18min OFF
Works With Control Box Part Number:
ELE132831
Works With Hand Control Part Number:
CTL150060

Lift Recliner Chair Compatibility
Pride Mobility:
Model Numbers LC580i, LC515iL, LC362, LC525i
Mega Motion:
Model Numbers NM1652, NM3002, NM2450, NM2550, NM6100

Additional Specifications
Connection Only To:
Class 2 DC Circuit
Length (Fully Retracted):
Approx. 410 mm (16.14 inches)
Width:
78 mm (3.07 inches)
Height:
170 mm (6.69 inches)
Weight:
4.8 Pounds
Color:
Black & Silver
Certifications:
Intertek 4006345
