Pride Mobility - MOT2007074 / MD120-01-L3-384-206 Power Lift Chair Motor

Pride Mobility - MOT2007074 / MD120-01-L3-384-206 Power Lift Chair Motor

$129.95 USD
$172.73 USD $129.95 USD
Our Price Sold Out
Free Shipping On Most Items Over $40+ (Contiguous US Only) Shipping: Calculated at checkout Shipping Policy

2 in stock
  • Free ground shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
  • Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
  • 30 Day Return Policy
  • Fulfillment: In stock – ships same day when ordered by 2 PM ET (Mon–Fri, except holidays)
  • This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects

Product Description

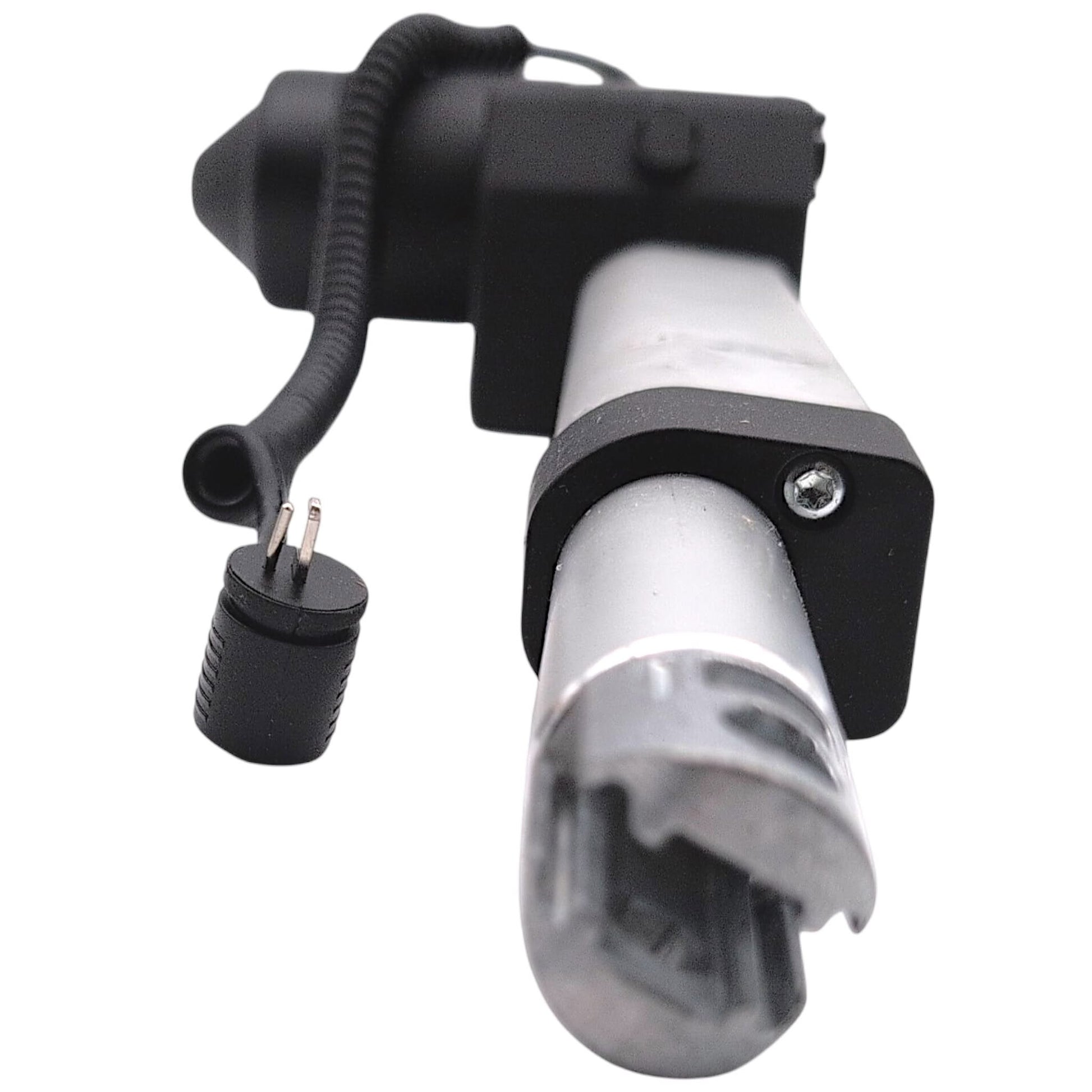

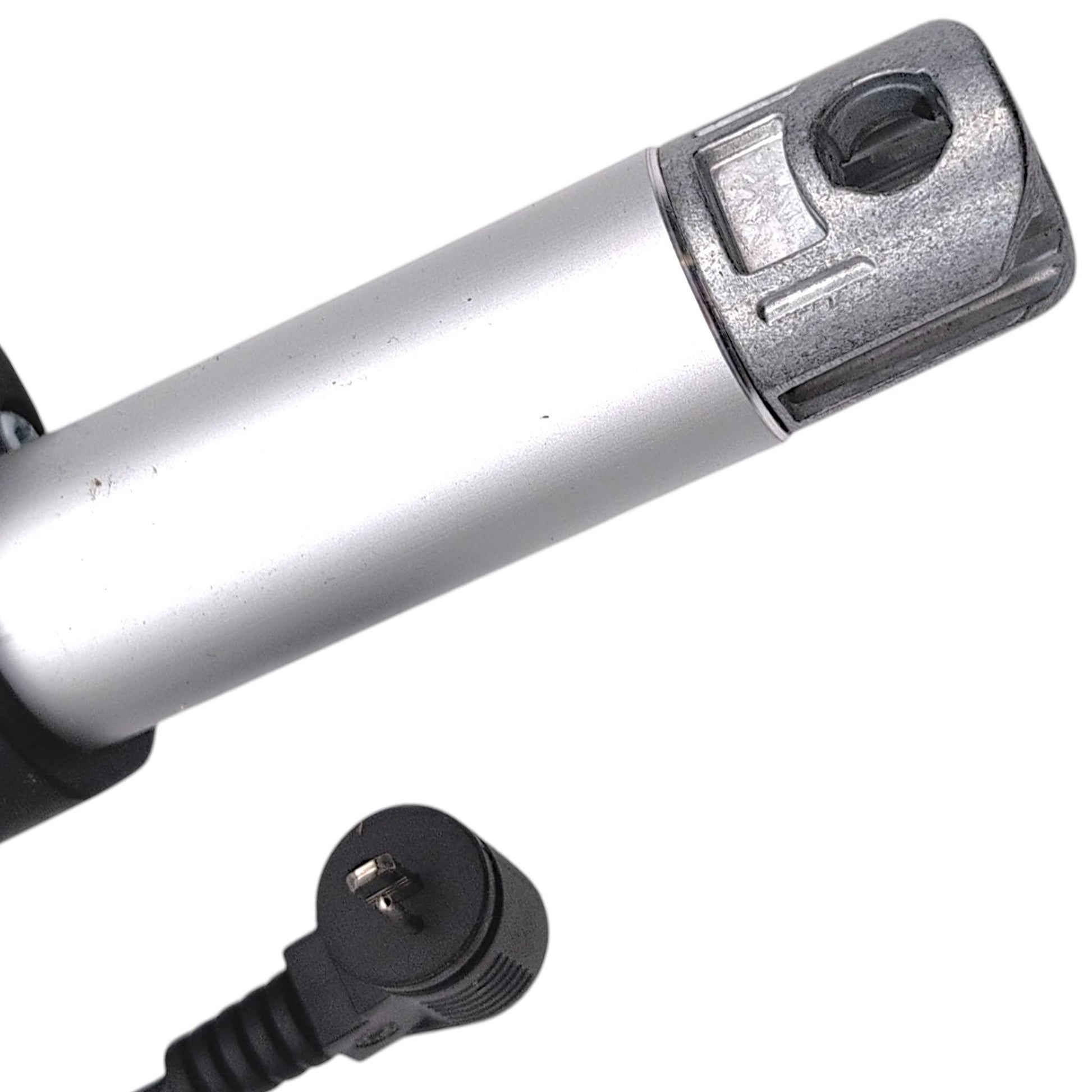

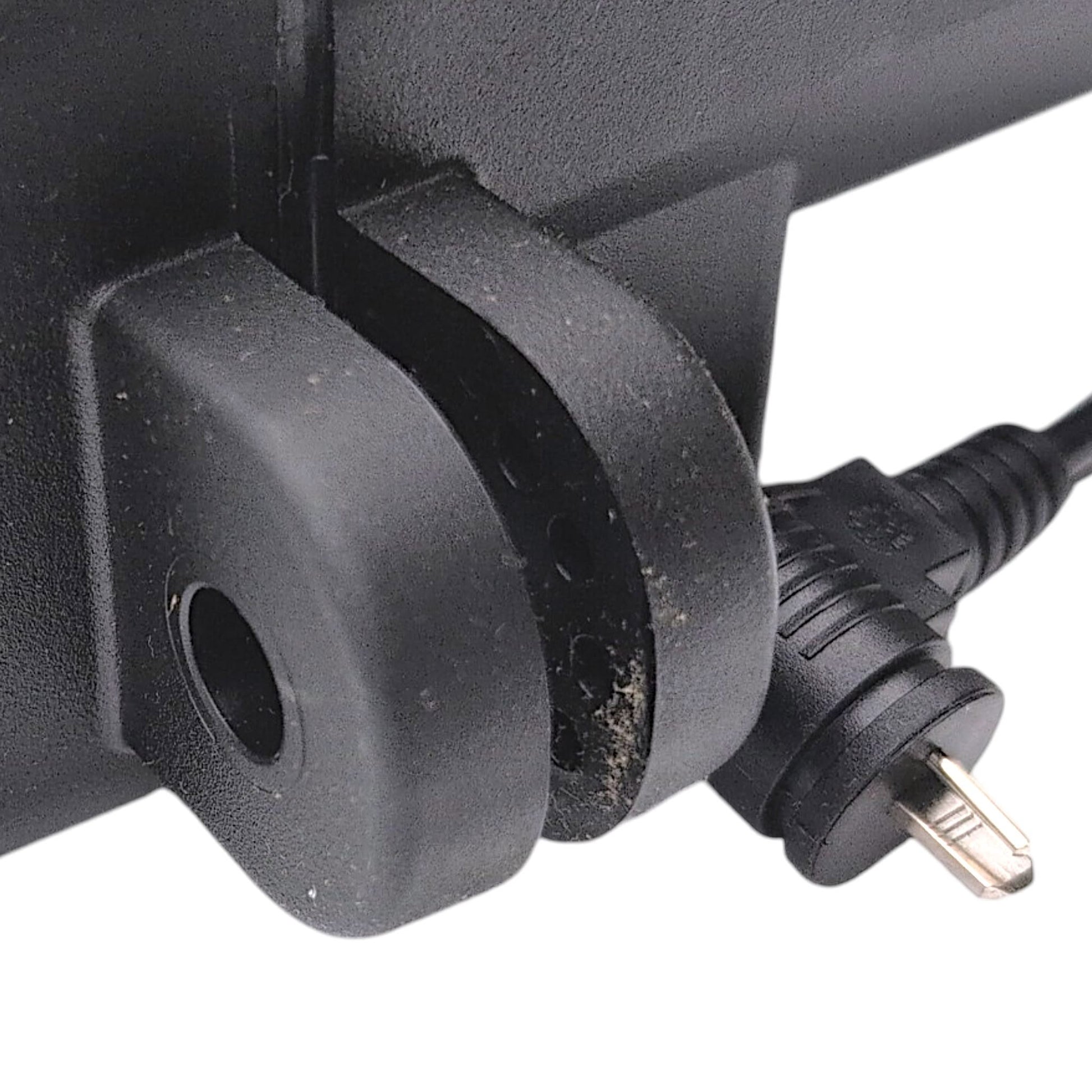

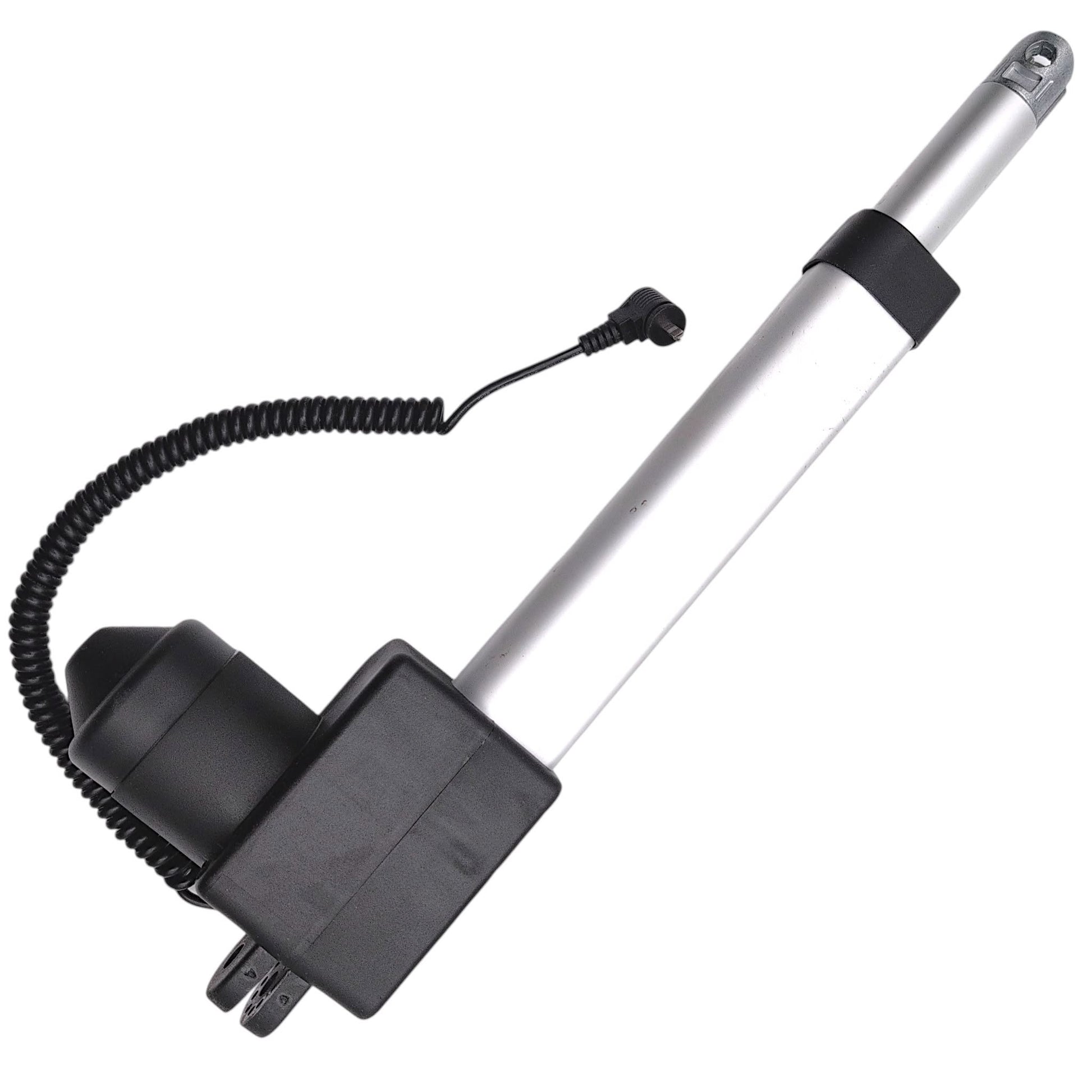

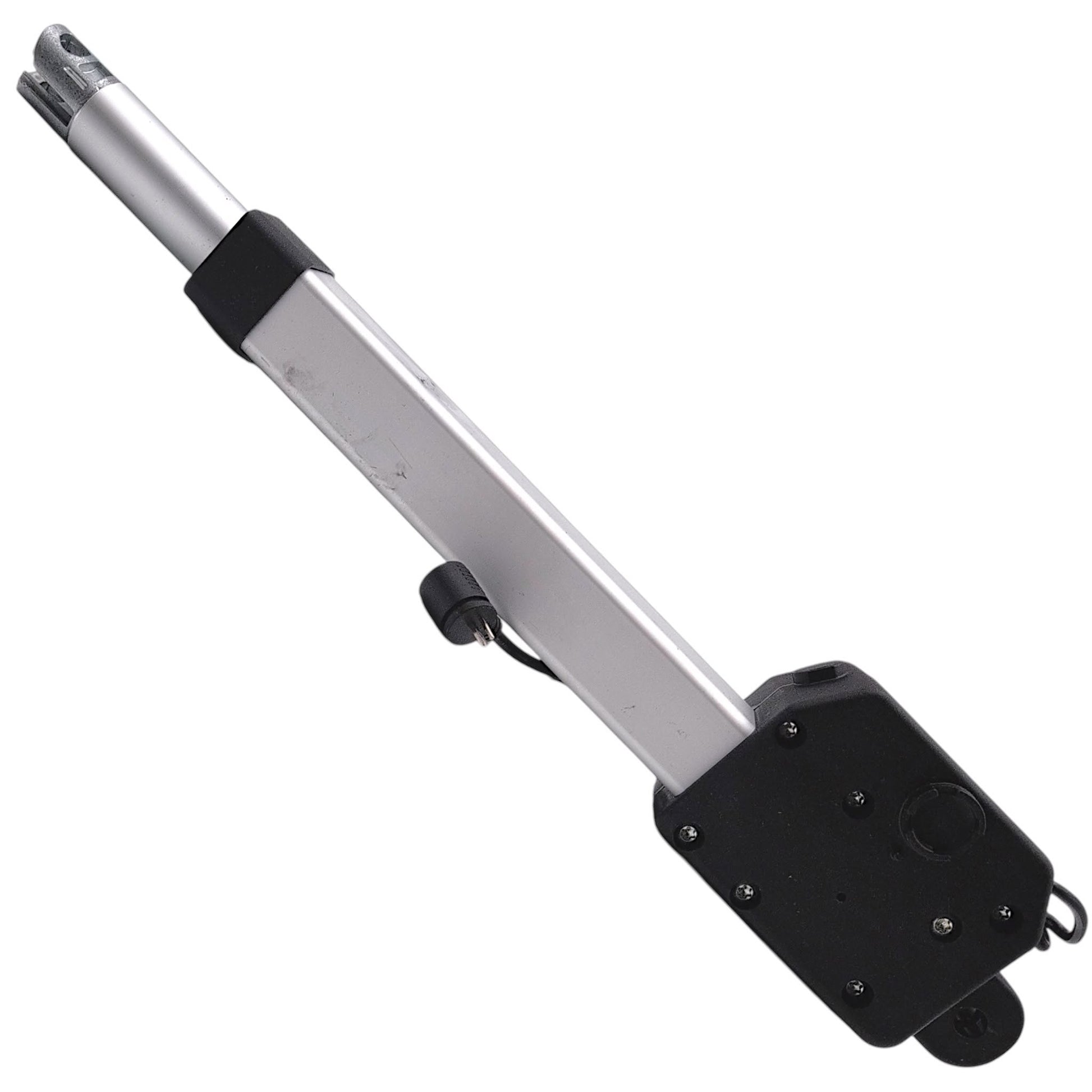

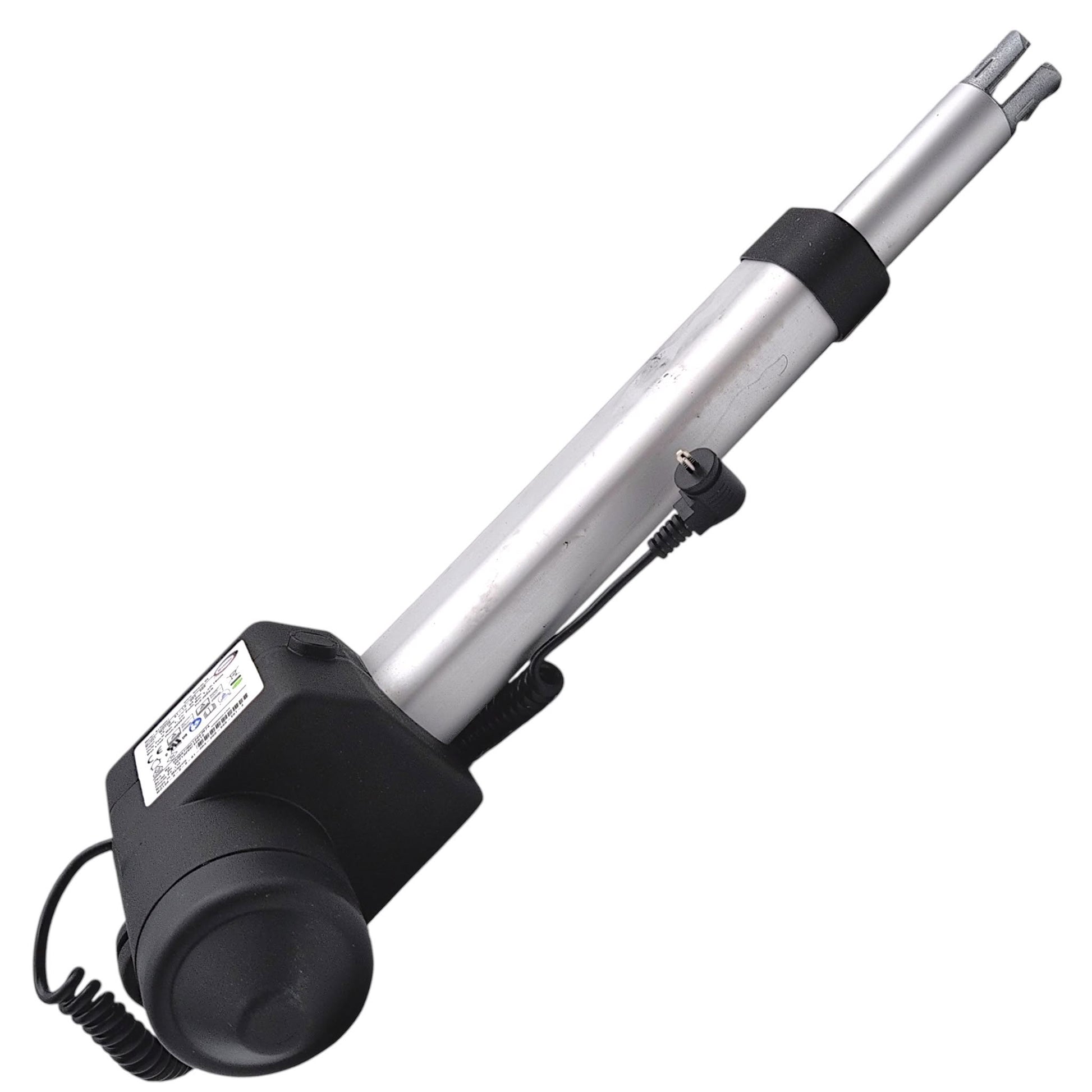

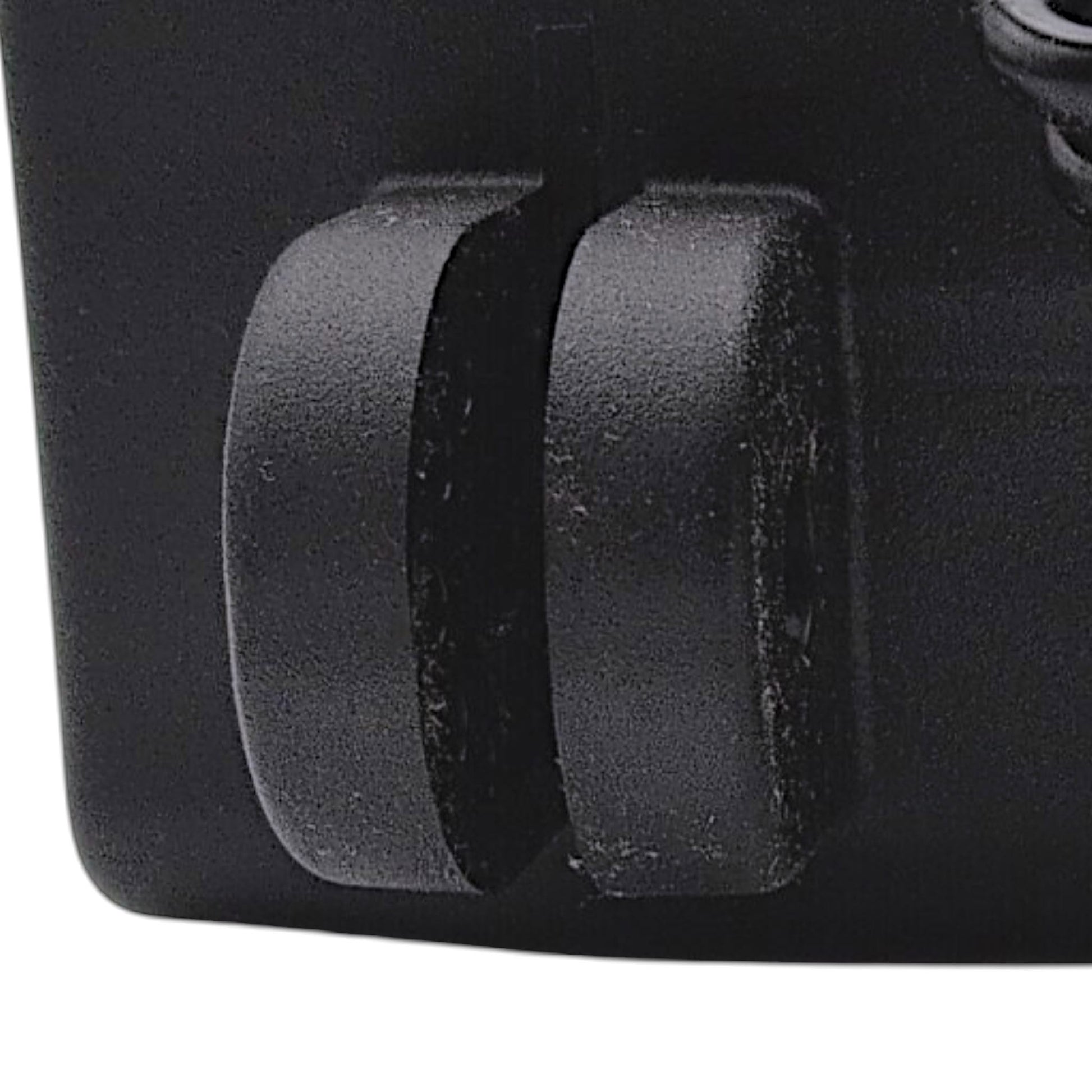

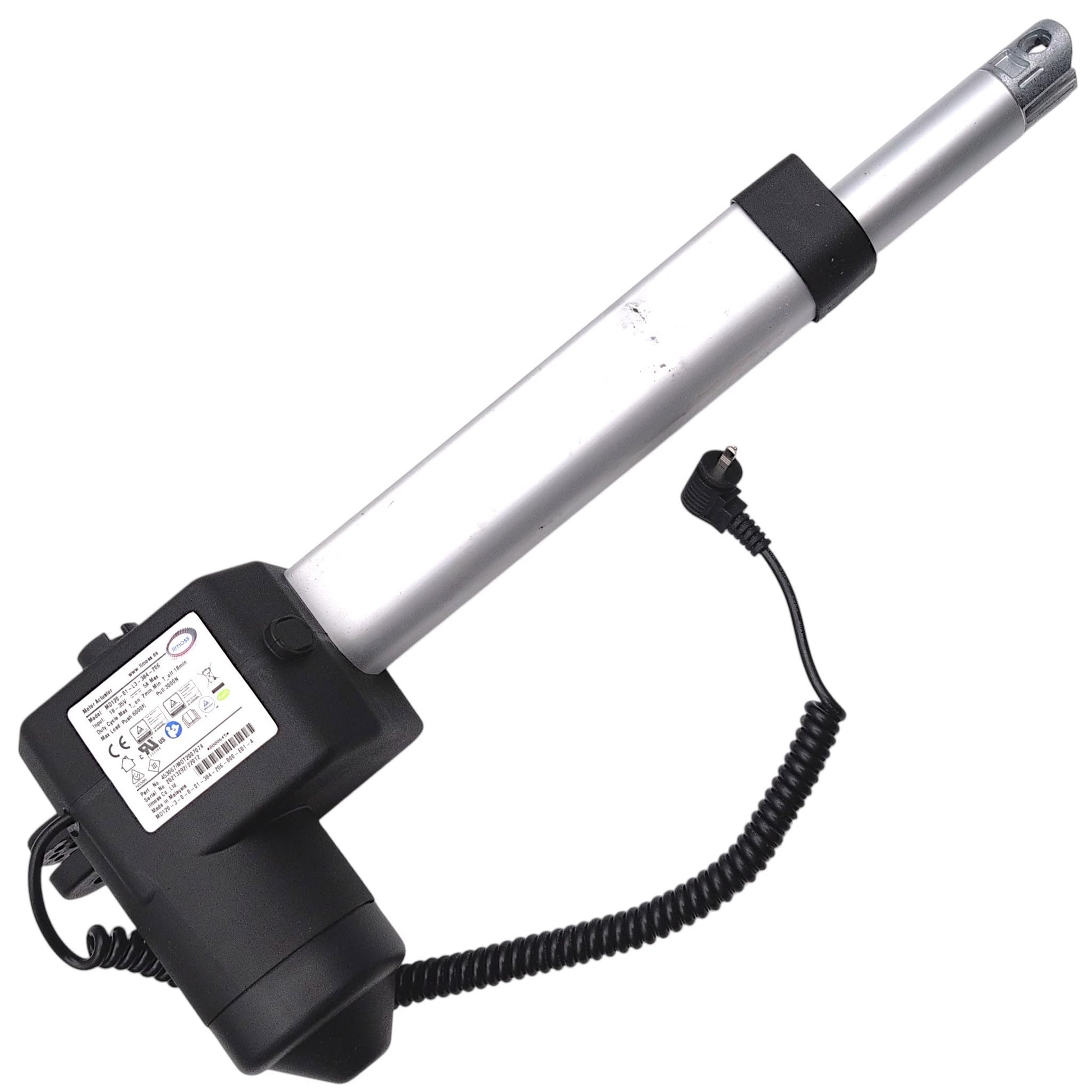

Genuine OEM replacement lift motor linear actuator (Part Number: MOT2007074) manufactured by Limoss Co., Ltd. for Pride Mobility and Mega Motion lift chairs. Replaces Okin Deltadrive 85152 motors (Pride/Mega Motion Part Number: MOT1609899).

Description From Pride Mobility Service Manual: motor,seat,(Limoss: MD120-01-L3-384-206)(Replaces MOT1609899)

Specifications & Dimensions:

Brands:
Pride Mobility & Mega Motion
Manufacturer:
Limoss Co., Ltd.
Pride Mobility Part Number:
MOT2007074
Limoss Model Number:
MD120-01-L3-384-206
Replaces Part Number:
MOT1609899 (Okin: 85152)
Motor Type:
Lift Motor / Linear Actuator

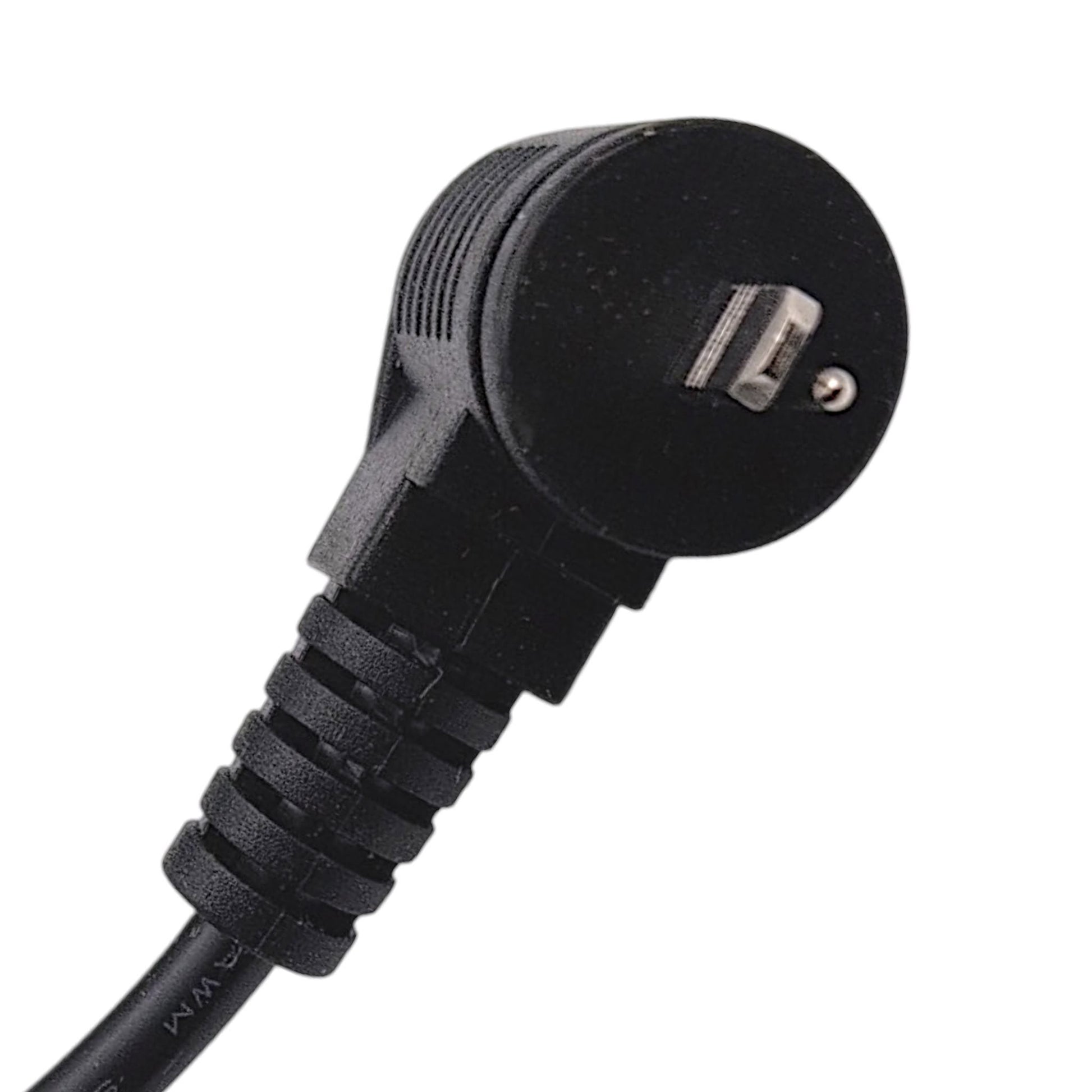

Connector Type:
2-Pin and 5-Pin Black ⚫ Connectors

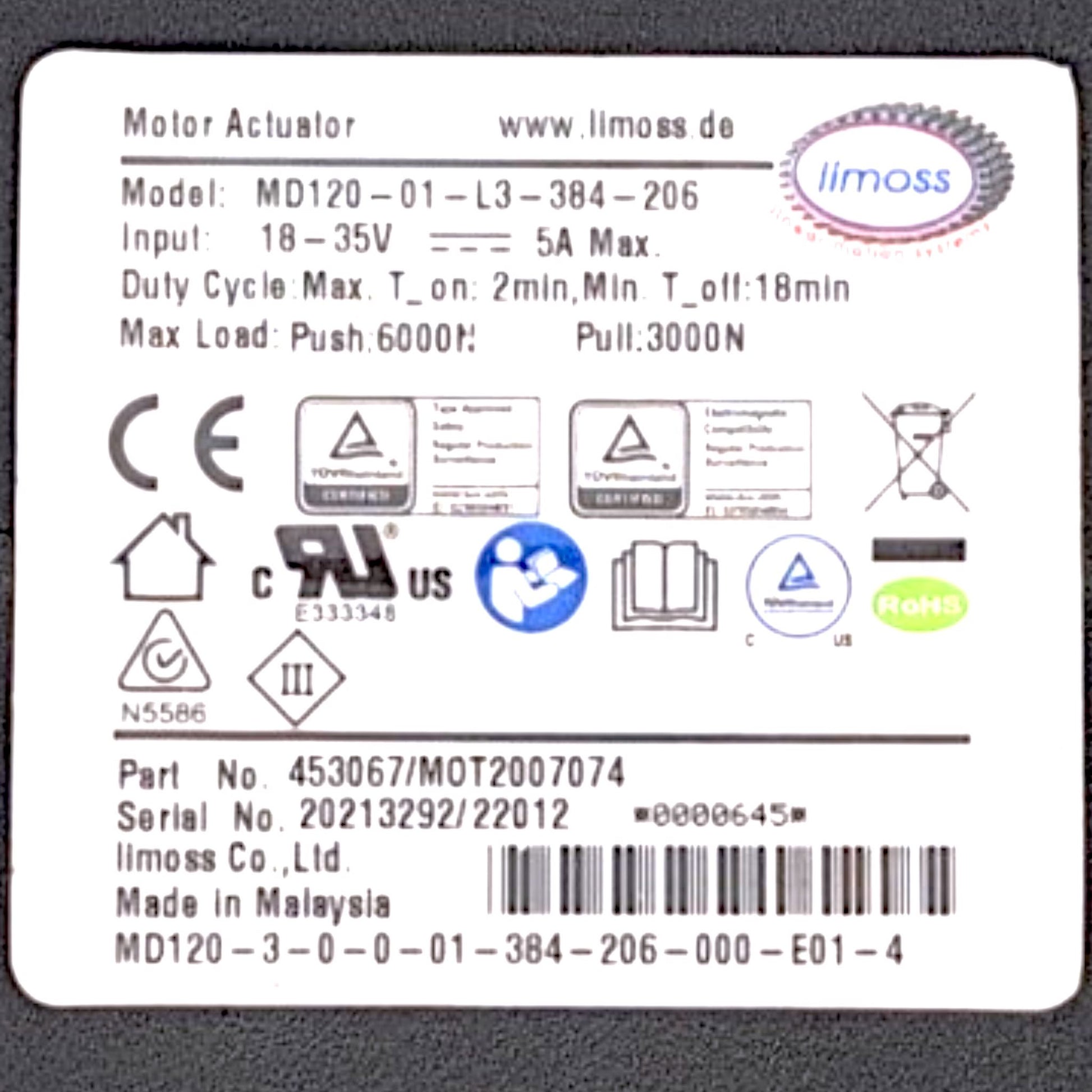

Input:
18-35 Volt, 5 Amp Max.
Duty Cycle:
Max T_on: 2min / Min. T_off: 18min

Compatible Lift Chairs
  • Mega Motion Power Lift Recliner: NM1652, NM1652SO, NM2450, NM2550, NM3002, NM6100, NM6100SO
  • Power Lift Recliner: LC362, LC515iL, LC525i, LC525iL, LC525iM, LC525iPW, LC525iS, LC580i
  • Pride parts manual note: Used on or after 164 day of 2019

Additional Specifications
Length (Fully Retracted):
Approx. 410 mm (16.14 inches)
Width:
78 mm (3.07 inches)
Height:
170 mm (6.69 inches)
Weight:
4.8 Pounds
Color:
Black & Silver
Certifications:
CE, cRUus E333348, ROHS, N5586
