Pride Mobility / Mega Motion LMD6208N1-H2 Linear Actuator - Blue Connector - MOT2205151
Pride Mobility / Mega Motion LMD6208N1-H2 Linear Actuator - Blue Connector - MOT2205151
In stock
Couldn't load pickup availability
- Free ground shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
- Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
- 30 Day Return Policy
- Fulfillment: Usually ships in 1-2 business days
- This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects
Product Description

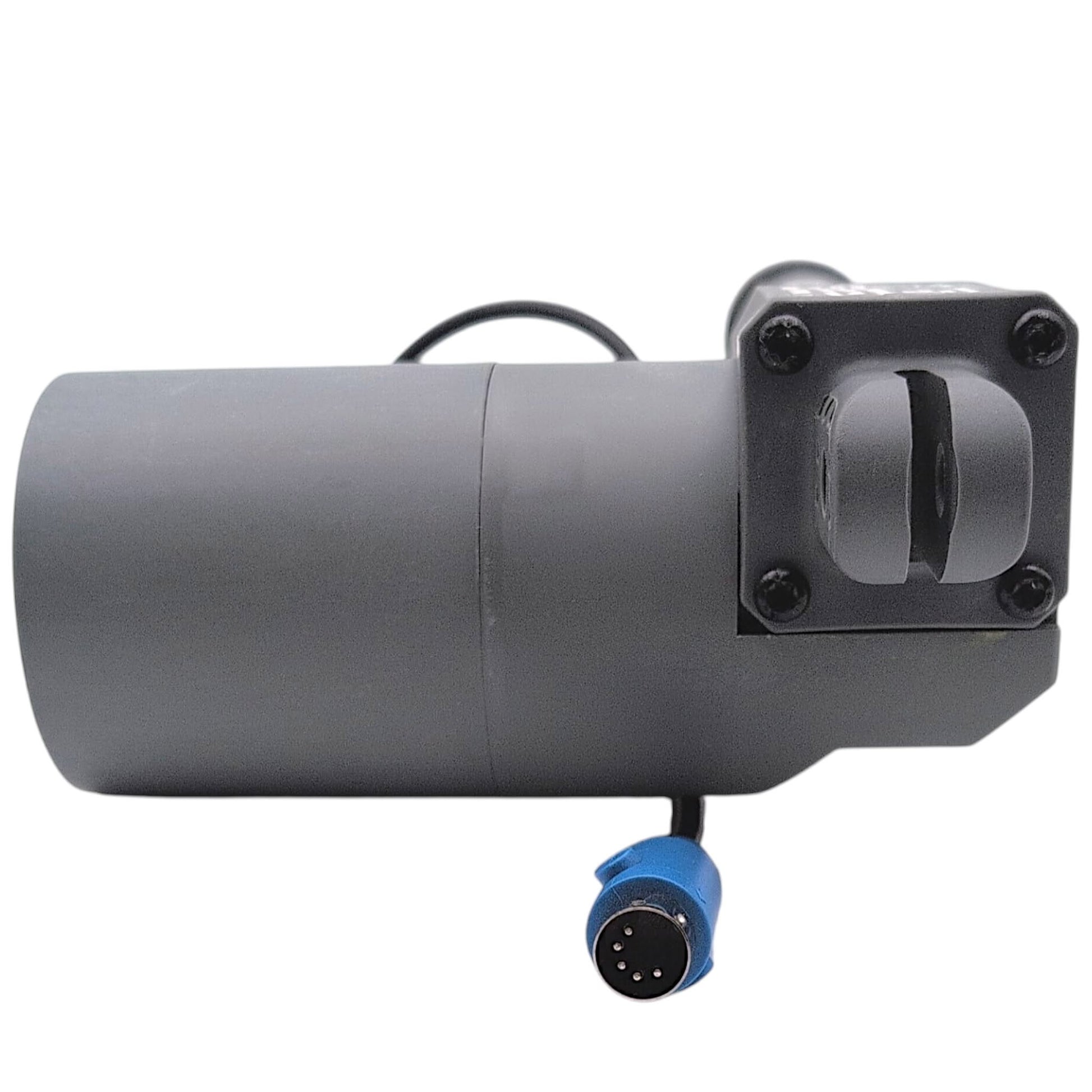

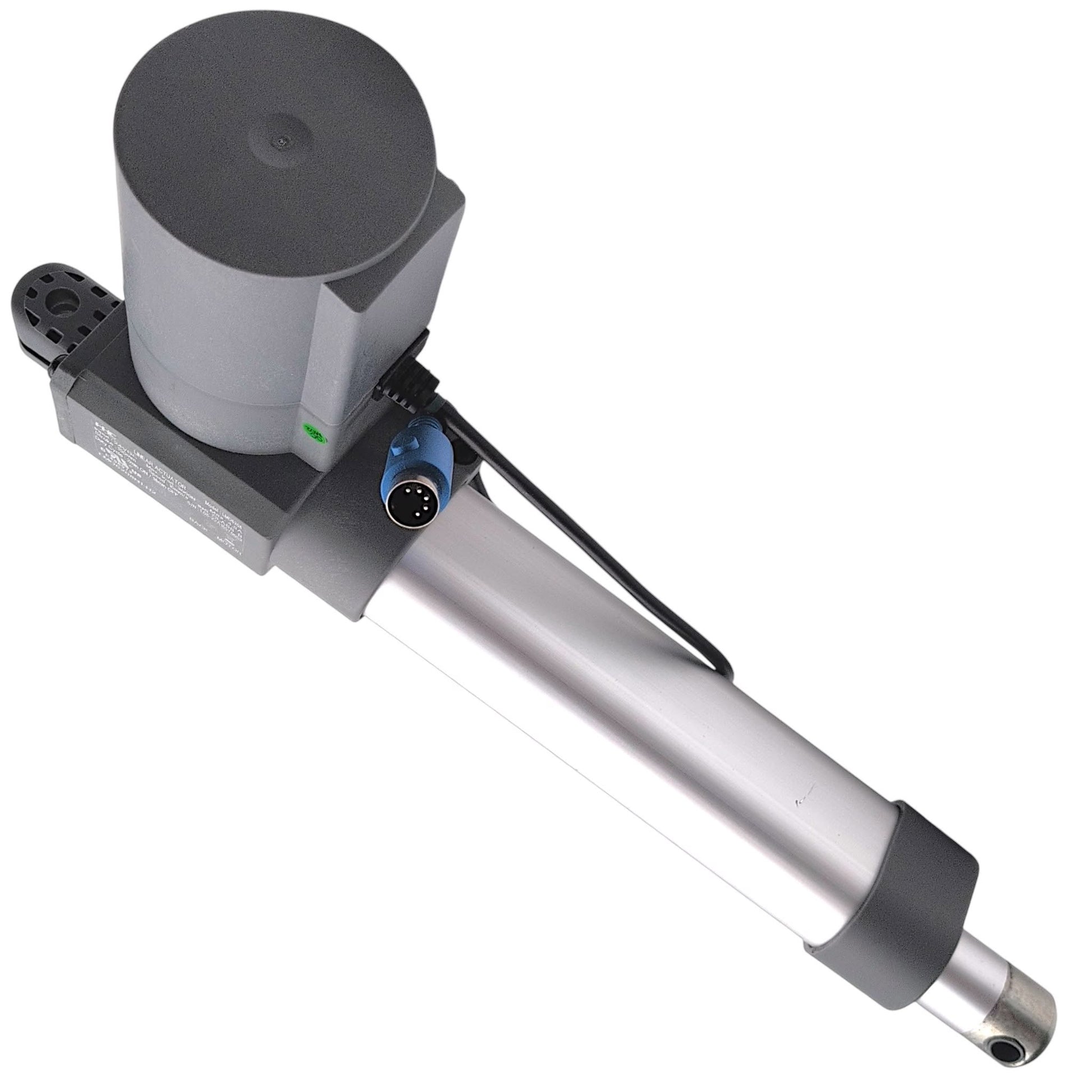

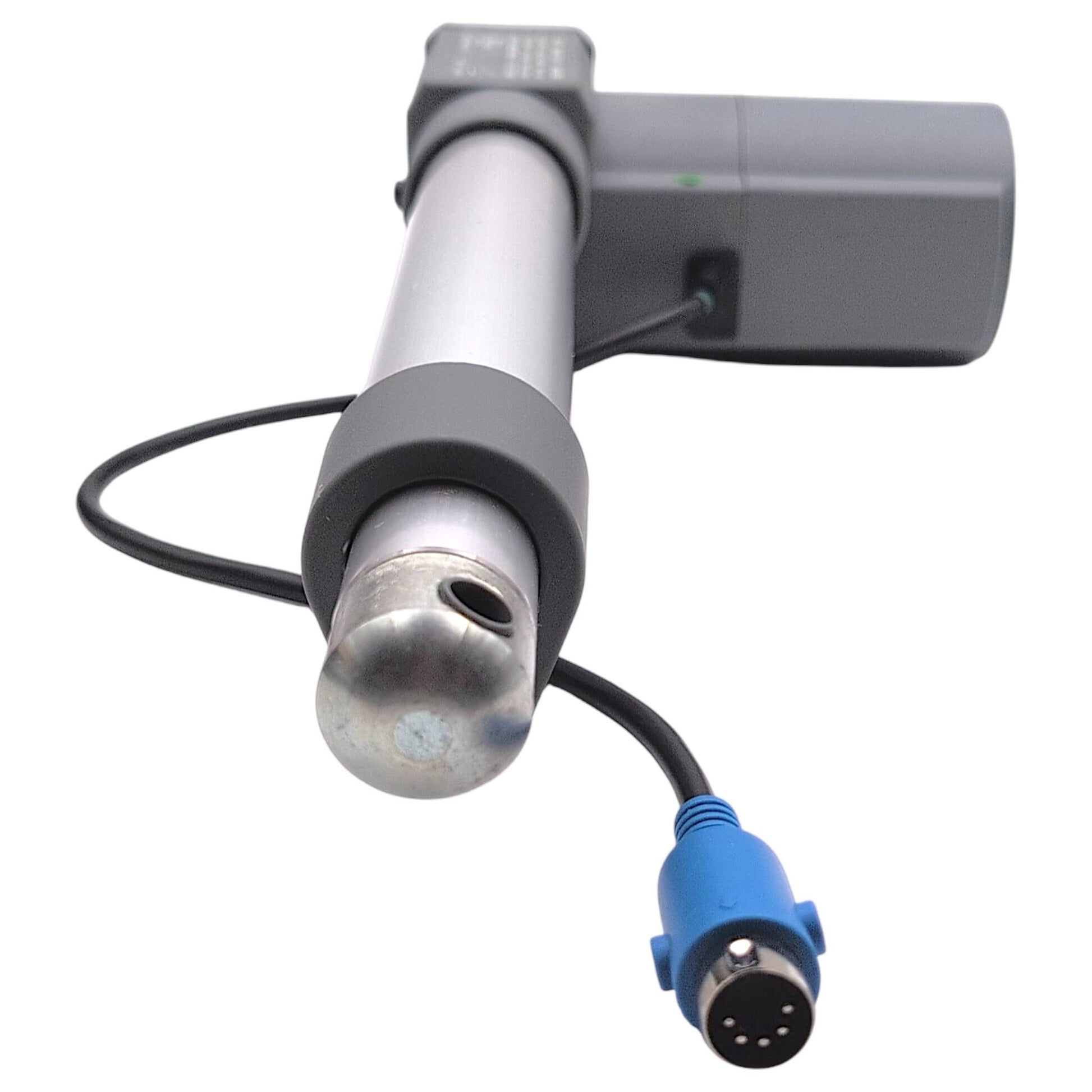

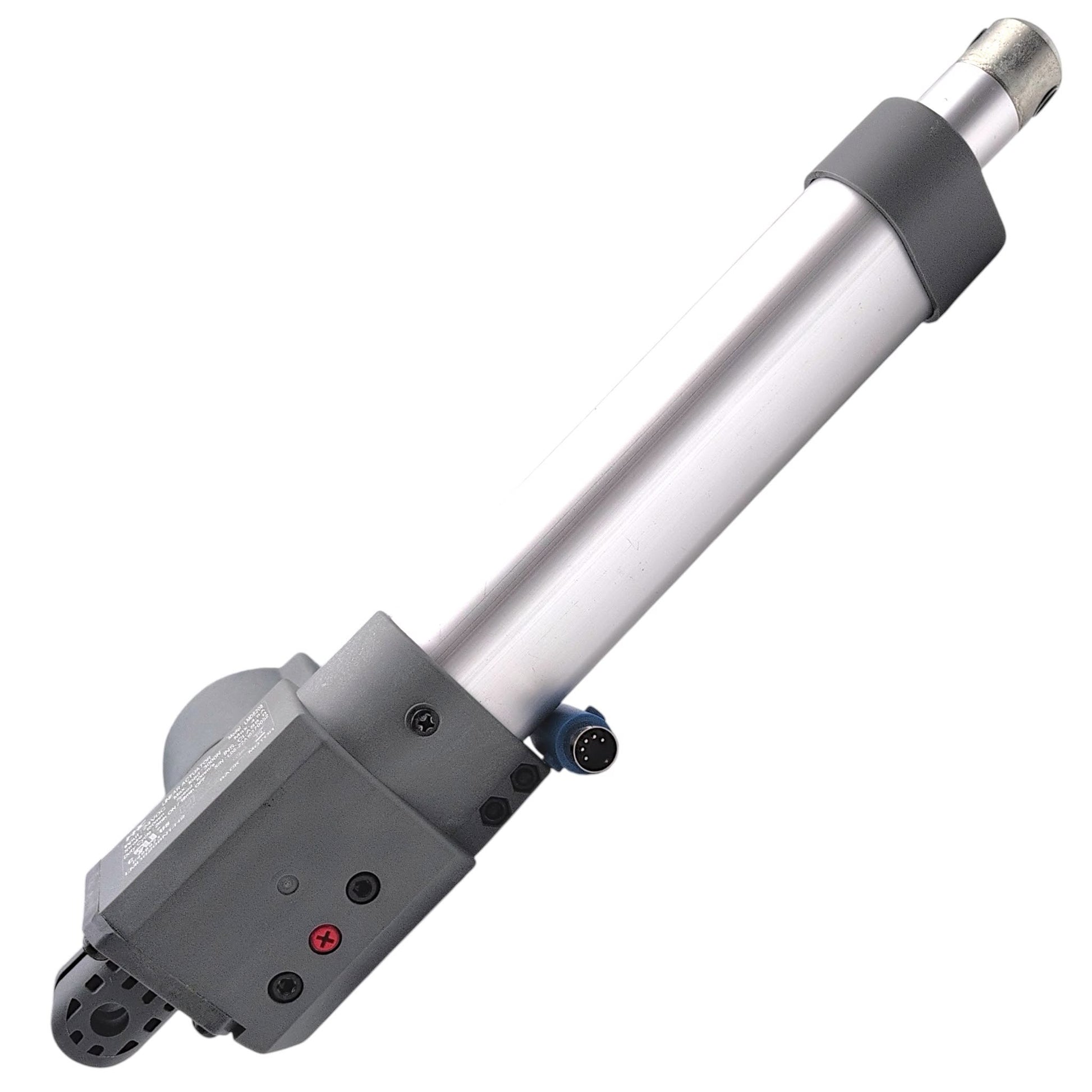

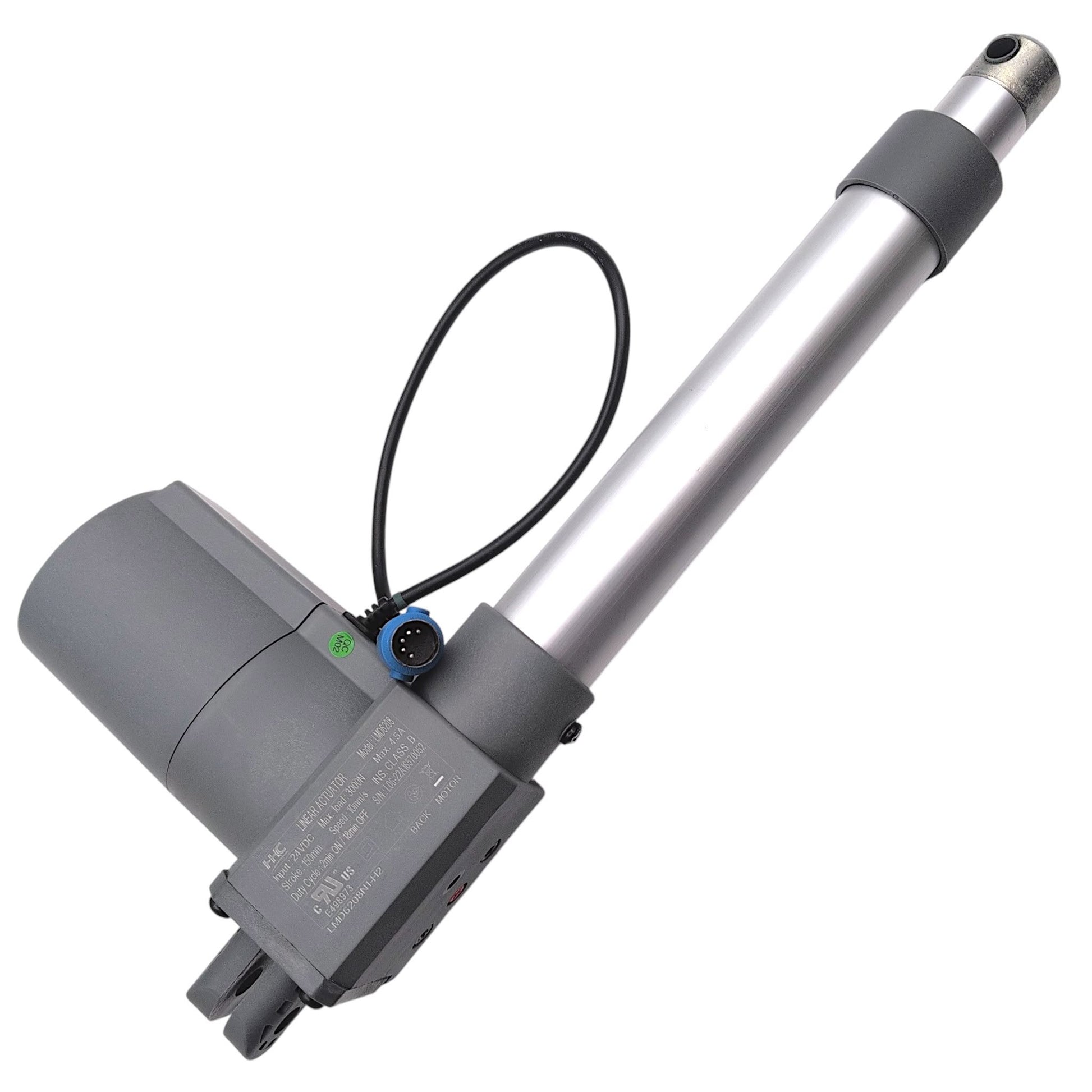

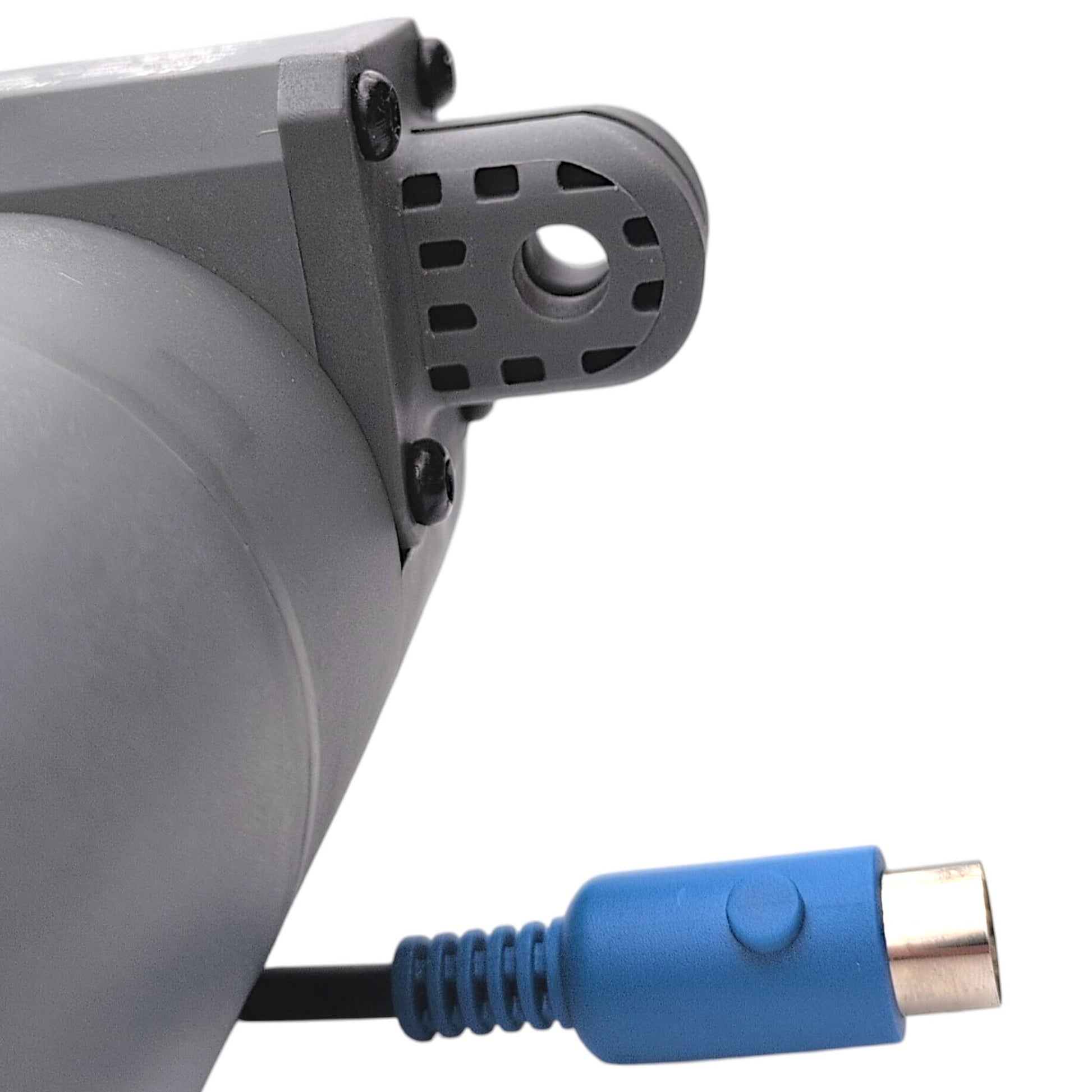

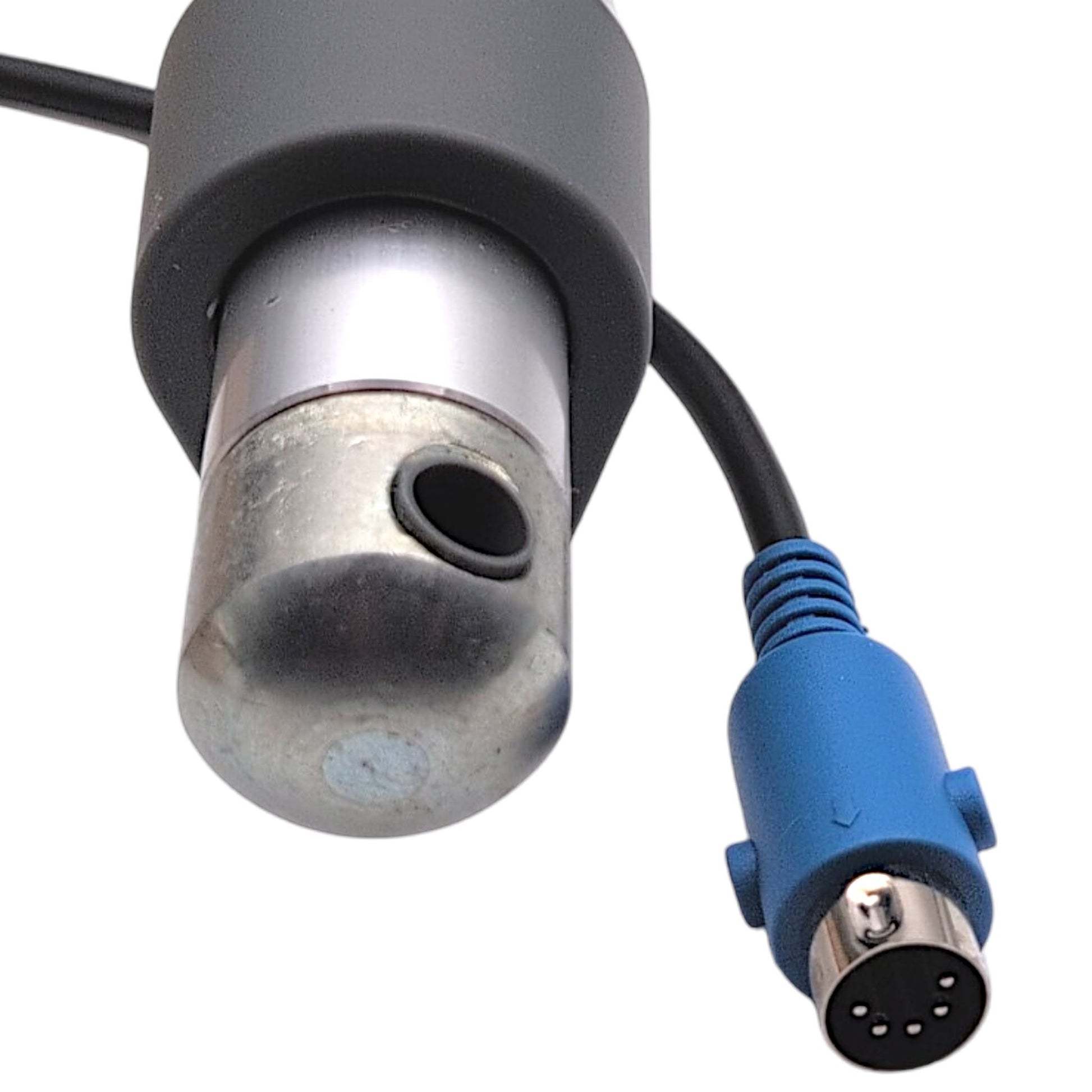

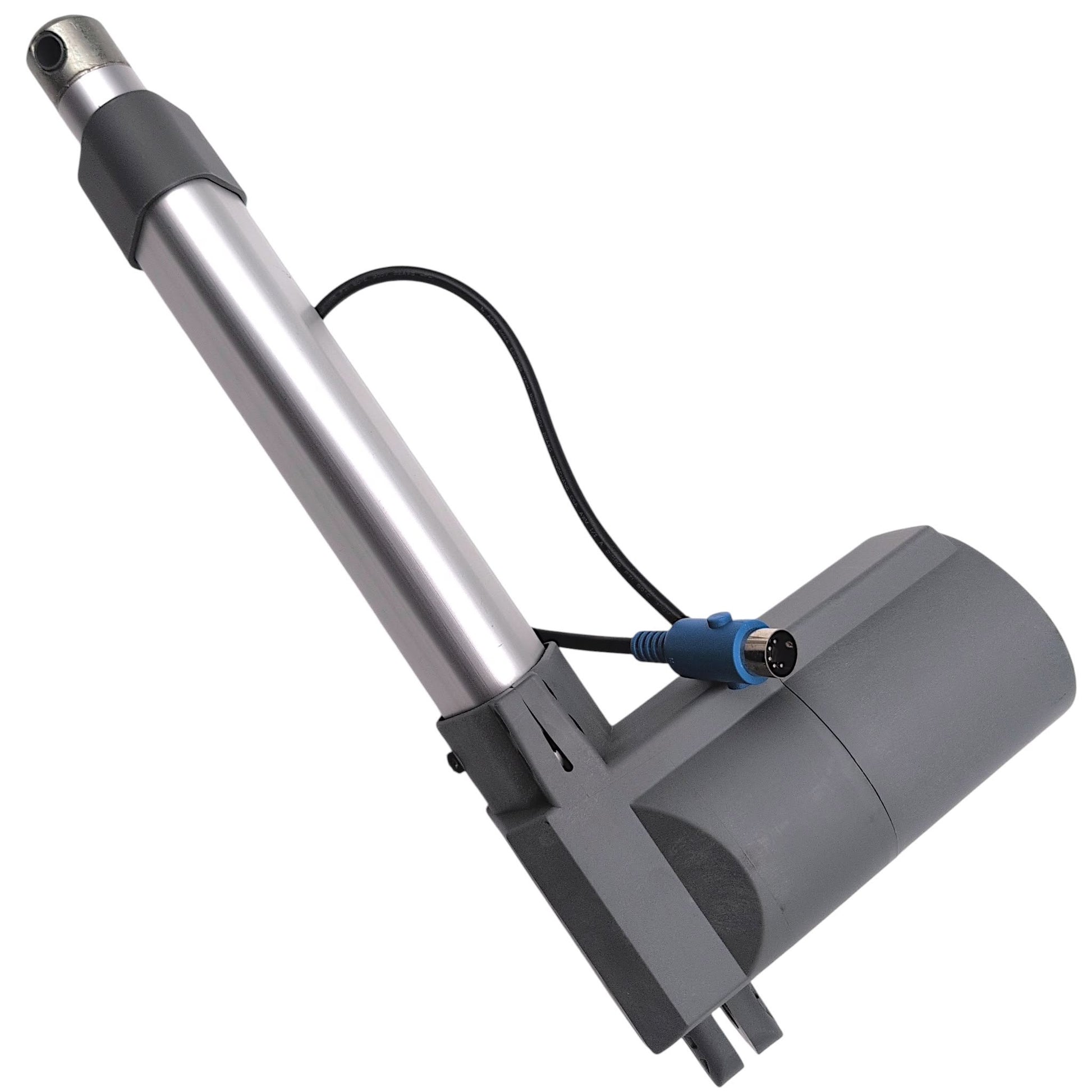

Genuine OEM replacement back motor linear actuator (Part Number: MOT2205151) manufactured by Moto Motion / HHC for Pride Mobility and Mega Motion lift chairs. This Trendelenburg-capable motor features a Hall sensor and a standard 5-pin Blue connector.
Description From Pride Mobility Service Manual: Motor, back, lay flat, w/hall censor, w/hardware, Trendelenberg, (HHC: LMD6208N1-H2-00000A)
Important Note! | Please Read Before Ordering

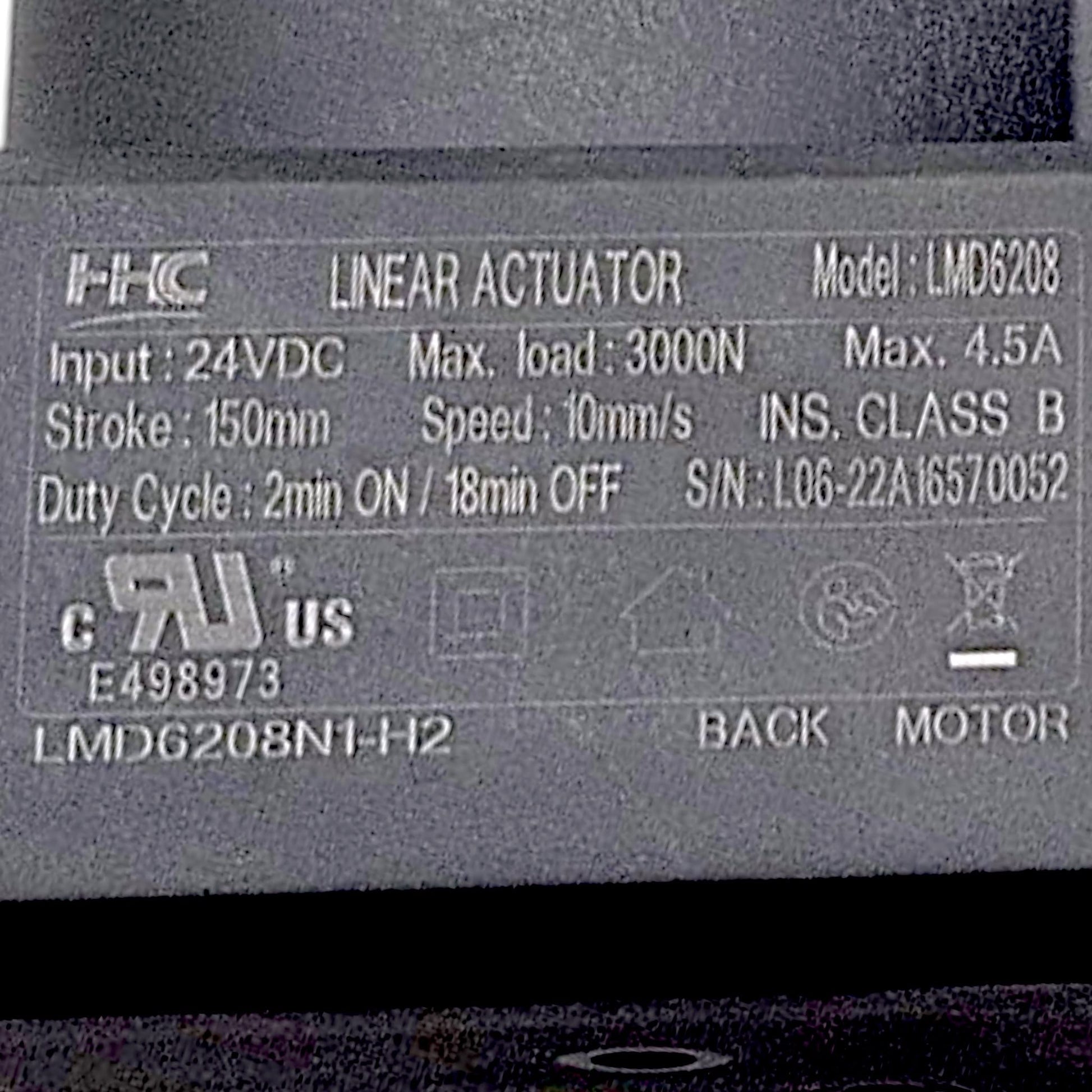

Specifications & Dimensions:
- Brands:
- Pride Mobility & Mega Motion
- Manufacturer:
- Moto Motion / HHC (Replaces FBS)
- Note: While your original part may say FBS or HHC, the manufacturer now operates under the Moto (or Moto Motion) brand. It is the exact same company, just with an updated name for their official replacement parts.
- Pride Mobility Part Number:
- MOT2205151
- Moto / HHC Model Number:
- LMD6208N1-H2
- Moto / HHC Base Model:
- LMD6208
- Motor Type:
- Back Motor / Linear Actuator
- Connector Type:

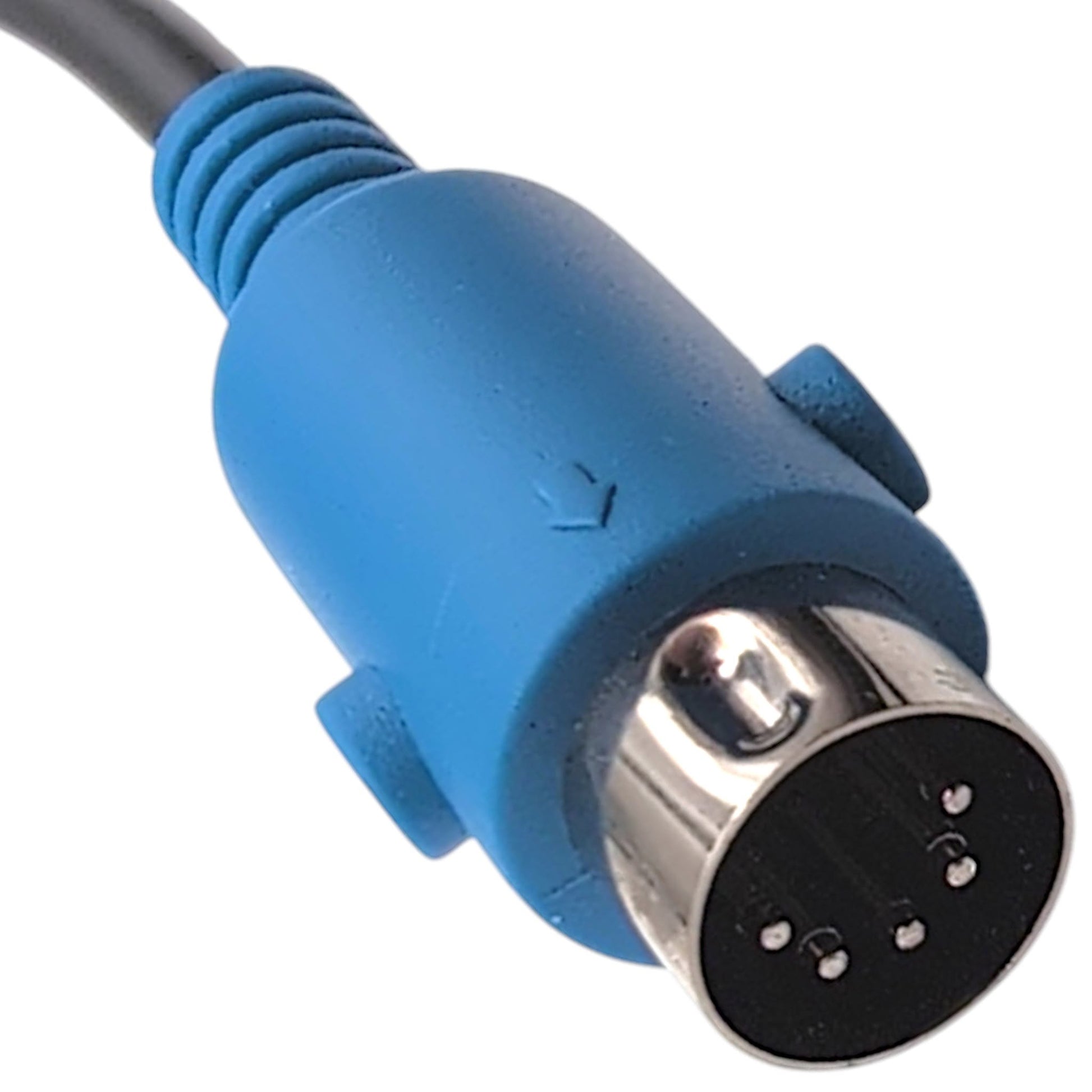

- 5-Pin Blue DIN Connector (Straight 180 Degrees)
- Input:
- 24 Volts DC Max. 4.5 Amps
- Stroke:
- 150 mm (5.91 inches)
- Max. Load:
- 3000N (Newton)
- Speed:
- 10 mm/s (0.39 inches/s)
- Duty Cycle:
- 2min ON / 18min OFF
Additional Specifications
- Length (Fully Retracted):
- Approx. 400 mm (15.75 inches)
- Width:
- 83 mm (3.27 inches)
- Height:
- 165 mm (6.50 inches)
- Cord Length:
- 465 mm (18.31 inches)
- Weight:
- 5.35 Pounds
- Color:
- Gray & Silver
- Insulation Class:
- B
- Certifications:
- cRUus: E498973
