Pride Mobility & Quantum C-Style Cup Holder ACCASMB2288
Pride Mobility & Quantum C-Style Cup Holder ACCASMB2288
In stock
Couldn't load pickup availability
- Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
- 30 Day Return Policy
- Fulfillment: Usually ships in 1-2 business days
- This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects
Product Description

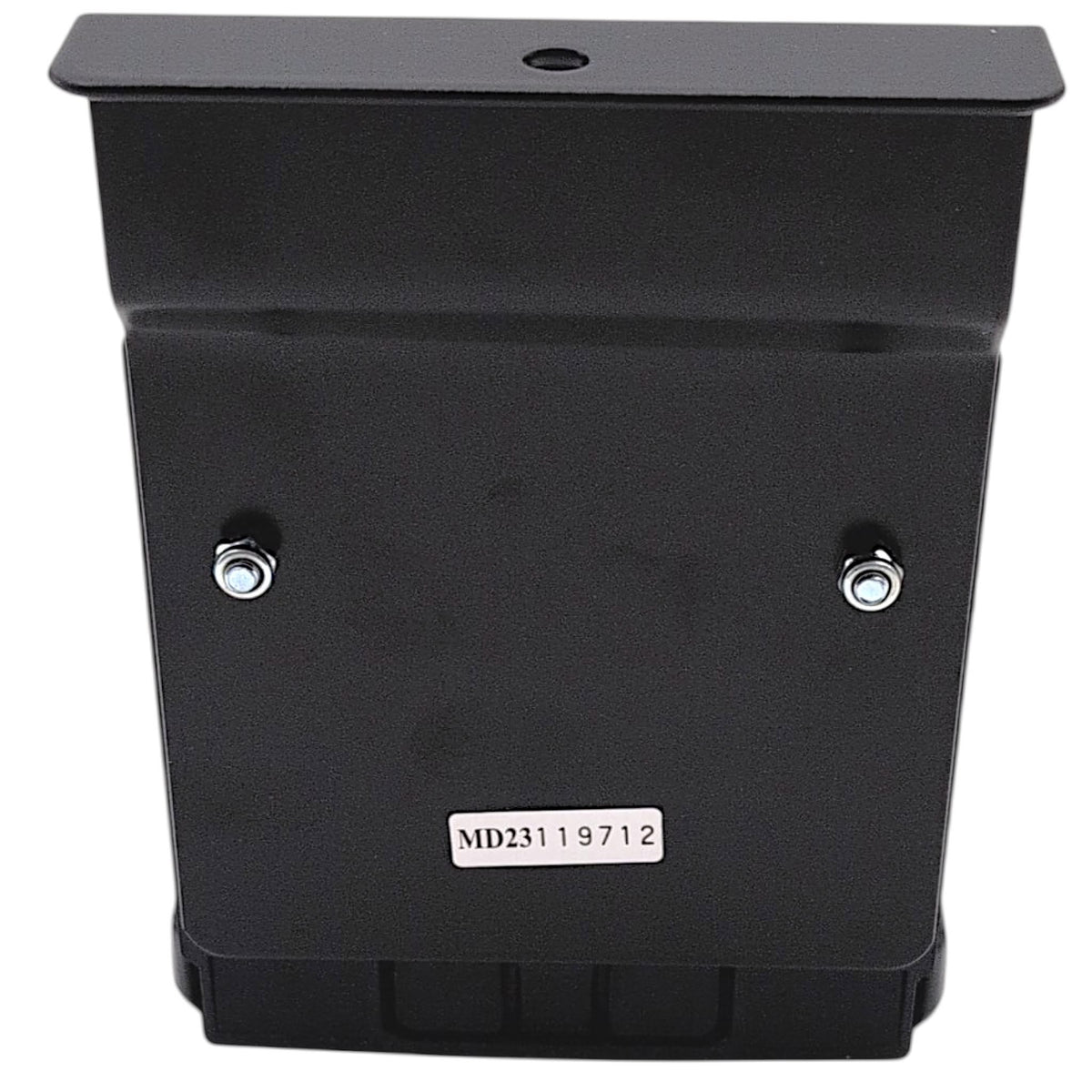

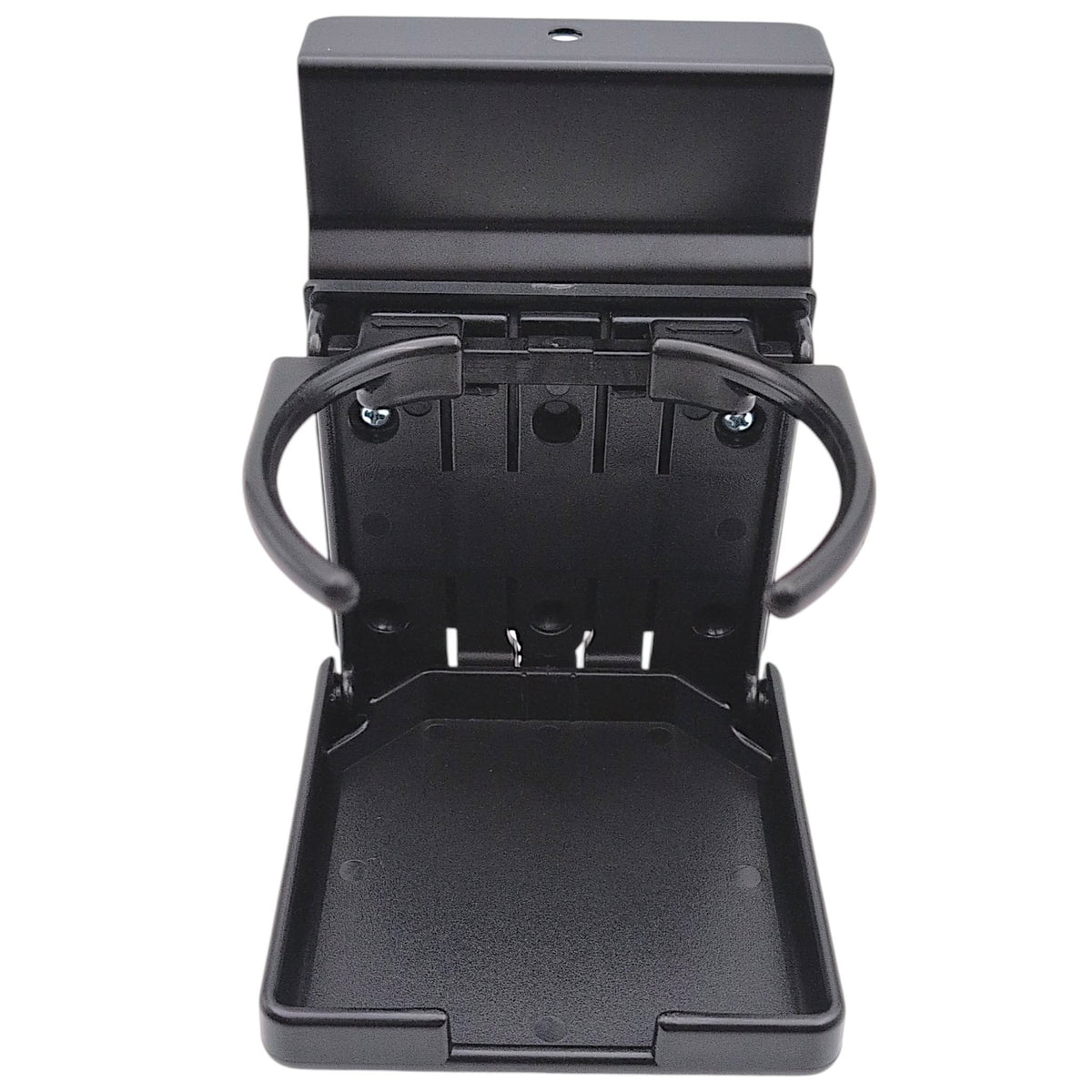

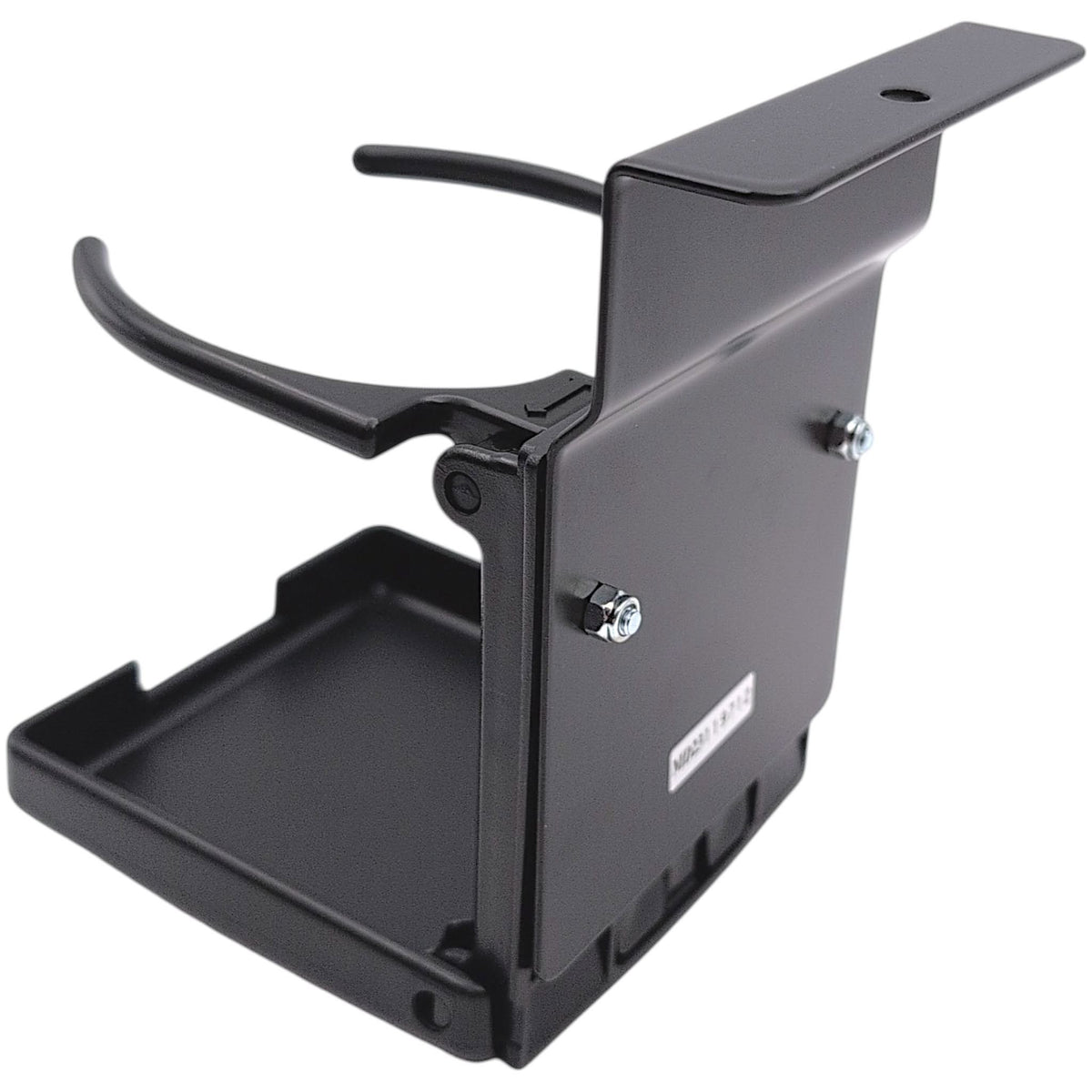

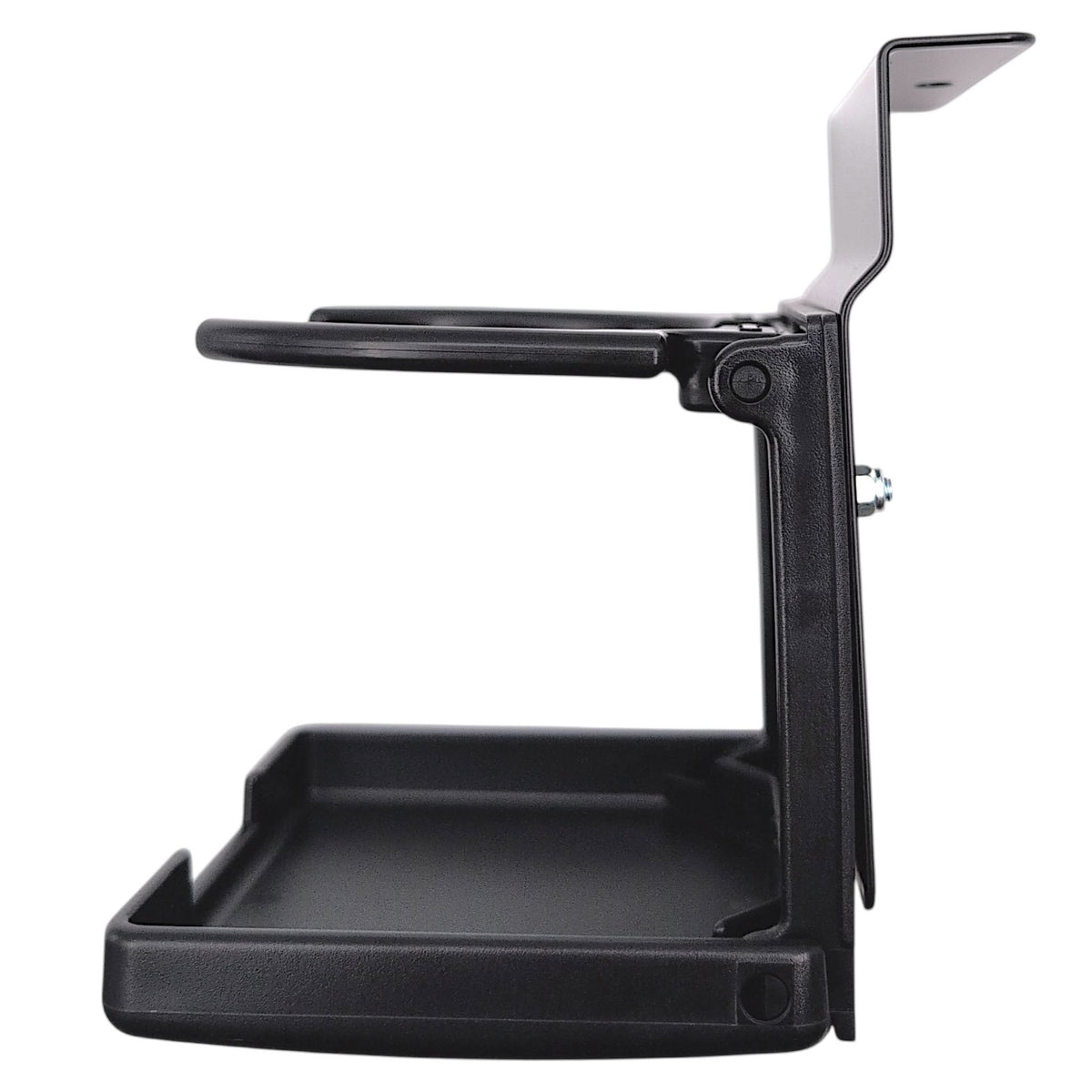

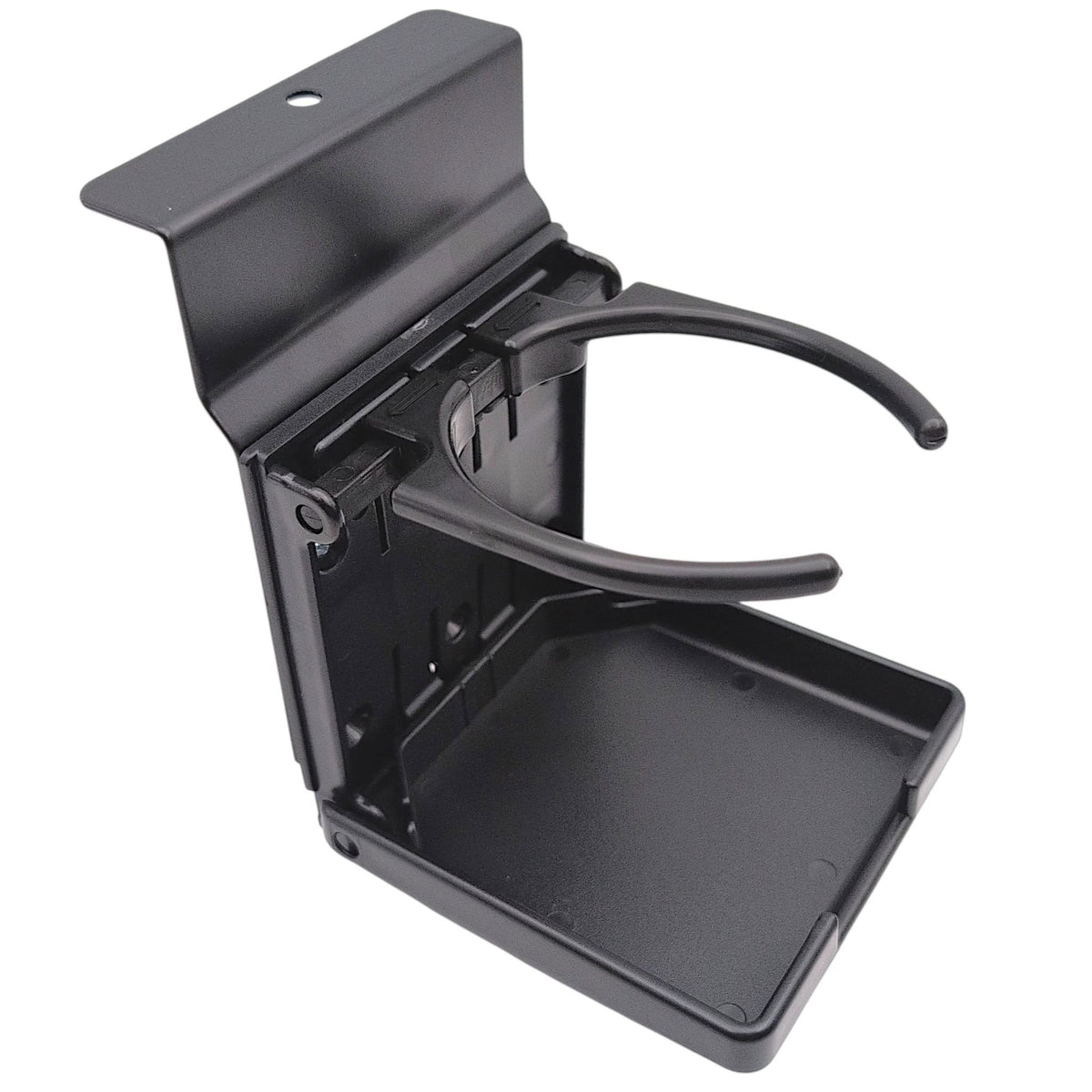

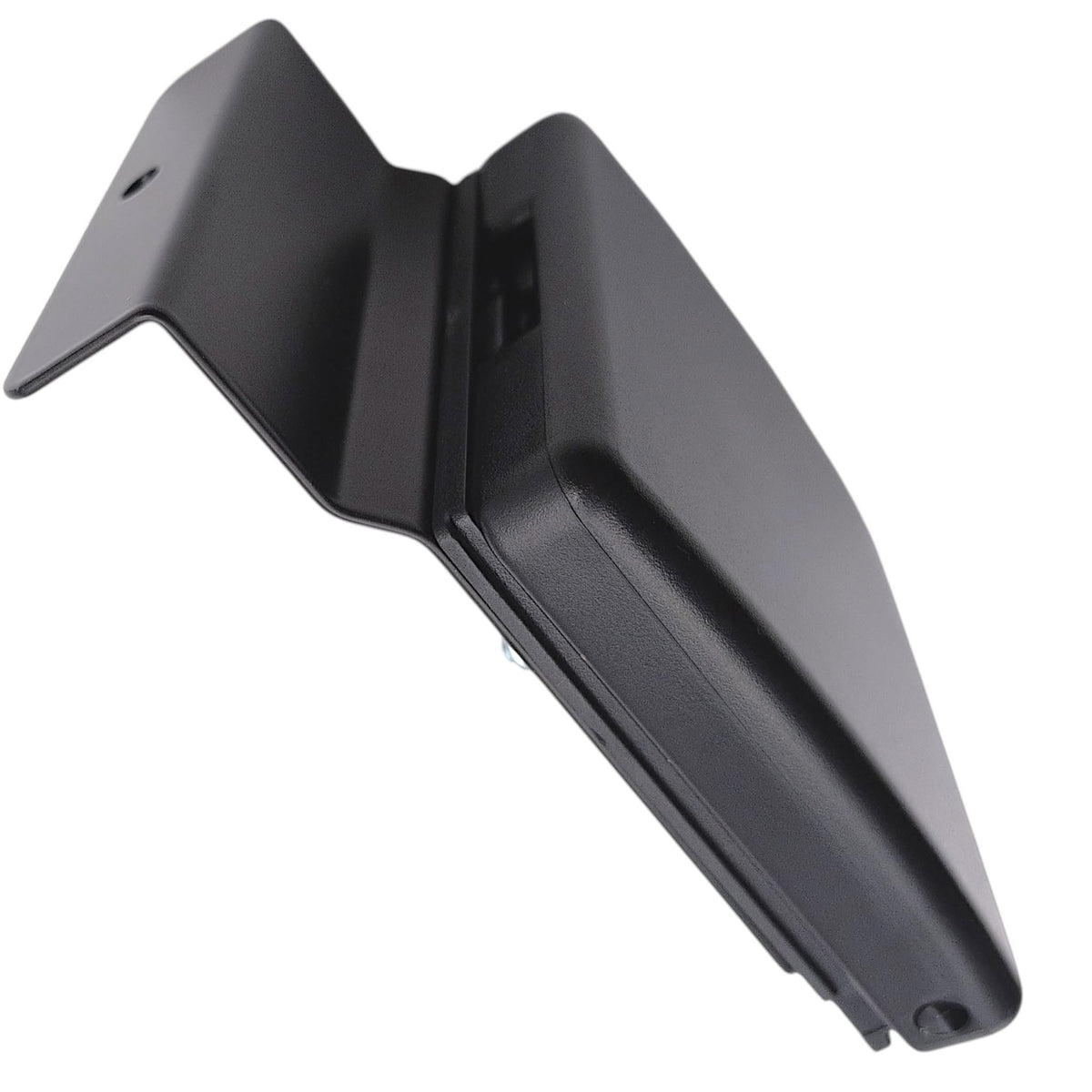

OEM Pride Mobility and Quantum Rehab C-Style Cup Holder Assembly (Part Number: ACCASMB2288). The C-Style Cup Holder mounts underneath the armpad and armrest trough on compatible scooters and power wheelchairs equipped with 2-inch wide molded armpads. It folds flat when not in use, and all necessary installation hardware is included.
Note Before Ordering:
This is the C-Style cup holder. Pride Mobility manufactures three visually similar cup holder brackets that fit different armrest types: B-Style (ACCASMB2287), C-Style (ACCASMB2288), and D-Style (ACC120041). Please view all pictures, read the installation instructions & verify your exact model or seating system in the compatibility lists below prior to ordering.
Specifications:
- Manufacturer:
- Pride Mobility / Quantum Rehab
- Part Number:
- ACCASMB2288
- Product Type:
- Armrest Mounted Cup Holder
- Armpad Compatibility:
- For 2 Inch Wide Molded Armpads

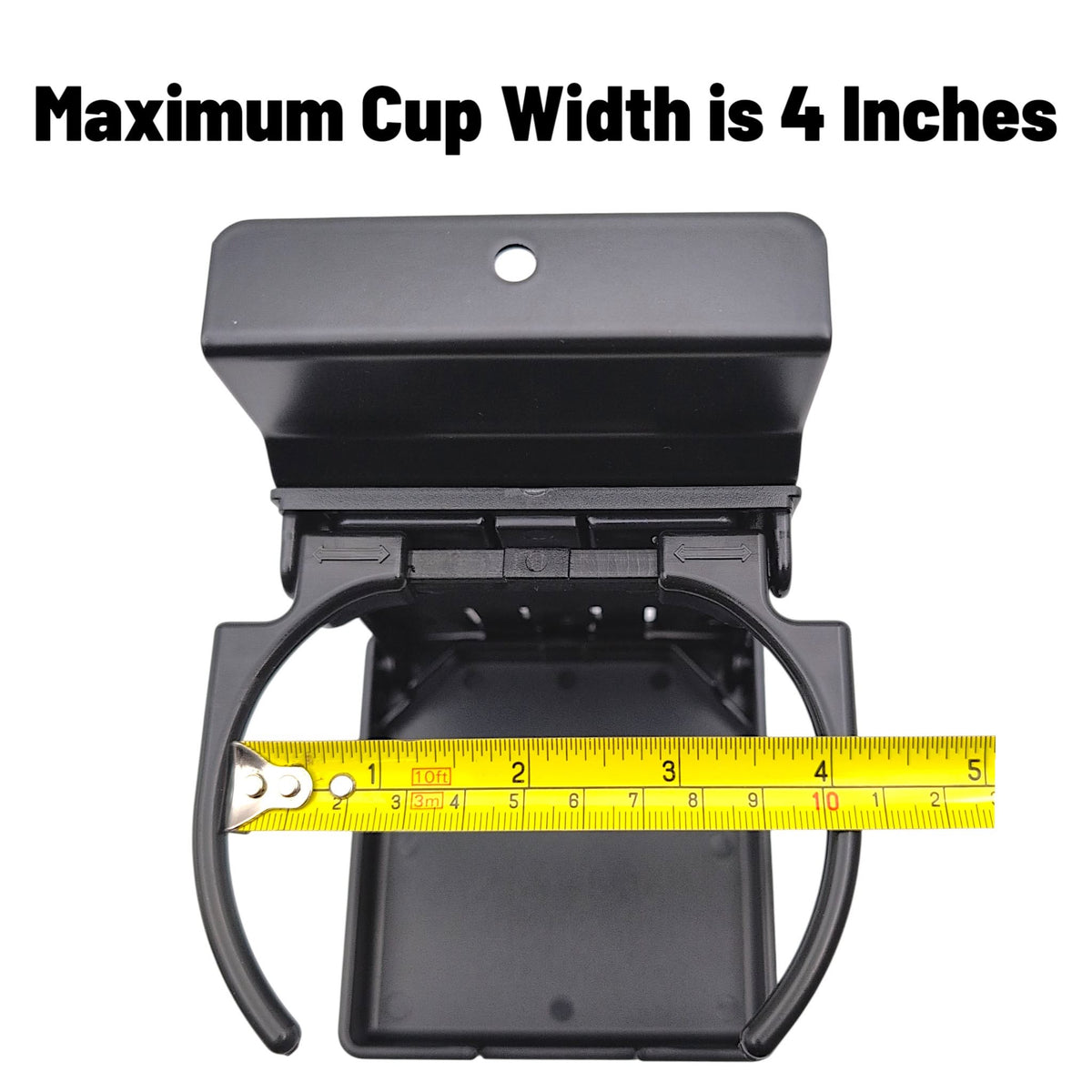

- Dimensions (Opened):
- 162 mm x 114 mm x 108 mm
- Dimensions (Collapsed):
- 105 mm x 105 mm x 74 mm
- Weight:
- 0.31 kg

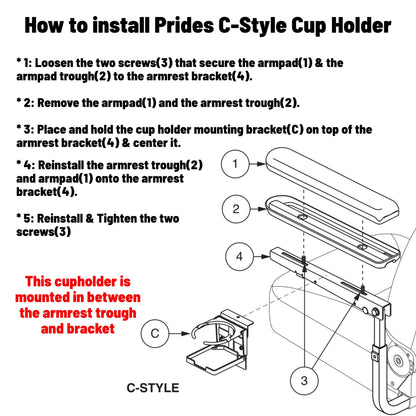

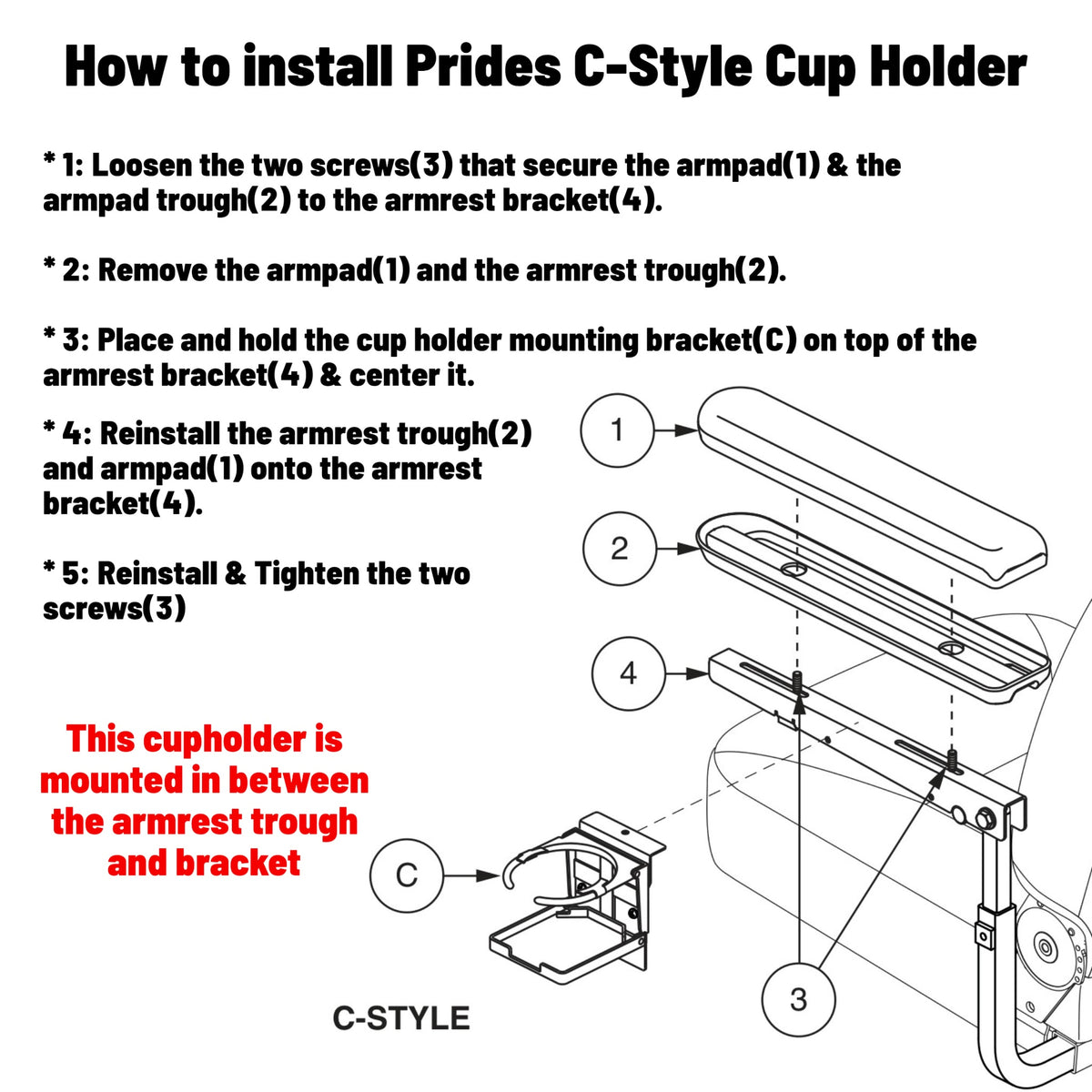

Installation Instructions
A PDF file of Pride Mobility's installation instructions (INFINFB1552) can be found here.
Tools Needed: Phillips screwdriver or Metric hex key set
- Loosen the two screws (3) that secure the armpad (1) & the armpad trough (2) to the armrest bracket (4).
- Remove the armpad (1) and the armrest trough (2).

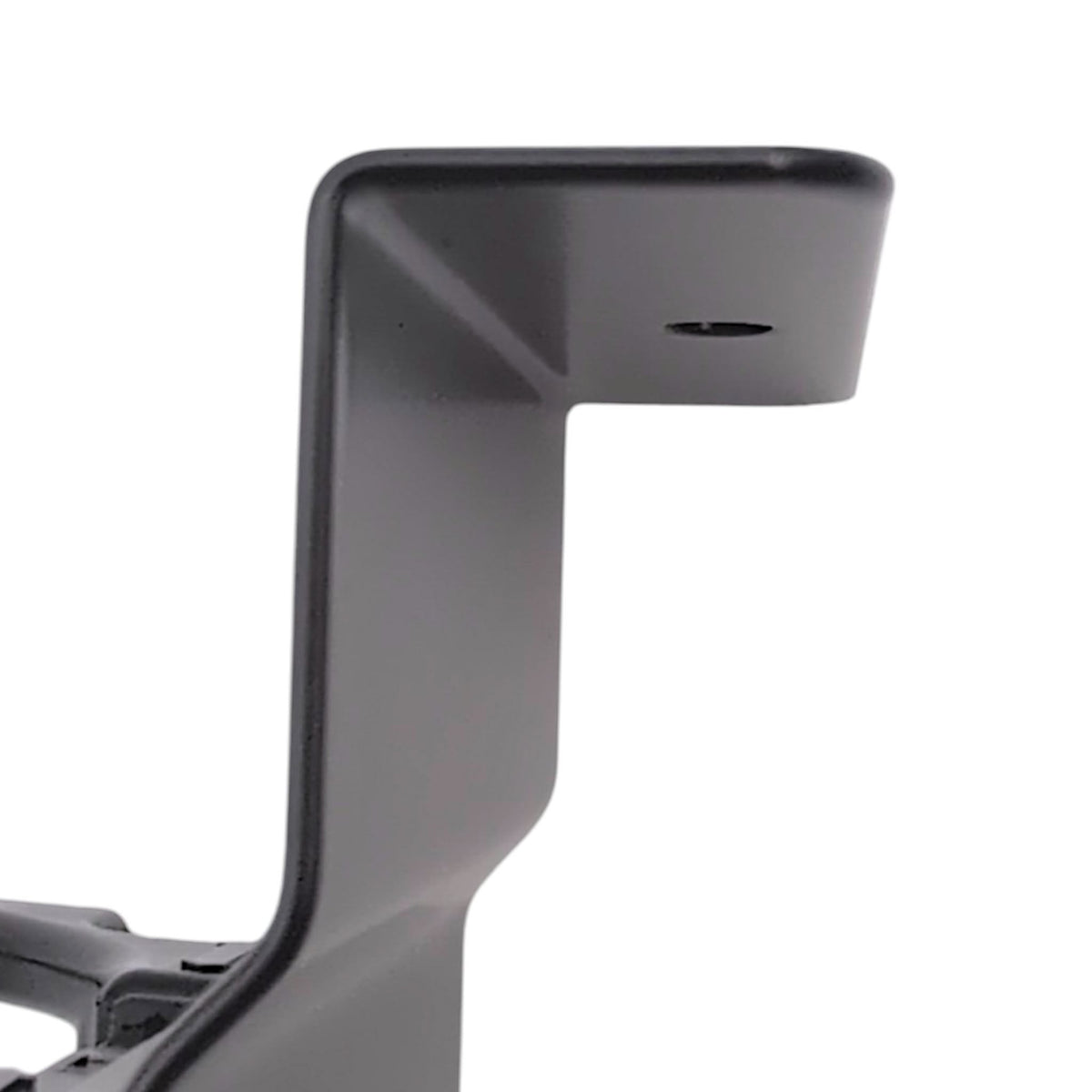

- Place and hold the cup holder mounting bracket (C) on top of the armrest bracket (4) & center it.
- Reinstall the armrest trough (2) and armpad (1) onto the armrest bracket (4).
- Reinstall & Tighten the two screws (3).
Compatible Pride Mobility Scooters
- Baja & Raptor Series: BAJA Raptor 2 (BA300), BAJA Raptor 2 4-Wheel (BA340), Raptor (R3-1700)
- Go-Go Series: Go-Go Elite Traveller (3-Wheel & 4-Wheel), Go-Go Elite Traveller 2 (4-Wheel), Go-Go Sport (3-Wheel & 4-Wheel / S73, S74), Go-Go Ultra X (3-Wheel & 4-Wheel)
- Legacy Models: Celebrity X (SC400, SC4001, SC440, SC4401), Dart (SC51), Rally (SC150, SC151, SC155), Rally Shopper (SC151SHP), Revo (SC60, SC63, SC64), Shuttle (SC100, SC140), Sonic (SC50, SC52), Vista (SC166)
- Victory Series: Victory 3 (SC160, SC1600), Victory 4 (SC170, SC1700), Victory 9 (3-Wheel & 4-Wheel / SC609, SC609PS, SC709), Victory 10 (3-Wheel & 4-Wheel / SC610, SC710), Victory 10.2 (3-Wheel & 4-Wheel)
- Zero Turn Series: Zero Turn 8, Zero Turn 10
Compatible Quantum Power Chairs
- 4Front Series: 4Front
- J Series: J6, J6 VA, Jazzy/Quantum 1450
- Q Series: Q4, Q6 Ultra, Q600, Q600 Sport Series, Q600 XL, Q610, Q614
- Q Edge Series: Q6 Edge, Q6 Edge 2, Q6 Edge 2 X, Q6 Edge 3, Q6 Edge 3 Stretto, Q6 Edge HD, Q6 Edge X, Q6 Edge Z
- Q1000 Series: Q1103 Ultra, Q1450, Q1650
- Q6000 Series: Q6000Z Series
- R Series: R44
- Trek Series: Trek
Compatible Seating Systems
Works with the following seat configurations:
- Captain's and Contoured Seating Systems (Y01, Y03)
- Specifically designed for 2 Inch Wide Molded Armpads
