Pride Mobility - Seat Lift Recliner Chair - Motor Lift Actuator - LMD6205E-U - MOT1804019

Name: Pride Mobility - Seat Lift Recliner Chair - Motor Lift Actuator - LMD6205E-U - MOT1804019
Brand: Pride Mobility
SKU: MOT1804019
Price: 149.95 USD
Availability: InStock

$149.95 USD

~~$205.76 USD~~ $149.95 USD

Our Price Sold Out

Free Shipping On Most Items Over $40+ (Contiguous US Only) Shipping: Calculated at checkout Shipping Policy

In stock

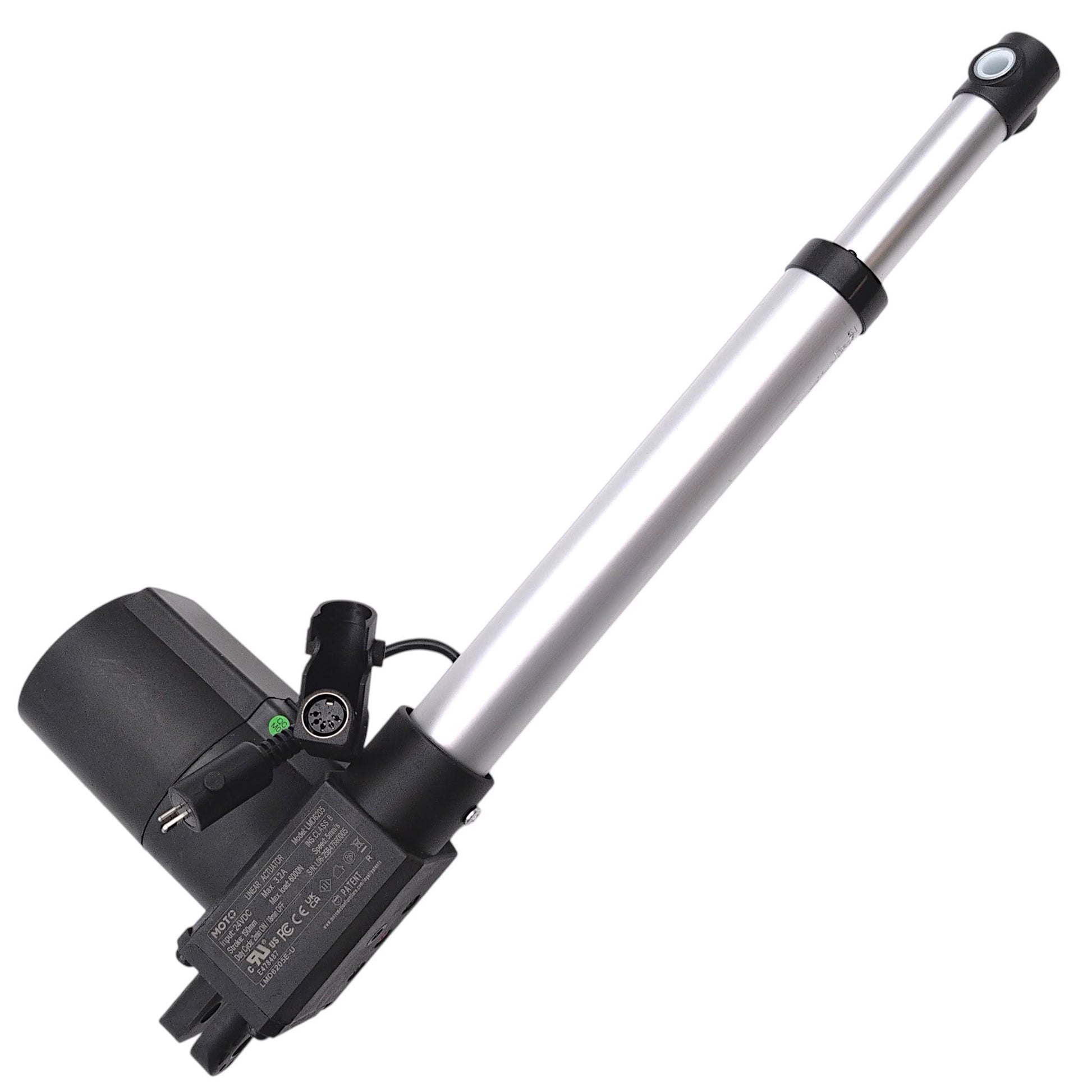

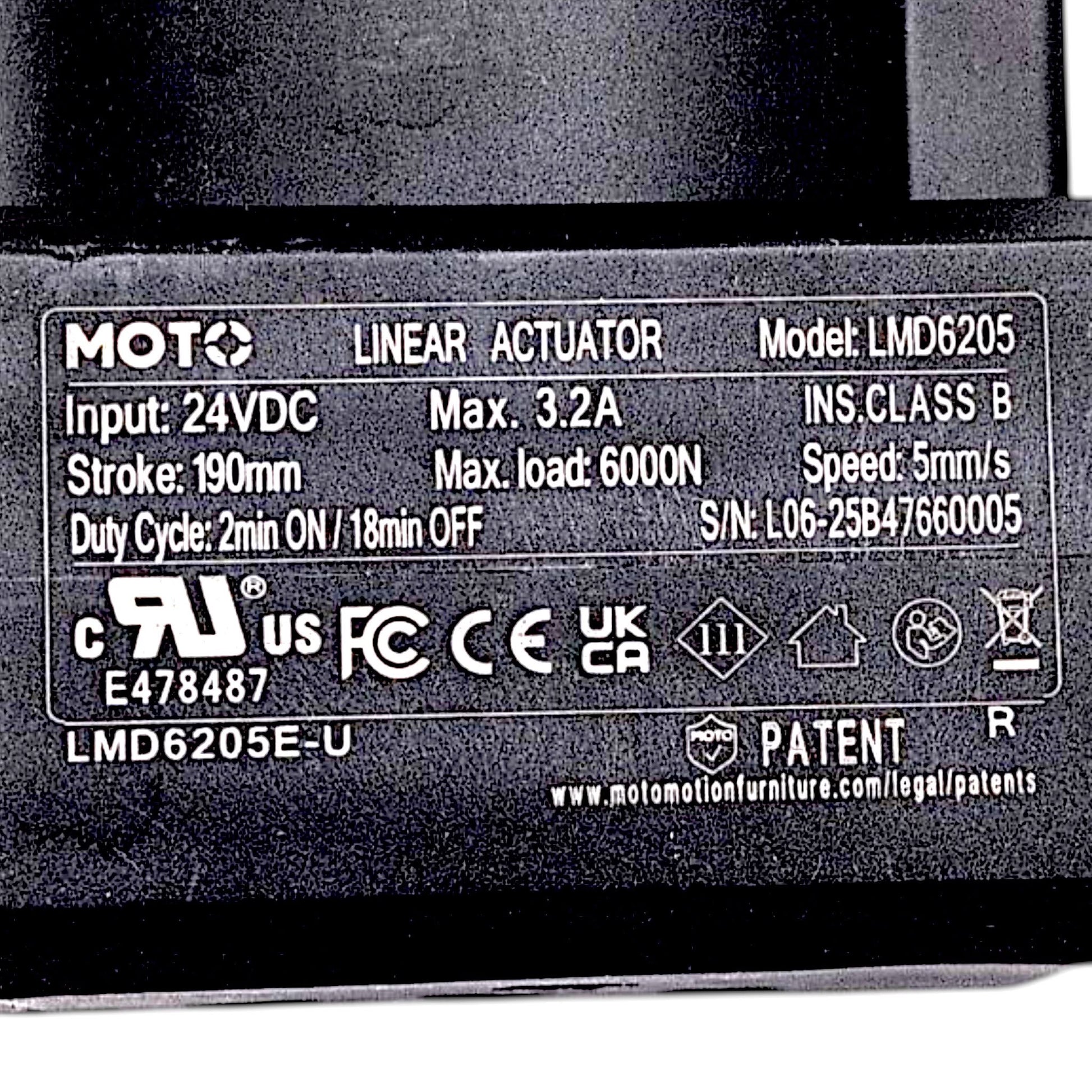

You are replacing an FBS, HHC or Moto branded actuator. These companies are all merged and current replacements are branded as "Moto". Please view the complete product description & view all pictures before ordering. These motors have 2 model numbers, one complete model number on the bottom left and one on the top right. The model number on the top right is used between different motors and can't be relied upon for finding the correct motor. Be sure the model numbers, part number, connector color and pin count are the same. Note: FBS motors do not have the complete model number listed on them and you will need to match the connector type with model number.

We also have a diagnostic video within the pictures. If you are hearing a clicking sound, 9 times out of 10, this is a control box issue.

Free ground shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
30 Day Return Policy

Fulfillment: Usually ships in 1-2 business days
This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects

Product Description

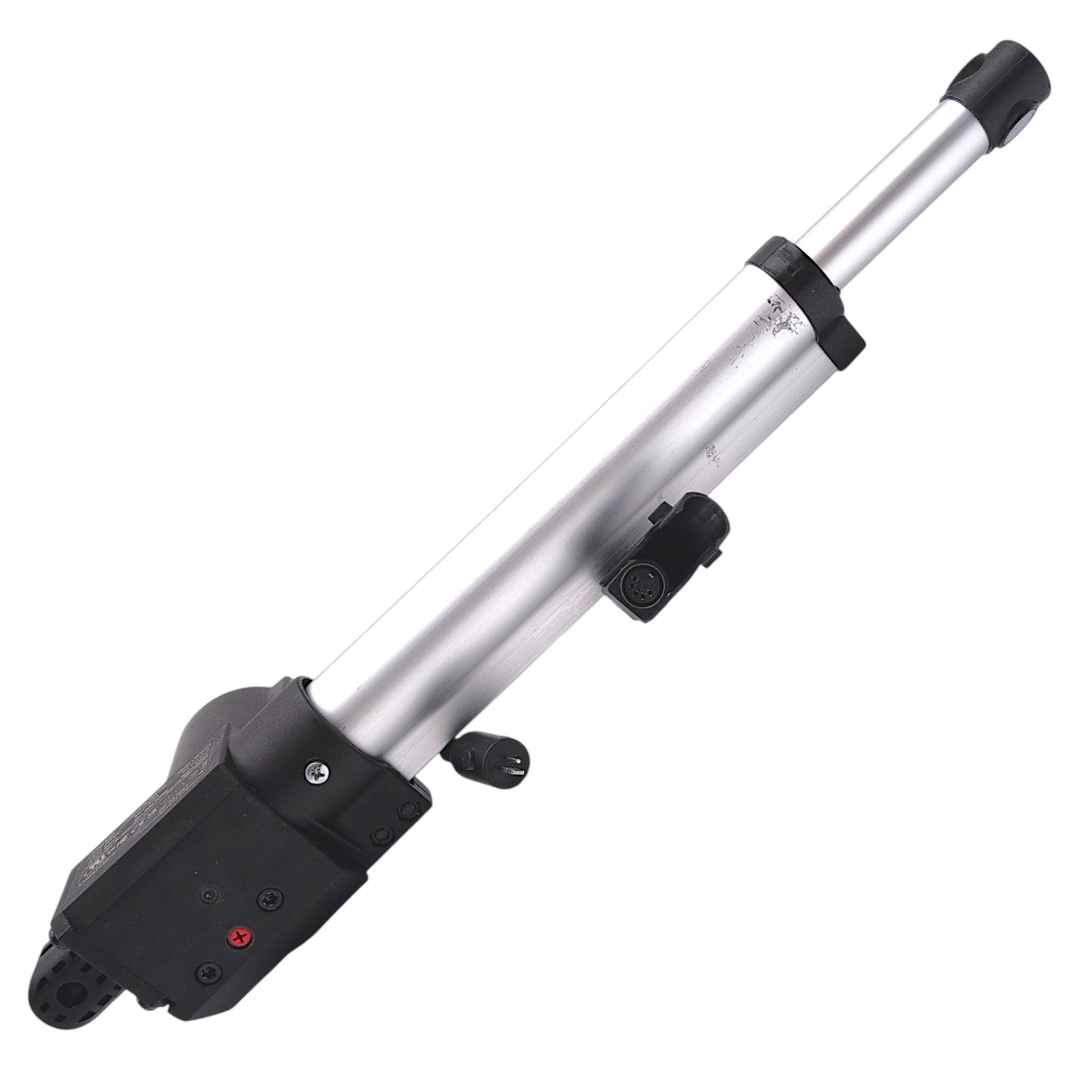

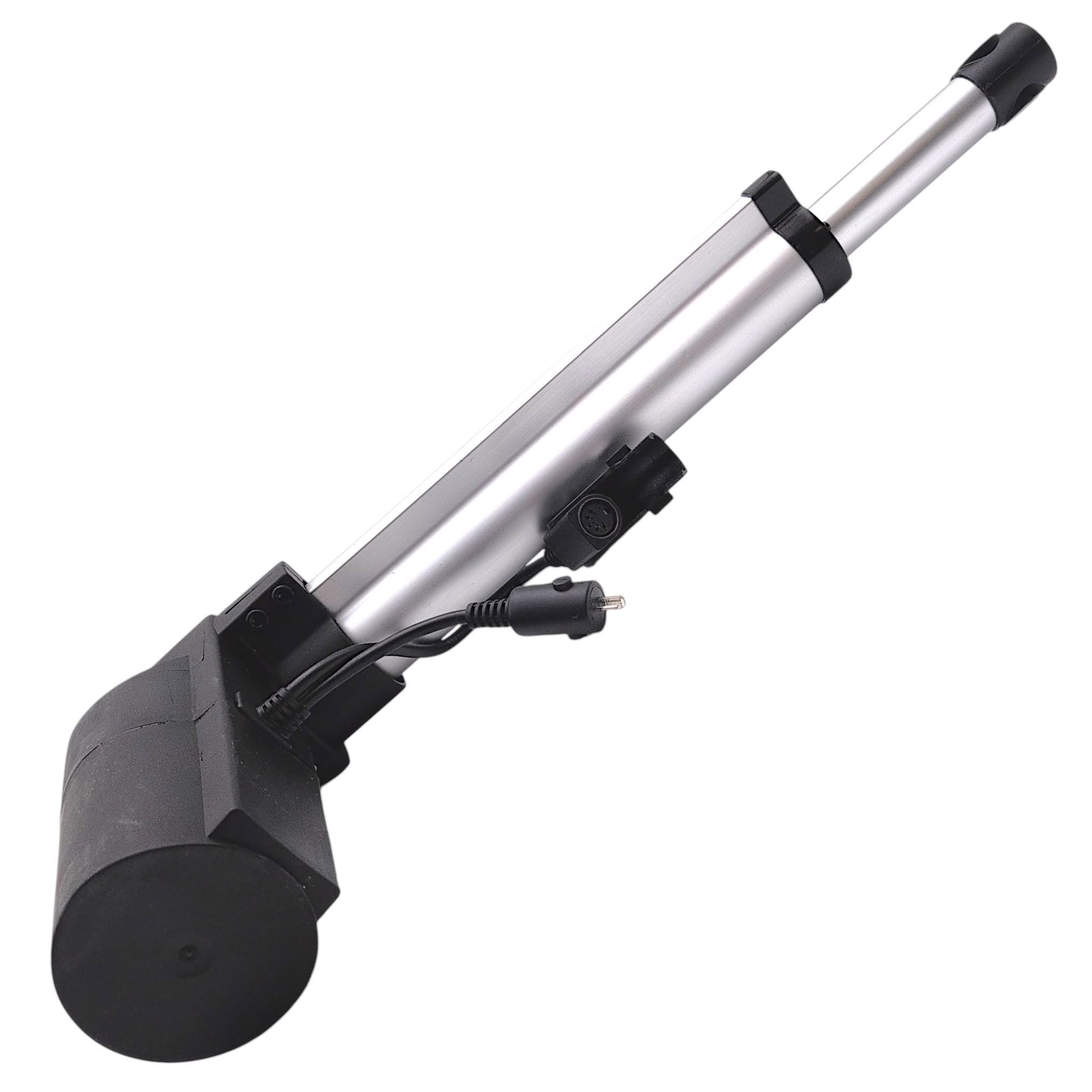

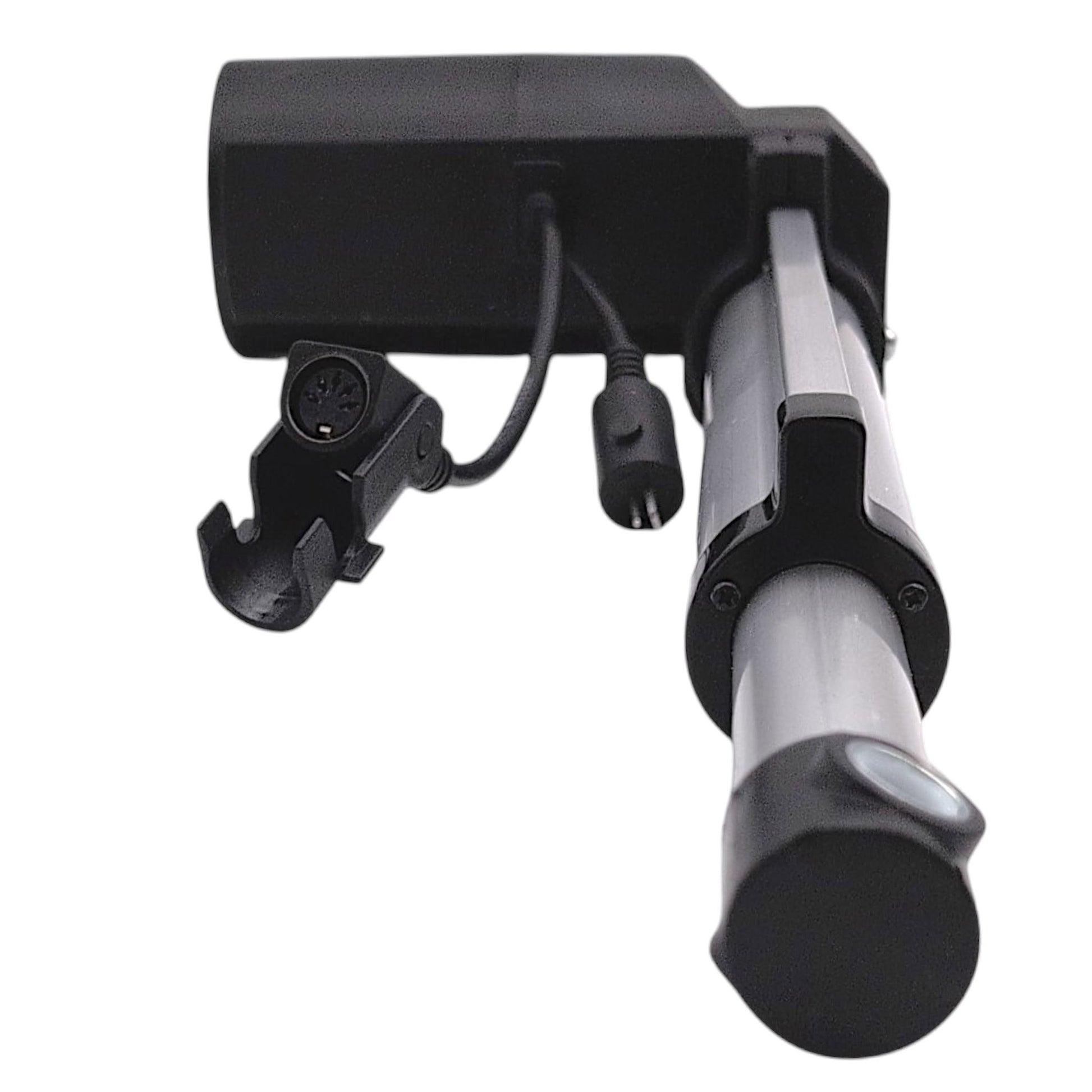

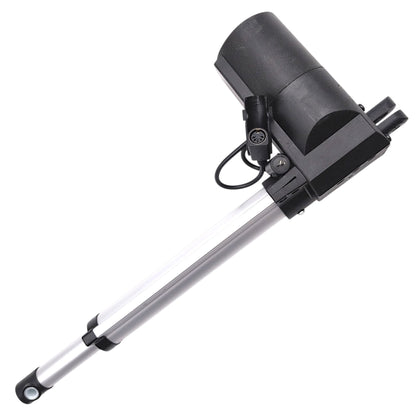

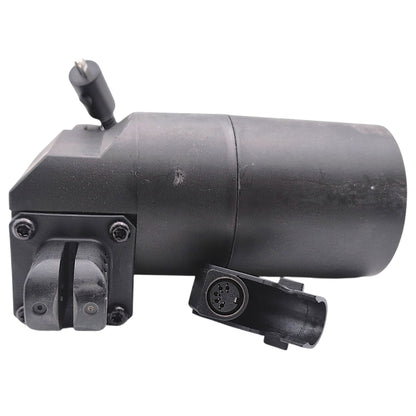

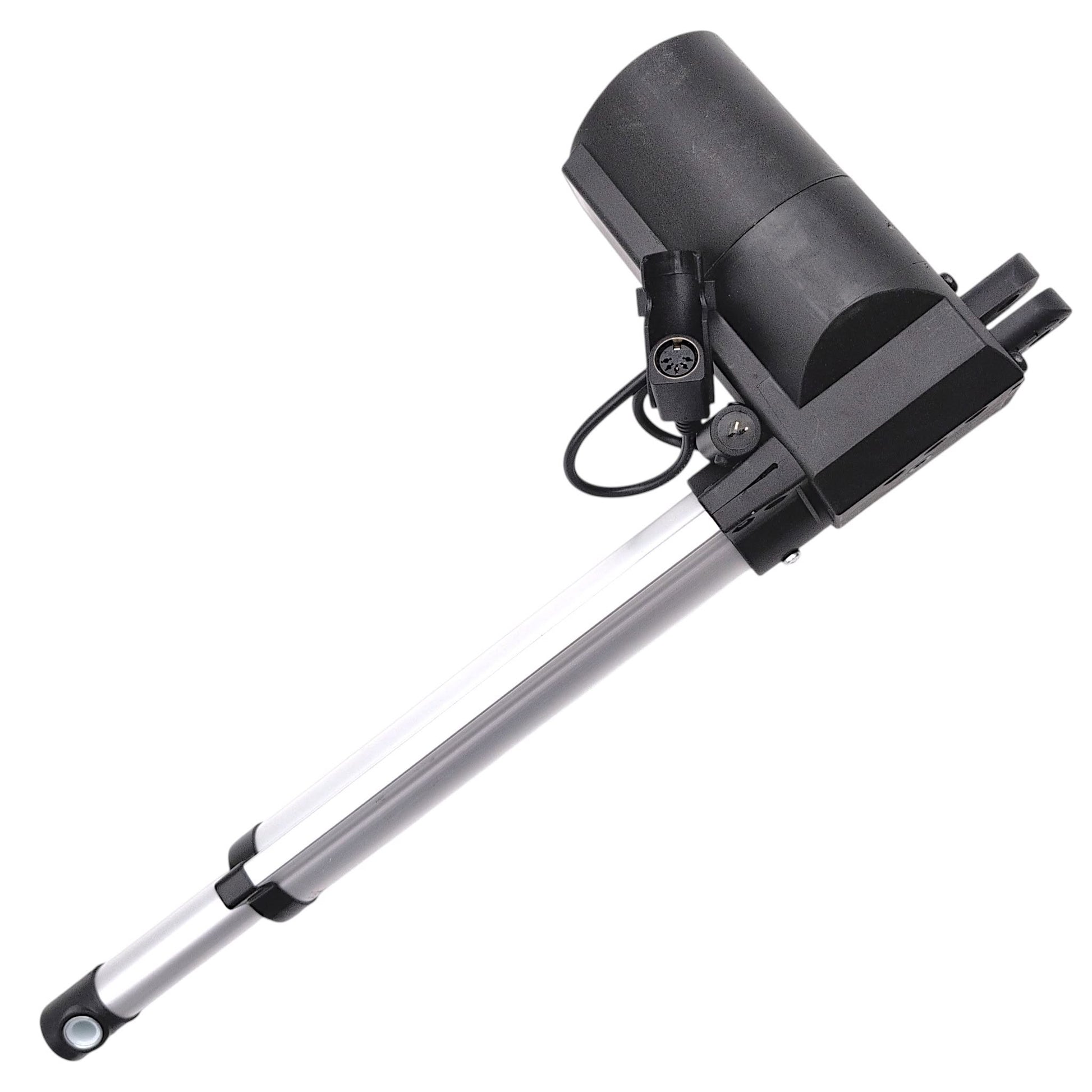

Genuine OEM replacement base linear actuator motor (Part Number: MOT1804019) manufactured by Moto Motion / HHC for select Pride Mobility and Mega Motion power lift recliners. Identified by Model Number: LMD6205E-U, this single motor features a 5-Pin ⚫ Black DIN connector with Clamp for the hand control and a standard 2-Pin ⚫ Black power connector.

Description From The Pride Mobility Service Manual: Motor, Seat, HHC, Single Motor, (HHC: LMD6205E-U)

Important Note! | Please Read Before Ordering

Specifications:

Brands:: Pride Mobility & Mega Motion
Manufacturer:: Moto Motion / HHC Linear Actuator
Pride Mobility Part Number:: MOT1804019
Moto / HHC Model Number:: LMD6205E-U
Moto / HHC Base Model:: LMD6205

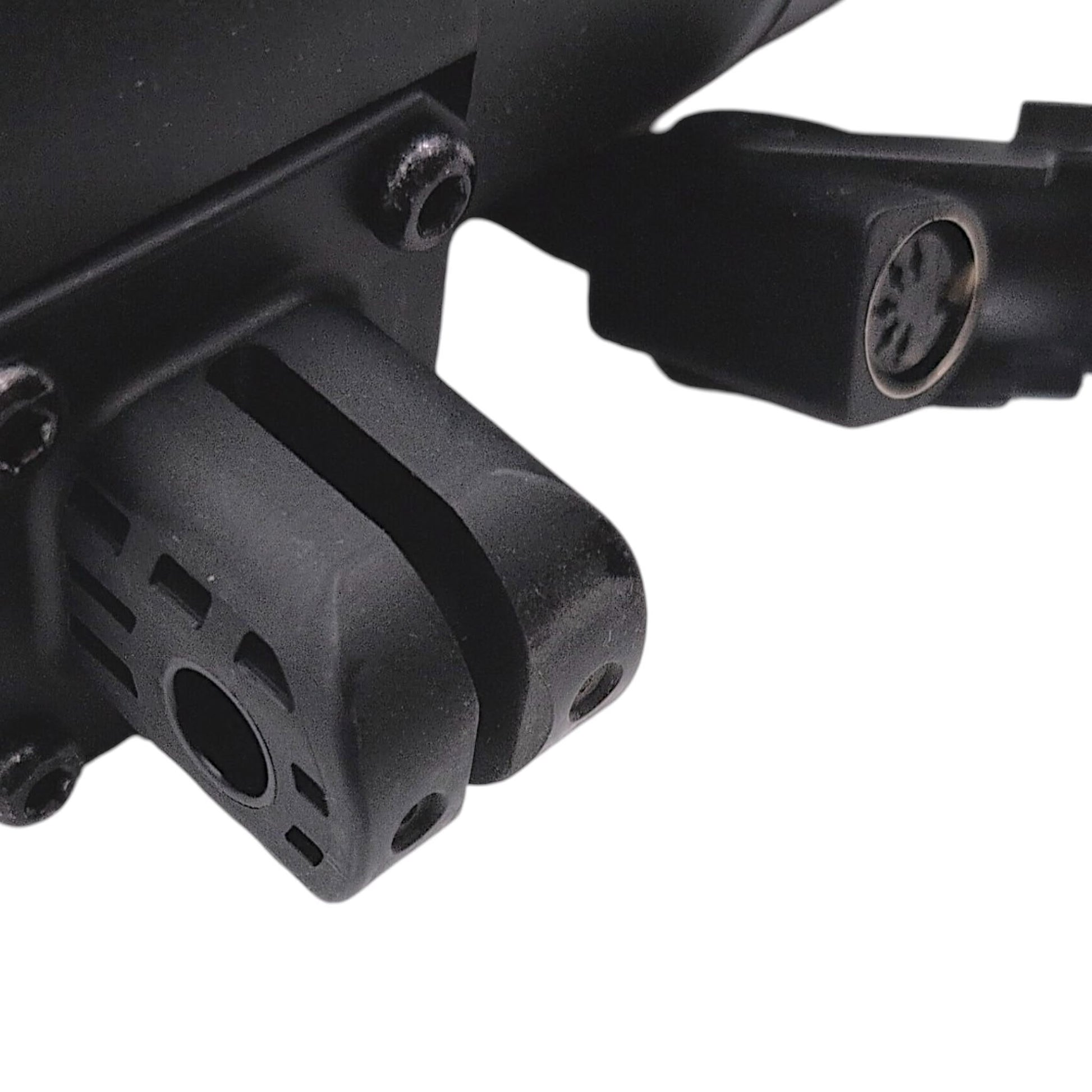

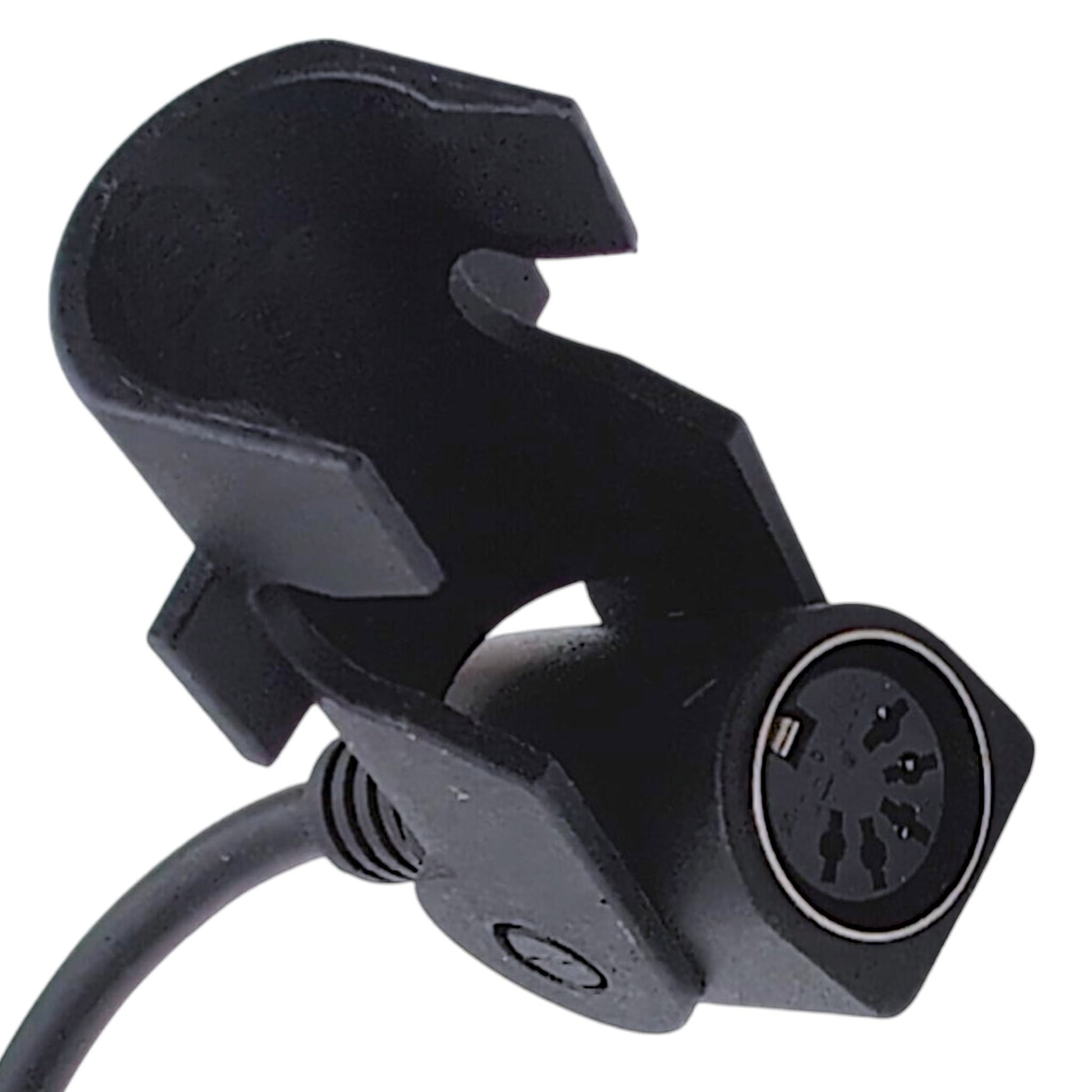

Remote Hand Control Connector:: 5-Pin Female (⚫ Black) Din Connector With Clamp

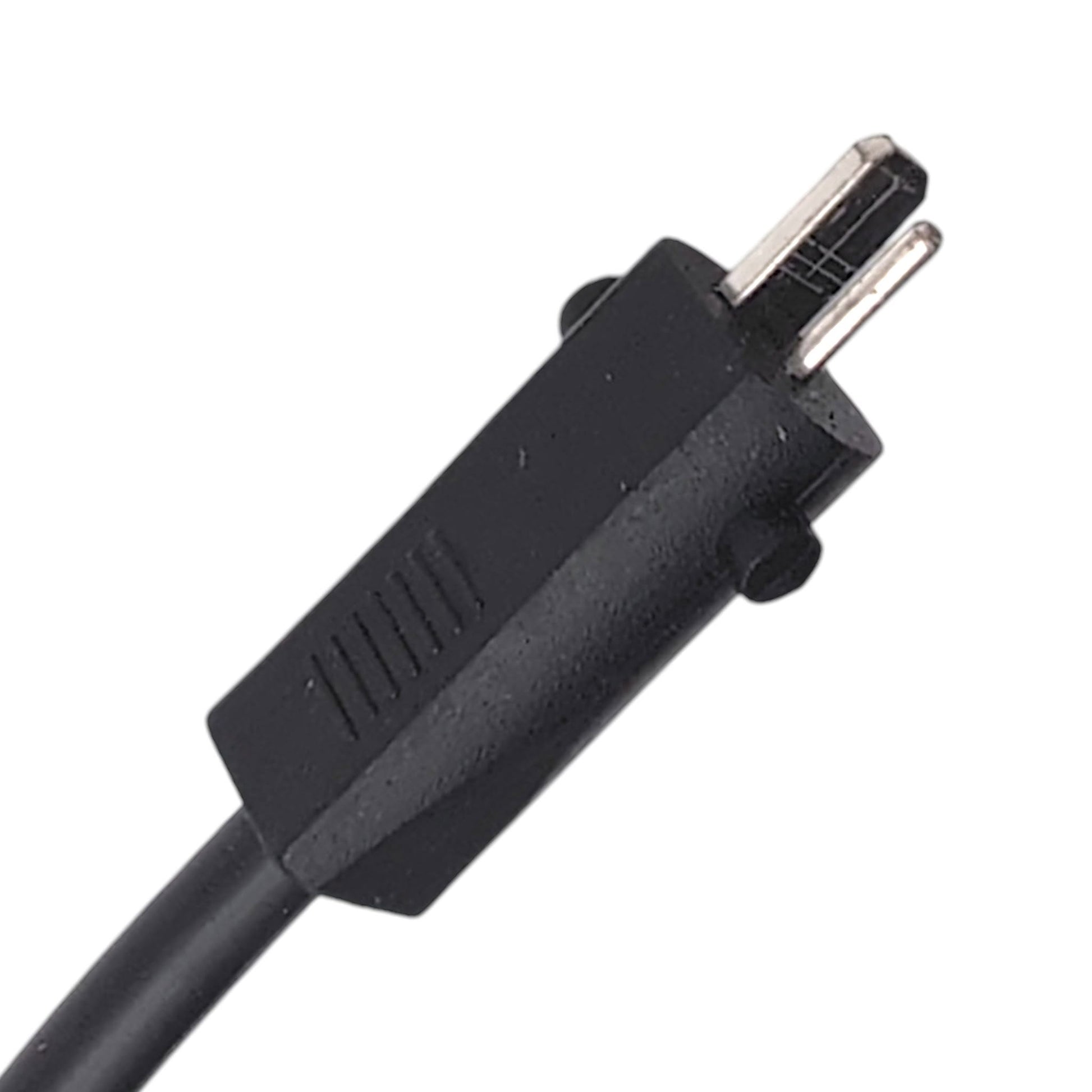

Power Connector Type:: 2-Pin Male (⚫ Black) Connector
Input:: 24 Volts DC Max. 3.2 Amps
Stroke:: 190mm
Max. Load:: 6000N
Speed:: 5mm per Second
Duty Cycle:: 2min ON / 18min OFF

Lift Recliner Chair Compatibility

Pride Mobility Models: LC-150 Series: Model Numbers LC150M, LC150S
Mega Motion Models: Classica / Piza Series: Model Numbers MM200, MM201, MM203; Heat & Massage Series: Model Numbers MM3601, MM3602, MM3615; Other Mega Motion Models: Model Number MM4001

Additional Specifications

Motor Type:: Linear Actuator / Base Motor
Ins. Class:: B
Color:: Black & Silver
