Pride Mobility 18" x 18" CRS 13 High-Back Seat SET147133 | Victory 10

Product Description

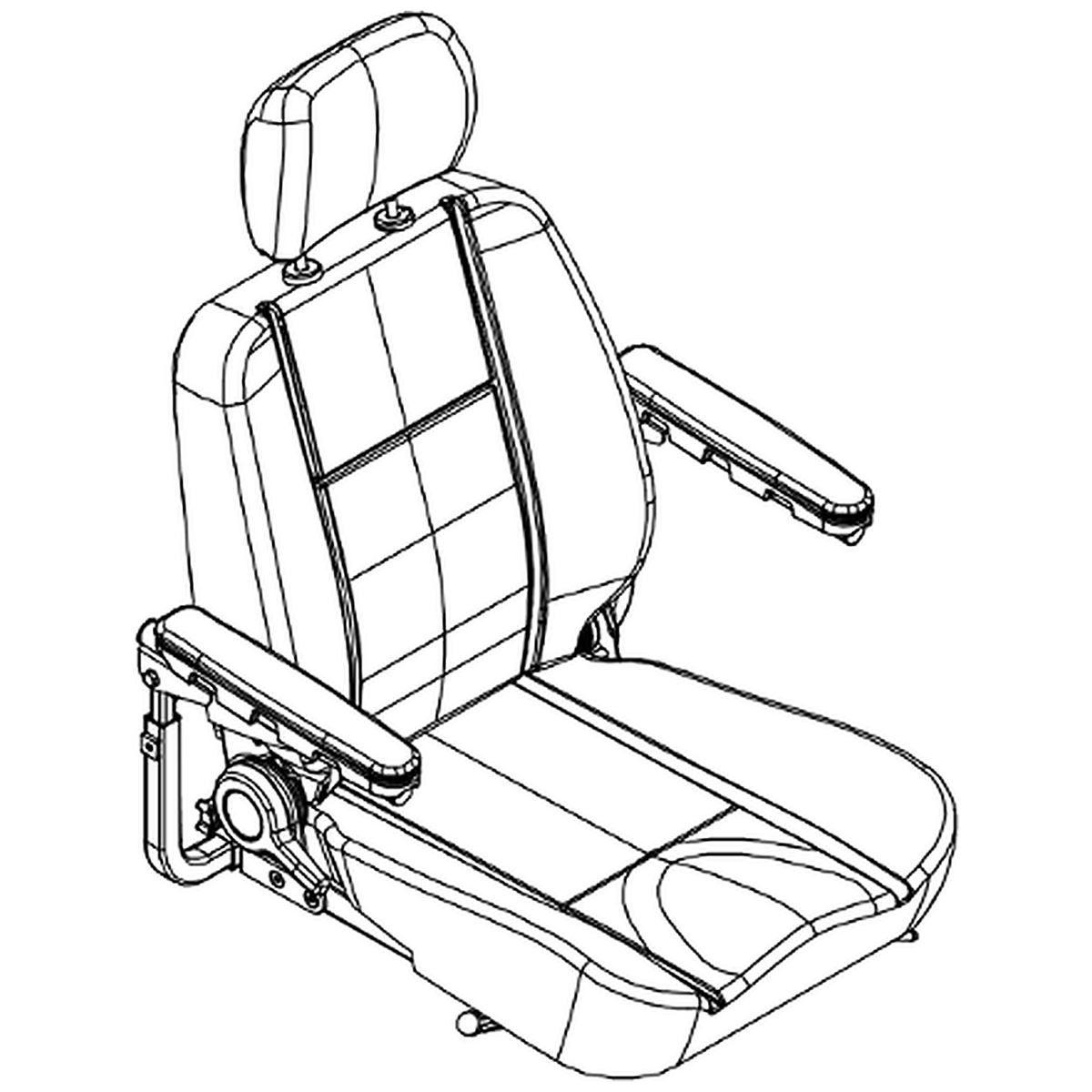

Genuine OEM Pride Mobility replacement 18 inch wide by 18 inch deep CRS 13 high-back seat assembly (Part Number: SET147133) in black vinyl. The service manual diagram notes that the complete assembly includes the seat back and base, seat plate, armrests and all required hardware, and labels the headrest (SET147130), threaded plastic knobs (HDW147126), quick release pins (HDW147127, HDW147128), left and right arm assemblies (ARM145483, ARM145484), armpad (ARM145482), seat plate and slider assembly (MEC145492), adjustment lever (MEC145486), extension spring (HDW145501) and set screws (SCRSETS1104). It is compatible with the 3-Wheel and 4-Wheel Victory 10, VA Victory 10 and Victory 10.2 scooters; see the list below for the other Pride scooters whose service manuals list this seat.

Description From The Pride Mobility Service Manual: seat, assy, hi-back, black, vinyl, 18"W x 18"D CRS 13, Shuxin.

Specifications:

Manufacturer:

Pride Mobility

Part Number:

SET147133

Product Type:

Seat Assembly

Seat Width:

18 Inches

Seat Depth:

18 Inches

Seat Style:

CRS 13 High-Back

Color:

Black Vinyl

Pride Parts Diagram Position:

A1 - A11
