Pride Mobility
Pride 17" Complete Vinyl Seat With Armrests (Go-Go & Jazzy ZT) | SET151005
Pride 17" Complete Vinyl Seat With Armrests (Go-Go & Jazzy ZT) | SET151005
Regular price
$289.95 USD
Regular price
$421.34 USD
Our Price
$289.95 USD
Free Shipping On Most Items Over $40+ (Contiguous US Only) Shipping: Calculated at checkout Shipping Policy
Low stock
Quantity
Couldn't load pickup availability
- Free ground shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
- 30 Day Return Policy
- Fulfillment: Usually ships in 1-2 business days
- This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects
Product Description

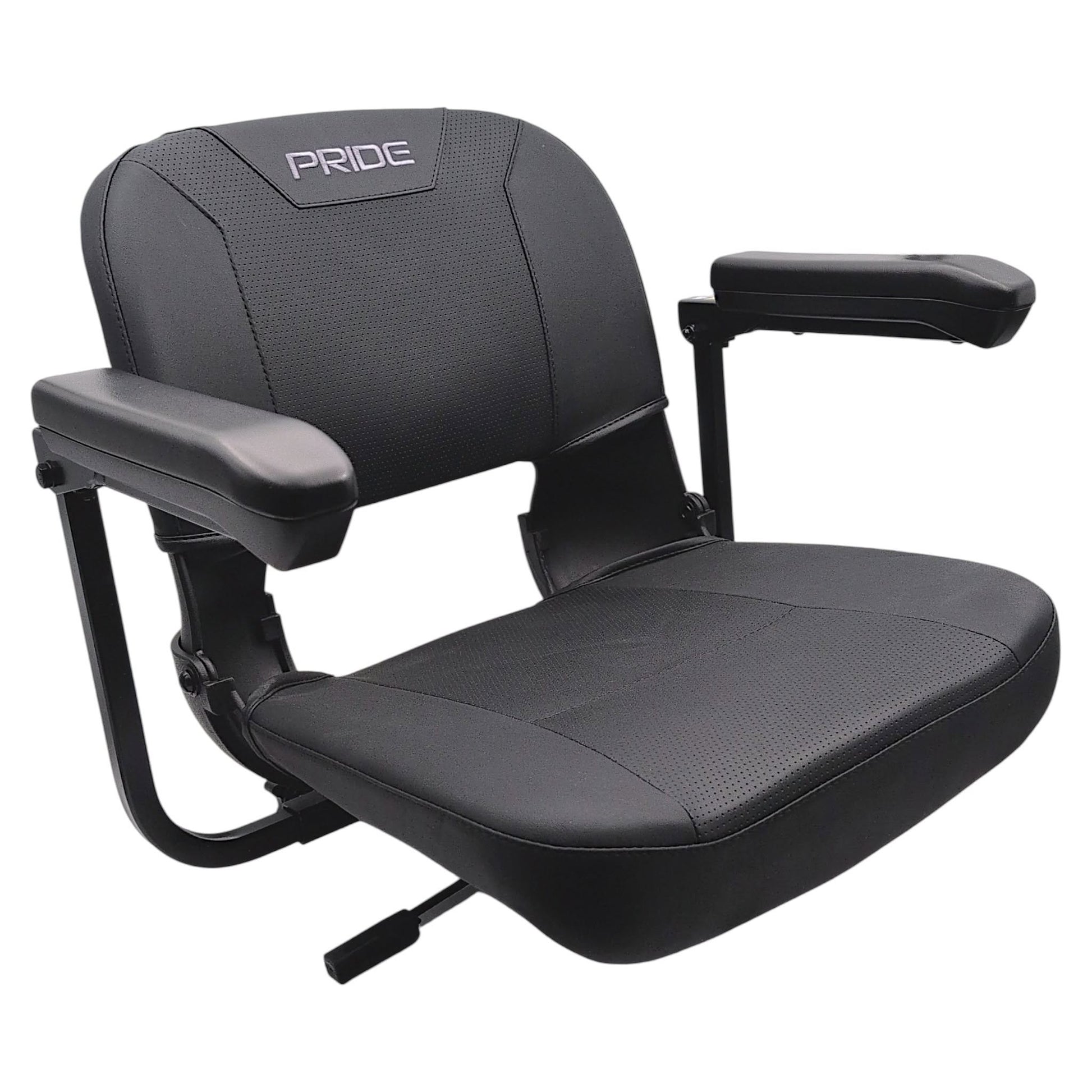

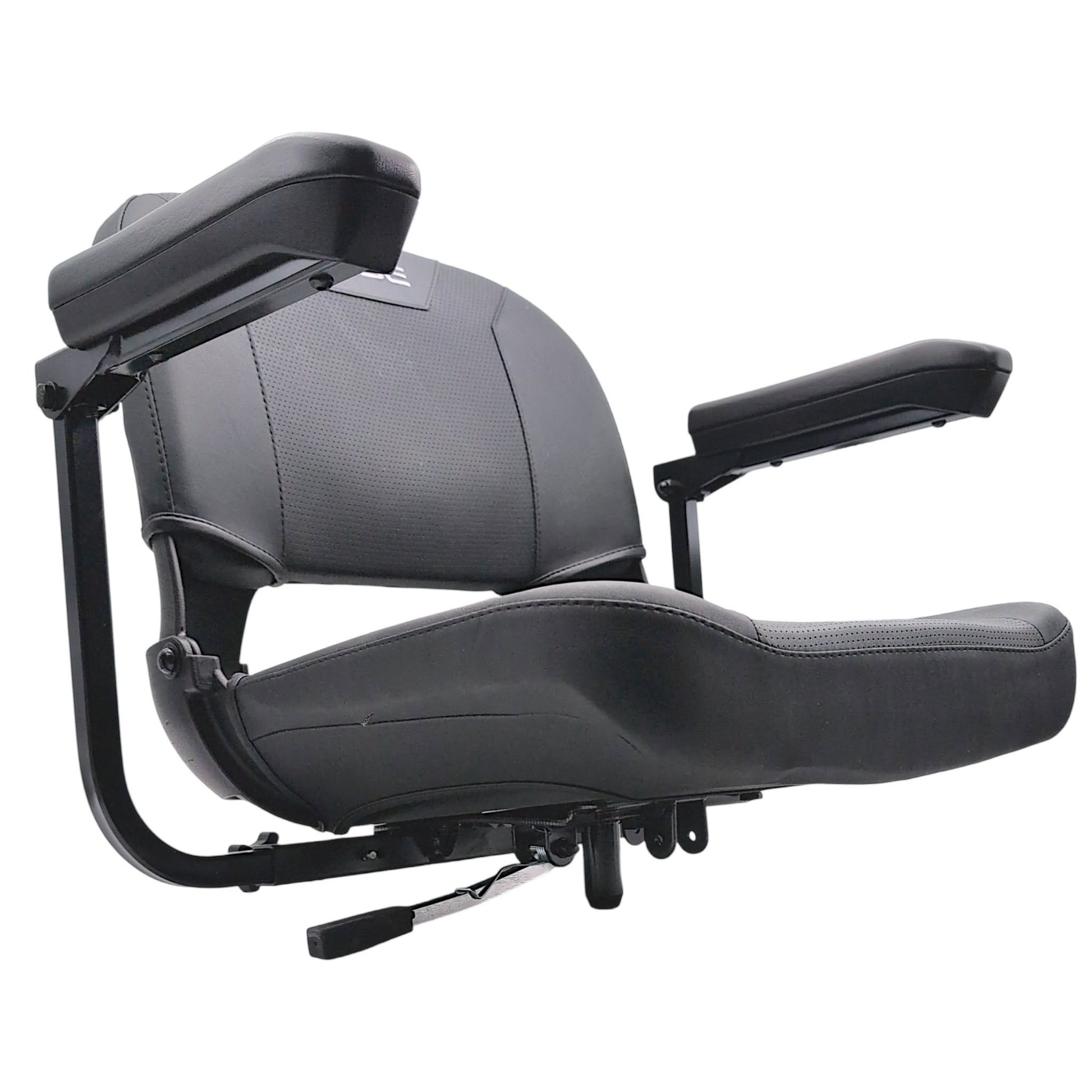

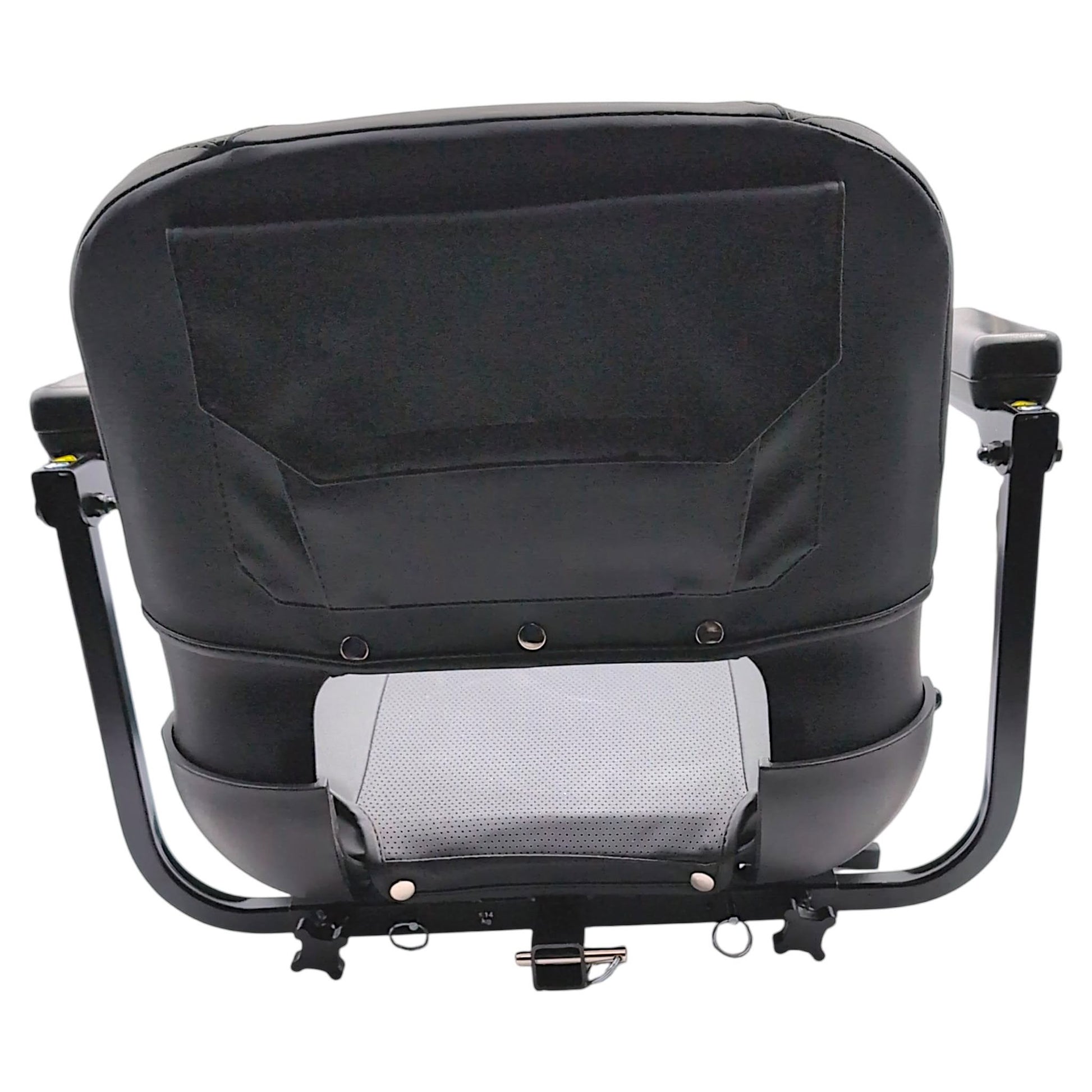

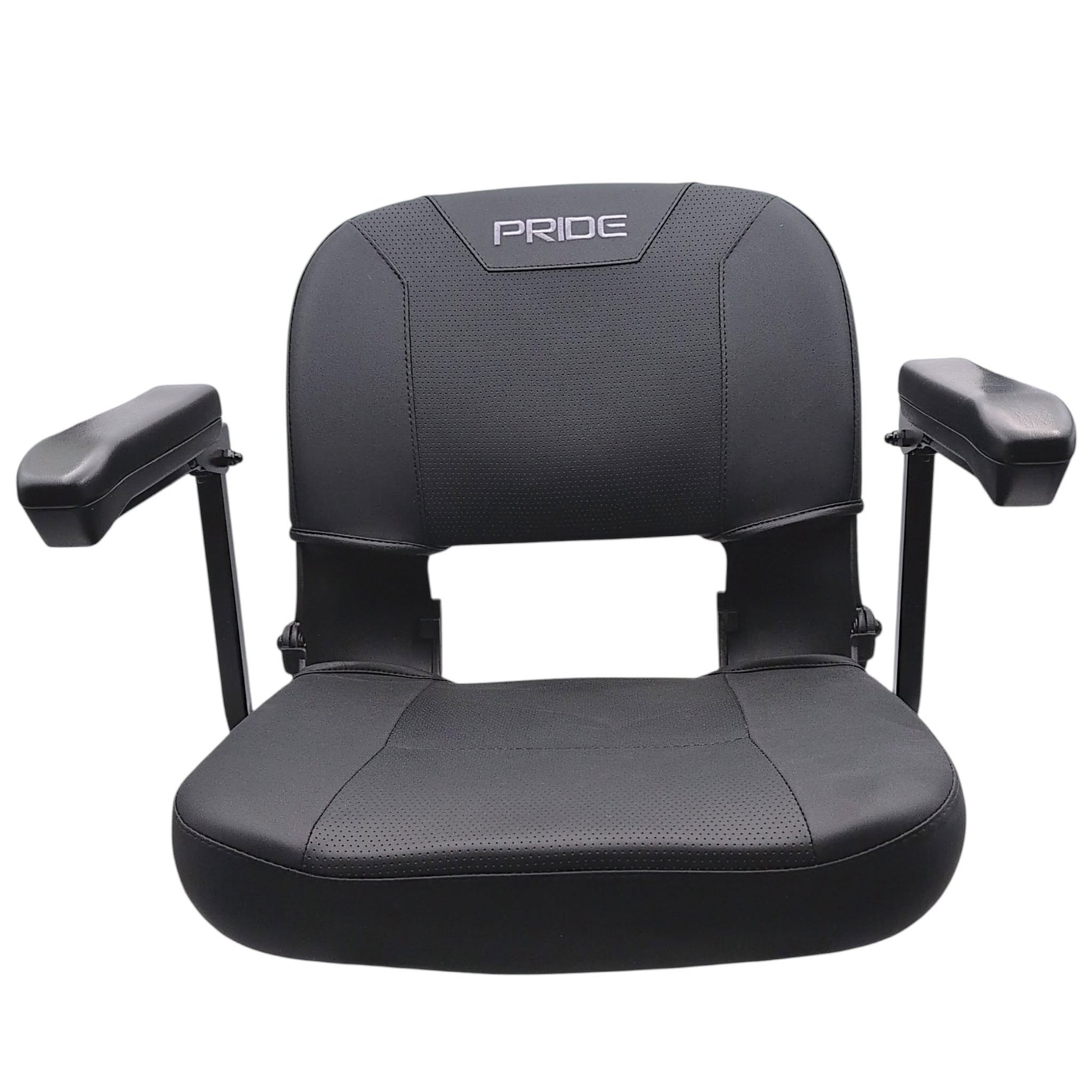

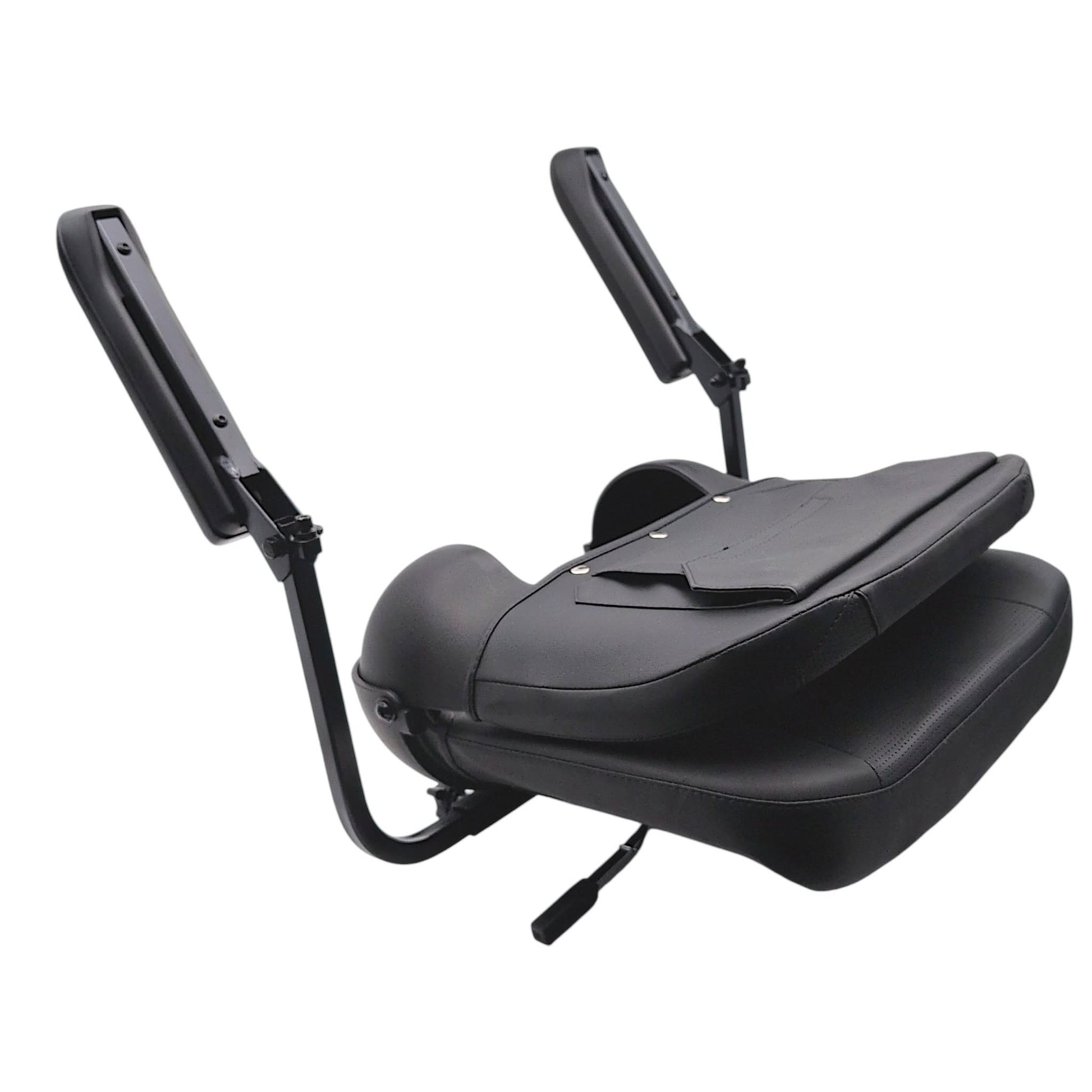

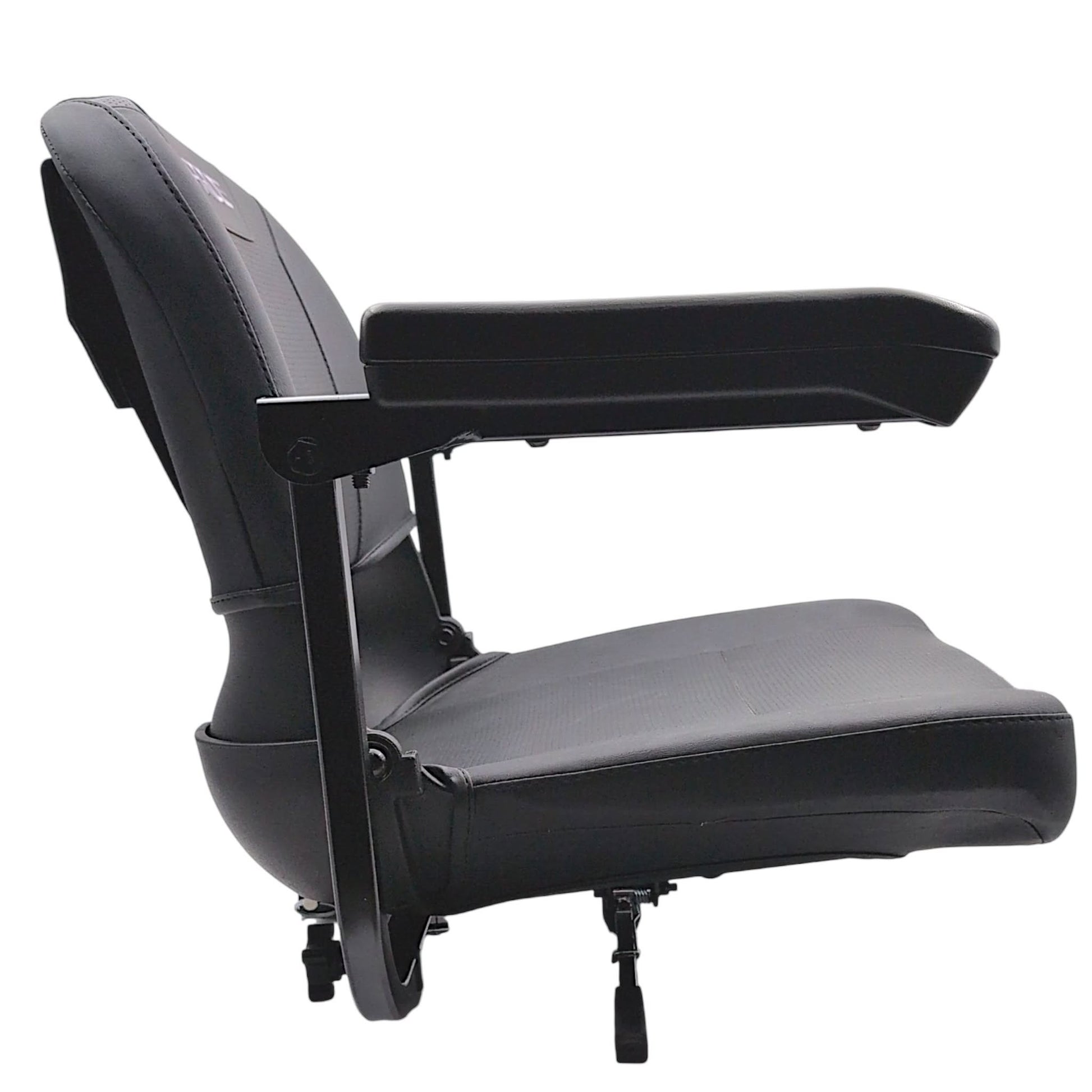

OEM complete replacement seat assembly (Part Number: SET151005) for Pride Mobility scooters. This fully loaded 17" wide by 17" deep seat features a durable molded plastic base covered in comfortable black vinyl, and comes complete with both armrests. Compatibility list found below.
This comprehensive kit includes everything needed for a full seat replacement: the molded seat, seat covers, seat frame assembly, armrests, and all required hardware.
🛑 Important Note: Individual seat covers are not available separately for replacement from the manufacturer. They are only sold as part of this complete seat assembly or the seat base assembly.
- Manufacturer:
- Pride Mobility
- Part Number:
- SET151005
- Seat Post Size:
- 1-inch (25.4 mm)
- Component Type:
- Complete Seat Assembly
- Material & Color:
- Black Vinyl / Molded Plastic
- Dimensions:
- 17" Width x 17" Depth x 14" Height
Scooter Compatibility
- Go-Go Series:
- Elite Traveller (S40E / S44E)
- Elite Traveller Plus (S53 / S54)
- Ultra X (S40X / S44X)
- Ultra X Gen 3 (SC493)
- Sport (S73 / S74)
- LX with CTS Suspension (S50LX / S54LX)
- Endurance Li Max (S50LXLIT)
- Jazzy Series:
- Jazzy Zero Turn (ZT8)
- Apex Series:
- Apex Lite (S49)
- Apex Rapid (S50LX / S54LX)

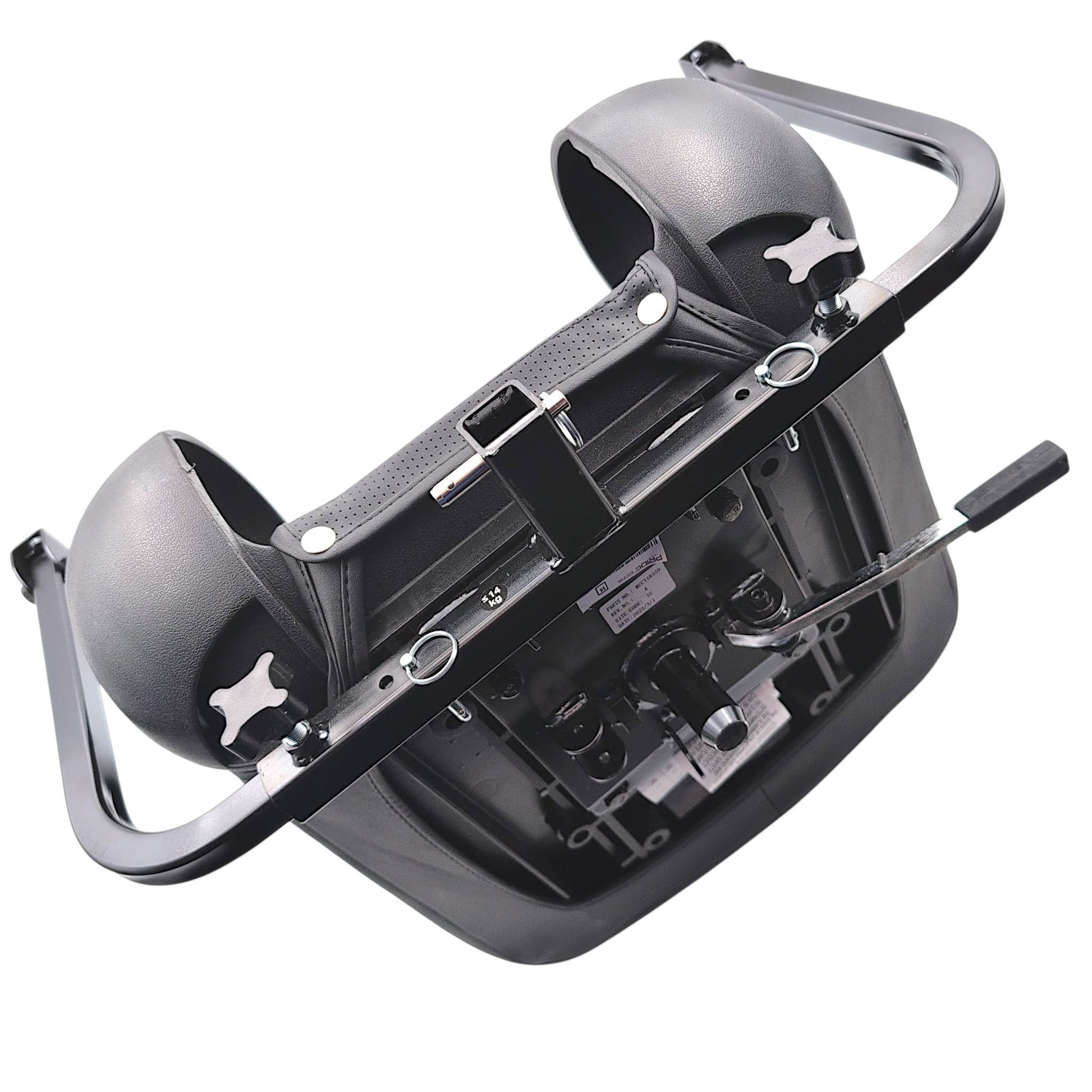

Included Components & Hardware
This assembly includes the following exact parts:
- PLSASMB2053: Plastic Assy, 17"W x 17"D, Molded Plastic Seat Back/Base (1 EA)
- SET151004: Seat Assy, Black Vinyl, Embroidered Pride Logo (1 EA)
- FRMASMB9827: Armrest Assy, Black, Left, Molded Plastic Seat (1 EA)
- FRMASMB9828: Armrest Assy, Black, Right, Molded Plastic Seat (1 EA)
- ARM153519: Armrest Pad, Black, Left/Right, 10 Inch, Universal (1 EA)

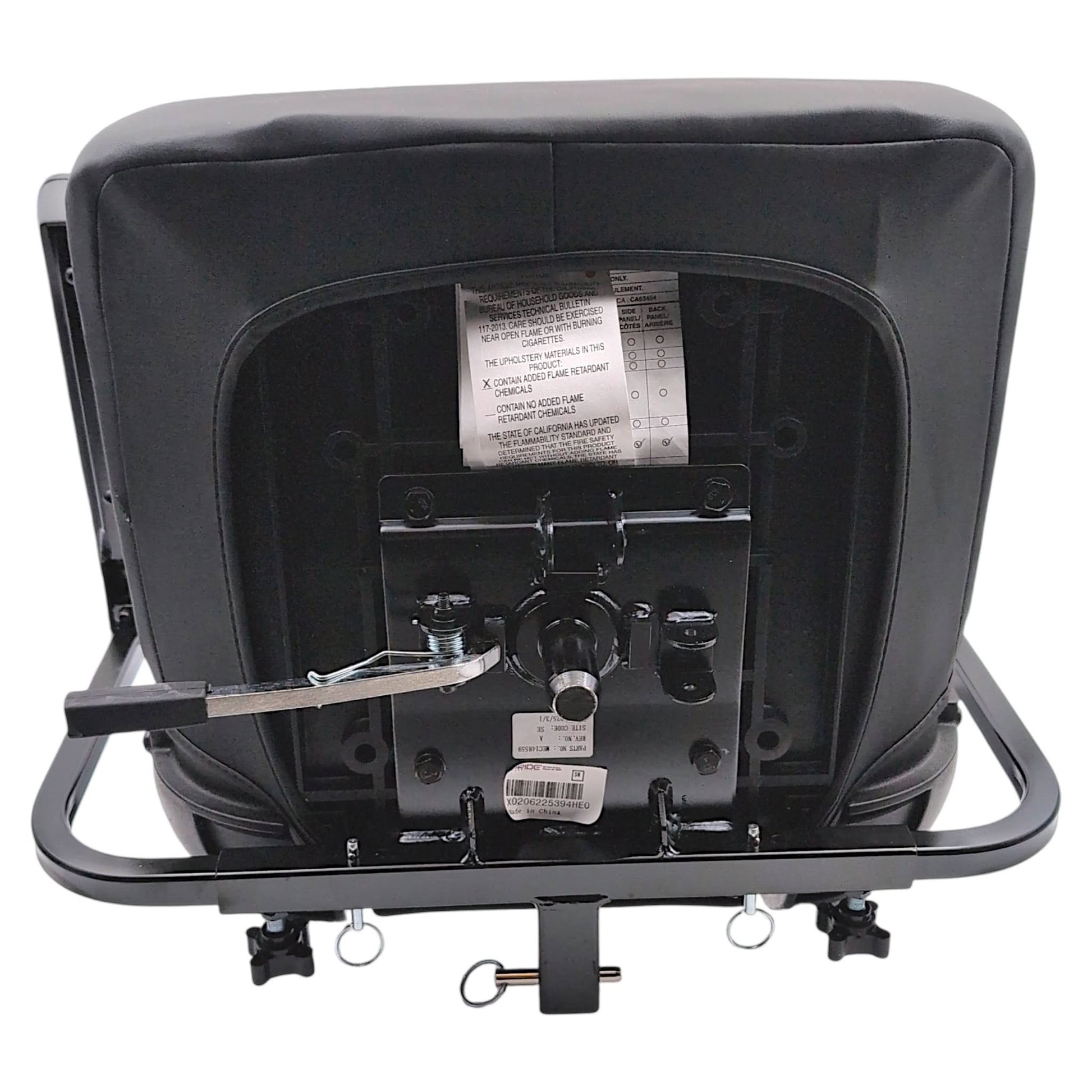

- MEC152067: Seat Plate Assembly - GoGo (1 EA)
- DWR9998C016: Lever, Seat Release, Zinc Plated, Revo (1 EA)
- SPGRAW1010: Spring, Raw, Lever Locking SC150 (1 EA)
- DWR1000B152: Handle, Lock Knob (2 EA)
- PINCOTD1000: Pin, Cotterless Detent W/ Ring, .25" Dia x 1.5" Grip (2 EA)
- PROHDLC1007: Handle, Cover, Seat Lock, SC150 (1 EA)
- PINCOTD1006: Pin, Cotterless Detent W/ Ring, .375" Dia x 2.00" Grip (1 EA)
