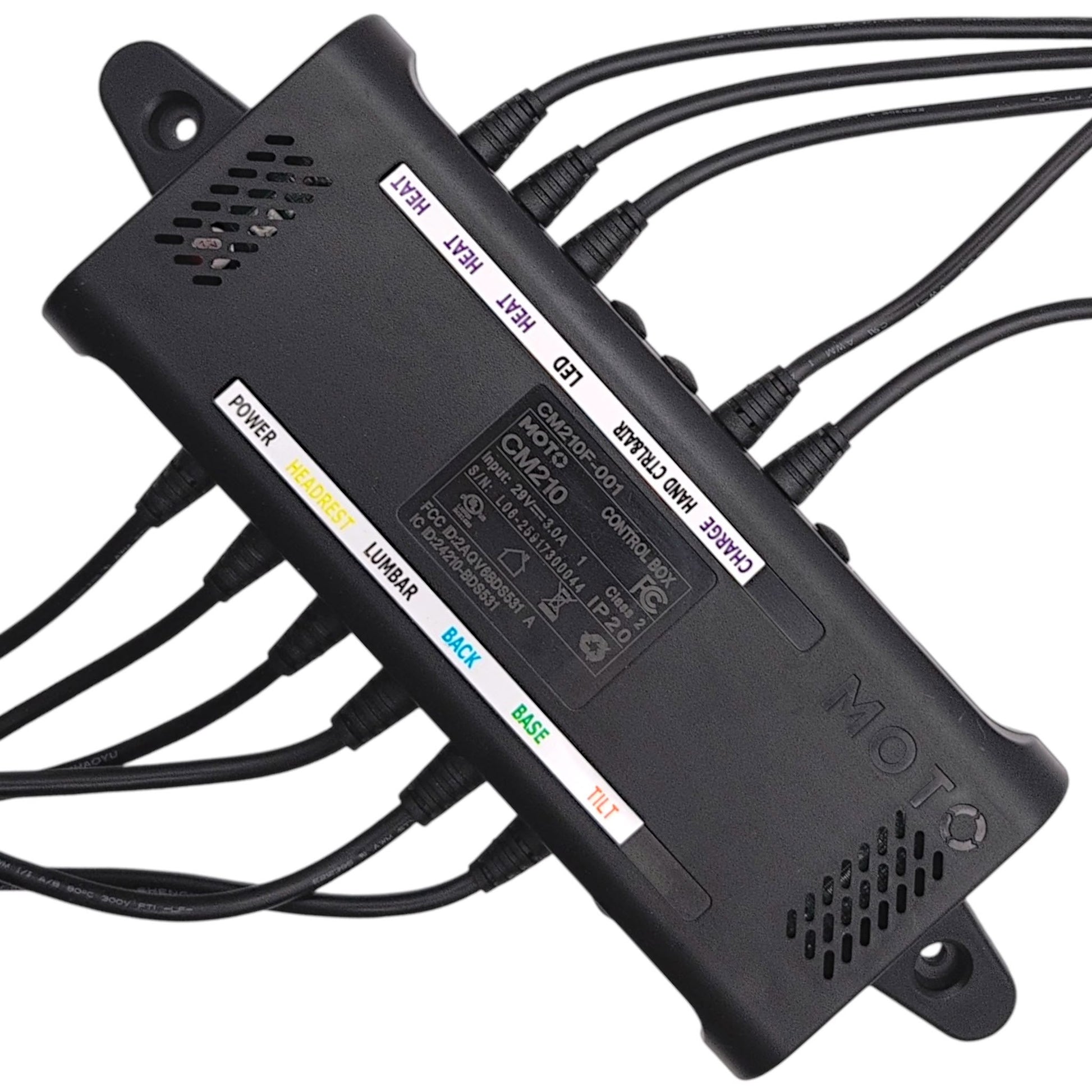

• Top view closeup with product label showing model number: CM210F-001 and 11 cables labeled as, Power, Headrest, Lumbar, Back, Base, Tilt, LED, Charge, Hand Control Air, and three cables labeled as Heat.

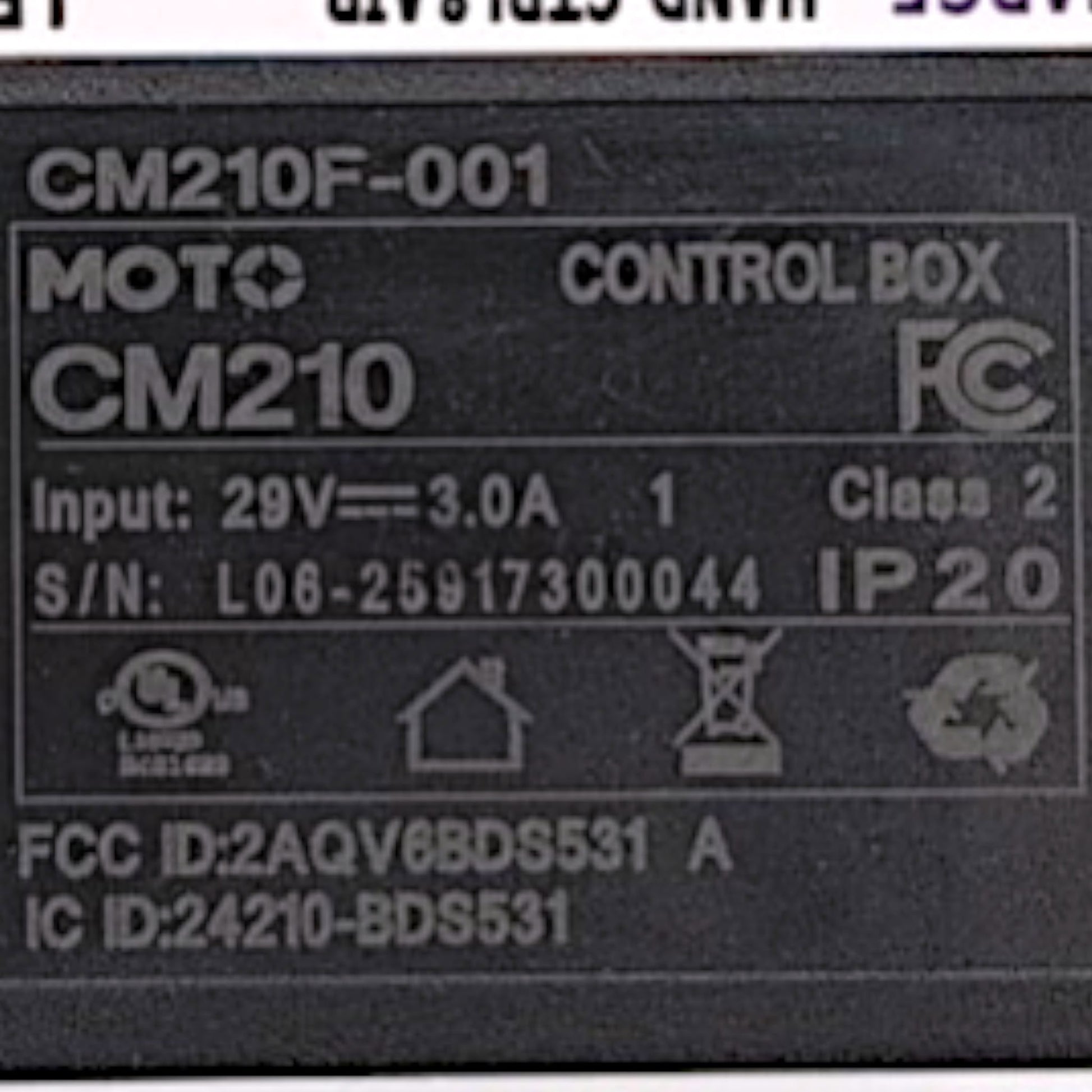

  • Product Label showing the Model Number: CM210F-001, Moto Control Box, base model id: CM210, Input 29 volts - 3.0 Amps

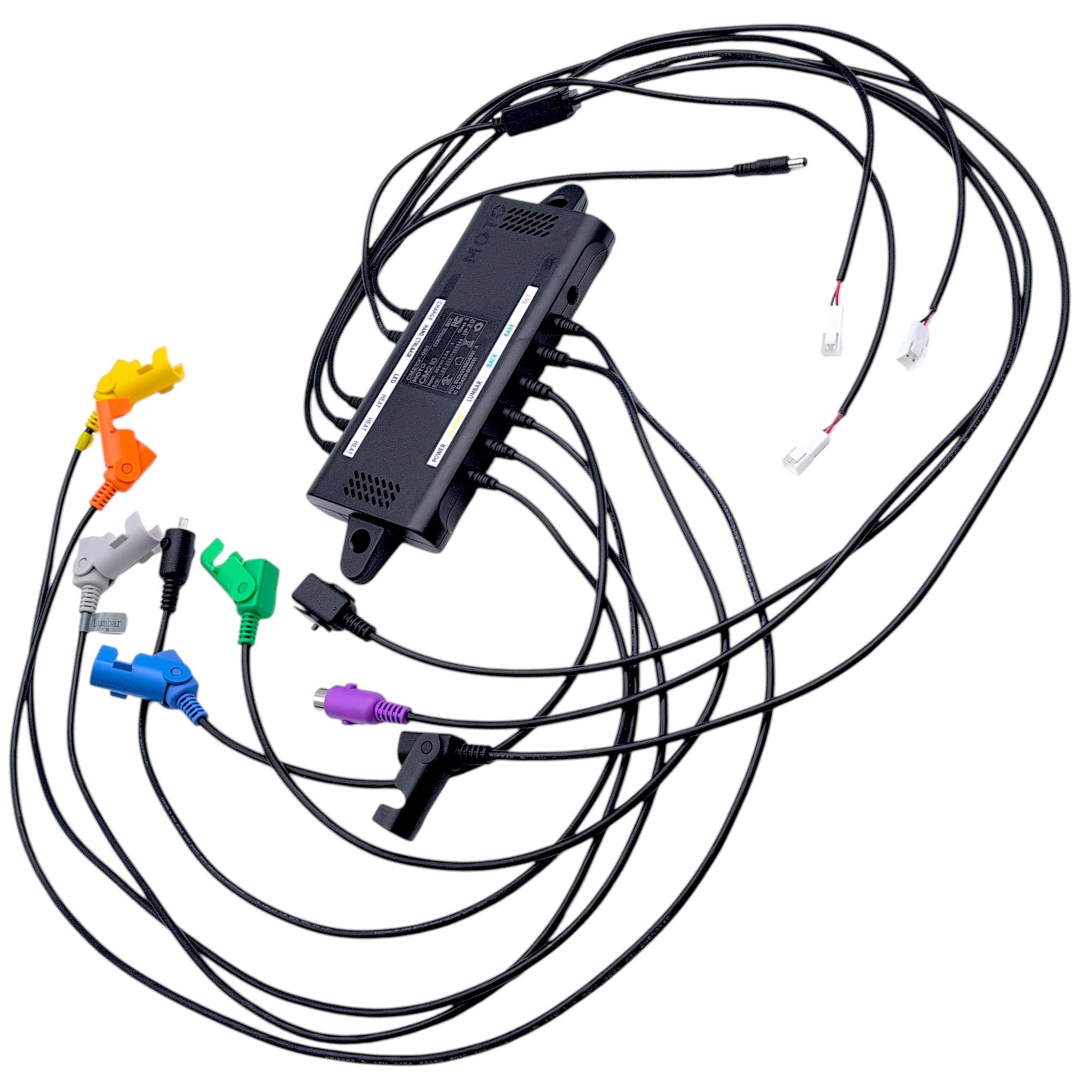

  • Top view with all cables unwound to show their length. 11 cables coming from the control box (One cable splits into 3 cables)

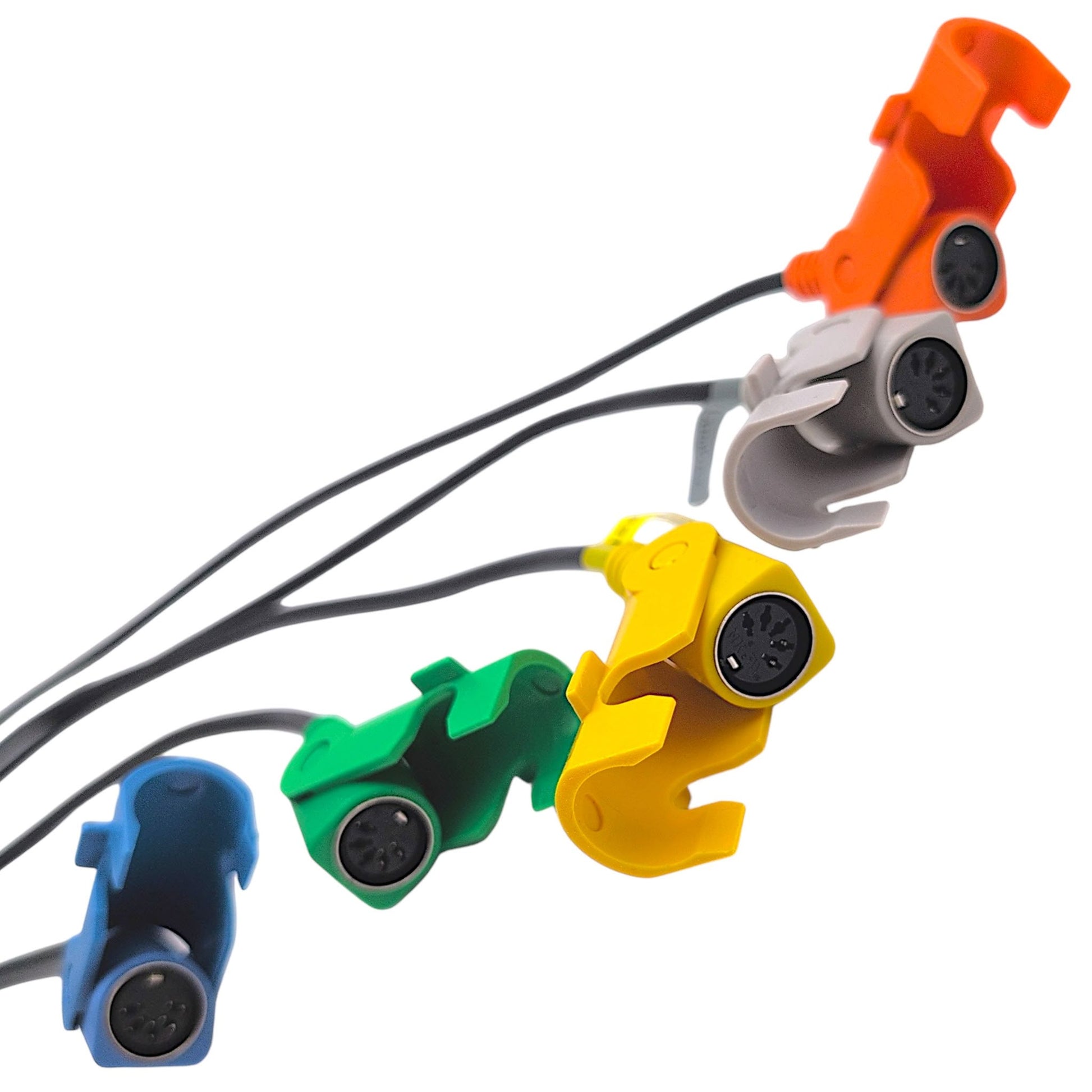

  • Front view of the following female five-pin connectors with clamps. Tilt (orange), Lumbar (gray), Headrest (yellow), Base (green), Back (blue).

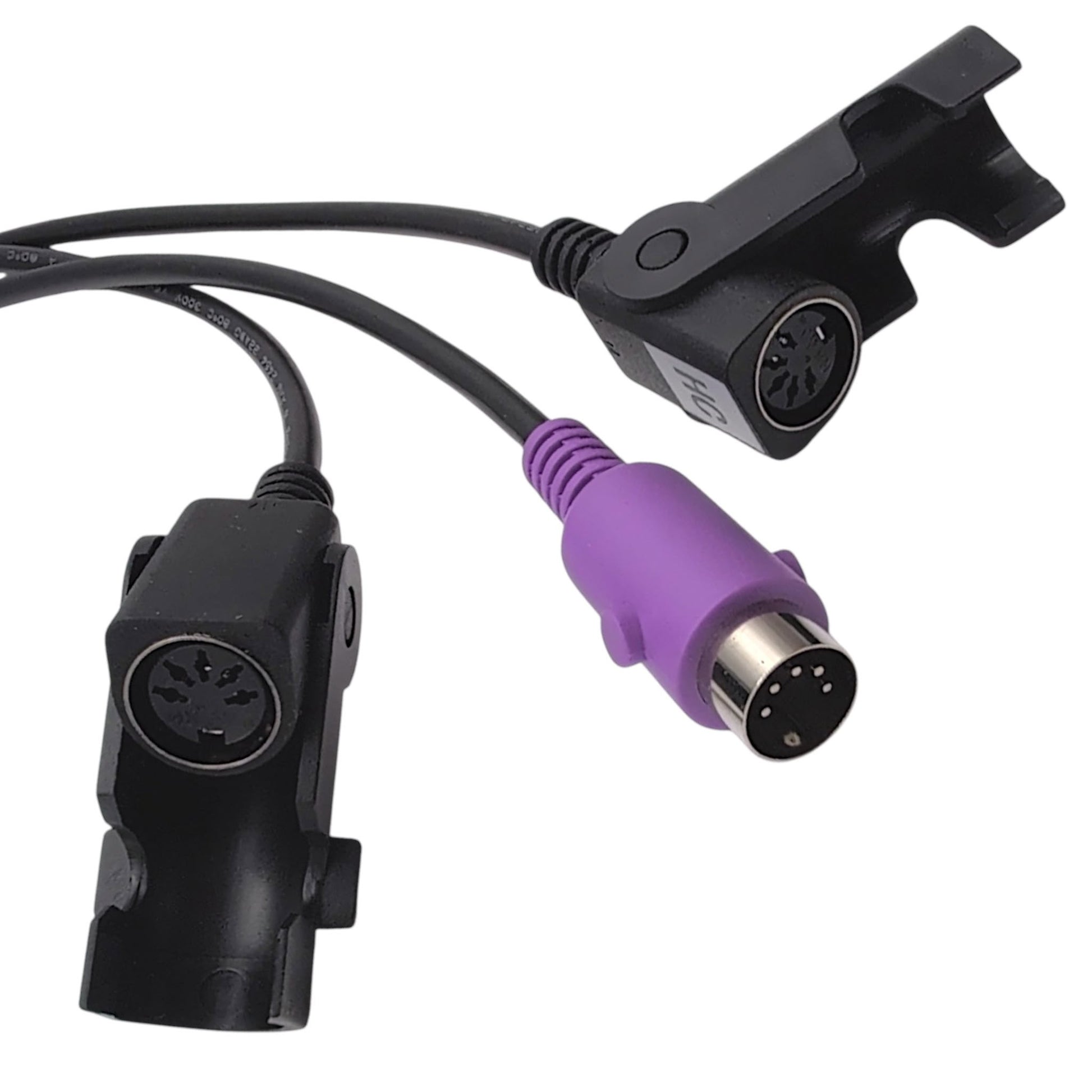

  • Three connectors. One Black 5-Pin Female connector with clamp labled "HC" for Hand control. One Black 5-Pin Female connector with clamp for the side buttons. One Purple 5-Pin Male for Air Bladder.

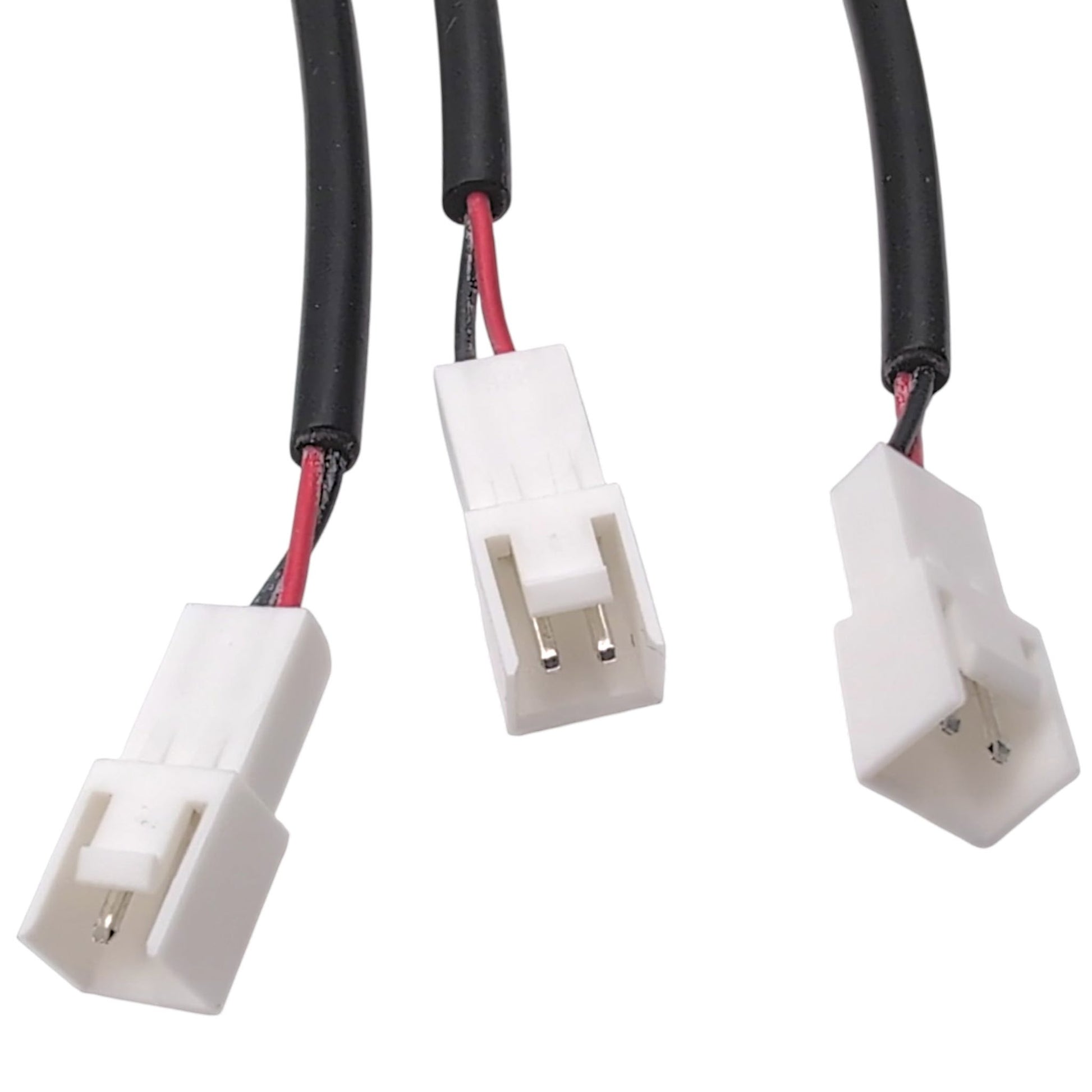

  • 3, square, white 2-pin connectors used for Heat function

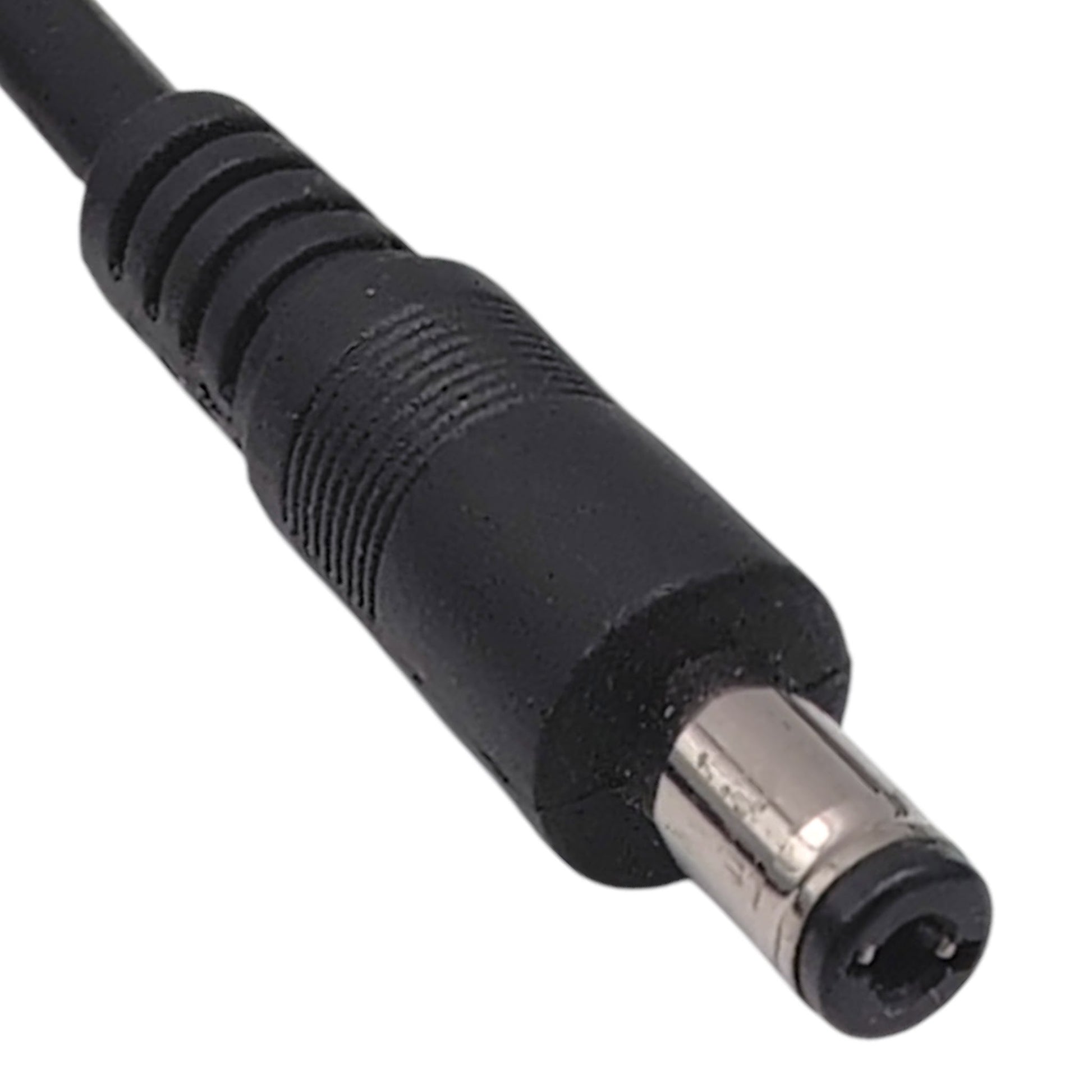

  • closeup of DC barrel plug for wireless charging

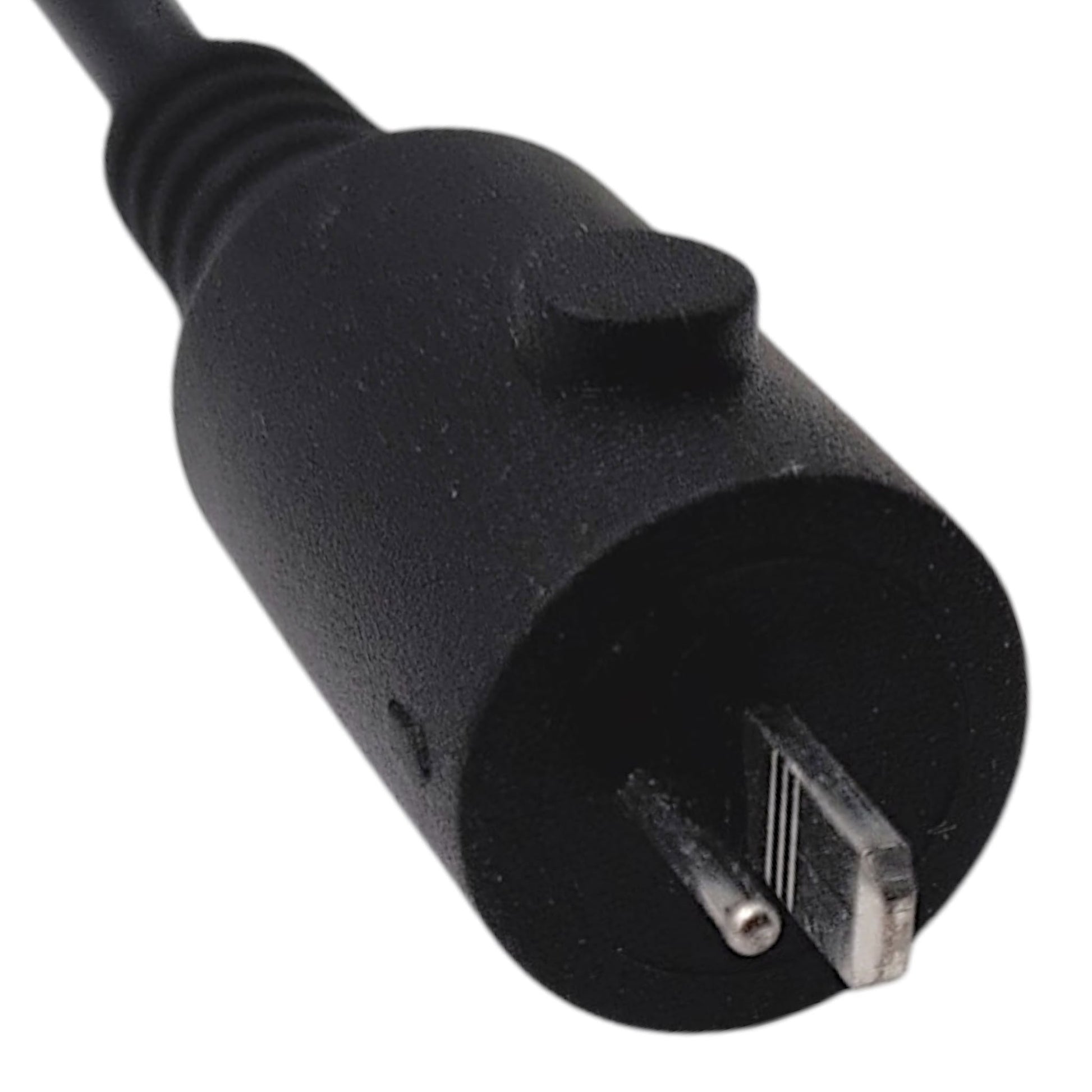

  • Front / Side closeup of the 2-pin power connectror. Both pins in clear view

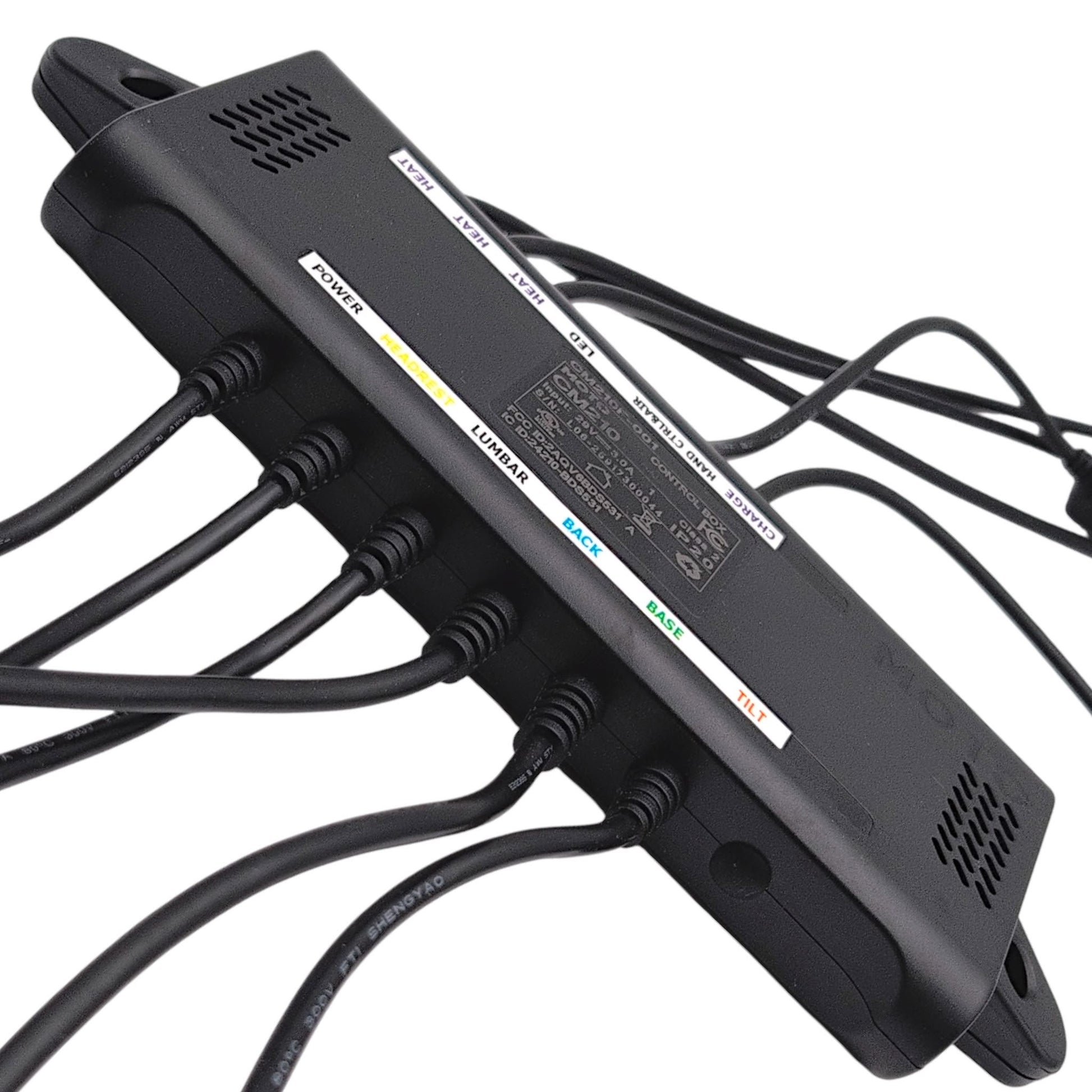

  • front / top view of control box. 6 cables exiting the front

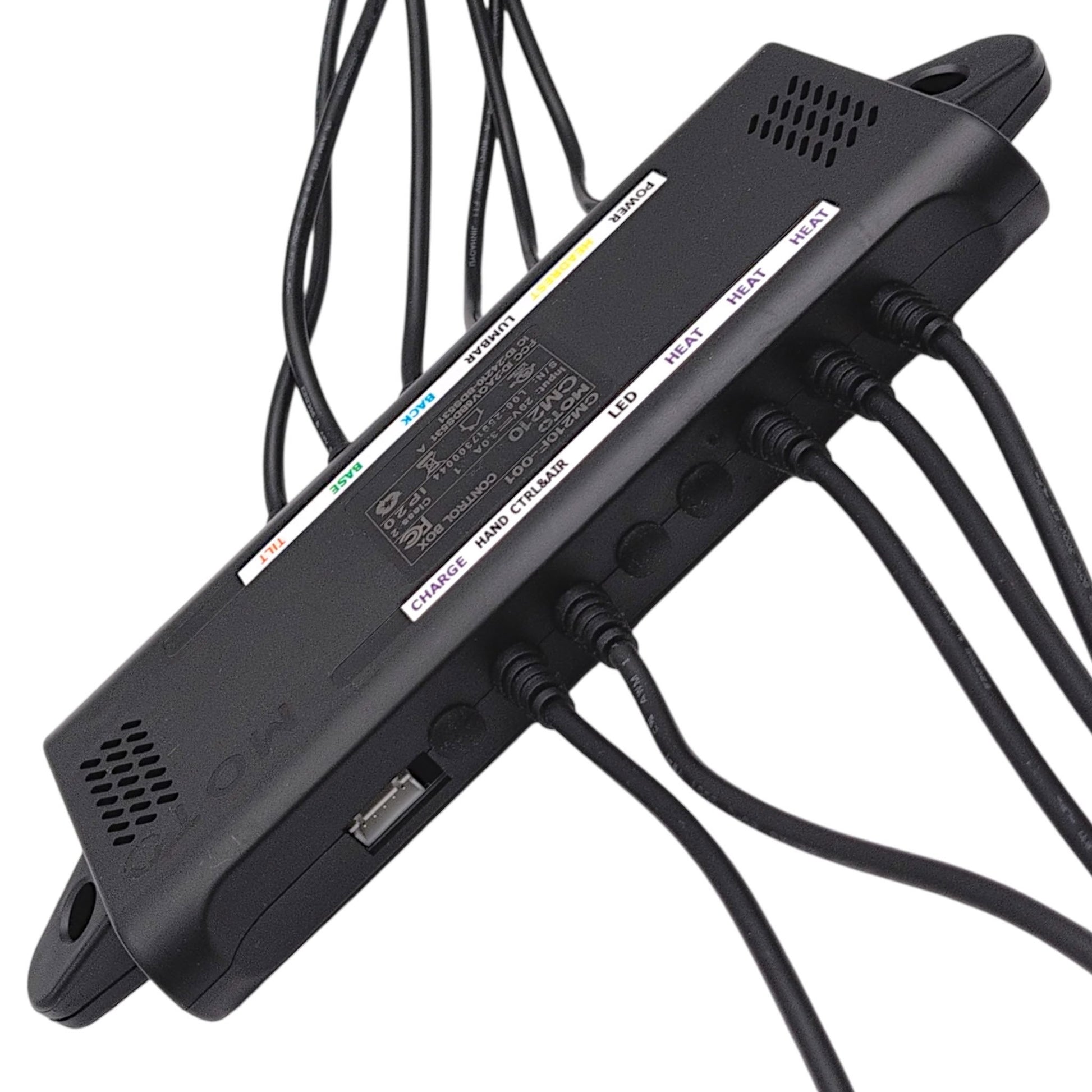

  • back of control box with 5 cables exiting and a 5-pin white port (not used by the chair)

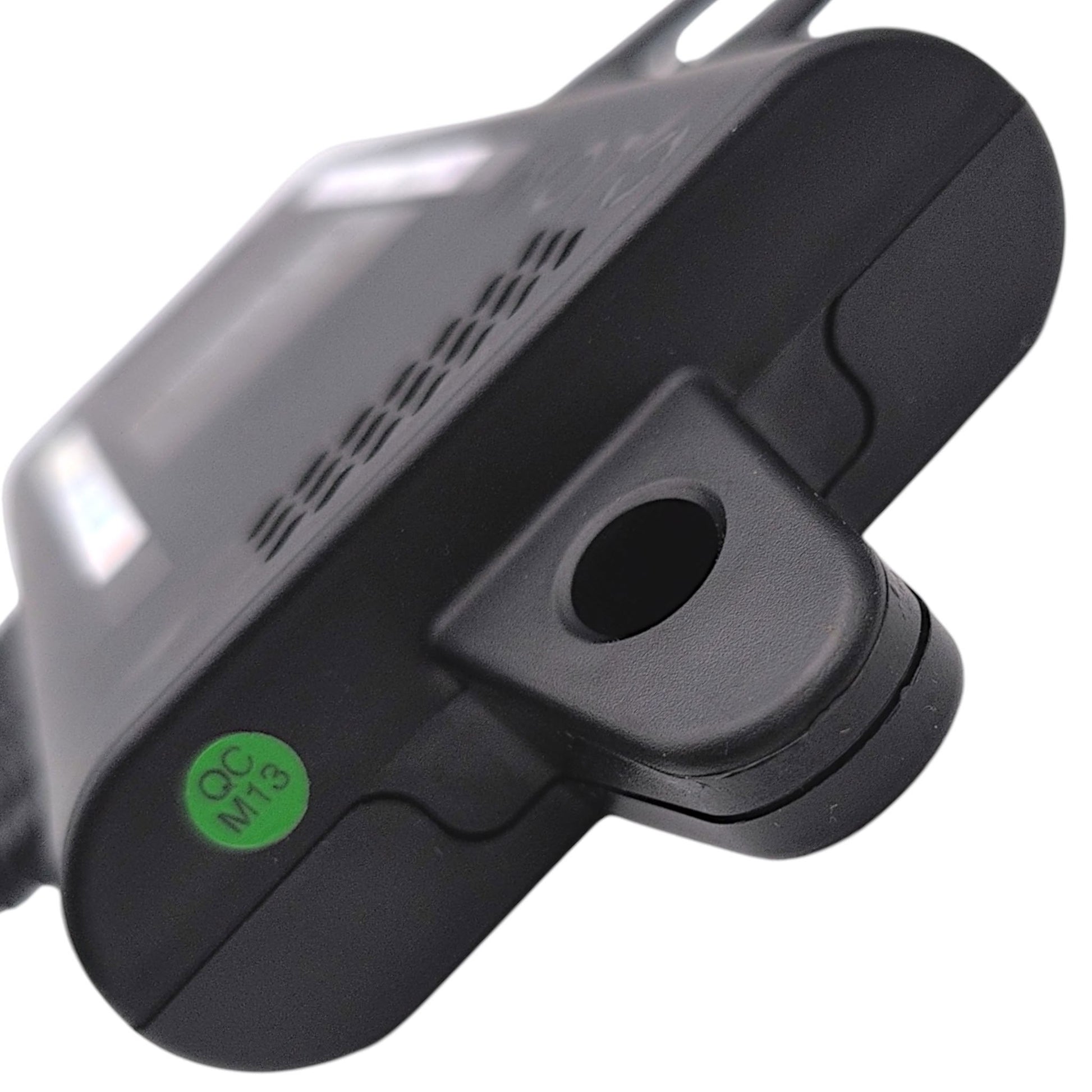

  • control box side view closeup

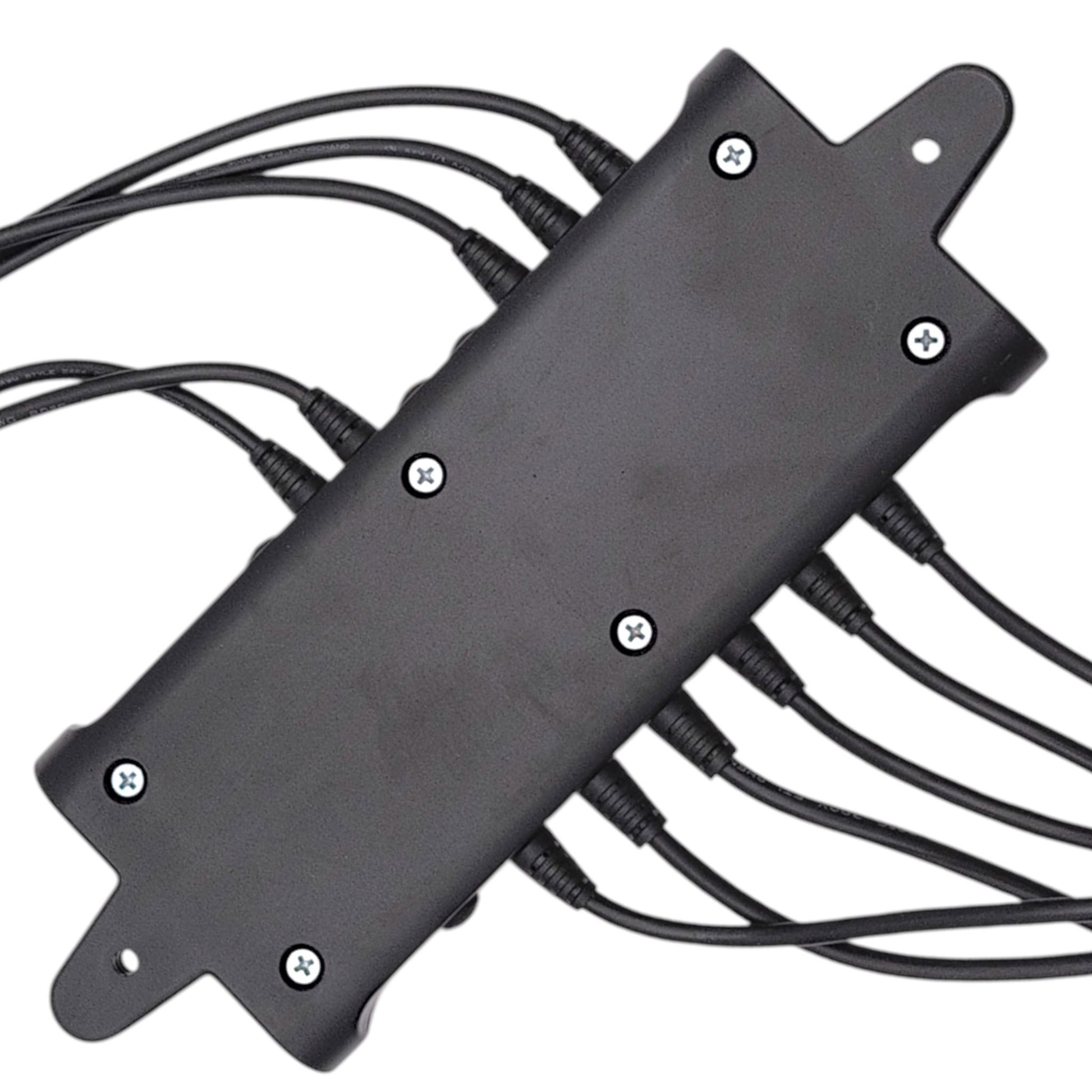

  • Bottom of control box

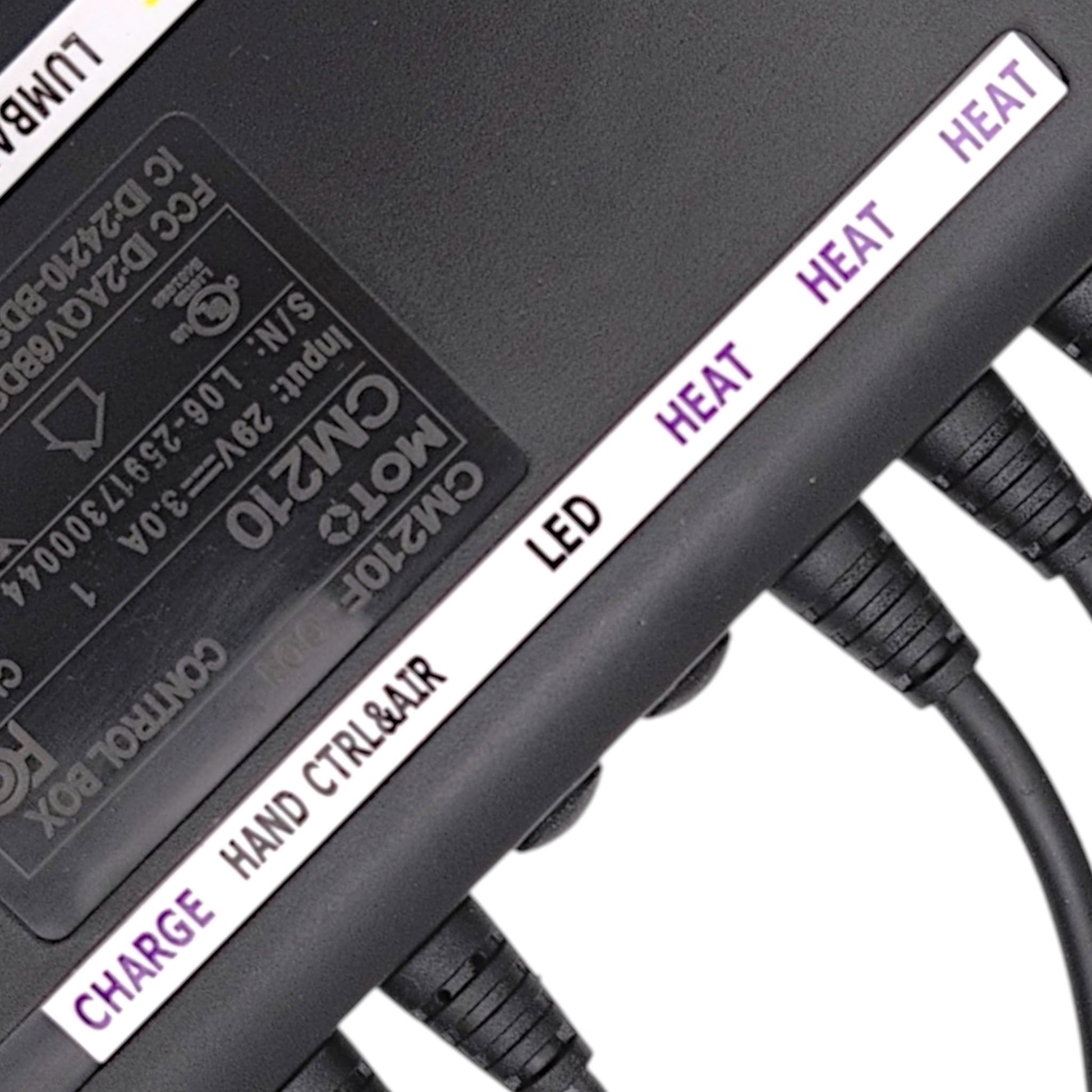

  • label closeup for, charge, hand control & air, led, heat, heat, heat

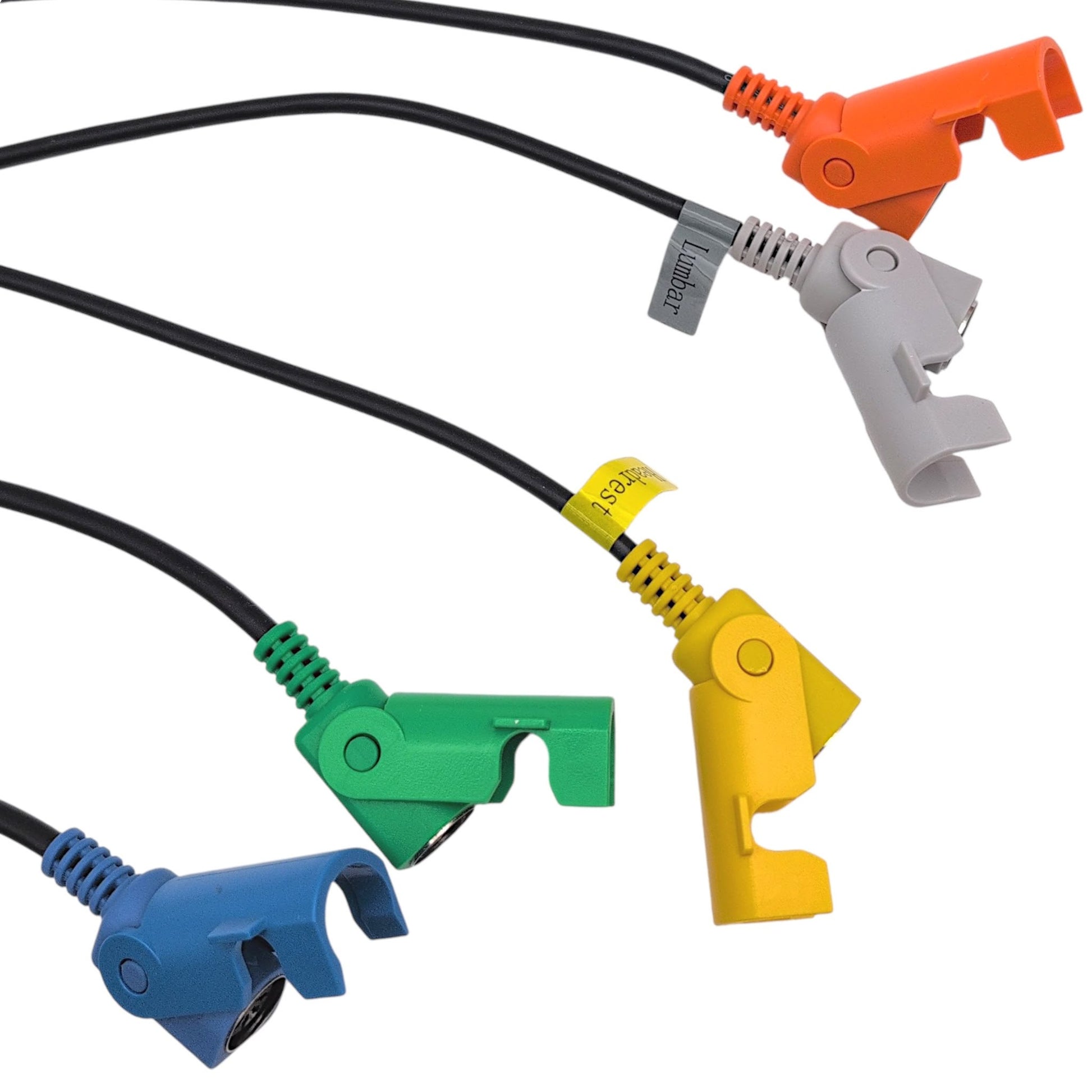

  • Side view of the following female five-pin connectors with clamps. Tilt (orange), Lumbar (gray), Headrest (yellow), Base (green), Back (blue).

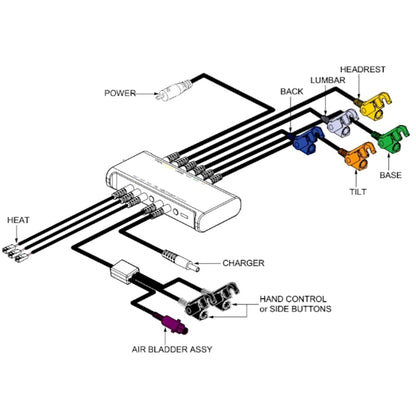

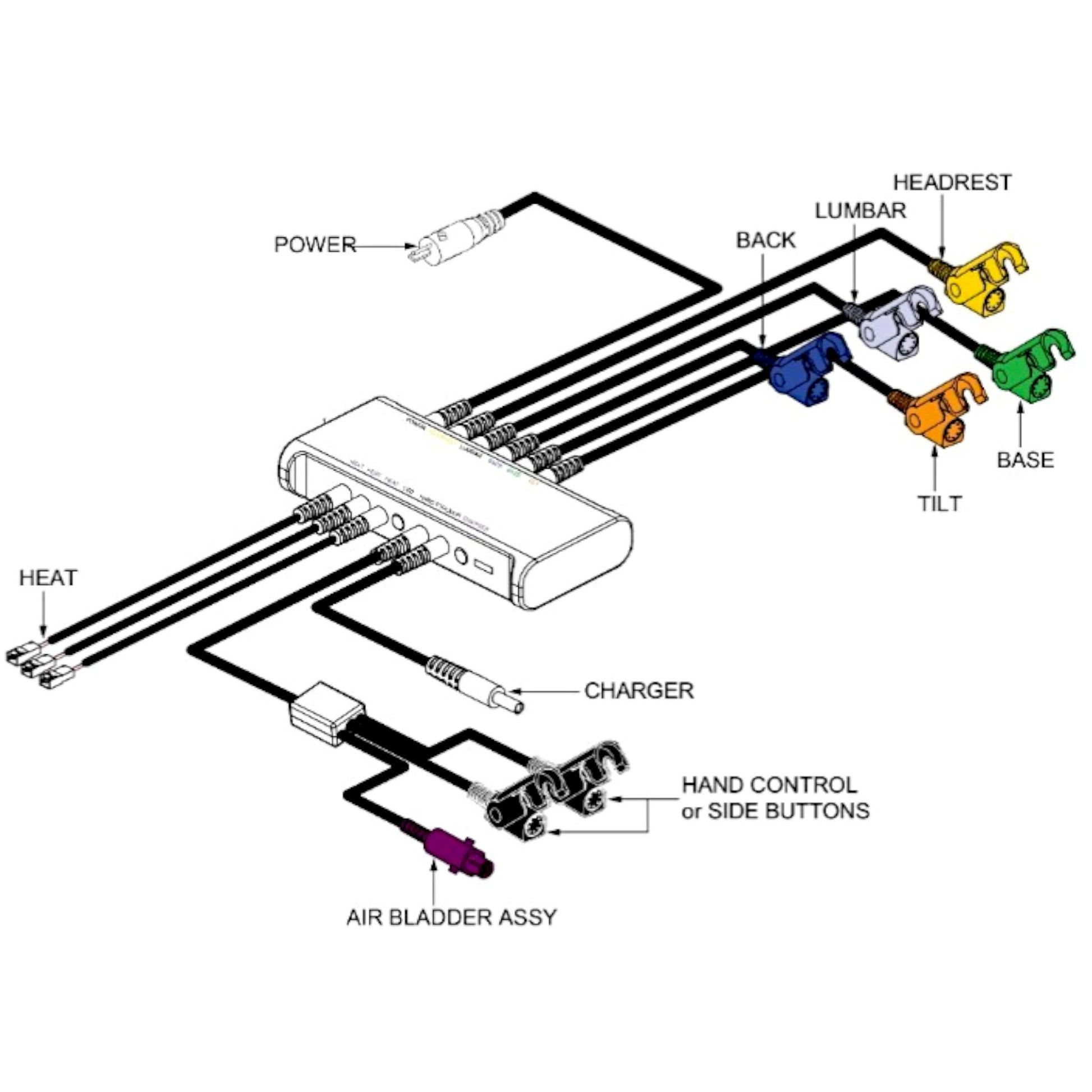

  • Diagram from the Pride Mobility Manual. Showing all the connectors and their purpose.

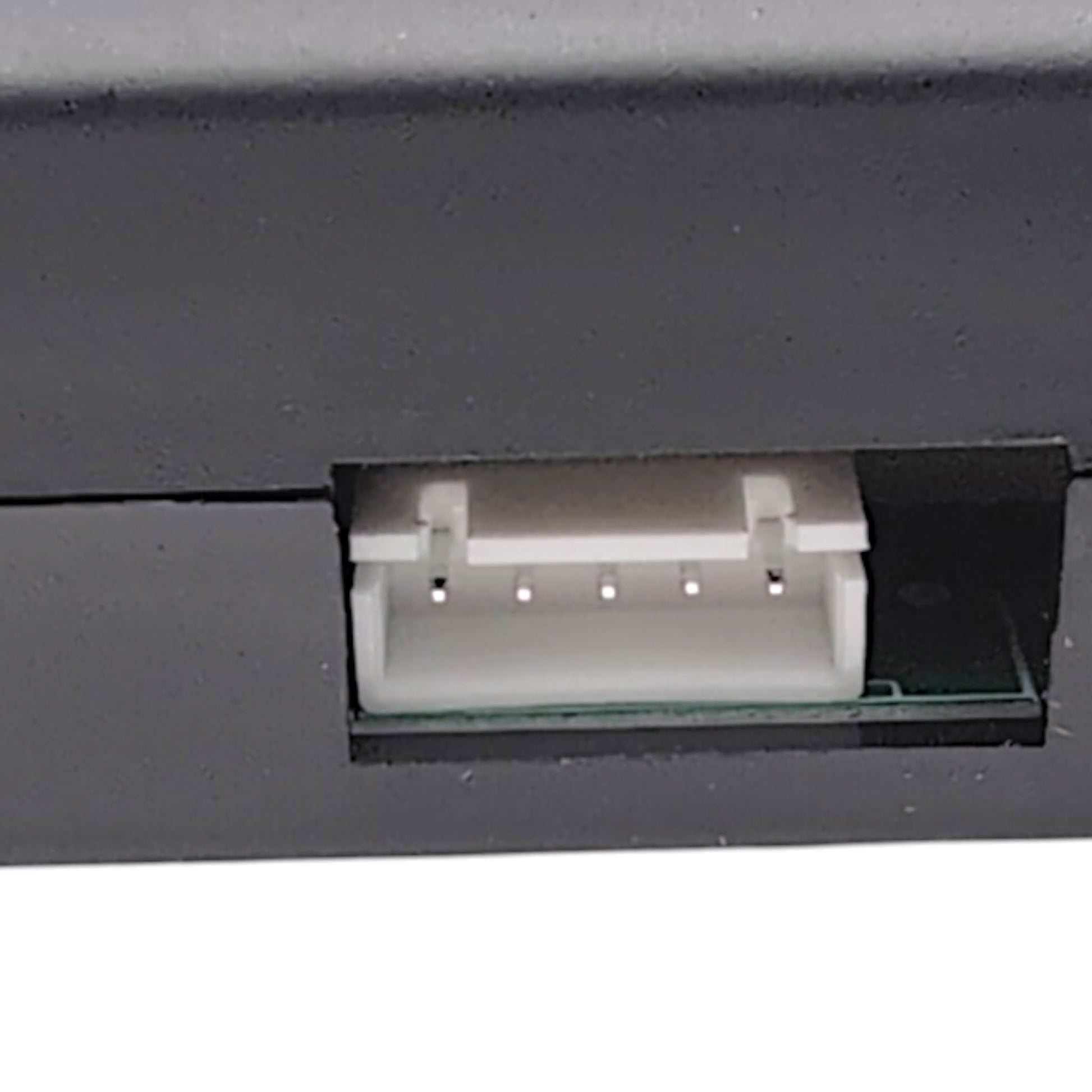

  • 5-Pin port found on the back of the control box. Not used on lift chair
1 16

Pride Mobility

Pride Mobility Viva Lift Ultra PLR-4955 Control Box CM210F-001 / CTL2102648

Pride Mobility Viva Lift Ultra PLR-4955 Control Box CM210F-001 / CTL2102648

$174.99 USD
$236.16 USD $174.99 USD
Our Price Sold Out
Free Shipping On Most Items Over $40+ (Contiguous US Only) Shipping: Calculated at checkout Shipping Policy

In stock
  • Free 2-day shipping when you order before 2:00 PM EST (M-F)(Contiguous US Only)
  • Need it tomorrow? Select overnight shipping at checkout before 2:00 PM EST (M-F)(Contiguous 48 states).
  • 30 Day Return Policy
  • Fulfillment: Usually ships in 1-2 business days
  • This Product Is Backed By A 90-day Limited Warranty Against Manufacturing Defects

Product Description

Genuine OEM replacement electronic control box (Part Number: CTL2102648) manufactured by Moto Motion for Pride Mobility power lift recliners. Also identified by Model Number: CM210F-001, this unit directly Replaces Model Number: CM210F-000, and is compatible with Pride Mobility VivaLift! Ultra Models:  PLR-4955S, PLR-4955M, PLR-4955L.

Description From The Pride Mobility Manual: Electronic, Control Box, Heat, Tilt, Massage, Viva, (HHC: CM210F-000)

Specifications:

Brand:
Pride Mobility
Manufacturer:
Moto Motion
Part Number:
CTL2102648
Model Number:
CM210F-001
Replaces Part Numbers:
CM210F-000
Moto Control Box Model ID:
CM210
Power Connector:
2-Pin Male Connector
5-Pin Connectors (8 In Total):
Coming from the front of the Control Box, there are Five 5-Pin Connectors with Clamps for Headrest (Yellow), Lumbar (Gray), Back (Blue), Base (Green), and Tilt (Orange).
On the back of the Control Box there is one cable labeled as "Hand CTRL&Air". It has three cables split off from that. One cable has a Purple, Male 5-Pin connector used for the Air Bladder. One is labeled as "HC", this is for the Hand Control. The last is not labeled, this is used for the Side Buttons.
Heat Connectors:
3, Square, White, 2-Pin Connectors
Charge Connector:
DC Male Barrel Type Connector. Used for the wireless charger.
Other Connector:
There is a Square, White 5-Pin Port located on the back of the control box. This is not used by the lift chair. My guess is that it is used for programming the device or future expansion.

Addition Specifications
Input:
29 Volts DC / 3.0 Amps
Dimensions:
3 3/4" Length  x  11 1/8" Width  x  1 1/4" Height
Product Weight:
2.18 Pounds
Shipping Weight:
3 Pounds
Color:
Black
Certification:
UL Listed E481628
Class 2
IP20
FCC ID: 2AQV6BDS531 A
IC ID: 24210-BDS531

Compatibility
Pride Mobility VivaLift! Ultra:
Model Numbers PLR-4955S, PLR-4955M, PLR-4955L
