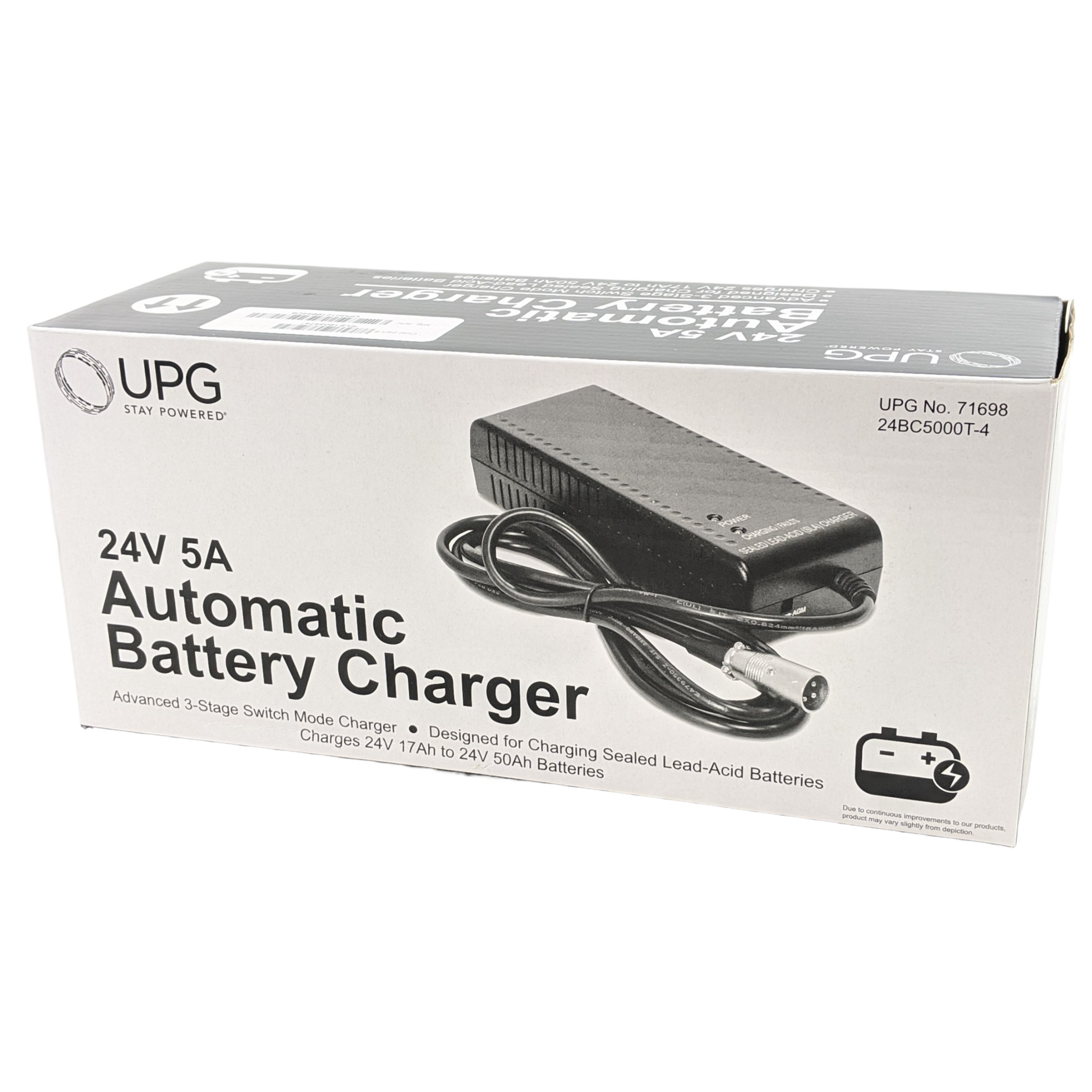

• upg charger in box. Shows, UPG Number: 71698, Model Number: 24BC50000T-4, 24Volt, 5A

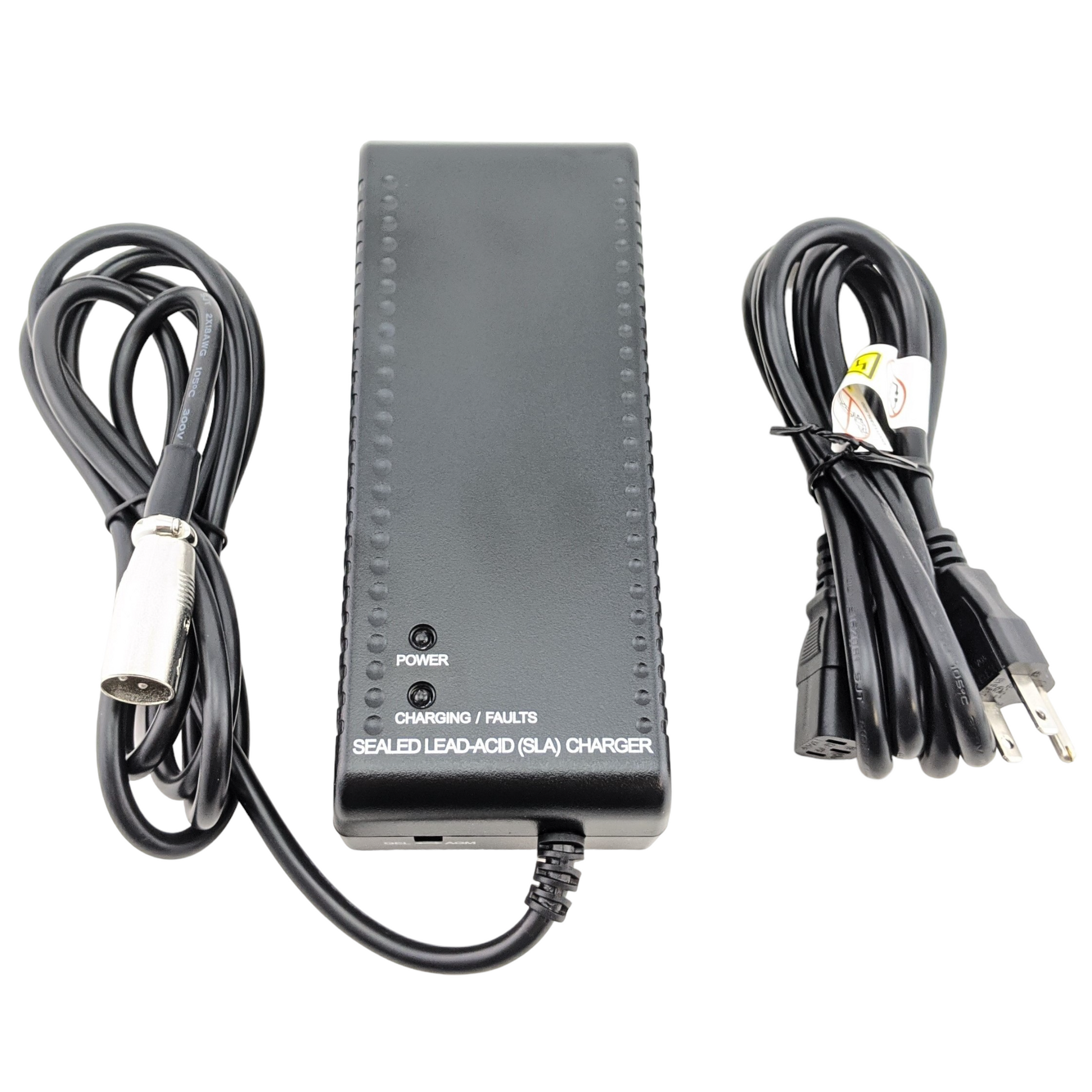

  • charger with both cables
  • bottom of charger showing the switch that lets you choose gel mode or agm mode

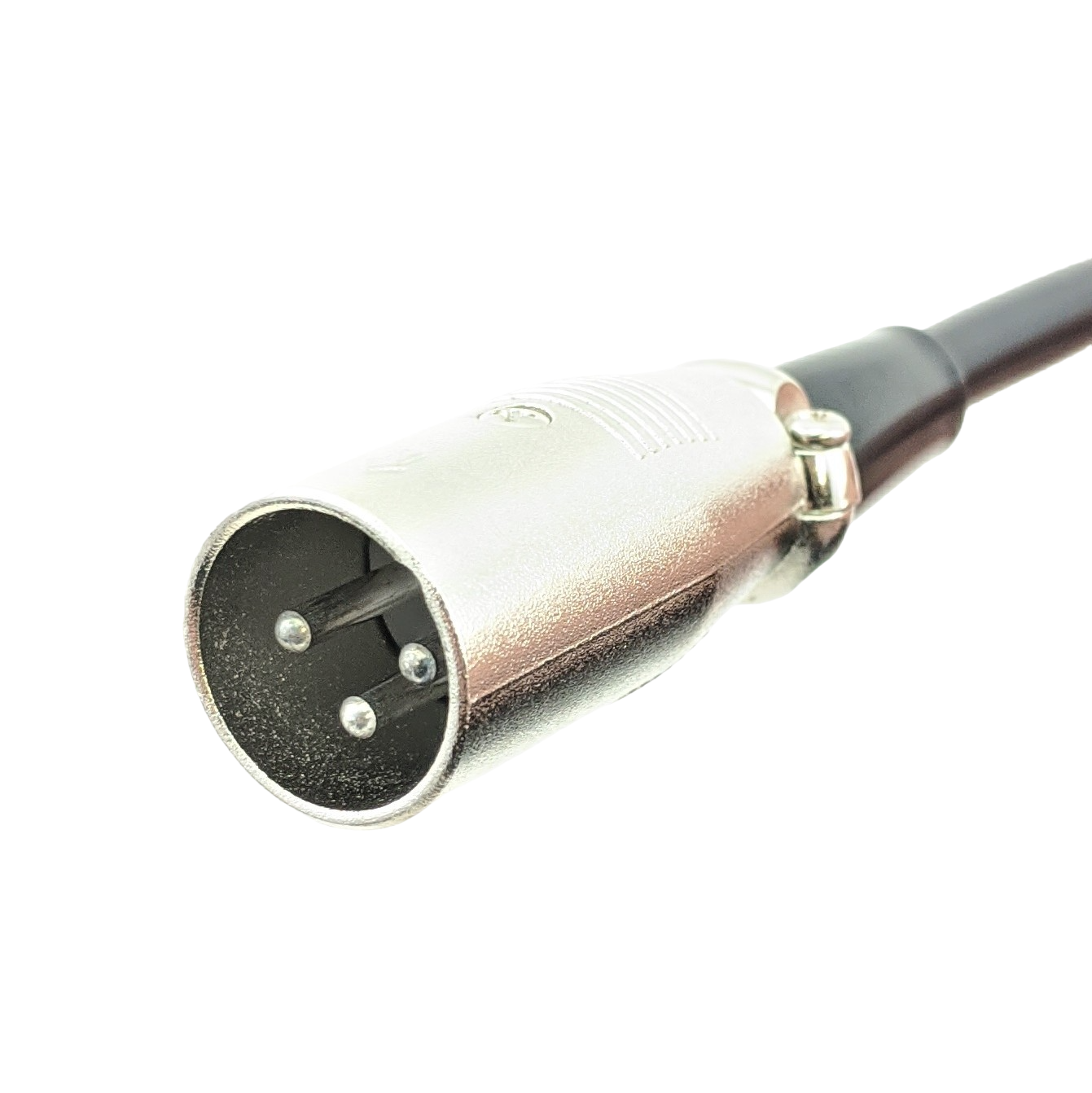

  • 3 pin male XLR Connector

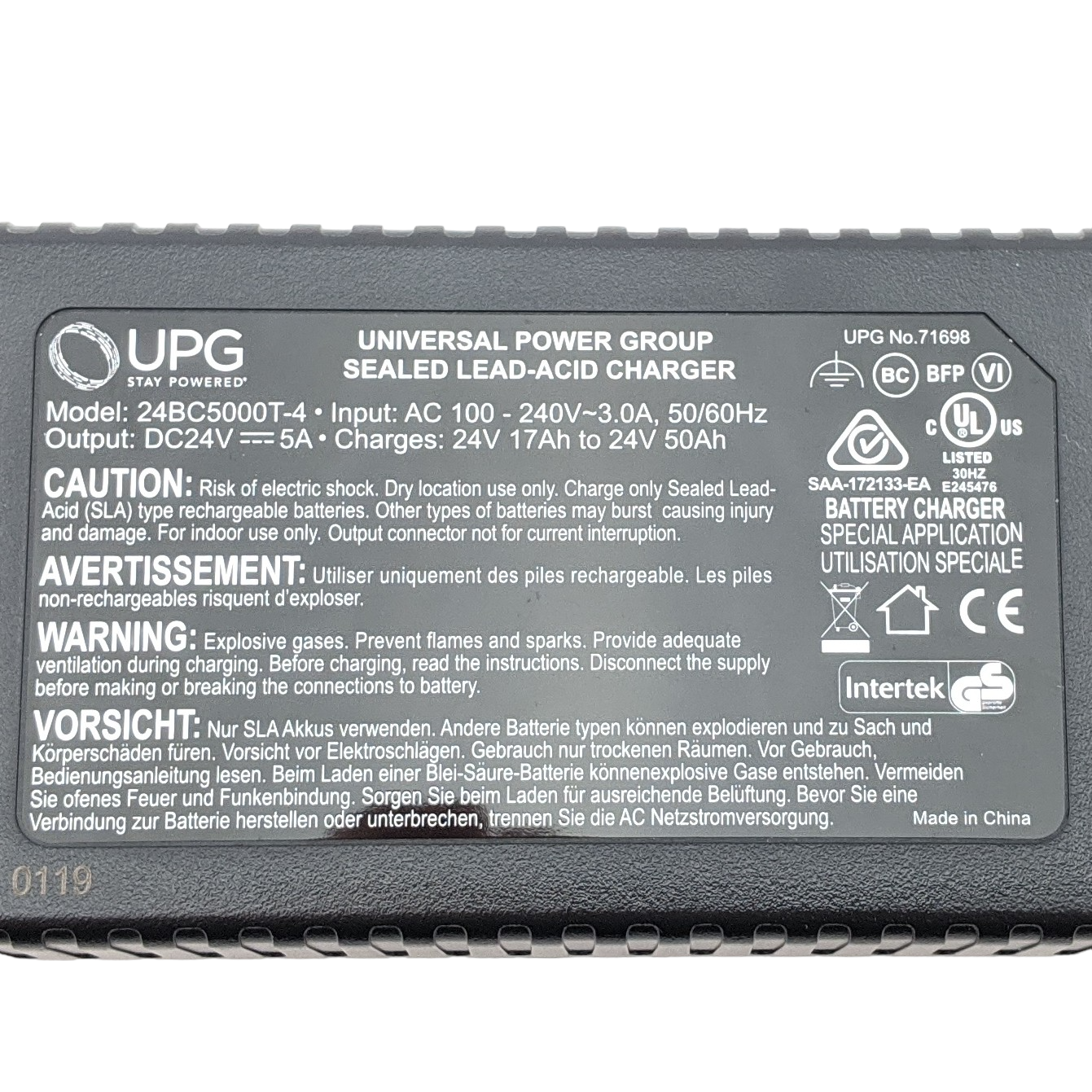

  • bottom of charger showing the product label

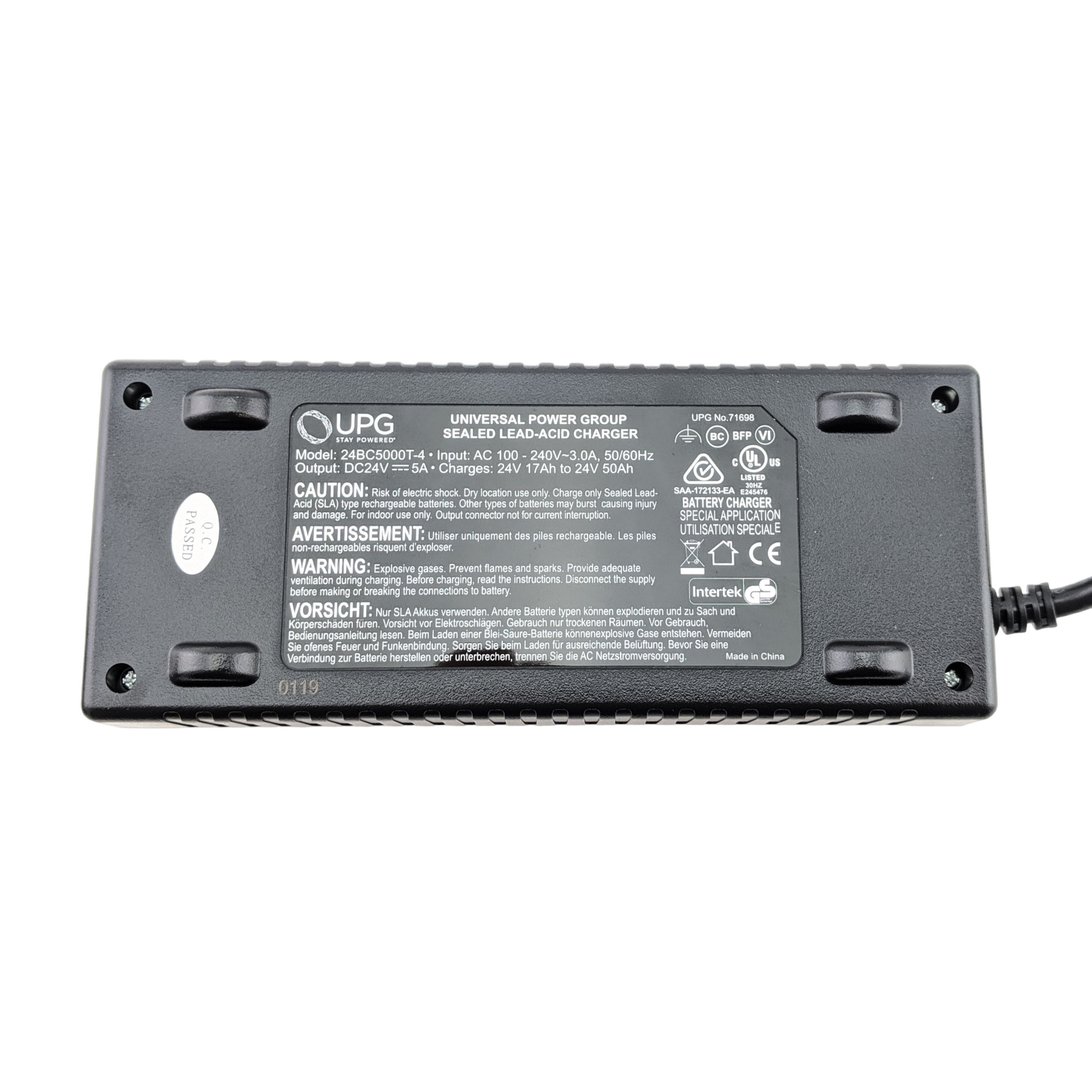

  • underside of charger
1 6

UPG

UPG 24V 5A Automatic Battery Charger, 3-Pin XLR for Mobility Scooters - 24BC5000T-4

UPG 24V 5A Automatic Battery Charger, 3-Pin XLR for Mobility Scooters - 24BC5000T-4

$79.95 USD
$79.95 USD
Our Price Sold Out
Free Shipping on Orders $40+ (Contiguous US Only) Shipping: Calculated at checkout Shipping Policy

In stock
  • 30 Day Return Policy
  • Fulfillment: Usually ships in 1-2 business days

Product Description

This automatic battery charger is designed for 24-volt mobility systems and features a 3-pin Male XLR connector. It supports both AGM and GEL battery types with specific charging profiles to ensure optimal battery health. The charger includes an "Auto-Restart" function that resumes the charge cycle if the battery voltage drops to 25.3 VDC, ensuring your equipment is always ready for use.

Manufacturer:
Universal Power Group (UPG)
Part Number:
24BC5000T-4 (71698). Pride Mobility Part Number: ELE1803474

Product Specifications
Input Voltage:
100 - 240Vac +/-10%
Input Frequency:
50 - 60 Hz
Input Power:
180W
Battery Charging Capacity:
15 - 50 Ah
Output Cord:
2m long, SJT type (Hard Usage) with XLR 3-pin Male Connector
Safety Standards:
UL, cUL: UL1012, CE: EN60335-1, EN60335-2-29, ANSI/RESNA, WC-2, ISO 7176 Section 14 Clause 9.2.7
Operation Temperature:
0°C to 40°C

Charging Logic & Features

AGM Battery Charge States:

  • High Current Fast Charge: Battery charges at 5000 mA fast charge current rate until battery voltage of 29.6V is reached.
  • Topping Charge: Battery charges at 29.6V constant voltage and current begins to taper until current is less than 1000 mA.
  • Precision Float Charge: The charger changes to the float state and holds the battery voltage at 27.3V.

GEL Battery Charge States:

  • High Current Fast Charge: Battery charges at 5000 mA fast charge current rate until battery voltage of 28.8V is reached.
  • Topping Charge: Battery charges at 28.8V constant voltage and current begins to taper until current is less than 1000 mA.
  • Precision Float Charge: The charger changes to the float state and holds the battery voltage at 26.7V.

System Protections
Over Voltage Protection:
DC 31V Max
Over Current Protection:
DC 6A Max
Short Circuit Protection:
Yes
Battery Polarity Reversal:
Yes
